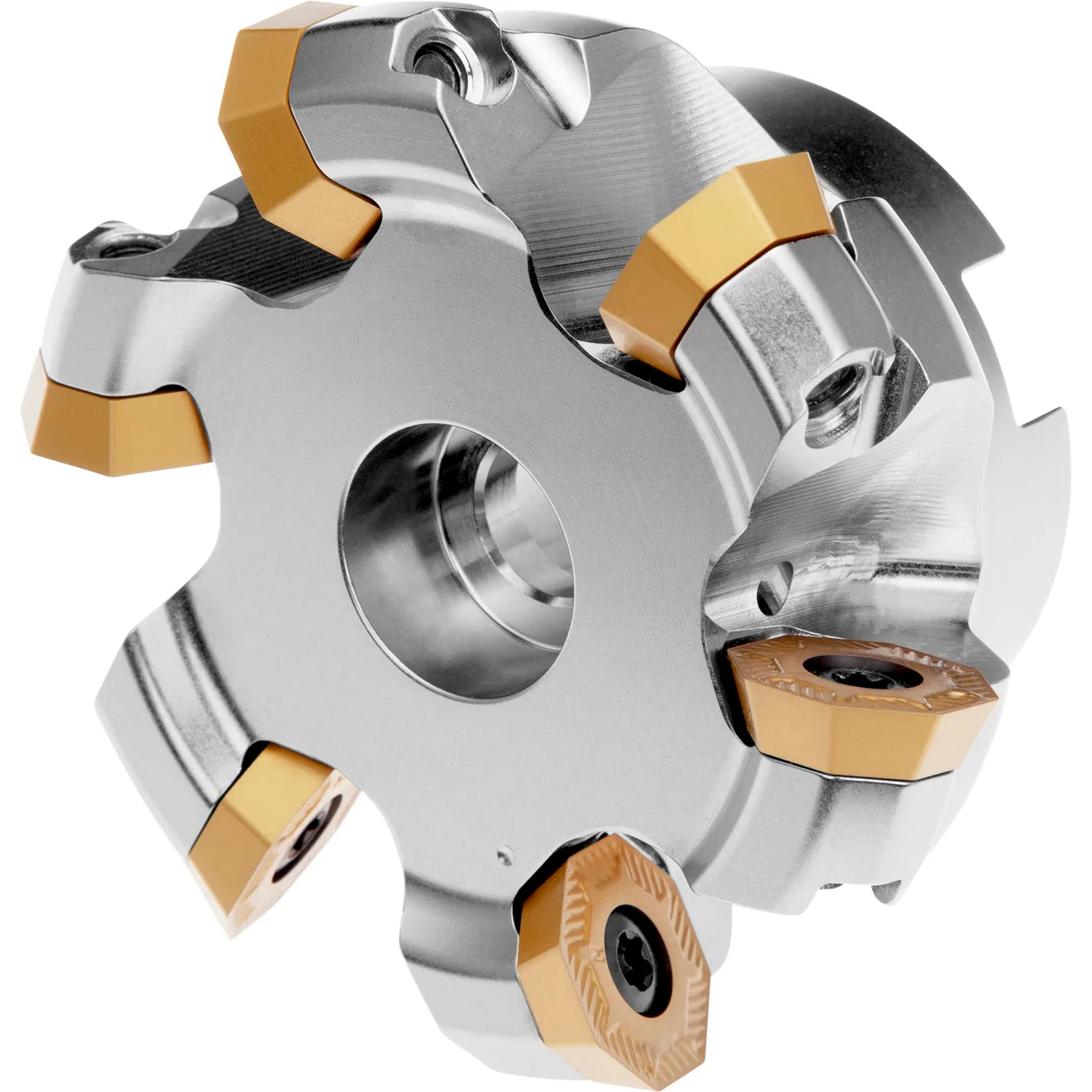

SOE06Z Universeller Planfräser in positiver Ausführung und Innenkühlung

Name: SOE06Z Universeller Planfräser in positiver Ausführung und Innenkühlung
SKU: 50A04R-S45OE06Z-C
Price: 431.69 EUR
Availability: InStock

PRAMET Tschechische Republik

431,69 €

excl. MwSt.

Produktinformationen

Planfräser mit doppelt positive Geometrie zum spannen von 4 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 50 bis maximal 60.2 mm mit 43° Anstellwinkel und 22 mm Verbindungsbohrung gemäß DIN 8030-A, 40 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm

Bestellcode (DP)
Schaft (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/SOE06Z_SA_CSP_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/SOE06Z_OP.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/50A04R-S45OE06Z-C_6922478_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/50A04R-S45OE06Z-C_6922478_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/50A05R-S45OE06Z-C_6922479_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/50A05R-S45OE06Z-C_6922479_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/56A05R-S45OE06Z-C_6922508_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/56A05R-S45OE06Z-C_6922508_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/63A04R-S45OE06Z-C_6922500_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/63A04R-S45OE06Z-C_6922500_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/63A06R-S45OE06Z-C_6922501_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/63A06R-S45OE06Z-C_6922501_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/70A06R-S45OE06Z-C_6922509_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/70A06R-S45OE06Z-C_6922509_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/80A05R-S45OE06Z-C_6922502_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/80A05R-S45OE06Z-C_6922502_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/80A06R-S45OE06Z-C_6922503_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/80A06R-S45OE06Z-C_6922503_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/90A07R-S45OE06Z-C_6922510_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/90A07R-S45OE06Z-C_6922510_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/100A06R-S45OE06Z-C_6922504_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/100A06R-S45OE06Z-C_6922504_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/100A08R-S45OE06Z-C_6922505_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/100A08R-S45OE06Z-C_6922505_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/125A07R-S45OE06Z-C_6922506_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/125A07R-S45OE06Z-C_6922506_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/125A09R-S45OE06Z-C_6922507_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/125A09R-S45OE06Z-C_6922507_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/SOE06Z_SC_CSP_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/160C09R-S45OE06Z-C_6931703_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/160C09R-S45OE06Z-C_6931703_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/160C12R-S45OE06Z-C_6931704_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/160C12R-S45OE06Z-C_6931704_3D.STP"],"p":{"483106":{"c":"50A04R-S45OE06Z-C","s":["Face mill with double positive geometry which utilises 4 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 50 to maximum 60.2 mm with 43° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm","Fraise à surfacer avec géométrie double-positive qui utilise 4 des OE.. 06...., RE.. 16.... ou XE.. 06.... positive plaquettes, diamètre de coupe 50 mm avec 43° d'angle d'attaque et 22 mm alésage de connexion selon DIN 8030-A, 40 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes et fraisage de chanfreins avec une profondeur de coupe maximum de 3.3 (9.9)mm","Planfräser mit doppelt positive Geometrie zum spannen von 4 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 50 bis maximal 60.2 mm mit 43° Anstellwinkel und 22 mm Verbindungsbohrung gemäß DIN 8030-A, 40 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["N","primary"],["S","primary"]],"f":[[0,"6922478"],[7,"1"],[14,"SOE06Z"],[16,"50A04R-S45OE06Z-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603072206"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"472.9"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"4.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOE06Z"],[98,"10.0"],[138,"22.0"],[160,"18.0"],[164,"50.0"],[166,"60.2"],[176,"Yes","Ja",null,null],[181,"3.3"],[211,"40.0"],[233,"4.0"],[240,"6.3"],[241,"10.4"],[262,"4.0"],[276,"6.0"],[279,"10700.0"],[313,"43.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",2],["3d",3]]},"483107":{"c":"50A05R-S45OE06Z-C","s":["Face mill with double positive geometry which utilises 5 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 50 to maximum 60 mm with 43° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm","Fraise à surfacer avec géométrie double-positive qui utilise 5 des OE.. 06...., RE.. 16.... ou XE.. 06.... positive plaquettes, diamètre de coupe 50 à un maximum de 60 mm avec 43° d'angle d'attaque et 22 mm alésage de connexion selon DIN 8030-A, 40 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes et fraisage de chanfreins avec une profondeur de coupe maximum de 3.3 (9.9)mm","Planfräser mit doppelt positive Geometrie zum spannen von 5 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 50 bis maximal 60 mm mit 43° Anstellwinkel und 22 mm Verbindungsbohrung gemäß DIN 8030-A, 40 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["N","primary"],["S","primary"]],"f":[[0,"6922479"],[7,"1"],[14,"SOE06Z"],[16,"50A05R-S45OE06Z-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603072213"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"473.5"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"5.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOE06Z"],[98,"10.0"],[138,"22.0"],[160,"18.0"],[164,"50.0"],[166,"60.0"],[176,"Yes","Ja",null,null],[181,"3.3"],[211,"40.0"],[233,"5.0"],[240,"6.3"],[241,"10.4"],[262,"5.0"],[276,"1.0"],[279,"10700.0"],[313,"43.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",4],["3d",5]]},"483108":{"c":"56A05R-S45OE06Z-C","s":["Face mill with double positive geometry which utilises 5 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 56 to maximum 66 mm with 43° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm","Fraise à surfacer avec géométrie double-positive qui utilise 5 des OE.. 06...., RE.. 16.... ou XE.. 06.... positive plaquettes, diamètre de coupe 56 à un maximum de 66 mm avec 43° d'angle d'attaque et 22 mm alésage de connexion selon DIN 8030-A, 40 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes et fraisage de chanfreins avec une profondeur de coupe maximum de 3.3 (9.9)mm","Planfräser mit doppelt positive Geometrie zum spannen von 5 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 56 bis maximal 66 mm mit 43° Anstellwinkel und 22 mm Verbindungsbohrung gemäß DIN 8030-A, 40 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["N","primary"],["S","primary"]],"f":[[0,"6922508"],[7,"1"],[14,"SOE06Z"],[16,"56A05R-S45OE06Z-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603072305"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"524.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"5.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOE06Z"],[98,"10.0"],[138,"22.0"],[160,"18.0"],[164,"56.0"],[166,"66.0"],[176,"Yes","Ja",null,null],[181,"3.3"],[211,"40.0"],[233,"5.0"],[240,"6.3"],[241,"10.4"],[262,"5.0"],[276,"6.0"],[279,"10100.0"],[313,"43.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",6],["3d",7]]},"483109":{"c":"63A04R-S45OE06Z-C","s":["Face mill with double positive geometry which utilises 4 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 63 to maximum 73.2 mm with 43° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm","Fraise à surfacer avec géométrie double-positive qui utilise 4 des OE.. 06...., RE.. 16.... ou XE.. 06.... positive plaquettes, diamètre de coupe 63 mm avec 43° d'angle d'attaque et 22 mm alésage de connexion selon DIN 8030-A, 40 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes et fraisage de chanfreins avec une profondeur de coupe maximum de 3.3 (9.9)mm","Planfräser mit doppelt positive Geometrie zum spannen von 4 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 63 bis maximal 73.2 mm mit 43° Anstellwinkel und 22 mm Verbindungsbohrung gemäß DIN 8030-A, 40 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["N","primary"],["S","primary"]],"f":[[0,"6922500"],[7,"1"],[14,"SOE06Z"],[16,"63A04R-S45OE06Z-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603072220"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"579.7"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"4.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOE06Z"],[98,"10.0"],[138,"22.0"],[160,"18.0"],[164,"63.0"],[166,"73.2"],[176,"Yes","Ja",null,null],[181,"3.3"],[211,"40.0"],[233,"4.0"],[240,"6.3"],[241,"10.4"],[262,"4.0"],[276,"6.0"],[279,"9600.0"],[313,"43.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",8],["3d",9]]},"483110":{"c":"63A06R-S45OE06Z-C","s":["Face mill with double positive geometry which utilises 6 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 63 to maximum 73 mm with 43° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm","Fraise à surfacer avec géométrie double-positive qui utilise 6 des OE.. 06...., RE.. 16.... ou XE.. 06.... positive plaquettes, diamètre de coupe 63 à un maximum de 73 mm avec 43° d'angle d'attaque et 22 mm alésage de connexion selon DIN 8030-A, 40 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes et fraisage de chanfreins avec une profondeur de coupe maximum de 3.3 (9.9)mm","Planfräser mit doppelt positive Geometrie zum spannen von 6 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 63 bis maximal 73 mm mit 43° Anstellwinkel und 22 mm Verbindungsbohrung gemäß DIN 8030-A, 40 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["N","primary"],["S","primary"]],"f":[[0,"6922501"],[7,"1"],[14,"SOE06Z"],[16,"63A06R-S45OE06Z-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603072237"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"600.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"6.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOE06Z"],[98,"10.0"],[138,"22.0"],[160,"18.0"],[164,"63.0"],[166,"73.0"],[176,"Yes","Ja",null,null],[181,"3.3"],[211,"40.0"],[233,"6.0"],[240,"6.3"],[241,"10.4"],[262,"6.0"],[276,"1.0"],[279,"9600.0"],[313,"43.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",10],["3d",11]]},"483111":{"c":"70A06R-S45OE06Z-C","s":["Face mill with double positive geometry which utilises 6 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 70 to maximum 80 mm with 43° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm","Fraise à surfacer avec géométrie double-positive qui utilise 6 des OE.. 06...., RE.. 16.... ou XE.. 06.... positive plaquettes, diamètre de coupe 70 à un maximum de 80 mm avec 43° d'angle d'attaque et 22 mm alésage de connexion selon DIN 8030-A, 40 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes et fraisage de chanfreins avec une profondeur de coupe maximum de 3.3 (9.9)mm","Planfräser mit doppelt positive Geometrie zum spannen von 6 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 70 bis maximal 80 mm mit 43° Anstellwinkel und 22 mm Verbindungsbohrung gemäß DIN 8030-A, 40 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["N","primary"],["S","primary"]],"f":[[0,"6922509"],[7,"1"],[14,"SOE06Z"],[16,"70A06R-S45OE06Z-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603072312"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"685.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"6.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOE06Z"],[98,"10.0"],[138,"22.0"],[160,"18.0"],[164,"70.0"],[166,"80.0"],[176,"Yes","Ja",null,null],[181,"3.3"],[211,"40.0"],[233,"6.0"],[240,"6.3"],[241,"10.4"],[262,"6.0"],[276,"6.0"],[279,"9100.0"],[313,"43.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",12],["3d",13]]},"483112":{"c":"80A05R-S45OE06Z-C","s":["Face mill with double positive geometry which utilises 5 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 80 to maximum 90.2 mm with 43° approach angle and 27 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm","Fraise à surfacer avec géométrie double-positive qui utilise 5 des OE.. 06...., RE.. 16.... ou XE.. 06.... positive plaquettes, diamètre de coupe 80 mm avec 43° d'angle d'attaque et 27 mm alésage de connexion selon DIN 8030-A, 50 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes et fraisage de chanfreins avec une profondeur de coupe maximum de 3.3 (9.9)mm","Planfräser mit doppelt positive Geometrie zum spannen von 5 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 80 bis maximal 90.2 mm mit 43° Anstellwinkel und 27 mm Verbindungsbohrung gemäß DIN 8030-A, 50 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["N","primary"],["S","primary"]],"f":[[0,"6922502"],[7,"1"],[14,"SOE06Z"],[16,"80A05R-S45OE06Z-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603072244"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"1011.2"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"5.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOE06Z"],[98,"10.0"],[138,"27.0"],[160,"38.0"],[164,"80.0"],[166,"90.2"],[176,"Yes","Ja",null,null],[181,"3.3"],[211,"50.0"],[233,"5.0"],[240,"7.0"],[241,"12.4"],[262,"5.0"],[276,"6.0"],[279,"8500.0"],[313,"43.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",14],["3d",15]]},"483113":{"c":"80A06R-S45OE06Z-C","s":["Face mill with double positive geometry which utilises 6 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 80 to maximum 90.2 mm with 43° approach angle and 27 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm","Fraise à surfacer avec géométrie double-positive qui utilise 6 des OE.. 06...., RE.. 16.... ou XE.. 06.... positive plaquettes, diamètre de coupe 80 mm avec 43° d'angle d'attaque et 27 mm alésage de connexion selon DIN 8030-A, 50 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes et fraisage de chanfreins avec une profondeur de coupe maximum de 3.3 (9.9)mm","Planfräser mit doppelt positive Geometrie zum spannen von 6 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 80 bis maximal 90.2 mm mit 43° Anstellwinkel und 27 mm Verbindungsbohrung gemäß DIN 8030-A, 50 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["N","primary"],["S","primary"]],"f":[[0,"6922503"],[7,"1"],[14,"SOE06Z"],[16,"80A06R-S45OE06Z-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603072251"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"1035.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"6.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOE06Z"],[98,"10.0"],[138,"27.0"],[160,"38.0"],[164,"80.0"],[166,"90.2"],[176,"Yes","Ja",null,null],[181,"3.3"],[211,"50.0"],[233,"6.0"],[240,"7.0"],[241,"12.4"],[262,"6.0"],[276,"6.0"],[279,"8500.0"],[313,"43.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",16],["3d",17]]},"483114":{"c":"90A07R-S45OE06Z-C","s":["Face mill with double positive geometry which utilises 7 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 90 to maximum 100 mm with 43° approach angle and 32 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm","Fraise à surfacer avec géométrie double-positive qui utilise 7 des OE.. 06...., RE.. 16.... ou XE.. 06.... positive plaquettes, diamètre de coupe 90 à un maximum de 100 mm avec 43° d'angle d'attaque et 32 mm alésage de connexion selon DIN 8030-A, 50 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes et fraisage de chanfreins avec une profondeur de coupe maximum de 3.3 (9.9)mm","Planfräser mit doppelt positive Geometrie zum spannen von 7 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 90 bis maximal 100 mm mit 43° Anstellwinkel und 32 mm Verbindungsbohrung gemäß DIN 8030-A, 50 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["N","primary"],["S","primary"]],"f":[[0,"6922510"],[7,"1"],[14,"SOE06Z"],[16,"90A07R-S45OE06Z-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603072329"],[21,"220.0"],[22,"222.0"],[23,"85.0"],[24,"1589.4"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"7.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOE06Z"],[98,"10.0"],[138,"32.0"],[160,"45.0"],[164,"90.0"],[166,"100.0"],[176,"Yes","Ja",null,null],[181,"3.3"],[211,"50.0"],[233,"7.0"],[240,"8.0"],[241,"14.4"],[262,"7.0"],[276,"6.0"],[279,"8000.0"],[313,"43.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",18],["3d",19]]},"483115":{"c":"100A06R-S45OE06Z-C","s":["Face mill with double positive geometry which utilises 6 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 100 to maximum 110.2 mm with 43° approach angle and 32 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm","Fraise à surfacer avec géométrie double-positive qui utilise 6 des OE.. 06...., RE.. 16.... ou XE.. 06.... positive plaquettes, diamètre de coupe 100 mm avec 43° d'angle d'attaque et 32 mm alésage de connexion selon DIN 8030-A, 50 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes et fraisage de chanfreins avec une profondeur de coupe maximum de 3.3 (9.9)mm","Planfräser mit doppelt positive Geometrie zum spannen von 6 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 100 bis maximal 110.2 mm mit 43° Anstellwinkel und 32 mm Verbindungsbohrung gemäß DIN 8030-A, 50 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["N","primary"],["S","primary"]],"f":[[0,"6922504"],[7,"1"],[14,"SOE06Z"],[16,"100A06R-S45OE06Z-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603072268"],[21,"220.0"],[22,"222.0"],[23,"85.0"],[24,"1852.6"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"6.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOE06Z"],[98,"10.0"],[138,"32.0"],[160,"45.0"],[164,"100.0"],[166,"110.2"],[176,"Yes","Ja",null,null],[181,"3.3"],[211,"50.0"],[233,"6.0"],[240,"8.0"],[241,"14.4"],[262,"6.0"],[276,"6.0"],[279,"7600.0"],[313,"43.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",20],["3d",21]]},"483116":{"c":"100A08R-S45OE06Z-C","s":["Face mill with double positive geometry which utilises 8 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 100 to maximum 109.9 mm with 43° approach angle and 32 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm","Fraise à surfacer avec géométrie double-positive qui utilise 8 des OE.. 06...., RE.. 16.... ou XE.. 06.... positive plaquettes, diamètre de coupe 100 mm avec 43° d'angle d'attaque et 32 mm alésage de connexion selon DIN 8030-A, 50 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes et fraisage de chanfreins avec une profondeur de coupe maximum de 3.3 (9.9)mm","Planfräser mit doppelt positive Geometrie zum spannen von 8 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 100 bis maximal 109.9 mm mit 43° Anstellwinkel und 32 mm Verbindungsbohrung gemäß DIN 8030-A, 50 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["N","primary"],["S","primary"]],"f":[[0,"6922505"],[7,"1"],[14,"SOE06Z"],[16,"100A08R-S45OE06Z-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603072275"],[21,"220.0"],[22,"222.0"],[23,"85.0"],[24,"1870.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"8.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOE06Z"],[98,"10.0"],[138,"32.0"],[160,"45.0"],[164,"100.0"],[166,"109.9"],[176,"Yes","Ja",null,null],[181,"3.3"],[211,"50.0"],[233,"8.0"],[240,"8.0"],[241,"14.4"],[262,"8.0"],[276,"1.0"],[279,"7600.0"],[313,"43.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",22],["3d",23]]},"483117":{"c":"125A07R-S45OE06Z-C","s":["Face mill with double positive geometry which utilises 7 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 125 to maximum 135.2 mm with 43° approach angle and 40 mm connection bore according to DIN 8030-A, 63 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm","Fraise à surfacer avec géométrie double-positive qui utilise 7 des OE.. 06...., RE.. 16.... ou XE.. 06.... positive plaquettes, diamètre de coupe 125 mm avec 43° d'angle d'attaque et 40 mm alésage de connexion selon DIN 8030-A, 63 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes et fraisage de chanfreins avec une profondeur de coupe maximum de 3.3 (9.9)mm","Planfräser mit doppelt positive Geometrie zum spannen von 7 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 125 bis maximal 135.2 mm mit 43° Anstellwinkel und 40 mm Verbindungsbohrung gemäß DIN 8030-A, 63 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["N","primary"],["S","primary"]],"f":[[0,"6922506"],[7,"1"],[14,"SOE06Z"],[16,"125A07R-S45OE06Z-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603072282"],[21,"220.0"],[22,"222.0"],[23,"85.0"],[24,"3308.7"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"7.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOE06Z"],[98,"10.0"],[138,"40.0"],[160,"56.0"],[164,"125.0"],[166,"135.2"],[176,"Yes","Ja",null,null],[181,"3.3"],[211,"63.0"],[233,"7.0"],[240,"9.0"],[241,"16.4"],[262,"7.0"],[276,"6.0"],[279,"6800.0"],[313,"43.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",24],["3d",25]]},"483118":{"c":"125A09R-S45OE06Z-C","s":["Face mill with double positive geometry which utilises 9 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 125 to maximum 134.9 mm with 43° approach angle and 40 mm connection bore according to DIN 8030-A, 63 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm","Fraise à surfacer avec géométrie double-positive qui utilise 9 des OE.. 06...., RE.. 16.... ou XE.. 06.... positive plaquettes, diamètre de coupe 125 mm avec 43° d'angle d'attaque et 40 mm alésage de connexion selon DIN 8030-A, 63 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes et fraisage de chanfreins avec une profondeur de coupe maximum de 3.3 (9.9)mm","Planfräser mit doppelt positive Geometrie zum spannen von 9 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 125 bis maximal 134.9 mm mit 43° Anstellwinkel und 40 mm Verbindungsbohrung gemäß DIN 8030-A, 63 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["N","primary"],["S","primary"]],"f":[[0,"6922507"],[7,"1"],[14,"SOE06Z"],[16,"125A09R-S45OE06Z-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603072299"],[21,"220.0"],[22,"222.0"],[23,"85.0"],[24,"3353.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"9.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOE06Z"],[98,"10.0"],[138,"40.0"],[160,"56.0"],[164,"125.0"],[166,"134.9"],[176,"Yes","Ja",null,null],[181,"3.3"],[211,"63.0"],[233,"9.0"],[240,"9.0"],[241,"16.4"],[262,"9.0"],[276,"1.0"],[279,"6800.0"],[313,"43.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",26],["3d",27]]},"483119":{"c":"160C09R-S45OE06Z-C","s":["Face mill with double positive geometry which utilises 9 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 160 to maximum 170.2 mm with 43° approach angle and 40 mm connection bore according to DIN 8030-C, 63 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm","Fraise à surfacer avec géométrie double-positive qui utilise 9 des OE.. 06...., RE.. 16.... ou XE.. 06.... positive plaquettes, diamètre de coupe 160 mm avec 43° d'angle d'attaque et 40 mm alésage de connexion selon DIN 8030-C, 63 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes et fraisage de chanfreins avec une profondeur de coupe maximum de 3.3 (9.9)mm","Planfräser mit doppelt positive Geometrie zum spannen von 9 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 160 bis maximal 170.2 mm mit 43° Anstellwinkel und 40 mm Verbindungsbohrung gemäß DIN 8030-C, 63 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["N","primary"],["S","primary"]],"f":[[0,"6931703"],[7,"1"],[14,"SOE06Z"],[16,"160C09R-S45OE06Z-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603078680"],[21,"220.0"],[22,"222.0"],[23,"85.0"],[24,"6079.5"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"9.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOE06Z"],[98,"10.0"],[138,"40.0"],[164,"160.0"],[166,"170.2"],[176,"Yes","Ja",null,null],[181,"3.3"],[187,"66.7"],[211,"63.0"],[233,"9.0"],[240,"9.0"],[241,"16.4"],[262,"9.0"],[276,"6.0"],[279,"6000.0"],[313,"43.0"]],"m":[["dimensions",28],["application",1]],"d":[["2d",29],["3d",30]]},"483120":{"c":"160C12R-S45OE06Z-C","s":["Face mill with double positive geometry which utilises 12 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 160 to maximum 169.9 mm with 43° approach angle and 40 mm connection bore according to DIN 8030-C, 63 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm","Fraise à surfacer avec géométrie double-positive qui utilise 12 des OE.. 06...., RE.. 16.... ou XE.. 06.... positive plaquettes, diamètre de coupe 160 mm avec 43° d'angle d'attaque et 40 mm alésage de connexion selon DIN 8030-C, 63 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes et fraisage de chanfreins avec une profondeur de coupe maximum de 3.3 (9.9)mm","Planfräser mit doppelt positive Geometrie zum spannen von 12 Stück OE.. 06...., RE.. 16.... oder XE.. 06.... einseitigen Wendeschneidplatten, Schnittdurchmesser 160 bis maximal 169.9 mm mit 43° Anstellwinkel und 40 mm Verbindungsbohrung gemäß DIN 8030-C, 63 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.3 (9.9)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["N","primary"],["S","primary"]],"f":[[0,"6931704"],[7,"1"],[14,"SOE06Z"],[16,"160C12R-S45OE06Z-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603078697"],[21,"220.0"],[22,"222.0"],[23,"85.0"],[24,"6000.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"12.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOE06Z"],[98,"10.0"],[138,"40.0"],[164,"160.0"],[166,"169.9"],[176,"Yes","Ja",null,null],[181,"3.3"],[187,"66.7"],[211,"63.0"],[233,"12.0"],[240,"9.0"],[241,"16.4"],[262,"12.0"],[276,"1.0"],[279,"6000.0"],[313,"43.0"]],"m":[["dimensions",28],["application",1]],"d":[["2d",31],["3d",32]]}}}

In den Warenkorb

Auf die Wunschliste

Allgemeine Geschäftsbedingungen
Geschäftliche Rücksendungen nur nach vorheriger Genehmigung
Lieferung: 3-4 Werktage. Belgien und Luxemburg: 1 Werktag. Kontaktieren Sie uns für Lieferzeit und Verfügbarkeit.

Spezifikationen

Bestellcode (DP)	50A04R-S45OE06Z-C, 50A05R-S45OE06Z-C, 56A05R-S45OE06Z-C, 63A04R-S45OE06Z-C, 63A06R-S45OE06Z-C, 70A06R-S45OE06Z-C, 80A05R-S45OE06Z-C, 80A06R-S45OE06Z-C, 90A07R-S45OE06Z-C, 100A06R-S45OE06Z-C, 100A08R-S45OE06Z-C, 125A07R-S45OE06Z-C, 125A09R-S45OE06Z-C, 160C09R-S45OE06Z-C, 160C12R-S45OE06Z-C
Schaft (DP)	Aufsteckfräser DIN 8030 A
