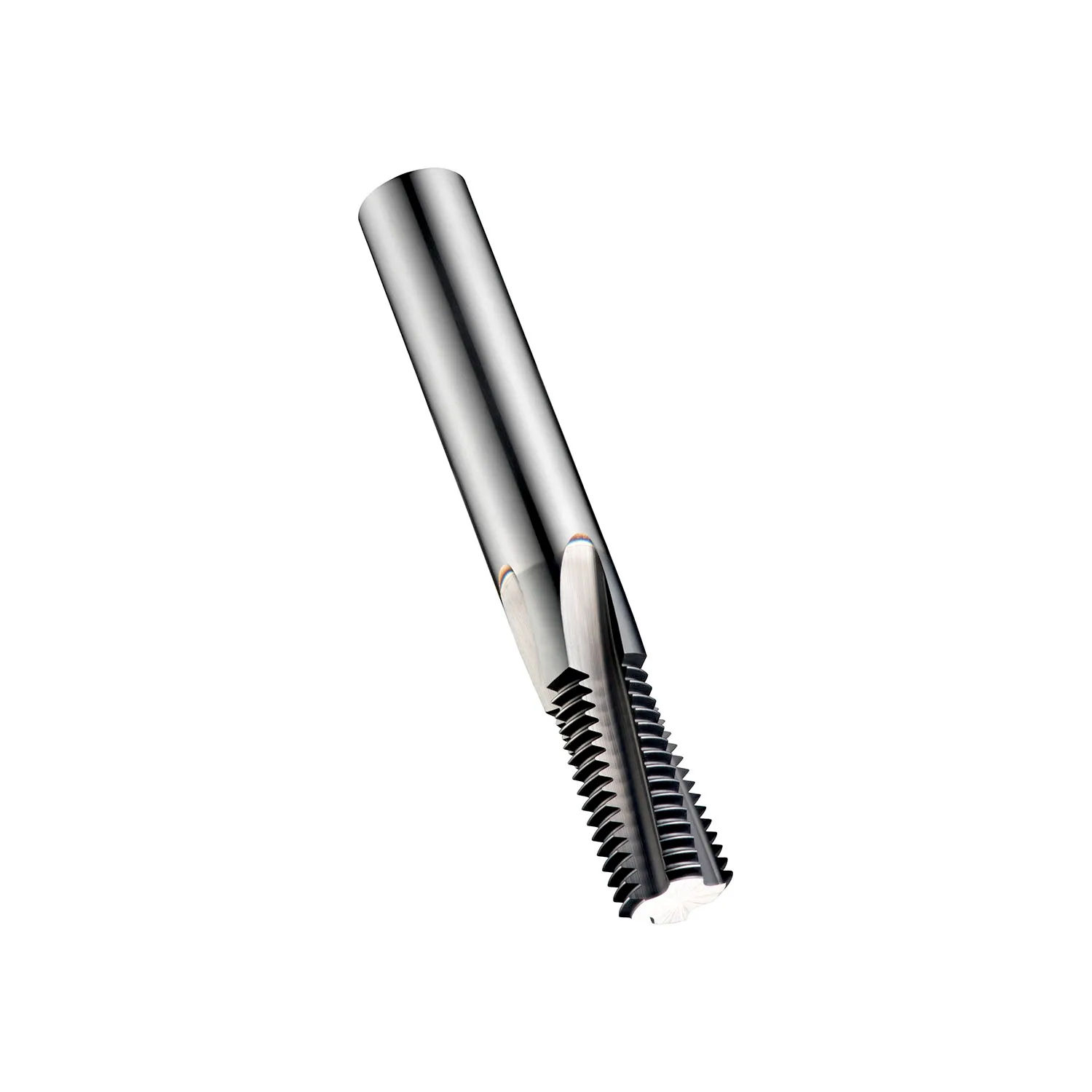

J220 VHM-Gewindefräser, metrisch-fein

Name: J220 VHM-Gewindefräser, metrisch-fein
SKU: J2204.8X.5
Price: 115.50 EUR
Availability: InStock

DORMER Deutschland

115,50 €

excl. MwSt.

Produktinformationen

Universelles Hochleistungswerkzeug zur Bearbeitung gleicher oder größerer Durchmesser bei gleicher Steigung. Links oder rechtsgängig, Durchgangs- oder Sacklöcher fast bis zum Boden. Alcrona Pro beschichtet für das beste Bearbeitungsergebnis in einer Vielzahl von Materialien.

Gewindenorm
Gewindenorm
Beschichtung (DP)
Schaft (DP)
Ausführung (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/J220_DIM.png"],"p":{"470273":{"c":"J2204.8X.5","s":["Thread milling cutter, for ISO-Metric Fine thread ≥ M6 with 0.50 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 4.8 mm cutting diameter and 6 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 10 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric Fine thread ≥ M6 with 0.50 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 4.8 mm cutting diameter and 6 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 10 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Feingewinde ≥ M6 mit 0.50 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 3 Schneiden, 4.8 mm Schneidendurchmesser und 6 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 10° Helixwinkel zum fräsen von maximal 10 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821322"],[7,"1"],[14,"J220"],[16,"J2204.8X.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760689004"],[21,"17.0"],[22,"87.0"],[23,"17.0"],[24,"24.0"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"1.5"],[37,"3.0"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"10"],[50,"Right","Rechts","A droite","Rechts"],[138,"6.0"],[164,"4.8"],[181,"10.0"],[260,"57.0"],[300,"M6"],[302,"0.5"]],"m":[["dimensions",0]],"d":[],"x":[971645]},"470274":{"c":"J2206.0X.75","s":["Thread milling cutter, for ISO-Metric Fine thread ≥ M8 with 0.75 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 6 mm cutting diameter and 6 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 12 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric Fine thread ≥ M8 with 0.75 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 6 mm cutting diameter and 6 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 12 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Feingewinde ≥ M8 mit 0.75 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 3 Schneiden, 6 mm Schneidendurchmesser und 6 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 10° Helixwinkel zum fräsen von maximal 12 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821323"],[7,"1"],[14,"J220"],[16,"J2206.0X.75"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760689011"],[21,"17.0"],[22,"85.0"],[23,"17.0"],[24,"25.6"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"1.5"],[37,"3.0"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"10"],[50,"Right","Rechts","A droite","Rechts"],[138,"6.0"],[164,"6.0"],[181,"12.0"],[260,"57.0"],[300,"M8"],[302,"0.75"]],"m":[["dimensions",0]],"d":[],"x":[971646]},"470275":{"c":"J2206.0X1.0","s":["Thread milling cutter, for ISO-Metric Fine thread ≥ M8 with 1.00 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 6 mm cutting diameter and 6 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 12 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric Fine thread ≥ M8 with 1.00 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 6 mm cutting diameter and 6 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 12 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Feingewinde ≥ M8 mit 1.00 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 3 Schneiden, 6 mm Schneidendurchmesser und 6 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 10° Helixwinkel zum fräsen von maximal 12 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821324"],[7,"1"],[14,"J220"],[16,"J2206.0X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760689028"],[21,"17.0"],[22,"90.0"],[23,"17.0"],[24,"26.0"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"1.5"],[37,"3.0"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"10"],[50,"Right","Rechts","A droite","Rechts"],[138,"6.0"],[164,"6.0"],[181,"12.0"],[260,"57.0"],[300,"M8"],[302,"1.0"]],"m":[["dimensions",0]],"d":[],"x":[971647]},"470276":{"c":"J2208.0X1.0","s":["Thread milling cutter, for ISO-Metric Fine thread ≥ M10 with 1.00 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 8 mm cutting diameter and 8 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 16 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric Fine thread ≥ M10 with 1.00 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 8 mm cutting diameter and 8 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 16 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Feingewinde ≥ M10 mit 1.00 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 4 Schneiden, 8 mm Schneidendurchmesser und 8 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 10° Helixwinkel zum fräsen von maximal 16 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821325"],[7,"1"],[14,"J220"],[16,"J2208.0X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760689035"],[21,"17.0"],[22,"90.0"],[23,"17.0"],[24,"44.1"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"1.5"],[37,"4.0"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"10"],[50,"Right","Rechts","A droite","Rechts"],[138,"8.0"],[164,"8.0"],[181,"16.0"],[260,"63.0"],[300,"M10"],[302,"1.0"]],"m":[["dimensions",0]],"d":[],"x":[971648]},"470277":{"c":"J22010.0X1.0","s":["Thread milling cutter, for ISO-Metric Fine thread ≥ M12 with 1.00 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 10 mm cutting diameter and 10 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 20 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric Fine thread ≥ M12 with 1.00 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 10 mm cutting diameter and 10 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 20 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Feingewinde ≥ M12 mit 1.00 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 4 Schneiden, 10 mm Schneidendurchmesser und 10 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 10° Helixwinkel zum fräsen von maximal 20 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821312"],[7,"1"],[14,"J220"],[16,"J22010.0X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688908"],[21,"17.0"],[22,"85.0"],[23,"17.0"],[24,"75.0"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"1.5"],[37,"4.0"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"10"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[164,"10.0"],[181,"20.0"],[260,"72.0"],[300,"M12"],[302,"1.0"]],"m":[["dimensions",0]],"d":[],"x":[971649]},"470278":{"c":"J22010.0X1.5","s":["Thread milling cutter, for ISO-Metric Fine thread ≥ M12 with 1.50 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 10 mm cutting diameter and 10 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 20 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric Fine thread ≥ M12 with 1.50 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 10 mm cutting diameter and 10 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 20 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Feingewinde ≥ M12 mit 1.50 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 4 Schneiden, 10 mm Schneidendurchmesser und 10 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 10° Helixwinkel zum fräsen von maximal 20 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821313"],[7,"1"],[14,"J220"],[16,"J22010.0X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688915"],[21,"17.0"],[22,"85.0"],[23,"17.0"],[24,"74.0"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"1.5"],[37,"4.0"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"10"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[164,"10.0"],[181,"20.0"],[260,"72.0"],[300,"M12"],[302,"1.5"]],"m":[["dimensions",0]],"d":[],"x":[971650]},"470279":{"c":"J22012.0X1.0","s":["Thread milling cutter, for ISO-Metric Fine thread ≥ M14 with 1.00 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 12 mm cutting diameter and 12 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 22 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric Fine thread ≥ M14 with 1.00 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 12 mm cutting diameter and 12 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 22 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Feingewinde ≥ M14 mit 1.00 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 4 Schneiden, 12 mm Schneidendurchmesser und 12 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 10° Helixwinkel zum fräsen von maximal 22 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821314"],[7,"1"],[14,"J220"],[16,"J22012.0X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688922"],[21,"21.0"],[22,"90.0"],[23,"21.0"],[24,"124.0"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"1.5"],[37,"4.0"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"10"],[50,"Right","Rechts","A droite","Rechts"],[138,"12.0"],[164,"12.0"],[181,"22.0"],[260,"83.0"],[300,"M14"],[302,"1.0"]],"m":[["dimensions",0]],"d":[],"x":[971651]},"470280":{"c":"J22012.0X1.5","s":["Thread milling cutter, for ISO-Metric Fine thread ≥ M14 with 1.50 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 12 mm cutting diameter and 12 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 22 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric Fine thread ≥ M14 with 1.50 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 12 mm cutting diameter and 12 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 22 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Feingewinde ≥ M14 mit 1.50 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 4 Schneiden, 12 mm Schneidendurchmesser und 12 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 10° Helixwinkel zum fräsen von maximal 22 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821315"],[7,"1"],[14,"J220"],[16,"J22012.0X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688939"],[21,"21.0"],[22,"90.0"],[23,"21.0"],[24,"124.5"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"1.5"],[37,"4.0"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"10"],[50,"Right","Rechts","A droite","Rechts"],[138,"12.0"],[164,"12.0"],[181,"22.0"],[260,"83.0"],[300,"M14"],[302,"1.5"]],"m":[["dimensions",0]],"d":[],"x":[971652]},"470281":{"c":"J22014.0X1.0","s":["Thread milling cutter, for ISO-Metric Fine thread ≥ M16 with 1.00 mm pitch, dimensions according to Dormer Pramet standard with 5 flutes, 14 mm cutting diameter and 14 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 26 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric Fine thread ≥ M16 with 1.00 mm pitch, dimensions according to Dormer Pramet standard with 5 flutes, 14 mm cutting diameter and 14 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 26 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Feingewinde ≥ M16 mit 1.00 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 5 Schneiden, 14 mm Schneidendurchmesser und 14 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 10° Helixwinkel zum fräsen von maximal 26 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821316"],[7,"1"],[14,"J220"],[16,"J22014.0X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688946"],[21,"21.0"],[22,"90.0"],[23,"21.0"],[24,"168.4"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"1.5"],[37,"5.0"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"10"],[50,"Right","Rechts","A droite","Rechts"],[138,"14.0"],[164,"14.0"],[181,"26.0"],[260,"83.0"],[300,"M16"],[302,"1.0"]],"m":[["dimensions",0]],"d":[],"x":[971653]},"470282":{"c":"J22014.0X1.5","s":["Thread milling cutter, for ISO-Metric Fine thread ≥ M16 with 1.50 mm pitch, dimensions according to Dormer Pramet standard with 5 flutes, 14 mm cutting diameter and 14 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 26 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric Fine thread ≥ M16 with 1.50 mm pitch, dimensions according to Dormer Pramet standard with 5 flutes, 14 mm cutting diameter and 14 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 26 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Feingewinde ≥ M16 mit 1.50 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 5 Schneiden, 14 mm Schneidendurchmesser und 14 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 10° Helixwinkel zum fräsen von maximal 26 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821317"],[7,"1"],[14,"J220"],[16,"J22014.0X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688953"],[21,"21.0"],[22,"90.0"],[23,"21.0"],[24,"159.2"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"1.5"],[37,"5.0"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"10"],[50,"Right","Rechts","A droite","Rechts"],[138,"14.0"],[164,"14.0"],[181,"26.0"],[260,"83.0"],[300,"M16"],[302,"1.5"]],"m":[["dimensions",0]],"d":[],"x":[971654]},"470283":{"c":"J22016.0X2.0","s":["Thread milling cutter, for ISO-Metric Fine thread ≥ M20 with 2.00 mm pitch, dimensions according to Dormer Pramet standard with 5 flutes, 16 mm cutting diameter and 16 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 30 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric Fine thread ≥ M20 with 2.00 mm pitch, dimensions according to Dormer Pramet standard with 5 flutes, 16 mm cutting diameter and 16 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 30 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Feingewinde ≥ M20 mit 2.00 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 5 Schneiden, 16 mm Schneidendurchmesser und 16 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 10° Helixwinkel zum fräsen von maximal 30 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821318"],[7,"1"],[14,"J220"],[16,"J22016.0X2.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688960"],[21,"22.0"],[22,"90.0"],[23,"22.0"],[24,"237.0"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"1.5"],[37,"5.0"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"10"],[50,"Right","Rechts","A droite","Rechts"],[138,"16.0"],[164,"16.0"],[181,"30.0"],[260,"92.0"],[300,"M20"],[302,"2.0"]],"m":[["dimensions",0]],"d":[],"x":[971655]},"470284":{"c":"J22016.0X2.5","s":["Thread milling cutter, for ISO-Metric Fine thread ≥ M20 with 2.50 mm pitch, dimensions according to Dormer Pramet standard with 5 flutes, 16 mm cutting diameter and 16 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 42.5 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric Fine thread ≥ M20 with 2.50 mm pitch, dimensions according to Dormer Pramet standard with 5 flutes, 16 mm cutting diameter and 16 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 42.5 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Feingewinde ≥ M20 mit 2.50 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 5 Schneiden, 16 mm Schneidendurchmesser und 16 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 10° Helixwinkel zum fräsen von maximal 42.5 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821319"],[7,"1"],[14,"J220"],[16,"J22016.0X2.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688977"],[21,"25.0"],[22,"112.0"],[23,"25.0"],[24,"242.9"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"1.5"],[37,"5.0"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"10"],[50,"Right","Rechts","A droite","Rechts"],[138,"16.0"],[164,"16.0"],[181,"42.5"],[260,"105.0"],[300,"M20"],[302,"2.5"]],"m":[["dimensions",0]],"d":[],"x":[971656]},"470285":{"c":"J22019.0X3.0","s":["Thread milling cutter, for ISO-Metric Fine thread ≥ M24 with 3.00 mm pitch, dimensions according to Dormer Pramet standard with 5 flutes, 19 mm cutting diameter and 20 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 50 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric Fine thread ≥ M24 with 3.00 mm pitch, dimensions according to Dormer Pramet standard with 5 flutes, 19 mm cutting diameter and 20 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 50 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Feingewinde ≥ M24 mit 3.00 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 5 Schneiden, 19 mm Schneidendurchmesser und 20 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 10° Helixwinkel zum fräsen von maximal 50 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821320"],[7,"1"],[14,"J220"],[16,"J22019.0X3.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688984"],[21,"30.0"],[22,"132.0"],[23,"30.0"],[24,"455.0"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"1.5"],[37,"5.0"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"10"],[50,"Right","Rechts","A droite","Rechts"],[138,"20.0"],[164,"19.0"],[181,"50.0"],[260,"125.0"],[300,"M24"],[302,"3.0"]],"m":[["dimensions",0]],"d":[],"x":[971657]},"470286":{"c":"J22020.0X2.0","s":["Thread milling cutter, for ISO-Metric Fine thread ≥ M24 with 2.00 mm pitch, dimensions according to Dormer Pramet standard with 5 flutes, 20 mm cutting diameter and 20 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 35 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric Fine thread ≥ M24 with 2.00 mm pitch, dimensions according to Dormer Pramet standard with 5 flutes, 20 mm cutting diameter and 20 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 35 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Feingewinde ≥ M24 mit 2.00 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 5 Schneiden, 20 mm Schneidendurchmesser und 20 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 10° Helixwinkel zum fräsen von maximal 35 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821321"],[7,"1"],[14,"J220"],[16,"J22020.0X2.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688991"],[21,"30.0"],[22,"110.0"],[23,"30.0"],[24,"398.4"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"1.5"],[37,"5.0"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"10"],[50,"Right","Rechts","A droite","Rechts"],[138,"20.0"],[164,"20.0"],[181,"35.0"],[260,"104.0"],[300,"M24"],[302,"2.0"]],"m":[["dimensions",0]],"d":[],"x":[971658]}}}

In den Warenkorb

Auf die Wunschliste

Allgemeine Geschäftsbedingungen
Geschäftliche Rücksendungen nur nach vorheriger Genehmigung
Lieferung: 3-4 Werktage. Belgien und Luxemburg: 1 Werktag. Kontaktieren Sie uns für Lieferzeit und Verfügbarkeit.

Spezifikationen

Ausführung (DP)	4.8X.5, 6.0X.75, 6.0X1.0, 8.0X1.0, 10.0X1.0, 10.0X1.5, 12.0X1.0, 12.0X1.5, 14.0X1.0, 14.0X1.5, 16.0X2.0, 16.0X2.5, 19.0X3.0, 20.0X2.0
Gewindenorm	MF - Metrisches Feingewinde, MF - Metrisches Feingewinde
Beschichtung (DP)	Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)
Schaft (DP)	DIN 6535 HA Zylindrischer Schaft
