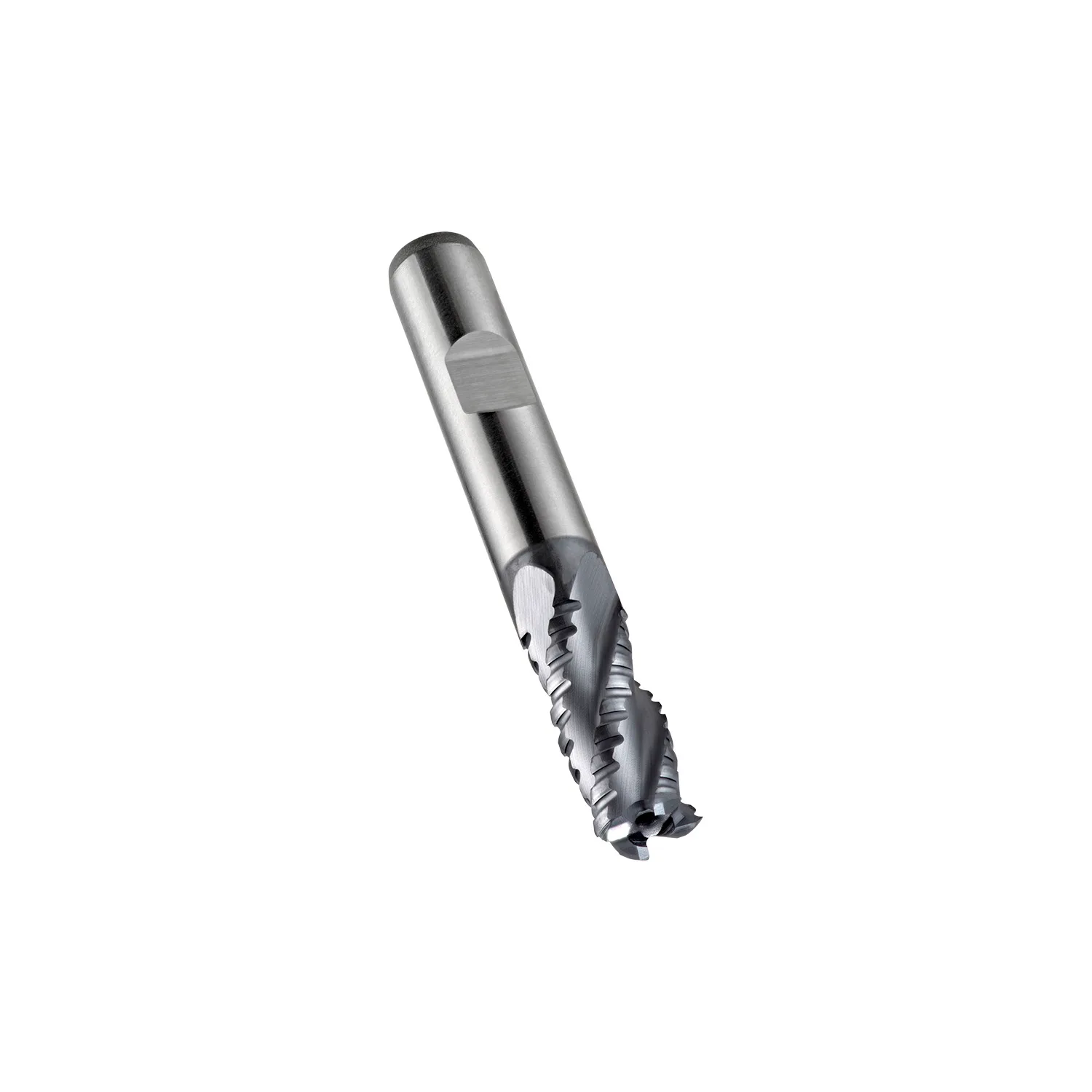

C413 Vierschneidiger HSS-E Schaftfräser zum Schruppen, TiCN-Beschichtung

Name: C413 Vierschneidiger HSS-E Schaftfräser zum Schruppen, TiCN-Beschichtung
SKU: C4136.0
Price: 41.16 EUR
Availability: InStock

DORMER Polen

41,16 €

excl. MwSt.

Produktinformationen

Kurze Schneidenlänge, 4-Schneiden-Design nur für periphere Schruppvorgänge. Das NF-Profil bricht Späne für eine effiziente Schruppanwendung. Eine 30 ° -Spiralnut reduziert Vibrationen und verbessert die Leistung beim Schruppen. Die TiCN-Beschichtung verlängert die Lebensdauer des Fräsers und verbessert die Leistung beim Fräsen von harten und abrasiven Materialien.

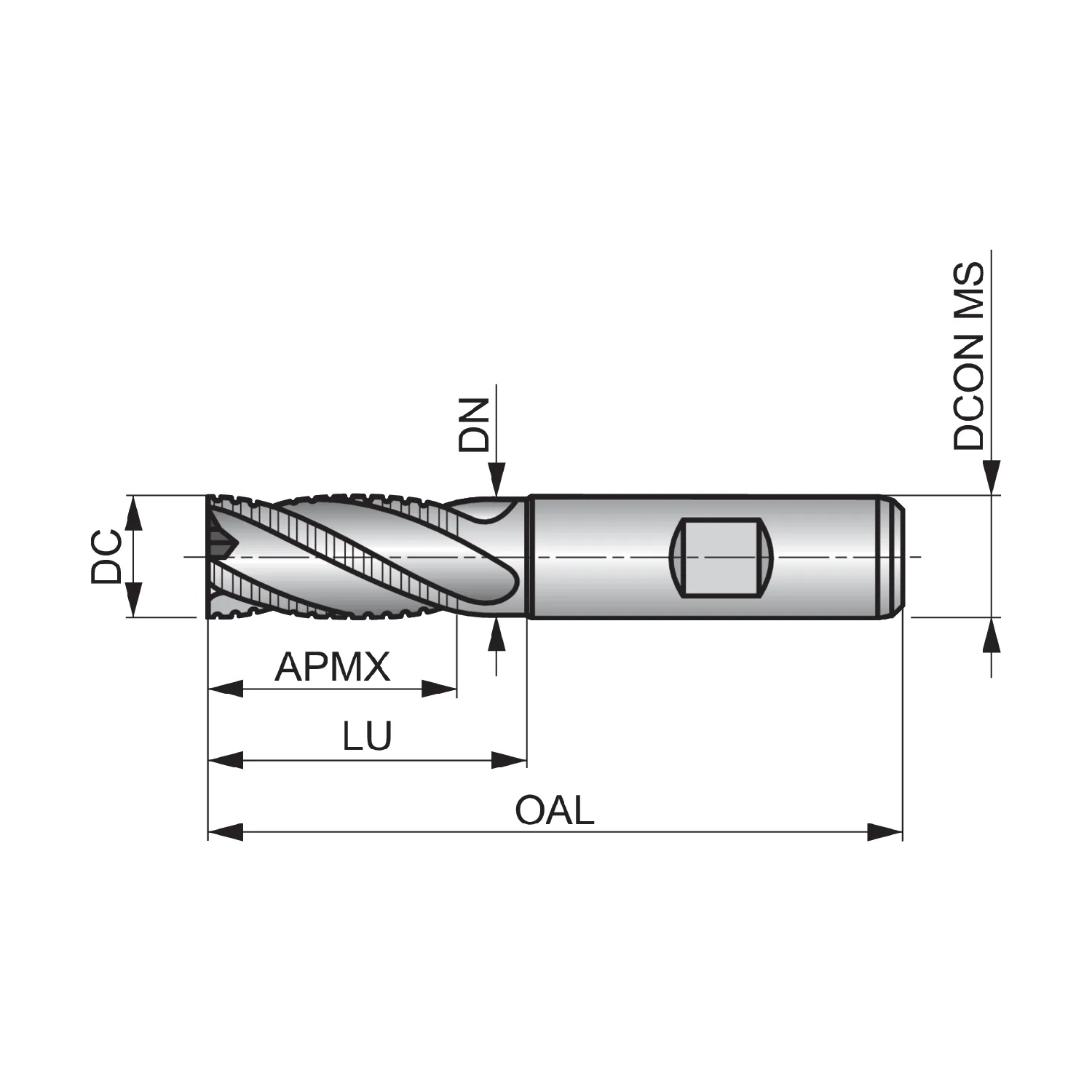

Durchmesser (DC)
Beschichtung (DP)
Schaft (DP)
Toleranz (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/C413_DIM.png"],"p":{"463593":{"c":"C4136.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 6 mm with 13 mm length of cut and 57 mm overall length, according to DIN 844 K standard with a 6 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 6 mm with 13 mm length of cut and 57 mm overall length, according to DIN 844 K standard with a 6 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 6 mm mit 13 mm Schnittlänge und 57 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 6 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984416"],[7,"1"],[14,"C413"],[16,"C4136.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760069097"],[21,"11.6"],[22,"82.0"],[23,"6.0"],[24,"13.3"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[53,"Yes","Ja",null,null],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"6.0"],[142,"h6"],[164,"6.0"],[181,"13.0"],[252,"6.0"],[254,"16.0"],[260,"57.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964589]},"463594":{"c":"C4138.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 8 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 8 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 8 mm mit 19 mm Schnittlänge und 69 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984419"],[7,"1"],[14,"C413"],[16,"C4138.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760069103"],[21,"16.58"],[22,"88.58"],[23,"13.57"],[24,"38.0"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[53,"Yes","Ja",null,null],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"8.0"],[181,"19.0"],[252,"8.0"],[254,"19.1"],[260,"69.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964590]},"463595":{"c":"C41310.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 10 mm with 22 mm length of cut and 72 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 10 mm with 22 mm length of cut and 72 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 10 mm mit 22 mm Schnittlänge und 72 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984409"],[7,"1"],[14,"C413"],[16,"C41310.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760068960"],[21,"16.0"],[22,"88.0"],[23,"14.0"],[24,"43.7"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"10.0"],[181,"22.0"],[260,"72.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964591]},"463596":{"c":"C41312.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 12 mm with 26 mm length of cut and 83 mm overall length, according to DIN 844 K standard with a 12 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 12 mm with 26 mm length of cut and 83 mm overall length, according to DIN 844 K standard with a 12 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 12 mm mit 26 mm Schnittlänge und 83 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984448"],[7,"1"],[14,"C413"],[16,"C41312.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760068977"],[21,"17.74"],[22,"87.26"],[23,"17.49"],[24,"68.0"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"12.0"],[181,"26.0"],[260,"83.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964592]},"463597":{"c":"C41314.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 14 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 14 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 14 mm mit 26 mm Schnittlänge, 83 mm Gesamtlänge und 37.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984499"],[7,"1"],[14,"C413"],[16,"C41314.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760068984"],[21,"18.0"],[22,"86.0"],[23,"16.0"],[24,"74.0"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[53,"Yes","Ja",null,null],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"14.0"],[181,"26.0"],[252,"11.5"],[254,"37.0"],[260,"83.0"],[276,"12.0"],[318,"37.5"]],"m":[["dimensions",0]],"d":[],"x":[964593]},"463598":{"c":"C41316.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 16 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 16 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 16 mm mit 32 mm Schnittlänge, 92 mm Gesamtlänge und 43.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 16 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984550"],[7,"1"],[14,"C413"],[16,"C41316.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760069004"],[21,"21.3"],[22,"94.0"],[23,"20.0"],[24,"131.8"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[53,"Yes","Ja",null,null],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"16.0"],[142,"h6"],[164,"16.0"],[181,"32.0"],[252,"15.5"],[254,"43.0"],[260,"92.0"],[276,"12.0"],[318,"43.5"]],"m":[["dimensions",0]],"d":[],"x":[964594]},"463599":{"c":"C41318.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 18 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 18 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 18 mm mit 32 mm Schnittlänge, 92 mm Gesamtlänge und 43.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 16 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984600"],[7,"1"],[14,"C413"],[16,"C41318.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760069011"],[21,"21.6"],[22,"94.81"],[23,"21.6"],[24,"138.3"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[53,"Yes","Ja",null,null],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"16.0"],[142,"h6"],[164,"18.0"],[181,"32.0"],[252,"15.5"],[254,"43.0"],[260,"92.0"],[276,"12.0"],[318,"43.5"]],"m":[["dimensions",0]],"d":[],"x":[964595]},"463600":{"c":"C41320.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 20 mm with 38 mm length of cut, 104 mm overall length and 53.5 mm reach with neck relief, according to DIN 844 K standard with a 20 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 20 mm with 38 mm length of cut, 104 mm overall length and 53.5 mm reach with neck relief, according to DIN 844 K standard with a 20 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 20 mm mit 38 mm Schnittlänge, 104 mm Gesamtlänge und 53.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 20 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984608"],[7,"1"],[14,"C413"],[16,"C41320.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760069028"],[21,"24.56"],[22,"110.75"],[23,"24.96"],[24,"220.0"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[53,"Yes","Ja",null,null],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"20.0"],[142,"h6"],[164,"20.0"],[181,"38.0"],[252,"19.0"],[254,"53.0"],[260,"104.0"],[276,"12.0"],[318,"53.5"]],"m":[["dimensions",0]],"d":[],"x":[964596]}}}

In den Warenkorb

Auf die Wunschliste

Allgemeine Geschäftsbedingungen
Geschäftliche Rücksendungen nur nach vorheriger Genehmigung
Lieferung: 3-4 Werktage. Belgien und Luxemburg: 1 Werktag. Kontaktieren Sie uns für Lieferzeit und Verfügbarkeit.

Spezifikationen

Durchmesser (DC)	6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm
Beschichtung (DP)	Titan-Carbonnitrid-Beschichtung
Schaft (DP)	DIN 1835B – Weldon-Schaft
Toleranz (DP)	k12
