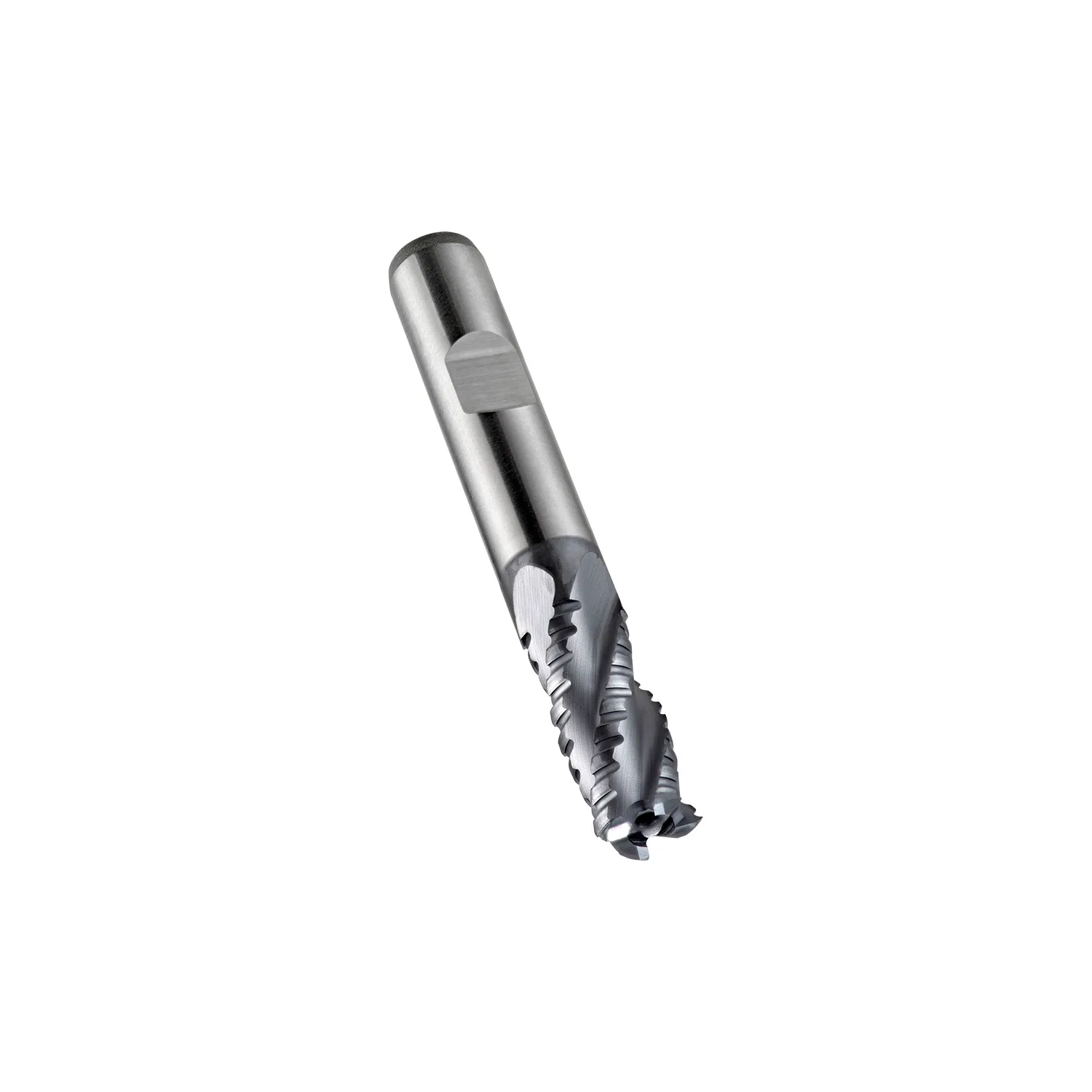

C413 HSS-E Ruwfrees

Name: C413 HSS-E Ruwfrees
SKU: C4136.0
Price: 41.16 EUR
Availability: InStock

DORMER Polen

41,16 €

excl. BTW

Productinformatie

Korte snijlengte, 4-sneden ontwerp uitsluitend voor perifere voorbewerkingen. Het NF-profiel breekt spanen voor een efficiënte voorbewerkingstoepassing. Een helixhoek van 30° reduceert trillingen en verbetert de prestaties bij het voorbewerken. TiCN coating verhoogt de levensduur van de frees en verbetert de prestaties bij het frezen van harde en abrasieve materialen.

Diameter (DC)
Coating (DP)
Schacht (DP)
Tolerantie (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/C413_DIM.png"],"p":{"463593":{"c":"C4136.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 6 mm with 13 mm length of cut and 57 mm overall length, according to DIN 844 K standard with a 6 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 6 mm with 13 mm length of cut and 57 mm overall length, according to DIN 844 K standard with a 6 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 6 mm mit 13 mm Schnittlänge und 57 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 6 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984416"],[7,"1"],[14,"C413"],[16,"C4136.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760069097"],[21,"11.6"],[22,"82.0"],[23,"6.0"],[24,"13.3"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[53,"Yes","Ja",null,null],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"6.0"],[142,"h6"],[164,"6.0"],[181,"13.0"],[252,"6.0"],[254,"16.0"],[260,"57.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964589]},"463594":{"c":"C4138.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 8 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 8 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 8 mm mit 19 mm Schnittlänge und 69 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984419"],[7,"1"],[14,"C413"],[16,"C4138.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760069103"],[21,"16.58"],[22,"88.58"],[23,"13.57"],[24,"38.0"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[53,"Yes","Ja",null,null],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"8.0"],[181,"19.0"],[252,"8.0"],[254,"19.1"],[260,"69.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964590]},"463595":{"c":"C41310.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 10 mm with 22 mm length of cut and 72 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 10 mm with 22 mm length of cut and 72 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 10 mm mit 22 mm Schnittlänge und 72 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984409"],[7,"1"],[14,"C413"],[16,"C41310.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760068960"],[21,"16.0"],[22,"88.0"],[23,"14.0"],[24,"43.7"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"10.0"],[181,"22.0"],[260,"72.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964591]},"463596":{"c":"C41312.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 12 mm with 26 mm length of cut and 83 mm overall length, according to DIN 844 K standard with a 12 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 12 mm with 26 mm length of cut and 83 mm overall length, according to DIN 844 K standard with a 12 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 12 mm mit 26 mm Schnittlänge und 83 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984448"],[7,"1"],[14,"C413"],[16,"C41312.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760068977"],[21,"17.74"],[22,"87.26"],[23,"17.49"],[24,"68.0"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"12.0"],[181,"26.0"],[260,"83.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964592]},"463597":{"c":"C41314.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 14 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 14 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 14 mm mit 26 mm Schnittlänge, 83 mm Gesamtlänge und 37.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984499"],[7,"1"],[14,"C413"],[16,"C41314.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760068984"],[21,"18.0"],[22,"86.0"],[23,"16.0"],[24,"74.0"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[53,"Yes","Ja",null,null],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"14.0"],[181,"26.0"],[252,"11.5"],[254,"37.0"],[260,"83.0"],[276,"12.0"],[318,"37.5"]],"m":[["dimensions",0]],"d":[],"x":[964593]},"463598":{"c":"C41316.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 16 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 16 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 16 mm mit 32 mm Schnittlänge, 92 mm Gesamtlänge und 43.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 16 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984550"],[7,"1"],[14,"C413"],[16,"C41316.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760069004"],[21,"21.3"],[22,"94.0"],[23,"20.0"],[24,"131.8"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[53,"Yes","Ja",null,null],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"16.0"],[142,"h6"],[164,"16.0"],[181,"32.0"],[252,"15.5"],[254,"43.0"],[260,"92.0"],[276,"12.0"],[318,"43.5"]],"m":[["dimensions",0]],"d":[],"x":[964594]},"463599":{"c":"C41318.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 18 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 18 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 18 mm mit 32 mm Schnittlänge, 92 mm Gesamtlänge und 43.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 16 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984600"],[7,"1"],[14,"C413"],[16,"C41318.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760069011"],[21,"21.6"],[22,"94.81"],[23,"21.6"],[24,"138.3"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[53,"Yes","Ja",null,null],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"16.0"],[142,"h6"],[164,"18.0"],[181,"32.0"],[252,"15.5"],[254,"43.0"],[260,"92.0"],[276,"12.0"],[318,"43.5"]],"m":[["dimensions",0]],"d":[],"x":[964595]},"463600":{"c":"C41320.0","s":["Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 20 mm with 38 mm length of cut, 104 mm overall length and 53.5 mm reach with neck relief, according to DIN 844 K standard with a 20 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 20 mm with 38 mm length of cut, 104 mm overall length and 53.5 mm reach with neck relief, according to DIN 844 K standard with a 20 mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys","Kurzer schrupp-schaftfräser mit NF Kordelprofil mit flacher ungleicher Drall und 4 Schneiden, Durchmesser 20 mm mit 38 mm Schnittlänge, 104 mm Gesamtlänge und 53.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 20 mm Weldonschaft, HSSE-Co mit TiCN Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Baustahl, Kohlenstoffstahl und legierter 0, Gusseisen und Kupfer oder Kupferlegierungen"],"o":"PL","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984608"],[7,"1"],[14,"C413"],[16,"C41320.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760069028"],[21,"24.56"],[22,"110.75"],[23,"24.96"],[24,"220.0"],[31,"HSS-E"],[32,"DIN 844 K"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"30"],[53,"Yes","Ja",null,null],[55,"NF - Coarse Pitch Flat Profile Chipbreaker",null,"NF - Brise-copeaux grand pas plat","NF - Spanbrecher mit Flachprofil (grobe Teilung)"],[138,"20.0"],[142,"h6"],[164,"20.0"],[181,"38.0"],[252,"19.0"],[254,"53.0"],[260,"104.0"],[276,"12.0"],[318,"53.5"]],"m":[["dimensions",0]],"d":[],"x":[964596]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Diameter (DC)	6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm
Coating (DP)	TiCN
Schacht (DP)	Weldon shank DIN 1835B
Tolerantie (DP)	k12
