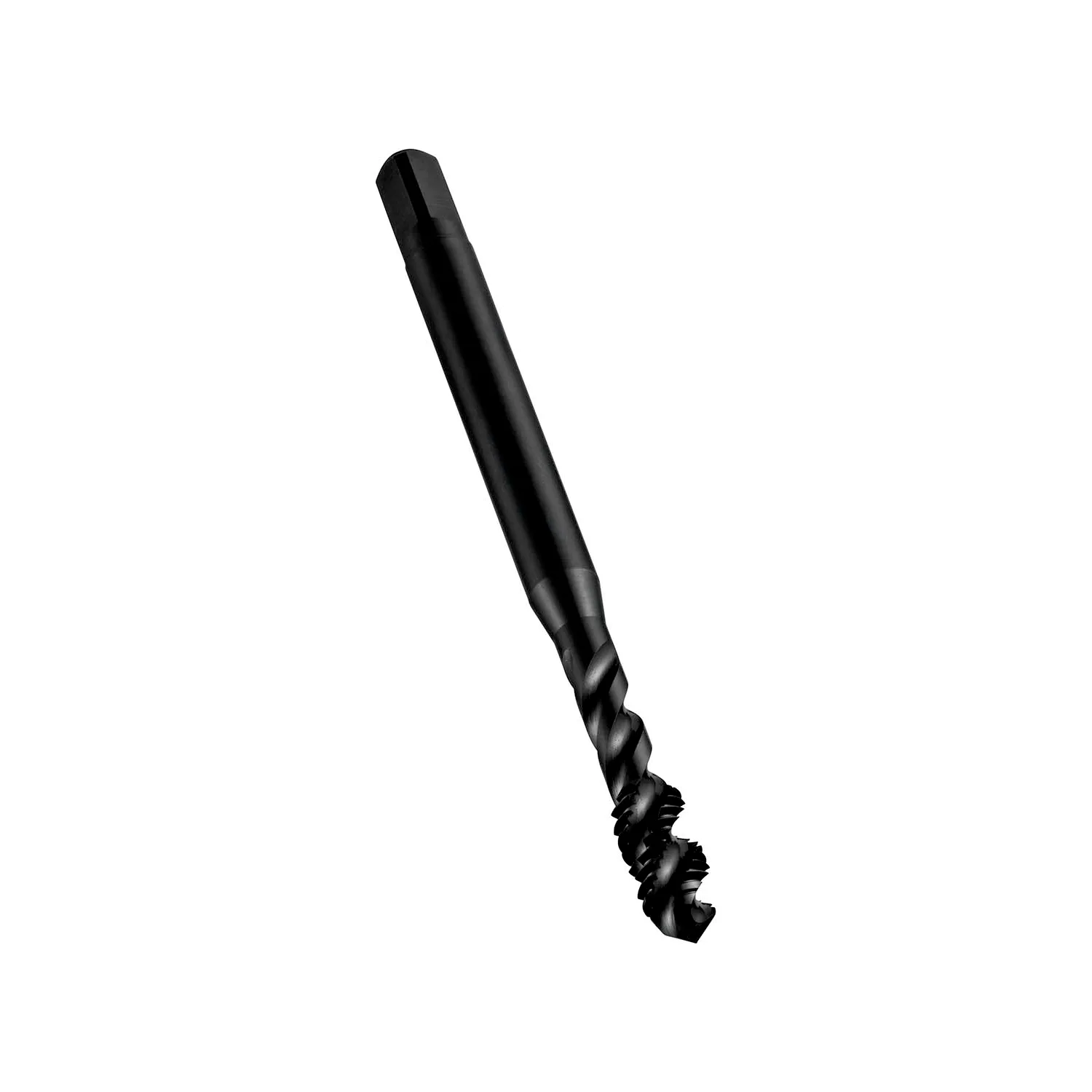

E003 HSS-E-PM 45° Spiral Flute Machine Tap, Metric, ISO Standard

Name: E003 HSS-E-PM 45° Spiral Flute Machine Tap, Metric, ISO Standard
SKU: E003M2
Price: 28.42 EUR
Availability: InStock

DORMER Germany India

28.42 €

excl. VAT

Product information

Machine tap with spiral flute suited for blind holes. Steam tempered surface acts to retain cutting fluid and prevent chip to tool welding.

Thread standard
Thread standard
Coating (DP)
Draadmaat (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E003_DIM.png"],"p":{"465858":{"c":"E003M2","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M2 with 0.40 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 2.5 mm shank and 2.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M2 with 0.40 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 2.5 mm shank and 2.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M2 mit 0.40 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 2.5 mm Schaft und 2.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"DE","a":[["P","primary"],["M","possible"]],"f":[[0,"5974357"],[7,"1"],[14,"E003"],[16,"E003M2"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760168844"],[21,"11.0"],[22,"81.0"],[23,"9.0"],[24,"3.7"],[31,"HSS-E"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"2.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"4.0"],[128,"2.0"],[138,"2.5"],[260,"41.0"],[266,"1.6"],[300,"2"],[302,"0.4"],[307,"8.0"],[312,"D3"],[318,"8.0"]],"m":[["dimensions",0]],"d":[],"x":[966922]},"465859":{"c":"E003M2.5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M2.5 with 0.45 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 2.8 mm shank and 2.24 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M2.5 with 0.45 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 2.8 mm shank and 2.24 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M2.5 mit 0.45 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 2.8 mm Schaft und 2.24 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"DE","a":[["P","primary"],["M","possible"]],"f":[[0,"5974361"],[7,"1"],[14,"E003"],[16,"E003M2.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760168851"],[21,"11.0"],[22,"81.0"],[23,"9.0"],[24,"4.2"],[31,"HSS-E"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"2.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"5.0"],[128,"2.24"],[138,"2.8"],[260,"44.5"],[266,"2.05"],[300,"2.5"],[302,"0.45"],[307,"9.5"],[312,"D3"],[318,"9.5"]],"m":[["dimensions",0]],"d":[],"x":[966923]},"465860":{"c":"E003M3","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 3.15 mm shank and 2.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 3.15 mm shank and 2.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M3 mit 0.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 3.15 mm Schaft und 2.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974380"],[7,"1"],[14,"E003"],[16,"E003M3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568002"],[21,"11.8"],[22,"84.0"],[23,"9.0"],[24,"3.2"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"5.0"],[128,"2.5"],[138,"3.15"],[260,"48.0"],[266,"2.5"],[300,"3"],[302,"0.5"],[307,"6.0"],[312,"D3"],[318,"12.5"]],"m":[["dimensions",0]],"d":[],"x":[966924]},"465861":{"c":"E003M4","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 4.0 mm shank and 3.15 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 4.0 mm shank and 3.15 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M4 mit 0.70 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 4.0 mm Schaft und 3.15 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974390"],[7,"1"],[14,"E003"],[16,"E003M4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568026"],[21,"12.0"],[22,"85.0"],[23,"10.0"],[24,"4.1"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"3.15"],[138,"4.0"],[260,"53.0"],[266,"3.3"],[300,"4"],[302,"0.7"],[307,"7.0"],[312,"D4"],[318,"19.0"]],"m":[["dimensions",0]],"d":[],"x":[966925]},"465862":{"c":"E003M5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 5.0 mm shank and 4.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 5.0 mm shank and 4.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M5 mit 0.80 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 5.0 mm Schaft und 4.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974394"],[7,"1"],[14,"E003"],[16,"E003M5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568033"],[21,"11.8"],[22,"84.0"],[23,"9.0"],[24,"6.7"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"7.0"],[128,"4.0"],[138,"5.0"],[260,"58.0"],[266,"4.2"],[300,"5"],[302,"0.8"],[307,"8.0"],[312,"D4"],[318,"22.0"]],"m":[["dimensions",0]],"d":[],"x":[966926]},"465863":{"c":"E003M6","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 6.3 mm shank and 5.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 6.3 mm shank and 5.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M6 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 6.3 mm Schaft und 5.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974404"],[7,"1"],[14,"E003"],[16,"E003M6"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568040"],[21,"11.0"],[22,"83.0"],[23,"9.0"],[24,"14.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"5.0"],[138,"6.3"],[260,"66.0"],[266,"5.0"],[300,"6"],[302,"1.0"],[307,"10.0"],[312,"D5"],[318,"27.0"]],"m":[["dimensions",0]],"d":[],"x":[966927]},"465864":{"c":"E003M8","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 8.0 mm shank and 6.3 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 8.0 mm shank and 6.3 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M8 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 8.0 mm Schaft und 6.3 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974414"],[7,"1"],[14,"E003"],[16,"E003M8"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568057"],[21,"18.0"],[22,"85.0"],[23,"17.0"],[24,"26.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.0"],[128,"6.3"],[138,"8.0"],[260,"72.0"],[266,"6.8"],[300,"8"],[302,"1.25"],[307,"12.0"],[312,"D5"],[318,"31.0"]],"m":[["dimensions",0]],"d":[],"x":[966928]},"465865":{"c":"E003M10","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M10 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 10.0 mm Schaft und 8.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974329"],[7,"1"],[14,"E003"],[16,"E003M10"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568064"],[21,"18.0"],[22,"85.0"],[23,"15.0"],[24,"35.4"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.0"],[128,"8.0"],[138,"10.0"],[260,"80.0"],[266,"8.5"],[300,"10"],[302,"1.5"],[307,"15.0"],[312,"D6"],[318,"35.0"]],"m":[["dimensions",0]],"d":[],"x":[966929]},"465866":{"c":"E003M12","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 9.0 mm shank and 7.1 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 9.0 mm shank and 7.1 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M12 mit 1.75 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 9.0 mm Schaft und 7.1 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974334"],[7,"1"],[14,"E003"],[16,"E003M12"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568071"],[21,"20.0"],[22,"97.0"],[23,"16.0"],[24,"39.1"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.1"],[138,"9.0"],[260,"89.0"],[266,"10.3"],[300,"12"],[302,"1.75"],[307,"16.0"],[312,"D6"]],"m":[["dimensions",0]],"d":[],"x":[966930]},"465867":{"c":"E003M14","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 11.2 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 11.2 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M14 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 11.2 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974339"],[7,"1"],[14,"E003"],[16,"E003M14"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568088"],[21,"17.0"],[22,"96.0"],[23,"17.0"],[24,"67.2"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"11.2"],[260,"95.0"],[266,"12.0"],[300,"14"],[302,"2.0"],[307,"18.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[966931]},"465868":{"c":"E003M16","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 12.5 mm shank and 10.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 12.5 mm shank and 10.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M16 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 12.5 mm Schaft und 10.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974344"],[7,"1"],[14,"E003"],[16,"E003M16"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568095"],[21,"21.0"],[22,"105.0"],[23,"21.0"],[24,"87.2"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"13.0"],[128,"10.0"],[138,"12.5"],[260,"102.0"],[266,"14.0"],[300,"16"],[302,"2.0"],[307,"18.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[966932]},"465871":{"c":"E003M18","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M18 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 14.0 mm shank and 11.2 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M18 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 14.0 mm shank and 11.2 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M18 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 14.0 mm Schaft und 11.2 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974352"],[7,"1"],[14,"E003"],[16,"E003M18"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568101"],[21,"21.0"],[22,"115.0"],[23,"21.0"],[24,"124.9"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"14.0"],[128,"11.2"],[138,"14.0"],[260,"112.0"],[266,"15.5"],[300,"18"],[302,"2.5"],[307,"29.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[966935]},"465869":{"c":"E003M20","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 14.0 mm shank and 11.2 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 14.0 mm shank and 11.2 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M20 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 14.0 mm Schaft und 11.2 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974366"],[7,"1"],[14,"E003"],[16,"E003M20"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568118"],[21,"22.0"],[22,"115.0"],[23,"22.0"],[24,"124.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"14.0"],[128,"11.2"],[138,"14.0"],[260,"112.0"],[266,"17.5"],[300,"20"],[302,"2.5"],[307,"29.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[966933]},"465872":{"c":"E003M22","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 16.0 mm shank and 12.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 16.0 mm shank and 12.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M22 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 16.0 mm Schaft und 12.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974371"],[7,"1"],[14,"E003"],[16,"E003M22"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568125"],[21,"22.0"],[22,"120.0"],[23,"22.0"],[24,"177.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"16.0"],[128,"12.5"],[138,"16.0"],[260,"118.0"],[266,"19.5"],[300,"22"],[302,"2.5"],[307,"29.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[],"x":[966936]},"465870":{"c":"E003M24","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 18.0 mm shank and 14.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 18.0 mm shank and 14.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M24 mit 3.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 18.0 mm Schaft und 14.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974376"],[7,"1"],[14,"E003"],[16,"E003M24"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568132"],[21,"29.0"],[22,"132.0"],[23,"29.0"],[24,"248.2"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"18.0"],[128,"14.0"],[138,"18.0"],[260,"130.0"],[266,"21.0"],[300,"24"],[302,"3.0"],[307,"35.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[],"x":[966934]}}}

Add to cart

Add to wishlist

Terms and conditions
Business returns only with prior approval
Delivery: 3-4 business days. Belgium and Luxembourg: 1 business day. Contact us for delivery times and availability.

Specifications

Draadmaat (DP)	2, 2.5, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24
Thread standard	M - Metric coarse, M - Metric coarse
Coating (DP)	Steam Tempered
