E027 HSS-E-PM 45° Spiral Flute Tap, UNC, ANSI Standard

Name: E027 HSS-E-PM 45° Spiral Flute Tap, UNC, ANSI Standard
SKU: E0276-32
Price: 29.57 EUR
Availability: InStock

DORMER Brazil

29.57 €

excl. VAT

Product information

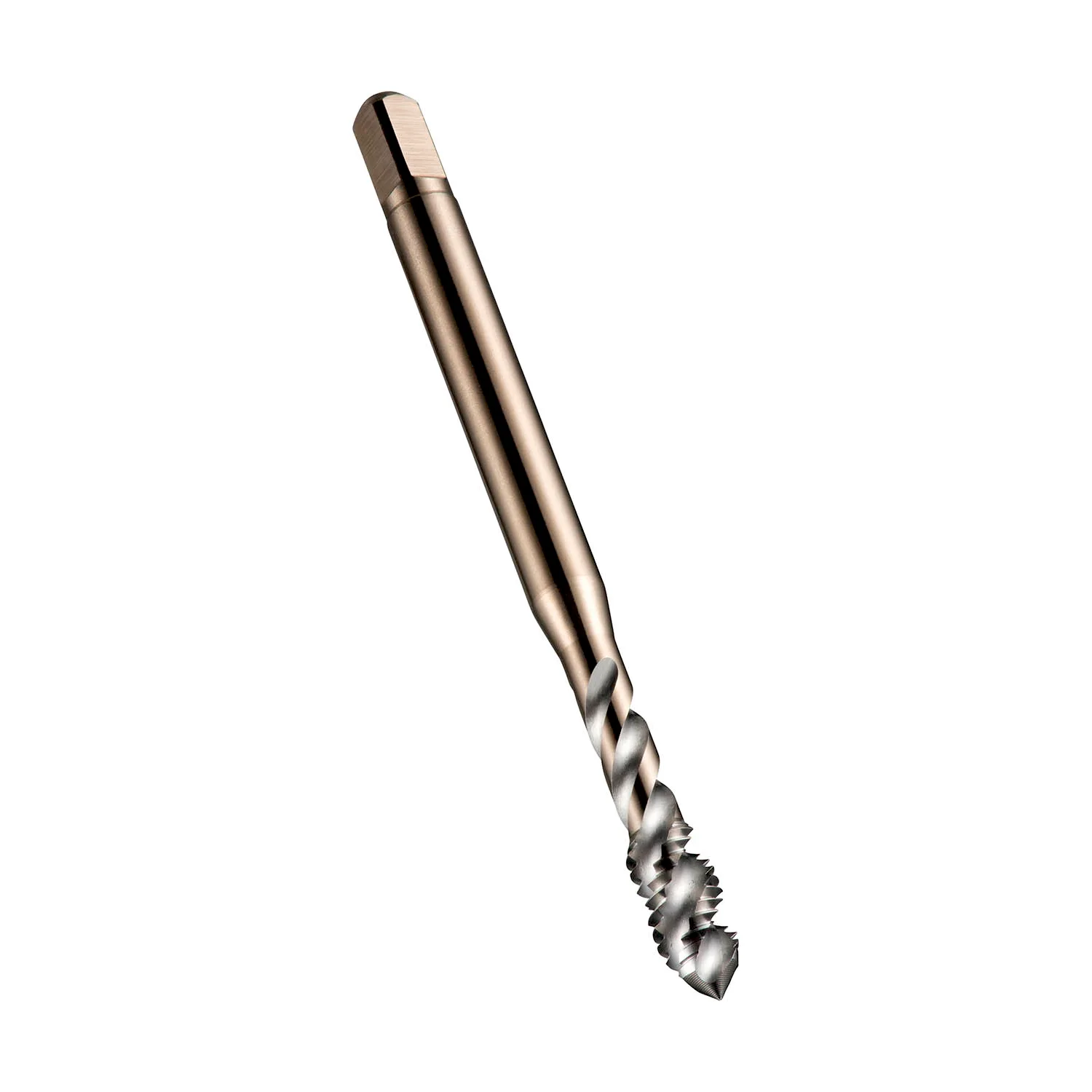

Spiral flute tap with constant rake angle to prevent nesting in blind hole applications. Made from HSS-E-PM to prolong tool life, make it more predictable, improve speed performance and reduce chipping. Bright finish to produce more accurate cleaner threads preventing work-material from sticking to the cutting edges.

Thread standard
Thread standard
Coating (DP)
Draadmaat (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E027_DIM.png"],"p":{"465988":{"c":"E0276-32","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 6 with 32 TPI and 3B class of fit with H2 pitch diameter limits, dimensions according to ANSI standard with 0.1410 inch shank and 0.1100 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 6 with 32 TPI and 3B class of fit with H2 pitch diameter limits, dimensions according to ANSI standard with 0.1410 inch shank and 0.1100 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Grobgewinde UNC 6 mit 32 Gängen / Inch und 3B Toleranzklasse mit H2 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.1410 inch Schaft und 0.1100 inch Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5974013"],[7,"1"],[14,"E027"],[16,"E0276-32"],[17,"Inch"],[20,"7320760581506"],[21,"11.0"],[22,"84.0"],[23,"9.0"],[24,"6.5"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"3B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[128,"2.79"],[138,"3.58"],[259,"2\""],[260,"50.8"],[265,"N36"],[266,"2.85"],[300,"6"],[307,"6.63"],[310,"32.0"],[312,"H2"],[318,"15.08"]],"m":[["dimensions",0]],"d":[],"x":[967059]},"465989":{"c":"E0278-32","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 8 with 32 TPI and 3B class of fit with H2 pitch diameter limits, dimensions according to ANSI standard with 0.1680 inch shank and 0.1310 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 8 with 32 TPI and 3B class of fit with H2 pitch diameter limits, dimensions according to ANSI standard with 0.1680 inch shank and 0.1310 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Grobgewinde UNC 8 mit 32 Gängen / Inch und 3B Toleranzklasse mit H2 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.1680 inch Schaft und 0.1310 inch Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5974017"],[7,"1"],[14,"E027"],[16,"E0278-32"],[17,"Inch"],[20,"7320760581513"],[21,"11.0"],[22,"84.0"],[23,"9.0"],[24,"8.2"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"3B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[128,"3.33"],[138,"4.27"],[259,"2.1/8"],[260,"53.98"],[265,"N29"],[266,"3.5"],[300,"8"],[307,"6.31"],[310,"32.0"],[312,"H2"],[318,"16.58"]],"m":[["dimensions",0]],"d":[],"x":[967060]},"465990":{"c":"E02710-24","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 10 with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.1940 inch shank and 0.1520 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 10 with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.1940 inch shank and 0.1520 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Grobgewinde UNC 10 mit 24 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.1940 inch Schaft und 0.1520 inch Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5974150"],[7,"1"],[14,"E027"],[16,"E02710-24"],[17,"Inch"],[20,"7320760581520"],[21,"11.0"],[22,"84.0"],[23,"9.0"],[24,"10.1"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"3B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[128,"3.86"],[138,"4.93"],[259,"2.3/8"],[260,"60.33"],[265,"N25"],[266,"3.9"],[300,"10"],[307,"6.73"],[310,"24.0"],[312,"H3"],[318,"21.42"]],"m":[["dimensions",0]],"d":[],"x":[967061]},"465992":{"c":"E0271/4","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 1/4 inch with 20 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.2550 inch shank and 0.1910 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 1/4 inch with 20 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.2550 inch shank and 0.1910 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Grobgewinde UNC 1/4 inch mit 20 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.2550 inch Schaft und 0.1910 inch Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5974095"],[7,"1"],[14,"E027"],[16,"E0271/4"],[17,"Inch"],[20,"7320760581544"],[21,"11.0"],[22,"84.0"],[23,"9.0"],[24,"14.6"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"3B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[128,"4.85"],[138,"6.48"],[259,"2.1/2"],[260,"63.5"],[265,"N7"],[266,"5.1"],[300,"1/4"],[307,"10.0"],[310,"20.0"],[312,"H3"],[318,"27.92"]],"m":[["dimensions",0]],"d":[],"x":[967063]},"465995":{"c":"E0275/16","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 5/16 inch with 18 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3180 inch shank and 0.2380 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 5/16 inch with 18 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3180 inch shank and 0.2380 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Grobgewinde UNC 5/16 inch mit 18 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.3180 inch Schaft und 0.2380 inch Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5974171"],[7,"1"],[14,"E027"],[16,"E0275/16"],[17,"Inch"],[20,"7320760581551"],[21,"16.0"],[22,"89.0"],[23,"14.0"],[24,"24.7"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"3B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[128,"6.05"],[138,"8.08"],[259,"2.23/32"],[260,"69.06"],[265,"F"],[266,"6.6"],[300,"5/16"],[307,"11.6"],[310,"18.0"],[312,"H3"],[318,"33.26"]],"m":[["dimensions",0]],"d":[],"x":[967066]},"465994":{"c":"E0273/8","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 3/8 inch with 16 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3810 inch shank and 0.2860 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 3/8 inch with 16 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3810 inch shank and 0.2860 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Grobgewinde UNC 3/8 inch mit 16 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.3810 inch Schaft und 0.2860 inch Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5974168"],[7,"1"],[14,"E027"],[16,"E0273/8"],[17,"Inch"],[20,"7320760581568"],[21,"64.0"],[22,"89.0"],[23,"14.0"],[24,"35.2"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"3B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[128,"7.26"],[138,"9.68"],[259,"2.15/16"],[260,"74.61"],[265,"5/16"],[266,"8.0"],[300,"3/8"],[307,"13.5"],[310,"16.0"],[312,"H3"],[318,"36.61"]],"m":[["dimensions",0]],"d":[],"x":[967065]},"465991":{"c":"E0271/2","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 1/2 inch with 13 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3670 inch shank and 0.2750 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 1/2 inch with 13 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3670 inch shank and 0.2750 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Grobgewinde UNC 1/2 inch mit 13 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.3670 inch Schaft und 0.2750 inch Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5974052"],[7,"1"],[14,"E027"],[16,"E0271/2"],[17,"Inch"],[20,"7320760581582"],[21,"18.0"],[22,"96.0"],[23,"16.0"],[24,"48.1"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"3B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[128,"6.99"],[138,"9.32"],[259,"3.3/8"],[260,"85.73"],[265,"27/64"],[266,"10.8"],[300,"1/2"],[307,"17.5"],[310,"13.0"],[312,"H3"]],"m":[["dimensions",0]],"d":[],"x":[967062]},"465996":{"c":"E0275/8","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 5/8 inch with 11 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.4800 inch shank and 0.3600 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 5/8 inch with 11 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.4800 inch shank and 0.3600 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Grobgewinde UNC 5/8 inch mit 11 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.4800 inch Schaft und 0.3600 inch Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5974011"],[7,"1"],[14,"E027"],[16,"E0275/8"],[17,"Inch"],[20,"7320760581605"],[21,"22.0"],[22,"100.0"],[23,"22.0"],[24,"83.0"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"3B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[128,"9.14"],[138,"12.19"],[259,"3.13/16"],[260,"96.84"],[265,"17/32"],[266,"13.5"],[300,"5/8"],[307,"18.0"],[310,"11.0"],[312,"H3"]],"m":[["dimensions",0]],"d":[],"x":[967067]},"465993":{"c":"E0273/4","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 3/4 inch with 10 TPI and H4 pitch diameter limits, dimensions according to ANSI standard with 0.5900 inch shank and 0.4420 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 3/4 inch with 10 TPI and H4 pitch diameter limits, dimensions according to ANSI standard with 0.5900 inch shank and 0.4420 inch square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Grobgewinde UNC 3/4 inch mit 10 Gängen / Inch und H4 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.5900 inch Schaft und 0.4420 inch Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5974163"],[7,"1"],[14,"E027"],[16,"E0273/4"],[17,"Inch"],[20,"7320760581612"],[21,"25.0"],[22,"110.0"],[23,"25.0"],[24,"136.6"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"3B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[128,"11.23"],[138,"14.99"],[259,"4.1/4"],[260,"107.95"],[265,"21/32"],[266,"16.5"],[300,"3/4"],[307,"22.5"],[310,"10.0"],[312,"H4"]],"m":[["dimensions",0]],"d":[],"x":[967064]}}}

Add to cart

Add to wishlist

Terms and conditions
Business returns only with prior approval
Delivery: 3-4 business days. Belgium and Luxembourg: 1 business day. Contact us for delivery times and availability.

Specifications

Draadmaat (DP)	6, 8, 10, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4
Thread standard	UNC - Unified coarse, UNC - Unified coarse
Coating (DP)	Steam Tempered
