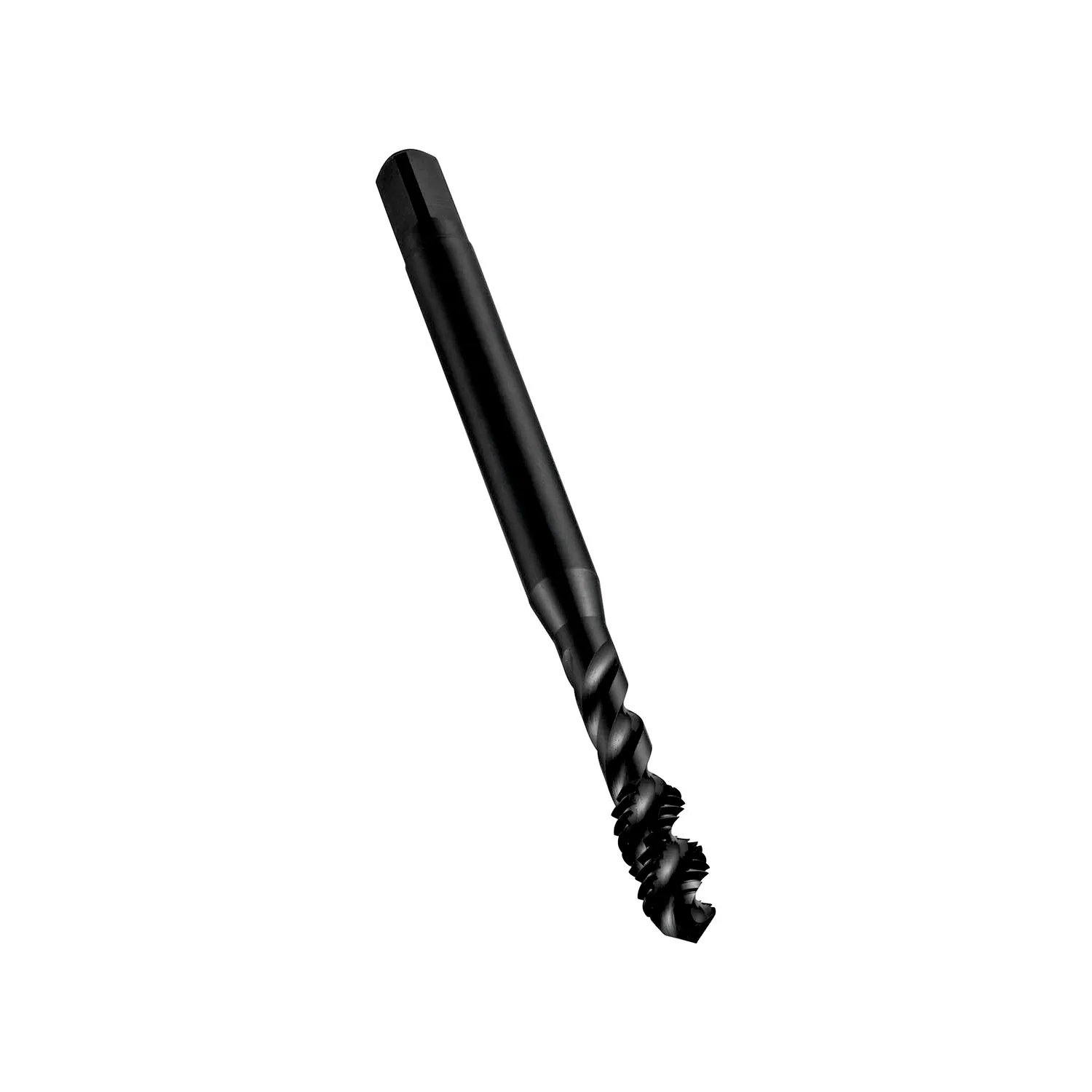

E033 HSS-E-PM Spiral Flute Machine Tap, UNF, ISO Standard

Name: E033 HSS-E-PM Spiral Flute Machine Tap, UNF, ISO Standard
SKU: E0338-36
Price: 32.93 EUR
Availability: InStock

DORMER India

32.93 €

excl. VAT

Product information

Machine tap with spiral flute suited for blind holes. Steam tempered surface acts to retain cutting fluid and prevent chip to tool welding.

Thread standard
Thread standard
Coating (DP)
Draadmaat (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E033_DIM.png"],"p":{"466023":{"c":"E0338-36","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 8 with 36 TPI and 2B class of fit, dimensions according to ISO 529 standard with 4.5 mm shank and 3.55 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 8 with 36 TPI and 2B class of fit, dimensions according to ISO 529 standard with 4.5 mm shank and 3.55 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 8 mit 36 Gängen / Inch und 2B Toleranzklasse, Abmessungen nach ISO 529 Standard mit 4.5 mm Schaft und 3.55 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973953"],[7,"1"],[14,"E033"],[16,"E0338-36"],[17,"Inch"],[20,"7320760570081"],[21,"11.8"],[22,"84.0"],[23,"9.0"],[24,"8.2"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"3.55"],[138,"4.5"],[260,"53.0"],[266,"3.5"],[299,"4.166"],[300,"8"],[307,"7.0"],[310,"36.0"],[312,"H3"],[318,"17.0"]],"m":[["dimensions",0]],"d":[],"x":[967097]},"466024":{"c":"E03310-32","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 10 with 32 TPI and 2B class of fit, dimensions according to ISO 529 standard with 5.0 mm shank and 4.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 10 with 32 TPI and 2B class of fit, dimensions according to ISO 529 standard with 5.0 mm shank and 4.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 10 mit 32 Gängen / Inch und 2B Toleranzklasse, Abmessungen nach ISO 529 Standard mit 5.0 mm Schaft und 4.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973922"],[7,"1"],[14,"E033"],[16,"E03310-32"],[17,"Inch"],[20,"7320760570098"],[21,"11.8"],[22,"84.0"],[23,"9.0"],[24,"9.46"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"7.0"],[128,"4.0"],[138,"5.0"],[260,"58.0"],[266,"4.1"],[299,"4.826"],[300,"10"],[307,"8.0"],[310,"32.0"],[312,"H3"],[318,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[967098]},"466027":{"c":"E0331/4","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1/4 inch with 28 TPI and 2B class of fit, dimensions according to ISO 529 standard with 6.3 mm shank and 5.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1/4 inch with 28 TPI and 2B class of fit, dimensions according to ISO 529 standard with 6.3 mm shank and 5.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 1/4 inch mit 28 Gängen / Inch und 2B Toleranzklasse, Abmessungen nach ISO 529 Standard mit 6.3 mm Schaft und 5.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973918"],[7,"1"],[14,"E033"],[16,"E0331/4"],[17,"Inch"],[20,"7320760570104"],[21,"10.0"],[22,"84.0"],[23,"10.0"],[24,"15.2"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"5.0"],[138,"6.3"],[260,"66.0"],[266,"5.5"],[299,"6.35"],[300,"1/4"],[307,"10.0"],[310,"28.0"],[312,"H4"],[318,"28.0"]],"m":[["dimensions",0]],"d":[],"x":[967101]},"466030":{"c":"E0335/16","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 5/16 inch with 24 TPI and 2B class of fit, dimensions according to ISO 529 standard with 8.0 mm shank and 6.3 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 5/16 inch with 24 TPI and 2B class of fit, dimensions according to ISO 529 standard with 8.0 mm shank and 6.3 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 5/16 inch mit 24 Gängen / Inch und 2B Toleranzklasse, Abmessungen nach ISO 529 Standard mit 8.0 mm Schaft und 6.3 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973938"],[7,"1"],[14,"E033"],[16,"E0335/16"],[17,"Inch"],[20,"7320760570111"],[21,"16.8"],[22,"90.0"],[23,"14.0"],[24,"26.6"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.0"],[128,"6.3"],[138,"8.0"],[260,"72.0"],[266,"6.9"],[299,"7.938"],[300,"5/16"],[307,"12.0"],[310,"24.0"],[312,"H4"],[318,"31.0"]],"m":[["dimensions",0]],"d":[],"x":[967104]},"466029":{"c":"E0333/8","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 3/8 inch with 24 TPI and 2B class of fit, dimensions according to ISO 529 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 3/8 inch with 24 TPI and 2B class of fit, dimensions according to ISO 529 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 3/8 inch mit 24 Gängen / Inch und 2B Toleranzklasse, Abmessungen nach ISO 529 Standard mit 10.0 mm Schaft und 8.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973930"],[7,"1"],[14,"E033"],[16,"E0333/8"],[17,"Inch"],[20,"7320760570128"],[21,"16.8"],[22,"98.0"],[23,"14.0"],[24,"41.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.0"],[128,"8.0"],[138,"10.0"],[260,"80.0"],[266,"8.5"],[299,"9.525"],[300,"3/8"],[307,"15.0"],[310,"24.0"],[312,"H4"],[318,"34.0"]],"m":[["dimensions",0]],"d":[],"x":[967103]},"466032":{"c":"E0337/16","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 7/16 inch with 20 TPI and 2B class of fit, dimensions according to ISO 529 standard with 8.0 mm shank and 6.3 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 7/16 inch with 20 TPI and 2B class of fit, dimensions according to ISO 529 standard with 8.0 mm shank and 6.3 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 7/16 inch mit 20 Gängen / Inch und 2B Toleranzklasse, Abmessungen nach ISO 529 Standard mit 8.0 mm Schaft und 6.3 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973946"],[7,"1"],[14,"E033"],[16,"E0337/16"],[17,"Inch"],[20,"7320760570135"],[21,"19.0"],[22,"123.0"],[23,"17.0"],[24,"39.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.0"],[128,"6.3"],[138,"8.0"],[260,"85.0"],[266,"9.9"],[299,"11.112"],[300,"7/16"],[307,"19.0"],[310,"20.0"],[312,"H5"]],"m":[["dimensions",0]],"d":[],"x":[967106]},"466026":{"c":"E0331/2","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1/2 inch with 20 TPI and 2B class of fit, dimensions according to ISO 529 standard with 9.0 mm shank and 7.1 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1/2 inch with 20 TPI and 2B class of fit, dimensions according to ISO 529 standard with 9.0 mm shank and 7.1 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 1/2 inch mit 20 Gängen / Inch und 2B Toleranzklasse, Abmessungen nach ISO 529 Standard mit 9.0 mm Schaft und 7.1 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973913"],[7,"1"],[14,"E033"],[16,"E0331/2"],[17,"Inch"],[20,"7320760570142"],[21,"17.0"],[22,"123.0"],[23,"16.0"],[24,"46.4"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.1"],[138,"9.0"],[260,"89.0"],[266,"11.5"],[299,"12.7"],[300,"1/2"],[307,"22.0"],[310,"20.0"],[312,"H5"]],"m":[["dimensions",0]],"d":[],"x":[967100]},"466034":{"c":"E0339/16","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 9/16 inch with 18 TPI and 2B class of fit, dimensions according to ISO 529 standard with 11.2 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 9/16 inch with 18 TPI and 2B class of fit, dimensions according to ISO 529 standard with 11.2 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 9/16 inch mit 18 Gängen / Inch und 2B Toleranzklasse, Abmessungen nach ISO 529 Standard mit 11.2 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973956"],[7,"1"],[14,"E033"],[16,"E0339/16"],[17,"Inch"],[20,"7320760570159"],[21,"21.0"],[22,"97.0"],[23,"21.0"],[24,"69.2"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"11.2"],[260,"95.0"],[266,"12.9"],[299,"14.288"],[300,"9/16"],[307,"24.0"],[310,"18.0"],[312,"H5"]],"m":[["dimensions",0]],"d":[],"x":[967108]},"466031":{"c":"E0335/8","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 5/8 inch with 18 TPI and 2B class of fit, dimensions according to ISO 529 standard with 12.5 mm shank and 10.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 5/8 inch with 18 TPI and 2B class of fit, dimensions according to ISO 529 standard with 12.5 mm shank and 10.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 5/8 inch mit 18 Gängen / Inch und 2B Toleranzklasse, Abmessungen nach ISO 529 Standard mit 12.5 mm Schaft und 10.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973942"],[7,"1"],[14,"E033"],[16,"E0335/8"],[17,"Inch"],[20,"7320760570166"],[21,"21.0"],[22,"104.0"],[23,"21.0"],[24,"95.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"13.0"],[128,"10.0"],[138,"12.5"],[260,"102.0"],[266,"14.5"],[299,"15.875"],[300,"5/8"],[307,"24.0"],[310,"18.0"],[312,"H5"]],"m":[["dimensions",0]],"d":[],"x":[967105]},"466028":{"c":"E0333/4","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 3/4 inch with 16 TPI and 2B class of fit, dimensions according to ISO 529 standard with 14.0 mm shank and 11.2 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 3/4 inch with 16 TPI and 2B class of fit, dimensions according to ISO 529 standard with 14.0 mm shank and 11.2 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 3/4 inch mit 16 Gängen / Inch und 2B Toleranzklasse, Abmessungen nach ISO 529 Standard mit 14.0 mm Schaft und 11.2 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973926"],[7,"1"],[14,"E033"],[16,"E0333/4"],[17,"Inch"],[20,"7320760570173"],[21,"22.0"],[22,"114.0"],[23,"22.0"],[24,"122.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"14.0"],[128,"11.2"],[138,"14.0"],[260,"112.0"],[266,"17.5"],[299,"19.05"],[300,"3/4"],[307,"29.0"],[310,"16.0"],[312,"H5"]],"m":[["dimensions",0]],"d":[],"x":[967102]},"466033":{"c":"E0337/8","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 7/8 inch with 14 TPI and 2B class of fit, dimensions according to ISO 529 standard with 16.0 mm shank and 12.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 7/8 inch with 14 TPI and 2B class of fit, dimensions according to ISO 529 standard with 16.0 mm shank and 12.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 7/8 inch mit 14 Gängen / Inch und 2B Toleranzklasse, Abmessungen nach ISO 529 Standard mit 16.0 mm Schaft und 12.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973950"],[7,"1"],[14,"E033"],[16,"E0337/8"],[17,"Inch"],[20,"7320760570180"],[21,"29.0"],[22,"121.0"],[23,"29.0"],[24,"180.1"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"16.0"],[128,"12.5"],[138,"16.0"],[260,"118.0"],[266,"20.4"],[299,"22.225"],[300,"7/8"],[307,"29.0"],[310,"14.0"],[312,"H6"]],"m":[["dimensions",0]],"d":[],"x":[967107]},"466025":{"c":"E0331","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1 inch with 12 TPI and 2B class of fit, dimensions according to ISO 529 standard with 18.0 mm shank and 14.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1 inch with 12 TPI and 2B class of fit, dimensions according to ISO 529 standard with 18.0 mm shank and 14.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 1 inch mit 12 Gängen / Inch und 2B Toleranzklasse, Abmessungen nach ISO 529 Standard mit 18.0 mm Schaft und 14.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973908"],[7,"1"],[14,"E033"],[16,"E0331"],[17,"Inch"],[20,"7320760570197"],[21,"29.0"],[22,"133.0"],[23,"29.0"],[24,"260.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2B"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"18.0"],[128,"14.0"],[138,"18.0"],[260,"130.0"],[266,"23.25"],[299,"25.4"],[300,"1\""],[307,"35.0"],[310,"12.0"],[312,"H6"]],"m":[["dimensions",0]],"d":[],"x":[967099]}}}

Add to cart

Add to wishlist

Terms and conditions
Business returns only with prior approval
Delivery: 3-4 business days. Belgium and Luxembourg: 1 business day. Contact us for delivery times and availability.

Specifications

Draadmaat (DP)	8, 10, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4, 7/8, 1"
Thread standard	UNF - Unified fine, UNF - Unified fine
Coating (DP)	Steam Tempered
