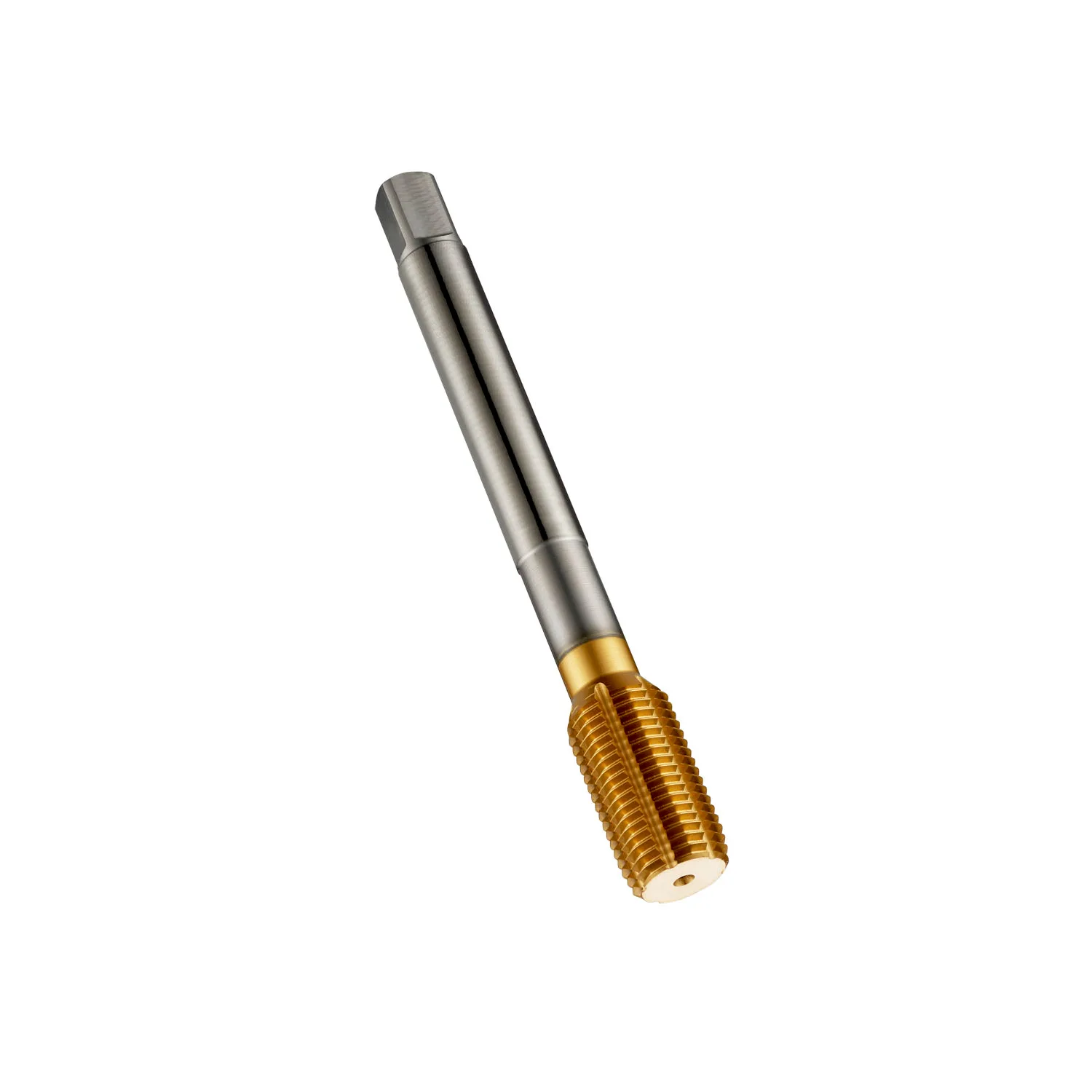

E286 HSS-E Thread Forming TiN Coated Tap, Oil-Grooves, UNF, DIN Standard

Name: E286 HSS-E Thread Forming TiN Coated Tap, Oil-Grooves, UNF, DIN Standard (4)
SKU: E2864-48
Price: 53.06 EUR
Availability: InStock

DORMER Germany

53.06 €

excl. VAT

Product information

High performance fluteless tap for blind and through holes. Provide strong, clean, chip-free and accurate threads with excellent tolerance. Highly versatile for steel, stainless steel and non-ferrous metal. TiN coated for higher cutting speeds and extend tool life. With oil-grooves for better lubrication in deep holes.

Thread standard
Thread standard
Coating (DP)
Draadmaat (DP)

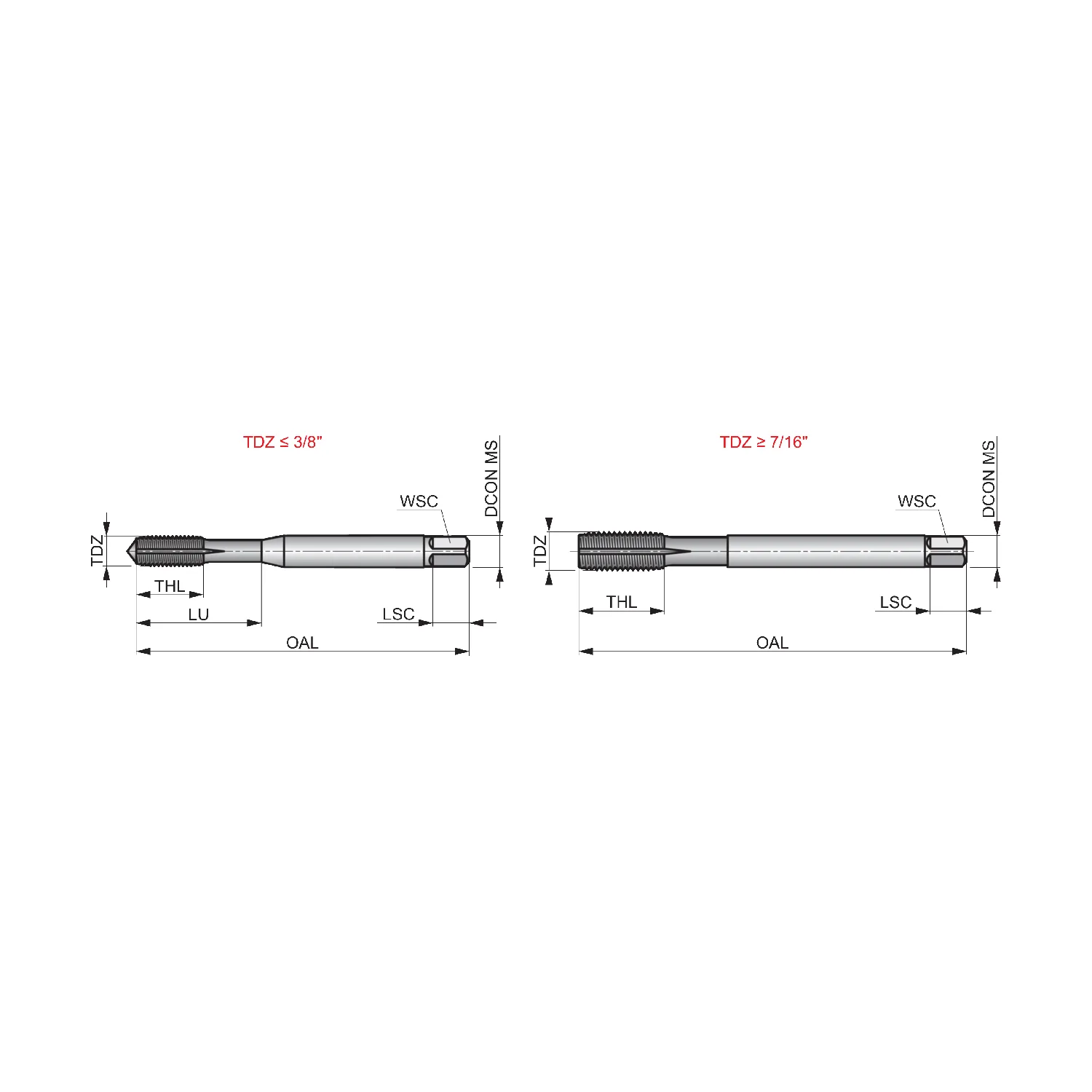

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E286_DIM.png"],"p":{"466621":{"c":"E2864-48","s":["Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 4 with 48 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 3.5 mm shank and 2.7 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 4 with 48 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 3.5 mm shank and 2.7 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Gewineformer mit Schmiernuten, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 4 mit 48 Gängen / Inch und 2BX Toleranzklasse, Abmessungen nach DIN 2184-1 Standard mit 3.5 mm Schaft und 2.7 mm Vierkantantrieb, HSSE-Co mit TiN Beschichtung 3.5xD Durchgangs- und Sacklochgewinde in Stahl und Stahlguss, Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"DE","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"7174114"],[7,"1"],[14,"E286"],[16,"E2864-48"],[17,"Inch"],[20,"7320760704530"],[21,"11.0"],[22,"84.0"],[23,"9.0"],[24,"5.6"],[31,"HSS-E"],[32,"DIN 2184-1"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"3.5"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3.5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2BX"],[43,"Oil Grooves Geometry (Threadforming)",null,"Goujure avec rainures de lubrification (taraud à refouler)","Geometrie mit Ölnuten (Gewindeformen)"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"2.7"],[138,"3.5"],[260,"56.0"],[266,"2.6"],[299,"2.845"],[300,"4"],[307,"9.0"],[310,"48.0"],[318,"18.0"]],"m":[["dimensions",0]],"d":[],"x":[967742]},"466622":{"c":"E2866-40","s":["Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 6 with 40 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 4.0 mm shank and 3.0 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 6 with 40 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 4.0 mm shank and 3.0 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Gewineformer mit Schmiernuten, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 6 mit 40 Gängen / Inch und 2BX Toleranzklasse, Abmessungen nach DIN 2184-1 Standard mit 4.0 mm Schaft und 3.0 mm Vierkantantrieb, HSSE-Co mit TiN Beschichtung 3.5xD Durchgangs- und Sacklochgewinde in Stahl und Stahlguss, Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"DE","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"7174115"],[7,"1"],[14,"E286"],[16,"E2866-40"],[17,"Inch"],[20,"7320760704547"],[21,"11.0"],[22,"84.0"],[23,"9.0"],[24,"6.6"],[31,"HSS-E"],[32,"DIN 2184-1"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"3.5"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3.5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2BX"],[43,"Oil Grooves Geometry (Threadforming)",null,"Goujure avec rainures de lubrification (taraud à refouler)","Geometrie mit Ölnuten (Gewindeformen)"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"3.0"],[138,"4.0"],[260,"56.0"],[266,"3.2"],[299,"3.505"],[300,"6"],[307,"11.0"],[310,"40.0"],[318,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[967743]},"466623":{"c":"E28610-32","s":["Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 10 with 32 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 6.0 mm shank and 4.9 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 10 with 32 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 6.0 mm shank and 4.9 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Gewineformer mit Schmiernuten, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 10 mit 32 Gängen / Inch und 2BX Toleranzklasse, Abmessungen nach DIN 2184-1 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-Co mit TiN Beschichtung 3.5xD Durchgangs- und Sacklochgewinde in Stahl und Stahlguss, Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"DE","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"7174117"],[7,"1"],[14,"E286"],[16,"E28610-32"],[17,"Inch"],[20,"7320760704561"],[21,"11.0"],[22,"84.0"],[23,"9.0"],[24,"14.0"],[31,"HSS-E"],[32,"DIN 2184-1"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"3.5"],[37,"5.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3.5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2BX"],[43,"Oil Grooves Geometry (Threadforming)",null,"Goujure avec rainures de lubrification (taraud à refouler)","Geometrie mit Ölnuten (Gewindeformen)"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"70.0"],[266,"4.5"],[299,"4.826"],[300,"10"],[307,"13.0"],[310,"32.0"],[318,"25.0"]],"m":[["dimensions",0]],"d":[],"x":[967744]},"466625":{"c":"E2861/4","s":["Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1/4 inch with 28 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 7.0 mm shank and 5.5 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1/4 inch with 28 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 7.0 mm shank and 5.5 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Gewineformer mit Schmiernuten, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 1/4 inch mit 28 Gängen / Inch und 2BX Toleranzklasse, Abmessungen nach DIN 2184-1 Standard mit 7.0 mm Schaft und 5.5 mm Vierkantantrieb, HSSE-Co mit TiN Beschichtung 3.5xD Durchgangs- und Sacklochgewinde in Stahl und Stahlguss, Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"DE","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"7174118"],[7,"1"],[14,"E286"],[16,"E2861/4"],[17,"Inch"],[20,"7320760704578"],[21,"14.0"],[22,"93.0"],[23,"13.0"],[24,"23.6"],[31,"HSS-E"],[32,"DIN 2184-1"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"3.5"],[37,"5.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3.5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2BX"],[43,"Oil Grooves Geometry (Threadforming)",null,"Goujure avec rainures de lubrification (taraud à refouler)","Geometrie mit Ölnuten (Gewindeformen)"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"5.5"],[138,"7.0"],[260,"80.0"],[266,"6.0"],[299,"6.35"],[300,"1/4"],[307,"15.0"],[310,"28.0"],[318,"30.0"]],"m":[["dimensions",0]],"d":[],"x":[967746]},"466627":{"c":"E2865/16","s":["Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 5/16 inch with 24 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 8.0 mm shank and 6.2 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 5/16 inch with 24 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 8.0 mm shank and 6.2 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Gewineformer mit Schmiernuten, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 5/16 inch mit 24 Gängen / Inch und 2BX Toleranzklasse, Abmessungen nach DIN 2184-1 Standard mit 8.0 mm Schaft und 6.2 mm Vierkantantrieb, HSSE-Co mit TiN Beschichtung 3.5xD Durchgangs- und Sacklochgewinde in Stahl und Stahlguss, Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"DE","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"7174119"],[7,"1"],[14,"E286"],[16,"E2865/16"],[17,"Inch"],[20,"7320760704585"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"35.8"],[31,"HSS-E"],[32,"DIN 2184-1"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"3.5"],[37,"5.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3.5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2BX"],[43,"Oil Grooves Geometry (Threadforming)",null,"Goujure avec rainures de lubrification (taraud à refouler)","Geometrie mit Ölnuten (Gewindeformen)"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.0"],[128,"6.2"],[138,"8.0"],[260,"90.0"],[266,"7.5"],[299,"7.938"],[300,"5/16"],[307,"18.0"],[310,"24.0"],[318,"35.0"]],"m":[["dimensions",0]],"d":[],"x":[967748]},"466626":{"c":"E2863/8","s":["Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 3/8 inch with 24 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 10.0 mm shank and 8.0 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 3/8 inch with 24 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 10.0 mm shank and 8.0 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Gewineformer mit Schmiernuten, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 3/8 inch mit 24 Gängen / Inch und 2BX Toleranzklasse, Abmessungen nach DIN 2184-1 Standard mit 10.0 mm Schaft und 8.0 mm Vierkantantrieb, HSSE-Co mit TiN Beschichtung 3.5xD Durchgangs- und Sacklochgewinde in Stahl und Stahlguss, Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"DE","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"7174120"],[7,"1"],[14,"E286"],[16,"E2863/8"],[17,"Inch"],[20,"7320760704592"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"58.0"],[31,"HSS-E"],[32,"DIN 2184-1"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"3.5"],[37,"5.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3.5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2BX"],[43,"Oil Grooves Geometry (Threadforming)",null,"Goujure avec rainures de lubrification (taraud à refouler)","Geometrie mit Ölnuten (Gewindeformen)"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.0"],[128,"8.0"],[138,"10.0"],[260,"100.0"],[266,"9.1"],[299,"9.525"],[300,"3/8"],[307,"20.0"],[310,"24.0"],[318,"39.0"]],"m":[["dimensions",0]],"d":[],"x":[967747]},"466628":{"c":"E2867/16","s":["Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 7/16 inch with 20 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 8.0 mm shank and 6.2 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 7/16 inch with 20 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 8.0 mm shank and 6.2 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Gewineformer mit Schmiernuten, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 7/16 inch mit 20 Gängen / Inch und 2BX Toleranzklasse, Abmessungen nach DIN 2184-1 Standard mit 8.0 mm Schaft und 6.2 mm Vierkantantrieb, HSSE-Co mit TiN Beschichtung 3.5xD Durchgangs- und Sacklochgewinde in Stahl und Stahlguss, Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"DE","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"7174121"],[7,"1"],[14,"E286"],[16,"E2867/16"],[17,"Inch"],[20,"7320760704608"],[21,"17.0"],[22,"124.0"],[23,"15.0"],[24,"51.6"],[31,"HSS-E"],[32,"DIN 2184-1"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"3.5"],[37,"5.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3.5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2BX"],[43,"Oil Grooves Geometry (Threadforming)",null,"Goujure avec rainures de lubrification (taraud à refouler)","Geometrie mit Ölnuten (Gewindeformen)"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.0"],[128,"6.2"],[138,"8.0"],[260,"100.0"],[266,"10.6"],[299,"11.112"],[300,"7/16"],[307,"20.0"],[310,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[967749]},"466624":{"c":"E2861/2","s":["Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1/2 inch with 20 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 9.0 mm shank and 7.0 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1/2 inch with 20 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 9.0 mm shank and 7.0 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium","Gewineformer mit Schmiernuten, Anschnittform C mit 2-3xP Gewindeanschnitt, Feingewinde UNF 1/2 inch mit 20 Gängen / Inch und 2BX Toleranzklasse, Abmessungen nach DIN 2184-1 Standard mit 9.0 mm Schaft und 7.0 mm Vierkantantrieb, HSSE-Co mit TiN Beschichtung 3.5xD Durchgangs- und Sacklochgewinde in Stahl und Stahlguss, Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"DE","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"7174122"],[7,"1"],[14,"E286"],[16,"E2861/2"],[17,"Inch"],[20,"7320760704615"],[21,"17.0"],[22,"103.0"],[23,"17.0"],[24,"60.0"],[31,"HSS-E"],[32,"DIN 2184-1"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"3.5"],[37,"5.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3.5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2BX"],[43,"Oil Grooves Geometry (Threadforming)",null,"Goujure avec rainures de lubrification (taraud à refouler)","Geometrie mit Ölnuten (Gewindeformen)"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"100.0"],[266,"12.1"],[299,"12.7"],[300,"1/2"],[307,"21.0"],[310,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[967745]}}}

Add to cart

Add to wishlist

General B2B terms and conditions of sale
B2B return policy

Specifications

Draadmaat (DP)	4, 6, 10, 1/4, 5/16, 3/8, 7/16, 1/2
Thread standard	UNF - Unified fine, UNF - Unified fine
Coating (DP)	TiN
