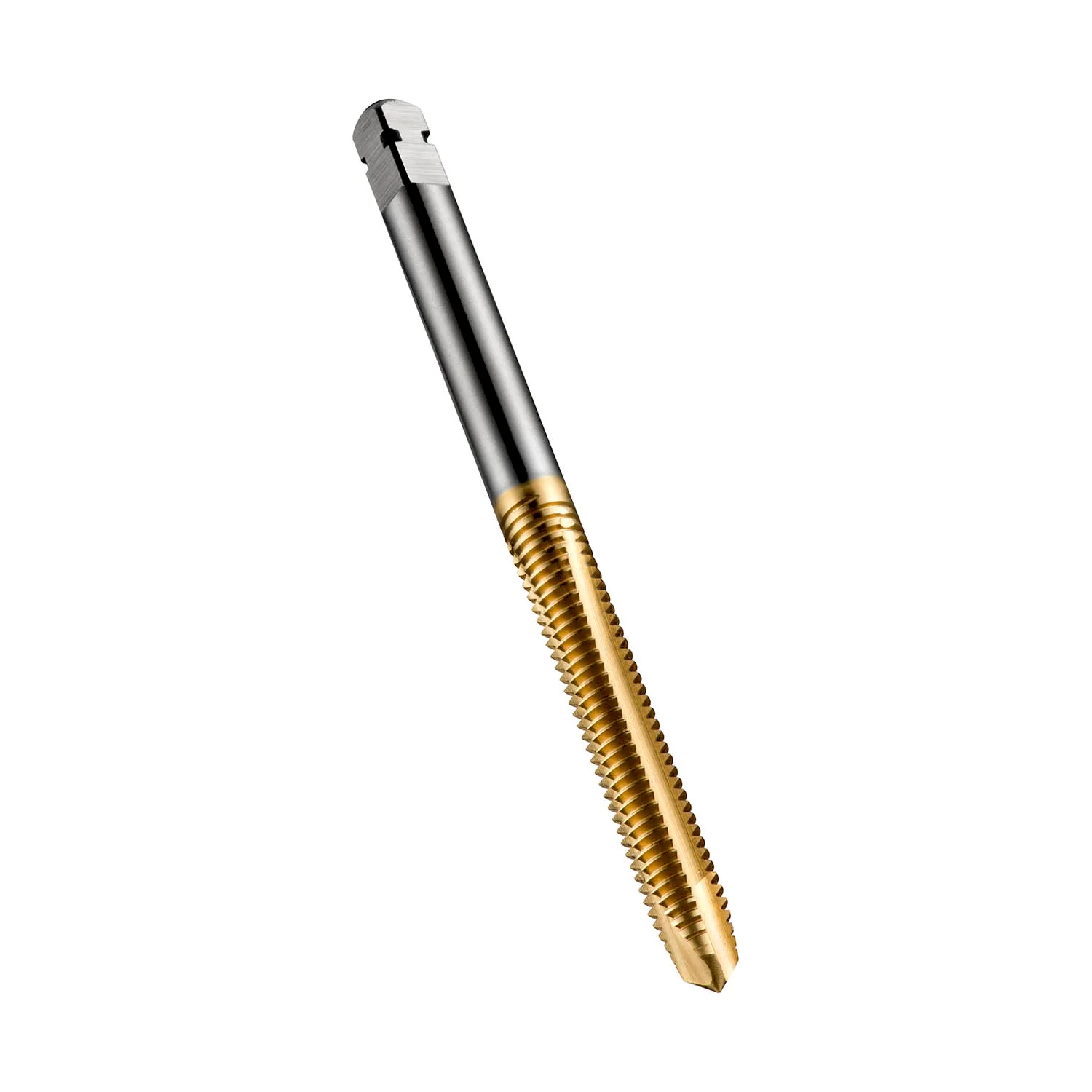

E000TIN HSS-E-PM Spiral Point Machine Tap with TiN Coating, Metric, ISO Standard

Name: E000TIN HSS-E-PM Spiral Point Machine Tap with TiN Coating, Metric, ISO Standard
SKU: E000TINM3
Price: 26.21 EUR
Availability: InStock

DORMER India

26.21 €

excl. VAT

Product information

High performance machine tap with spiral point for through holes only. Suited for a broad range of workpiece materials. TiN coated to allow higher cutting speeds, improve performance and extend tool life.

Thread standard
Thread standard
Coating (DP)
Draadmaat (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E000TIN_DIM.png"],"p":{"465810":{"c":"E000TINM3","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 3.15 mm shank and 2.5 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 3.15 mm shank and 2.5 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M3 mit 0.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 3.15 mm Schaft und 2.5 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Baustahl, Kohlenstoffstahl und legierter, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss und Kupfer oder Kupferlegierungen"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196635"],[7,"1"],[14,"E000TIN"],[16,"E000TINM3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760661932"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"5.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"5.0"],[128,"2.5"],[138,"3.15"],[260,"48.0"],[266,"2.5"],[300,"3"],[302,"0.5"],[307,"15.0"],[312,"D3"],[318,"15.0"]],"m":[["dimensions",0]],"d":[],"x":[966870]},"465811":{"c":"E000TINM4","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 4.0 mm shank and 3.15 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 4.0 mm shank and 3.15 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M4 mit 0.70 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 4.0 mm Schaft und 3.15 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Baustahl, Kohlenstoffstahl und legierter, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss und Kupfer oder Kupferlegierungen"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196636"],[7,"1"],[14,"E000TIN"],[16,"E000TINM4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760661949"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"6.9"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"3.15"],[138,"4.0"],[260,"53.0"],[266,"3.3"],[300,"4"],[302,"0.7"],[307,"17.0"],[312,"D4"],[318,"17.0"]],"m":[["dimensions",0]],"d":[],"x":[966871]},"465812":{"c":"E000TINM5","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 5.0 mm shank and 4.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 5.0 mm shank and 4.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M5 mit 0.80 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 5.0 mm Schaft und 4.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Baustahl, Kohlenstoffstahl und legierter, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss und Kupfer oder Kupferlegierungen"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196637"],[7,"1"],[14,"E000TIN"],[16,"E000TINM5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760661956"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"9.6"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"7.0"],[128,"4.0"],[138,"5.0"],[260,"58.0"],[266,"4.2"],[300,"5"],[302,"0.8"],[307,"11.0"],[312,"D4"],[318,"22.0"]],"m":[["dimensions",0]],"d":[],"x":[966872]},"465813":{"c":"E000TINM6","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 6.3 mm shank and 5.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 6.3 mm shank and 5.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M6 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 6.3 mm Schaft und 5.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Baustahl, Kohlenstoffstahl und legierter, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss und Kupfer oder Kupferlegierungen"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196638"],[7,"1"],[14,"E000TIN"],[16,"E000TINM6"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760661963"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"12.1"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"5.0"],[138,"6.3"],[260,"66.0"],[266,"5.0"],[300,"6"],[302,"1.0"],[307,"13.0"],[312,"D5"],[318,"26.0"]],"m":[["dimensions",0]],"d":[],"x":[966873]},"465814":{"c":"E000TINM8","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 8.0 mm shank and 6.3 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 8.0 mm shank and 6.3 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M8 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 8.0 mm Schaft und 6.3 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Baustahl, Kohlenstoffstahl und legierter, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss und Kupfer oder Kupferlegierungen"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196639"],[7,"1"],[14,"E000TIN"],[16,"E000TINM8"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760661970"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"21.3"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.0"],[128,"6.3"],[138,"8.0"],[260,"72.0"],[266,"6.8"],[300,"8"],[302,"1.25"],[307,"16.0"],[312,"D5"],[318,"29.0"]],"m":[["dimensions",0]],"d":[],"x":[966874]},"465815":{"c":"E000TINM10","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M10 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 10.0 mm Schaft und 8.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Baustahl, Kohlenstoffstahl und legierter, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss und Kupfer oder Kupferlegierungen"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196690"],[7,"1"],[14,"E000TIN"],[16,"E000TINM10"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760661987"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"43.3"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.0"],[128,"8.0"],[138,"10.0"],[260,"80.0"],[266,"8.5"],[300,"10"],[302,"1.5"],[307,"18.0"],[312,"D6"],[318,"34.0"]],"m":[["dimensions",0]],"d":[],"x":[966875]},"465816":{"c":"E000TINM12","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 9.0 mm shank and 7.1 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 9.0 mm shank and 7.1 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M12 mit 1.75 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 9.0 mm Schaft und 7.1 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Baustahl, Kohlenstoffstahl und legierter, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss und Kupfer oder Kupferlegierungen"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196691"],[7,"1"],[14,"E000TIN"],[16,"E000TINM12"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760661994"],[21,"17.0"],[22,"124.0"],[23,"15.0"],[24,"50.6"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.1"],[138,"9.0"],[260,"89.0"],[266,"10.3"],[300,"12"],[302,"1.75"],[307,"22.0"],[312,"D6"]],"m":[["dimensions",0]],"d":[],"x":[966876]},"465817":{"c":"E000TINM16","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 12.5 mm shank and 10.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 12.5 mm shank and 10.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M16 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 12.5 mm Schaft und 10.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Baustahl, Kohlenstoffstahl und legierter, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss und Kupfer oder Kupferlegierungen"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196692"],[7,"1"],[14,"E000TIN"],[16,"E000TINM16"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662007"],[21,"21.0"],[22,"105.0"],[23,"21.0"],[24,"99.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"13.0"],[128,"10.0"],[138,"12.5"],[260,"102.0"],[266,"14.0"],[300,"16"],[302,"2.0"],[307,"24.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[966877]},"465818":{"c":"E000TINM20","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 14.0 mm shank and 11.2 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 14.0 mm shank and 11.2 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M20 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 14.0 mm Schaft und 11.2 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Baustahl, Kohlenstoffstahl und legierter, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss und Kupfer oder Kupferlegierungen"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196693"],[7,"1"],[14,"E000TIN"],[16,"E000TINM20"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662014"],[21,"22.0"],[22,"115.0"],[23,"22.0"],[24,"144.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"14.0"],[128,"11.2"],[138,"14.0"],[260,"112.0"],[266,"17.5"],[300,"20"],[302,"2.5"],[307,"29.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[966878]}}}

Add to cart

Add to wishlist

Terms and conditions
Business returns only with prior approval
Delivery: 3-4 business days. Belgium and Luxembourg: 1 business day. Contact us for delivery times and availability.

Specifications

Draadmaat (DP)	3, 4, 5, 6, 8, 10, 12, 16, 20
Thread standard	M - Metric coarse, M - Metric coarse
Coating (DP)	TiN
