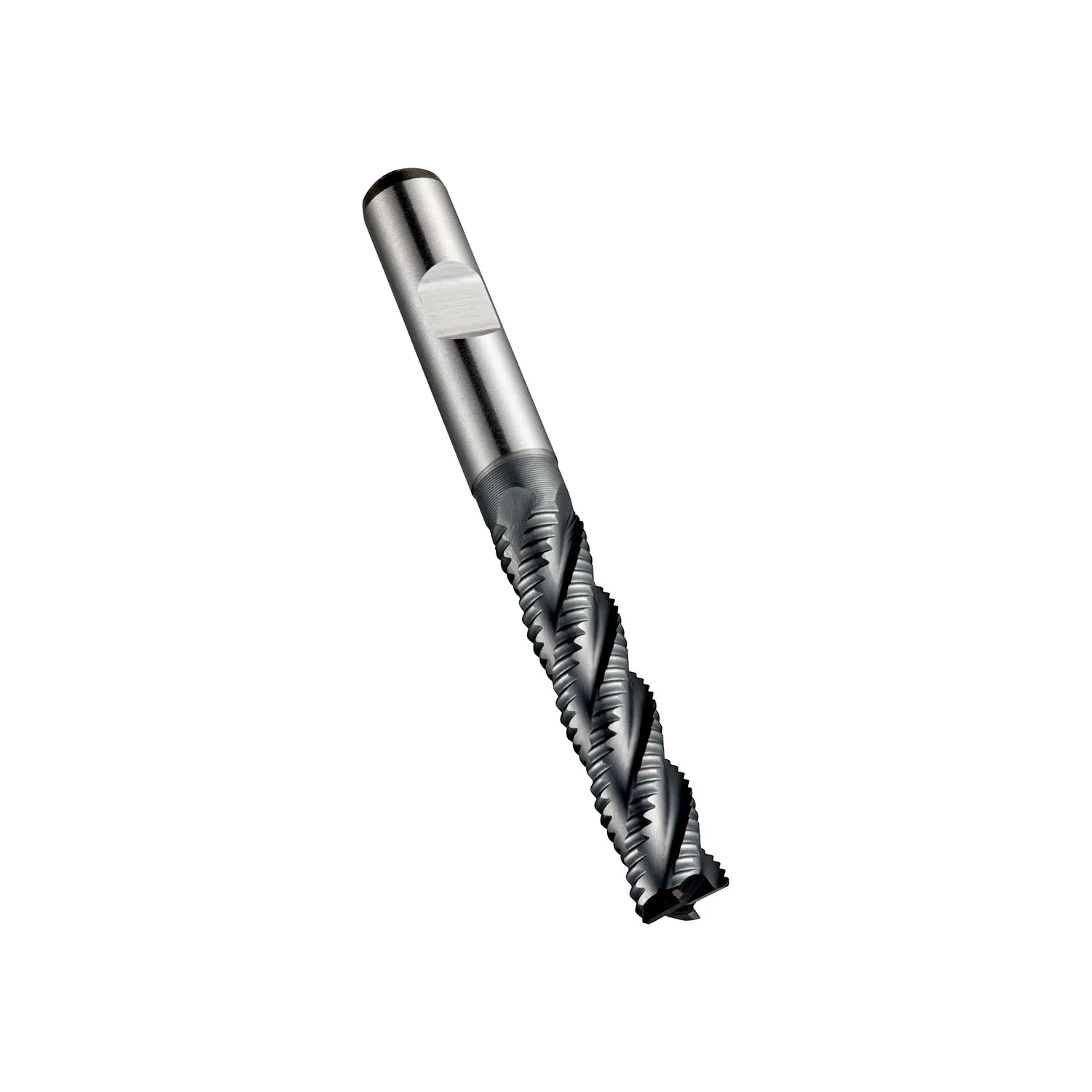

C948 Fraise d'ébauche en HSS-E-PM à 4 ou 6 dents, série longue, revêtement Alcrona

Name: C948 Fraise d'ébauche en HSS-E-PM à 4 ou 6 dents, série longue, revêtement Alcrona
SKU: C9486.0
Price: 62.02 EUR
Availability: InStock

DORMER Pologne

62,02 €

excl. TVA

Informations produit

Fraise à 4 ou 6 dents avec un profil NRA et une grande longueur de coupe brisant les copeaux efficacement lors de l'ébauche de profils profonds. Une hélice à 35° réduit les vibrations et améliore les performances dans les opérations d'ébauche. Queue détalonnée sur diamètre de coupe égal ou supérieur à 10 mm. Le revêtement Alcrona améliore les performances et prolonge la durée de vie de l'outil.

Diamètre (DC)
Revêtement (DP)
Queue (DP)
Tolérance (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/C948_DIM.png"],"p":{"463776":{"c":"C9486.0","s":["Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 6 mm with 24 mm length of cut and 68 mm overall length, according to DIN 844 L standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 6 mm with 24 mm length of cut and 68 mm overall length, according to DIN 844 L standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Langer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 6 mm mit 24 mm Schnittlänge und 68 mm Gesamtlänge, gemäß DIN 844 L Standard mit einem 6 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen und Nutfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985214"],[7,"1"],[14,"C948"],[16,"C9486.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760128701"],[21,"11.0"],[22,"84.0"],[23,"9.0"],[24,"15.0"],[31,"HSS-E-PM"],[32,"DIN 844 L"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"6.0"],[142,"h6"],[164,"6.0"],[181,"24.0"],[260,"68.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964810]},"463777":{"c":"C9488.0","s":["Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 8 mm with 38 mm length of cut and 88 mm overall length, according to DIN 844 L standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 8 mm with 38 mm length of cut and 88 mm overall length, according to DIN 844 L standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Langer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 8 mm mit 38 mm Schnittlänge und 88 mm Gesamtlänge, gemäß DIN 844 L Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen und Nutfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985222"],[7,"1"],[14,"C948"],[16,"C9488.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760128718"],[21,"16.0"],[22,"103.0"],[23,"13.0"],[24,"38.6"],[31,"HSS-E-PM"],[32,"DIN 844 L"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"8.0"],[181,"38.0"],[252,"8.0"],[254,"38.1"],[260,"88.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964811]},"463778":{"c":"C94810.0","s":["Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 10 mm with 45 mm length of cut, 95 mm overall length and 54.5 mm reach with neck relief, according to DIN 844 L standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 10 mm with 45 mm length of cut, 95 mm overall length and 54.5 mm reach with neck relief, according to DIN 844 L standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Langer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 10 mm mit 45 mm Schnittlänge, 95 mm Gesamtlänge und 54.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 L Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen und Nutfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985181"],[7,"1"],[14,"C948"],[16,"C94810.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760128619"],[21,"16.0"],[22,"103.0"],[23,"13.0"],[24,"54.0"],[31,"HSS-E-PM"],[32,"DIN 844 L"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"10.0"],[181,"45.0"],[252,"9.5"],[254,"53.5"],[260,"95.0"],[276,"12.0"],[318,"54.5"]],"m":[["dimensions",0]],"d":[],"x":[964812]},"463779":{"c":"C94812.0","s":["Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 12 mm with 53 mm length of cut, 110 mm overall length and 64.5 mm reach with neck relief, according to DIN 844 L standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 12 mm with 53 mm length of cut, 110 mm overall length and 64.5 mm reach with neck relief, according to DIN 844 L standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Langer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 12 mm mit 53 mm Schnittlänge, 110 mm Gesamtlänge und 64.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 L Standard mit einem 12 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen und Nutfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985184"],[7,"1"],[14,"C948"],[16,"C94812.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760128626"],[21,"17.0"],[22,"113.0"],[23,"17.0"],[24,"80.7"],[31,"HSS-E-PM"],[32,"DIN 844 L"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"12.0"],[181,"53.0"],[252,"11.5"],[254,"64.5"],[260,"110.0"],[276,"12.0"],[318,"64.5"]],"m":[["dimensions",0]],"d":[],"x":[964813]},"463780":{"c":"C94814.0","s":["Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 14 mm with 53 mm length of cut, 110 mm overall length and 64.5 mm reach with neck relief, according to DIN 844 L standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 14 mm with 53 mm length of cut, 110 mm overall length and 64.5 mm reach with neck relief, according to DIN 844 L standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Langer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 14 mm mit 53 mm Schnittlänge, 110 mm Gesamtlänge und 64.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 L Standard mit einem 12 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen und Nutfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985188"],[7,"1"],[14,"C948"],[16,"C94814.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760128633"],[21,"17.0"],[22,"113.0"],[23,"17.0"],[24,"95.4"],[31,"HSS-E-PM"],[32,"DIN 844 L"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"14.0"],[181,"53.0"],[252,"11.5"],[254,"64.0"],[260,"110.0"],[276,"12.0"],[318,"64.5"]],"m":[["dimensions",0]],"d":[],"x":[964814]},"463781":{"c":"C94816.0","s":["Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 16 mm with 63 mm length of cut, 123 mm overall length and 74.5 mm reach with neck relief, according to DIN 844 L standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 16 mm with 63 mm length of cut, 123 mm overall length and 74.5 mm reach with neck relief, according to DIN 844 L standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys",null],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985192"],[7,"1"],[14,"C948"],[16,"C94816.0"],[17,"Metric","Metrisch","Métrique",null],[20,"7320760128640"],[21,"21.0"],[22,"127.0"],[23,"21.0"],[24,"166.0"],[31,"HSS-E-PM"],[32,"DIN 844 L"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium",null],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B",null],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique",null],[138,"16.0"],[142,"h6"],[164,"16.0"],[181,"63.0"],[252,"15.5"],[254,"74.0"],[260,"123.0"],[276,"12.0"],[318,"74.5"]],"m":[["dimensions",0]],"d":[],"x":[964815]},"463782":{"c":"C94818.0","s":["Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 18 mm with 63 mm length of cut, 123 mm overall length and 74.5 mm reach with neck relief, according to DIN 844 L standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 18 mm with 63 mm length of cut, 123 mm overall length and 74.5 mm reach with neck relief, according to DIN 844 L standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Langer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 18 mm mit 63 mm Schnittlänge, 123 mm Gesamtlänge und 74.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 L Standard mit einem 16 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen und Nutfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985196"],[7,"1"],[14,"C948"],[16,"C94818.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760128657"],[21,"25.0"],[22,"127.0"],[23,"25.0"],[24,"179.9"],[31,"HSS-E-PM"],[32,"DIN 844 L"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"16.0"],[142,"h6"],[164,"18.0"],[181,"63.0"],[252,"15.5"],[254,"74.5"],[260,"123.0"],[276,"12.0"],[318,"74.5"]],"m":[["dimensions",0]],"d":[],"x":[964816]},"463783":{"c":"C94820.0","s":["Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 20 mm with 75 mm length of cut, 141 mm overall length and 90.5 mm reach with neck relief, according to DIN 844 L standard with a 20 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Long series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 20 mm with 75 mm length of cut, 141 mm overall length and 90.5 mm reach with neck relief, according to DIN 844 L standard with a 20 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Langer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 20 mm mit 75 mm Schnittlänge, 141 mm Gesamtlänge und 90.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 L Standard mit einem 20 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen und Nutfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985200"],[7,"1"],[14,"C948"],[16,"C94820.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760128664"],[21,"25.0"],[22,"145.0"],[23,"25.0"],[24,"284.0"],[31,"HSS-E-PM"],[32,"DIN 844 L"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"20.0"],[142,"h6"],[164,"20.0"],[181,"75.0"],[252,"19.0"],[254,"89.5"],[260,"141.0"],[276,"12.0"],[318,"90.5"]],"m":[["dimensions",0]],"d":[],"x":[964817]},"463784":{"c":"C94825.0","s":["Long series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 25 mm with 90 mm length of cut, 166 mm overall length and 109.5 mm reach with neck relief, according to DIN 844 L standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Long series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 25 mm with 90 mm length of cut, 166 mm overall length and 109.5 mm reach with neck relief, according to DIN 844 L standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Langer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 6 Schneiden, Durchmesser 25 mm mit 90 mm Schnittlänge, 166 mm Gesamtlänge und 109.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 L Standard mit einem 25 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen und Nutfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985204"],[7,"1"],[14,"C948"],[16,"C94825.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760128671"],[21,"30.0"],[22,"170.0"],[23,"30.0"],[24,"534.8"],[31,"HSS-E-PM"],[32,"DIN 844 L"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"6.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"25.0"],[142,"h6"],[164,"25.0"],[181,"90.0"],[252,"24.5"],[254,"111.5"],[260,"166.0"],[276,"12.0"],[318,"109.5"]],"m":[["dimensions",0]],"d":[],"x":[964818]},"463785":{"c":"C94832.0","s":["Long series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 32 mm with 106 mm length of cut, 186 mm overall length and 125.5 mm reach with neck relief, according to DIN 844 L standard with a 32 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Long series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 32 mm with 106 mm length of cut, 186 mm overall length and 125.5 mm reach with neck relief, according to DIN 844 L standard with a 32 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Langer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 6 Schneiden, Durchmesser 32 mm mit 106 mm Schnittlänge, 186 mm Gesamtlänge und 125.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 L Standard mit einem 32 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen und Nutfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985211"],[7,"1"],[14,"C948"],[16,"C94832.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760128695"],[21,"40.0"],[22,"208.0"],[23,"40.0"],[24,"973.7"],[31,"HSS-E-PM"],[32,"DIN 844 L"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"6.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"32.0"],[142,"h6"],[164,"32.0"],[181,"106.0"],[252,"31.5"],[254,"125.5"],[260,"186.0"],[276,"12.0"],[318,"125.5"]],"m":[["dimensions",0]],"d":[],"x":[964819]}}}

Ajouter au panier

Ajouter à la liste de souhaits

Conditions générales
Retours professionnels uniquement après autorisation préalable
Livraison : 3-4 jours ouvrables. Belgique et Luxembourg : 1 jour ouvrable. Contactez-nous pour les délais de livraison et la disponibilité.

Spécifications

Diamètre (DC)	6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm, 25 mm, 32 mm
Revêtement (DP)	Revêtement nitrure de chrome aluminium
Queue (DP)	Queue Weldon DIN 1835 B
Tolérance (DP)	k12
