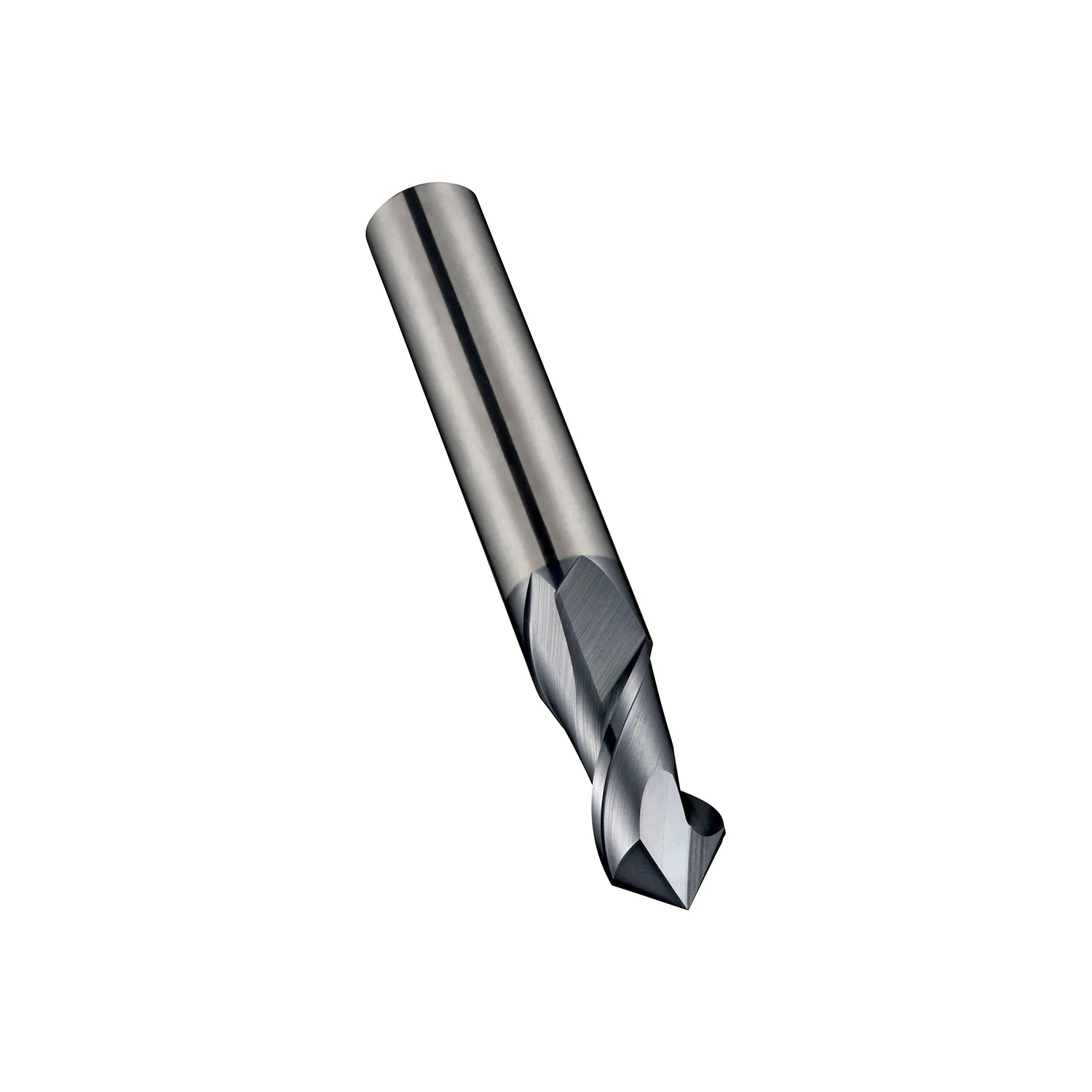

S740 Fraise à chanfreiner à 90° en carbure monobloc à 2 dents

Name: S740 Fraise à chanfreiner à 90° en carbure monobloc à 2 dents
SKU: S7403.0
Price: 24.53 EUR
Availability: InStock

DORMER Malaisie

24,53 €

excl. TVA

Informations produit

Fraise à 2 dents avec une longueur de coupe courte assurant une grande rigidité et réduisant les vibrations. La pointe à 90° est conçue pour le fraisage de chanfreins sur les machines CNC. Le revêtement AlTiN augmente la durée de vie de l'outil et améliore les performances.

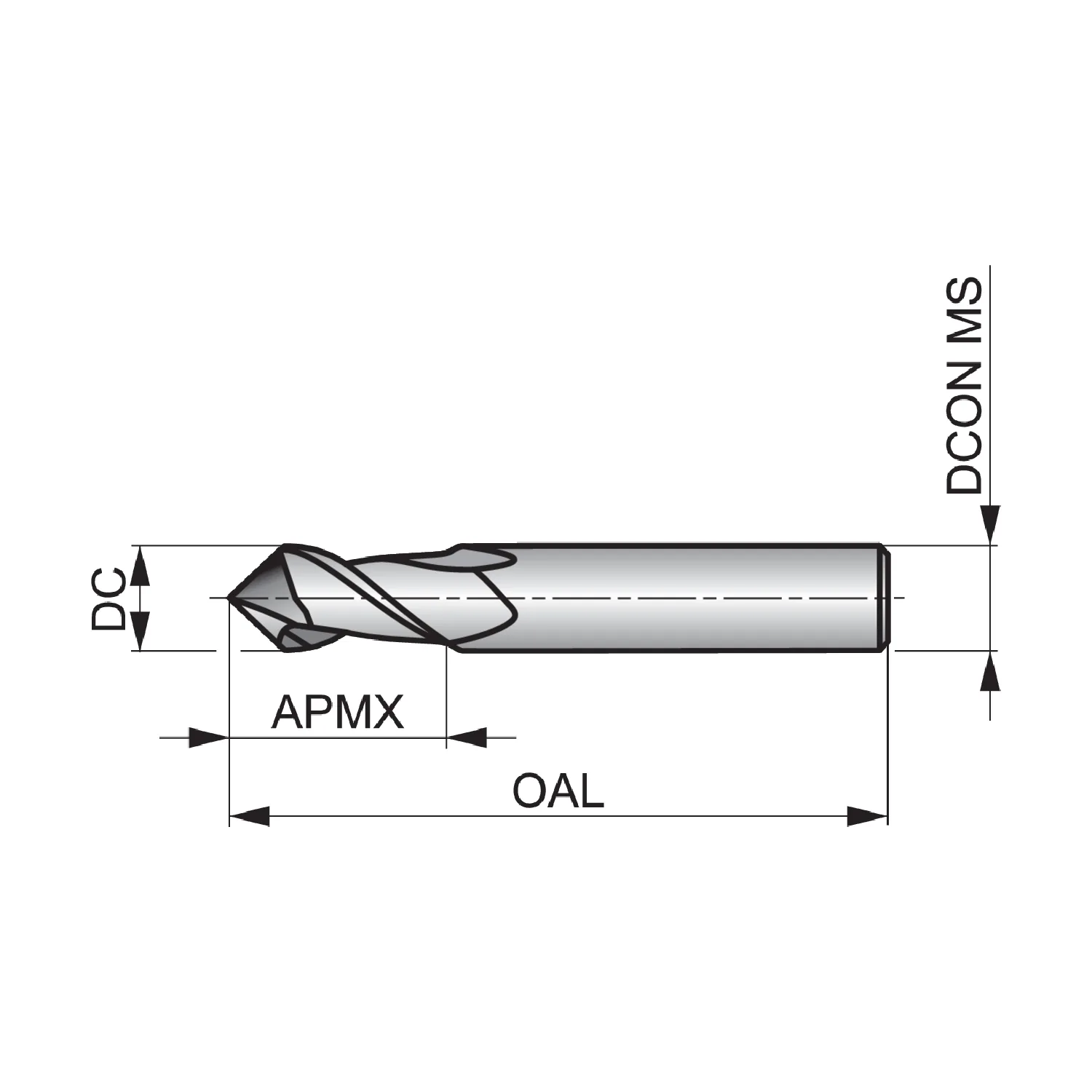

Diamètre (DC)
Revêtement (DP)
Queue (DP)
Tolérance (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/S740_DIM.png"],"p":{"475375":{"c":"S7403.0","s":["Short series 90° chamfering mill with 2 flutes, diameter 3 mm with 9 mm length of cut and 40 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Short series 90° chamfering mill with 2 flutes, diameter 3 mm with 9 mm length of cut and 40 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Kurzer 90° fasfräser mit 2 Schneiden, Durchmesser 3 mm mit 9 mm Schnittlänge und 40 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 3 mm Zylinderschaft, VHM mit AlTiN Beschichtung, 40° Helix und 10° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"MY","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"6706895"],[7,"1"],[14,"S740"],[16,"S7403.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684443"],[21,"11.0"],[22,"94.0"],[23,"9.0"],[24,"3.8"],[31,"HM"],[32,"Work Norm"],[33,"AlTiN",null,"Revêtement aluminium nitrure de titane","Aluminium-Titannitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"3.0"],[142,"h6"],[164,"3.0"],[181,"9.0"],[260,"40.0"],[276,"10.0"],[313,"90.0"]],"m":[["dimensions",0]],"d":[],"x":[977144]},"475376":{"c":"S7404.0","s":["Short series 90° chamfering mill with 2 flutes, diameter 4 mm with 12 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 4 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Short series 90° chamfering mill with 2 flutes, diameter 4 mm with 12 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 4 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Kurzer 90° fasfräser mit 2 Schneiden, Durchmesser 4 mm mit 12 mm Schnittlänge und 50 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 4 mm Zylinderschaft, VHM mit AlTiN Beschichtung, 40° Helix und 10° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"MY","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"6706896"],[7,"1"],[14,"S740"],[16,"S7404.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684450"],[21,"11.0"],[22,"94.0"],[23,"9.0"],[24,"11.0"],[31,"HM"],[32,"Work Norm"],[33,"AlTiN",null,"Revêtement aluminium nitrure de titane","Aluminium-Titannitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"4.0"],[142,"h6"],[164,"4.0"],[181,"12.0"],[260,"50.0"],[276,"10.0"],[313,"90.0"]],"m":[["dimensions",0]],"d":[],"x":[977145]},"475377":{"c":"S7405.0","s":["Short series 90° chamfering mill with 2 flutes, diameter 5 mm with 15 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 5 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Short series 90° chamfering mill with 2 flutes, diameter 5 mm with 15 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 5 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Kurzer 90° fasfräser mit 2 Schneiden, Durchmesser 5 mm mit 15 mm Schnittlänge und 50 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 5 mm Zylinderschaft, VHM mit AlTiN Beschichtung, 40° Helix und 10° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"MY","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"6706897"],[7,"1"],[14,"S740"],[16,"S7405.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684467"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"18.2"],[31,"HM"],[32,"Work Norm"],[33,"AlTiN",null,"Revêtement aluminium nitrure de titane","Aluminium-Titannitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"5.0"],[142,"h6"],[164,"5.0"],[181,"15.0"],[260,"50.0"],[276,"10.0"],[313,"90.0"]],"m":[["dimensions",0]],"d":[],"x":[977146]},"475378":{"c":"S7406.0","s":["Short series 90° chamfering mill with 2 flutes, diameter 6 mm with 16 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Short series 90° chamfering mill with 2 flutes, diameter 6 mm with 16 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Kurzer 90° fasfräser mit 2 Schneiden, Durchmesser 6 mm mit 16 mm Schnittlänge und 50 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 6 mm Zylinderschaft, VHM mit AlTiN Beschichtung, 40° Helix und 10° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"MY","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"6706898"],[7,"1"],[14,"S740"],[16,"S7406.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684474"],[21,"16.0"],[22,"115.0"],[23,"14.0"],[24,"23.2"],[31,"HM"],[32,"Work Norm"],[33,"AlTiN",null,"Revêtement aluminium nitrure de titane","Aluminium-Titannitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[142,"h6"],[164,"6.0"],[181,"16.0"],[260,"50.0"],[276,"10.0"],[313,"90.0"]],"m":[["dimensions",0]],"d":[],"x":[977147]},"475379":{"c":"S7408.0","s":["Short series 90° chamfering mill with 2 flutes, diameter 8 mm with 20 mm length of cut and 64 mm overall length, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Short series 90° chamfering mill with 2 flutes, diameter 8 mm with 20 mm length of cut and 64 mm overall length, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Kurzer 90° fasfräser mit 2 Schneiden, Durchmesser 8 mm mit 20 mm Schnittlänge und 64 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 8 mm Zylinderschaft, VHM mit AlTiN Beschichtung, 40° Helix und 10° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"MY","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"6706899"],[7,"1"],[14,"S740"],[16,"S7408.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684481"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"37.9"],[31,"HM"],[32,"Work Norm"],[33,"AlTiN",null,"Revêtement aluminium nitrure de titane","Aluminium-Titannitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"8.0"],[142,"h6"],[164,"8.0"],[181,"20.0"],[260,"64.0"],[276,"10.0"],[313,"90.0"]],"m":[["dimensions",0]],"d":[],"x":[977148]},"475380":{"c":"S74010.0","s":["Short series 90° chamfering mill with 2 flutes, diameter 10 mm with 22 mm length of cut and 70 mm overall length, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Short series 90° chamfering mill with 2 flutes, diameter 10 mm with 22 mm length of cut and 70 mm overall length, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Kurzer 90° fasfräser mit 2 Schneiden, Durchmesser 10 mm mit 22 mm Schnittlänge und 70 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 10 mm Zylinderschaft, VHM mit AlTiN Beschichtung, 40° Helix und 10° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"MY","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"6706900"],[7,"1"],[14,"S740"],[16,"S74010.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684498"],[21,"17.0"],[22,"85.0"],[23,"17.0"],[24,"63.6"],[31,"HM"],[32,"Work Norm"],[33,"AlTiN",null,"Revêtement aluminium nitrure de titane","Aluminium-Titannitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[164,"10.0"],[181,"22.0"],[260,"70.0"],[276,"10.0"],[313,"90.0"]],"m":[["dimensions",0]],"d":[],"x":[977149]},"475381":{"c":"S74012.0","s":["Short series 90° chamfering mill with 2 flutes, diameter 12 mm with 25 mm length of cut and 75 mm overall length, according to Dormer Pramet standard with a 12 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Short series 90° chamfering mill with 2 flutes, diameter 12 mm with 25 mm length of cut and 75 mm overall length, according to Dormer Pramet standard with a 12 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Kurzer 90° fasfräser mit 2 Schneiden, Durchmesser 12 mm mit 25 mm Schnittlänge und 75 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 12 mm Zylinderschaft, VHM mit AlTiN Beschichtung, 40° Helix und 10° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"MY","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"6706901"],[7,"1"],[14,"S740"],[16,"S74012.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684504"],[21,"17.0"],[22,"85.0"],[23,"17.0"],[24,"103.0"],[31,"HM"],[32,"Work Norm"],[33,"AlTiN",null,"Revêtement aluminium nitrure de titane","Aluminium-Titannitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"12.0"],[142,"h6"],[164,"12.0"],[181,"25.0"],[260,"75.0"],[276,"10.0"],[313,"90.0"]],"m":[["dimensions",0]],"d":[],"x":[977150]},"475382":{"c":"S74016.0","s":["Short series 90° chamfering mill with 2 flutes, diameter 16 mm with 32 mm length of cut and 90 mm overall length, according to Dormer Pramet standard with a 16 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Short series 90° chamfering mill with 2 flutes, diameter 16 mm with 32 mm length of cut and 90 mm overall length, according to Dormer Pramet standard with a 16 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Kurzer 90° fasfräser mit 2 Schneiden, Durchmesser 16 mm mit 32 mm Schnittlänge und 90 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 16 mm Zylinderschaft, VHM mit AlTiN Beschichtung, 40° Helix und 10° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"MY","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"6706902"],[7,"1"],[14,"S740"],[16,"S74016.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684511"],[21,"21.0"],[22,"95.0"],[23,"21.0"],[24,"205.4"],[31,"HM"],[32,"Work Norm"],[33,"AlTiN",null,"Revêtement aluminium nitrure de titane","Aluminium-Titannitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"16.0"],[142,"h6"],[164,"16.0"],[181,"32.0"],[260,"90.0"],[276,"10.0"],[313,"90.0"]],"m":[["dimensions",0]],"d":[],"x":[977151]},"475383":{"c":"S74020.0","s":["Short series 90° chamfering mill with 2 flutes, diameter 20 mm with 38 mm length of cut and 100 mm overall length, according to Dormer Pramet standard with a 20 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Short series 90° chamfering mill with 2 flutes, diameter 20 mm with 38 mm length of cut and 100 mm overall length, according to Dormer Pramet standard with a 20 mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Kurzer 90° fasfräser mit 2 Schneiden, Durchmesser 20 mm mit 38 mm Schnittlänge und 100 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 20 mm Zylinderschaft, VHM mit AlTiN Beschichtung, 40° Helix und 10° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"MY","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"6706903"],[7,"1"],[14,"S740"],[16,"S74020.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684528"],[21,"30.0"],[22,"110.0"],[23,"30.0"],[24,"335.8"],[31,"HM"],[32,"Work Norm"],[33,"AlTiN",null,"Revêtement aluminium nitrure de titane","Aluminium-Titannitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"20.0"],[142,"h6"],[164,"20.0"],[181,"38.0"],[260,"100.0"],[276,"10.0"],[313,"90.0"]],"m":[["dimensions",0]],"d":[],"x":[977152]}}}

Ajouter au panier

Ajouter à la liste de souhaits

Conditions générales
Retours professionnels uniquement après autorisation préalable
Livraison : 3-4 jours ouvrables. Belgique et Luxembourg : 1 jour ouvrable. Contactez-nous pour les délais de livraison et la disponibilité.

Spécifications

Diamètre (DC)	3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 20 mm
Revêtement (DP)	Revêtement aluminium nitrure de titane
Queue (DP)	Queue cylindrique DIN 6535 HA
Tolérance (DP)	h9
