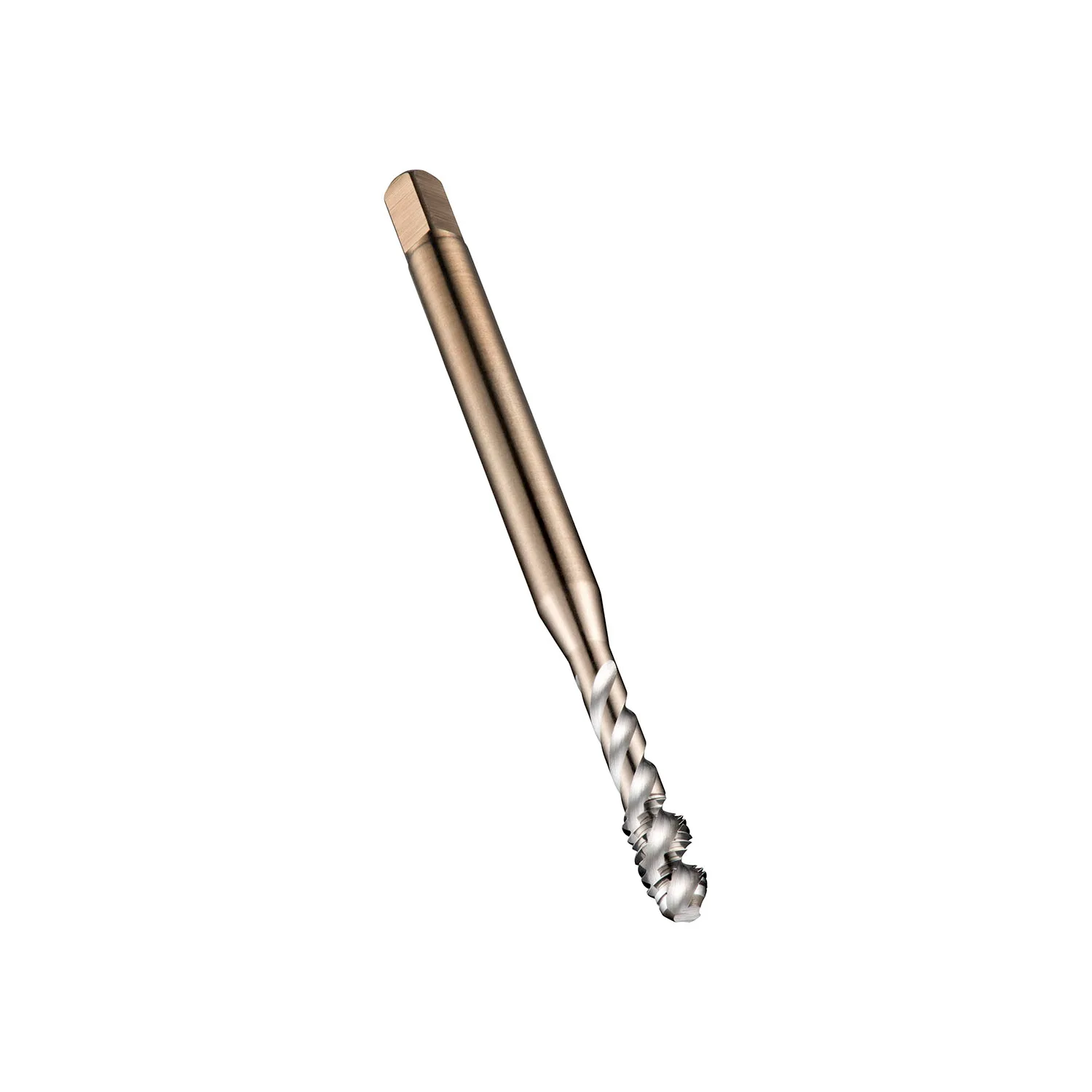

EX006G Taraud machine HSS-E-PM, goujure hélicoïdale à 45°, profil Métrique, norme DIN

Name: EX006G Taraud machine HSS-E-PM, goujure hélicoïdale à 45°, profil Métrique, norme DIN
SKU: EX00M36G
Price: 22.68 EUR
Availability: InStock

DORMER Brésil Inde

22,68 €

excl. TVA

Informations produit

Taraud machine en tolérance 6G. La goujure hélicoïdale est adaptée aux trous borgnes. Finition brillante empêchant le matériau de la pièce de coller aux arêtes de coupe

Norme de filetage
Norme de filetage
Revêtement (DP)
Taille du filetage (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/EX006G_DIM.png"],"p":{"468438":{"c":"EX00M36G","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6G class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6G class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M3 mit 0.50 mm Steigung und 6G Toleranzklasse, Abmessungen nach DIN 371 Standard mit 3.5 mm Schaft und 2.7 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5973620"],[7,"1"],[14,"EX006G"],[16,"EX00M36G"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760136393"],[21,"10.0"],[22,"95.0"],[23,"10.0"],[24,"6.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6G"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"2.7"],[138,"3.5"],[260,"56.0"],[266,"2.5"],[300,"3"],[302,"0.5"],[307,"6.0"],[318,"18.0"]],"m":[["dimensions",0]],"d":[],"x":[969683]},"468439":{"c":"EX00M46G","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6G class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6G class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M4 mit 0.70 mm Steigung und 6G Toleranzklasse, Abmessungen nach DIN 371 Standard mit 4.5 mm Schaft und 3.4 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5973641"],[7,"1"],[14,"EX006G"],[16,"EX00M46G"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760136409"],[21,"10.0"],[22,"92.0"],[23,"9.0"],[24,"8.7"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6G"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"3.4"],[138,"4.5"],[260,"63.0"],[266,"3.3"],[300,"4"],[302,"0.7"],[307,"7.0"],[318,"21.0"]],"m":[["dimensions",0]],"d":[],"x":[969684]},"468440":{"c":"EX00M56G","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6G class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6G class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M5 mit 0.80 mm Steigung und 6G Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5973669"],[7,"1"],[14,"EX006G"],[16,"EX00M56G"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760136416"],[21,"10.0"],[22,"92.0"],[23,"9.0"],[24,"14.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6G"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"70.0"],[266,"4.2"],[300,"5"],[302,"0.8"],[307,"8.0"],[318,"25.0"]],"m":[["dimensions",0]],"d":[],"x":[969685]},"468441":{"c":"EX00M66G","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6G class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6G class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M6 mit 1.00 mm Steigung und 6G Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973686"],[7,"1"],[14,"EX006G"],[16,"EX00M66G"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760136423"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"16.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6G"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"80.0"],[266,"5.0"],[300,"6"],[302,"1.0"],[307,"10.0"],[318,"31.0"]],"m":[["dimensions",0]],"d":[],"x":[969686]},"468442":{"c":"EX00M86G","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6G class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6G class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M8 mit 1.25 mm Steigung und 6G Toleranzklasse, Abmessungen nach DIN 371 Standard mit 8.0 mm Schaft und 6.2 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5973701"],[7,"1"],[14,"EX006G"],[16,"EX00M86G"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760136430"],[21,"15.0"],[22,"114.0"],[23,"14.0"],[24,"25.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6G"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.0"],[128,"6.2"],[138,"8.0"],[260,"90.0"],[266,"6.8"],[300,"8"],[302,"1.25"],[307,"12.0"],[318,"35.0"]],"m":[["dimensions",0]],"d":[],"x":[969687]},"468443":{"c":"EX00M106G","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6G class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6G class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M10 mit 1.50 mm Steigung und 6G Toleranzklasse, Abmessungen nach DIN 371 Standard mit 10.0 mm Schaft und 8.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5973560"],[7,"1"],[14,"EX006G"],[16,"EX00M106G"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760136447"],[21,"15.0"],[22,"115.0"],[23,"14.0"],[24,"53.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6G"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.0"],[128,"8.0"],[138,"10.0"],[260,"100.0"],[266,"8.5"],[300,"10"],[302,"1.5"],[307,"15.0"],[318,"39.0"]],"m":[["dimensions",0]],"d":[],"x":[969688]},"468444":{"c":"EX00M126G","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6G class of fit, dimensions according to DIN 376 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6G class of fit, dimensions according to DIN 376 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M12 mit 1.75 mm Steigung und 6G Toleranzklasse, Abmessungen nach DIN 376 Standard mit 9.0 mm Schaft und 7.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5973664"],[7,"1"],[14,"EX006G"],[16,"EX00M126G"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760136454"],[21,"18.0"],[22,"123.0"],[23,"16.0"],[24,"53.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6G"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"110.0"],[266,"10.3"],[300,"12"],[302,"1.75"],[307,"16.0"]],"m":[["dimensions",0]],"d":[],"x":[969689]},"468445":{"c":"EX00M146G","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6G class of fit, dimensions according to DIN 376 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6G class of fit, dimensions according to DIN 376 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M14 mit 2.00 mm Steigung und 6G Toleranzklasse, Abmessungen nach DIN 376 Standard mit 11.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5973740"],[7,"1"],[14,"EX006G"],[16,"EX00M146G"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760136461"],[21,"17.0"],[22,"115.0"],[23,"17.0"],[24,"70.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6G"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"11.0"],[260,"110.0"],[266,"12.0"],[300,"14"],[302,"2.0"],[307,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[969690]},"468446":{"c":"EX00M166G","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6G class of fit, dimensions according to DIN 376 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6G class of fit, dimensions according to DIN 376 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M16 mit 2.00 mm Steigung und 6G Toleranzklasse, Abmessungen nach DIN 376 Standard mit 12.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5973746"],[7,"1"],[14,"EX006G"],[16,"EX00M166G"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760136478"],[21,"21.0"],[22,"113.0"],[23,"21.0"],[24,"89.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6G"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"12.0"],[260,"110.0"],[266,"14.0"],[300,"16"],[302,"2.0"],[307,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[969691]},"468447":{"c":"EX00M206G","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6G class of fit, dimensions according to DIN 376 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6G class of fit, dimensions according to DIN 376 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M20 mit 2.50 mm Steigung und 6G Toleranzklasse, Abmessungen nach DIN 376 Standard mit 16.0 mm Schaft und 12.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Aluminiumguss"],"o":"BR","a":[["P","primary"],["N","primary"]],"f":[[0,"5973574"],[7,"1"],[14,"EX006G"],[16,"EX00M206G"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760136485"],[21,"22.0"],[22,"143.0"],[23,"22.0"],[24,"196.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6G"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"15.0"],[128,"12.0"],[138,"16.0"],[260,"140.0"],[266,"17.5"],[300,"20"],[302,"2.5"],[307,"25.0"]],"m":[["dimensions",0]],"d":[],"x":[969692]}}}

Ajouter au panier

Ajouter à la liste de souhaits

Conditions générales
Retours professionnels uniquement après autorisation préalable
Livraison : 3-4 jours ouvrables. Belgique et Luxembourg : 1 jour ouvrable. Contactez-nous pour les délais de livraison et la disponibilité.

Spécifications

Taille du filetage (DP)	3, 4, 5, 6, 8, 10, 12, 14, 16, 20
Norme de filetage	M - Métrique, pas gros, M - Métrique, pas gros
Revêtement (DP)	Traitement vapeur (oxyde)
