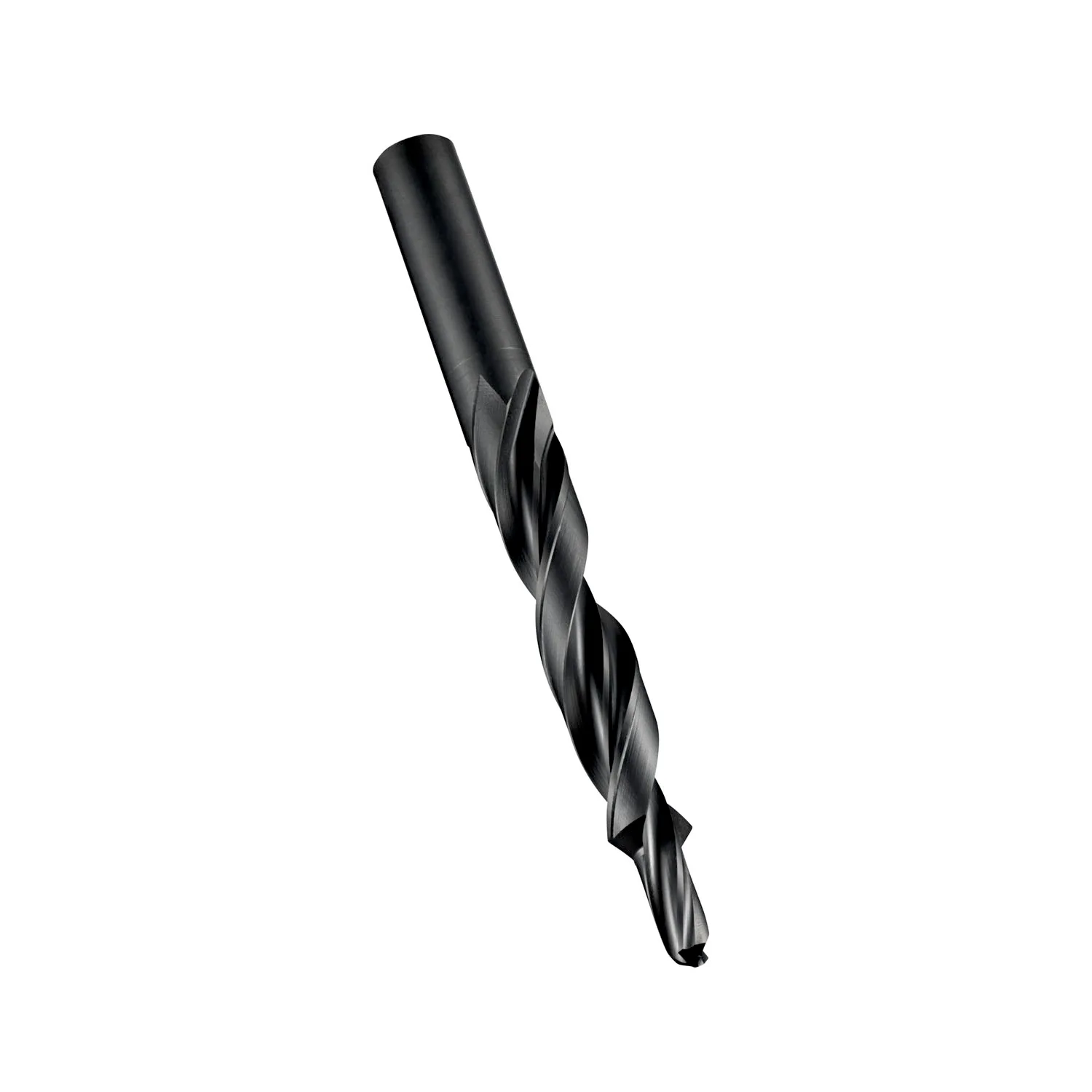

A400 HSS Meerfasenboor - 90°

Name: A400 HSS Meerfasenboor - 90° (3,2 mm)
SKU: A400M3
Price: 40.79 EUR
Availability: InStock

DORMER Duitsland

40,79 €

excl. BTW

Productinformatie

Een veelzijdig gereedschap, ontworpen om afgeschuinde doorlaatgaten te boren voor standaard metrische schroeven. Een punthoek van 118° op de voorboor en een 90° soevereinboor. Geschikt voor zowel CNC- als conventionele machines. De gestoomde afwerking houdt snijvloeistof vast en voorkomt vastlassen van spanen aan het gereedschap. Geschikt voor het boren van vele materialen.

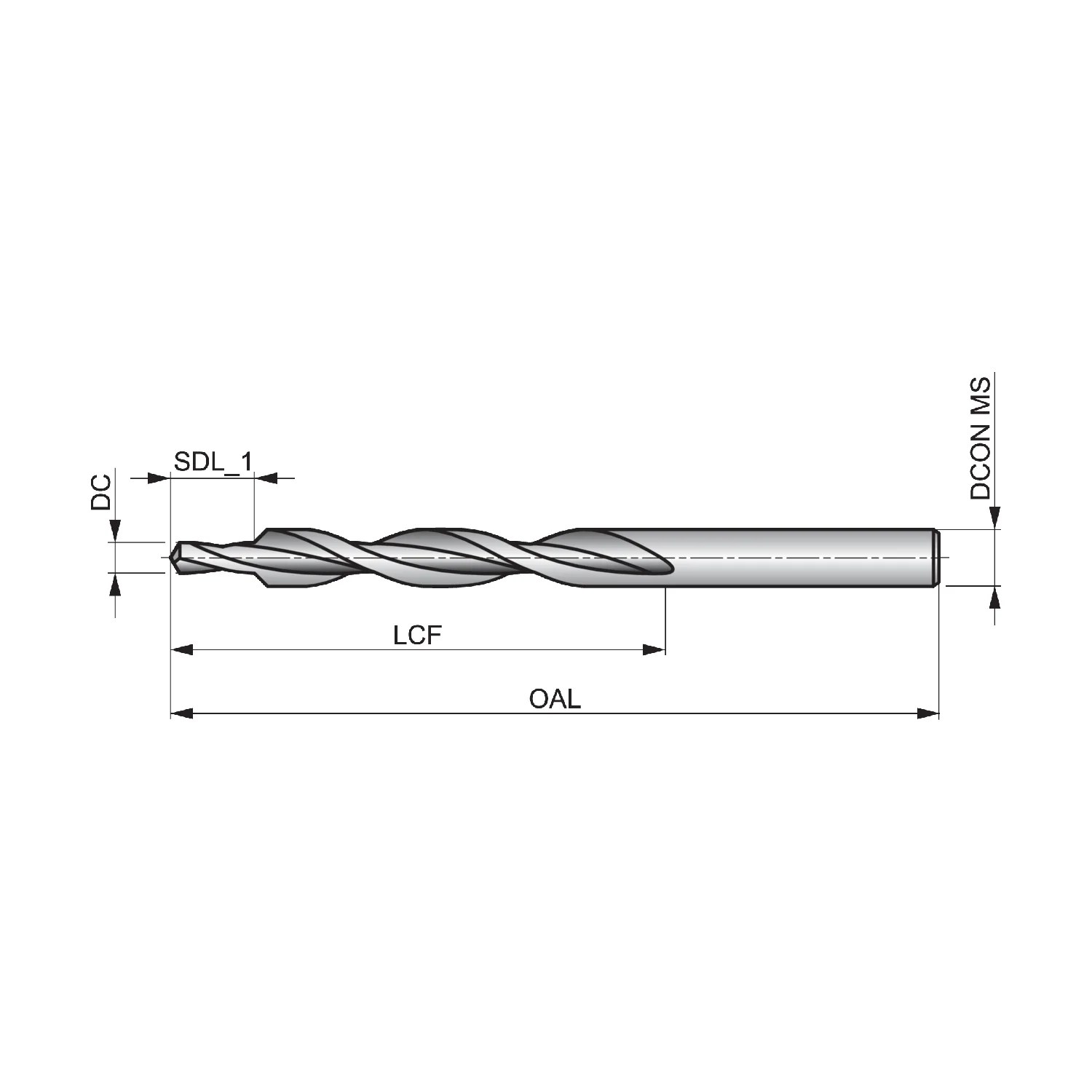

Diameter (DC)
Coating (DP)
Schacht (DP)
Punthoek (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/A400_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/A400M3_5970234_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/A400M4_5970241_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/A400M5_5970245_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/A400M6_5970249_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/A400M8_5970252_3D.STP"],"p":{"460698":{"c":"A400M3","s":["Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 3.20 mm with a length of 9.00 mm, a large diameter of 6.00 mm and an overall length of 93 mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M3 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron","Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 3.20 mm with a length of 9.00 mm, a large diameter of 6.00 mm and an overall length of 93 mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M3 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron","Mehrfasenstufenbohrer mit 90° integrierten Stufenwinkel, Zalinderschaft und einem Bohrpilotendurchmesser von 3.20 mm mit einer Länge von 9.00 mm, einem großen Durchmesser von 6.00 mm und einer Gesamtlänge von 93 mm, gemäß DIN 8374 Standard zur Herstellung einer engen Passform und konischem Sitz für M3 Senkkopfschrauben, HSS und vaporisiert zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl und Grau Gusseisen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","possible"],["S","possible"]],"f":[[0,"5970234"],[7,"1"],[14,"A400"],[16,"A400M3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760034316"],[21,"11.32"],[22,"94.58"],[23,"10.89"],[24,"14.9"],[31,"HSS"],[32,"DIN 8374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Step-drilling (for fasteners) 90°",null,"Foret étagé (pour fixations), alésage à 90°","Stufenbohrer (für Befestigungsmittel) 90° Senkung"],[36,"4"],[38,"118"],[50,"Right","Rechts","A droite","Rechts"],[56,"Standard Spiral",null,"Goujure hélice standard","Ausführung mit Standardspiralnut"],[138,"6.0"],[164,"3.2"],[242,"57.0"],[260,"93.0"],[290,"9.0"],[293,"90.0"],[300,"M3"]],"m":[["dimensions",0]],"d":[["3d",1]],"x":[961527]},"460699":{"c":"A400M4","s":["Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 4.30 mm with a length of 11.00 mm, a large diameter of 8.00 mm and an overall length of 117 mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M4 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron","Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 4.30 mm with a length of 11.00 mm, a large diameter of 8.00 mm and an overall length of 117 mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M4 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron","Mehrfasenstufenbohrer mit 90° integrierten Stufenwinkel, Zalinderschaft und einem Bohrpilotendurchmesser von 4.30 mm mit einer Länge von 11.00 mm, einem großen Durchmesser von 8.00 mm und einer Gesamtlänge von 117 mm, gemäß DIN 8374 Standard zur Herstellung einer engen Passform und konischem Sitz für M4 Senkkopfschrauben, HSS und vaporisiert zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl und Grau Gusseisen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","possible"],["S","possible"]],"f":[[0,"5970241"],[7,"1"],[14,"A400"],[16,"A400M4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760034323"],[21,"10.65"],[22,"119.19"],[23,"10.79"],[24,"30.1"],[31,"HSS"],[32,"DIN 8374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Step-drilling (for fasteners) 90°",null,"Foret étagé (pour fixations), alésage à 90°","Stufenbohrer (für Befestigungsmittel) 90° Senkung"],[36,"4"],[38,"118"],[50,"Right","Rechts","A droite","Rechts"],[56,"Standard Spiral",null,"Goujure hélice standard","Ausführung mit Standardspiralnut"],[138,"8.0"],[164,"4.3"],[242,"75.0"],[260,"117.0"],[290,"11.0"],[293,"90.0"],[300,"M4"]],"m":[["dimensions",0]],"d":[["3d",2]],"x":[961528]},"460700":{"c":"A400M5","s":["Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 5.30 mm with a length of 13.00 mm, a large diameter of 10.00 mm and an overall length of 133 mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M5 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron","Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 5.30 mm with a length of 13.00 mm, a large diameter of 10.00 mm and an overall length of 133 mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M5 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron","Mehrfasenstufenbohrer mit 90° integrierten Stufenwinkel, Zalinderschaft und einem Bohrpilotendurchmesser von 5.30 mm mit einer Länge von 13.00 mm, einem großen Durchmesser von 10.00 mm und einer Gesamtlänge von 133 mm, gemäß DIN 8374 Standard zur Herstellung einer engen Passform und konischem Sitz für M5 Senkkopfschrauben, HSS und vaporisiert zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl und Grau Gusseisen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","possible"],["S","possible"]],"f":[[0,"5970245"],[7,"1"],[14,"A400"],[16,"A400M5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760034330"],[21,"13.3"],[22,"130.0"],[23,"8.0"],[24,"52.6"],[31,"HSS"],[32,"DIN 8374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Step-drilling (for fasteners) 90°",null,"Foret étagé (pour fixations), alésage à 90°","Stufenbohrer (für Befestigungsmittel) 90° Senkung"],[36,"4"],[38,"118"],[50,"Right","Rechts","A droite","Rechts"],[56,"Standard Spiral",null,"Goujure hélice standard","Ausführung mit Standardspiralnut"],[138,"10.0"],[164,"5.3"],[242,"87.0"],[260,"133.0"],[290,"13.0"],[293,"90.0"],[300,"M5"]],"m":[["dimensions",0]],"d":[["3d",3]],"x":[961529]},"460701":{"c":"A400M6","s":["Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 6.40 mm with a length of 15.00 mm, a large diameter of 11.50 mm and an overall length of 142 mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M6 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron","Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 6.40 mm with a length of 15.00 mm, a large diameter of 11.50 mm and an overall length of 142 mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M6 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron","Mehrfasenstufenbohrer mit 90° integrierten Stufenwinkel, Zalinderschaft und einem Bohrpilotendurchmesser von 6.40 mm mit einer Länge von 15.00 mm, einem großen Durchmesser von 11.50 mm und einer Gesamtlänge von 142 mm, gemäß DIN 8374 Standard zur Herstellung einer engen Passform und konischem Sitz für M6 Senkkopfschrauben, HSS und vaporisiert zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl und Grau Gusseisen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","possible"],["S","possible"]],"f":[[0,"5970249"],[7,"1"],[14,"A400"],[16,"A400M6"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760034347"],[21,"17.38"],[22,"144.09"],[23,"16.95"],[24,"75.0"],[31,"HSS"],[32,"DIN 8374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Step-drilling (for fasteners) 90°",null,"Foret étagé (pour fixations), alésage à 90°","Stufenbohrer (für Befestigungsmittel) 90° Senkung"],[36,"4"],[38,"118"],[50,"Right","Rechts","A droite","Rechts"],[56,"Standard Spiral",null,"Goujure hélice standard","Ausführung mit Standardspiralnut"],[138,"11.5"],[164,"6.4"],[242,"94.0"],[260,"142.0"],[290,"15.0"],[293,"90.0"],[300,"M6"]],"m":[["dimensions",0]],"d":[["3d",4]],"x":[961530]},"460702":{"c":"A400M8","s":["Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 8.40 mm with a length of 19.00 mm, a large diameter of 15.00 mm and an overall length of 169 mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M8 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron","Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 8.40 mm with a length of 19.00 mm, a large diameter of 15.00 mm and an overall length of 169 mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M8 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron","Mehrfasenstufenbohrer mit 90° integrierten Stufenwinkel, Zalinderschaft und einem Bohrpilotendurchmesser von 8.40 mm mit einer Länge von 19.00 mm, einem großen Durchmesser von 15.00 mm und einer Gesamtlänge von 169 mm, gemäß DIN 8374 Standard zur Herstellung einer engen Passform und konischem Sitz für M8 Senkkopfschrauben, HSS und vaporisiert zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl und Grau Gusseisen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","possible"],["S","possible"]],"f":[[0,"5970252"],[7,"1"],[14,"A400"],[16,"A400M8"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760034354"],[21,"20.0"],[22,"168.0"],[23,"20.0"],[24,"144.3"],[31,"HSS"],[32,"DIN 8374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Step-drilling (for fasteners) 90°",null,"Foret étagé (pour fixations), alésage à 90°","Stufenbohrer (für Befestigungsmittel) 90° Senkung"],[36,"4"],[38,"118"],[50,"Right","Rechts","A droite","Rechts"],[56,"Standard Spiral",null,"Goujure hélice standard","Ausführung mit Standardspiralnut"],[138,"15.0"],[164,"8.4"],[242,"114.0"],[260,"169.0"],[290,"19.0"],[293,"90.0"],[300,"M8"]],"m":[["dimensions",0]],"d":[["3d",5]],"x":[961531]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Diameter (DC)	3,2 mm, 4,3 mm, 5,3 mm, 6,4 mm, 8,4 mm
Coating (DP)	Steam Tempered
Schacht (DP)	Cylindrical shank
Punthoek (DP)	118
