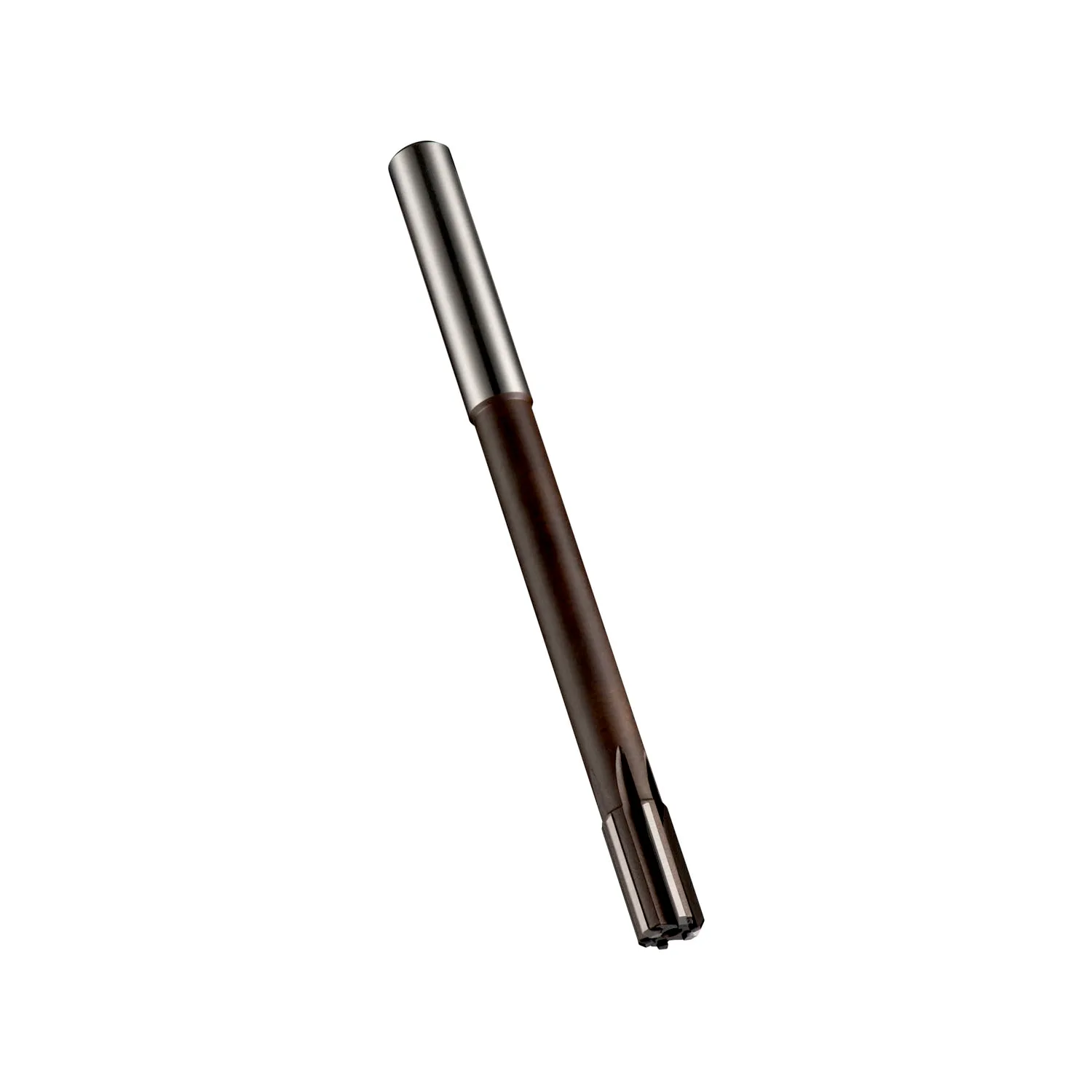

B441 VHM Machineruimer differentiaal vertand

Name: B441 VHM Machineruimer differentiaal vertand (10 mm)
SKU: B44110.0
Price: 92.4 EUR
Availability: InStock

DORMER Duitsland

92,40 €

excl. BTW

Productinformatie

De gesoldeerde hardmetalen snijkant zorgt voor een langere standtijd en superieure prestaties bij het ruimen van gaten binnen de H7-gattolerantie. Het extreem ongelijke ontwerp van de spaangroeven vermindert trillingen en verbetert de rondheid, oppervlakteafwerking en maatnauwkeurigheid van het gat. Het gereedschap levert uitstekende prestaties in CNC-machines.

Diameter (DC)
Coating (DP)
Schacht (DP)

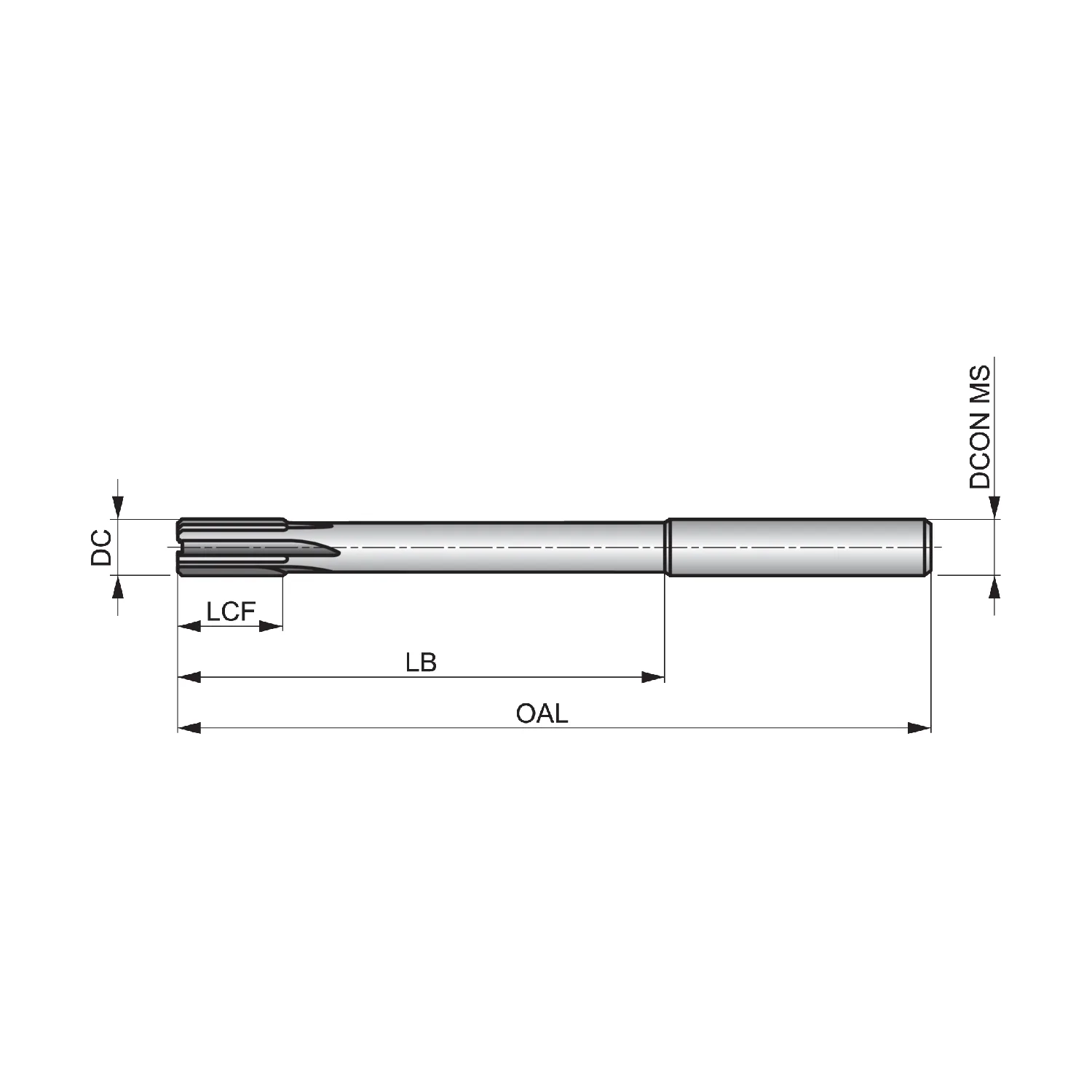

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/B441_DIM.png"],"p":{"462260":{"c":"B44110.0","s":["Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 10.00 mm with an overall length of 133 mm, a flute length of 19 mm and 87 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 10.00 mm with an overall length of 133 mm, a flute length of 19 mm and 87 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Maschinenreibahle mit stark ungleichgeteilt geradegenutet und einem Zylinderschaft, Durchmesser 10.00 mm mit einer Gesamtlänge von 133 mm, einer Schneidenlänge von 19 mm und 87 mm Arbeitstiefe mit Halsfreischliff, gemäß DIN 8050 Standard für präzise Löcher im Bereich H7 Toleranz, HM bestückt mit unbeschichtet zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl, Stahllegierungen und Werkzeugstahl Stahl, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, bearbeitetes und gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5987160"],[7,"1"],[14,"B441"],[16,"B44110.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760421086"],[21,"13.0"],[22,"130.0"],[23,"13.0"],[24,"70.9"],[31,"HM"],[32,"DIN 8050"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"6.0"],[49,"H7"],[50,"Right","Rechts","A droite","Rechts"],[54,"A"],[108,"87.0"],[138,"10.0"],[142,"h9"],[164,"10.0"],[242,"19.0"],[260,"133.0"]],"m":[["dimensions",0]],"d":[],"x":[963159]},"462261":{"c":"B44111.0","s":["Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 11.00 mm with an overall length of 142 mm, a flute length of 19 mm and 96 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 11.00 mm with an overall length of 142 mm, a flute length of 19 mm and 96 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Maschinenreibahle mit stark ungleichgeteilt geradegenutet und einem Zylinderschaft, Durchmesser 11.00 mm mit einer Gesamtlänge von 142 mm, einer Schneidenlänge von 19 mm und 96 mm Arbeitstiefe mit Halsfreischliff, gemäß DIN 8050 Standard für präzise Löcher im Bereich H7 Toleranz, HM bestückt mit unbeschichtet zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl, Stahllegierungen und Werkzeugstahl Stahl, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, bearbeitetes und gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5987164"],[7,"1"],[14,"B441"],[16,"B44111.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760421093"],[21,"16.0"],[22,"145.0"],[23,"16.0"],[24,"82.5"],[31,"HM"],[32,"DIN 8050"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"6.0"],[49,"H7"],[50,"Right","Rechts","A droite","Rechts"],[54,"A"],[108,"96.0"],[138,"10.0"],[142,"h9"],[164,"11.0"],[242,"19.0"],[260,"142.0"]],"m":[["dimensions",0]],"d":[],"x":[963160]},"462262":{"c":"B44112.0","s":["Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 12.00 mm with an overall length of 151 mm, a flute length of 19 mm and 105 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 12.00 mm with an overall length of 151 mm, a flute length of 19 mm and 105 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Maschinenreibahle mit stark ungleichgeteilt geradegenutet und einem Zylinderschaft, Durchmesser 12.00 mm mit einer Gesamtlänge von 151 mm, einer Schneidenlänge von 19 mm und 105 mm Arbeitstiefe mit Halsfreischliff, gemäß DIN 8050 Standard für präzise Löcher im Bereich H7 Toleranz, HM bestückt mit unbeschichtet zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl, Stahllegierungen und Werkzeugstahl Stahl, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, bearbeitetes und gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5987167"],[7,"1"],[14,"B441"],[16,"B44112.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760421109"],[21,"16.0"],[22,"153.0"],[23,"16.0"],[24,"82.0"],[31,"HM"],[32,"DIN 8050"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"6.0"],[49,"H7"],[50,"Right","Rechts","A droite","Rechts"],[54,"A"],[108,"105.0"],[138,"10.0"],[142,"h9"],[164,"12.0"],[242,"19.0"],[260,"151.0"]],"m":[["dimensions",0]],"d":[],"x":[963161]},"462263":{"c":"B44113.0","s":["Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 13.00 mm with an overall length of 151 mm, a flute length of 19 mm and 105 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 13.00 mm with an overall length of 151 mm, a flute length of 19 mm and 105 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Maschinenreibahle mit stark ungleichgeteilt geradegenutet und einem Zylinderschaft, Durchmesser 13.00 mm mit einer Gesamtlänge von 151 mm, einer Schneidenlänge von 19 mm und 105 mm Arbeitstiefe mit Halsfreischliff, gemäß DIN 8050 Standard für präzise Löcher im Bereich H7 Toleranz, HM bestückt mit unbeschichtet zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl, Stahllegierungen und Werkzeugstahl Stahl, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, bearbeitetes und gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5987170"],[7,"1"],[14,"B441"],[16,"B44113.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760426302"],[21,"16.0"],[22,"152.0"],[23,"16.0"],[24,"90.6"],[31,"HM"],[32,"DIN 8050"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"6.0"],[49,"H7"],[50,"Right","Rechts","A droite","Rechts"],[54,"A"],[108,"105.0"],[138,"10.0"],[142,"h9"],[164,"13.0"],[242,"19.0"],[260,"151.0"]],"m":[["dimensions",0]],"d":[],"x":[963162]},"462264":{"c":"B44114.0","s":["Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 14.00 mm with an overall length of 160 mm, a flute length of 19 mm and 110 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 14.00 mm with an overall length of 160 mm, a flute length of 19 mm and 110 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Maschinenreibahle mit stark ungleichgeteilt geradegenutet und einem Zylinderschaft, Durchmesser 14.00 mm mit einer Gesamtlänge von 160 mm, einer Schneidenlänge von 19 mm und 110 mm Arbeitstiefe mit Halsfreischliff, gemäß DIN 8050 Standard für präzise Löcher im Bereich H7 Toleranz, HM bestückt mit unbeschichtet zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl, Stahllegierungen und Werkzeugstahl Stahl, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, bearbeitetes und gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5987173"],[7,"1"],[14,"B441"],[16,"B44114.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760421116"],[21,"16.0"],[22,"165.0"],[23,"16.0"],[24,"127.0"],[31,"HM"],[32,"DIN 8050"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"6.0"],[49,"H7"],[50,"Right","Rechts","A droite","Rechts"],[54,"A"],[108,"110.0"],[138,"12.5"],[142,"h9"],[164,"14.0"],[242,"19.0"],[260,"160.0"]],"m":[["dimensions",0]],"d":[],"x":[963163]},"462265":{"c":"B44115.0","s":["Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 15.00 mm with an overall length of 162 mm, a flute length of 19 mm and 112 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 15.00 mm with an overall length of 162 mm, a flute length of 19 mm and 112 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Maschinenreibahle mit stark ungleichgeteilt geradegenutet und einem Zylinderschaft, Durchmesser 15.00 mm mit einer Gesamtlänge von 162 mm, einer Schneidenlänge von 19 mm und 112 mm Arbeitstiefe mit Halsfreischliff, gemäß DIN 8050 Standard für präzise Löcher im Bereich H7 Toleranz, HM bestückt mit unbeschichtet zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl, Stahllegierungen und Werkzeugstahl Stahl, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, bearbeitetes und gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5987176"],[7,"1"],[14,"B441"],[16,"B44115.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760421123"],[21,"23.0"],[22,"164.0"],[23,"23.0"],[24,"150.0"],[31,"HM"],[32,"DIN 8050"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"6.0"],[49,"H7"],[50,"Right","Rechts","A droite","Rechts"],[54,"A"],[108,"112.0"],[138,"12.5"],[142,"h9"],[164,"15.0"],[242,"19.0"],[260,"162.0"]],"m":[["dimensions",0]],"d":[],"x":[963164]},"462266":{"c":"B44116.0","s":["Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 16.00 mm with an overall length of 170 mm, a flute length of 22 mm and 120 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 16.00 mm with an overall length of 170 mm, a flute length of 22 mm and 120 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Maschinenreibahle mit stark ungleichgeteilt geradegenutet und einem Zylinderschaft, Durchmesser 16.00 mm mit einer Gesamtlänge von 170 mm, einer Schneidenlänge von 22 mm und 120 mm Arbeitstiefe mit Halsfreischliff, gemäß DIN 8050 Standard für präzise Löcher im Bereich H7 Toleranz, HM bestückt mit unbeschichtet zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl, Stahllegierungen und Werkzeugstahl Stahl, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, bearbeitetes und gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5987179"],[7,"1"],[14,"B441"],[16,"B44116.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760421130"],[21,"23.0"],[22,"174.0"],[23,"23.0"],[24,"164.6"],[31,"HM"],[32,"DIN 8050"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"6.0"],[49,"H7"],[50,"Right","Rechts","A droite","Rechts"],[54,"A"],[108,"120.0"],[138,"12.5"],[142,"h9"],[164,"16.0"],[242,"22.0"],[260,"170.0"]],"m":[["dimensions",0]],"d":[],"x":[963165]},"462268":{"c":"B44117.0","s":["Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 17.00 mm with an overall length of 175 mm, a flute length of 22 mm and 123 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 17.00 mm with an overall length of 175 mm, a flute length of 22 mm and 123 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Maschinenreibahle mit stark ungleichgeteilt geradegenutet und einem Zylinderschaft, Durchmesser 17.00 mm mit einer Gesamtlänge von 175 mm, einer Schneidenlänge von 22 mm und 123 mm Arbeitstiefe mit Halsfreischliff, gemäß DIN 8050 Standard für präzise Löcher im Bereich H7 Toleranz, HM bestückt mit unbeschichtet zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl, Stahllegierungen und Werkzeugstahl Stahl, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, bearbeitetes und gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5987185"],[7,"1"],[14,"B441"],[16,"B44117.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760421147"],[21,"23.0"],[22,"178.0"],[23,"23.0"],[24,"199.8"],[31,"HM"],[32,"DIN 8050"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"6.0"],[49,"H7"],[50,"Right","Rechts","A droite","Rechts"],[54,"A"],[108,"123.0"],[138,"14.0"],[142,"h9"],[164,"17.0"],[242,"22.0"],[260,"175.0"]],"m":[["dimensions",0]],"d":[],"x":[963167]},"462269":{"c":"B44118.0","s":["Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 18.00 mm with an overall length of 182 mm, a flute length of 22 mm and 130 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 18.00 mm with an overall length of 182 mm, a flute length of 22 mm and 130 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Maschinenreibahle mit stark ungleichgeteilt geradegenutet und einem Zylinderschaft, Durchmesser 18.00 mm mit einer Gesamtlänge von 182 mm, einer Schneidenlänge von 22 mm und 130 mm Arbeitstiefe mit Halsfreischliff, gemäß DIN 8050 Standard für präzise Löcher im Bereich H7 Toleranz, HM bestückt mit unbeschichtet zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl, Stahllegierungen und Werkzeugstahl Stahl, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, bearbeitetes und gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5987189"],[7,"1"],[14,"B441"],[16,"B44118.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760421154"],[21,"23.0"],[22,"185.0"],[23,"23.0"],[24,"212.8"],[31,"HM"],[32,"DIN 8050"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"6.0"],[49,"H7"],[50,"Right","Rechts","A droite","Rechts"],[54,"A"],[108,"130.0"],[138,"14.0"],[142,"h9"],[164,"18.0"],[242,"22.0"],[260,"182.0"]],"m":[["dimensions",0]],"d":[],"x":[963168]},"462267":{"c":"B44119.0","s":["Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 19.00 mm with an overall length of 189 mm, a flute length of 22 mm and 131 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 19.00 mm with an overall length of 189 mm, a flute length of 22 mm and 131 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Maschinenreibahle mit stark ungleichgeteilt geradegenutet und einem Zylinderschaft, Durchmesser 19.00 mm mit einer Gesamtlänge von 189 mm, einer Schneidenlänge von 22 mm und 131 mm Arbeitstiefe mit Halsfreischliff, gemäß DIN 8050 Standard für präzise Löcher im Bereich H7 Toleranz, HM bestückt mit unbeschichtet zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl, Stahllegierungen und Werkzeugstahl Stahl, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, bearbeitetes und gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5987193"],[7,"1"],[14,"B441"],[16,"B44119.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760421161"],[21,"25.0"],[22,"190.0"],[23,"25.0"],[24,"285.2"],[31,"HM"],[32,"DIN 8050"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"6.0"],[49,"H7"],[50,"Right","Rechts","A droite","Rechts"],[54,"A"],[108,"131.0"],[138,"16.0"],[142,"h9"],[164,"19.0"],[242,"22.0"],[260,"189.0"]],"m":[["dimensions",0]],"d":[],"x":[963166]},"462270":{"c":"B44120.0","s":["Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 20.00 mm with an overall length of 195 mm, a flute length of 22 mm and 137 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 20.00 mm with an overall length of 195 mm, a flute length of 22 mm and 137 mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys","Maschinenreibahle mit stark ungleichgeteilt geradegenutet und einem Zylinderschaft, Durchmesser 20.00 mm mit einer Gesamtlänge von 195 mm, einer Schneidenlänge von 22 mm und 137 mm Arbeitstiefe mit Halsfreischliff, gemäß DIN 8050 Standard für präzise Löcher im Bereich H7 Toleranz, HM bestückt mit unbeschichtet zum bearbeiten von freie Bearbeitung, einfachem Kohlenstoffstahl, Stahllegierungen und Werkzeugstahl Stahl, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, bearbeitetes und gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"DE","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5987196"],[7,"1"],[14,"B441"],[16,"B44120.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760421178"],[21,"23.0"],[22,"200.0"],[23,"23.0"],[24,"294.2"],[31,"HM"],[32,"DIN 8050"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"6.0"],[49,"H7"],[50,"Right","Rechts","A droite","Rechts"],[54,"A"],[108,"137.0"],[138,"16.0"],[142,"h9"],[164,"20.0"],[242,"22.0"],[260,"195.0"]],"m":[["dimensions",0]],"d":[],"x":[963169]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Diameter (DC)	10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 15 mm, 16 mm, 17 mm, 18 mm, 19 mm, 20 mm
Coating (DP)	Steam Tempered
Schacht (DP)	Cylindrical shank
