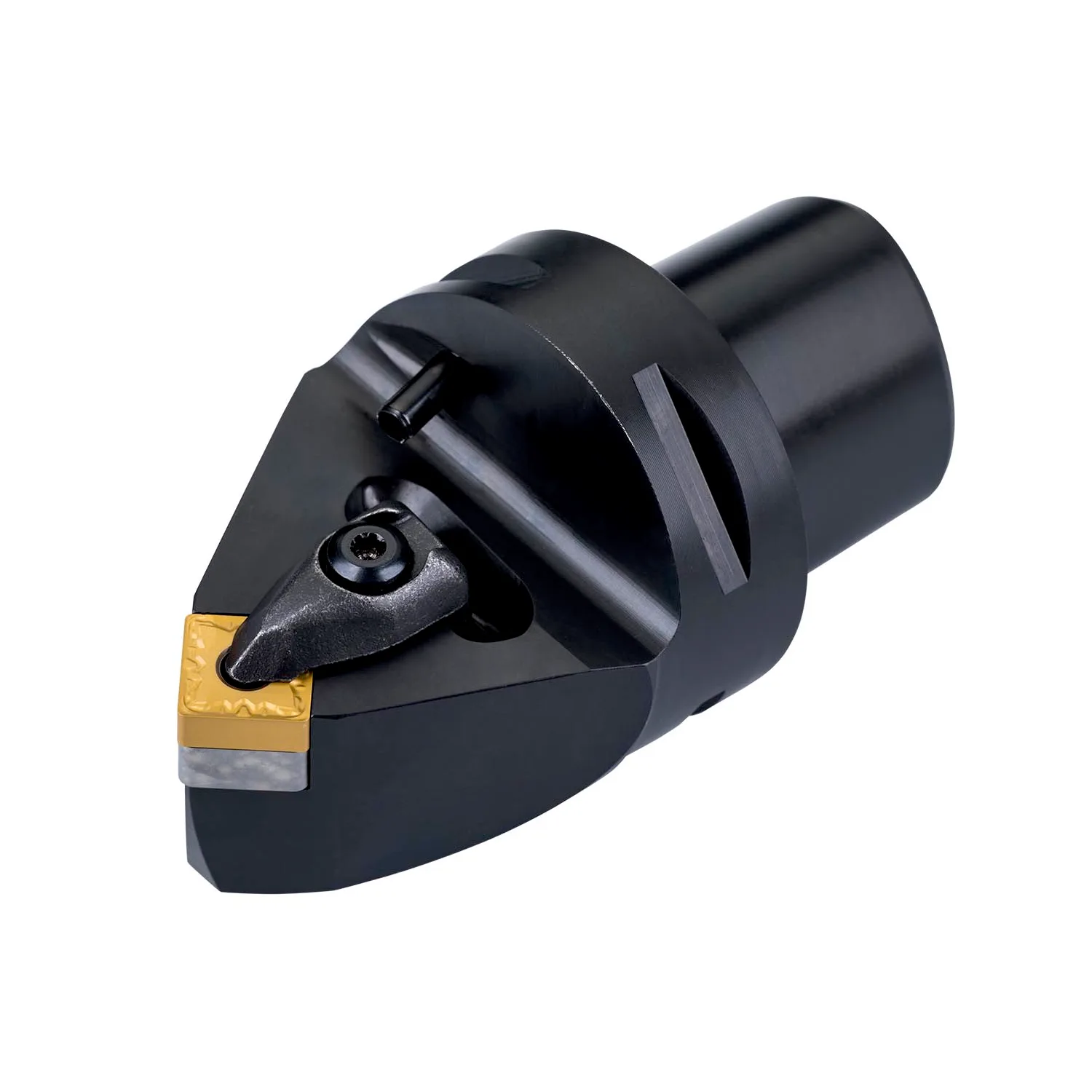

C.-DSDNN EXT Draaigereedschaphouder PSC ISO D - buitendraaien

Name: C.-DSDNN EXT Draaigereedschaphouder PSC ISO D - buitendraaien
SKU: C4-DSDNN-00050-12
Price: 222.04 EUR
Availability: InStock

PRAMET Zweden

222,04 €

excl. BTW

Productinformatie

Uitwendige neutrale dubbelklembeitel, met inwendige koeling, met 45˚ snijhoek voor langsdraaien zonder schouder, kopieerdraaien, conisch draaien en afschuinen met negatieve SN.. wisselplaten. Polygon Schacht Koppeling. Lichaam behandeld voor langere standtijd.

Uitvoering (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/C_-DSDNN_EXT_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/C_-DSDNN_EXT_OP.png"],"p":{"463108":{"c":"C4-DSDNN-00050-12","s":["Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 12.7 mm, 4.76 mm thick (ISO designation SN.. 1204.. ), neutral hand 45° side cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 50 mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder","Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 12.7 mm, 4.76 mm thick (ISO designation SN.. 1204.. ), neutral hand 45° side cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 50 mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder","Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 12.7 mm, 4.76 mm thick (ISO designation SN.. 1204.. ), neutral hand 45° side cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 50 mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder"],"o":"SE","a":[],"f":[[0,"7809803"],[7,"1"],[14,"C.-DSDNN EXT"],[16,"C4-DSDNN-00050-12"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603682825"],[21,"50.0"],[22,"90.0"],[23,"50.0"],[24,"389.0"],[48,"Neutral",null,"Neutre",null],[57,"System D",null,"Système D",null],[73,"12"],[138,"40.0"],[211,"50.0"],[214,"0.3"],[227,"-6.0"],[250,"140.0"],[256,"-6.0"],[313,"45.0"]],"m":[["dimensions",0],["application",1]],"d":[],"x":[964041]},"463109":{"c":"C5-DSDNN-00060-12","s":["Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 12.7 mm, 4.76 mm thick (ISO designation SN.. 1204.. ), neutral hand 45° side cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 60 mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder","Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 12.7 mm, 4.76 mm thick (ISO designation SN.. 1204.. ), neutral hand 45° side cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 60 mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder","Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 12.7 mm, 4.76 mm thick (ISO designation SN.. 1204.. ), neutral hand 45° side cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 60 mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder"],"o":"SE","a":[],"f":[[0,"7809804"],[7,"1"],[14,"C.-DSDNN EXT"],[16,"C5-DSDNN-00060-12"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603682832"],[21,"60.0"],[22,"95.0"],[23,"60.0"],[24,"690.5"],[48,"Neutral",null,"Neutre",null],[57,"System D",null,"Système D",null],[73,"12"],[138,"50.0"],[211,"60.0"],[214,"0.3"],[227,"-6.0"],[250,"165.0"],[256,"-6.0"],[313,"45.0"]],"m":[["dimensions",0],["application",1]],"d":[],"x":[964042]},"463110":{"c":"C6-DSDNN-00070-19","s":["Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 19.05 mm, 6.35 mm thick (ISO designation SN.. 1906.. ), neutral hand 45° side cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C6, with 70 mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder","Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 19.05 mm, 6.35 mm thick (ISO designation SN.. 1906.. ), neutral hand 45° side cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C6, with 70 mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder","Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 19.05 mm, 6.35 mm thick (ISO designation SN.. 1906.. ), neutral hand 45° side cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C6, with 70 mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder"],"o":"SE","a":[],"f":[[0,"7809805"],[7,"1"],[14,"C.-DSDNN EXT"],[16,"C6-DSDNN-00070-19"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603682849"],[21,"105.0"],[22,"130.0"],[23,"105.0"],[24,"1279.0"],[48,"Neutral",null,"Neutre",null],[57,"System D",null,"Système D",null],[73,"19"],[138,"63.0"],[211,"70.0"],[214,"0.5"],[227,"-6.0"],[250,"195.0"],[256,"-6.0"],[313,"45.0"]],"m":[["dimensions",0],["application",1]],"d":[],"x":[964043]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Uitvoering (DP)

50-12, 60-12, 70-19
