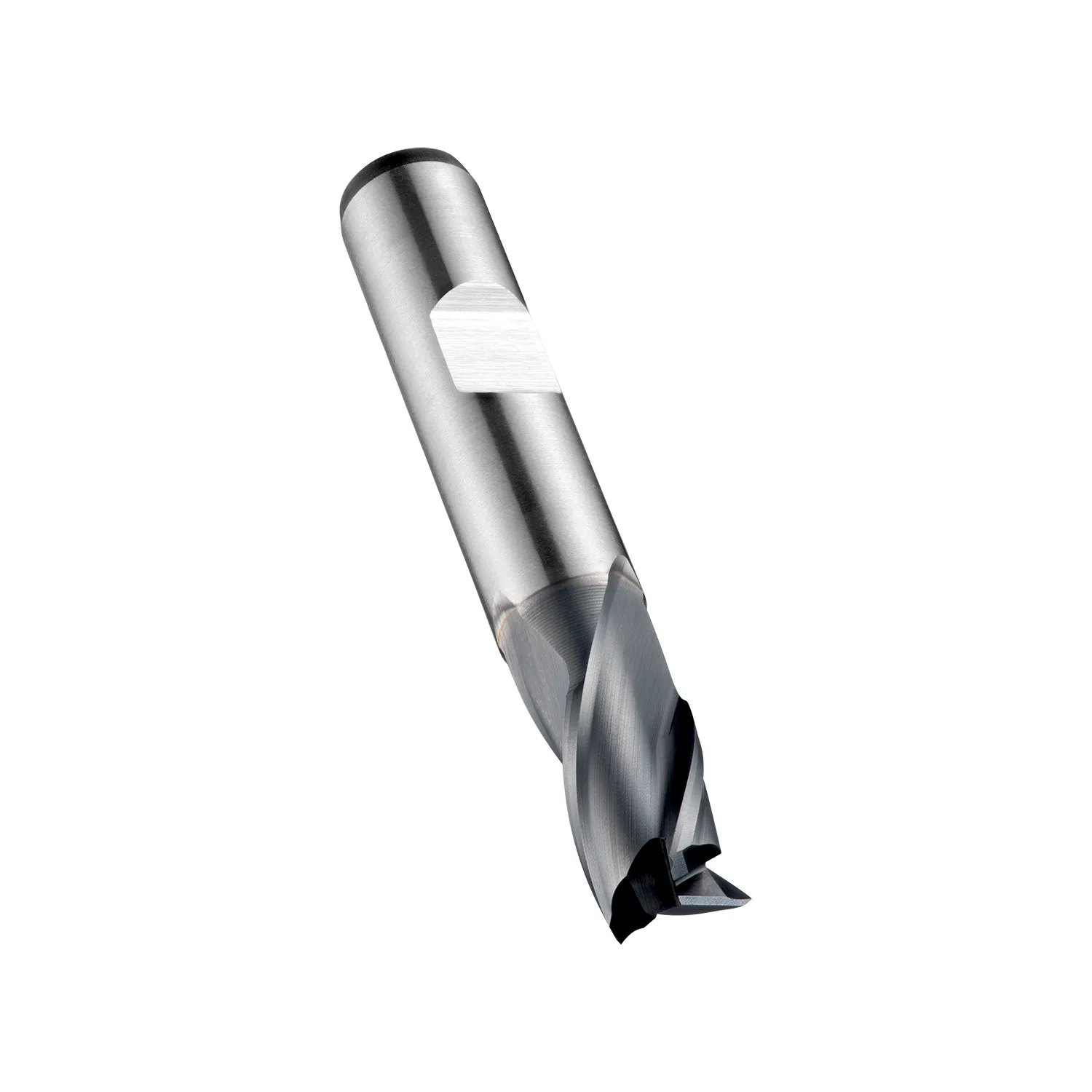

C353 HSS-E PM Spiebaanfrees

Name: C353 HSS-E PM Spiebaanfrees
SKU: C3533.0
Price: 32.87 EUR
Availability: InStock

DORMER Tsjechië

32,87 €

excl. BTW

Productinformatie

Extra korte snijlengte, 3-snijderontwerp biedt hoge stijfheid en is geschikt voor het frezen van ondiepe sleuven en hellend frezen. De nauwkeurige diameter betekent dat de gereedschappen zijn ontworpen voor het frezen van standaard spiebaansleuven met P9-tolerantie. Alcrona-coating verbetert de prestaties en verlengt de standtijd.

Diameter (DC)
Coating (DP)
Schacht (DP)
Tolerantie (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/C353_DIM.png"],"p":{"463526":{"c":"C3533.0","s":["Extra short series slot drill with 3 flutes, diameter 3 mm with 5 mm length of cut and 49 mm overall length, according to DIN 327 D standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 3 mm with 5 mm length of cut and 49 mm overall length, according to DIN 327 D standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 3 mm mit 5 mm Schnittlänge und 49 mm Gesamtlänge, gemäß DIN 327 D Standard mit einem 6 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984013"],[7,"1"],[14,"C353"],[16,"C3533.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573235"],[21,"11.0"],[22,"84.0"],[23,"10.0"],[24,"9.1"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[142,"h6"],[164,"3.0"],[181,"5.0"],[252,"3.0"],[254,"6.1"],[260,"49.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964510]},"463527":{"c":"C3533.5","s":["Extra short series slot drill with 3 flutes, diameter 3.5 mm with 6 mm length of cut and 50 mm overall length, according to DIN 327 D standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 3.5 mm with 6 mm length of cut and 50 mm overall length, according to DIN 327 D standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 3.5 mm mit 6 mm Schnittlänge und 50 mm Gesamtlänge, gemäß DIN 327 D Standard mit einem 6 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984018"],[7,"1"],[14,"C353"],[16,"C3533.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573242"],[21,"12.0"],[22,"85.0"],[23,"10.0"],[24,"12.5"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[142,"h6"],[164,"3.5"],[181,"6.0"],[252,"3.5"],[254,"7.0"],[260,"50.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964511]},"463528":{"c":"C3534.0","s":["Extra short series slot drill with 3 flutes, diameter 4 mm with 7 mm length of cut and 51 mm overall length, according to DIN 327 D standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 4 mm with 7 mm length of cut and 51 mm overall length, according to DIN 327 D standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 4 mm mit 7 mm Schnittlänge und 51 mm Gesamtlänge, gemäß DIN 327 D Standard mit einem 6 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984033"],[7,"1"],[14,"C353"],[16,"C3534.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573266"],[21,"12.0"],[22,"85.0"],[23,"10.0"],[24,"9.6"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[142,"h6"],[164,"4.0"],[181,"7.0"],[252,"4.0"],[254,"7.8"],[260,"51.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964512]},"463529":{"c":"C3534.5","s":["Extra short series slot drill with 3 flutes, diameter 4.5 mm with 7 mm length of cut and 51 mm overall length, according to DIN 327 D standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 4.5 mm with 7 mm length of cut and 51 mm overall length, according to DIN 327 D standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 4.5 mm mit 7 mm Schnittlänge und 51 mm Gesamtlänge, gemäß DIN 327 D Standard mit einem 6 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984038"],[7,"1"],[14,"C353"],[16,"C3534.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573273"],[21,"11.0"],[22,"84.0"],[23,"10.0"],[24,"12.4"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[142,"h6"],[164,"4.5"],[181,"7.0"],[252,"4.5"],[254,"7.6"],[260,"51.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964513]},"463530":{"c":"C3535.0","s":["Extra short series slot drill with 3 flutes, diameter 5 mm with 8 mm length of cut and 52 mm overall length, according to DIN 327 D standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 5 mm with 8 mm length of cut and 52 mm overall length, according to DIN 327 D standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 5 mm mit 8 mm Schnittlänge und 52 mm Gesamtlänge, gemäß DIN 327 D Standard mit einem 6 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984048"],[7,"1"],[14,"C353"],[16,"C3535.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573297"],[21,"11.0"],[22,"84.0"],[23,"10.0"],[24,"12.52"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[142,"h6"],[164,"5.0"],[181,"8.0"],[252,"5.0"],[254,"8.0"],[260,"52.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964514]},"463531":{"c":"C3535.5","s":["Extra short series slot drill with 3 flutes, diameter 5.5 mm with 8 mm length of cut and 52 mm overall length, according to DIN 327 D standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 5.5 mm with 8 mm length of cut and 52 mm overall length, according to DIN 327 D standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 5.5 mm mit 8 mm Schnittlänge und 52 mm Gesamtlänge, gemäß DIN 327 D Standard mit einem 6 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984051"],[7,"1"],[14,"C353"],[16,"C3535.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573303"],[21,"11.0"],[22,"84.0"],[23,"10.0"],[24,"12.8"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[142,"h6"],[164,"5.5"],[181,"8.0"],[252,"5.5"],[254,"8.0"],[260,"52.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964515]},"463532":{"c":"C3536.0","s":["Extra short series slot drill with 3 flutes, diameter 6 mm with 8 mm length of cut and 52 mm overall length, according to DIN 327 D standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 6 mm with 8 mm length of cut and 52 mm overall length, according to DIN 327 D standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 6 mm mit 8 mm Schnittlänge und 52 mm Gesamtlänge, gemäß DIN 327 D Standard mit einem 6 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984061"],[7,"1"],[14,"C353"],[16,"C3536.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573327"],[21,"11.0"],[22,"84.0"],[23,"10.0"],[24,"12.9"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[142,"h6"],[164,"6.0"],[181,"8.0"],[252,"6.0"],[254,"8.0"],[260,"52.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964516]},"463533":{"c":"C3536.5","s":["Extra short series slot drill with 3 flutes, diameter 6.5 mm with 10 mm length of cut and 60 mm overall length, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 6.5 mm with 10 mm length of cut and 60 mm overall length, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 6.5 mm mit 10 mm Schnittlänge und 60 mm Gesamtlänge, gemäß DIN 327 D Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984066"],[7,"1"],[14,"C353"],[16,"C3536.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573334"],[21,"15.0"],[22,"89.0"],[23,"13.0"],[24,"32.9"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[164,"6.5"],[181,"10.0"],[252,"6.5"],[254,"10.0"],[260,"60.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964517]},"463534":{"c":"C3537.0","s":["Extra short series slot drill with 3 flutes, diameter 7 mm with 10 mm length of cut and 60 mm overall length, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 7 mm with 10 mm length of cut and 60 mm overall length, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 7 mm mit 10 mm Schnittlänge und 60 mm Gesamtlänge, gemäß DIN 327 D Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984071"],[7,"1"],[14,"C353"],[16,"C3537.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573341"],[21,"11.8"],[22,"89.0"],[23,"14.0"],[24,"34.0"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[164,"7.0"],[181,"10.0"],[252,"7.0"],[254,"9.8"],[260,"60.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964518]},"463535":{"c":"C3537.5","s":["Extra short series slot drill with 3 flutes, diameter 7.5 mm with 10 mm length of cut and 60 mm overall length, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 7.5 mm with 10 mm length of cut and 60 mm overall length, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 7.5 mm mit 10 mm Schnittlänge und 60 mm Gesamtlänge, gemäß DIN 327 D Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984076"],[7,"1"],[14,"C353"],[16,"C3537.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573358"],[21,"16.8"],[22,"89.0"],[23,"9.0"],[24,"34.8"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[164,"7.5"],[181,"10.0"],[252,"7.5"],[254,"9.75"],[260,"60.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964519]},"463536":{"c":"C3538.0","s":["Extra short series slot drill with 3 flutes, diameter 8 mm with 11 mm length of cut and 61 mm overall length, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 8 mm with 11 mm length of cut and 61 mm overall length, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 8 mm mit 11 mm Schnittlänge und 61 mm Gesamtlänge, gemäß DIN 327 D Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984092"],[7,"1"],[14,"C353"],[16,"C3538.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573372"],[21,"14.0"],[22,"89.0"],[23,"17.0"],[24,"31.1"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[164,"8.0"],[181,"11.0"],[252,"8.0"],[254,"10.5"],[260,"61.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964520]},"463537":{"c":"C3538.5","s":["Extra short series slot drill with 3 flutes, diameter 8.5 mm with 11 mm length of cut and 61 mm overall length, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 8.5 mm with 11 mm length of cut and 61 mm overall length, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 8.5 mm mit 11 mm Schnittlänge und 61 mm Gesamtlänge, gemäß DIN 327 D Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984097"],[7,"1"],[14,"C353"],[16,"C3538.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573389"],[21,"16.0"],[22,"89.0"],[23,"14.0"],[24,"36.6"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[164,"8.5"],[181,"11.0"],[252,"8.5"],[254,"10.2"],[260,"61.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964521]},"463538":{"c":"C3539.0","s":["Extra short series slot drill with 3 flutes, diameter 9 mm with 11 mm length of cut and 61 mm overall length, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 9 mm with 11 mm length of cut and 61 mm overall length, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 9 mm mit 11 mm Schnittlänge und 61 mm Gesamtlänge, gemäß DIN 327 D Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984101"],[7,"1"],[14,"C353"],[16,"C3539.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573396"],[21,"16.8"],[22,"89.0"],[23,"10.0"],[24,"36.9"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[164,"9.0"],[181,"11.0"],[252,"9.0"],[254,"9.6"],[260,"61.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964522]},"463539":{"c":"C3539.5","s":["Extra short series slot drill with 3 flutes, diameter 9.5 mm with 11 mm length of cut and 61 mm overall length, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 9.5 mm with 11 mm length of cut and 61 mm overall length, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 9.5 mm mit 11 mm Schnittlänge und 61 mm Gesamtlänge, gemäß DIN 327 D Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984106"],[7,"1"],[14,"C353"],[16,"C3539.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573402"],[21,"16.0"],[22,"89.0"],[23,"12.0"],[24,"36.9"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[164,"9.5"],[181,"11.0"],[252,"9.5"],[254,"7.7"],[260,"61.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964523]},"463540":{"c":"C35310.0","s":["Extra short series slot drill with 3 flutes, diameter 10 mm with 13 mm length of cut, 63 mm overall length and 22.5 mm reach with neck relief, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 10 mm with 13 mm length of cut, 63 mm overall length and 22.5 mm reach with neck relief, according to DIN 327 D standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 10 mm mit 13 mm Schnittlänge, 63 mm Gesamtlänge und 22.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 327 D Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5983932"],[7,"1"],[14,"C353"],[16,"C35310.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573075"],[21,"16.0"],[22,"89.0"],[23,"12.0"],[24,"37.7"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[164,"10.0"],[181,"13.0"],[252,"9.5"],[254,"22.5"],[260,"63.0"],[276,"12.0"],[318,"22.5"]],"m":[["dimensions",0]],"d":[],"x":[964524]},"463541":{"c":"C35311.0","s":["Extra short series slot drill with 3 flutes, diameter 11 mm with 13 mm length of cut and 70 mm overall length, according to DIN 327 D standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 11 mm with 13 mm length of cut and 70 mm overall length, according to DIN 327 D standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 11 mm mit 13 mm Schnittlänge und 70 mm Gesamtlänge, gemäß DIN 327 D Standard mit einem 12 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5983936"],[7,"1"],[14,"C353"],[16,"C35311.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573082"],[21,"18.0"],[22,"87.0"],[23,"18.0"],[24,"57.6"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"12.0"],[142,"h6"],[164,"11.0"],[181,"13.0"],[252,"11.0"],[254,"11.2"],[260,"70.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964525]},"463542":{"c":"C35312.0","s":["Extra short series slot drill with 3 flutes, diameter 12 mm with 16 mm length of cut, 73 mm overall length and 27.5 mm reach with neck relief, according to DIN 327 D standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 12 mm with 16 mm length of cut, 73 mm overall length and 27.5 mm reach with neck relief, according to DIN 327 D standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 12 mm mit 16 mm Schnittlänge, 73 mm Gesamtlänge und 27.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 327 D Standard mit einem 12 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5983944"],[7,"1"],[14,"C353"],[16,"C35312.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573105"],[21,"17.0"],[22,"81.0"],[23,"17.0"],[24,"60.3"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"12.0"],[142,"h6"],[164,"12.0"],[181,"16.0"],[252,"11.5"],[254,"27.5"],[260,"73.0"],[276,"12.0"],[318,"27.5"]],"m":[["dimensions",0]],"d":[],"x":[964526]},"463543":{"c":"C35313.0","s":["Extra short series slot drill with 3 flutes, diameter 13 mm with 16 mm length of cut, 73 mm overall length and 27.5 mm reach with neck relief, according to DIN 327 D standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 13 mm with 16 mm length of cut, 73 mm overall length and 27.5 mm reach with neck relief, according to DIN 327 D standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 13 mm mit 16 mm Schnittlänge, 73 mm Gesamtlänge und 27.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 327 D Standard mit einem 12 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5983948"],[7,"1"],[14,"C353"],[16,"C35313.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573112"],[21,"17.0"],[22,"87.0"],[23,"17.0"],[24,"62.3"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"12.0"],[142,"h6"],[164,"13.0"],[181,"16.0"],[252,"11.5"],[254,"27.5"],[260,"73.0"],[276,"12.0"],[318,"27.5"]],"m":[["dimensions",0]],"d":[],"x":[964527]},"463544":{"c":"C35314.0","s":["Extra short series slot drill with 3 flutes, diameter 14 mm with 16 mm length of cut, 73 mm overall length and 27.5 mm reach with neck relief, according to DIN 327 D standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 14 mm with 16 mm length of cut, 73 mm overall length and 27.5 mm reach with neck relief, according to DIN 327 D standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 14 mm mit 16 mm Schnittlänge, 73 mm Gesamtlänge und 27.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 327 D Standard mit einem 12 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5983956"],[7,"1"],[14,"C353"],[16,"C35314.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573136"],[21,"18.0"],[22,"87.0"],[23,"18.0"],[24,"63.4"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"12.0"],[142,"h6"],[164,"14.0"],[181,"16.0"],[252,"11.5"],[254,"27.5"],[260,"73.0"],[276,"12.0"],[318,"27.5"]],"m":[["dimensions",0]],"d":[],"x":[964528]},"463545":{"c":"C35315.0","s":["Extra short series slot drill with 3 flutes, diameter 15 mm with 16 mm length of cut, 73 mm overall length and 27.5 mm reach with neck relief, according to DIN 327 D standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 15 mm with 16 mm length of cut, 73 mm overall length and 27.5 mm reach with neck relief, according to DIN 327 D standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 15 mm mit 16 mm Schnittlänge, 73 mm Gesamtlänge und 27.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 327 D Standard mit einem 12 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5983960"],[7,"1"],[14,"C353"],[16,"C35315.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573143"],[21,"21.0"],[22,"86.0"],[23,"21.0"],[24,"67.1"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"12.0"],[142,"h6"],[164,"15.0"],[181,"16.0"],[252,"11.5"],[254,"27.5"],[260,"73.0"],[276,"12.0"],[318,"27.5"]],"m":[["dimensions",0]],"d":[],"x":[964529]},"463546":{"c":"C35316.0","s":["Extra short series slot drill with 3 flutes, diameter 16 mm with 19 mm length of cut, 79 mm overall length and 30.5 mm reach with neck relief, according to DIN 327 D standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 16 mm with 19 mm length of cut, 79 mm overall length and 30.5 mm reach with neck relief, according to DIN 327 D standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 16 mm mit 19 mm Schnittlänge, 79 mm Gesamtlänge und 30.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 327 D Standard mit einem 16 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5983979"],[7,"1"],[14,"C353"],[16,"C35316.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573167"],[21,"20.0"],[22,"86.0"],[23,"20.0"],[24,"112.5"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"16.0"],[142,"h6"],[164,"16.0"],[181,"19.0"],[252,"15.5"],[254,"30.5"],[260,"79.0"],[276,"12.0"],[318,"30.5"]],"m":[["dimensions",0]],"d":[],"x":[964530]},"463547":{"c":"C35318.0","s":["Extra short series slot drill with 3 flutes, diameter 18 mm with 19 mm length of cut, 79 mm overall length and 30.5 mm reach with neck relief, according to DIN 327 D standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 18 mm with 19 mm length of cut, 79 mm overall length and 30.5 mm reach with neck relief, according to DIN 327 D standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 18 mm mit 19 mm Schnittlänge, 79 mm Gesamtlänge und 30.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 327 D Standard mit einem 16 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5983984"],[7,"1"],[14,"C353"],[16,"C35318.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573174"],[21,"21.0"],[22,"85.0"],[23,"21.0"],[24,"117.7"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"16.0"],[142,"h6"],[164,"18.0"],[181,"19.0"],[252,"15.5"],[254,"30.5"],[260,"79.0"],[276,"12.0"],[318,"30.5"]],"m":[["dimensions",0]],"d":[],"x":[964531]},"463548":{"c":"C35320.0","s":["Extra short series slot drill with 3 flutes, diameter 20 mm with 22 mm length of cut, 88 mm overall length and 37.5 mm reach with neck relief, according to DIN 327 D standard with a 20 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 20 mm with 22 mm length of cut, 88 mm overall length and 37.5 mm reach with neck relief, according to DIN 327 D standard with a 20 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 20 mm mit 22 mm Schnittlänge, 88 mm Gesamtlänge und 37.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 327 D Standard mit einem 20 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5983994"],[7,"1"],[14,"C353"],[16,"C35320.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573198"],[21,"25.0"],[22,"92.0"],[23,"25.0"],[24,"188.9"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"20.0"],[142,"h6"],[164,"20.0"],[181,"22.0"],[252,"19.5"],[254,"37.5"],[260,"88.0"],[276,"12.0"],[318,"37.5"]],"m":[["dimensions",0]],"d":[],"x":[964532]},"463549":{"c":"C35322.0","s":["Extra short series slot drill with 3 flutes, diameter 22 mm with 22 mm length of cut, 88 mm overall length and 37.5 mm reach with neck relief, according to DIN 327 D standard with a 20 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 22 mm with 22 mm length of cut, 88 mm overall length and 37.5 mm reach with neck relief, according to DIN 327 D standard with a 20 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 22 mm mit 22 mm Schnittlänge, 88 mm Gesamtlänge und 37.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 327 D Standard mit einem 20 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5983998"],[7,"1"],[14,"C353"],[16,"C35322.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573204"],[21,"24.0"],[22,"93.0"],[23,"24.0"],[24,"199.0"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"20.0"],[142,"h6"],[164,"22.0"],[181,"22.0"],[252,"19.5"],[254,"37.5"],[260,"88.0"],[276,"12.0"],[318,"37.5"]],"m":[["dimensions",0]],"d":[],"x":[964533]},"463550":{"c":"C35325.0","s":["Extra short series slot drill with 3 flutes, diameter 25 mm with 26 mm length of cut, 102 mm overall length and 45.5 mm reach with neck relief, according to DIN 327 D standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 25 mm with 26 mm length of cut, 102 mm overall length and 45.5 mm reach with neck relief, according to DIN 327 D standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 25 mm mit 26 mm Schnittlänge, 102 mm Gesamtlänge und 45.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 327 D Standard mit einem 25 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984002"],[7,"1"],[14,"C353"],[16,"C35325.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573211"],[21,"30.0"],[22,"105.0"],[23,"30.0"],[24,"340.0"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"25.0"],[142,"h6"],[164,"25.0"],[181,"26.0"],[252,"24.5"],[254,"45.5"],[260,"102.0"],[276,"12.0"],[318,"45.5"]],"m":[["dimensions",0]],"d":[],"x":[964534]},"463551":{"c":"C35328.0","s":["Extra short series slot drill with 3 flutes, diameter 28 mm with 26 mm length of cut, 102 mm overall length and 45.5 mm reach with neck relief, according to DIN 327 D standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 28 mm with 26 mm length of cut, 102 mm overall length and 45.5 mm reach with neck relief, according to DIN 327 D standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 28 mm mit 26 mm Schnittlänge, 102 mm Gesamtlänge und 45.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 327 D Standard mit einem 25 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984008"],[7,"1"],[14,"C353"],[16,"C35328.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573228"],[21,"40.0"],[22,"108.0"],[23,"40.0"],[24,"368.5"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"25.0"],[142,"h6"],[164,"28.0"],[181,"26.0"],[252,"24.5"],[254,"45.5"],[260,"102.0"],[276,"12.0"],[318,"45.5"]],"m":[["dimensions",0]],"d":[],"x":[964535]},"463552":{"c":"C35330.0","s":["Extra short series slot drill with 3 flutes, diameter 30 mm with 26 mm length of cut, 102 mm overall length and 45.5 mm reach with neck relief, according to DIN 327 D standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra short series slot drill with 3 flutes, diameter 30 mm with 26 mm length of cut, 102 mm overall length and 45.5 mm reach with neck relief, according to DIN 327 D standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys","Extra kurzer nutfräser mit 3 Schneiden, Durchmesser 30 mm mit 26 mm Schnittlänge, 102 mm Gesamtlänge und 45.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 327 D Standard mit einem 25 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 30° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Gusseisen, Kupfer oder Kupferlegierungen und Titan oder Titanlegierungen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5984023"],[7,"1"],[14,"C353"],[16,"C35330.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760573259"],[21,"40.0"],[22,"108.0"],[23,"40.0"],[24,"386.4"],[31,"HSS-E-PM"],[32,"DIN 327 D"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"3.0"],[47,"e8"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"25.0"],[142,"h6"],[164,"30.0"],[181,"26.0"],[252,"24.5"],[254,"45.5"],[260,"102.0"],[276,"12.0"],[318,"45.5"]],"m":[["dimensions",0]],"d":[],"x":[964536]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Diameter (DC)	3 mm, 3,5 mm, 4 mm, 4,5 mm, 5 mm, 5,5 mm, 6 mm, 6,5 mm, 7 mm, 7,5 mm, 8 mm, 8,5 mm, 9 mm, 9,5 mm, 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 15 mm, 16 mm, 18 mm, 20 mm, 22 mm, 25 mm, 28 mm, 30 mm
Coating (DP)	ALCRONA
Schacht (DP)	Weldon shank DIN 1835B
Tolerantie (DP)	e8
