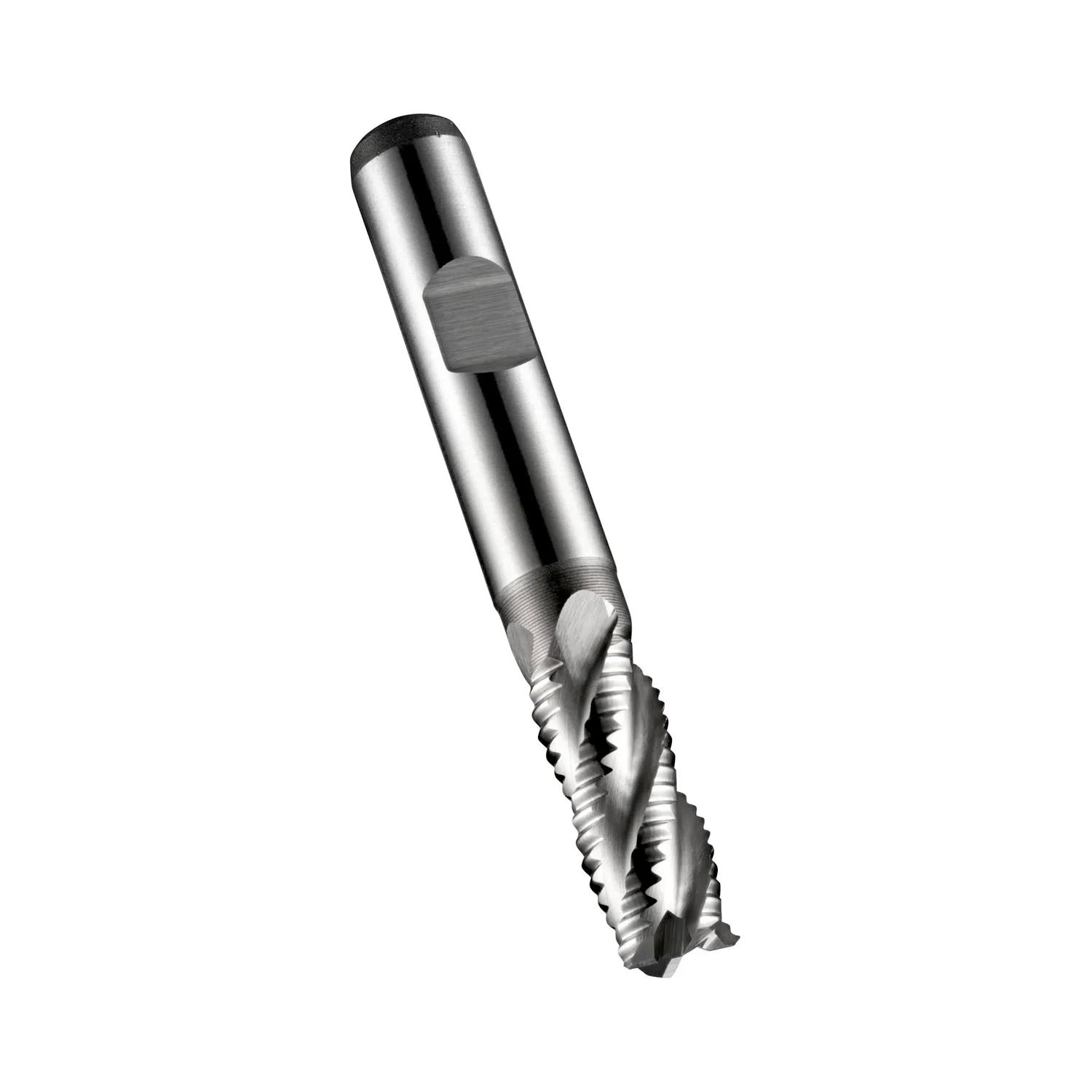

C407 HSS-E PM Ruwfrees

Name: C407 HSS-E PM Ruwfrees (6 mm)
SKU: C4076.0
Price: 32.38 EUR
Availability: InStock

DORMER Polen

32,38 €

excl. BTW

Productinformatie

Korte snijlengte, 4-snijder uitvoering met halsvrijloop op grote snijdiameters en een NRA-profiel om spanen te breken voor efficiënte voorbewerkingstoepassingen. Een 35° spiraalhoek vermindert trillingen en verbetert de prestaties bij voorbewerkingen.

Diameter (DC)
Coating (DP)
Schacht (DP)
Tolerantie (DP)

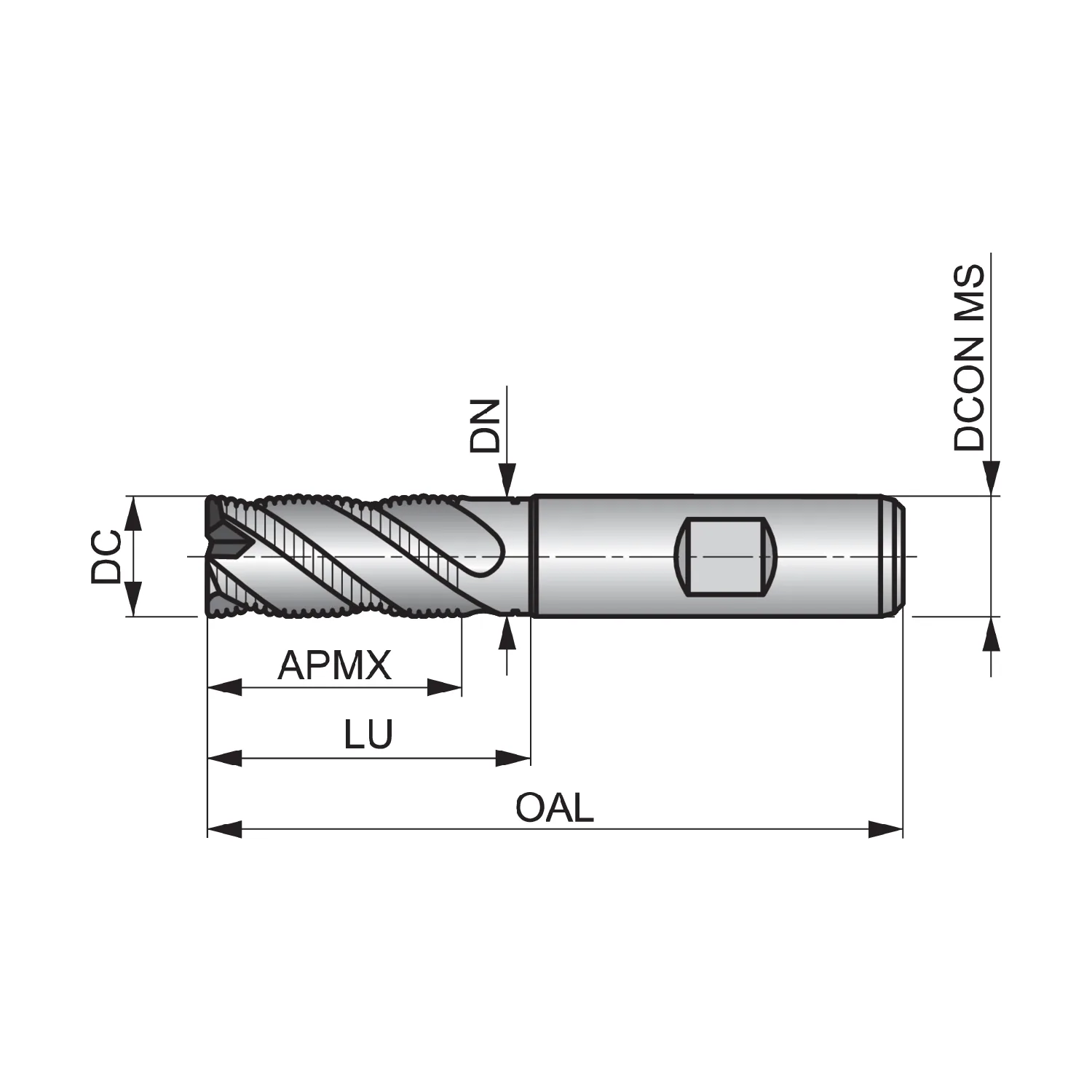

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/C407_DIM.png"],"p":{"463581":{"c":"C4076.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 6 mm with 13 mm length of cut and 57 mm overall length, according to DIN 844 K standard with a 6 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 6 mm with 13 mm length of cut and 57 mm overall length, according to DIN 844 K standard with a 6 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 6 mm mit 13 mm Schnittlänge und 57 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 6 mm Weldonschaft, HSSE-PM mit unbeschichtet, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Superaustenitisch, Duplex oder ausscheidungsgehärtem Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985137"],[7,"1"],[14,"C407"],[16,"C4076.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760068946"],[21,"11.95"],[22,"83.64"],[23,"9.5"],[24,"14.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"6.0"],[142,"h6"],[164,"6.0"],[181,"13.0"],[260,"57.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964574]},"463582":{"c":"C4077.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 7 mm with 16 mm length of cut and 66 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 7 mm with 16 mm length of cut and 66 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 7 mm mit 16 mm Schnittlänge und 66 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-PM mit unbeschichtet, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Superaustenitisch, Duplex oder ausscheidungsgehärtem Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985138"],[7,"1"],[14,"C407"],[16,"C4077.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760346136"],[21,"16.0"],[22,"90.0"],[23,"13.0"],[24,"35.7"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"7.0"],[181,"16.0"],[252,"7.0"],[254,"16.4"],[260,"66.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964575]},"463583":{"c":"C4078.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 8 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 8 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 8 mm mit 19 mm Schnittlänge und 69 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-PM mit unbeschichtet, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Superaustenitisch, Duplex oder ausscheidungsgehärtem Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985139"],[7,"1"],[14,"C407"],[16,"C4078.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760068953"],[21,"16.0"],[22,"88.0"],[23,"18.0"],[24,"39.1"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"8.0"],[181,"19.0"],[252,"8.0"],[254,"19.1"],[260,"69.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964576]},"463584":{"c":"C4079.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 9 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 9 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 9 mm mit 19 mm Schnittlänge und 69 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-PM mit unbeschichtet, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Superaustenitisch, Duplex oder ausscheidungsgehärtem Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985140"],[7,"1"],[14,"C407"],[16,"C4079.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760346143"],[21,"16.0"],[22,"88.0"],[23,"14.0"],[24,"40.6"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"9.0"],[181,"19.0"],[252,"9.0"],[254,"18.2"],[260,"69.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964577]},"463585":{"c":"C40710.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 10 mm with 22 mm length of cut, 72 mm overall length and 31.5 mm reach with neck relief, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 10 mm with 22 mm length of cut, 72 mm overall length and 31.5 mm reach with neck relief, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 10 mm mit 22 mm Schnittlänge, 72 mm Gesamtlänge und 31.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-PM mit unbeschichtet, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Superaustenitisch, Duplex oder ausscheidungsgehärtem Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985082"],[7,"1"],[14,"C407"],[16,"C40710.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760068816"],[21,"16.8"],[22,"88.66"],[23,"13.96"],[24,"43.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"10.0"],[181,"22.0"],[252,"9.5"],[254,"31.5"],[260,"72.0"],[276,"12.0"],[318,"31.5"]],"m":[["dimensions",0]],"d":[],"x":[964578]},"463586":{"c":"C40711.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 11 mm with 22 mm length of cut and 79 mm overall length, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 11 mm with 22 mm length of cut and 79 mm overall length, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 11 mm mit 22 mm Schnittlänge und 79 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-PM mit unbeschichtet, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Superaustenitisch, Duplex oder ausscheidungsgehärtem Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985086"],[7,"1"],[14,"C407"],[16,"C40711.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760346150"],[21,"20.0"],[22,"85.0"],[23,"20.0"],[24,"62.9"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"11.0"],[181,"22.0"],[252,"11.0"],[254,"20.8"],[260,"79.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964579]},"463587":{"c":"C40712.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 12 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 12 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 12 mm mit 26 mm Schnittlänge, 83 mm Gesamtlänge und 37.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-PM mit unbeschichtet, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Superaustenitisch, Duplex oder ausscheidungsgehärtem Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985091"],[7,"1"],[14,"C407"],[16,"C40712.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760068823"],[21,"17.73"],[22,"86.88"],[23,"17.68"],[24,"64.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"12.0"],[181,"26.0"],[252,"11.5"],[254,"37.5"],[260,"83.0"],[276,"12.0"],[318,"37.5"]],"m":[["dimensions",0]],"d":[],"x":[964580]},"463588":{"c":"C40713.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 13 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 13 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 13 mm mit 26 mm Schnittlänge, 83 mm Gesamtlänge und 37.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-PM mit unbeschichtet, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Superaustenitisch, Duplex oder ausscheidungsgehärtem Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985101"],[7,"1"],[14,"C407"],[16,"C40713.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760346167"],[21,"15.0"],[22,"86.0"],[23,"16.0"],[24,"71.6"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"13.0"],[181,"26.0"],[252,"11.5"],[254,"37.0"],[260,"83.0"],[276,"12.0"],[318,"37.5"]],"m":[["dimensions",0]],"d":[],"x":[964581]},"463589":{"c":"C40714.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 14 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 14 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 14 mm mit 26 mm Schnittlänge, 83 mm Gesamtlänge und 37.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-PM mit unbeschichtet, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Superaustenitisch, Duplex oder ausscheidungsgehärtem Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985106"],[7,"1"],[14,"C407"],[16,"C40714.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760068830"],[21,"17.0"],[22,"86.0"],[23,"17.0"],[24,"69.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"14.0"],[181,"26.0"],[252,"11.5"],[254,"37.0"],[260,"83.0"],[276,"12.0"],[318,"37.5"]],"m":[["dimensions",0]],"d":[],"x":[964582]},"463590":{"c":"C40716.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 16 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 16 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 16 mm mit 32 mm Schnittlänge, 92 mm Gesamtlänge und 43.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 16 mm Weldonschaft, HSSE-PM mit unbeschichtet, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Superaustenitisch, Duplex oder ausscheidungsgehärtem Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985115"],[7,"1"],[14,"C407"],[16,"C40716.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760068847"],[21,"21.56"],[22,"95.93"],[23,"22.52"],[24,"127.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"16.0"],[142,"h6"],[164,"16.0"],[181,"32.0"],[252,"15.5"],[254,"43.0"],[260,"92.0"],[276,"12.0"],[318,"43.5"]],"m":[["dimensions",0]],"d":[],"x":[964583]},"463591":{"c":"C40718.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 18 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 18 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 18 mm mit 32 mm Schnittlänge, 92 mm Gesamtlänge und 43.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 16 mm Weldonschaft, HSSE-PM mit unbeschichtet, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Superaustenitisch, Duplex oder ausscheidungsgehärtem Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985119"],[7,"1"],[14,"C407"],[16,"C40718.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760068854"],[21,"21.0"],[22,"94.0"],[23,"18.0"],[24,"90.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"16.0"],[142,"h6"],[164,"18.0"],[181,"32.0"],[252,"15.5"],[254,"43.0"],[260,"92.0"],[276,"12.0"],[318,"43.5"]],"m":[["dimensions",0]],"d":[],"x":[964584]},"463592":{"c":"C40720.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 20 mm with 38 mm length of cut, 104 mm overall length and 53.5 mm reach with neck relief, according to DIN 844 K standard with a 20 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 20 mm with 38 mm length of cut, 104 mm overall length and 53.5 mm reach with neck relief, according to DIN 844 K standard with a 20 mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 20 mm mit 38 mm Schnittlänge, 104 mm Gesamtlänge und 53.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 20 mm Weldonschaft, HSSE-PM mit unbeschichtet, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer, Martensitischer und Superaustenitisch, Duplex oder ausscheidungsgehärtem Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985120"],[7,"1"],[14,"C407"],[16,"C40720.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760068861"],[21,"24.0"],[22,"107.0"],[23,"24.0"],[24,"219.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"20.0"],[142,"h6"],[164,"20.0"],[181,"38.0"],[252,"19.0"],[254,"53.0"],[260,"104.0"],[276,"12.0"],[318,"53.5"]],"m":[["dimensions",0]],"d":[],"x":[964585]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Diameter (DC)	6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 16 mm, 18 mm, 20 mm
Coating (DP)	Steam Tempered
Schacht (DP)	Weldon shank DIN 1835B
Tolerantie (DP)	k12
