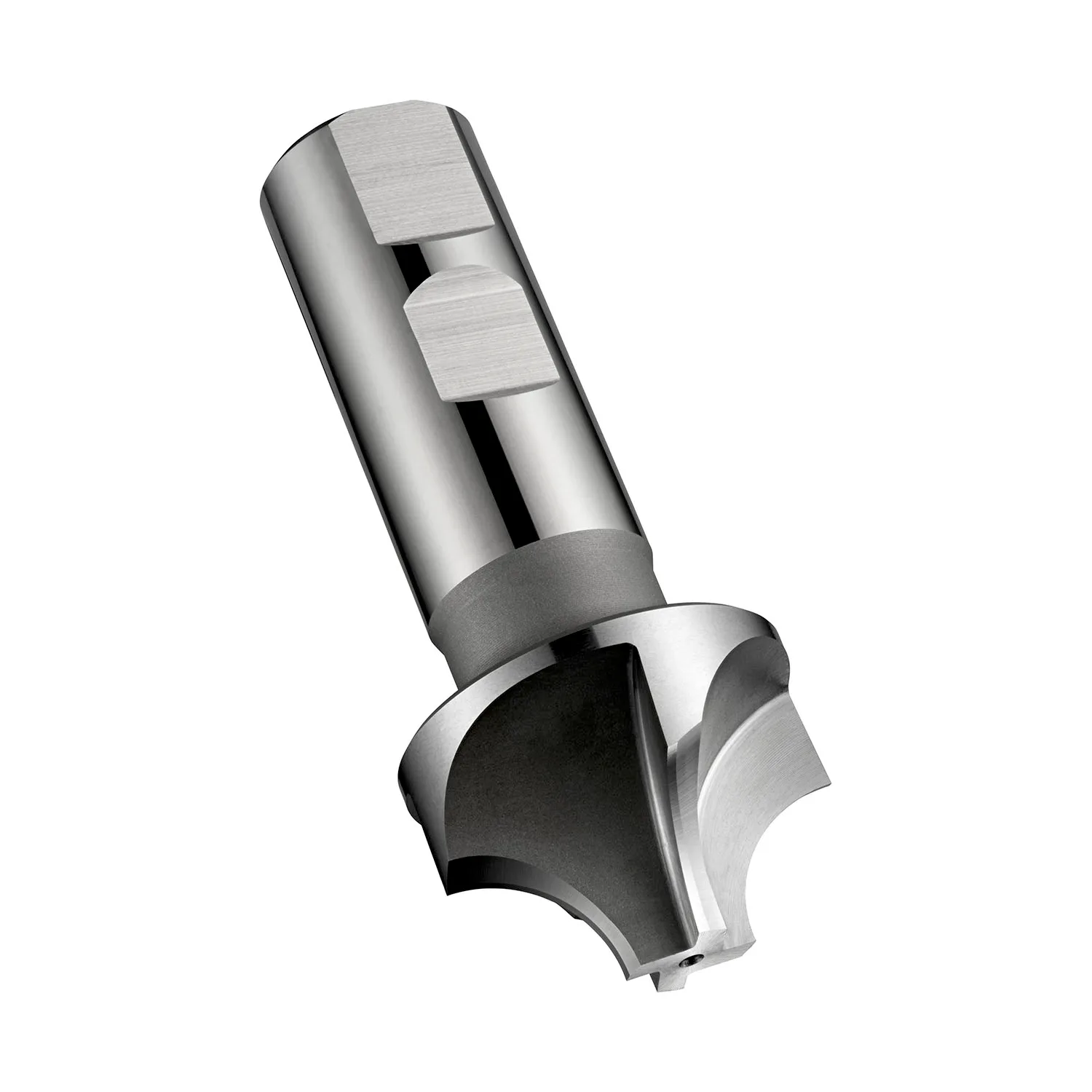

C700 HSS-E Kwartholfrees

Name: C700 HSS-E Kwartholfrees
SKU: C7001.5
Price: 58.10 EUR
Availability: InStock

DORMER Italië

58,10 €

excl. BTW

Productinformatie

Met een nauwkeurig geslepen radius, geschikt voor het produceren van nauwkeurige hoekradii rond de omtrek van componenten. De Weldon schacht zorgt voor stabiele opspanning om de oppervlakteafwerking van de radius te verbeteren. Geschikt voor radiusfrezen. Blanke afwerking.

Coating (DP)
Schacht (DP)
Uitvoering (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/C700_DIM.png"],"p":{"463677":{"c":"C7001.0","s":["Extra short series corner rounding cutter with 4 flutes, diameter 10 mm with 60 mm overall length and 1 mm profile radii, according to Dormer Pramet standard with a 10 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 4 flutes, diameter 10 mm with 60 mm overall length and 1 mm profile radii, according to Dormer Pramet standard with a 10 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 4 Schneiden, Durchmesser 10 mm mit 60 mm Gesamtlänge und 1 mm Profilradius, gemäß Dormer Pramet Standard mit einem 10 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985388"],[7,"1"],[14,"C700"],[16,"C7001.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760074282"],[21,"16.58"],[22,"88.55"],[23,"14.53"],[24,"41.0"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[158,"1.0"],[166,"10.0"],[260,"60.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964688]},"463664":{"c":"C7001.5","s":["Extra short series corner rounding cutter with 4 flutes, diameter 10 mm with 60 mm overall length and 1.5 mm profile radii, according to Dormer Pramet standard with a 10 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 4 flutes, diameter 10 mm with 60 mm overall length and 1.5 mm profile radii, according to Dormer Pramet standard with a 10 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 4 Schneiden, Durchmesser 10 mm mit 60 mm Gesamtlänge und 1.5 mm Profilradius, gemäß Dormer Pramet Standard mit einem 10 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985389"],[7,"1"],[14,"C700"],[16,"C7001.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760074299"],[21,"16.58"],[22,"88.87"],[23,"14.5"],[24,"41.0"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[158,"1.5"],[166,"10.0"],[260,"60.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964675]},"463665":{"c":"C7002.0","s":["Extra short series corner rounding cutter with 4 flutes, diameter 10 mm with 60 mm overall length and 2 mm profile radii, according to Dormer Pramet standard with a 10 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 4 flutes, diameter 10 mm with 60 mm overall length and 2 mm profile radii, according to Dormer Pramet standard with a 10 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 4 Schneiden, Durchmesser 10 mm mit 60 mm Gesamtlänge und 2 mm Profilradius, gemäß Dormer Pramet Standard mit einem 10 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985469"],[7,"1"],[14,"C700"],[16,"C7002.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760074343"],[21,"16.0"],[22,"89.0"],[23,"13.0"],[24,"40.6"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[158,"2.0"],[166,"10.0"],[260,"60.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964676]},"463666":{"c":"C7002.5","s":["Extra short series corner rounding cutter with 4 flutes, diameter 10 mm with 60 mm overall length and 2.5 mm profile radii, according to Dormer Pramet standard with a 10 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 4 flutes, diameter 10 mm with 60 mm overall length and 2.5 mm profile radii, according to Dormer Pramet standard with a 10 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 4 Schneiden, Durchmesser 10 mm mit 60 mm Gesamtlänge und 2.5 mm Profilradius, gemäß Dormer Pramet Standard mit einem 10 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985513"],[7,"1"],[14,"C700"],[16,"C7002.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760074350"],[21,"16.58"],[22,"89.01"],[23,"14.94"],[24,"41.0"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[158,"2.5"],[166,"10.0"],[260,"60.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964677]},"463667":{"c":"C7003.0","s":["Extra short series corner rounding cutter with 4 flutes, diameter 12 mm with 60 mm overall length and 3 mm profile radii, according to Dormer Pramet standard with a 12 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 4 flutes, diameter 12 mm with 60 mm overall length and 3 mm profile radii, according to Dormer Pramet standard with a 12 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 4 Schneiden, Durchmesser 12 mm mit 60 mm Gesamtlänge und 3 mm Profilradius, gemäß Dormer Pramet Standard mit einem 12 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985612"],[7,"1"],[14,"C700"],[16,"C7003.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760074374"],[21,"16.0"],[22,"85.0"],[23,"16.0"],[24,"50.0"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"12.0"],[142,"h6"],[158,"3.0"],[166,"12.0"],[260,"60.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964678]},"463674":{"c":"C7003.5","s":["Extra short series corner rounding cutter with 4 flutes, diameter 12 mm with 60 mm overall length and 3.5 mm profile radii, according to Dormer Pramet standard with a 12 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 4 flutes, diameter 12 mm with 60 mm overall length and 3.5 mm profile radii, according to Dormer Pramet standard with a 12 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 4 Schneiden, Durchmesser 12 mm mit 60 mm Gesamtlänge und 3.5 mm Profilradius, gemäß Dormer Pramet Standard mit einem 12 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985618"],[7,"1"],[14,"C700"],[16,"C7003.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760165324"],[21,"21.7"],[22,"86.0"],[23,"18.0"],[24,"26.7"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"12.0"],[142,"h6"],[158,"3.5"],[166,"12.0"],[260,"60.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964685]},"463668":{"c":"C7004.0","s":["Extra short series corner rounding cutter with 4 flutes, diameter 15 mm with 60 mm overall length and 4 mm profile radii, according to Dormer Pramet standard with a 12 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 4 flutes, diameter 15 mm with 60 mm overall length and 4 mm profile radii, according to Dormer Pramet standard with a 12 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 4 Schneiden, Durchmesser 15 mm mit 60 mm Gesamtlänge und 4 mm Profilradius, gemäß Dormer Pramet Standard mit einem 12 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985621"],[7,"1"],[14,"C700"],[16,"C7004.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760074381"],[21,"21.81"],[22,"85.05"],[23,"21.81"],[24,"57.0"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"12.0"],[142,"h6"],[158,"4.0"],[166,"15.0"],[260,"60.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964679]},"463669":{"c":"C7005.0","s":["Extra short series corner rounding cutter with 4 flutes, diameter 18 mm with 70 mm overall length and 5 mm profile radii, according to Dormer Pramet standard with a 16 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 4 flutes, diameter 18 mm with 70 mm overall length and 5 mm profile radii, according to Dormer Pramet standard with a 16 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 4 Schneiden, Durchmesser 18 mm mit 70 mm Gesamtlänge und 5 mm Profilradius, gemäß Dormer Pramet Standard mit einem 16 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985624"],[7,"1"],[14,"C700"],[16,"C7005.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760074398"],[21,"22.02"],[22,"86.37"],[23,"22.02"],[24,"100.0"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"16.0"],[142,"h6"],[158,"5.0"],[166,"18.0"],[260,"70.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964680]},"463670":{"c":"C7006.0","s":["Extra short series corner rounding cutter with 4 flutes, diameter 21 mm with 70 mm overall length and 6 mm profile radii, according to Dormer Pramet standard with a 16 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 4 flutes, diameter 21 mm with 70 mm overall length and 6 mm profile radii, according to Dormer Pramet standard with a 16 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 4 Schneiden, Durchmesser 21 mm mit 70 mm Gesamtlänge und 6 mm Profilradius, gemäß Dormer Pramet Standard mit einem 16 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985628"],[7,"1"],[14,"C700"],[16,"C7006.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760074404"],[21,"25.04"],[22,"87.58"],[23,"25.25"],[24,"115.0"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"16.0"],[142,"h6"],[158,"6.0"],[166,"21.0"],[260,"70.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964681]},"463675":{"c":"C7007.0","s":["Extra short series corner rounding cutter with 4 flutes, diameter 24 mm with 70 mm overall length and 7 mm profile radii, according to Dormer Pramet standard with a 16 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 4 flutes, diameter 24 mm with 70 mm overall length and 7 mm profile radii, according to Dormer Pramet standard with a 16 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 4 Schneiden, Durchmesser 24 mm mit 70 mm Gesamtlänge und 7 mm Profilradius, gemäß Dormer Pramet Standard mit einem 16 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985430"],[7,"1"],[14,"C700"],[16,"C7007.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760074411"],[21,"29.0"],[22,"87.0"],[23,"29.0"],[24,"114.6"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"16.0"],[142,"h6"],[158,"7.0"],[166,"24.0"],[260,"70.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964686]},"463671":{"c":"C7008.0","s":["Extra short series corner rounding cutter with 4 flutes, diameter 24 mm with 70 mm overall length and 8 mm profile radii, according to Dormer Pramet standard with a 16 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 4 flutes, diameter 24 mm with 70 mm overall length and 8 mm profile radii, according to Dormer Pramet standard with a 16 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 4 Schneiden, Durchmesser 24 mm mit 70 mm Gesamtlänge und 8 mm Profilradius, gemäß Dormer Pramet Standard mit einem 16 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985433"],[7,"1"],[14,"C700"],[16,"C7008.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760074428"],[21,"29.06"],[22,"88.29"],[23,"29.13"],[24,"123.0"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"16.0"],[142,"h6"],[158,"8.0"],[166,"24.0"],[260,"70.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964682]},"463676":{"c":"C7009.0","s":["Extra short series corner rounding cutter with 4 flutes, diameter 28 mm with 85 mm overall length and 9 mm profile radii, according to Dormer Pramet standard with a 20 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 4 flutes, diameter 28 mm with 85 mm overall length and 9 mm profile radii, according to Dormer Pramet standard with a 20 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 4 Schneiden, Durchmesser 28 mm mit 85 mm Gesamtlänge und 9 mm Profilradius, gemäß Dormer Pramet Standard mit einem 20 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985436"],[7,"1"],[14,"C700"],[16,"C7009.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760127063"],[21,"40.0"],[22,"88.0"],[23,"38.0"],[24,"200.3"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"20.0"],[142,"h6"],[158,"9.0"],[166,"28.0"],[260,"85.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964687]},"463672":{"c":"C70010.0","s":["Extra short series corner rounding cutter with 4 flutes, diameter 28 mm with 85 mm overall length and 10 mm profile radii, according to Dormer Pramet standard with a 20 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 4 flutes, diameter 28 mm with 85 mm overall length and 10 mm profile radii, according to Dormer Pramet standard with a 20 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 4 Schneiden, Durchmesser 28 mm mit 85 mm Gesamtlänge und 10 mm Profilradius, gemäß Dormer Pramet Standard mit einem 20 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985390"],[7,"1"],[14,"C700"],[16,"C70010.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760074305"],[21,"39.56"],[22,"127.0"],[23,"39.86"],[24,"202.0"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"20.0"],[142,"h6"],[158,"10.0"],[166,"28.0"],[260,"85.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964683]},"463673":{"c":"C70012.0","s":["Extra short series corner rounding cutter with 4 flutes, diameter 35 mm with 100 mm overall length and 12 mm profile radii, according to Dormer Pramet standard with a 20 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 4 flutes, diameter 35 mm with 100 mm overall length and 12 mm profile radii, according to Dormer Pramet standard with a 20 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 4 Schneiden, Durchmesser 35 mm mit 100 mm Gesamtlänge und 12 mm Profilradius, gemäß Dormer Pramet Standard mit einem 20 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985391"],[7,"1"],[14,"C700"],[16,"C70012.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760074312"],[21,"40.0"],[22,"102.0"],[23,"36.0"],[24,"280.0"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"20.0"],[142,"h6"],[158,"12.0"],[166,"35.0"],[260,"100.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964684]},"463678":{"c":"C70012.5","s":["Extra short series corner rounding cutter with 4 flutes, diameter 35 mm with 100 mm overall length and 12.5 mm profile radii, according to Dormer Pramet standard with a 20 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 4 flutes, diameter 35 mm with 100 mm overall length and 12.5 mm profile radii, according to Dormer Pramet standard with a 20 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 4 Schneiden, Durchmesser 35 mm mit 100 mm Gesamtlänge und 12.5 mm Profilradius, gemäß Dormer Pramet Standard mit einem 20 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985392"],[7,"1"],[14,"C700"],[16,"C70012.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760074329"],[21,"38.0"],[22,"102.0"],[23,"36.0"],[24,"291.8"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"20.0"],[142,"h6"],[158,"12.5"],[166,"35.0"],[260,"100.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964689]},"463679":{"c":"C70015.0","s":["Extra short series corner rounding cutter with 5 flutes, diameter 48 mm with 105 mm overall length and 15 mm profile radii, according to Dormer Pramet standard with a 25 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra short series corner rounding cutter with 5 flutes, diameter 48 mm with 105 mm overall length and 15 mm profile radii, according to Dormer Pramet standard with a 25 mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys","Extra kurzer vierteilkreisfräser mit 5 Schneiden, Durchmesser 48 mm mit 105 mm Gesamtlänge und 15 mm Profilradius, gemäß Dormer Pramet Standard mit einem 25 mm Weldonschaft, HSSE-Co mit unbeschichtet, 0° Helix und 0° Spanwinkel zum Fasfräsen in Stahl und Stahlguss, Edelstahl, Gusseisen, Reinaluminium, Aluminiumguss 0 und Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985395"],[7,"1"],[14,"C700"],[16,"C70015.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760127049"],[21,"59.0"],[22,"218.0"],[23,"59.0"],[24,"613.2"],[31,"HSS-E"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"5.0"],[52,"0"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"25.0"],[142,"h6"],[158,"15.0"],[166,"48.0"],[260,"105.0"],[276,"0.0"]],"m":[["dimensions",0]],"d":[],"x":[964690]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Uitvoering (DP)	1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 3.5, 7.0, 9.0, 1.0, 12.5, 15.0
Coating (DP)	Steam Tempered
Schacht (DP)	Weldon shank DIN 1835B
