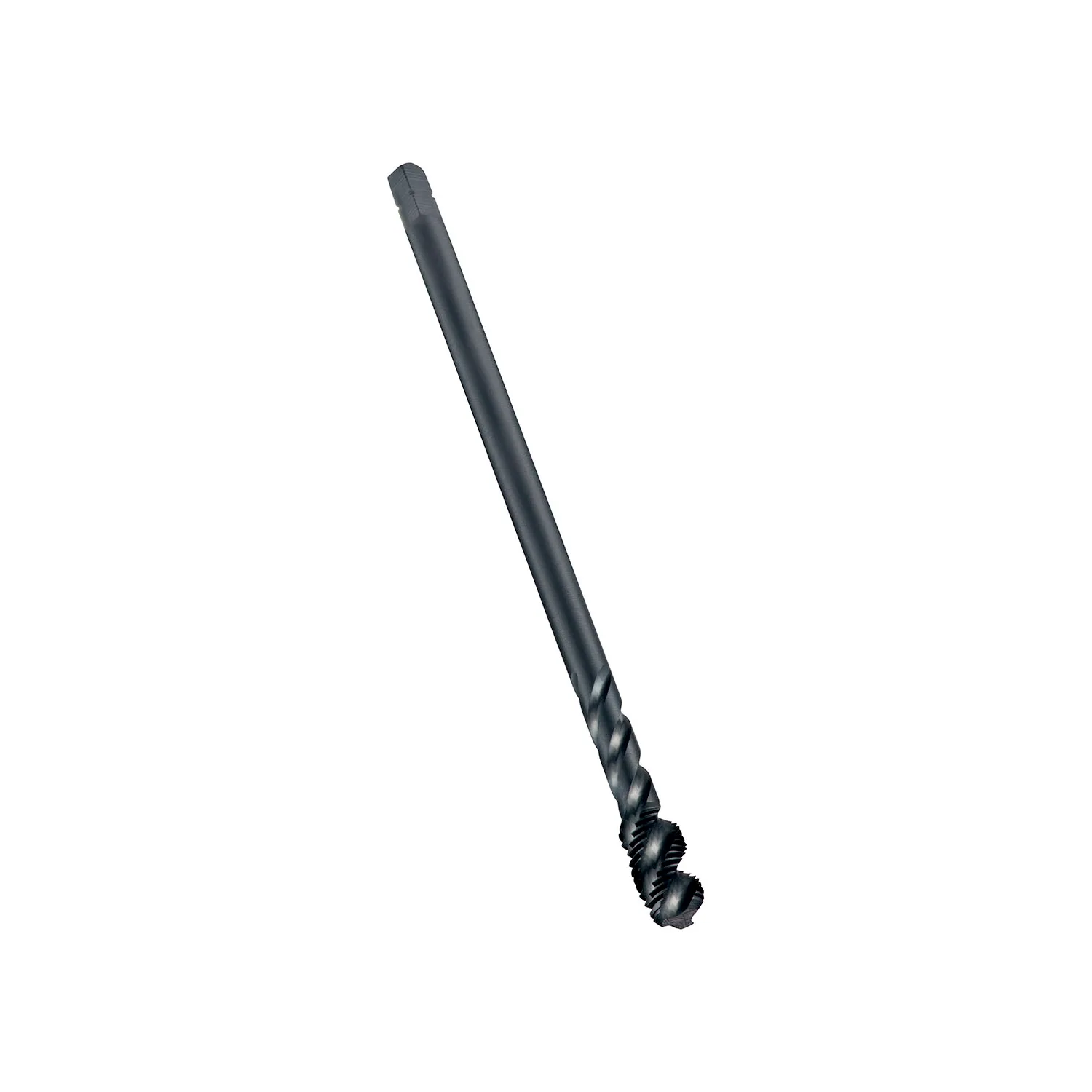

EX11 HSS-E PM MF Machinetap met gespiraliseerde spaangroeven 45°

Name: EX11 HSS-E PM MF Machinetap met gespiraliseerde spaangroeven 45° (M10X1.0)
SKU: EX11M10X1.0
Price: 38.57 EUR
Availability: InStock

DORMER India

38,57 €

excl. BTW

Productinformatie

Machinetap met spiraalgroef, geschikt voor blinde gaten. Gestoomd oppervlak werkt als retentie voor snijvloeistof en voorkomt koudlassen van spanen aan het gereedschap. De verjongde schacht vergroot het bereik van de tap.

Draadstandaard
Draadstandaard
Coating (DP)
Uitvoering (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/EX11_DIM.png"],"p":{"468531":{"c":"EX11M4X.50","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M4 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 2.8 mm shank and 2.1 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M4 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 2.8 mm shank and 2.1 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M4 mit 0.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 2.8 mm Schaft und 2.1 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973648"],[7,"1"],[14,"EX11"],[16,"EX11M4X.50"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149966"],[21,"11.0"],[22,"94.0"],[23,"9.0"],[24,"5.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"5.0"],[128,"2.1"],[138,"2.8"],[260,"63.0"],[266,"3.5"],[300,"4"],[302,"0.5"],[307,"7.0"],[312,"D4"]],"m":[["dimensions",0]],"d":[],"x":[969780]},"468532":{"c":"EX11M5X.50","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M5 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M5 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M5 mit 0.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 3.5 mm Schaft und 2.7 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973652"],[7,"1"],[14,"EX11"],[16,"EX11M5X.50"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149973"],[21,"11.0"],[22,"94.0"],[23,"9.0"],[24,"7.8"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"2.7"],[138,"3.5"],[260,"70.0"],[266,"4.5"],[300,"5"],[302,"0.5"],[307,"8.0"],[312,"D4"]],"m":[["dimensions",0]],"d":[],"x":[969781]},"468520":{"c":"EX11M6X.75","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M6 with 0.75 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M6 with 0.75 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M6 mit 0.75 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 4.5 mm Schaft und 3.4 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973656"],[7,"1"],[14,"EX11"],[16,"EX11M6X.75"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149980"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"12.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"3.4"],[138,"4.5"],[260,"80.0"],[266,"5.3"],[300,"6"],[302,"0.75"],[307,"10.0"],[312,"D5"]],"m":[["dimensions",0]],"d":[],"x":[969769]},"468521":{"c":"EX11M8X.75","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M8 with 0.75 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M8 with 0.75 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M8 mit 0.75 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973662"],[7,"1"],[14,"EX11"],[16,"EX11M8X.75"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149997"],[21,"15.0"],[22,"115.0"],[23,"14.0"],[24,"21.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"80.0"],[266,"7.3"],[300,"8"],[302,"0.75"],[307,"13.0"],[312,"D5"]],"m":[["dimensions",0]],"d":[],"x":[969770]},"468522":{"c":"EX11M8X1.0","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M8 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M8 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M8 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973667"],[7,"1"],[14,"EX11"],[16,"EX11M8X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150009"],[21,"15.0"],[22,"115.0"],[23,"14.0"],[24,"22.8"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"90.0"],[266,"7.0"],[300,"8"],[302,"1.0"],[307,"13.0"],[312,"D5"]],"m":[["dimensions",0]],"d":[],"x":[969771]},"468523":{"c":"EX11M10X.75","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M10 with 0.75 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M10 with 0.75 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M10 mit 0.75 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 7.0 mm Schaft und 5.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973733"],[7,"1"],[14,"EX11"],[16,"EX11M10X.75"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150016"],[21,"16.0"],[22,"115.0"],[23,"14.0"],[24,"30.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"5.5"],[138,"7.0"],[260,"90.0"],[266,"9.3"],[300,"10"],[302,"0.75"],[307,"13.0"],[312,"D6"]],"m":[["dimensions",0]],"d":[],"x":[969772]},"468503":{"c":"EX11M10X1.0","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M10 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M10 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M10 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 7.0 mm Schaft und 5.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973540"],[7,"1"],[14,"EX11"],[16,"EX11M10X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150023"],[21,"15.0"],[22,"115.0"],[23,"14.0"],[24,"24.8"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"5.5"],[138,"7.0"],[260,"90.0"],[266,"9.0"],[300,"10"],[302,"1.0"],[307,"13.0"],[312,"D6"]],"m":[["dimensions",0]],"d":[],"x":[969752]},"468504":{"c":"EX11M10X1.25","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M10 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M10 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M10 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 7.0 mm Schaft und 5.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973543"],[7,"1"],[14,"EX11"],[16,"EX11M10X1.25"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150030"],[21,"15.0"],[22,"115.0"],[23,"14.0"],[24,"32.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"5.5"],[138,"7.0"],[260,"100.0"],[266,"8.8"],[300,"10"],[302,"1.25"],[307,"15.0"],[312,"D6"]],"m":[["dimensions",0]],"d":[],"x":[969753]},"468505":{"c":"EX11M12X1.0","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M12 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 9.0 mm Schaft und 7.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973546"],[7,"1"],[14,"EX11"],[16,"EX11M12X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150047"],[21,"18.0"],[22,"122.0"],[23,"17.0"],[24,"50.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"100.0"],[266,"11.0"],[300,"12"],[302,"1.0"],[307,"15.0"],[312,"D6"]],"m":[["dimensions",0]],"d":[],"x":[969754]},"468506":{"c":"EX11M12X1.25","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M12 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 9.0 mm Schaft und 7.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973549"],[7,"1"],[14,"EX11"],[16,"EX11M12X1.25"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150054"],[21,"18.0"],[22,"123.0"],[23,"16.0"],[24,"50.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"100.0"],[266,"10.8"],[300,"12"],[302,"1.25"],[307,"15.0"],[312,"D6"]],"m":[["dimensions",0]],"d":[],"x":[969755]},"468507":{"c":"EX11M12X1.5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M12 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 9.0 mm Schaft und 7.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973552"],[7,"1"],[14,"EX11"],[16,"EX11M12X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150061"],[21,"18.0"],[22,"123.0"],[23,"16.0"],[24,"50.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"100.0"],[266,"10.5"],[300,"12"],[302,"1.5"],[307,"15.0"],[312,"D6"]],"m":[["dimensions",0]],"d":[],"x":[969756]},"468508":{"c":"EX11M14X1.0","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M14 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M14 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M14 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 11.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973555"],[7,"1"],[14,"EX11"],[16,"EX11M14X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150078"],[21,"17.0"],[22,"105.0"],[23,"17.0"],[24,"61.6"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"11.0"],[260,"100.0"],[266,"13.0"],[300,"14"],[302,"1.0"],[307,"15.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[969757]},"468509":{"c":"EX11M14X1.25","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M14 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M14 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M14 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 11.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973558"],[7,"1"],[14,"EX11"],[16,"EX11M14X1.25"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150085"],[21,"17.0"],[22,"105.0"],[23,"17.0"],[24,"65.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"11.0"],[260,"100.0"],[266,"12.8"],[300,"14"],[302,"1.25"],[307,"15.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[969758]},"468510":{"c":"EX11M14X1.5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M14 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M14 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M14 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 11.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973563"],[7,"1"],[14,"EX11"],[16,"EX11M14X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150092"],[21,"17.0"],[22,"103.0"],[23,"17.0"],[24,"66.3"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"11.0"],[260,"100.0"],[266,"12.5"],[300,"14"],[302,"1.5"],[307,"15.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[969759]},"468511":{"c":"EX11M16X1.0","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M16 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M16 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M16 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 12.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973566"],[7,"1"],[14,"EX11"],[16,"EX11M16X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150108"],[21,"21.0"],[22,"103.0"],[23,"21.0"],[24,"83.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"12.0"],[260,"100.0"],[266,"15.0"],[300,"16"],[302,"1.0"],[307,"15.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[969760]},"468512":{"c":"EX11M16X1.5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M16 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M16 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M16 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 12.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973570"],[7,"1"],[14,"EX11"],[16,"EX11M16X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150115"],[21,"21.0"],[22,"103.0"],[23,"21.0"],[24,"82.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"12.0"],[260,"100.0"],[266,"14.5"],[300,"16"],[302,"1.5"],[307,"15.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[969761]},"468513":{"c":"EX11M18X1.0","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M18 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 14.0 mm shank and 11.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M18 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 14.0 mm shank and 11.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M18 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 14.0 mm Schaft und 11.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973577"],[7,"1"],[14,"EX11"],[16,"EX11M18X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150122"],[21,"21.0"],[22,"115.0"],[23,"22.0"],[24,"118.4"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"14.0"],[128,"11.0"],[138,"14.0"],[260,"110.0"],[266,"17.0"],[300,"18"],[302,"1.0"],[307,"17.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[969762]},"468514":{"c":"EX11M18X1.5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M18 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 14.0 mm shank and 11.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M18 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 14.0 mm shank and 11.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M18 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 14.0 mm Schaft und 11.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973582"],[7,"1"],[14,"EX11"],[16,"EX11M18X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150139"],[21,"21.0"],[22,"112.0"],[23,"21.0"],[24,"117.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"14.0"],[128,"11.0"],[138,"14.0"],[260,"110.0"],[266,"16.5"],[300,"18"],[302,"1.5"],[307,"17.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[969763]},"468515":{"c":"EX11M20X1.0","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M20 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M20 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M20 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 16.0 mm Schaft und 12.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973588"],[7,"1"],[14,"EX11"],[16,"EX11M20X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150146"],[21,"22.0"],[22,"130.0"],[23,"25.0"],[24,"180.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"15.0"],[128,"12.0"],[138,"16.0"],[260,"125.0"],[266,"19.0"],[300,"20"],[302,"1.0"],[307,"17.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[969764]},"468516":{"c":"EX11M20X1.5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M20 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M20 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M20 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 16.0 mm Schaft und 12.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973592"],[7,"1"],[14,"EX11"],[16,"EX11M20X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150153"],[21,"22.0"],[22,"128.0"],[23,"22.0"],[24,"178.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"15.0"],[128,"12.0"],[138,"16.0"],[260,"125.0"],[266,"18.5"],[300,"20"],[302,"1.5"],[307,"17.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[969765]},"468517":{"c":"EX11M22X1.5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M22 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M22 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M22 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 18.0 mm Schaft und 14.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973597"],[7,"1"],[14,"EX11"],[16,"EX11M22X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150160"],[21,"22.0"],[22,"130.0"],[23,"25.0"],[24,"208.7"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"14.5"],[138,"18.0"],[260,"125.0"],[266,"20.5"],[300,"22"],[302,"1.5"],[307,"17.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[],"x":[969766]},"468518":{"c":"EX11M24X1.5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M24 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M24 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M24 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 18.0 mm Schaft und 14.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973602"],[7,"1"],[14,"EX11"],[16,"EX11M24X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150177"],[21,"29.0"],[22,"145.0"],[23,"29.0"],[24,"263.2"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"14.5"],[138,"18.0"],[260,"140.0"],[266,"22.5"],[300,"24"],[302,"1.5"],[307,"20.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[],"x":[969767]},"468519":{"c":"EX11M24X2.0","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M24 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M24 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M24 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 18.0 mm Schaft und 14.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973605"],[7,"1"],[14,"EX11"],[16,"EX11M24X2.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150184"],[21,"29.0"],[22,"145.0"],[23,"29.0"],[24,"260.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"14.5"],[138,"18.0"],[260,"140.0"],[266,"22.0"],[300,"24"],[302,"2.0"],[307,"20.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[],"x":[969768]},"468524":{"c":"EX11M25X1.5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M25 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M25 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M25 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 18.0 mm Schaft und 14.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973609"],[7,"1"],[14,"EX11"],[16,"EX11M25X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150191"],[21,"29.0"],[22,"145.0"],[23,"29.0"],[24,"265.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"14.5"],[138,"18.0"],[260,"140.0"],[266,"23.5"],[300,"25"],[302,"1.5"],[307,"20.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[],"x":[969773]},"468525":{"c":"EX11M26X1.5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M26 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M26 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M26 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 18.0 mm Schaft und 14.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973614"],[7,"1"],[14,"EX11"],[16,"EX11M26X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150207"],[21,"29.0"],[22,"143.0"],[23,"29.0"],[24,"275.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"14.5"],[138,"18.0"],[260,"140.0"],[266,"24.5"],[300,"26"],[302,"1.5"],[307,"20.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[],"x":[969774]},"468526":{"c":"EX11M27X1.5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M27 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 20.0 mm shank and 16.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M27 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 20.0 mm shank and 16.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M27 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 20.0 mm Schaft und 16.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973619"],[7,"1"],[14,"EX11"],[16,"EX11M27X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150214"],[21,"38.0"],[22,"145.0"],[23,"38.0"],[24,"305.1"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"19.0"],[128,"16.0"],[138,"20.0"],[260,"140.0"],[266,"25.5"],[300,"27"],[302,"1.5"],[307,"20.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[],"x":[969775]},"468527":{"c":"EX11M27X2.0","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M27 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 20.0 mm shank and 16.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M27 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 20.0 mm shank and 16.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M27 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 20.0 mm Schaft und 16.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973627"],[7,"1"],[14,"EX11"],[16,"EX11M27X2.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150221"],[21,"38.0"],[22,"145.0"],[23,"38.0"],[24,"333.5"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"19.0"],[128,"16.0"],[138,"20.0"],[260,"140.0"],[266,"25.0"],[300,"27"],[302,"2.0"],[307,"20.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[],"x":[969776]},"468528":{"c":"EX11M28X1.5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M28 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 20.0 mm shank and 16.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M28 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 20.0 mm shank and 16.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M28 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 20.0 mm Schaft und 16.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973636"],[7,"1"],[14,"EX11"],[16,"EX11M28X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150238"],[21,"38.0"],[22,"145.0"],[23,"38.0"],[24,"340.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"19.0"],[128,"16.0"],[138,"20.0"],[260,"140.0"],[266,"26.5"],[300,"28"],[302,"1.5"],[307,"20.0"],[312,"D9"]],"m":[["dimensions",0]],"d":[],"x":[969777]},"468529":{"c":"EX11M30X1.5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M30 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 22.0 mm shank and 18.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M30 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 22.0 mm shank and 18.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M30 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 22.0 mm Schaft und 18.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973640"],[7,"1"],[14,"EX11"],[16,"EX11M30X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150245"],[21,"38.0"],[22,"155.0"],[23,"38.0"],[24,"432.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"21.0"],[128,"18.0"],[138,"22.0"],[260,"150.0"],[266,"28.5"],[300,"30"],[302,"1.5"],[307,"20.0"],[312,"D9"]],"m":[["dimensions",0]],"d":[],"x":[969778]},"468530":{"c":"EX11M30X2.0","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M30 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 22.0 mm shank and 18.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M30 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 22.0 mm shank and 18.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M30 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 22.0 mm Schaft und 18.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5973645"],[7,"1"],[14,"EX11"],[16,"EX11M30X2.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150252"],[21,"38.0"],[22,"155.0"],[23,"38.0"],[24,"430.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"21.0"],[128,"18.0"],[138,"22.0"],[260,"150.0"],[266,"28.0"],[300,"30"],[302,"2.0"],[307,"20.0"],[312,"D9"]],"m":[["dimensions",0]],"d":[],"x":[969779]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Uitvoering (DP)	M10X1.0, M10X1.25, M12X1.0, M12X1.25, M12X1.5, M14X1.0, M14X1.25, M14X1.5, M16X1.0, M16X1.5, M18X1.0, M18X1.5, M20X1.0, M20X1.5, M22X1.5, M24X1.5, M24X2.0, M6X.75, M8X.75, M8X1.0, M10X.75, M25X1.5, M26X1.5, M27X1.5, M27X2.0, M28X1.5, M30X1.5, M30X2.0, M4X.50, M5X.50
Draadstandaard	MF - Metrisch fijn, MF - Metrisch fijn
Coating (DP)	Steam Tempered
