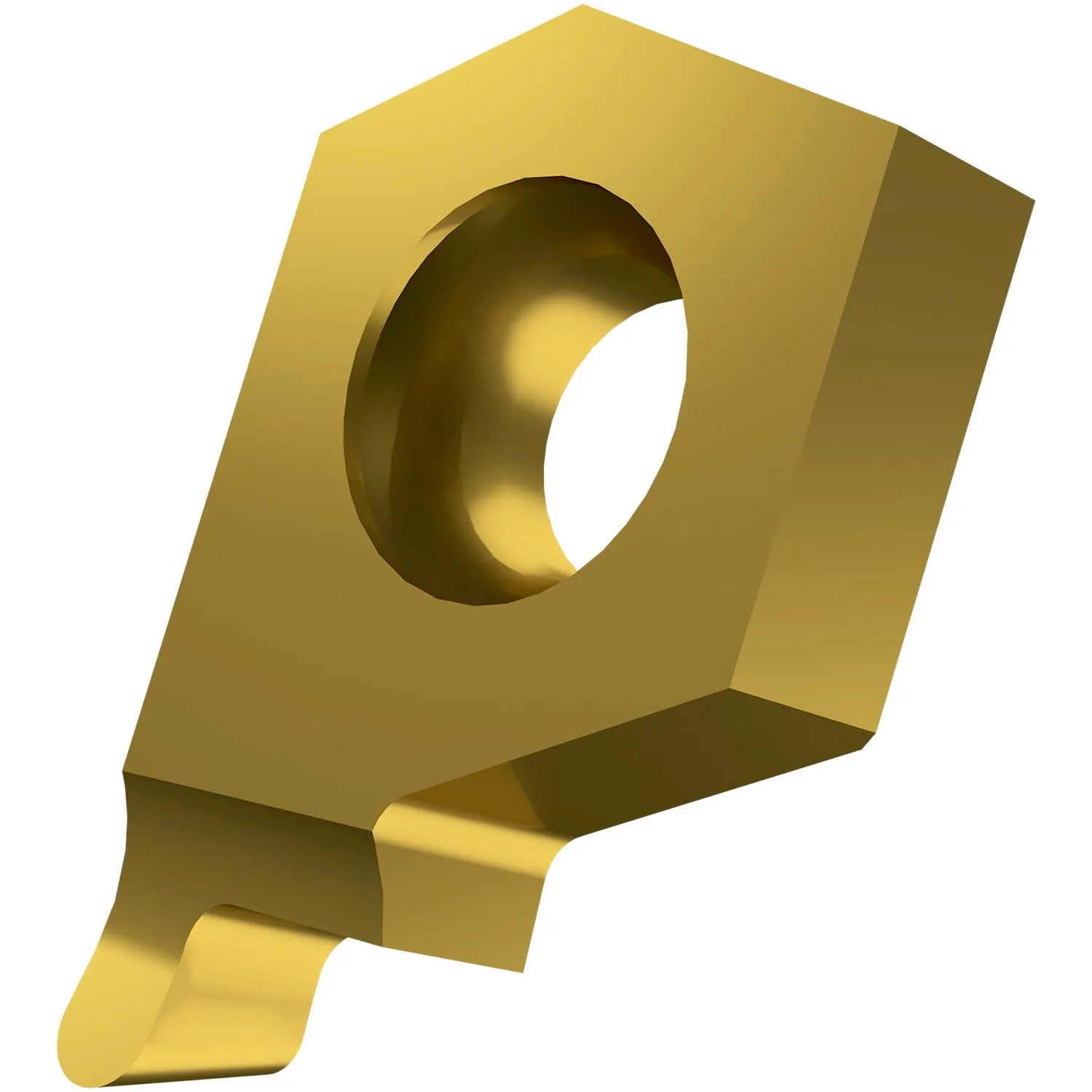

X 61 R-1 Draaiwisselplaat - inwendig steken

Name: X 61 R-1 Draaiwisselplaat - inwendig steken
SKU: X61 0602-R050 L1:6640
Price: 15.71 EUR
Availability: InStock

PRAMET Tsjechië

15,71 €

excl. BTW

Productinformatie

Draaiwisselplaat - Inwendig groefsteken

Uitvoering (DP)

Verpakking
- ST
- 10 Units

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/X61_R_1_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/X61_R_PROF.png"],"p":{"479128":{"c":"X61 0602-R050 L1:6640","s":["Single ended o-ring grooving insert, with a 1.09 mm cutting width and 0.5 mm full radius, a cutting width tolerance of ± 0.03 mm and rounded cutting edges, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET P61.SG -1 and GL6-S.. B parting and grooving tools","Single ended o-ring grooving insert, with a 1.09 mm cutting width and 0.5 mm full radius, a cutting width tolerance of ± 0.03 mm and rounded cutting edges, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET P61.SG -1 and GL6-S.. B parting and grooving tools","Single ended o-ring grooving insert, with a 1.09 mm cutting width and 0.5 mm full radius, a cutting width tolerance of ± 0.03 mm and rounded cutting edges, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET P61.SG -1 and GL6-S.. B parting and grooving tools"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"7721649"],[7,"10"],[14,"X 61 R-1"],[16,"X61 0602-R050 L1:6640"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603592674"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"2.36"],[65,"X - Special design"],[66,"X 61 R-1"],[70,"With chipbreaker -no designation"],[71,"6640"],[72,"O-ring grooving"],[73,"06"],[74,"02"],[81,"Neutral",null,"Neutre",null],[158,"0.5"],[161,"1.3"],[177,"1.09"],[178,"-0.03"],[180,"0.03"],[235,"2.33"],[237,"6.35"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[981042]},"479130":{"c":"X61 0602-R100 L1:6640","s":["Single ended o-ring grooving insert, with a 2.09 mm cutting width and 1 mm full radius, a cutting width tolerance of ± 0.03 mm and rounded cutting edges, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET P61.SG -1 and GL6-S.. B parting and grooving tools","Single ended o-ring grooving insert, with a 2.09 mm cutting width and 1 mm full radius, a cutting width tolerance of ± 0.03 mm and rounded cutting edges, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET P61.SG -1 and GL6-S.. B parting and grooving tools","Single ended o-ring grooving insert, with a 2.09 mm cutting width and 1 mm full radius, a cutting width tolerance of ± 0.03 mm and rounded cutting edges, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET P61.SG -1 and GL6-S.. B parting and grooving tools"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"7721653"],[7,"10"],[14,"X 61 R-1"],[16,"X61 0602-R100 L1:6640"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603592711"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"2.4"],[65,"X - Special design"],[66,"X 61 R-1"],[70,"With chipbreaker -no designation"],[71,"6640"],[72,"O-ring grooving"],[73,"06"],[74,"02"],[81,"Neutral",null,"Neutre",null],[158,"1.0"],[161,"2.8"],[177,"2.09"],[178,"-0.03"],[180,"0.03"],[235,"2.33"],[237,"6.35"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[981044]},"479129":{"c":"X61 0602-R050 R1:6640","s":["Single ended o-ring grooving insert, with a 1.09 mm cutting width and 0.5 mm full radius, a cutting width tolerance of ± 0.03 mm and rounded cutting edges, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET P61.SG -1 and GL6-S.. B parting and grooving tools","Single ended o-ring grooving insert, with a 1.09 mm cutting width and 0.5 mm full radius, a cutting width tolerance of ± 0.03 mm and rounded cutting edges, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET P61.SG -1 and GL6-S.. B parting and grooving tools","Single ended o-ring grooving insert, with a 1.09 mm cutting width and 0.5 mm full radius, a cutting width tolerance of ± 0.03 mm and rounded cutting edges, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET P61.SG -1 and GL6-S.. B parting and grooving tools"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"7721650"],[7,"10"],[14,"X 61 R-1"],[16,"X61 0602-R050 R1:6640"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603592681"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"2.3"],[65,"X - Special design"],[66,"X 61 R-1"],[70,"With chipbreaker -no designation"],[71,"6640"],[72,"O-ring grooving"],[73,"06"],[74,"02"],[81,"Neutral",null,"Neutre",null],[158,"0.5"],[161,"1.3"],[177,"1.09"],[178,"-0.03"],[180,"0.03"],[235,"2.33"],[237,"6.35"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[981043]},"479131":{"c":"X61 0602-R100 R1:6640","s":["Single ended o-ring grooving insert, with a 2.09 mm cutting width and 1 mm full radius, a cutting width tolerance of ± 0.03 mm and rounded cutting edges, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET P61.SG -1 and GL6-S.. B parting and grooving tools","Single ended o-ring grooving insert, with a 2.09 mm cutting width and 1 mm full radius, a cutting width tolerance of ± 0.03 mm and rounded cutting edges, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET P61.SG -1 and GL6-S.. B parting and grooving tools","Single ended o-ring grooving insert, with a 2.09 mm cutting width and 1 mm full radius, a cutting width tolerance of ± 0.03 mm and rounded cutting edges, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET P61.SG -1 and GL6-S.. B parting and grooving tools"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"7721656"],[7,"10"],[14,"X 61 R-1"],[16,"X61 0602-R100 R1:6640"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603592742"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"2.4"],[65,"X - Special design"],[66,"X 61 R-1"],[70,"With chipbreaker -no designation"],[71,"6640"],[72,"O-ring grooving"],[73,"06"],[74,"02"],[81,"Neutral",null,"Neutre",null],[158,"1.0"],[161,"2.8"],[177,"2.09"],[178,"-0.03"],[180,"0.03"],[235,"2.33"],[237,"6.35"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[981045]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Uitvoering (DP)

R050 L1:6640, R050 R1:6640, R100 L1:6640, R100 R1:6640
