DNGA CBN Draaiwisselplaat CBN - positief

Name: DNGA CBN Draaiwisselplaat CBN - positief
Price: 68.89 EUR

PRAMET Zweden

68,89 €

excl. BTW

Productinformatie

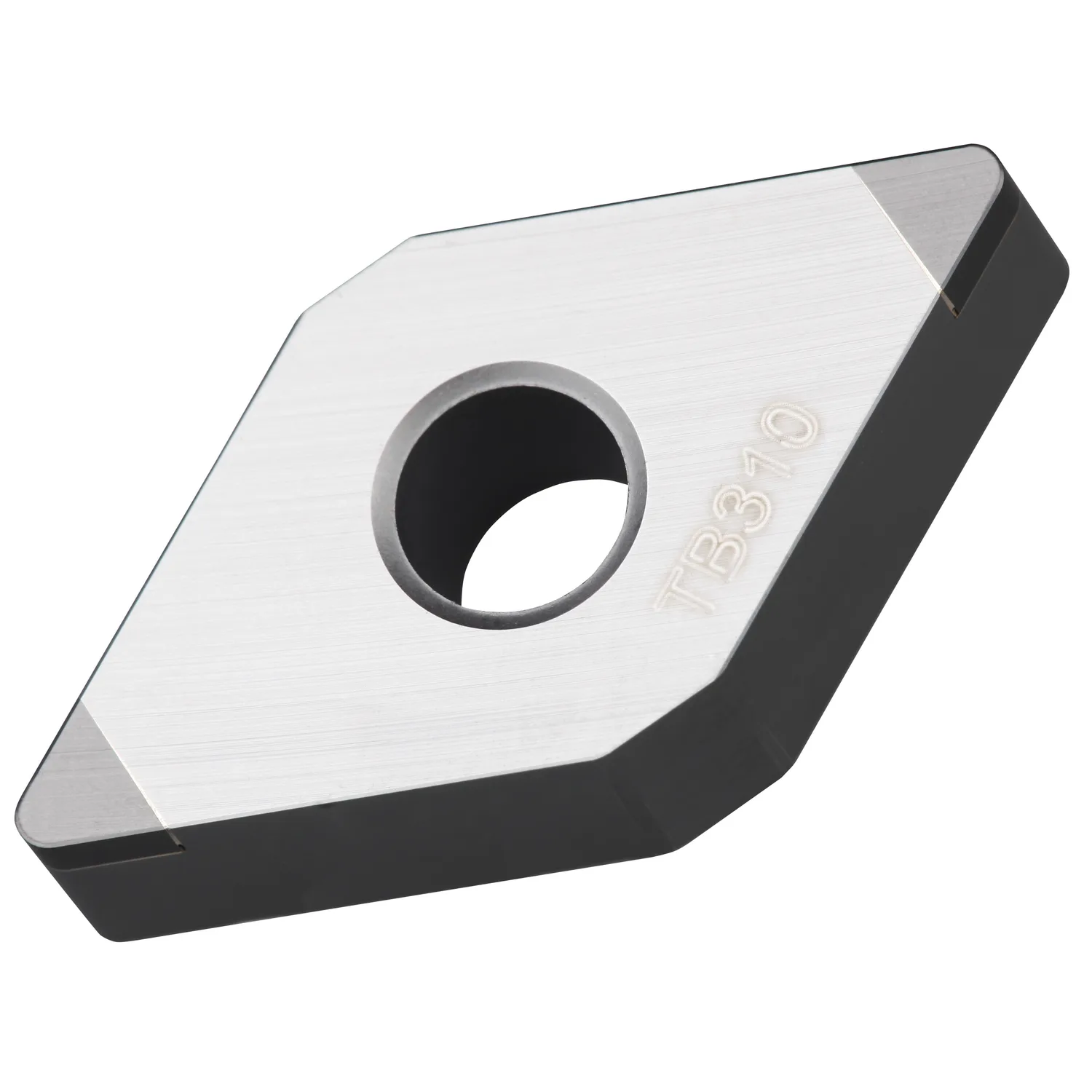

Draaiwisselplaat CBN - Positief

Verpakking
- ST
- 2 Units

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/DNGA_CBN_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/CBN_PROF.png"],"p":{"465364":{"c":"DNGA 150608S01020B:TB310","s":["Insert for hard turning with 2 CBN tipped corners on one-side, 55° rhomboid with inscribed circle diameter of 12.7 mm, 6.35 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-G, rounded cutting edges with facet T-land -20°/0.1 mm, in grade TB310, an uncoated cubic boron nitride within ISO range H01 -H10, for high-speed machining of hardened materials","Plaquette pour le tournage dur avec 2 inserts CBN sur une face, forme rhombique à 55° avec un diamètre de cercle inscrit de 12.7 mm, 6.35 mm d'épaisseur, 0.8 mm rayon de pointe, précision d'indexage selon la classe de tolérance ISO G, arêtes de coupe arrondies avec listel T-land -20°/0.1 mm, en nuance TB310, non-revêtu nitrure de bore cubique dans la plage ISO H01-H10, pour grande vitesse usinage des matériaux durs","Wendeschneidplatte zum Hartdrehen mit 2 einseitig gekippten CBN-Ecken, 55° Rhomboid mit Innenkreisdurchmesser 12.7 mm, 6.35 mm Dick, 0.8 mm Schneidenradius, Wiederholgenauigkeit nach ISO-Toleranzklasse G, verrundeter und facettierter Schneidkante T-land -20°/0.1 mm, im Substrat TB310, unbeschichtetes CBN im ISO-Bereich H01-H10, zur Hochvorschub Bearbeitung von gehärtetem Stahl"],"o":"SE","a":[["K","possible"],["S","possible"],["H","primary"]],"f":[[0,"6755925"],[7,"2"],[14,"DNGA CBN"],[16,"DNGA 442S00420:TB310"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602912916"],[21,"56.0"],[22,"139.0"],[23,"14.5"],[24,"28.2"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"D - rhombic 55° included angle",null,"D - rhombique 55° angle inclus","D - rhombischer 55° eingeschlossener Winkel"],[66,"DNGA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"TB310"],[72,"HSC (High Speed Cutting)"],[73,"15"],[74,"06"],[84,"DN"],[158,"0.8"],[174,"15.5"],[181,"3.0"],[183,"0.1"],[207,"5.16"],[228,"12.7"],[235,"6.35"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[966423]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Uitvoering (DP)

608S01020B:TB310
