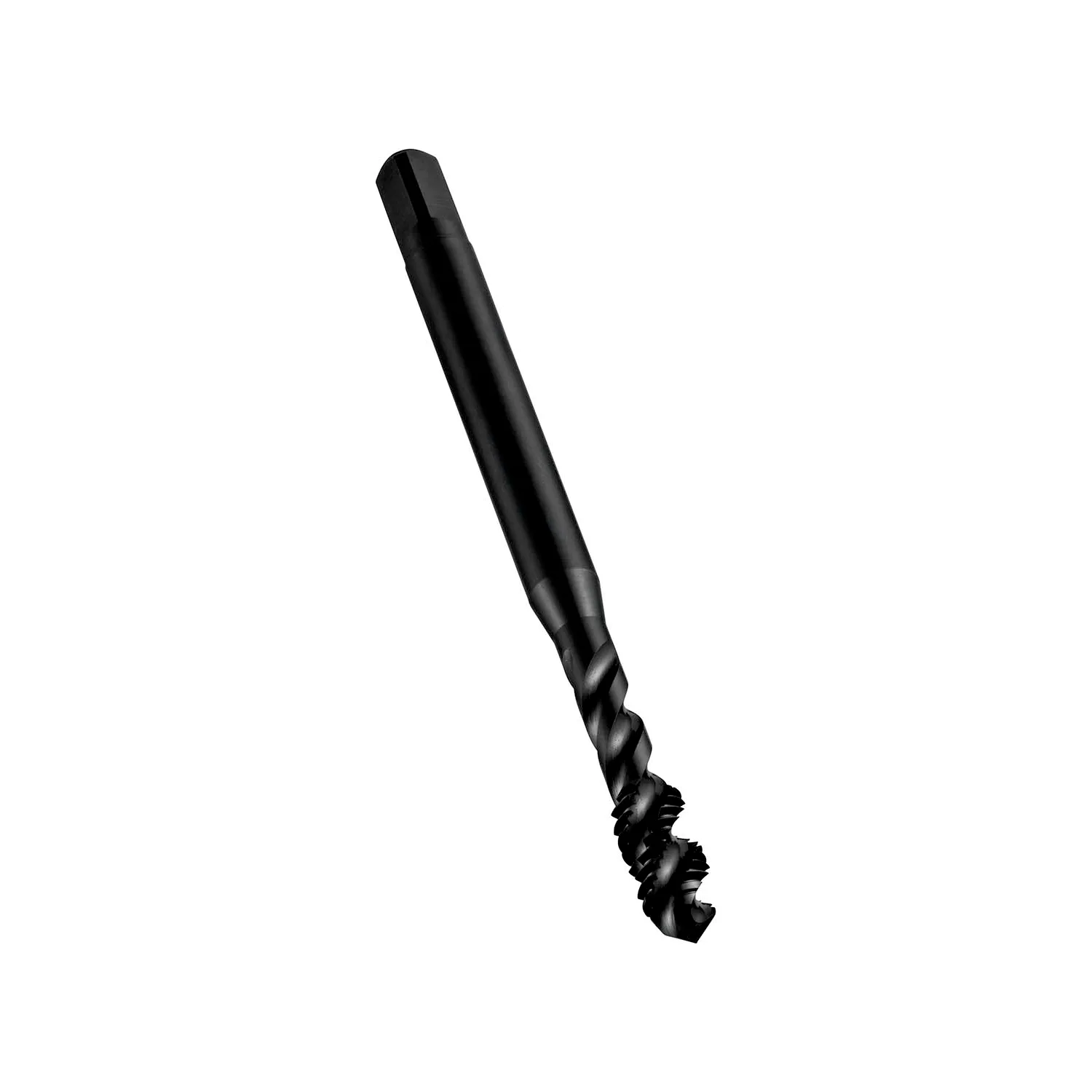

E003 HSS-E PM M Machinetap met gespiraliseerde spaangroeven 45°

Name: E003 HSS-E PM M Machinetap met gespiraliseerde spaangroeven 45°
SKU: E003M2
Price: 28.42 EUR
Availability: InStock

DORMER Duitsland India

28,42 €

excl. BTW

Productinformatie

Machinetap met spiraalgroef, geschikt voor blinde gaten. Gestoomd oppervlak werkt als retentie voor snijvloeistof en voorkomt koudlassen van spanen aan het gereedschap.

Draadstandaard
Draadstandaard
Coating (DP)
Draadmaat (DP)

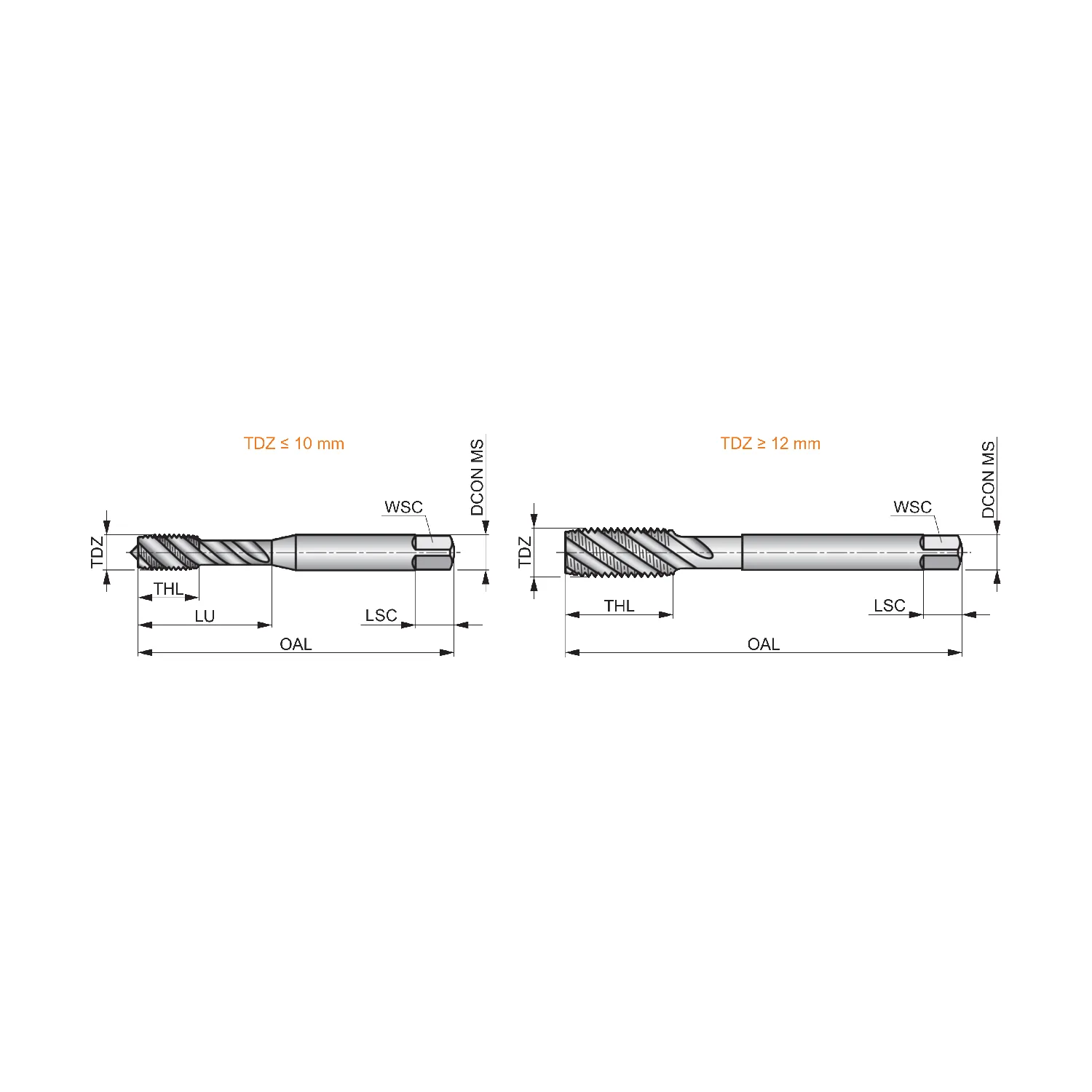

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E003_DIM.png"],"p":{"465858":{"c":"E003M2","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M2 with 0.40 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 2.5 mm shank and 2.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M2 with 0.40 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 2.5 mm shank and 2.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M2 mit 0.40 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 2.5 mm Schaft und 2.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"DE","a":[["P","primary"],["M","possible"]],"f":[[0,"5974357"],[7,"1"],[14,"E003"],[16,"E003M2"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760168844"],[21,"11.0"],[22,"81.0"],[23,"9.0"],[24,"3.7"],[31,"HSS-E"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"2.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"4.0"],[128,"2.0"],[138,"2.5"],[260,"41.0"],[266,"1.6"],[300,"2"],[302,"0.4"],[307,"8.0"],[312,"D3"],[318,"8.0"]],"m":[["dimensions",0]],"d":[],"x":[966922]},"465859":{"c":"E003M2.5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M2.5 with 0.45 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 2.8 mm shank and 2.24 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M2.5 with 0.45 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 2.8 mm shank and 2.24 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M2.5 mit 0.45 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 2.8 mm Schaft und 2.24 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"DE","a":[["P","primary"],["M","possible"]],"f":[[0,"5974361"],[7,"1"],[14,"E003"],[16,"E003M2.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760168851"],[21,"11.0"],[22,"81.0"],[23,"9.0"],[24,"4.2"],[31,"HSS-E"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"2.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"5.0"],[128,"2.24"],[138,"2.8"],[260,"44.5"],[266,"2.05"],[300,"2.5"],[302,"0.45"],[307,"9.5"],[312,"D3"],[318,"9.5"]],"m":[["dimensions",0]],"d":[],"x":[966923]},"465860":{"c":"E003M3","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 3.15 mm shank and 2.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 3.15 mm shank and 2.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M3 mit 0.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 3.15 mm Schaft und 2.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974380"],[7,"1"],[14,"E003"],[16,"E003M3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568002"],[21,"11.8"],[22,"84.0"],[23,"9.0"],[24,"3.2"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"5.0"],[128,"2.5"],[138,"3.15"],[260,"48.0"],[266,"2.5"],[300,"3"],[302,"0.5"],[307,"6.0"],[312,"D3"],[318,"12.5"]],"m":[["dimensions",0]],"d":[],"x":[966924]},"465861":{"c":"E003M4","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 4.0 mm shank and 3.15 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 4.0 mm shank and 3.15 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M4 mit 0.70 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 4.0 mm Schaft und 3.15 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974390"],[7,"1"],[14,"E003"],[16,"E003M4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568026"],[21,"12.0"],[22,"85.0"],[23,"10.0"],[24,"4.1"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"3.15"],[138,"4.0"],[260,"53.0"],[266,"3.3"],[300,"4"],[302,"0.7"],[307,"7.0"],[312,"D4"],[318,"19.0"]],"m":[["dimensions",0]],"d":[],"x":[966925]},"465862":{"c":"E003M5","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 5.0 mm shank and 4.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 5.0 mm shank and 4.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M5 mit 0.80 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 5.0 mm Schaft und 4.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974394"],[7,"1"],[14,"E003"],[16,"E003M5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568033"],[21,"11.8"],[22,"84.0"],[23,"9.0"],[24,"6.7"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"7.0"],[128,"4.0"],[138,"5.0"],[260,"58.0"],[266,"4.2"],[300,"5"],[302,"0.8"],[307,"8.0"],[312,"D4"],[318,"22.0"]],"m":[["dimensions",0]],"d":[],"x":[966926]},"465863":{"c":"E003M6","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 6.3 mm shank and 5.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 6.3 mm shank and 5.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M6 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 6.3 mm Schaft und 5.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974404"],[7,"1"],[14,"E003"],[16,"E003M6"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568040"],[21,"11.0"],[22,"83.0"],[23,"9.0"],[24,"14.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"5.0"],[138,"6.3"],[260,"66.0"],[266,"5.0"],[300,"6"],[302,"1.0"],[307,"10.0"],[312,"D5"],[318,"27.0"]],"m":[["dimensions",0]],"d":[],"x":[966927]},"465864":{"c":"E003M8","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 8.0 mm shank and 6.3 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 8.0 mm shank and 6.3 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M8 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 8.0 mm Schaft und 6.3 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974414"],[7,"1"],[14,"E003"],[16,"E003M8"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568057"],[21,"18.0"],[22,"85.0"],[23,"17.0"],[24,"26.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.0"],[128,"6.3"],[138,"8.0"],[260,"72.0"],[266,"6.8"],[300,"8"],[302,"1.25"],[307,"12.0"],[312,"D5"],[318,"31.0"]],"m":[["dimensions",0]],"d":[],"x":[966928]},"465865":{"c":"E003M10","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M10 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 10.0 mm Schaft und 8.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974329"],[7,"1"],[14,"E003"],[16,"E003M10"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568064"],[21,"18.0"],[22,"85.0"],[23,"15.0"],[24,"35.4"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.0"],[128,"8.0"],[138,"10.0"],[260,"80.0"],[266,"8.5"],[300,"10"],[302,"1.5"],[307,"15.0"],[312,"D6"],[318,"35.0"]],"m":[["dimensions",0]],"d":[],"x":[966929]},"465866":{"c":"E003M12","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 9.0 mm shank and 7.1 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 9.0 mm shank and 7.1 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M12 mit 1.75 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 9.0 mm Schaft und 7.1 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974334"],[7,"1"],[14,"E003"],[16,"E003M12"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568071"],[21,"20.0"],[22,"97.0"],[23,"16.0"],[24,"39.1"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.1"],[138,"9.0"],[260,"89.0"],[266,"10.3"],[300,"12"],[302,"1.75"],[307,"16.0"],[312,"D6"]],"m":[["dimensions",0]],"d":[],"x":[966930]},"465867":{"c":"E003M14","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 11.2 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 11.2 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M14 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 11.2 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974339"],[7,"1"],[14,"E003"],[16,"E003M14"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568088"],[21,"17.0"],[22,"96.0"],[23,"17.0"],[24,"67.2"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"11.2"],[260,"95.0"],[266,"12.0"],[300,"14"],[302,"2.0"],[307,"18.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[966931]},"465868":{"c":"E003M16","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 12.5 mm shank and 10.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 12.5 mm shank and 10.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M16 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 12.5 mm Schaft und 10.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974344"],[7,"1"],[14,"E003"],[16,"E003M16"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568095"],[21,"21.0"],[22,"105.0"],[23,"21.0"],[24,"87.2"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"13.0"],[128,"10.0"],[138,"12.5"],[260,"102.0"],[266,"14.0"],[300,"16"],[302,"2.0"],[307,"18.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[966932]},"465871":{"c":"E003M18","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M18 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 14.0 mm shank and 11.2 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M18 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 14.0 mm shank and 11.2 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M18 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 14.0 mm Schaft und 11.2 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974352"],[7,"1"],[14,"E003"],[16,"E003M18"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568101"],[21,"21.0"],[22,"115.0"],[23,"21.0"],[24,"124.9"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"14.0"],[128,"11.2"],[138,"14.0"],[260,"112.0"],[266,"15.5"],[300,"18"],[302,"2.5"],[307,"29.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[966935]},"465869":{"c":"E003M20","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 14.0 mm shank and 11.2 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 14.0 mm shank and 11.2 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M20 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 14.0 mm Schaft und 11.2 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974366"],[7,"1"],[14,"E003"],[16,"E003M20"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568118"],[21,"22.0"],[22,"115.0"],[23,"22.0"],[24,"124.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"14.0"],[128,"11.2"],[138,"14.0"],[260,"112.0"],[266,"17.5"],[300,"20"],[302,"2.5"],[307,"29.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[966933]},"465872":{"c":"E003M22","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 16.0 mm shank and 12.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 16.0 mm shank and 12.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M22 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 16.0 mm Schaft und 12.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974371"],[7,"1"],[14,"E003"],[16,"E003M22"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568125"],[21,"22.0"],[22,"120.0"],[23,"22.0"],[24,"177.0"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"16.0"],[128,"12.5"],[138,"16.0"],[260,"118.0"],[266,"19.5"],[300,"22"],[302,"2.5"],[307,"29.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[],"x":[966936]},"465870":{"c":"E003M24","s":["Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 18.0 mm shank and 14.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 18.0 mm shank and 14.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications","Spiral genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M24 mit 3.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach ISO 529 Standard mit 18.0 mm Schaft und 14.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 45° Helixwinkel 2.5xD Sacklochgewinde in Allzweckanwendungen"],"o":"IN","a":[["P","primary"],["M","possible"]],"f":[[0,"5974376"],[7,"1"],[14,"E003"],[16,"E003M24"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760568132"],[21,"29.0"],[22,"132.0"],[23,"29.0"],[24,"248.2"],[31,"HSS-E-PM"],[32,"ISO 529"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"45"],[50,"Right","Rechts","A droite","Rechts"],[124,"18.0"],[128,"14.0"],[138,"18.0"],[260,"130.0"],[266,"21.0"],[300,"24"],[302,"3.0"],[307,"35.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[],"x":[966934]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Draadmaat (DP)	2, 2.5, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24
Draadstandaard	M - Metrisch grof, M - Metrisch grof
Coating (DP)	Steam Tempered
