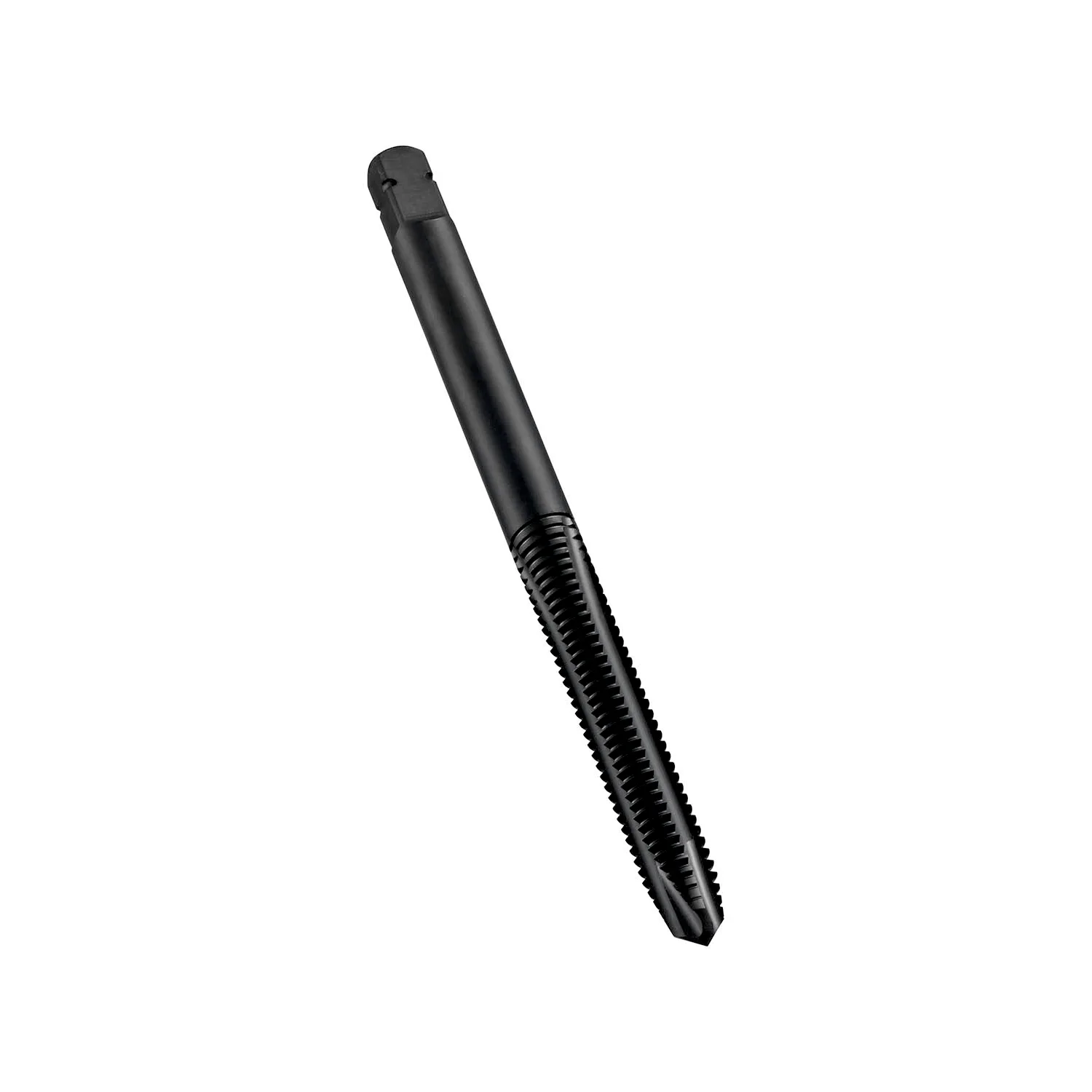

E036 HSS-E PM UNF Machinetap met schilaansnijding

Name: E036 HSS-E PM UNF Machinetap met schilaansnijding (1/2)
SKU: E0361/2
Price: 57.33 EUR
Availability: InStock

DORMER Brazilië

57,33 €

excl. BTW

Productinformatie

Machinetap met spiraalpunt, uitsluitend voor doorlopende gaten, qua ontwerp vergelijkbaar met de standaard E035-serie, maar met gestoomd oppervlak dat werkt als retentie voor snijvloeistof en koudlassen van spanen aan het gereedschap voorkomt in abrasieve en hardere ferromaterialen.

Draadstandaard
Draadstandaard
Coating (DP)
Uitvoering (DP)

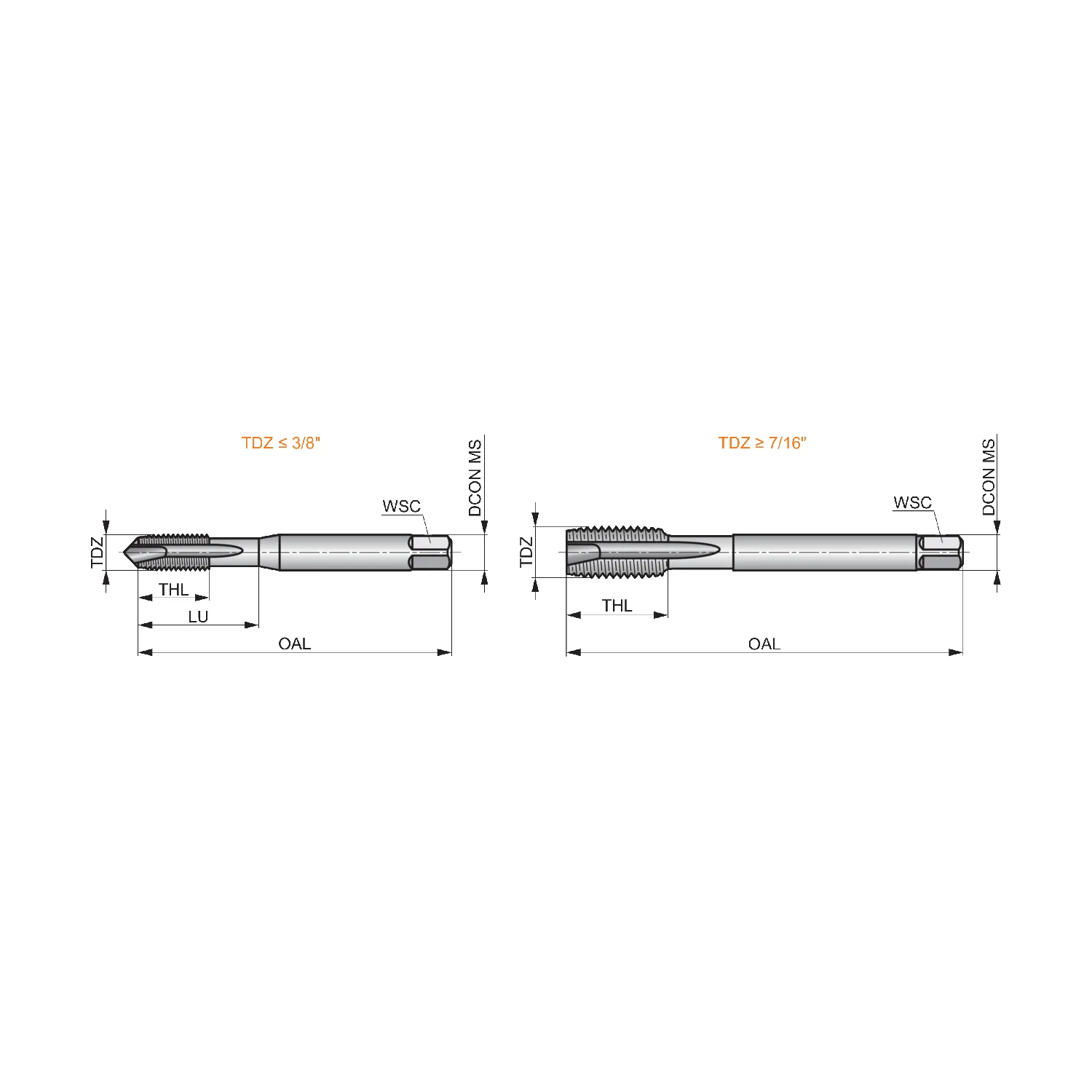

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E036_DIM.png"],"p":{"466056":{"c":"E03610-32","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 10 with 32 TPI and 3B class of fit with H2 pitch diameter limits, dimensions according to ANSI standard with 0.1940 inch shank and 0.1520 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 10 with 32 TPI and 3B class of fit with H2 pitch diameter limits, dimensions according to ANSI standard with 0.1940 inch shank and 0.1520 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Feingewinde UNF 10 mit 32 Gängen / Inch und 3B Toleranzklasse mit H2 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.1940 inch Schaft und 0.1520 inch Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2.5xD Durchgangsgewinde in Allzweckanwendungen"],"o":"BR","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"5974592"],[7,"1"],[14,"E036"],[16,"E03610-32"],[17,"Inch"],[20,"7320760582145"],[21,"10.0"],[22,"81.0"],[23,"9.0"],[24,"10.7"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"2.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[128,"3.86"],[138,"4.93"],[259,"2.3/8"],[260,"60.33"],[265,"N21"],[266,"4.1"],[300,"10"],[307,"10.93"],[310,"32.0"],[312,"H2"],[318,"21.42"]],"m":[["dimensions",0]],"d":[],"x":[967132]},"466045":{"c":"E0361/4","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 1/4 inch with 28 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.2550 inch shank and 0.1910 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 1/4 inch with 28 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.2550 inch shank and 0.1910 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Feingewinde UNF 1/4 inch mit 28 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.2550 inch Schaft und 0.1910 inch Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2.5xD Durchgangsgewinde in Allzweckanwendungen"],"o":"BR","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"5974581"],[7,"1"],[14,"E036"],[16,"E0361/4"],[17,"Inch"],[20,"7320760582169"],[21,"10.0"],[22,"84.0"],[23,"9.0"],[24,"16.1"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"2.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[128,"4.85"],[138,"6.48"],[259,"2.1/2"],[260,"63.5"],[265,"N3"],[266,"5.5"],[300,"1/4"],[307,"12.89"],[310,"28.0"],[312,"H3"],[318,"25.59"]],"m":[["dimensions",0]],"d":[],"x":[967121]},"466052":{"c":"E0361/43FL","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 1/4 inch with 28 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.2550 inch shank and 0.1910 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 1/4 inch with 28 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.2550 inch shank and 0.1910 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Feingewinde UNF 1/4 inch mit 28 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.2550 inch Schaft und 0.1910 inch Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2.5xD Durchgangsgewinde in Allzweckanwendungen"],"o":"BR","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"5974589"],[7,"1"],[14,"E036"],[16,"E0361/43FL"],[17,"Inch"],[20,"7320760582176"],[21,"11.0"],[22,"84.0"],[23,"9.0"],[24,"15.8"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[128,"4.85"],[138,"6.48"],[259,"2.1/2"],[260,"63.5"],[265,"N3"],[266,"5.5"],[300,"1/4"],[307,"12.89"],[310,"28.0"],[312,"H3"],[318,"25.59"]],"m":[["dimensions",0]],"d":[],"x":[967128]},"466047":{"c":"E0365/16","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 5/16 inch with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3180 inch shank and 0.2380 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 5/16 inch with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3180 inch shank and 0.2380 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Feingewinde UNF 5/16 inch mit 24 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.3180 inch Schaft und 0.2380 inch Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2.5xD Durchgangsgewinde in Allzweckanwendungen"],"o":"BR","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"5974618"],[7,"1"],[14,"E036"],[16,"E0365/16"],[17,"Inch"],[20,"7320760582183"],[21,"16.0"],[22,"89.0"],[23,"14.0"],[24,"27.0"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"2.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[128,"6.05"],[138,"8.08"],[259,"2.23/32"],[260,"69.06"],[265,"I"],[266,"6.9"],[300,"5/16"],[307,"15.09"],[310,"24.0"],[312,"H3"],[318,"30.2"]],"m":[["dimensions",0]],"d":[],"x":[967123]},"466054":{"c":"E0365/163FL","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 5/16 inch with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3180 inch shank and 0.2380 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 5/16 inch with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3180 inch shank and 0.2380 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Feingewinde UNF 5/16 inch mit 24 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.3180 inch Schaft und 0.2380 inch Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2.5xD Durchgangsgewinde in Allzweckanwendungen"],"o":"BR","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"5974624"],[7,"1"],[14,"E036"],[16,"E0365/163FL"],[17,"Inch"],[20,"7320760582190"],[21,"16.0"],[22,"89.0"],[23,"14.0"],[24,"26.4"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[128,"6.05"],[138,"8.08"],[259,"2.23/32"],[260,"69.06"],[265,"I"],[266,"6.9"],[300,"5/16"],[307,"15.09"],[310,"24.0"],[312,"H3"],[318,"30.2"]],"m":[["dimensions",0]],"d":[],"x":[967130]},"466046":{"c":"E0363/8","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 3/8 inch with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3810 inch shank and 0.2860 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 3/8 inch with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3810 inch shank and 0.2860 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Feingewinde UNF 3/8 inch mit 24 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.3810 inch Schaft und 0.2860 inch Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2.5xD Durchgangsgewinde in Allzweckanwendungen"],"o":"BR","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"5974608"],[7,"1"],[14,"E036"],[16,"E0363/8"],[17,"Inch"],[20,"7320760582206"],[21,"16.0"],[22,"89.0"],[23,"14.0"],[24,"39.3"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"2.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[128,"7.26"],[138,"9.68"],[259,"2.15/16"],[260,"74.61"],[265,"Q"],[266,"8.5"],[300,"3/8"],[307,"15.29"],[310,"24.0"],[312,"H3"],[318,"32.8"]],"m":[["dimensions",0]],"d":[],"x":[967122]},"466053":{"c":"E0363/83FL","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 3/8 inch with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3810 inch shank and 0.2860 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 3/8 inch with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3810 inch shank and 0.2860 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Feingewinde UNF 3/8 inch mit 24 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.3810 inch Schaft und 0.2860 inch Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2.5xD Durchgangsgewinde in Allzweckanwendungen"],"o":"BR","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"5974613"],[7,"1"],[14,"E036"],[16,"E0363/83FL"],[17,"Inch"],[20,"7320760582213"],[21,"16.0"],[22,"89.0"],[23,"14.0"],[24,"38.3"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[128,"7.26"],[138,"9.68"],[259,"2.15/16"],[260,"74.61"],[265,"Q"],[266,"8.5"],[300,"3/8"],[307,"15.29"],[310,"24.0"],[312,"H3"],[318,"32.8"]],"m":[["dimensions",0]],"d":[],"x":[967129]},"466055":{"c":"E0367/163FL","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 7/16 inch with 20 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3230 inch shank and 0.2420 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 7/16 inch with 20 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3230 inch shank and 0.2420 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Feingewinde UNF 7/16 inch mit 20 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.3230 inch Schaft und 0.2420 inch Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2.5xD Durchgangsgewinde in Allzweckanwendungen"],"o":"BR","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"5974633"],[7,"1"],[14,"E036"],[16,"E0367/163FL"],[17,"Inch"],[20,"7320760582220"],[21,"18.0"],[22,"96.0"],[23,"16.0"],[24,"40.6"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[128,"6.15"],[138,"8.2"],[259,"3.5/32"],[260,"80.17"],[265,"25/64"],[266,"9.9"],[300,"7/16"],[307,"23.0"],[310,"20.0"],[312,"H3"]],"m":[["dimensions",0]],"d":[],"x":[967131]},"466044":{"c":"E0361/2","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 1/2 inch with 20 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3670 inch shank and 0.2750 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 1/2 inch with 20 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3670 inch shank and 0.2750 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Feingewinde UNF 1/2 inch mit 20 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.3670 inch Schaft und 0.2750 inch Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2.5xD Durchgangsgewinde in Allzweckanwendungen"],"o":"BR","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"5974573"],[7,"1"],[14,"E036"],[16,"E0361/2"],[17,"Inch"],[20,"7320760582237"],[21,"20.0"],[22,"97.0"],[23,"17.0"],[24,"54.8"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"2.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[128,"6.99"],[138,"9.32"],[259,"3.3/8"],[260,"85.73"],[265,"29/64"],[266,"11.5"],[300,"1/2"],[307,"23.0"],[310,"20.0"],[312,"H3"]],"m":[["dimensions",0]],"d":[],"x":[967120]},"466051":{"c":"E0361/23FL","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 1/2 inch with 20 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3670 inch shank and 0.2750 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 1/2 inch with 20 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3670 inch shank and 0.2750 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Feingewinde UNF 1/2 inch mit 20 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.3670 inch Schaft und 0.2750 inch Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2.5xD Durchgangsgewinde in Allzweckanwendungen"],"o":"BR","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"5974577"],[7,"1"],[14,"E036"],[16,"E0361/23FL"],[17,"Inch"],[20,"7320760582244"],[21,"18.0"],[22,"96.0"],[23,"16.0"],[24,"53.1"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[128,"6.99"],[138,"9.32"],[259,"3.3/8"],[260,"85.73"],[265,"29/64"],[266,"11.5"],[300,"1/2"],[307,"23.0"],[310,"20.0"],[312,"H3"]],"m":[["dimensions",0]],"d":[],"x":[967127]},"466050":{"c":"E0369/16","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 9/16 inch with 18 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.4290 inch shank and 0.3220 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 9/16 inch with 18 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.4290 inch shank and 0.3220 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Feingewinde UNF 9/16 inch mit 18 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.4290 inch Schaft und 0.3220 inch Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2.5xD Durchgangsgewinde in Allzweckanwendungen"],"o":"BR","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"5974648"],[7,"1"],[14,"E036"],[16,"E0369/16"],[17,"Inch"],[20,"7320760582251"],[21,"18.0"],[22,"94.0"],[23,"18.0"],[24,"69.1"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[128,"8.18"],[138,"10.9"],[259,"3.19/32"],[260,"91.28"],[265,"33/64"],[266,"12.9"],[300,"9/16"],[307,"25.0"],[310,"18.0"],[312,"H3"]],"m":[["dimensions",0]],"d":[],"x":[967126]},"466049":{"c":"E0365/8","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 5/8 inch with 18 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.4800 inch shank and 0.3600 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 5/8 inch with 18 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.4800 inch shank and 0.3600 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Feingewinde UNF 5/8 inch mit 18 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.4800 inch Schaft und 0.3600 inch Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2.5xD Durchgangsgewinde in Allzweckanwendungen"],"o":"BR","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"5974628"],[7,"1"],[14,"E036"],[16,"E0365/8"],[17,"Inch"],[20,"7320760582268"],[21,"21.0"],[22,"100.0"],[23,"21.0"],[24,"92.2"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[128,"9.14"],[138,"12.19"],[259,"3.13/16"],[260,"96.84"],[265,"37/64"],[266,"14.5"],[300,"5/8"],[307,"25.0"],[310,"18.0"],[312,"H3"]],"m":[["dimensions",0]],"d":[],"x":[967125]},"466048":{"c":"E0363/4","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 3/4 inch with 16 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.5900 inch shank and 0.4420 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 3/4 inch with 16 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.5900 inch shank and 0.4420 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Feingewinde UNF 3/4 inch mit 16 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.5900 inch Schaft und 0.4420 inch Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2.5xD Durchgangsgewinde in Allzweckanwendungen"],"o":"BR","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"5974605"],[7,"1"],[14,"E036"],[16,"E0363/4"],[17,"Inch"],[20,"7320760582275"],[21,"25.0"],[22,"110.0"],[23,"25.0"],[24,"152.4"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[128,"11.23"],[138,"14.99"],[259,"4.1/4"],[260,"107.95"],[265,"11/16"],[266,"17.5"],[300,"3/4"],[307,"29.5"],[310,"16.0"],[312,"H3"]],"m":[["dimensions",0]],"d":[],"x":[967124]},"466057":{"c":"E0361-14","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 1 inch with 14 TPI and 3B class of fit with H4 pitch diameter limits, dimensions according to ANSI standard with 0.8000 inch shank and 0.6000 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 1 inch with 14 TPI and 3B class of fit with H4 pitch diameter limits, dimensions according to ANSI standard with 0.8000 inch shank and 0.6000 inch square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Feingewinde UNF 1 inch mit 14 Gängen / Inch und 3B Toleranzklasse mit H4 Teilungsdurchmessergrenzen, Abmessungen nach ANSI Standard mit 0.8000 inch Schaft und 0.6000 inch Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2.5xD Durchgangsgewinde in Allzweckanwendungen"],"o":"BR","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"5974569"],[7,"1"],[14,"E036"],[16,"E0361-14"],[17,"Inch"],[20,"7320760582305"],[21,"29.0"],[22,"133.0"],[23,"29.0"],[24,"334.7"],[31,"HSS-E-PM"],[32,"ANSI"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[128,"15.24"],[138,"20.32"],[259,"5.1/8"],[260,"130.18"],[265,"59/64"],[266,"23.5"],[300,"1\""],[307,"35.5"],[310,"14.0"],[312,"H4"]],"m":[["dimensions",0]],"d":[],"x":[967133]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Uitvoering (DP)	1/2, 1/4, 3/8, 5/16, 3/4, 5/8, 9/16, 1/23FL, 1/43FL, 3/83FL, 5/163FL, 7/163FL, 10-32, 1-14
Draadstandaard	UNF - Unified fijn, UNF - Unified fijn
Coating (DP)	Steam Tempered
