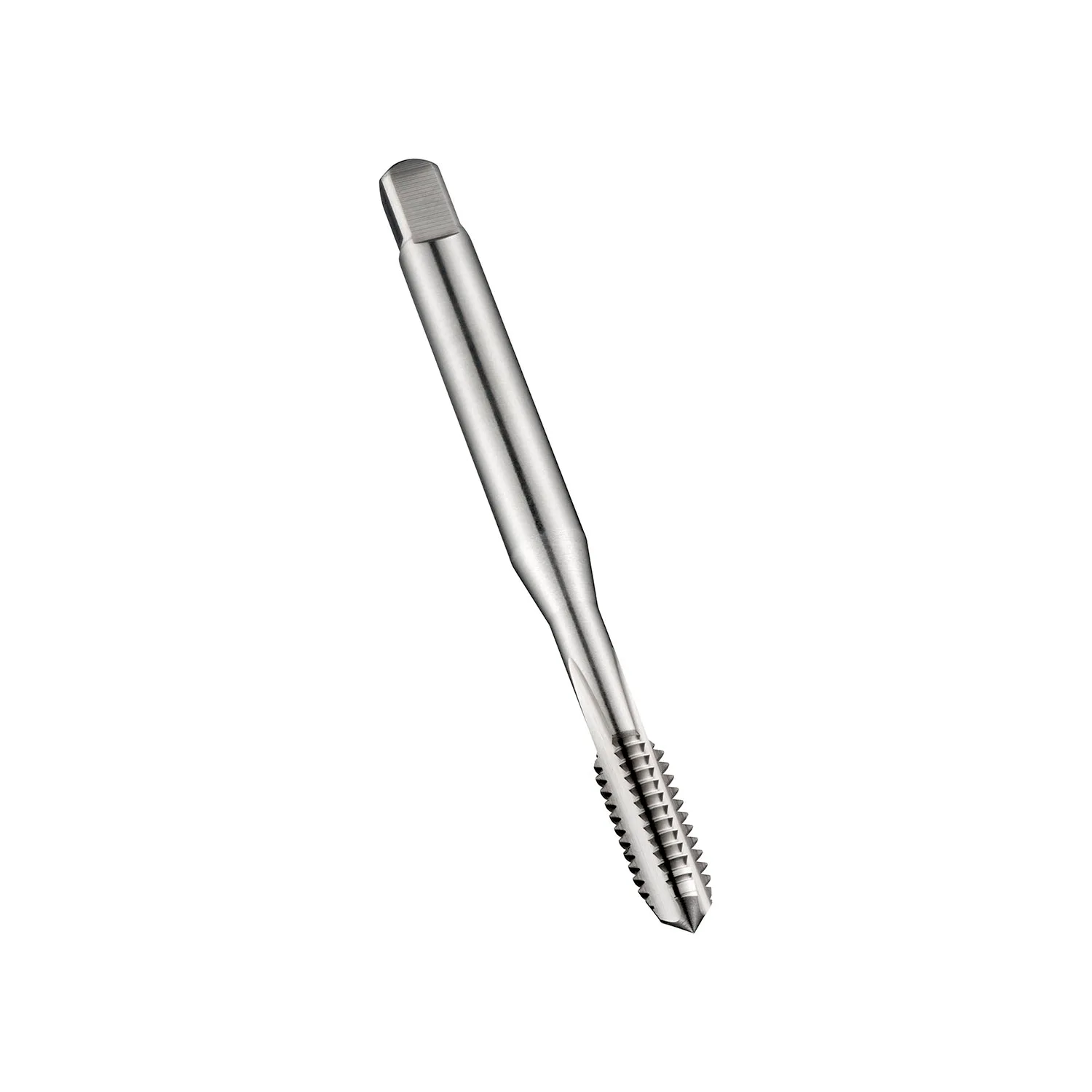

E237 HSS-E PM M Hand-/machinetap met rechte spaangroeven

Name: E237 HSS-E PM M Hand-/machinetap met rechte spaangroeven (3)
SKU: E237M3
Price: 23.48 EUR
Availability: InStock

DORMER India

23,48 €

excl. BTW

Productinformatie

Universele machinetap met rechte spaangroef voor doorlopende en blinde gaten. Blanke afwerking voor nauwkeurigere en schonere schroefdraad en om te voorkomen dat het werkstukmateriaal aan de snijkanten blijft kleven. De versterkte schacht verhoogt de sterkte tegen torsie.

Draadstandaard
Draadstandaard
Coating (DP)
Draadmaat (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E237_DIM.png"],"p":{"466365":{"c":"E237M3","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, linksschneidend ISO-Metrisches Gewinde M3 mit 0.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 3.5 mm Schaft und 2.7 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 1.5xD Durchgangs- und Sacklochgewinde in Baustahl und Kohlenstoffstahl"],"o":"IN","a":[["P","primary"],["K","possible"],["N","primary"]],"f":[[0,"5975755"],[7,"1"],[14,"E237"],[16,"E237M3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760086520"],[21,"11.0"],[22,"84.0"],[23,"9.3"],[24,"6.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"1.5"],[37,"3.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Left","Links","À gauche","Links"],[124,"6.0"],[128,"2.7"],[138,"3.5"],[260,"56.0"],[266,"2.5"],[300,"3"],[302,"0.5"],[307,"9.0"],[318,"18.0"]],"m":[["dimensions",0]],"d":[],"x":[967467]},"466366":{"c":"E237M4","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, linksschneidend ISO-Metrisches Gewinde M4 mit 0.70 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 4.5 mm Schaft und 3.4 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 1.5xD Durchgangs- und Sacklochgewinde in Baustahl und Kohlenstoffstahl"],"o":"IN","a":[["P","primary"],["K","possible"],["N","primary"]],"f":[[0,"5975759"],[7,"1"],[14,"E237"],[16,"E237M4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760086537"],[21,"5.19"],[22,"80.0"],[23,"4.47"],[24,"8.8"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"1.5"],[37,"3.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Left","Links","À gauche","Links"],[124,"6.0"],[128,"3.4"],[138,"4.5"],[260,"63.0"],[266,"3.3"],[300,"4"],[302,"0.7"],[307,"12.0"],[318,"21.0"]],"m":[["dimensions",0]],"d":[],"x":[967468]},"466367":{"c":"E237M5","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, linksschneidend ISO-Metrisches Gewinde M5 mit 0.80 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 1.5xD Durchgangs- und Sacklochgewinde in Baustahl und Kohlenstoffstahl"],"o":"IN","a":[["P","primary"],["K","possible"],["N","primary"]],"f":[[0,"5975764"],[7,"1"],[14,"E237"],[16,"E237M5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760086544"],[21,"11.01"],[22,"83.64"],[23,"9.68"],[24,"14.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"1.5"],[37,"3.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Left","Links","À gauche","Links"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"70.0"],[266,"4.2"],[300,"5"],[302,"0.8"],[307,"13.0"],[318,"25.0"]],"m":[["dimensions",0]],"d":[],"x":[967469]},"466368":{"c":"E237M6","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, linksschneidend ISO-Metrisches Gewinde M6 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 1.5xD Durchgangs- und Sacklochgewinde in Baustahl und Kohlenstoffstahl"],"o":"IN","a":[["P","primary"],["K","possible"],["N","primary"]],"f":[[0,"5975768"],[7,"1"],[14,"E237"],[16,"E237M6"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760086551"],[21,"15.51"],[22,"89.04"],[23,"14.41"],[24,"16.8"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"1.5"],[37,"3.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Left","Links","À gauche","Links"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"80.0"],[266,"5.0"],[300,"6"],[302,"1.0"],[307,"15.0"],[318,"30.0"]],"m":[["dimensions",0]],"d":[],"x":[967470]},"466369":{"c":"E237M8","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, linksschneidend ISO-Metrisches Gewinde M8 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 8.0 mm Schaft und 6.2 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 1.5xD Durchgangs- und Sacklochgewinde in Baustahl und Kohlenstoffstahl"],"o":"IN","a":[["P","primary"],["K","possible"],["N","primary"]],"f":[[0,"5975772"],[7,"1"],[14,"E237"],[16,"E237M8"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760086568"],[21,"16.75"],[22,"103.35"],[23,"13.89"],[24,"34.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"1.5"],[37,"3.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Left","Links","À gauche","Links"],[124,"9.0"],[128,"6.2"],[138,"8.0"],[260,"90.0"],[266,"6.8"],[300,"8"],[302,"1.25"],[307,"18.0"],[318,"35.0"]],"m":[["dimensions",0]],"d":[],"x":[967471]},"466370":{"c":"E237M10","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, linksschneidend ISO-Metrisches Gewinde M10 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 10.0 mm Schaft und 8.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 1.5xD Durchgangs- und Sacklochgewinde in Baustahl und Kohlenstoffstahl"],"o":"IN","a":[["P","primary"],["K","possible"],["N","primary"]],"f":[[0,"5975749"],[7,"1"],[14,"E237"],[16,"E237M10"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760086513"],[21,"7.16"],[22,"110.0"],[23,"6.26"],[24,"54.6"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"1.5"],[37,"3.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Left","Links","À gauche","Links"],[124,"11.0"],[128,"8.0"],[138,"10.0"],[260,"100.0"],[266,"8.5"],[300,"10"],[302,"1.5"],[307,"20.0"],[318,"39.0"]],"m":[["dimensions",0]],"d":[],"x":[967472]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Draadmaat (DP)	3, 4, 5, 6, 8, 10
Draadstandaard	M - Metrisch grof, M - Metrisch grof
Coating (DP)	Steam Tempered
