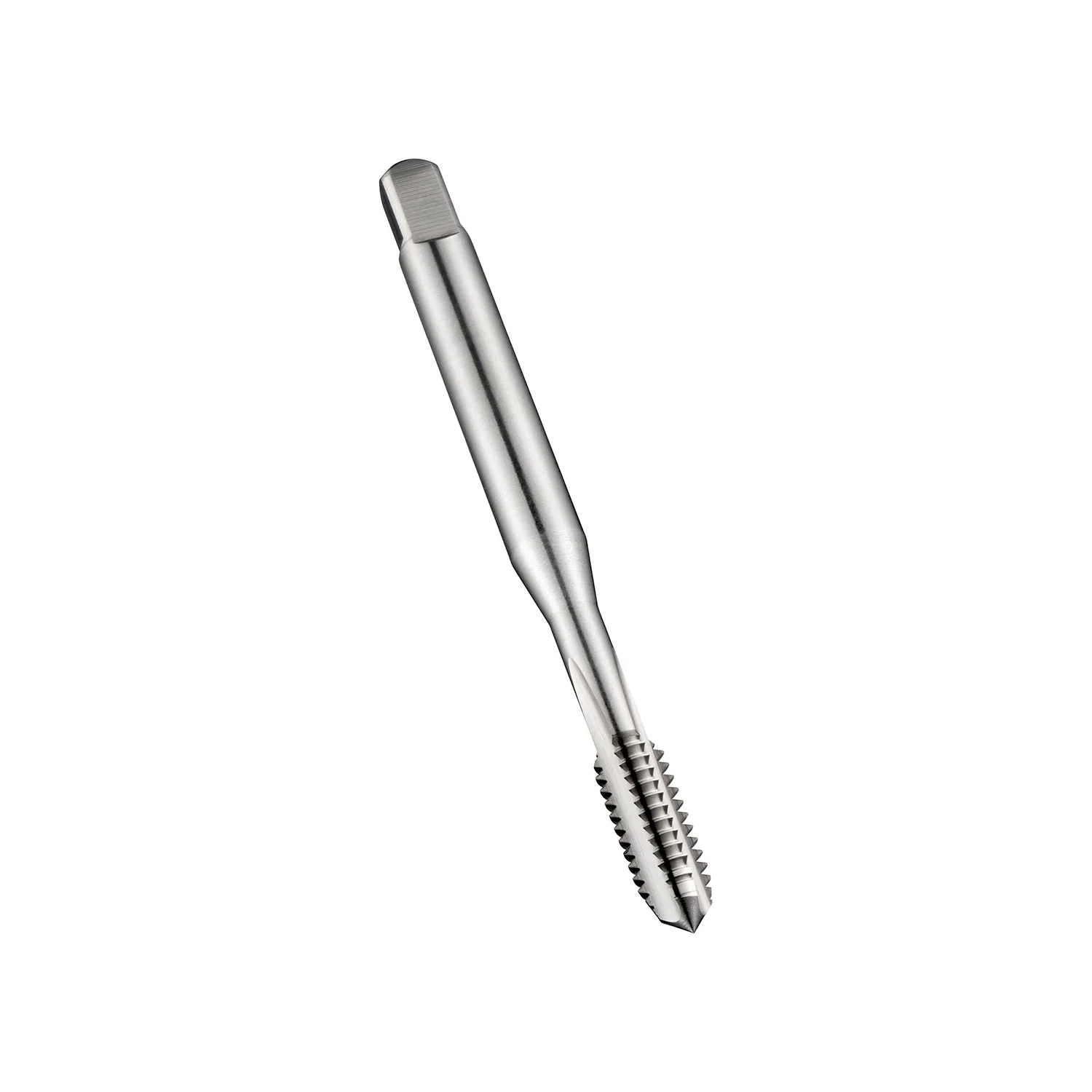

E242 HSS-E PM MF Hand-/machinetap met rechte spaangroeven

Name: E242 HSS-E PM MF Hand-/machinetap met rechte spaangroeven
SKU: E242M8X1.0
Price: 37.10 EUR
Availability: InStock

DORMER India

37,10 €

excl. BTW

Productinformatie

Universele machinetap met rechte spaangroef voor doorlopende en blinde gaten. Blanke afwerking voor nauwkeurigere en schonere schroefdraad en om te voorkomen dat het werkstukmateriaal aan de snijkanten blijft kleven. De versterkte schacht verhoogt de sterkte tegen torsie.

Draadstandaard
Draadstandaard
Coating (DP)
Draadmaat (DP)

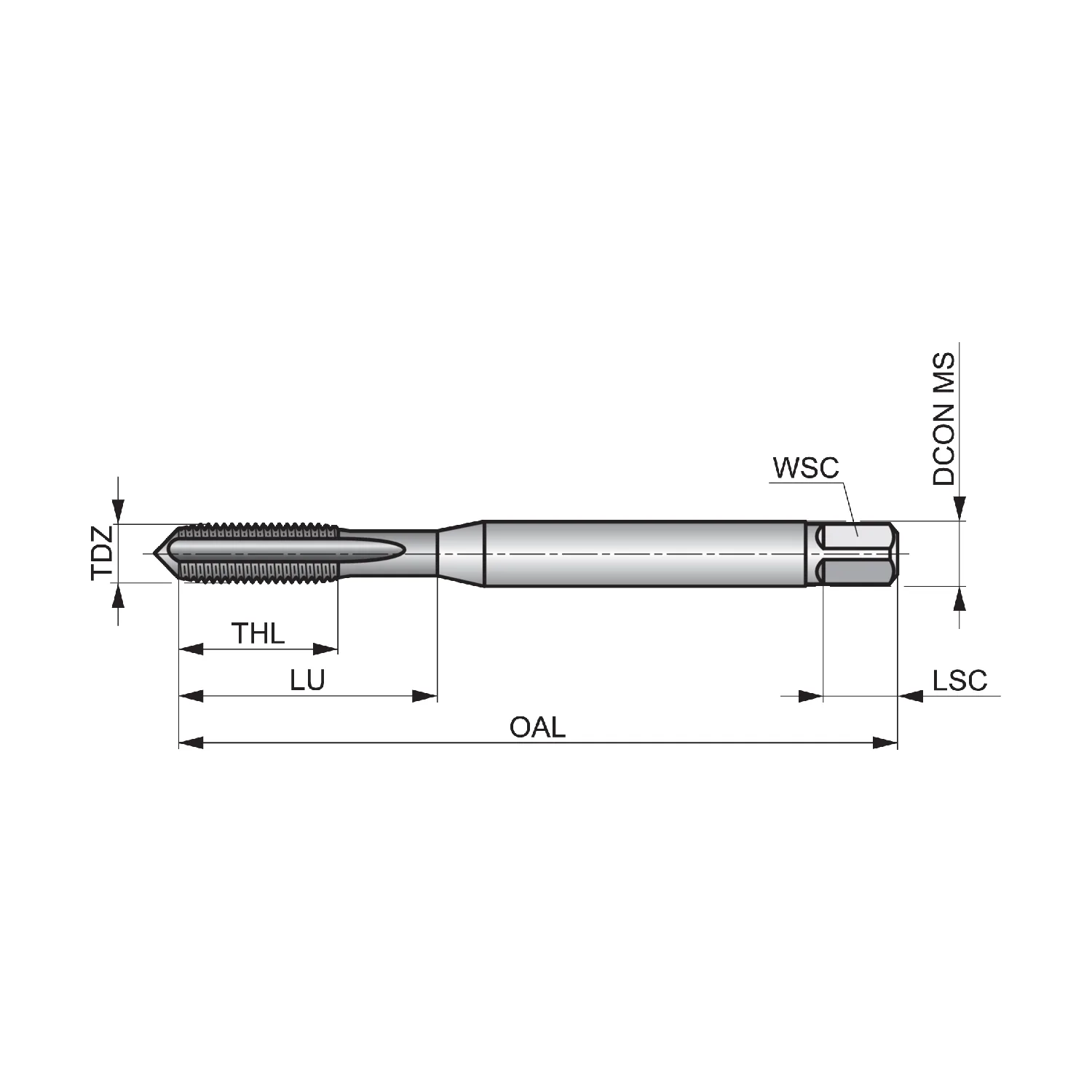

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E242_DIM.png"],"p":{"466422":{"c":"E242M8X1.0","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric Fine thread M8 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric Fine thread M8 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, linksschneidend ISO-Metrisches Feingewinde M8 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 8.0 mm Schaft und 6.2 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 1.5xD Durchgangs- und Sacklochgewinde in Baustahl und Kohlenstoffstahl"],"o":"IN","a":[["P","primary"],["K","possible"],["N","primary"]],"f":[[0,"5975780"],[7,"1"],[14,"E242"],[16,"E242M8X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760165980"],[21,"16.0"],[22,"103.0"],[23,"14.0"],[24,"33.6"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"1.5"],[37,"3.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Left","Links","À gauche","Links"],[124,"9.0"],[128,"6.2"],[138,"8.0"],[260,"90.0"],[266,"7.0"],[300,"8"],[302,"1.0"],[307,"18.0"],[318,"35.0"]],"m":[["dimensions",0]],"d":[],"x":[967529]},"466423":{"c":"E242M10X1.0","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric Fine thread M10 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Straight flute tap with chamfer form C with a 2-3xP plug lead, for left hand ISO-Metric Fine thread M10 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, linksschneidend ISO-Metrisches Feingewinde M10 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 10.0 mm Schaft und 8.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 1.5xD Durchgangs- und Sacklochgewinde in Baustahl und Kohlenstoffstahl"],"o":"IN","a":[["P","primary"],["K","possible"],["N","primary"]],"f":[[0,"5975775"],[7,"1"],[14,"E242"],[16,"E242M10X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760165997"],[21,"16.0"],[22,"106.0"],[23,"16.0"],[24,"50.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"1.5"],[37,"3.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Left","Links","À gauche","Links"],[124,"11.0"],[128,"8.0"],[138,"10.0"],[260,"100.0"],[266,"9.0"],[300,"10"],[302,"1.0"],[307,"20.0"],[318,"39.0"]],"m":[["dimensions",0]],"d":[],"x":[967530]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Draadmaat (DP)	8, 10
Draadstandaard	MF - Metrisch fijn, MF - Metrisch fijn
Coating (DP)	Steam Tempered
