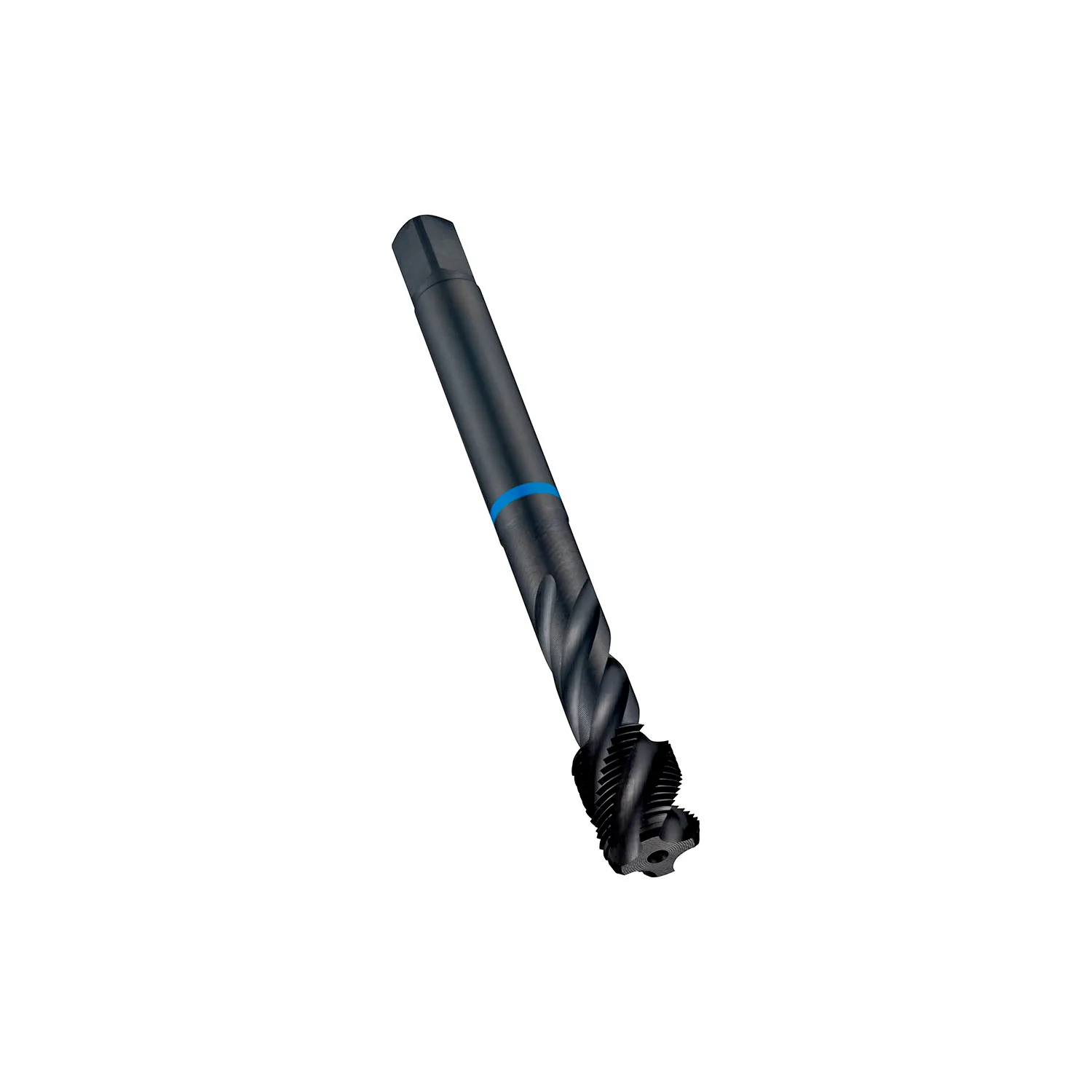

E383 HSS-E PM MF Machinetap, spiraalgroeven 40°, Blue Shark

Name: E383 HSS-E PM MF Machinetap, spiraalgroeven 40°, Blue Shark
SKU: E383M10X1.0
Price: 42.42 EUR
Availability: InStock

DORMER India

42,42 €

excl. BTW

Productinformatie

Blind gat tap met verjongde schacht voor middelsterk roestvast staal. Uniek HSS-E-PM substraat in combinatie met extra snijkantbehandeling zorgt voor consistentie en proceszekerheid. Gestoomd oppervlak werkt als retentie voor snijvloeistof en voorkomt vastlassen van spanen aan het gereedschap.

Draadstandaard
Draadstandaard
Coating (DP)
Uitvoering (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E383_DIM.png"],"p":{"466823":{"c":"E383M6X.75","s":["Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M6 with 0.75 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M6 with 0.75 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel",null],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"6305863"],[7,"1"],[14,"E383"],[16,"E383M6X.75"],[17,"Metric","Metrisch","Métrique",null],[20,"7320760664681"],[21,"10.0"],[22,"92.0"],[23,"9.0"],[24,"10.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)",null],[36,"2"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes",null],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin",null],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale",null],[44,"40"],[50,"Right","Rechts","A droite",null],[124,"6.0"],[128,"3.4"],[138,"4.5"],[260,"80.0"],[266,"5.3"],[300,"6"],[302,"0.75"],[307,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[967962]},"466824":{"c":"E383M8X1.0","s":["Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M8 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M8 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral genuteter Gewindebohrer Blue Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M8 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 40° Helixwinkel 2xD Sacklochgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"6305864"],[7,"1"],[14,"E383"],[16,"E383M8X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760664698"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"23.8"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"40"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"90.0"],[266,"7.0"],[300,"8"],[302,"1.0"],[307,"13.0"]],"m":[["dimensions",0]],"d":[],"x":[967963]},"466814":{"c":"E383M10X1.0","s":["Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M10 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M10 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral genuteter Gewindebohrer Blue Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M10 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 7.0 mm Schaft und 5.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 40° Helixwinkel 2xD Sacklochgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"6305854"],[7,"1"],[14,"E383"],[16,"E383M10X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760664599"],[21,"14.0"],[22,"115.0"],[23,"13.0"],[24,"30.2"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"40"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"5.5"],[138,"7.0"],[260,"90.0"],[266,"9.0"],[300,"10"],[302,"1.0"],[307,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[967953]},"466815":{"c":"E383M10X1.25","s":["Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M10 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M10 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral genuteter Gewindebohrer Blue Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M10 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 7.0 mm Schaft und 5.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 40° Helixwinkel 2xD Sacklochgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"6305855"],[7,"1"],[14,"E383"],[16,"E383M10X1.25"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760664605"],[21,"15.0"],[22,"115.0"],[23,"14.0"],[24,"34.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"40"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"5.5"],[138,"7.0"],[260,"100.0"],[266,"8.8"],[300,"10"],[302,"1.25"],[307,"15.0"]],"m":[["dimensions",0]],"d":[],"x":[967954]},"466816":{"c":"E383M12X1.0","s":["Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral genuteter Gewindebohrer Blue Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M12 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 9.0 mm Schaft und 7.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 40° Helixwinkel 2xD Sacklochgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"6305856"],[7,"1"],[14,"E383"],[16,"E383M12X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760664612"],[21,"17.0"],[22,"120.0"],[23,"17.0"],[24,"51.7"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"40"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"100.0"],[266,"11.0"],[300,"12"],[302,"1.0"],[307,"13.0"]],"m":[["dimensions",0]],"d":[],"x":[967955]},"466817":{"c":"E383M12X1.25","s":["Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral genuteter Gewindebohrer Blue Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M12 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 9.0 mm Schaft und 7.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 40° Helixwinkel 2xD Sacklochgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"6305857"],[7,"1"],[14,"E383"],[16,"E383M12X1.25"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760664629"],[21,"17.0"],[22,"124.0"],[23,"15.0"],[24,"52.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"40"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"100.0"],[266,"10.8"],[300,"12"],[302,"1.25"],[307,"13.0"]],"m":[["dimensions",0]],"d":[],"x":[967956]},"466818":{"c":"E383M12X1.5","s":["Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral genuteter Gewindebohrer Blue Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M12 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 9.0 mm Schaft und 7.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 40° Helixwinkel 2xD Sacklochgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"6305858"],[7,"1"],[14,"E383"],[16,"E383M12X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760664636"],[21,"19.0"],[22,"123.0"],[23,"17.0"],[24,"51.6"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"40"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"100.0"],[266,"10.5"],[300,"12"],[302,"1.5"],[307,"13.0"]],"m":[["dimensions",0]],"d":[],"x":[967957]},"466819":{"c":"E383M14X1.5","s":["Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M14 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M14 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral genuteter Gewindebohrer Blue Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M14 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 11.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 40° Helixwinkel 2xD Sacklochgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"6305859"],[7,"1"],[14,"E383"],[16,"E383M14X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760664643"],[21,"17.0"],[22,"103.0"],[23,"17.0"],[24,"69.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"40"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"11.0"],[260,"100.0"],[266,"12.5"],[300,"14"],[302,"1.5"],[307,"21.0"]],"m":[["dimensions",0]],"d":[],"x":[967958]},"466820":{"c":"E383M16X1.5","s":["Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M16 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M16 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral genuteter Gewindebohrer Blue Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M16 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 12.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 40° Helixwinkel 2xD Sacklochgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"6305860"],[7,"1"],[14,"E383"],[16,"E383M16X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760664650"],[21,"21.0"],[22,"105.0"],[23,"21.0"],[24,"76.6"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"5.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"40"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"12.0"],[260,"100.0"],[266,"14.5"],[300,"16"],[302,"1.5"],[307,"21.0"]],"m":[["dimensions",0]],"d":[],"x":[967959]},"466821":{"c":"E383M18X1.5","s":["Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M18 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 14.0 mm shank and 11.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M18 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 14.0 mm shank and 11.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral genuteter Gewindebohrer Blue Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M18 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 14.0 mm Schaft und 11.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 40° Helixwinkel 2xD Sacklochgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"6305861"],[7,"1"],[14,"E383"],[16,"E383M18X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760664667"],[21,"21.0"],[22,"115.0"],[23,"21.0"],[24,"121.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"5.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"40"],[50,"Right","Rechts","A droite","Rechts"],[124,"14.0"],[128,"11.0"],[138,"14.0"],[260,"110.0"],[266,"16.5"],[300,"18"],[302,"1.5"],[307,"24.0"]],"m":[["dimensions",0]],"d":[],"x":[967960]},"466822":{"c":"E383M20X1.5","s":["Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M20 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M20 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel","Spiral genuteter Gewindebohrer Blue Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Feingewinde M20 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 374 Standard mit 16.0 mm Schaft und 12.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche und 40° Helixwinkel 2xD Sacklochgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"6305862"],[7,"1"],[14,"E383"],[16,"E383M20X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760664674"],[21,"22.0"],[22,"130.0"],[23,"25.0"],[24,"180.0"],[31,"HSS-E-PM"],[32,"DIN 374"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"5.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"MF - Metric fine",null,"MF - Profil de filet, ISO métrique fin","MF - Gewindeform, Metrisches Feingewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"40"],[50,"Right","Rechts","A droite","Rechts"],[124,"15.0"],[128,"12.0"],[138,"16.0"],[260,"125.0"],[266,"18.5"],[300,"20"],[302,"1.5"],[307,"24.0"]],"m":[["dimensions",0]],"d":[],"x":[967961]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Uitvoering (DP)	M10X1.0, M10X1.25, M12X1.0, M12X1.25, M12X1.5, M14X1.5, M16X1.5, M18X1.5, M20X1.5, M6X.75, M8X1.0
Draadstandaard	MF - Metrisch fijn, MF - Metrisch fijn
Coating (DP)	Steam Tempered
