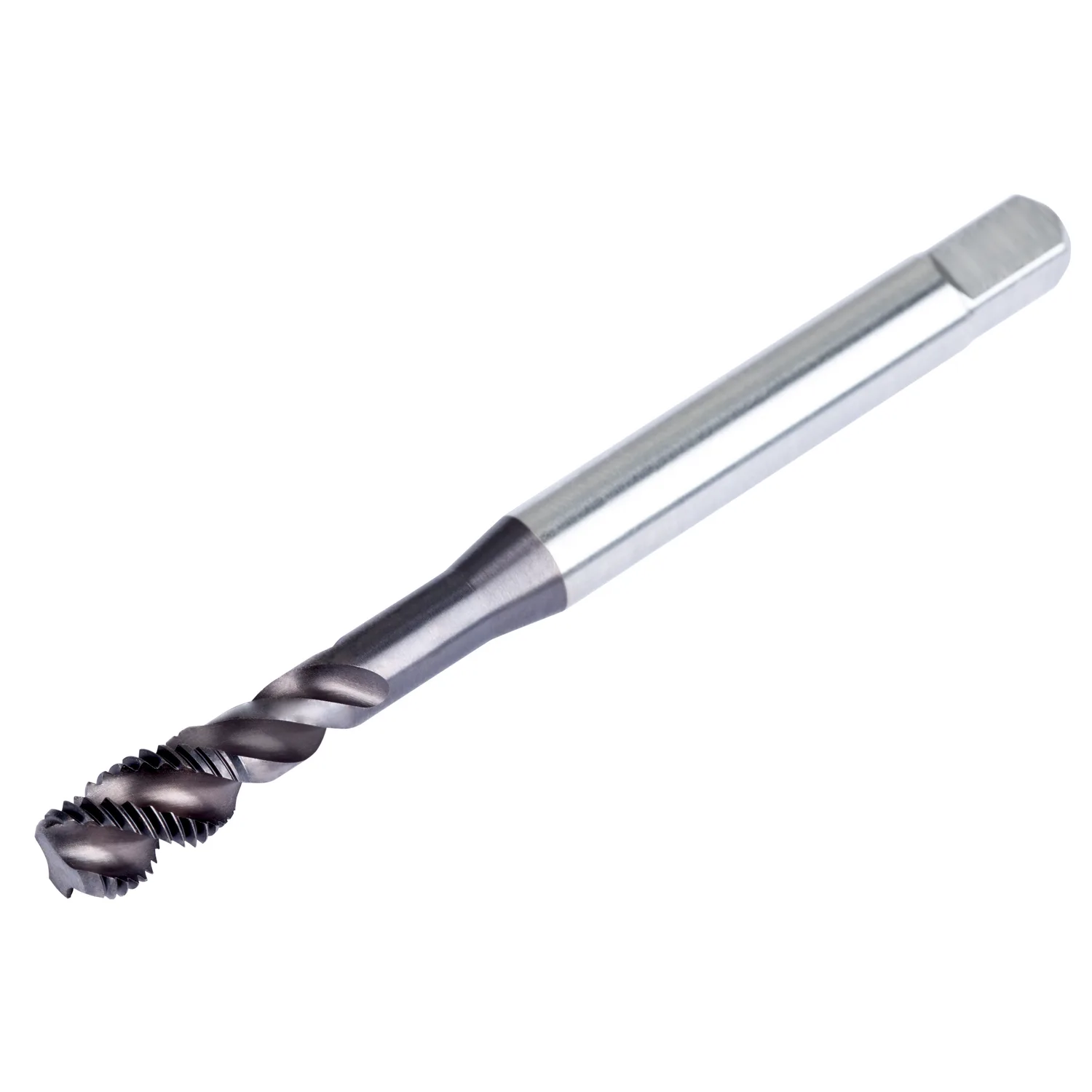

E398(UNF) HSS-E PM UNF Machinetap met gespiraliseerde spaangroeven 48°, multifunctioneel

Name: E398(UNF) HSS-E PM UNF Machinetap met gespiraliseerde spaangroeven 48°, multifunctioneel (1/4)
SKU: E398UNF1/4
Price: 29.68 EUR
Availability: InStock

DORMER Brazilië

29,68 €

excl. BTW

Productinformatie

Machinetap voor hoogproductieve toepassingen met spiraalgroef voor blinde gaten tot 2.5xD. Geschikt voor diverse werkstukmaterialen. Unieke TiCN-gecoate HSS-E-PM voor superieure slijtvastheid, hogere snijsnelheden, verbeterde draadkwaliteit, kortere cyclustijden en langere standtijd. Aanbevolen voor synchrone tapklemmen.

Draadstandaard
Draadstandaard
Coating (DP)
Draadmaat (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E398_UNF_DIM.png"],"p":{"466892":{"c":"E398UNF1/4","s":["Thread size UNF 0.25 inch - 28 TPI, with thread tolerance class 93707, and maximum threading depth 0.625 inches.","Taille du filet UNF 0.25 inch - 28 TPI, avec classe de tolérance du filet 93707, et profondeur maximale de filetage 0.625 pouces.","Gewindegröße UNF 0.25 inch - 28 TPI, mit Gewindetoleranzklasse 93707, und maximale Gewindetiefe 0.625 Zoll."],"o":"BR","a":[["P","primary"],["M","primary"],["N","possible"]],"f":[[0,"8464230"],[7,"1"],[14,"E398(UNF)"],[16,"E398UNF1/4"],[17,"Inch"],[20,"3603607095713"],[21,"76.0"],[22,"113.0"],[23,"13.0"],[24,"20.0"],[31,"HSS-E-PM"],[32,"DIN 2184-1"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2BX"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"5.5"],[138,"7.0"],[260,"80.0"],[266,"5.5"],[299,"6.35"],[300,"1/4"],[307,"10.0"],[310,"28.0"],[318,"30.0"]],"m":[["dimensions",0]],"d":[],"x":[968039]},"466894":{"c":"E398UNF5/16","s":["Thread size UNF 0.313 inch - 24 TPI, with thread tolerance class 93707, and maximum threading depth 0.7825 inches.","Taille du filet UNF 0.313 inch - 24 TPI, avec classe de tolérance du filet 93707, et profondeur maximale de filetage 0.7825 pouces.","Gewindegröße UNF 0.313 inch - 24 TPI, mit Gewindetoleranzklasse 93707, und maximale Gewindetiefe 0.7825 Zoll."],"o":"BR","a":[["P","primary"],["M","primary"],["N","possible"]],"f":[[0,"8464231"],[7,"1"],[14,"E398(UNF)"],[16,"E398UNF5/16"],[17,"Inch"],[20,"3603607095720"],[21,"76.0"],[22,"113.0"],[23,"13.0"],[24,"33.0"],[31,"HSS-E-PM"],[32,"DIN 2184-1"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2BX"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.0"],[128,"6.2"],[138,"8.0"],[260,"90.0"],[266,"6.9"],[299,"7.938"],[300,"5/16"],[307,"12.0"],[310,"24.0"],[318,"35.0"]],"m":[["dimensions",0]],"d":[],"x":[968041]},"466893":{"c":"E398UNF3/8","s":["Thread size UNF 0.375 inch - 24 TPI, with thread tolerance class 93707, and maximum threading depth 0.9375 inches.","Taille du filet UNF 0.375 inch - 24 TPI, avec classe de tolérance du filet 93707, et profondeur maximale de filetage 0.9375 pouces.","Gewindegröße UNF 0.375 inch - 24 TPI, mit Gewindetoleranzklasse 93707, und maximale Gewindetiefe 0.9375 Zoll."],"o":"BR","a":[["P","primary"],["M","primary"],["N","possible"]],"f":[[0,"8464232"],[7,"1"],[14,"E398(UNF)"],[16,"E398UNF3/8"],[17,"Inch"],[20,"3603607095737"],[21,"76.0"],[22,"113.0"],[23,"13.0"],[24,"52.0"],[31,"HSS-E-PM"],[32,"DIN 2184-1"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2BX"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.0"],[128,"8.0"],[138,"10.0"],[260,"100.0"],[266,"8.5"],[299,"9.525"],[300,"3/8"],[307,"15.0"],[310,"24.0"],[318,"39.0"]],"m":[["dimensions",0]],"d":[],"x":[968040]},"466891":{"c":"E398UNF1/2","s":["Thread size UNF 0.5 inch - 20 TPI, with thread tolerance class 93707, and maximum threading depth 1.25 inches.","Taille du filet UNF 0.5 inch - 20 TPI, avec classe de tolérance du filet 93707, et profondeur maximale de filetage 1.25 pouces.","Gewindegröße UNF 0.5 inch - 20 TPI, mit Gewindetoleranzklasse 93707, und maximale Gewindetiefe 1.25 Zoll."],"o":"BR","a":[["P","primary"],["M","primary"],["N","possible"]],"f":[[0,"8464233"],[7,"1"],[14,"E398(UNF)"],[16,"E398UNF1/2"],[17,"Inch"],[20,"3603607095744"],[21,"17.3"],[22,"111.0"],[23,"17.3"],[24,"49.4"],[31,"HSS-E-PM"],[32,"DIN 2184-1"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[36,"2.5"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"UNF - Unified Fine",null,"UNF - Profil de filet, Unified Fine","UNF - Gewindeform, Feingewinde UNF"],[42,"2BX"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"110.0"],[266,"11.5"],[299,"12.7"],[300,"1/2"],[307,"18.0"],[310,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[968038]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Draadmaat (DP)	1/4, 5/16, 3/8, 1/2
Draadstandaard	UNF - Unified fijn, UNF - Unified fijn
Coating (DP)	TiCN

E398(UNF) HSS-E PM UNF Machinetap met gespiraliseerde spaangroeven 48°, multifunctioneel
