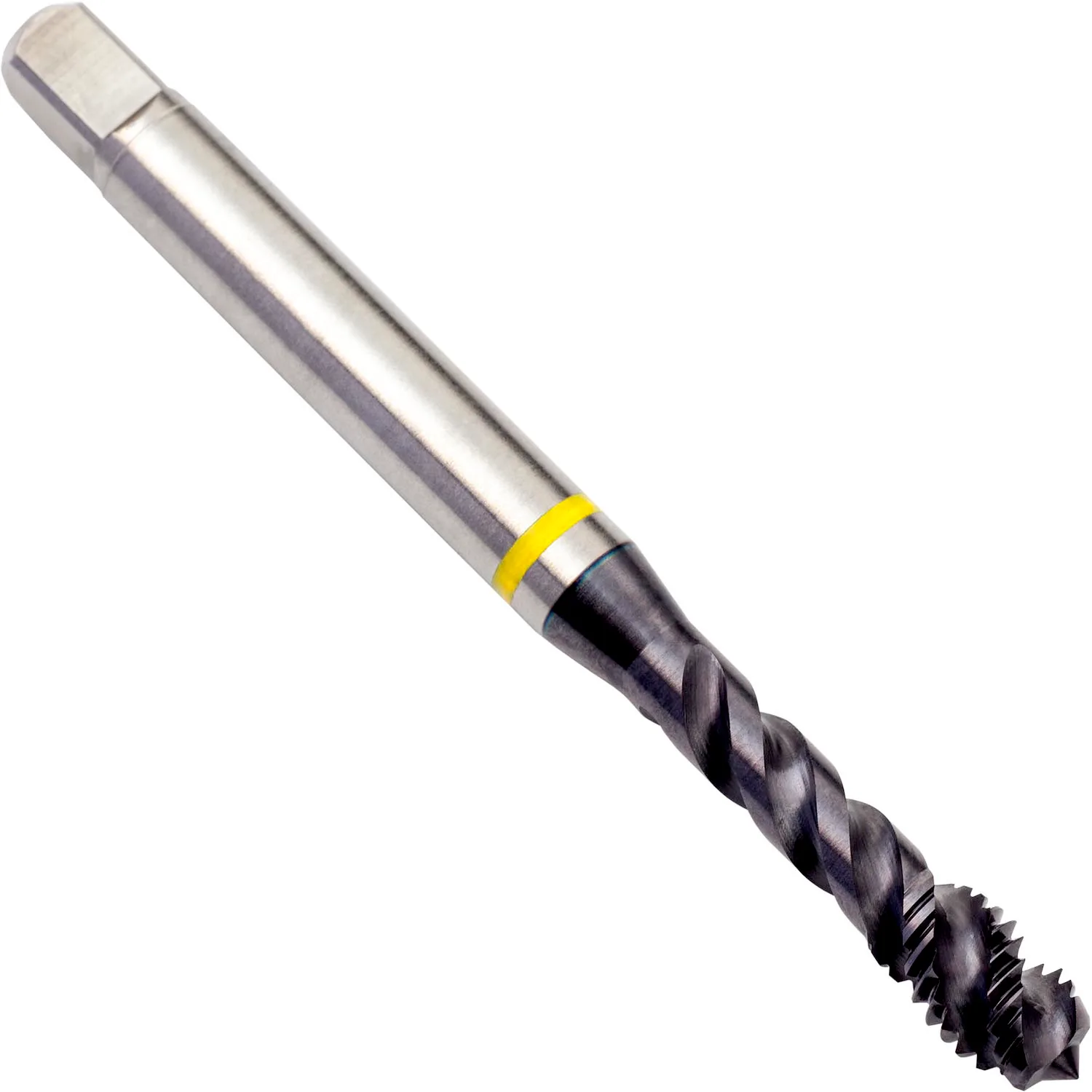

E412 HSS-E PM M Machinetap, spiraalgroeven 48°, Geelring Shark, achter geslepen

Name: E412 HSS-E PM M Machinetap, spiraalgroeven 48°, Geelring Shark, achter geslepen
SKU: E412M3
Price: 35.77 EUR
Availability: InStock

DORMER India

35,77 €

excl. BTW

Productinformatie

Hoogwaardige snelspiraaltap voor diepe blinde gaten in staal met gemiddelde sterkte. Unieke HSS-E-PM-substraat met TiAlN-Top-coating en extra snijkantbehandeling zorgen voor superieure prestaties. Extra rugtapsheid vergemakkelijkt de spaanafvoer en vermindert het koppel bij het terugdraaien. Aanbevolen voor synchrone tapklemmen.

Draadstandaard
Draadstandaard
Coating (DP)
Draadmaat (DP)

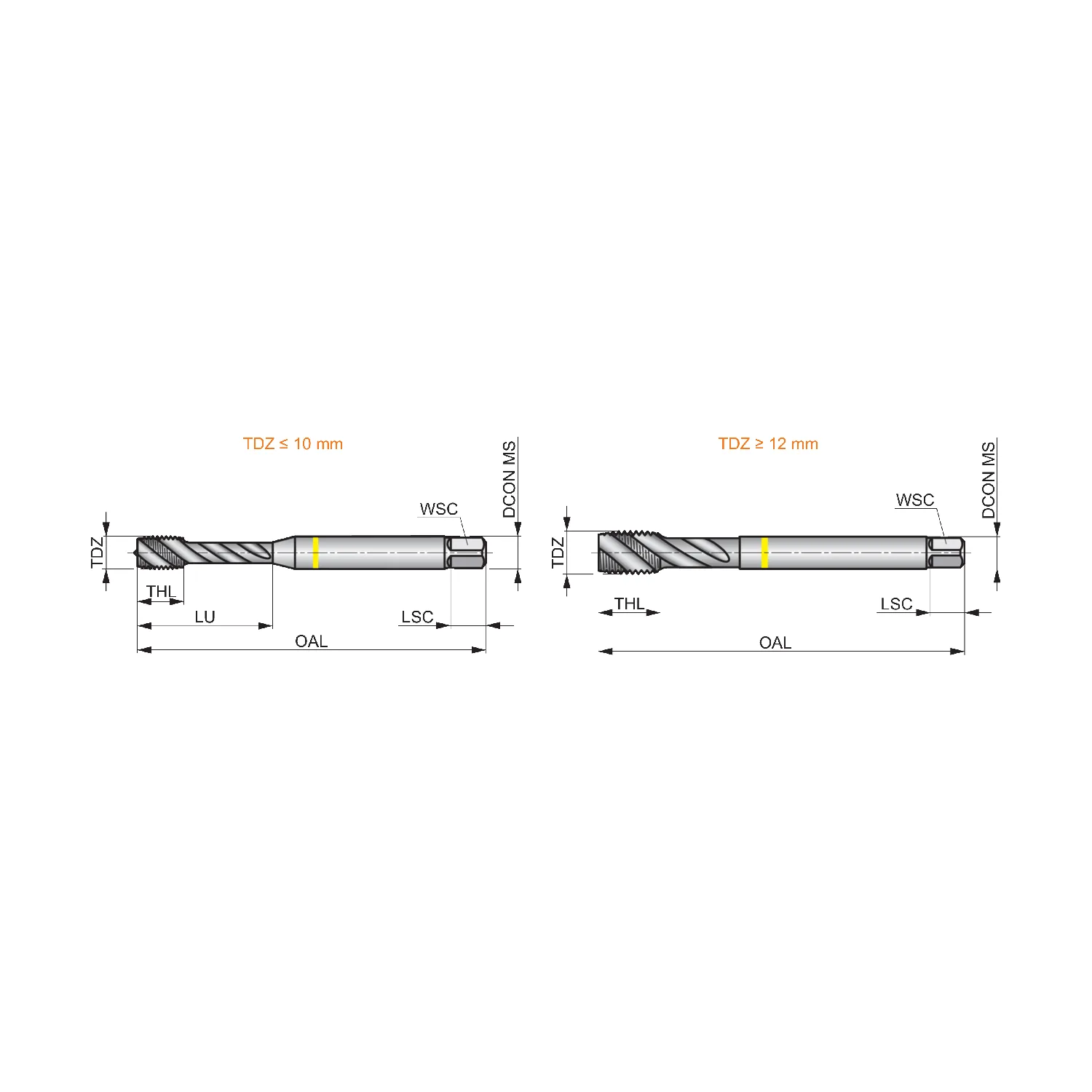

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E412_DIM.png"],"p":{"466895":{"c":"E412M3","s":["Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral genuteter Gewindebohrer Yellow Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M3 mit 0.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 3.5 mm Schaft und 2.7 mm Vierkantantrieb, HSSE-PM mit TiAlN-Top Beschichtung und 48° Helixwinkel 3xD Sacklochgewinde in Stahl und Stahlguss"],"o":"IN","a":[["P","primary"],["M","possible"],["N","possible"]],"f":[[0,"7441116"],[7,"1"],[14,"E412"],[16,"E412M3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760778869"],[21,"10.0"],[22,"93.0"],[23,"10.0"],[24,"3.5"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiAlN/Top",null,"Revêtement nitrure de titane aluminium (avec processus de traitement d’arêtes)","Titan-Aluminiumnitrid-Beschichtung (mit Glättungsprozess)"],[36,"3"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"2.7"],[138,"3.5"],[260,"56.0"],[266,"2.5"],[300,"3"],[302,"0.5"],[307,"6.0"],[318,"18.0"]],"m":[["dimensions",0]],"d":[],"x":[968043]},"466896":{"c":"E412M4","s":["Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral genuteter Gewindebohrer Yellow Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M4 mit 0.70 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 4.5 mm Schaft und 3.4 mm Vierkantantrieb, HSSE-PM mit TiAlN-Top Beschichtung und 48° Helixwinkel 3xD Sacklochgewinde in Stahl und Stahlguss"],"o":"IN","a":[["P","primary"],["M","possible"],["N","possible"]],"f":[[0,"7441117"],[7,"1"],[14,"E412"],[16,"E412M4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760778876"],[21,"10.0"],[22,"93.0"],[23,"10.0"],[24,"6.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiAlN/Top",null,"Revêtement nitrure de titane aluminium (avec processus de traitement d’arêtes)","Titan-Aluminiumnitrid-Beschichtung (mit Glättungsprozess)"],[36,"3"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"3.4"],[138,"4.5"],[260,"63.0"],[266,"3.3"],[300,"4"],[302,"0.7"],[307,"7.0"],[318,"21.0"]],"m":[["dimensions",0]],"d":[],"x":[968044]},"466897":{"c":"E412M5","s":["Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral genuteter Gewindebohrer Yellow Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M5 mit 0.80 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit TiAlN-Top Beschichtung und 48° Helixwinkel 3xD Sacklochgewinde in Stahl und Stahlguss"],"o":"IN","a":[["P","primary"],["M","possible"],["N","possible"]],"f":[[0,"7441118"],[7,"1"],[14,"E412"],[16,"E412M5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760778883"],[21,"10.0"],[22,"95.0"],[23,"8.0"],[24,"13.8"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiAlN/Top",null,"Revêtement nitrure de titane aluminium (avec processus de traitement d’arêtes)","Titan-Aluminiumnitrid-Beschichtung (mit Glättungsprozess)"],[36,"3"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"70.0"],[266,"4.2"],[300,"5"],[302,"0.8"],[307,"8.0"],[318,"25.0"]],"m":[["dimensions",0]],"d":[],"x":[968045]},"466898":{"c":"E412M6","s":["Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral genuteter Gewindebohrer Yellow Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M6 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit TiAlN-Top Beschichtung und 48° Helixwinkel 3xD Sacklochgewinde in Stahl und Stahlguss"],"o":"IN","a":[["P","primary"],["M","possible"],["N","possible"]],"f":[[0,"7441119"],[7,"1"],[14,"E412"],[16,"E412M6"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760778890"],[21,"12.0"],[22,"95.0"],[23,"12.0"],[24,"14.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiAlN/Top",null,"Revêtement nitrure de titane aluminium (avec processus de traitement d’arêtes)","Titan-Aluminiumnitrid-Beschichtung (mit Glättungsprozess)"],[36,"3"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"80.0"],[266,"5.0"],[300,"6"],[302,"1.0"],[307,"10.0"],[318,"30.0"]],"m":[["dimensions",0]],"d":[],"x":[968046]},"466899":{"c":"E412M8","s":["Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral genuteter Gewindebohrer Yellow Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M8 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 8.0 mm Schaft und 6.2 mm Vierkantantrieb, HSSE-PM mit TiAlN-Top Beschichtung und 48° Helixwinkel 3xD Sacklochgewinde in Stahl und Stahlguss"],"o":"IN","a":[["P","primary"],["M","possible"],["N","possible"]],"f":[[0,"7441190"],[7,"1"],[14,"E412"],[16,"E412M8"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760778906"],[21,"15.0"],[22,"115.0"],[23,"15.0"],[24,"27.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiAlN/Top",null,"Revêtement nitrure de titane aluminium (avec processus de traitement d’arêtes)","Titan-Aluminiumnitrid-Beschichtung (mit Glättungsprozess)"],[36,"3"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.0"],[128,"6.2"],[138,"8.0"],[260,"90.0"],[266,"6.8"],[300,"8"],[302,"1.25"],[307,"13.0"],[318,"35.0"]],"m":[["dimensions",0]],"d":[],"x":[968047]},"466900":{"c":"E412M10","s":["Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral genuteter Gewindebohrer Yellow Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M10 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 10.0 mm Schaft und 8.0 mm Vierkantantrieb, HSSE-PM mit TiAlN-Top Beschichtung und 48° Helixwinkel 3xD Sacklochgewinde in Stahl und Stahlguss"],"o":"IN","a":[["P","primary"],["M","possible"],["N","possible"]],"f":[[0,"7441191"],[7,"1"],[14,"E412"],[16,"E412M10"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760778913"],[21,"15.0"],[22,"115.0"],[23,"15.0"],[24,"52.1"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiAlN/Top",null,"Revêtement nitrure de titane aluminium (avec processus de traitement d’arêtes)","Titan-Aluminiumnitrid-Beschichtung (mit Glättungsprozess)"],[36,"3"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.0"],[128,"8.0"],[138,"10.0"],[260,"100.0"],[266,"8.5"],[300,"10"],[302,"1.5"],[307,"15.0"],[318,"39.0"]],"m":[["dimensions",0]],"d":[],"x":[968048]},"466901":{"c":"E412M12","s":["Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral genuteter Gewindebohrer Yellow Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M12 mit 1.75 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 9.0 mm Schaft und 7.0 mm Vierkantantrieb, HSSE-PM mit TiAlN-Top Beschichtung und 48° Helixwinkel 3xD Sacklochgewinde in Stahl und Stahlguss"],"o":"IN","a":[["P","primary"],["M","possible"],["N","possible"]],"f":[[0,"7441192"],[7,"1"],[14,"E412"],[16,"E412M12"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760778920"],[21,"17.0"],[22,"123.0"],[23,"17.0"],[24,"48.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiAlN/Top",null,"Revêtement nitrure de titane aluminium (avec processus de traitement d’arêtes)","Titan-Aluminiumnitrid-Beschichtung (mit Glättungsprozess)"],[36,"3"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"110.0"],[266,"10.3"],[300,"12"],[302,"1.75"],[307,"18.0"]],"m":[["dimensions",0]],"d":[],"x":[968049]},"466902":{"c":"E412M14","s":["Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral genuteter Gewindebohrer Yellow Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M14 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 11.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit TiAlN-Top Beschichtung und 48° Helixwinkel 3xD Sacklochgewinde in Stahl und Stahlguss"],"o":"IN","a":[["P","primary"],["M","possible"],["N","possible"]],"f":[[0,"7441193"],[7,"1"],[14,"E412"],[16,"E412M14"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760778937"],[21,"17.0"],[22,"113.0"],[23,"17.0"],[24,"73.5"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiAlN/Top",null,"Revêtement nitrure de titane aluminium (avec processus de traitement d’arêtes)","Titan-Aluminiumnitrid-Beschichtung (mit Glättungsprozess)"],[36,"3"],[37,"3.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"11.0"],[260,"110.0"],[266,"12.0"],[300,"14"],[302,"2.0"],[307,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[968050]},"466903":{"c":"E412M16","s":["Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral genuteter Gewindebohrer Yellow Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M16 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 12.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit TiAlN-Top Beschichtung und 48° Helixwinkel 3xD Sacklochgewinde in Stahl und Stahlguss"],"o":"IN","a":[["P","primary"],["M","possible"],["N","possible"]],"f":[[0,"7441194"],[7,"1"],[14,"E412"],[16,"E412M16"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760778944"],[21,"21.0"],[22,"114.0"],[23,"21.0"],[24,"83.9"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiAlN/Top",null,"Revêtement nitrure de titane aluminium (avec processus de traitement d’arêtes)","Titan-Aluminiumnitrid-Beschichtung (mit Glättungsprozess)"],[36,"3"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"12.0"],[260,"110.0"],[266,"14.0"],[300,"16"],[302,"2.0"],[307,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[968051]},"466904":{"c":"E412M20","s":["Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral genuteter Gewindebohrer Yellow Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M20 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 16.0 mm Schaft und 12.0 mm Vierkantantrieb, HSSE-PM mit TiAlN-Top Beschichtung und 48° Helixwinkel 3xD Sacklochgewinde in Stahl und Stahlguss"],"o":"IN","a":[["P","primary"],["M","possible"],["N","possible"]],"f":[[0,"7441195"],[7,"1"],[14,"E412"],[16,"E412M20"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760778951"],[21,"25.0"],[22,"142.0"],[23,"25.0"],[24,"188.5"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiAlN/Top",null,"Revêtement nitrure de titane aluminium (avec processus de traitement d’arêtes)","Titan-Aluminiumnitrid-Beschichtung (mit Glättungsprozess)"],[36,"3"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"15.0"],[128,"12.0"],[138,"16.0"],[260,"140.0"],[266,"17.5"],[300,"20"],[302,"2.5"],[307,"25.0"]],"m":[["dimensions",0]],"d":[],"x":[968052]},"466906":{"c":"E412M22","s":["Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral genuteter Gewindebohrer Yellow Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M22 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 18.0 mm Schaft und 14.5 mm Vierkantantrieb, HSSE-PM mit TiAlN-Top Beschichtung und 48° Helixwinkel 3xD Sacklochgewinde in Stahl und Stahlguss"],"o":"IN","a":[["P","primary"],["M","possible"],["N","possible"]],"f":[[0,"7441196"],[7,"1"],[14,"E412"],[16,"E412M22"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760778968"],[21,"25.0"],[22,"144.0"],[23,"25.0"],[24,"237.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiAlN/Top",null,"Revêtement nitrure de titane aluminium (avec processus de traitement d’arêtes)","Titan-Aluminiumnitrid-Beschichtung (mit Glättungsprozess)"],[36,"3"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"14.5"],[138,"18.0"],[260,"140.0"],[266,"19.5"],[300,"22"],[302,"2.5"],[307,"25.0"]],"m":[["dimensions",0]],"d":[],"x":[968054]},"466905":{"c":"E412M24","s":["Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral genuteter Gewindebohrer Yellow Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M24 mit 3.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 18.0 mm Schaft und 14.5 mm Vierkantantrieb, HSSE-PM mit TiAlN-Top Beschichtung und 48° Helixwinkel 3xD Sacklochgewinde in Stahl und Stahlguss"],"o":"IN","a":[["P","primary"],["M","possible"],["N","possible"]],"f":[[0,"7441197"],[7,"1"],[14,"E412"],[16,"E412M24"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760778975"],[21,"30.0"],[22,"163.0"],[23,"30.0"],[24,"283.4"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiAlN/Top",null,"Revêtement nitrure de titane aluminium (avec processus de traitement d’arêtes)","Titan-Aluminiumnitrid-Beschichtung (mit Glättungsprozess)"],[36,"3"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"14.5"],[138,"18.0"],[260,"160.0"],[266,"21.0"],[300,"24"],[302,"3.0"],[307,"30.0"]],"m":[["dimensions",0]],"d":[],"x":[968053]},"466907":{"c":"E412M27","s":["Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M27 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 20.0 mm shank and 16.0 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M27 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 20.0 mm shank and 16.0 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral genuteter Gewindebohrer Yellow Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M27 mit 3.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 20.0 mm Schaft und 16.0 mm Vierkantantrieb, HSSE-PM mit TiAlN-Top Beschichtung und 48° Helixwinkel 3xD Sacklochgewinde in Stahl und Stahlguss"],"o":"IN","a":[["P","primary"],["M","possible"],["N","possible"]],"f":[[0,"7441198"],[7,"1"],[14,"E412"],[16,"E412M27"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760778982"],[21,"40.0"],[22,"164.0"],[23,"40.0"],[24,"375.6"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiAlN/Top",null,"Revêtement nitrure de titane aluminium (avec processus de traitement d’arêtes)","Titan-Aluminiumnitrid-Beschichtung (mit Glättungsprozess)"],[36,"3"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"19.0"],[128,"16.0"],[138,"20.0"],[260,"160.0"],[266,"24.0"],[300,"27"],[302,"3.0"],[307,"30.0"]],"m":[["dimensions",0]],"d":[],"x":[968055]},"466908":{"c":"E412M30","s":["Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M30 with 3.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 22.0 mm shank and 18.0 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M30 with 3.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 22.0 mm shank and 18.0 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel","Spiral genuteter Gewindebohrer Yellow Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M30 mit 3.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 22.0 mm Schaft und 18.0 mm Vierkantantrieb, HSSE-PM mit TiAlN-Top Beschichtung und 48° Helixwinkel 3xD Sacklochgewinde in Stahl und Stahlguss"],"o":"IN","a":[["P","primary"],["M","possible"],["N","possible"]],"f":[[0,"7441199"],[7,"1"],[14,"E412"],[16,"E412M30"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760778999"],[21,"38.0"],[22,"182.0"],[23,"38.0"],[24,"475.5"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiAlN/Top",null,"Revêtement nitrure de titane aluminium (avec processus de traitement d’arêtes)","Titan-Aluminiumnitrid-Beschichtung (mit Glättungsprozess)"],[36,"3"],[37,"4.0"],[39,"Blind Hole",null,"Trous borgnes","Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"48"],[50,"Right","Rechts","A droite","Rechts"],[124,"21.0"],[128,"18.0"],[138,"22.0"],[260,"180.0"],[266,"26.5"],[300,"30"],[302,"3.5"],[307,"36.0"]],"m":[["dimensions",0]],"d":[],"x":[968056]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Draadmaat (DP)	3, 4, 5, 6, 8, 10, 12, 14, 16, 20, 22, 24, 27, 30
Draadstandaard	M - Metrisch grof, M - Metrisch grof
Coating (DP)	TiAlN/Top
