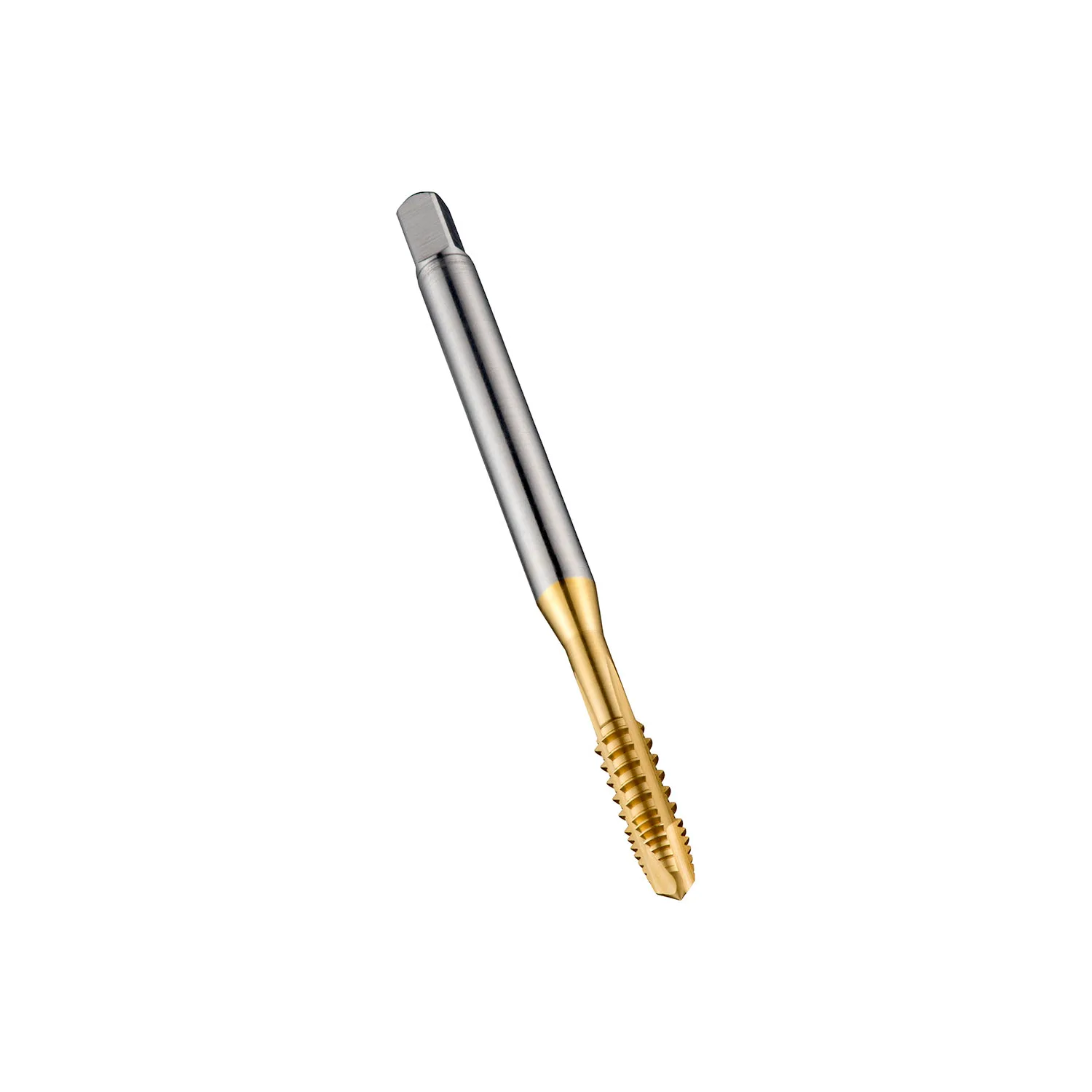

E422 HSS-E PM M Machinetap met schilaansnijding en onderbroken vertanding

Name: E422 HSS-E PM M Machinetap met schilaansnijding en onderbroken vertanding (3)
SKU: E422M3
Price: 35.63 EUR
Availability: InStock

DORMER India

35,63 €

excl. BTW

Productinformatie

Hoogwaardige spiraalpunt tap uitsluitend voor doorlopende gaten. Onderbroken schroefdraad om de schadelijke effecten van spaanwigvorming te verminderen, wrijving te verlagen, betere smering mogelijk te maken en meer ruimte te bieden voor de spaanafvoer. De versterkte schacht verhoogt de sterkte en TiN coating maakt hogere snijsnelheden en prestaties mogelijk.

Draadstandaard
Draadstandaard
Coating (DP)
Draadmaat (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E422_DIM.png"],"p":{"466919":{"c":"E422M3","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M3 mit 0.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 3.5 mm Schaft und 2.7 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 3xD Durchgangsgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Kupfer oder Kupferlegierungen"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5976629"],[7,"1"],[14,"E422"],[16,"E422M3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760092934"],[21,"12.0"],[22,"95.0"],[23,"12.0"],[24,"3.5"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"3"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"2.7"],[138,"3.5"],[260,"56.0"],[266,"2.5"],[300,"3"],[302,"0.5"],[307,"9.0"],[318,"18.0"]],"m":[["dimensions",0]],"d":[],"x":[968069]},"466920":{"c":"E422M4","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M4 mit 0.70 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 4.5 mm Schaft und 3.4 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 3xD Durchgangsgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Kupfer oder Kupferlegierungen"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5976633"],[7,"1"],[14,"E422"],[16,"E422M4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760092941"],[21,"11.5"],[22,"80.0"],[23,"10.0"],[24,"9.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"3"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"3.4"],[138,"4.5"],[260,"63.0"],[266,"3.3"],[300,"4"],[302,"0.7"],[307,"12.0"],[318,"21.0"]],"m":[["dimensions",0]],"d":[],"x":[968070]},"466921":{"c":"E422M5","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M5 mit 0.80 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 3xD Durchgangsgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Kupfer oder Kupferlegierungen"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5976637"],[7,"1"],[14,"E422"],[16,"E422M5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760092958"],[21,"11.0"],[22,"84.0"],[23,"9.3"],[24,"14.1"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"3"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"70.0"],[266,"4.2"],[300,"5"],[302,"0.8"],[307,"13.0"],[318,"25.0"]],"m":[["dimensions",0]],"d":[],"x":[968071]},"466922":{"c":"E422M6","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M6 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 3xD Durchgangsgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Kupfer oder Kupferlegierungen"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5976640"],[7,"1"],[14,"E422"],[16,"E422M6"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760092965"],[21,"16.0"],[22,"88.0"],[23,"14.0"],[24,"17.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"3"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"80.0"],[266,"5.0"],[300,"6"],[302,"1.0"],[307,"15.0"],[318,"30.0"]],"m":[["dimensions",0]],"d":[],"x":[968072]},"466923":{"c":"E422M8","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M8 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 8.0 mm Schaft und 6.2 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 3xD Durchgangsgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Kupfer oder Kupferlegierungen"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5976644"],[7,"1"],[14,"E422"],[16,"E422M8"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760092972"],[21,"17.15"],[22,"103.03"],[23,"13.98"],[24,"34.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"3"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.0"],[128,"6.2"],[138,"8.0"],[260,"90.0"],[266,"6.8"],[300,"8"],[302,"1.25"],[307,"18.0"],[318,"35.0"]],"m":[["dimensions",0]],"d":[],"x":[968073]},"466924":{"c":"E422M10","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M10 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 10.0 mm Schaft und 8.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 3xD Durchgangsgewinde in Baustahl, Kohlenstoffstahl und legierter und Reinaluminium oder Kupfer oder Kupferlegierungen"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5976624"],[7,"1"],[14,"E422"],[16,"E422M10"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760092927"],[21,"15.0"],[22,"106.0"],[23,"12.0"],[24,"50.0"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"3"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.0"],[128,"8.0"],[138,"10.0"],[260,"100.0"],[266,"8.5"],[300,"10"],[302,"1.5"],[307,"20.0"],[318,"39.0"]],"m":[["dimensions",0]],"d":[],"x":[968074]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Draadmaat (DP)	3, 4, 5, 6, 8, 10
Draadstandaard	M - Metrisch grof, M - Metrisch grof
Coating (DP)	TiN
