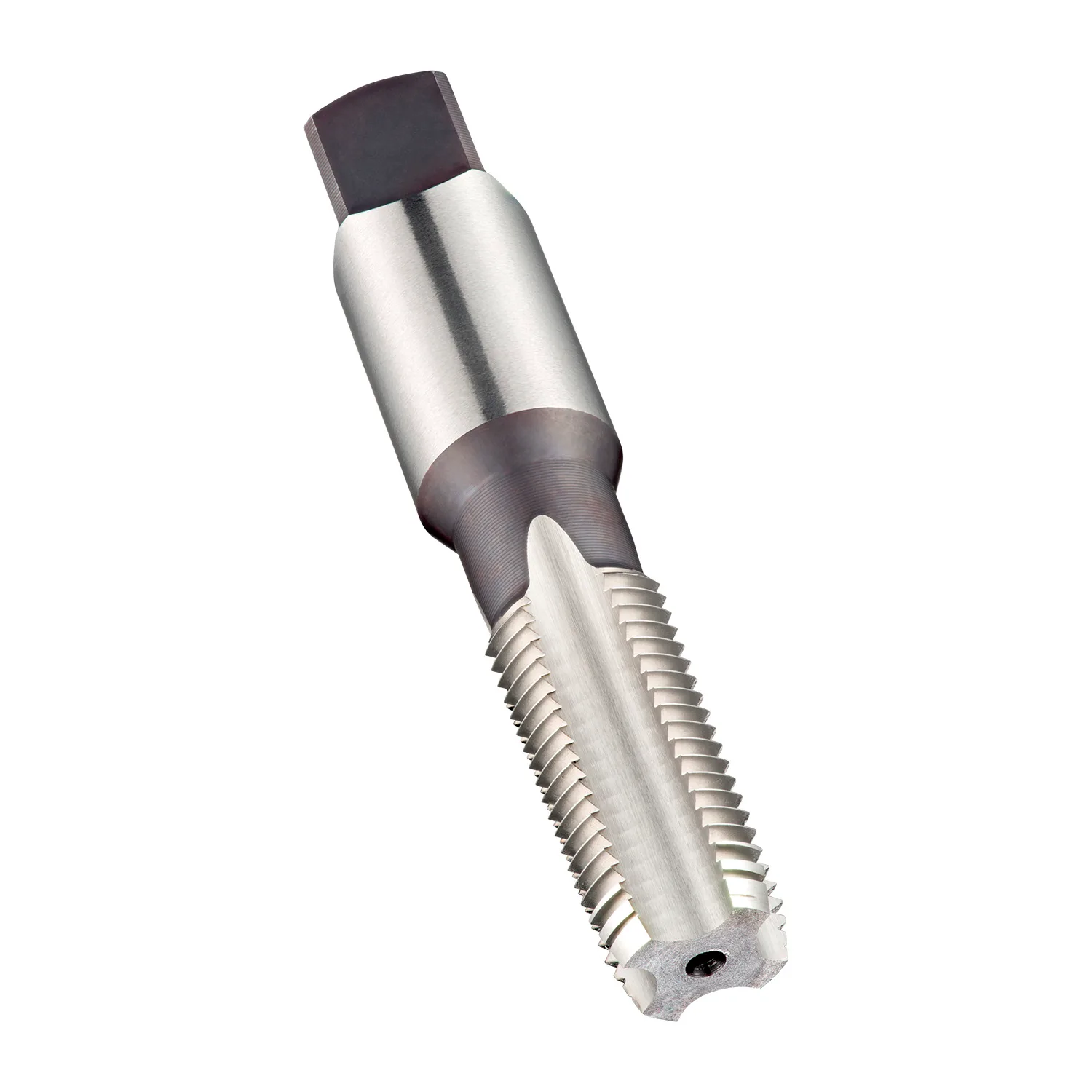

E709 HSS NPSF Machinetap met rechte spaangroeven

Name: E709 HSS NPSF Machinetap met rechte spaangroeven
SKU: E7091/8
Price: 36.68 EUR
Availability: InStock

DORMER Brazilië

36,68 €

excl. BTW

Productinformatie

Universele machinetap met rechte spaangroef voor doorlopende en blinde gaten. Blanke afwerking voor nauwkeurigere en schonere schroefdraad en om te voorkomen dat het werkstukmateriaal aan de snijkanten blijft kleven.

Draadstandaard
Draadstandaard
Coating (DP)
Draadmaat (DP)

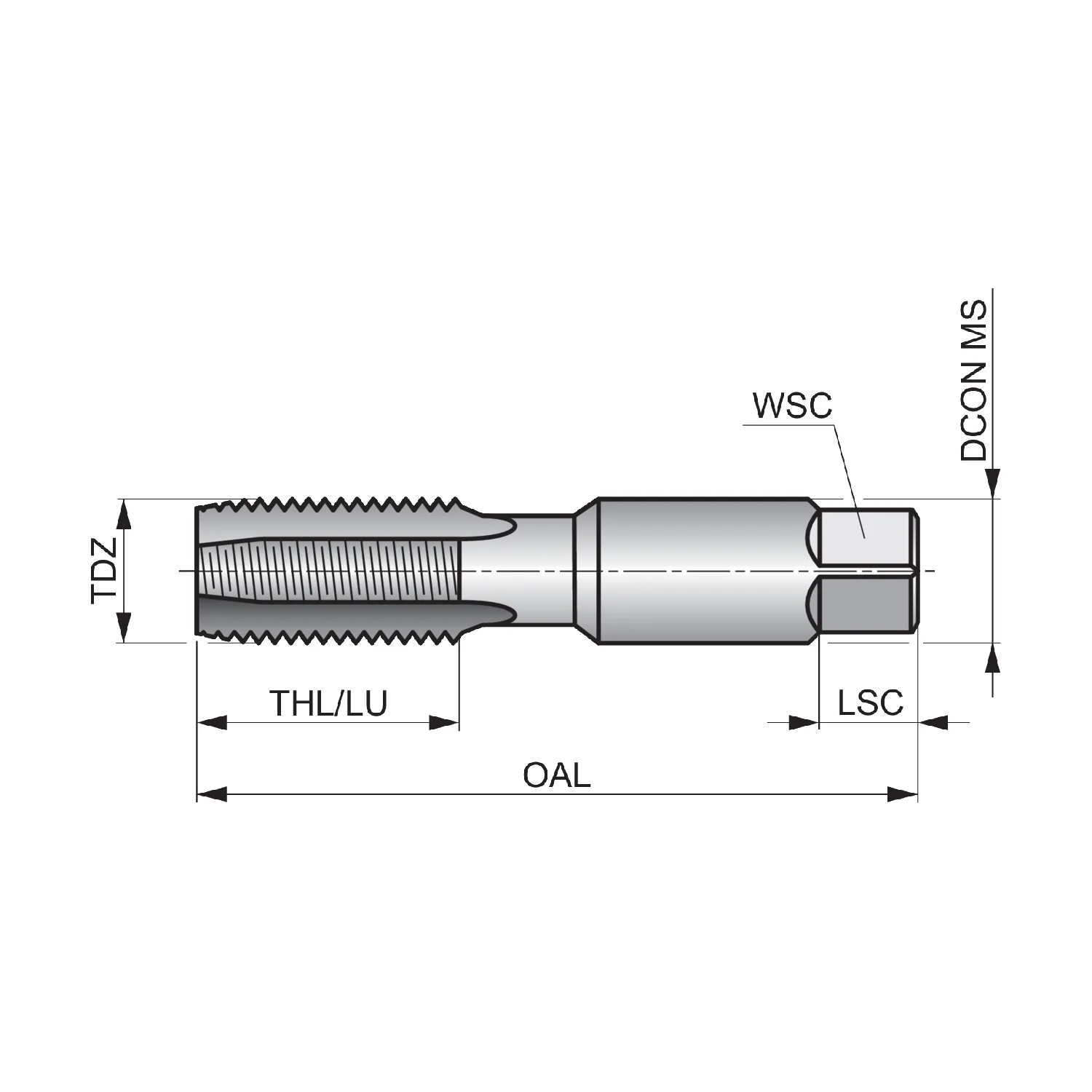

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E709_DIM.png"],"p":{"467935":{"c":"E7091/8","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for (Dryseal) National Pipe Straight thread for Fuel lines NPSF 1/8 inch with 27 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 11.1 mm shank and 8.3 mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining, plain carbon and alloy steel and copper or copper alloys","Straight flute tap with chamfer form C with a 2-3xP plug lead, for (Dryseal) National Pipe Straight thread for Fuel lines NPSF 1/8 inch with 27 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 11.1 mm shank and 8.3 mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining, plain carbon and alloy steel and copper or copper alloys","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, gerades Rohrfeingewinde für Kraftstoffleitungen NPSF 1/8 inch mit 27 Gängen / Inch und Normal Toleranzklasse, Abmessungen nach ~ANSI B94.9 Standard mit 11.1 mm Schaft und 8.3 mm Vierkantantrieb, HSS mit blanker Oberfläche 1.5xD Durchgangs- und Sacklochgewinde in Baustahl, Kohlenstoffstahl und legierter und Kupfer oder Kupferlegierungen"],"o":"BR","a":[["P","primary"],["K","possible"],["N","primary"]],"f":[[0,"5977590"],[7,"1"],[14,"E709"],[16,"E7091/8"],[17,"Inch"],[20,"7320760099803"],[21,"17.0"],[22,"87.06"],[23,"17.46"],[24,"44.0"],[31,"HSS"],[32,"~ANSI B94.9"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"1.5"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"NPSF - National straight pipe fuel",null,"NPSF - Profil de filet, US National Pipe Straight Fuel (sans joint)","NPSF - Gewindeform, Am. National Pipe Thread – Gerade (trocken dichtend)"],[42,"Normal",null,"Ajustement normal","Normale"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"8.3"],[138,"11.1"],[260,"70.0"],[266,"8.7"],[299,"10.29"],[300,"1/8"],[307,"19.0"],[310,"27.0"],[318,"19.0"]],"m":[["dimensions",0]],"d":[],"x":[969140]},"467932":{"c":"E7091/4","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for (Dryseal) National Pipe Straight thread for Fuel lines NPSF 1/4 inch with 18 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 14.3 mm shank and 10.7 mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining, plain carbon and alloy steel and copper or copper alloys","Straight flute tap with chamfer form C with a 2-3xP plug lead, for (Dryseal) National Pipe Straight thread for Fuel lines NPSF 1/4 inch with 18 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 14.3 mm shank and 10.7 mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining, plain carbon and alloy steel and copper or copper alloys","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, gerades Rohrfeingewinde für Kraftstoffleitungen NPSF 1/4 inch mit 18 Gängen / Inch und Normal Toleranzklasse, Abmessungen nach ~ANSI B94.9 Standard mit 14.3 mm Schaft und 10.7 mm Vierkantantrieb, HSS mit blanker Oberfläche 1.5xD Durchgangs- und Sacklochgewinde in Baustahl, Kohlenstoffstahl und legierter und Kupfer oder Kupferlegierungen"],"o":"BR","a":[["P","primary"],["K","possible"],["N","primary"]],"f":[[0,"5977582"],[7,"1"],[14,"E709"],[16,"E7091/4"],[17,"Inch"],[20,"7320760099797"],[21,"17.0"],[22,"84.0"],[23,"16.0"],[24,"71.7"],[31,"HSS"],[32,"~ANSI B94.9"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"1.5"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"NPSF - National straight pipe fuel",null,"NPSF - Profil de filet, US National Pipe Straight Fuel (sans joint)","NPSF - Gewindeform, Am. National Pipe Thread – Gerade (trocken dichtend)"],[42,"Normal",null,"Ajustement normal","Normale"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.0"],[128,"10.7"],[138,"14.3"],[260,"75.0"],[266,"11.3"],[299,"13.72"],[300,"1/4"],[307,"27.0"],[310,"18.0"],[318,"27.0"]],"m":[["dimensions",0]],"d":[],"x":[969137]},"467934":{"c":"E7093/8","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for (Dryseal) National Pipe Straight thread for Fuel lines NPSF 3/8 inch with 18 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 17.8 mm shank and 13.5 mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining, plain carbon and alloy steel and copper or copper alloys","Straight flute tap with chamfer form C with a 2-3xP plug lead, for (Dryseal) National Pipe Straight thread for Fuel lines NPSF 3/8 inch with 18 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 17.8 mm shank and 13.5 mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining, plain carbon and alloy steel and copper or copper alloys","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, gerades Rohrfeingewinde für Kraftstoffleitungen NPSF 3/8 inch mit 18 Gängen / Inch und Normal Toleranzklasse, Abmessungen nach ~ANSI B94.9 Standard mit 17.8 mm Schaft und 13.5 mm Vierkantantrieb, HSS mit blanker Oberfläche 1.5xD Durchgangs- und Sacklochgewinde in Baustahl, Kohlenstoffstahl und legierter und Kupfer oder Kupferlegierungen"],"o":"BR","a":[["P","primary"],["K","possible"],["N","primary"]],"f":[[0,"5977600"],[7,"1"],[14,"E709"],[16,"E7093/8"],[17,"Inch"],[20,"7320760099827"],[21,"21.0"],[22,"84.0"],[23,"21.0"],[24,"122.0"],[31,"HSS"],[32,"~ANSI B94.9"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"1.5"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"NPSF - National straight pipe fuel",null,"NPSF - Profil de filet, US National Pipe Straight Fuel (sans joint)","NPSF - Gewindeform, Am. National Pipe Thread – Gerade (trocken dichtend)"],[42,"Normal",null,"Ajustement normal","Normale"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"13.0"],[128,"13.5"],[138,"17.8"],[260,"80.0"],[266,"14.75"],[299,"17.15"],[300,"3/8"],[307,"27.0"],[310,"18.0"],[318,"27.0"]],"m":[["dimensions",0]],"d":[],"x":[969139]},"467931":{"c":"E7091/2","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for (Dryseal) National Pipe Straight thread for Fuel lines NPSF 1/2 inch with 14 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 17.5 mm shank and 13.1 mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining, plain carbon and alloy steel and copper or copper alloys","Straight flute tap with chamfer form C with a 2-3xP plug lead, for (Dryseal) National Pipe Straight thread for Fuel lines NPSF 1/2 inch with 14 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 17.5 mm shank and 13.1 mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining, plain carbon and alloy steel and copper or copper alloys","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, gerades Rohrfeingewinde für Kraftstoffleitungen NPSF 1/2 inch mit 14 Gängen / Inch und Normal Toleranzklasse, Abmessungen nach ~ANSI B94.9 Standard mit 17.5 mm Schaft und 13.1 mm Vierkantantrieb, HSS mit blanker Oberfläche 1.5xD Durchgangs- und Sacklochgewinde in Baustahl, Kohlenstoffstahl und legierter und Kupfer oder Kupferlegierungen"],"o":"BR","a":[["P","primary"],["K","possible"],["N","primary"]],"f":[[0,"5977575"],[7,"1"],[14,"E709"],[16,"E7091/2"],[17,"Inch"],[20,"7320760099780"],[21,"27.0"],[22,"103.32"],[23,"27.0"],[24,"171.0"],[31,"HSS"],[32,"~ANSI B94.9"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"1.5"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"NPSF - National straight pipe fuel",null,"NPSF - Profil de filet, US National Pipe Straight Fuel (sans joint)","NPSF - Gewindeform, Am. National Pipe Thread – Gerade (trocken dichtend)"],[42,"Normal",null,"Ajustement normal","Normale"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"16.0"],[128,"13.1"],[138,"17.5"],[260,"100.0"],[266,"18.25"],[299,"21.34"],[300,"1/2"],[307,"35.0"],[310,"14.0"]],"m":[["dimensions",0]],"d":[],"x":[969136]},"467933":{"c":"E7093/4","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for (Dryseal) National Pipe Straight thread for Fuel lines NPSF 3/4 inch with 14 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 23.0 mm shank and 17.2 mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining, plain carbon and alloy steel and copper or copper alloys","Straight flute tap with chamfer form C with a 2-3xP plug lead, for (Dryseal) National Pipe Straight thread for Fuel lines NPSF 3/4 inch with 14 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 23.0 mm shank and 17.2 mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining, plain carbon and alloy steel and copper or copper alloys","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, gerades Rohrfeingewinde für Kraftstoffleitungen NPSF 3/4 inch mit 14 Gängen / Inch und Normal Toleranzklasse, Abmessungen nach ~ANSI B94.9 Standard mit 23.0 mm Schaft und 17.2 mm Vierkantantrieb, HSS mit blanker Oberfläche 1.5xD Durchgangs- und Sacklochgewinde in Baustahl, Kohlenstoffstahl und legierter und Kupfer oder Kupferlegierungen"],"o":"BR","a":[["P","primary"],["K","possible"],["N","primary"]],"f":[[0,"5977597"],[7,"1"],[14,"E709"],[16,"E7093/4"],[17,"Inch"],[20,"7320760099810"],[21,"29.0"],[22,"108.0"],[23,"29.0"],[24,"300.0"],[31,"HSS"],[32,"~ANSI B94.9"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"1.5"],[37,"5.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"NPSF - National straight pipe fuel",null,"NPSF - Profil de filet, US National Pipe Straight Fuel (sans joint)","NPSF - Gewindeform, Am. National Pipe Thread – Gerade (trocken dichtend)"],[42,"Normal",null,"Ajustement normal","Normale"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"17.2"],[138,"23.0"],[260,"105.0"],[266,"23.5"],[299,"26.67"],[300,"3/4"],[307,"35.0"],[310,"14.0"]],"m":[["dimensions",0]],"d":[],"x":[969138]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Draadmaat (DP)	1/8, 1/4, 3/8, 1/2, 3/4
Draadstandaard	NPSF - Rechte Dryseal-pijpdraad, NPSF - Rechte Dryseal-pijpdraad
Coating (DP)	Steam Tempered
