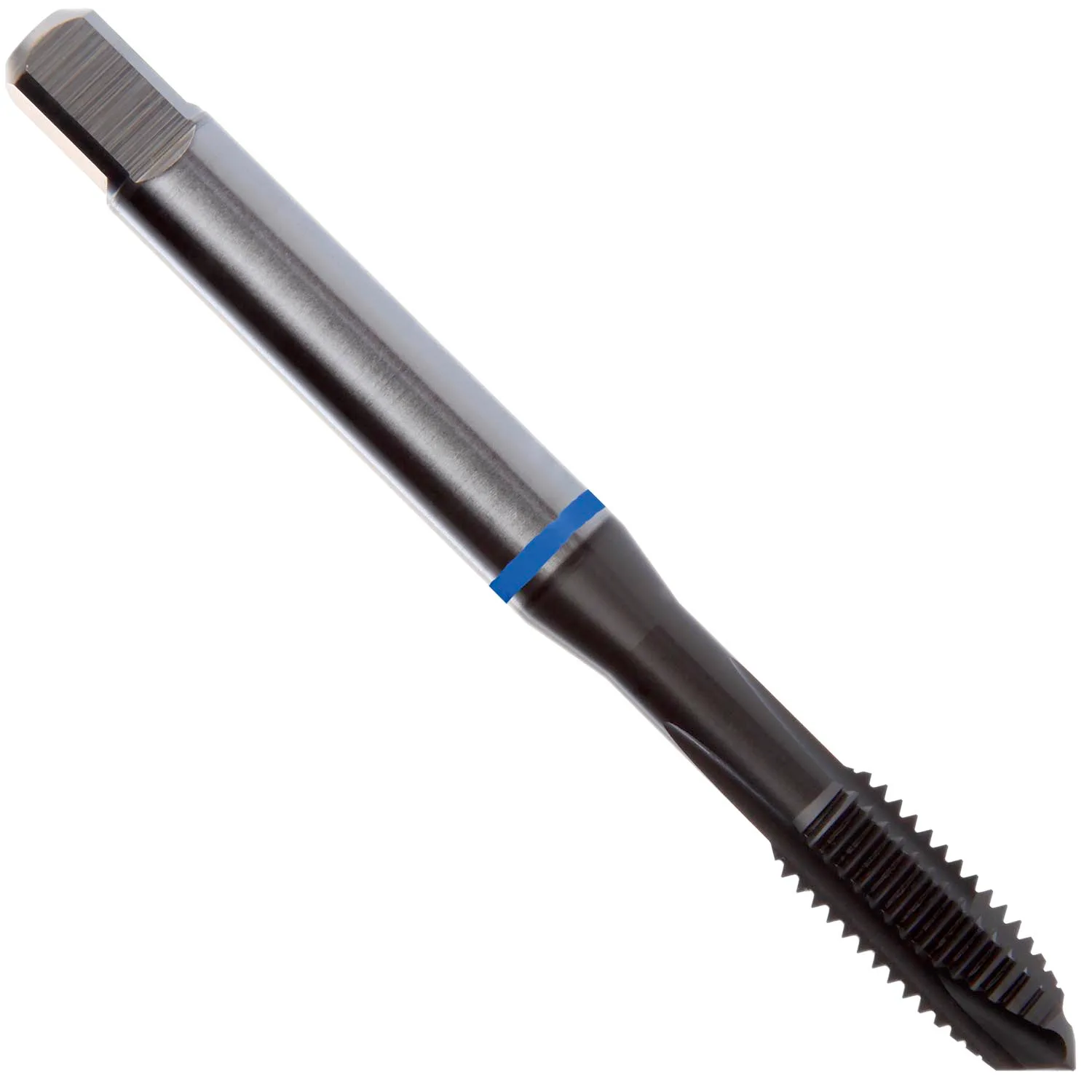

E813 HSS-E PM UNC Machinetap met rechte spaangroeven, Blue Shark

Name: E813 HSS-E PM UNC Machinetap met rechte spaangroeven, Blue Shark (7/16)
SKU: E8137/16
Price: 65.87 EUR
Availability: InStock

DORMER India

65,87 €

excl. BTW

Productinformatie

Hoogwaardige spiraalpunt machinetap uitsluitend voor doorlopende gaten, specifiek voor roestvast staal. Vervaardigd uit HSS-E-PM om de standtijd, voorspelbaarheid, snijsnelheid te verbeteren en uitbrokkeling te verminderen. Super-B coating en snijkantbehandeling bieden superieure resultaten, consistentie en proceszekerheid in hoogproductieve toepassingen.

Draadstandaard
Draadstandaard
Coating (DP)
Uitvoering (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E813_DIM.png"],"p":{"468071":{"c":"E8134-40","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 4 with 40 TPI and 3B class of fit with H2 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1410 inch shank and 0.1080 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 4 with 40 TPI and 3B class of fit with H2 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1410 inch shank and 0.1080 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 4 mit 40 Gängen / Inch und 3B Toleranzklasse mit H2 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.1410 inch Schaft und 0.1080 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350278"],[7,"1"],[14,"E813"],[16,"E8134-40"],[17,"Inch"],[20,"7320760751220"],[21,"10.0"],[22,"95.0"],[23,"9.0"],[24,"3.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"4.83"],[128,"2.74"],[138,"3.58"],[260,"56.01"],[265,"N43"],[266,"2.35"],[300,"4"],[307,"8.99"],[310,"40.0"],[312,"H2"],[318,"18.01"]],"m":[["dimensions",0]],"d":[],"x":[969289]},"468068":{"c":"E8136-32","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 6 with 32 TPI and 2B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1410 inch shank and 0.1080 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 6 with 32 TPI and 2B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1410 inch shank and 0.1080 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 6 mit 32 Gängen / Inch und 2B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.1410 inch Schaft und 0.1080 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350279"],[7,"1"],[14,"E813"],[16,"E8136-32"],[17,"Inch"],[20,"7320760751237"],[21,"10.0"],[22,"95.0"],[23,"9.0"],[24,"3.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"4.83"],[128,"2.74"],[138,"3.58"],[260,"56.01"],[265,"N36"],[266,"2.85"],[300,"6"],[307,"11.0"],[310,"32.0"],[312,"H3"],[318,"19.99"]],"m":[["dimensions",0]],"d":[],"x":[969286]},"468069":{"c":"E8138-32","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 8 with 32 TPI and 2B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1680 inch shank and 0.1290 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 8 with 32 TPI and 2B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1680 inch shank and 0.1290 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 8 mit 32 Gängen / Inch und 2B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.1680 inch Schaft und 0.1290 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350280"],[7,"1"],[14,"E813"],[16,"E8138-32"],[17,"Inch"],[20,"7320760751244"],[21,"7.0"],[22,"94.0"],[23,"7.0"],[24,"5.5"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.35"],[128,"3.28"],[138,"4.27"],[260,"62.99"],[265,"N29"],[266,"3.5"],[300,"8"],[307,"13.0"],[310,"32.0"],[312,"H3"],[318,"21.01"]],"m":[["dimensions",0]],"d":[],"x":[969287]},"468070":{"c":"E81310-24","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 10 with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1940 inch shank and 0.1500 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 10 with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1940 inch shank and 0.1500 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 10 mit 24 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.1940 inch Schaft und 0.1500 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350281"],[7,"1"],[14,"E813"],[16,"E81310-24"],[17,"Inch"],[20,"7320760751251"],[21,"10.0"],[22,"95.0"],[23,"9.0"],[24,"8.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.35"],[128,"3.81"],[138,"4.93"],[260,"70.0"],[265,"N25"],[266,"3.9"],[300,"10"],[307,"14.0"],[310,"24.0"],[312,"H3"],[318,"27.99"]],"m":[["dimensions",0]],"d":[],"x":[969288]},"468076":{"c":"E8131/4H5","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1/4 inch with 20 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.2550 inch shank and 0.1890 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1/4 inch with 20 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.2550 inch shank and 0.1890 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 1/4 inch mit 20 Gängen / Inch und 2B Toleranzklasse mit H5 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.2550 inch Schaft und 0.1890 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350282"],[7,"1"],[14,"E813"],[16,"E8131/4H5"],[17,"Inch"],[20,"7320760751268"],[21,"14.0"],[22,"115.0"],[23,"14.0"],[24,"17.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"7.87"],[128,"4.8"],[138,"6.48"],[260,"80.01"],[265,"N7"],[266,"5.1"],[300,"1/4"],[307,"15.01"],[310,"20.0"],[312,"H5"],[318,"24.99"]],"m":[["dimensions",0]],"d":[],"x":[969294]},"468075":{"c":"E8131/4H3","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1/4 inch with 20 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.2550 inch shank and 0.1890 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1/4 inch with 20 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.2550 inch shank and 0.1890 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 1/4 inch mit 20 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.2550 inch Schaft und 0.1890 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350283"],[7,"1"],[14,"E813"],[16,"E8131/4H3"],[17,"Inch"],[20,"7320760751275"],[21,"15.0"],[22,"115.0"],[23,"14.0"],[24,"17.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"7.87"],[128,"4.8"],[138,"6.48"],[260,"80.01"],[265,"N7"],[266,"5.1"],[300,"1/4"],[307,"15.01"],[310,"20.0"],[312,"H3"],[318,"24.99"]],"m":[["dimensions",0]],"d":[],"x":[969293]},"468083":{"c":"E8135/16H5","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 5/16 inch with 18 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180 inch shank and 0.2360 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 5/16 inch with 18 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180 inch shank and 0.2360 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 5/16 inch mit 18 Gängen / Inch und 2B Toleranzklasse mit H5 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.3180 inch Schaft und 0.2360 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350284"],[7,"1"],[14,"E813"],[16,"E8135/16H5"],[17,"Inch"],[20,"7320760751282"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"27.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.65"],[128,"5.99"],[138,"8.08"],[260,"89.99"],[265,"F"],[266,"6.6"],[300,"5/16"],[307,"18.01"],[310,"18.0"],[312,"H5"],[318,"34.01"]],"m":[["dimensions",0]],"d":[],"x":[969301]},"468082":{"c":"E8135/16H3","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 5/16 inch with 18 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180 inch shank and 0.2360 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 5/16 inch with 18 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180 inch shank and 0.2360 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 5/16 inch mit 18 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.3180 inch Schaft und 0.2360 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350285"],[7,"1"],[14,"E813"],[16,"E8135/16H3"],[17,"Inch"],[20,"7320760751299"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"28.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.65"],[128,"5.99"],[138,"8.08"],[260,"89.99"],[265,"F"],[266,"6.6"],[300,"5/16"],[307,"18.01"],[310,"18.0"],[312,"H3"],[318,"34.01"]],"m":[["dimensions",0]],"d":[],"x":[969300]},"468072":{"c":"E8133/8H5","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 3/8 inch with 16 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3810 inch shank and 0.2840 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 3/8 inch with 16 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3810 inch shank and 0.2840 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 3/8 inch mit 16 Gängen / Inch und 2B Toleranzklasse mit H5 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.3810 inch Schaft und 0.2840 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350286"],[7,"1"],[14,"E813"],[16,"E8133/8H5"],[17,"Inch"],[20,"7320760751305"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"45.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.18"],[128,"7.21"],[138,"9.68"],[260,"100.0"],[265,"5/16"],[266,"8.0"],[300,"3/8"],[307,"19.99"],[310,"16.0"],[312,"H5"],[318,"38.99"]],"m":[["dimensions",0]],"d":[],"x":[969290]},"468081":{"c":"E8133/8H3","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 3/8 inch with 16 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3810 inch shank and 0.2840 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 3/8 inch with 16 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3810 inch shank and 0.2840 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 3/8 inch mit 16 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.3810 inch Schaft und 0.2840 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350287"],[7,"1"],[14,"E813"],[16,"E8133/8H3"],[17,"Inch"],[20,"7320760751312"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"45.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.18"],[128,"7.21"],[138,"9.68"],[260,"100.0"],[265,"5/16"],[266,"8.0"],[300,"3/8"],[307,"19.99"],[310,"16.0"],[312,"H3"],[318,"38.99"]],"m":[["dimensions",0]],"d":[],"x":[969299]},"468067":{"c":"E8137/16","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 7/16 inch with 14 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3230 inch shank and 0.2400 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 7/16 inch with 14 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3230 inch shank and 0.2400 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 7/16 inch mit 14 Gängen / Inch und 2B Toleranzklasse mit H5 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.3230 inch Schaft und 0.2400 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350288"],[7,"1"],[14,"E813"],[16,"E8137/16"],[17,"Inch"],[20,"7320760751329"],[21,"15.0"],[22,"114.0"],[23,"13.0"],[24,"39.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.41"],[128,"6.1"],[138,"8.2"],[260,"100.0"],[265,"U"],[266,"9.4"],[300,"7/16"],[307,"19.99"],[310,"14.0"],[312,"H5"]],"m":[["dimensions",0]],"d":[],"x":[969285]},"468074":{"c":"E8131/2H5","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1/2 inch with 13 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670 inch shank and 0.2730 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1/2 inch with 13 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670 inch shank and 0.2730 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 1/2 inch mit 13 Gängen / Inch und 2B Toleranzklasse mit H5 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.3670 inch Schaft und 0.2730 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350289"],[7,"1"],[14,"E813"],[16,"E8131/2H5"],[17,"Inch"],[20,"7320760751336"],[21,"18.0"],[22,"115.0"],[23,"18.0"],[24,"55.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.18"],[128,"6.93"],[138,"9.32"],[260,"110.01"],[265,"27/64"],[266,"10.8"],[300,"1/2"],[307,"23.01"],[310,"13.0"],[312,"H5"]],"m":[["dimensions",0]],"d":[],"x":[969292]},"468073":{"c":"E8131/2H3","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1/2 inch with 13 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670 inch shank and 0.2730 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1/2 inch with 13 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670 inch shank and 0.2730 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 1/2 inch mit 13 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.3670 inch Schaft und 0.2730 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350290"],[7,"1"],[14,"E813"],[16,"E8131/2H3"],[17,"Inch"],[20,"7320760751343"],[21,"17.0"],[22,"112.0"],[23,"17.0"],[24,"55.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.18"],[128,"6.93"],[138,"9.32"],[260,"110.01"],[265,"27/64"],[266,"10.8"],[300,"1/2"],[307,"23.01"],[310,"13.0"],[312,"H3"]],"m":[["dimensions",0]],"d":[],"x":[969291]},"468085":{"c":"E8135/8H5","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 5/8 inch with 11 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800 inch shank and 0.3580 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 5/8 inch with 11 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800 inch shank and 0.3580 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 5/8 inch mit 11 Gängen / Inch und 2B Toleranzklasse mit H5 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.4800 inch Schaft und 0.3580 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350291"],[7,"1"],[14,"E813"],[16,"E8135/8H5"],[17,"Inch"],[20,"7320760751350"],[21,"21.0"],[22,"113.0"],[23,"21.0"],[24,"92.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"14.22"],[128,"9.09"],[138,"12.19"],[260,"110.01"],[265,"17/32"],[266,"13.5"],[300,"5/8"],[307,"23.01"],[310,"11.0"],[312,"H5"]],"m":[["dimensions",0]],"d":[],"x":[969303]},"468084":{"c":"E8135/8H3","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 5/8 inch with 11 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800 inch shank and 0.3580 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 5/8 inch with 11 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800 inch shank and 0.3580 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 5/8 inch mit 11 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.4800 inch Schaft und 0.3580 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350292"],[7,"1"],[14,"E813"],[16,"E8135/8H3"],[17,"Inch"],[20,"7320760751367"],[21,"22.0"],[22,"115.0"],[23,"22.0"],[24,"92.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"14.22"],[128,"9.09"],[138,"12.19"],[260,"110.01"],[265,"17/32"],[266,"13.5"],[300,"5/8"],[307,"23.01"],[310,"11.0"],[312,"H3"]],"m":[["dimensions",0]],"d":[],"x":[969302]},"468080":{"c":"E8133/4H5","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 3/4 inch with 10 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.5900 inch shank and 0.4390 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 3/4 inch with 10 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.5900 inch shank and 0.4390 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 3/4 inch mit 10 Gängen / Inch und 2B Toleranzklasse mit H5 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.5900 inch Schaft und 0.4390 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350293"],[7,"1"],[14,"E813"],[16,"E8133/4H5"],[17,"Inch"],[20,"7320760751374"],[21,"25.0"],[22,"128.0"],[23,"25.0"],[24,"156.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.53"],[128,"11.15"],[138,"14.99"],[260,"124.99"],[265,"21/32"],[266,"16.5"],[300,"3/4"],[307,"30.0"],[310,"10.0"],[312,"H5"]],"m":[["dimensions",0]],"d":[],"x":[969298]},"468079":{"c":"E8133/4H3","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 3/4 inch with 10 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.5900 inch shank and 0.4390 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 3/4 inch with 10 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.5900 inch shank and 0.4390 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 3/4 inch mit 10 Gängen / Inch und 3B Toleranzklasse mit H3 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.5900 inch Schaft und 0.4390 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350294"],[7,"1"],[14,"E813"],[16,"E8133/4H3"],[17,"Inch"],[20,"7320760751381"],[21,"25.0"],[22,"127.0"],[23,"25.0"],[24,"155.5"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.53"],[128,"11.15"],[138,"14.99"],[260,"124.99"],[265,"21/32"],[266,"16.5"],[300,"3/4"],[307,"30.0"],[310,"10.0"],[312,"H3"]],"m":[["dimensions",0]],"d":[],"x":[969297]},"468086":{"c":"E8137/8H6","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 7/8 inch with 9 TPI and 2B class of fit with H6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.6970 inch shank and 0.5200 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 7/8 inch with 9 TPI and 2B class of fit with H6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.6970 inch shank and 0.5200 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 7/8 inch mit 9 Gängen / Inch und 2B Toleranzklasse mit H6 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.6970 inch Schaft und 0.5200 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350295"],[7,"1"],[14,"E813"],[16,"E8137/8H6"],[17,"Inch"],[20,"7320760751398"],[21,"30.0"],[22,"145.0"],[23,"30.0"],[24,"243.5"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"19.05"],[128,"13.21"],[138,"17.7"],[260,"140.0"],[265,"49/64"],[266,"19.5"],[300,"7/8"],[307,"34.01"],[310,"9.0"],[312,"H6"]],"m":[["dimensions",0]],"d":[],"x":[969304]},"468078":{"c":"E8131H6","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1 inch with 8 TPI and 2B class of fit with H6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.8000 inch shank and 0.5970 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1 inch with 8 TPI and 2B class of fit with H6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.8000 inch shank and 0.5970 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 1 inch mit 8 Gängen / Inch und 2B Toleranzklasse mit H6 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.8000 inch Schaft und 0.5970 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350297"],[7,"1"],[14,"E813"],[16,"E8131H6"],[17,"Inch"],[20,"7320760751411"],[21,"30.0"],[22,"165.0"],[23,"30.0"],[24,"369.0"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"20.57"],[128,"15.16"],[138,"20.32"],[260,"159.99"],[265,"7/8"],[266,"22.25"],[300,"1\""],[307,"35.99"],[310,"8.0"],[312,"H6"]],"m":[["dimensions",0]],"d":[],"x":[969296]},"468077":{"c":"E8131H4","s":["Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1 inch with 8 TPI and 3B class of fit with H4 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.8000 inch shank and 0.5970 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1 inch with 8 TPI and 3B class of fit with H4 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.8000 inch shank and 0.5970 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel","Spiralpunkt Gewindebohrer Blue Shark, Anschnittform B mit 3.5-5xP Gewindeanschnitt, Grobgewinde UNC 1 inch mit 8 Gängen / Inch und 3B Toleranzklasse mit H4 Teilungsdurchmessergrenzen, Abmessungen nach DIN/ANSI Standard mit 0.8000 inch Schaft und 0.5970 inch Vierkantantrieb, HSSE-PM mit Super-B Beschichtung 2.5xD Durchgangsgewinde in Edelstahl"],"o":"IN","a":[["P","possible"],["M","primary"]],"f":[[0,"7350298"],[7,"1"],[14,"E813"],[16,"E8131H4"],[17,"Inch"],[20,"7320760751428"],[21,"30.0"],[22,"163.0"],[23,"30.0"],[24,"368.5"],[31,"HSS-E-PM"],[32,"DIN/ANSI"],[33,"SUPER-B",null,"Revêtement TiAlN spécial (+ WC/C)","TiAlN-Spezialbeschichtung (+ WC/C)"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"UNC - Unified Coarse",null,"UNC - Profil de filet, Unified Coarse","UNC - Gewindeform, Grobgewinde UNC"],[42,"2B-3B"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"20.57"],[128,"15.16"],[138,"20.32"],[260,"159.99"],[265,"7/8"],[266,"22.25"],[300,"1\""],[307,"35.99"],[310,"8.0"],[312,"H4"]],"m":[["dimensions",0]],"d":[],"x":[969295]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Uitvoering (DP)	7/16, 6-32, 8-32, 10-24, 4-40, 3/8H5, 1/2H3, 1/2H5, 1/4H3, 1/4H5, 1H4, 1H6, 3/4H3, 3/4H5, 3/8H3, 5/16H3, 5/16H5, 5/8H3, 5/8H5, 7/8H6
Draadstandaard	UNC - Unified grof, UNC - Unified grof
Coating (DP)	SUPER-B
