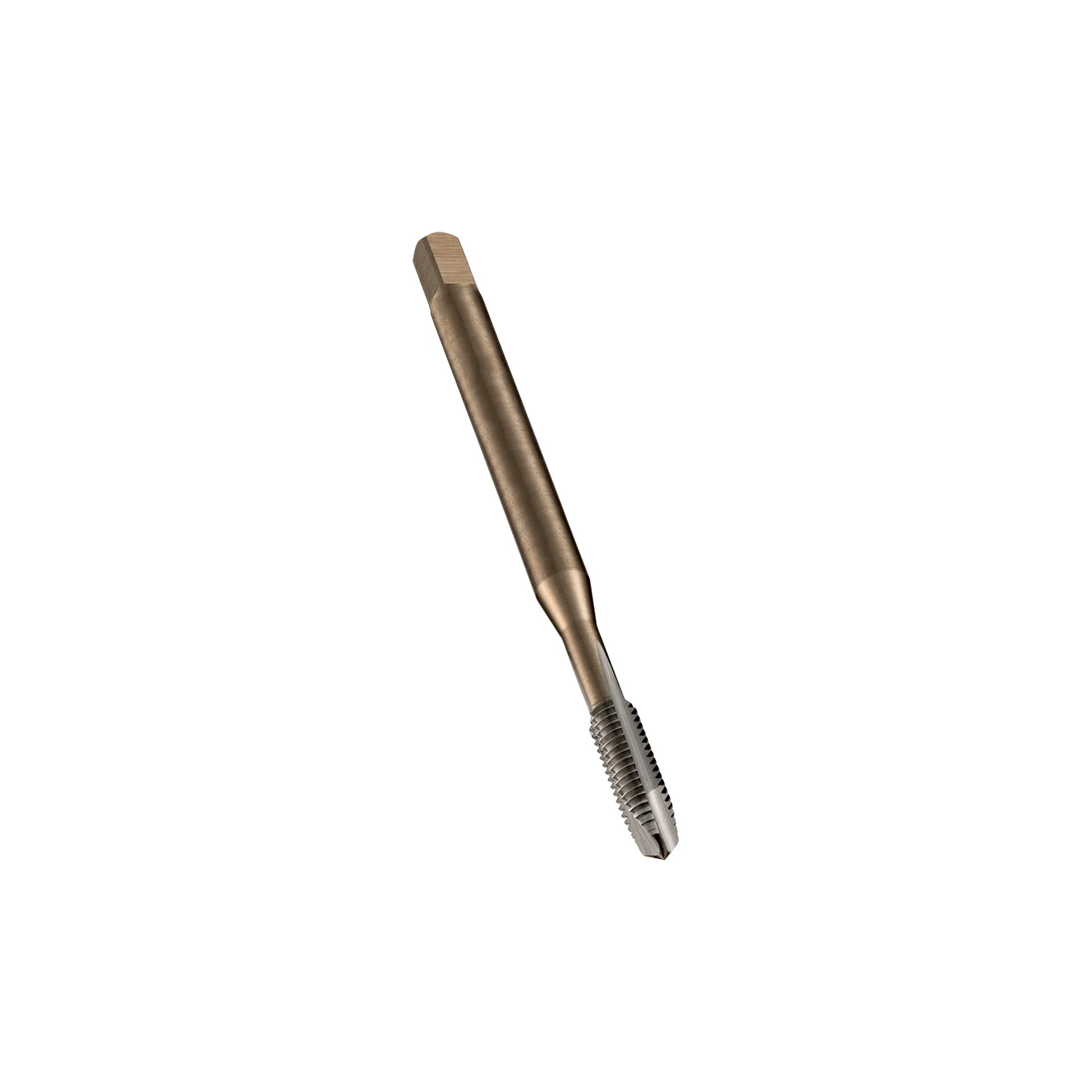

EP006H HSS-E PM M Machinetap met schilaansnijding

Name: EP006H HSS-E PM M Machinetap met schilaansnijding
SKU: EP00M2
Price: 25.83 EUR
Availability: InStock

DORMER Duitsland India

25,83 €

excl. BTW

Productinformatie

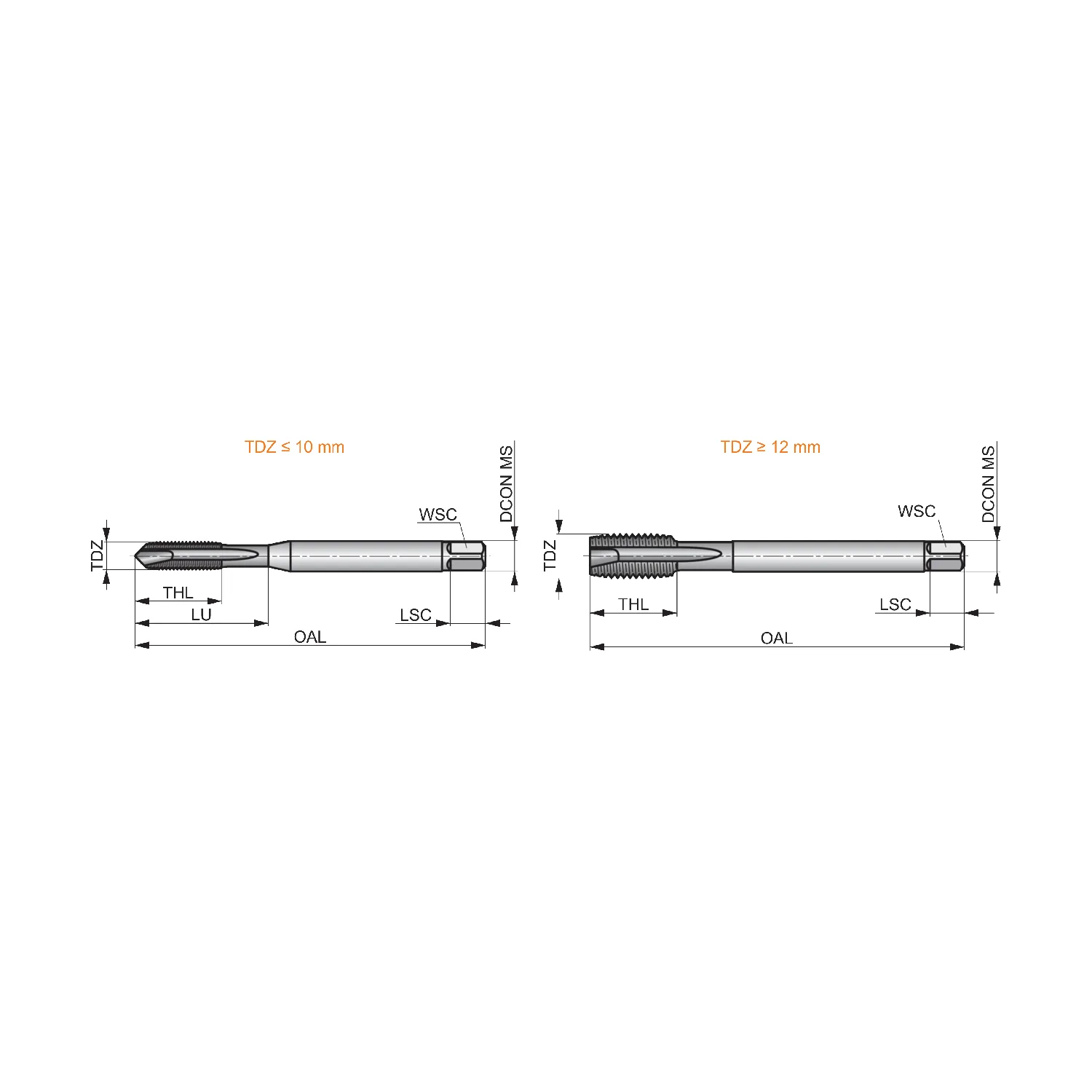

Spiraalpunt tap met aansnijvorm B met een 3,5-5xP tweede voorsnijding, voor ISO-metrische schroefdraad M2 met een spoed van 0,40 mm en passingstolerantieklasse 6H, afmetingen volgens DIN 371-norm met 2,8 mm schacht en 2,1 mm vierkantaandrijving, uit poedermetallurgisch HSS-E met blanke uitvoering voor doorgaand gat draadsnijden tot 2,5xD in automatenstaal, ongelegeerd koolstofstaal en smeed- of gietaluminium

Bestelcode (DP)
Draadstandaard
Draadstandaard
Coating (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/EP006H_DIM.png"],"p":{"479686":{"c":"EP00M2","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M2 with 0.40 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 2.8 mm shank and 2.1 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M2 with 0.40 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 2.8 mm shank and 2.1 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M2 mit 0.40 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 2.8 mm Schaft und 2.1 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"DE","a":[["P","primary"],["N","primary"]],"f":[[0,"5973413"],[7,"1"],[14,"EP006H"],[16,"EP00M2"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760137239"],[21,"10.0"],[22,"81.0"],[23,"9.0"],[24,"4.2"],[31,"HSS-E"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"2.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"5.0"],[128,"2.1"],[138,"2.8"],[260,"50.0"],[266,"1.6"],[300,"2"],[302,"0.4"],[307,"6.0"],[312,"D3"],[318,"9.0"]],"m":[["dimensions",0]],"d":[]},"479687":{"c":"EP00M2.5","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M2.5 with 0.45 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 2.8 mm shank and 2.1 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M2.5 with 0.45 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 2.8 mm shank and 2.1 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M2.5 mit 0.45 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 2.8 mm Schaft und 2.1 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"DE","a":[["P","primary"],["N","primary"]],"f":[[0,"5973414"],[7,"1"],[14,"EP006H"],[16,"EP00M2.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760137246"],[21,"11.0"],[22,"84.0"],[23,"9.0"],[24,"4.5"],[31,"HSS-E"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"2.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"5.0"],[128,"2.1"],[138,"2.8"],[260,"50.0"],[266,"2.1"],[300,"2.5"],[302,"0.45"],[307,"8.0"],[312,"D3"],[318,"12.5"]],"m":[["dimensions",0]],"d":[]},"479688":{"c":"EP00M3","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M3 mit 0.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 3.5 mm Schaft und 2.7 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973420"],[7,"1"],[14,"EP006H"],[16,"EP00M3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135709"],[21,"11.0"],[22,"94.0"],[23,"10.0"],[24,"3.2"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"2.7"],[138,"3.5"],[260,"56.0"],[266,"2.5"],[300,"3"],[302,"0.5"],[307,"9.0"],[312,"D3"],[318,"18.0"]],"m":[["dimensions",0]],"d":[]},"479689":{"c":"EP00M3DIN376","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 2.2 mm shank and 1.8 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 2.2 mm shank and 1.8 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M3 mit 0.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 2.2 mm Schaft und 1.8 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973422"],[7,"1"],[14,"EP006H"],[16,"EP00M3DIN376"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135716"],[21,"10.0"],[22,"92.0"],[23,"9.0"],[24,"4.4"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"4.0"],[128,"1.8"],[138,"2.2"],[260,"56.0"],[266,"2.5"],[300,"3"],[302,"0.5"],[307,"10.0"],[312,"D3"],[318,"18.0"]],"m":[["dimensions",0]],"d":[]},"479690":{"c":"EP00M3.5","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3.5 with 0.60 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.0 mm shank and 3.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3.5 with 0.60 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.0 mm shank and 3.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M3.5 mit 0.60 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 4.0 mm Schaft und 3.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973421"],[7,"1"],[14,"EP006H"],[16,"EP00M3.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135723"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"6.9"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"3.0"],[138,"4.0"],[260,"56.0"],[266,"2.9"],[300,"3.5"],[302,"0.6"],[307,"11.0"],[312,"D4"],[318,"20.0"]],"m":[["dimensions",0]],"d":[]},"479691":{"c":"EP00M4","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M4 mit 0.70 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 4.5 mm Schaft und 3.4 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973426"],[7,"1"],[14,"EP006H"],[16,"EP00M4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135730"],[21,"11.0"],[22,"95.0"],[23,"9.0"],[24,"8.8"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"3.4"],[138,"4.5"],[260,"63.0"],[266,"3.3"],[300,"4"],[302,"0.7"],[307,"12.0"],[312,"D4"],[318,"21.0"]],"m":[["dimensions",0]],"d":[]},"479692":{"c":"EP00M4DIN376","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 2.8 mm shank and 2.1 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 2.8 mm shank and 2.1 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M4 mit 0.70 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 2.8 mm Schaft und 2.1 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973428"],[7,"1"],[14,"EP006H"],[16,"EP00M4DIN376"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135747"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"3.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"5.0"],[128,"2.1"],[138,"2.8"],[260,"63.0"],[266,"3.3"],[300,"4"],[302,"0.7"],[307,"12.0"],[312,"D4"],[318,"21.0"]],"m":[["dimensions",0]],"d":[]},"479693":{"c":"EP00M5","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M5 mit 0.80 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973431"],[7,"1"],[14,"EP006H"],[16,"EP00M5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135846"],[21,"10.0"],[22,"95.0"],[23,"9.0"],[24,"11.4"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"70.0"],[266,"4.2"],[300,"5"],[302,"0.8"],[307,"13.0"],[312,"D4"],[318,"25.0"]],"m":[["dimensions",0]],"d":[]},"479694":{"c":"EP00M5DIN376","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M5 mit 0.80 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 3.5 mm Schaft und 2.7 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973433"],[7,"1"],[14,"EP006H"],[16,"EP00M5DIN376"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135853"],[21,"10.0"],[22,"92.0"],[23,"9.0"],[24,"8.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"2.7"],[138,"3.5"],[260,"70.0"],[266,"4.2"],[300,"5"],[302,"0.8"],[307,"13.0"],[312,"D4"],[318,"25.0"]],"m":[["dimensions",0]],"d":[]},"479695":{"c":"EP00M6","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M6 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973437"],[7,"1"],[14,"EP006H"],[16,"EP00M6"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135860"],[21,"10.0"],[22,"93.0"],[23,"9.0"],[24,"14.3"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"80.0"],[266,"5.0"],[300,"6"],[302,"1.0"],[307,"15.0"],[312,"D5"],[318,"30.0"]],"m":[["dimensions",0]],"d":[]},"479696":{"c":"EP00M6DIN376","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M6 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 4.5 mm Schaft und 3.4 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973441"],[7,"1"],[14,"EP006H"],[16,"EP00M6DIN376"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135877"],[21,"10.0"],[22,"91.0"],[23,"9.0"],[24,"12.5"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"3.4"],[138,"4.5"],[260,"80.0"],[266,"5.0"],[300,"6"],[302,"1.0"],[307,"15.0"],[312,"D5"],[318,"30.0"]],"m":[["dimensions",0]],"d":[]},"479697":{"c":"EP00M7","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M7 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M7 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M7 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 7.0 mm Schaft und 5.5 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973445"],[7,"1"],[14,"EP006H"],[16,"EP00M7"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135884"],[21,"15.0"],[22,"115.0"],[23,"14.0"],[24,"25.7"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"5.5"],[138,"7.0"],[260,"80.0"],[266,"6.0"],[300,"7"],[302,"1.0"],[307,"15.0"],[312,"D5"],[318,"30.0"]],"m":[["dimensions",0]],"d":[]},"479698":{"c":"EP00M8","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M8 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 8.0 mm Schaft und 6.2 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973447"],[7,"1"],[14,"EP006H"],[16,"EP00M8"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135891"],[21,"15.0"],[22,"115.0"],[23,"18.0"],[24,"33.9"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.0"],[128,"6.2"],[138,"8.0"],[260,"90.0"],[266,"6.8"],[300,"8"],[302,"1.25"],[307,"18.0"],[312,"D5"],[318,"35.0"]],"m":[["dimensions",0]],"d":[]},"479699":{"c":"EP00M8DIN376","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M8 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973449"],[7,"1"],[14,"EP006H"],[16,"EP00M8DIN376"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135907"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"19.2"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"90.0"],[266,"6.8"],[300,"8"],[302,"1.25"],[307,"18.0"],[312,"D5"],[318,"35.0"]],"m":[["dimensions",0]],"d":[]},"479700":{"c":"EP00M10","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M10 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 10.0 mm Schaft und 8.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973412"],[7,"1"],[14,"EP006H"],[16,"EP00M10"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135914"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"48.9"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.0"],[128,"8.0"],[138,"10.0"],[260,"100.0"],[266,"8.5"],[300,"10"],[302,"1.5"],[307,"20.0"],[312,"D6"],[318,"39.0"]],"m":[["dimensions",0]],"d":[]},"479701":{"c":"EP00M10DIN376","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M10 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 7.0 mm Schaft und 5.5 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973423"],[7,"1"],[14,"EP006H"],[16,"EP00M10DIN376"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135921"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"35.2"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"5.5"],[138,"7.0"],[260,"100.0"],[266,"8.5"],[300,"10"],[302,"1.5"],[307,"20.0"],[312,"D6"]],"m":[["dimensions",0]],"d":[]},"479702":{"c":"EP00M12","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M12 mit 1.75 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 9.0 mm Schaft und 7.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973461"],[7,"1"],[14,"EP006H"],[16,"EP00M12"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135938"],[21,"18.0"],[22,"123.0"],[23,"16.0"],[24,"51.5"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"110.0"],[266,"10.3"],[300,"12"],[302,"1.75"],[307,"23.0"],[312,"D6"]],"m":[["dimensions",0]],"d":[]},"479703":{"c":"EP00M14","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M14 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 11.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973486"],[7,"1"],[14,"EP006H"],[16,"EP00M14"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135945"],[21,"17.0"],[22,"113.0"],[23,"17.0"],[24,"78.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"11.0"],[260,"110.0"],[266,"12.0"],[300,"14"],[302,"2.0"],[307,"25.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[]},"479704":{"c":"EP00M16","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M16 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 12.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973489"],[7,"1"],[14,"EP006H"],[16,"EP00M16"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135952"],[21,"21.0"],[22,"113.0"],[23,"21.0"],[24,"91.3"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"12.0"],[260,"110.0"],[266,"14.0"],[300,"16"],[302,"2.0"],[307,"25.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[]},"479705":{"c":"EP00M18","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M18 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 14.0 mm shank and 11.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M18 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 14.0 mm shank and 11.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M18 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 14.0 mm Schaft und 11.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973493"],[7,"1"],[14,"EP006H"],[16,"EP00M18"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135969"],[21,"21.0"],[22,"128.0"],[23,"21.0"],[24,"145.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"14.0"],[128,"11.0"],[138,"14.0"],[260,"125.0"],[266,"15.5"],[300,"18"],[302,"2.5"],[307,"30.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[]},"479706":{"c":"EP00M20","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M20 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 16.0 mm Schaft und 12.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973415"],[7,"1"],[14,"EP006H"],[16,"EP00M20"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135976"],[21,"22.0"],[22,"145.0"],[23,"25.0"],[24,"203.6"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"15.0"],[128,"12.0"],[138,"16.0"],[260,"140.0"],[266,"17.5"],[300,"20"],[302,"2.5"],[307,"30.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[]},"479707":{"c":"EP00M22","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M22 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 18.0 mm Schaft und 14.5 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973417"],[7,"1"],[14,"EP006H"],[16,"EP00M22"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135983"],[21,"22.0"],[22,"145.0"],[23,"25.0"],[24,"265.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"14.5"],[138,"18.0"],[260,"140.0"],[266,"19.5"],[300,"22"],[302,"2.5"],[307,"34.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[]},"479708":{"c":"EP00M24","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M24 mit 3.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 18.0 mm Schaft und 14.5 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973418"],[7,"1"],[14,"EP006H"],[16,"EP00M24"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760135990"],[21,"29.0"],[22,"163.0"],[23,"29.0"],[24,"322.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"14.5"],[138,"18.0"],[260,"160.0"],[266,"21.0"],[300,"24"],[302,"3.0"],[307,"38.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[]},"479709":{"c":"EP00M27","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M27 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 20.0 mm shank and 16.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M27 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 20.0 mm shank and 16.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M27 mit 3.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 20.0 mm Schaft und 16.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973419"],[7,"1"],[14,"EP006H"],[16,"EP00M27"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760136003"],[21,"38.0"],[22,"165.0"],[23,"38.0"],[24,"407.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"19.0"],[128,"16.0"],[138,"20.0"],[260,"160.0"],[266,"24.0"],[300,"27"],[302,"3.0"],[307,"38.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[]},"479710":{"c":"EP00M30","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M30 with 3.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 22.0 mm shank and 18.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M30 with 3.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 22.0 mm shank and 18.0 mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M30 mit 3.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 22.0 mm Schaft und 18.0 mm Vierkantantrieb, HSSE-PM mit blanker Oberfläche 2.5xD Durchgangsgewinde in Baustahl und Kohlenstoffstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["N","primary"]],"f":[[0,"5973424"],[7,"1"],[14,"EP006H"],[16,"EP00M30"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760136010"],[21,"38.0"],[22,"185.0"],[23,"38.0"],[24,"555.6"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"21.0"],[128,"18.0"],[138,"22.0"],[260,"180.0"],[266,"26.5"],[300,"30"],[302,"3.5"],[307,"45.0"],[312,"D9"]],"m":[["dimensions",0]],"d":[]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Bestelcode (DP)	EP00M2, EP00M2.5, EP00M3, EP00M3DIN376, EP00M3.5, EP00M4, EP00M4DIN376, EP00M5, EP00M5DIN376, EP00M6, EP00M6DIN376, EP00M7, EP00M8, EP00M8DIN376, EP00M10, EP00M10DIN376, EP00M12, EP00M14, EP00M16, EP00M18, EP00M20, EP00M22, EP00M24, EP00M27, EP00M30
Draadstandaard	M - Metrisch grof, M - Metrisch grof
Coating (DP)	Steam Tempered
