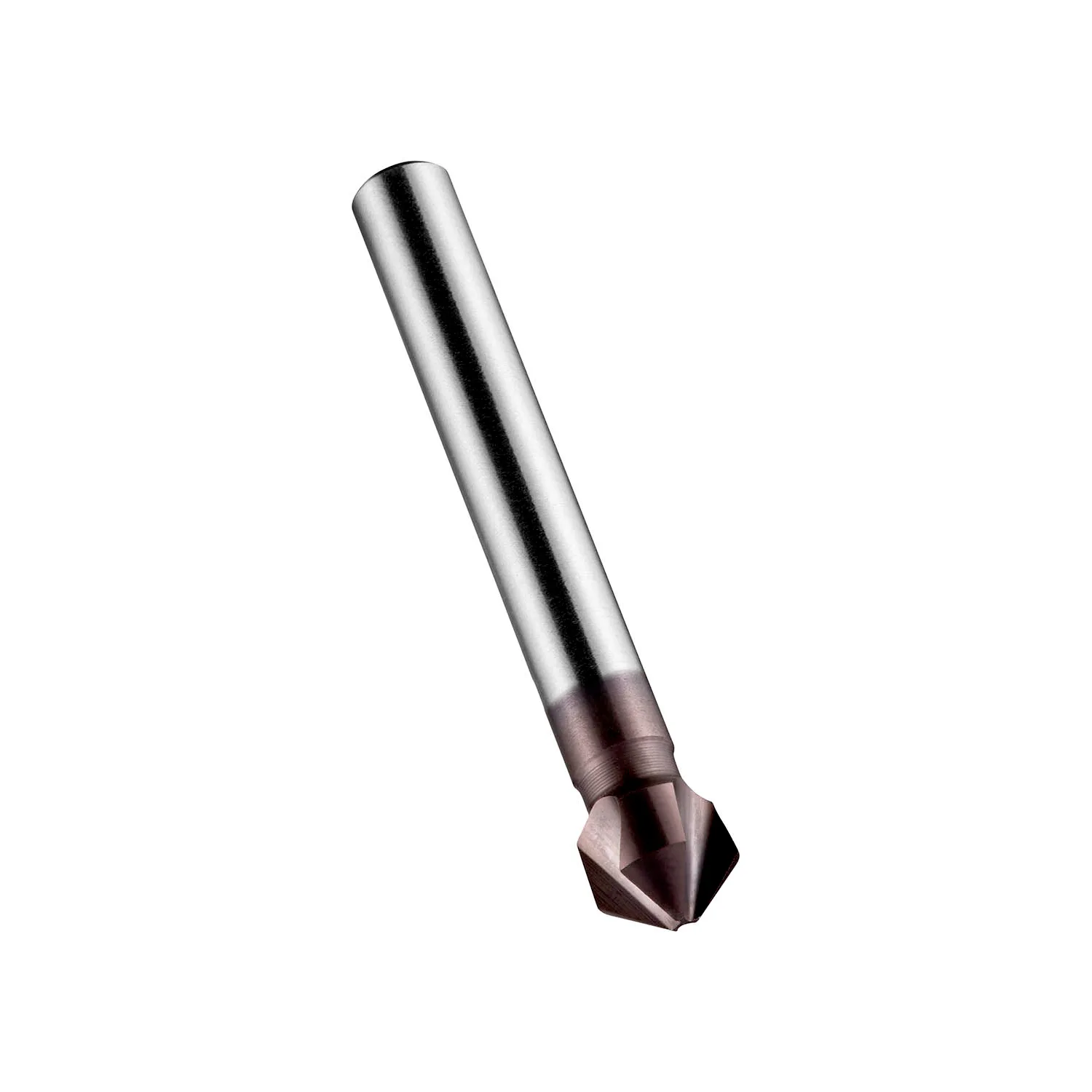

G171 HSS Verzinkboor - 100°

Name: G171 HSS Verzinkboor - 100°
SKU: G17125.0
Price: 95.34 EUR
Availability: InStock

DORMER Frankrijk

95,34 €

excl. BTW

Productinformatie

Een 100° soevereinboor ontworpen voor het aanbrengen van afschuiningen in standaard bevestigingsgaten en het verwijderen van bramen. Een veelzijdig gereedschap met een TiAlN coating die de prestaties verbetert en de standtijd verlengt. Veelzijdig gereedschap dat zowel in handbediende als machinale toepassingen kan worden gebruikt. Geschikt voor het afschuinen van gaten in vele materialen.

Coating (DP)
Schacht (DP)
Uitvoering (DP)

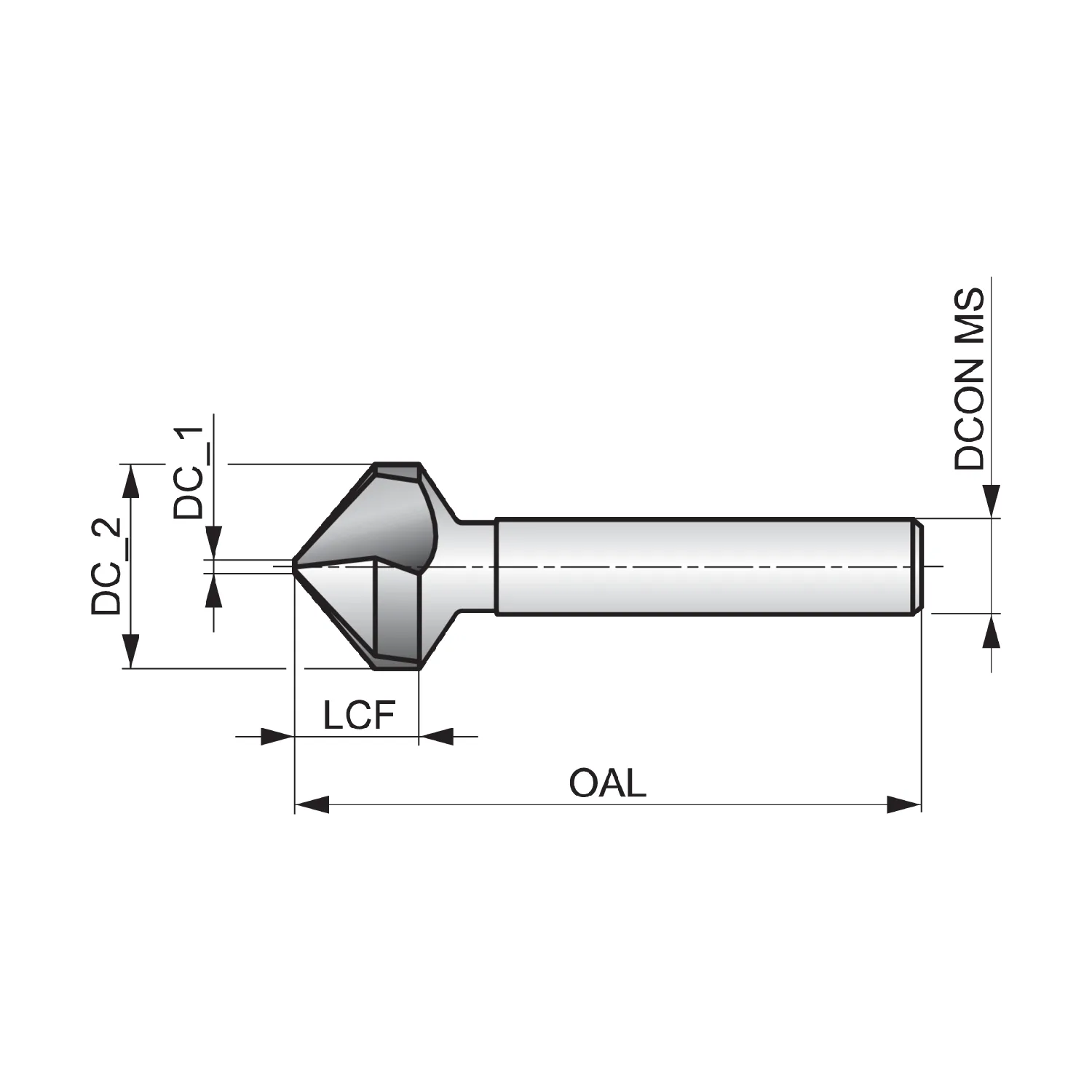

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/G171_DIM.png"],"p":{"469160":{"c":"G1716.3","s":["Countersink with 3-flutes, 100° chamfering angle, maximum diameter 6.30 mm with an overall length of 44 mm and a head length of 4.5 mm and 5 mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 1.50 mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys","Countersink with 3-flutes, 100° chamfering angle, maximum diameter 6.30 mm with an overall length of 44 mm and a head length of 4.5 mm and 5 mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 1.50 mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys","Kegelsenker mit 3-Schneiden, 100° Anfaswinkel, maximaler Durchmesser 6.30 mm mit einer Gesamtlänge von 44 mm und einer Kopflänge von 4.5 mm und 5 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für BS-Standard-Senkkopfschrauben und Luftfahrtbefestigungen mit einem minimalen Bohrdurchmesser von 1.50 mm, HSS mit Standard TiAlN beschichtet zum zerspanen von Stahl und Gusseisen, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"FR","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5972697"],[7,"1"],[14,"G171"],[16,"G1716.3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760372609"],[21,"11.35"],[22,"83.72"],[23,"9.77"],[24,"9.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"TiAlN",null,"Nitrure de titane aluminium","Titan-Aluminiumnitrid-Beschichtung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 100°",null,"Cône 100°","100°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"5.0"],[142,"h9"],[170,"6.3"],[171,"1.5"],[242,"4.5"],[260,"44.0"]],"m":[["dimensions",0]],"d":[],"x":[970469]},"469161":{"c":"G1718.3","s":["Countersink with 3-flutes, 100° chamfering angle, maximum diameter 8.30 mm with an overall length of 49 mm and a head length of 5.5 mm and 6 mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 2.00 mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys","Countersink with 3-flutes, 100° chamfering angle, maximum diameter 8.30 mm with an overall length of 49 mm and a head length of 5.5 mm and 6 mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 2.00 mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys","Kegelsenker mit 3-Schneiden, 100° Anfaswinkel, maximaler Durchmesser 8.30 mm mit einer Gesamtlänge von 49 mm und einer Kopflänge von 5.5 mm und 6 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für BS-Standard-Senkkopfschrauben und Luftfahrtbefestigungen mit einem minimalen Bohrdurchmesser von 2.00 mm, HSS mit Standard TiAlN beschichtet zum zerspanen von Stahl und Gusseisen, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"FR","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5972706"],[7,"1"],[14,"G171"],[16,"G1718.3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760372616"],[21,"16.13"],[22,"88.64"],[23,"14.17"],[24,"16.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"TiAlN",null,"Nitrure de titane aluminium","Titan-Aluminiumnitrid-Beschichtung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 100°",null,"Cône 100°","100°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"6.0"],[142,"h9"],[170,"8.3"],[171,"2.0"],[242,"5.5"],[260,"49.0"]],"m":[["dimensions",0]],"d":[],"x":[970470]},"469162":{"c":"G17110.4","s":["Countersink with 3-flutes, 100° chamfering angle, maximum diameter 10.40 mm with an overall length of 49 mm and a head length of 6.6 mm and 6 mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 2.50 mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys","Countersink with 3-flutes, 100° chamfering angle, maximum diameter 10.40 mm with an overall length of 49 mm and a head length of 6.6 mm and 6 mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 2.50 mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys","Kegelsenker mit 3-Schneiden, 100° Anfaswinkel, maximaler Durchmesser 10.40 mm mit einer Gesamtlänge von 49 mm und einer Kopflänge von 6.6 mm und 6 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für BS-Standard-Senkkopfschrauben und Luftfahrtbefestigungen mit einem minimalen Bohrdurchmesser von 2.50 mm, HSS mit Standard TiAlN beschichtet zum zerspanen von Stahl und Gusseisen, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"FR","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5972677"],[7,"1"],[14,"G171"],[16,"G17110.4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760372555"],[21,"16.5"],[22,"88.63"],[23,"14.3"],[24,"17.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"TiAlN",null,"Nitrure de titane aluminium","Titan-Aluminiumnitrid-Beschichtung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 100°",null,"Cône 100°","100°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"6.0"],[142,"h9"],[170,"10.4"],[171,"2.5"],[242,"6.6"],[260,"49.0"]],"m":[["dimensions",0]],"d":[],"x":[970471]},"469163":{"c":"G17112.4","s":["Countersink with 3-flutes, 100° chamfering angle, maximum diameter 12.40 mm with an overall length of 53 mm and a head length of 7 mm and 8 mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 2.80 mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys","Countersink with 3-flutes, 100° chamfering angle, maximum diameter 12.40 mm with an overall length of 53 mm and a head length of 7 mm and 8 mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 2.80 mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys","Kegelsenker mit 3-Schneiden, 100° Anfaswinkel, maximaler Durchmesser 12.40 mm mit einer Gesamtlänge von 53 mm und einer Kopflänge von 7 mm und 8 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für BS-Standard-Senkkopfschrauben und Luftfahrtbefestigungen mit einem minimalen Bohrdurchmesser von 2.80 mm, HSS mit Standard TiAlN beschichtet zum zerspanen von Stahl und Gusseisen, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"FR","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5972680"],[7,"1"],[14,"G171"],[16,"G17112.4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760372562"],[21,"17.87"],[22,"86.96"],[23,"17.71"],[24,"31.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"TiAlN",null,"Nitrure de titane aluminium","Titan-Aluminiumnitrid-Beschichtung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 100°",null,"Cône 100°","100°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"8.0"],[142,"h9"],[170,"12.4"],[171,"2.8"],[242,"7.0"],[260,"53.0"]],"m":[["dimensions",0]],"d":[],"x":[970472]},"469164":{"c":"G17116.5","s":["Countersink with 3-flutes, 100° chamfering angle, maximum diameter 16.50 mm with an overall length of 56 mm and a head length of 9 mm and 10 mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 3.20 mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys","Countersink with 3-flutes, 100° chamfering angle, maximum diameter 16.50 mm with an overall length of 56 mm and a head length of 9 mm and 10 mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 3.20 mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys","Kegelsenker mit 3-Schneiden, 100° Anfaswinkel, maximaler Durchmesser 16.50 mm mit einer Gesamtlänge von 56 mm und einer Kopflänge von 9 mm und 10 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für BS-Standard-Senkkopfschrauben und Luftfahrtbefestigungen mit einem minimalen Bohrdurchmesser von 3.20 mm, HSS mit Standard TiAlN beschichtet zum zerspanen von Stahl und Gusseisen, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"FR","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5972684"],[7,"1"],[14,"G171"],[16,"G17116.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760372579"],[21,"22.15"],[22,"85.74"],[23,"22.15"],[24,"24.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"TiAlN",null,"Nitrure de titane aluminium","Titan-Aluminiumnitrid-Beschichtung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 100°",null,"Cône 100°","100°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[142,"h9"],[170,"16.5"],[171,"3.2"],[242,"9.0"],[260,"56.0"]],"m":[["dimensions",0]],"d":[],"x":[970473]},"469165":{"c":"G17120.5","s":["Countersink with 3-flutes, 100° chamfering angle, maximum diameter 20.50 mm with an overall length of 61 mm and a head length of 11 mm and 10 mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 3.50 mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys","Countersink with 3-flutes, 100° chamfering angle, maximum diameter 20.50 mm with an overall length of 61 mm and a head length of 11 mm and 10 mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 3.50 mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys","Kegelsenker mit 3-Schneiden, 100° Anfaswinkel, maximaler Durchmesser 20.50 mm mit einer Gesamtlänge von 61 mm und einer Kopflänge von 11 mm und 10 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für BS-Standard-Senkkopfschrauben und Luftfahrtbefestigungen mit einem minimalen Bohrdurchmesser von 3.50 mm, HSS mit Standard TiAlN beschichtet zum zerspanen von Stahl und Gusseisen, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"FR","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5972689"],[7,"1"],[14,"G171"],[16,"G17120.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760372586"],[21,"25.6"],[22,"86.37"],[23,"25.6"],[24,"50.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"TiAlN",null,"Nitrure de titane aluminium","Titan-Aluminiumnitrid-Beschichtung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 100°",null,"Cône 100°","100°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[142,"h9"],[170,"20.5"],[171,"3.5"],[242,"11.0"],[260,"61.0"]],"m":[["dimensions",0]],"d":[],"x":[970474]},"469159":{"c":"G17125.0","s":["Countersink with 3-flutes, 100° chamfering angle, maximum diameter 25.00 mm with an overall length of 65 mm and a head length of 13.5 mm and 10 mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 3.80 mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys","Countersink with 3-flutes, 100° chamfering angle, maximum diameter 25.00 mm with an overall length of 65 mm and a head length of 13.5 mm and 10 mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 3.80 mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys","Kegelsenker mit 3-Schneiden, 100° Anfaswinkel, maximaler Durchmesser 25.00 mm mit einer Gesamtlänge von 65 mm und einer Kopflänge von 13.5 mm und 10 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für BS-Standard-Senkkopfschrauben und Luftfahrtbefestigungen mit einem minimalen Bohrdurchmesser von 3.80 mm, HSS mit Standard TiAlN beschichtet zum zerspanen von Stahl und Gusseisen, Grau, formbaren, dehnbaren und verdichteter Graphit Gusseisen, gegossenes Aluminium und Kupfer und Kupferlegierungen"],"o":"FR","a":[["P","primary"],["M","possible"],["K","primary"],["N","primary"]],"f":[[0,"5972693"],[7,"1"],[14,"G171"],[16,"G17125.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760372593"],[21,"29.64"],[22,"87.3"],[23,"29.64"],[24,"61.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"TiAlN",null,"Nitrure de titane aluminium","Titan-Aluminiumnitrid-Beschichtung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 100°",null,"Cône 100°","100°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[142,"h9"],[170,"25.0"],[171,"3.8"],[242,"13.5"],[260,"65.0"]],"m":[["dimensions",0]],"d":[],"x":[970468]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Uitvoering (DP)	25.0, 6.3, 8.3, 10.4, 12.4, 16.5, 20.5
Coating (DP)	TiAlN
Schacht (DP)	Cylindrical shank
