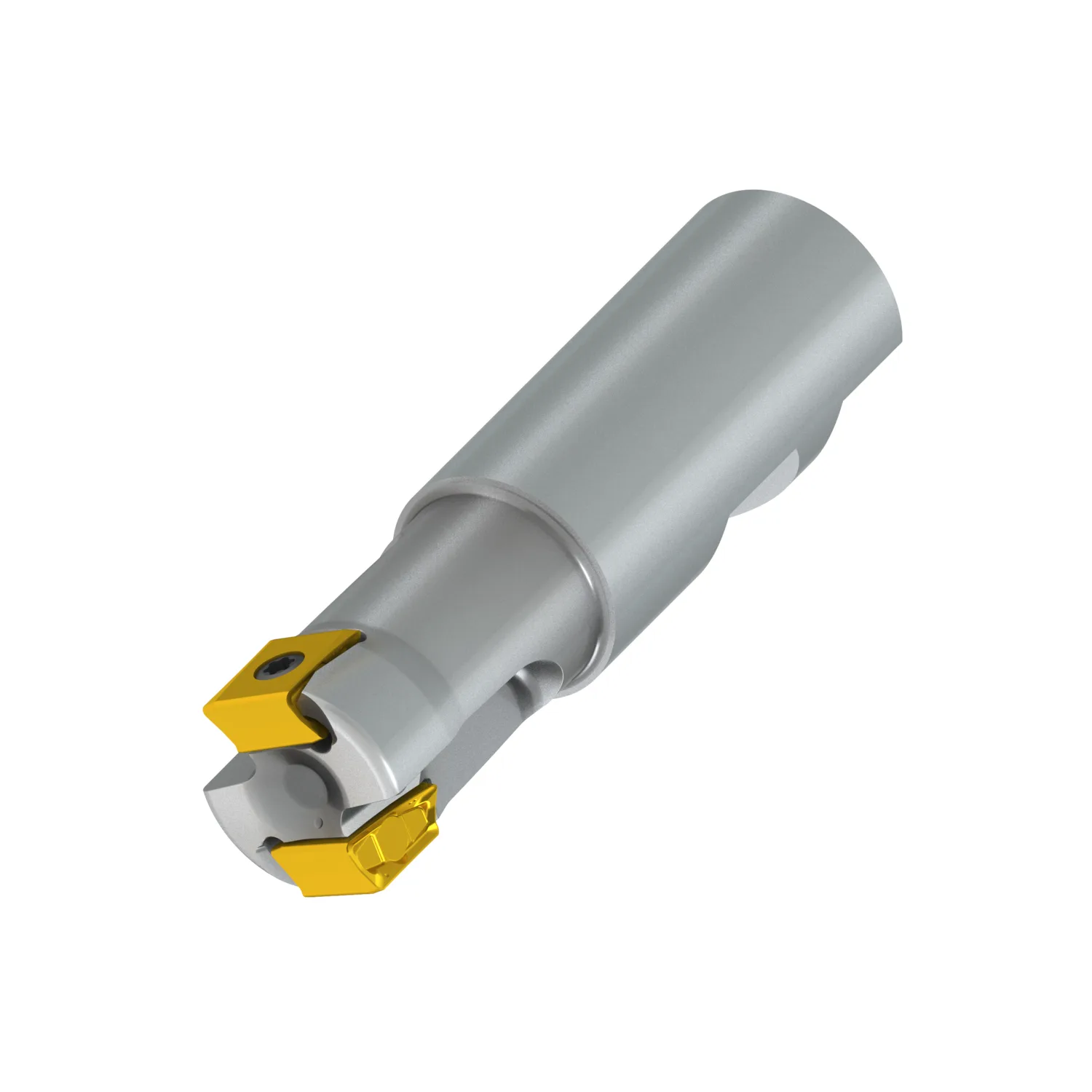

ISLN12X PROD LN12 90° Tangentiële hoekfrees met inwendige koeling

Name: ISLN12X PROD LN12 90° Tangentiële hoekfrees met inwendige koeling (100A2R165W100-ISLN12X-C)
SKU: 100A2R165W100-ISLN12X-C
Price: 283.1 EUR
Availability: InStock

PRAMET Tsjechië

283,10 €

excl. BTW

Productinformatie

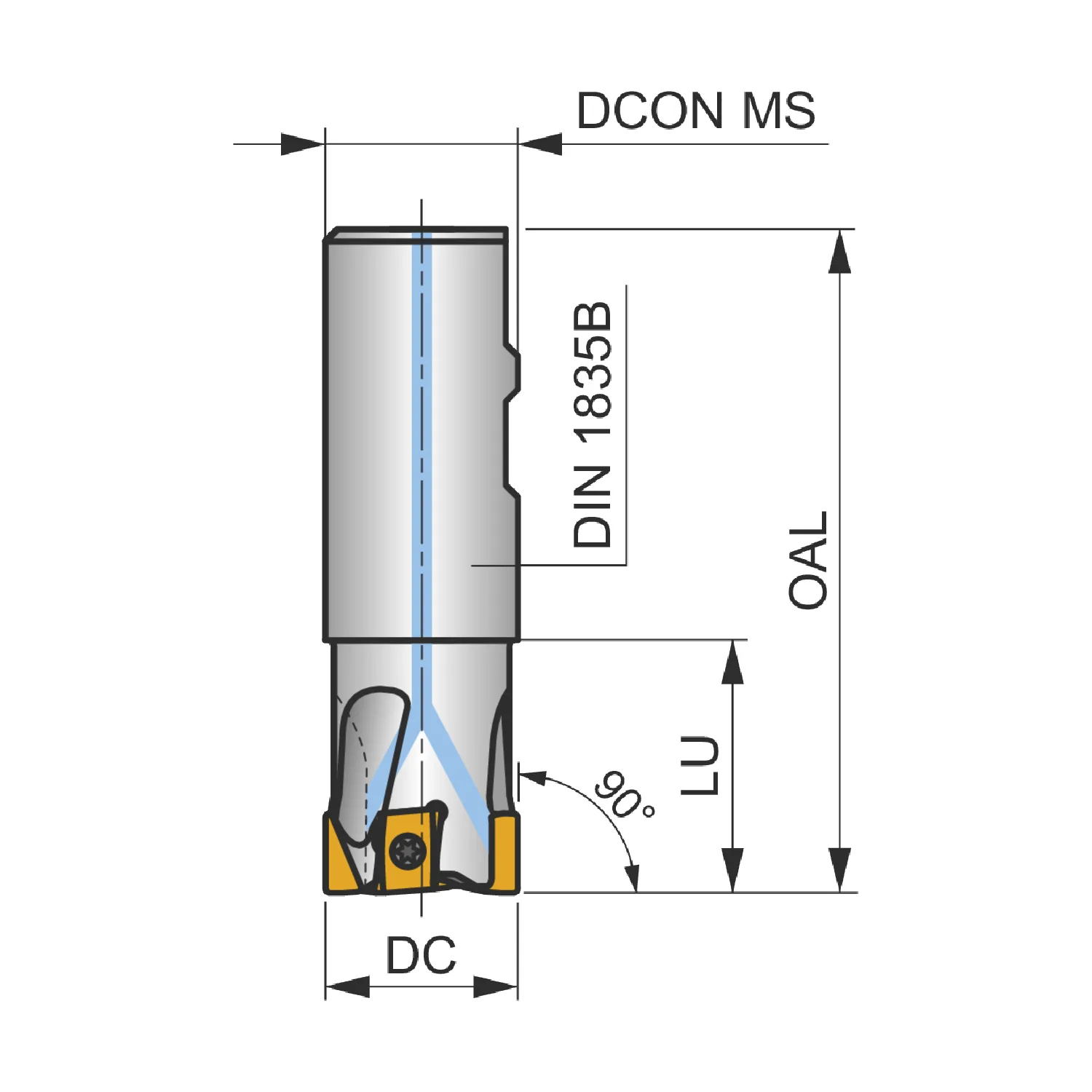

Schouderfrees met dubbele negatieve geometrie die gebruikmaakt van 2 LN.. 12.... dubbelzijdige wisselplaten, snijdiameter 1.000 inch met een aanloophoek van 90° en een Weldon-schacht van 1.000 inch conform DIN 1835B, bruikbare lengte 1.654 inch en totale lengte 3.937 inch, met inwendige koeling voor vlakfrezen, ondiep schouderfrezen, diep schouderfrezen, insteekfrezen en ondiep gleuffrezen met een maximale snedediepte van 0.394 inch

Bestelcode (DP)
Schacht (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/SLN12X_B_CSP_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/SLN12X_OP.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/100A2R165W100-ISLN12X-C_8186012_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/100A2R165W100-ISLN12X-C_8186012_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/125A3R165W125-ISLN12X-C_8186013_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/125A3R165W125-ISLN12X-C_8186013_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/150A4R200W125-ISLN12X-C_8186014_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/150A4R200W125-ISLN12X-C_8186014_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/SLN12X_A_CSP_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/100A2R315C100-ISLN12X-C_8185989_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/100A2R315C100-ISLN12X-C_8185989_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/125A3R355C125-ISLN12X-C_8186010_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/125A3R355C125-ISLN12X-C_8186010_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/150A4R200C125-ISLN12X-C_8186011_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/150A4R200C125-ISLN12X-C_8186011_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/SLN12X_SA_CSP_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/150A04R-IS90LN12X-C_8185959_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/150A04R-IS90LN12X-C_8185959_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/200A05R-IS90LN12X-C_8185980_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/200A05R-IS90LN12X-C_8185980_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/200A06R-IS90LN12X-C_8185981_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/200A06R-IS90LN12X-C_8185981_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/250A06R-IS90LN12X-C_8185982_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/250A06R-IS90LN12X-C_8185982_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/250A08R-IS90LN12X-C_8185983_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/250A08R-IS90LN12X-C_8185983_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/300A07R-IS90LN12X-C_8185984_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/300A07R-IS90LN12X-C_8185984_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/300A10R-IS90LN12X-C_8185985_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/300A10R-IS90LN12X-C_8185985_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/400A08R-IS90LN12X-C_8185986_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/400A08R-IS90LN12X-C_8185986_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/500A12R-IS90LN12X-C_8185987_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/500A12R-IS90LN12X-C_8185987_3D.STP"],"p":{"480997":{"c":"100A2R165W100-ISLN12X-C","s":["Shoulder mill with double negative geometry which utilises 2 of LN.. 12.... double-sided inserts, cutting diameter 1.000 inch with 90° approach angle and 1.000 inch Weldon shank according to DIN 1835B, 1.654 inch usable and 3.937 inch overall length, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394 inch","Fraise à surfacer-dresser avec géométrie double-négative qui utilise 2 des LN.. 12.... négative réversible plaquettes, diamètre de coupe 1.000 inch avec 90° d'angle d'attaque et 1.000 inch queue Weldon selon DIN 1835B, 1.654 inch usable and 3.937 inch longueur totale, arrosage interne pour fraisage de surfaces planes, fraisage d'épaulements peu profonds, fraisage d'épaulements profonds, fraisage en tréflage et fraisage de rainures peu profondes avec une profondeur de coupe maximum de 0.394 inch","Eckfräser mit doppelt negativer Geometrie welche 2 aus LN.. 12.... doppelseitige Wendeschneidplatte, Schneiddurchmesser 1.000 inch mit 90° Anfahrwinkel und 1.000 inch Weldonschaft gemäß DIN 1835B, 1,654 inch anwendbar und 3,937 inch Gesamtlänge, durchgehende Kühlung zum Planfräsen, flachen Schulterfräsen, tiefen Schulterfräsen, Tauchfräsen und flachen Nutfräsen mit einer maximalen Schnitttiefe von 0.394 inch"],"o":"CZ","a":[["P","primary"],["K","primary"],["H","possible"]],"f":[[0,"8186012"],[7,"1"],[14,"ISLN12X"],[16,"100A2R165W100-ISLN12X-C"],[17,"Inch"],[20,"3603603958296"],[21,"50.0"],[22,"172.0"],[23,"50.0"],[24,"300.0"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"2.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SLN12X"],[98,"-5.0"],[138,"24.5"],[164,"24.5"],[233,"2.0"],[260,"96.5"],[262,"2.0"],[276,"-30.0"],[279,"17300.0"],[313,"90.0"],[318,"40.5"]],"m":[["dimensions",0],["application",1]],"d":[["2d",2],["3d",3]]},"480998":{"c":"125A3R165W125-ISLN12X-C","s":["Shoulder mill with double negative geometry which utilises 3 of LN.. 12.... double-sided inserts, cutting diameter 1.250 inch with 90° approach angle and 1.250 inch Weldon shank according to DIN 1835B, 1.654 inch usable and 4.331 inch overall length, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394 inch","Fraise à surfacer-dresser avec géométrie double-négative qui utilise 3 des LN.. 12.... négative réversible plaquettes, diamètre de coupe 1.250 inch avec 90° d'angle d'attaque et 1.250 inch queue Weldon selon DIN 1835B, 1.654 inch usable and 4.331 inch longueur totale, arrosage interne pour fraisage de surfaces planes, fraisage d'épaulements peu profonds, fraisage d'épaulements profonds, fraisage en tréflage et fraisage de rainures peu profondes avec une profondeur de coupe maximum de 0.394 inch",null],"o":"CZ","a":[["P","primary"],["K","primary"],["H","possible"]],"f":[[0,"8186013"],[7,"1"],[14,"ISLN12X"],[16,"125A3R165W125-ISLN12X-C"],[17,"Inch"],[20,"3603603958302"],[21,"50.0"],[22,"172.0"],[23,"50.0"],[24,"540.0"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B",null],[37,"3.0"],[50,"Right","Rechts","A droite",null],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou",null],[59,"Yes","Ja","Oui",null],[75,"SLN12X"],[98,"-5.0"],[138,"30.6"],[164,"30.6"],[233,"3.0"],[260,"106.1"],[262,"3.0"],[276,"-22.5"],[279,"15300.0"],[313,"90.0"],[318,"40.5"]],"m":[["dimensions",0],["application",1]],"d":[["2d",4],["3d",5]]},"480999":{"c":"150A4R200W125-ISLN12X-C","s":["Shoulder mill with double negative geometry which utilises 4 of LN.. 12.... double-sided inserts, cutting diameter 1.500 inch with 90° approach angle and 1.250 inch Weldon shank according to DIN 1835B, 2.000 inch usable and 4.724 inch overall length, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394 inch","Fraise à surfacer-dresser avec géométrie double-négative qui utilise 4 des LN.. 12.... négative réversible plaquettes, diamètre de coupe 1.500 inch avec 90° d'angle d'attaque et 1.250 inch queue Weldon selon DIN 1835B, 2.000 inch usable and 4.724 inch longueur totale, arrosage interne pour fraisage de surfaces planes, fraisage d'épaulements peu profonds, fraisage d'épaulements profonds, fraisage en tréflage et fraisage de rainures peu profondes avec une profondeur de coupe maximum de 0.394 inch","Eckfräser mit doppelt negativer Geometrie welche 4 aus LN.. 12.... doppelseitige Wendeschneidplatte, Schneiddurchmesser 1.500 inch mit 90° Anfahrwinkel und 1,250 inch Weldonschaft gemäß DIN 1835B, 2.000 inch anwendbar und 4,724 inch Gesamtlänge, durchgehende Kühlung zum Planfräsen, flachen Schulterfräsen, tiefen Schulterfräsen, Tauchfräsen und flachen Nutfräsen mit einer maximalen Schnitttiefe von 0.394 inch"],"o":"CZ","a":[["P","primary"],["K","primary"],["H","possible"]],"f":[[0,"8186014"],[7,"1"],[14,"ISLN12X"],[16,"150A4R200W125-ISLN12X-C"],[17,"Inch"],[20,"3603603958319"],[21,"50.0"],[22,"172.0"],[23,"50.0"],[24,"680.0"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SLN12X"],[98,"-5.0"],[138,"30.6"],[164,"36.8"],[233,"4.0"],[260,"115.7"],[262,"4.0"],[276,"-22.5"],[279,"13700.0"],[313,"90.0"],[318,"49.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",6],["3d",7]]},"481000":{"c":"100A2R315C100-ISLN12X-C","s":["Shoulder mill with double negative geometry which utilises 2 of LN.. 12.... double-sided inserts, cutting diameter 1.000 inch with 90° approach angle and 1.000 inch parallel shank according to DIN 1835A, 3.150 inch usable and 6.693 inch overall length, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394 inch","Fraise à surfacer-dresser avec géométrie double-négative qui utilise 2 des LN.. 12.... négative réversible plaquettes, diamètre de coupe 1.000 inch avec 90° d'angle d'attaque et 1.000 inch queue cylindrique selon DIN 1835A, 3.150 inch usable and 6.693 inch longueur totale, arrosage interne pour fraisage de surfaces planes, fraisage d'épaulements peu profonds, fraisage d'épaulements profonds, fraisage en tréflage et fraisage de rainures peu profondes avec une profondeur de coupe maximum de 0.394 inch","Eckfräser mit doppelt negativer Geometrie welche 2 aus LN.. 12.... doppelseitige Wendeschneidplatte, Schneiddurchmesser 1.000 inch mit 90° Anfahrwinkel und 1.000 inch Zylinderschaft gemäß DIN 1835A, 3,150 inch anwendbar und 6,693 inch Gesamtlänge, durchgehende Kühlung zum Planfräsen, flachen Schulterfräsen, tiefen Schulterfräsen, Tauchfräsen und flachen Nutfräsen mit einer maximalen Schnitttiefe von 0.394 inch"],"o":"CZ","a":[["P","primary"],["K","primary"],["H","possible"]],"f":[[0,"8185989"],[7,"1"],[14,"ISLN12X"],[16,"100A2R315C100-ISLN12X-C"],[17,"Inch"],[20,"3603603958265"],[21,"50.0"],[22,"210.0"],[23,"50.0"],[24,"530.0"],[34,"Cylindrical shank DIN 1835A",null,"Queue cylindrique DIN 1835 A","DIN 1835A – Zylindrischer Schaft"],[37,"2.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SLN12X"],[98,"-5.0"],[138,"24.5"],[164,"24.5"],[233,"2.0"],[260,"164.0"],[262,"2.0"],[276,"-30.0"],[279,"17300.0"],[313,"90.0"],[318,"77.2"]],"m":[["dimensions",8],["application",1]],"d":[["2d",9],["3d",10]]},"481001":{"c":"125A3R355C125-ISLN12X-C","s":["Shoulder mill with double negative geometry which utilises 3 of LN.. 12.... double-sided inserts, cutting diameter 1.250 inch with 90° approach angle and 1.250 inch parallel shank according to DIN 1835A, 3.550 inch usable and 7.677 inch overall length, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394 inch","Fraise à surfacer-dresser avec géométrie double-négative qui utilise 3 des LN.. 12.... négative réversible plaquettes, diamètre de coupe 1.250 inch avec 90° d'angle d'attaque et 1.250 inch queue cylindrique selon DIN 1835A, 3.550 inch usable and 7.677 inch longueur totale, arrosage interne pour fraisage de surfaces planes, fraisage d'épaulements peu profonds, fraisage d'épaulements profonds, fraisage en tréflage et fraisage de rainures peu profondes avec une profondeur de coupe maximum de 0.394 inch","Eckfräser mit doppelt negativer Geometrie welche 3 aus LN.. 12.... doppelseitige Wendeschneidplatte, Schneiddurchmesser 1.250 inch mit 90° Anfahrwinkel und 1,250 inch Zylinderschaft gemäß DIN 1835A, 3,550 inch anwendbar und 7,677 inch Gesamtlänge, durchgehende Kühlung zum Planfräsen, flachen Schulterfräsen, tiefen Schulterfräsen, Tauchfräsen und flachen Nutfräsen mit einer maximalen Schnitttiefe von 0.394 inch"],"o":"CZ","a":[["P","primary"],["K","primary"],["H","possible"]],"f":[[0,"8186010"],[7,"1"],[14,"ISLN12X"],[16,"125A3R355C125-ISLN12X-C"],[17,"Inch"],[20,"3603603958272"],[21,"50.0"],[22,"210.0"],[23,"50.0"],[24,"980.0"],[34,"Cylindrical shank DIN 1835A",null,"Queue cylindrique DIN 1835 A","DIN 1835A – Zylindrischer Schaft"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SLN12X"],[98,"-5.0"],[138,"30.6"],[164,"30.6"],[233,"3.0"],[260,"188.1"],[262,"3.0"],[276,"-22.5"],[279,"15300.0"],[313,"90.0"],[318,"87.0"]],"m":[["dimensions",8],["application",1]],"d":[["2d",11],["3d",12]]},"481002":{"c":"150A4R200C125-ISLN12X-C","s":["Shoulder mill with double negative geometry which utilises 4 of LN.. 12.... double-sided inserts, cutting diameter 1.500 inch with 90° approach angle and 1.250 inch parallel shank according to DIN 1835A, 2.000 inch usable and 7.677 inch overall length, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394 inch","Fraise à surfacer-dresser avec géométrie double-négative qui utilise 4 des LN.. 12.... négative réversible plaquettes, diamètre de coupe 1.500 inch avec 90° d'angle d'attaque et 1.250 inch queue cylindrique selon DIN 1835A, 2.000 inch usable and 7.677 inch longueur totale, arrosage interne pour fraisage de surfaces planes, fraisage d'épaulements peu profonds, fraisage d'épaulements profonds, fraisage en tréflage et fraisage de rainures peu profondes avec une profondeur de coupe maximum de 0.394 inch","Eckfräser mit doppelt negativer Geometrie welche 4 aus LN.. 12.... doppelseitige Wendeschneidplatte, Schneiddurchmesser 1.500 inch mit 90° Anfahrwinkel und 1,250 inch Zylinderschaft gemäß DIN 1835A, 2.000 inch anwendbar und 7,677 inch Gesamtlänge, durchgehende Kühlung zum Planfräsen, flachen Schulterfräsen, tiefen Schulterfräsen, Tauchfräsen und flachen Nutfräsen mit einer maximalen Schnitttiefe von 0.394 inch"],"o":"CZ","a":[["P","primary"],["K","primary"],["H","possible"]],"f":[[0,"8186011"],[7,"1"],[14,"ISLN12X"],[16,"150A4R200C125-ISLN12X-C"],[17,"Inch"],[20,"3603603958289"],[21,"50.0"],[22,"210.0"],[23,"50.0"],[24,"1120.0"],[34,"Cylindrical shank DIN 1835A",null,"Queue cylindrique DIN 1835 A","DIN 1835A – Zylindrischer Schaft"],[37,"4.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SLN12X"],[98,"-5.0"],[138,"30.6"],[164,"36.8"],[233,"4.0"],[260,"188.1"],[262,"4.0"],[276,"-22.5"],[279,"13700.0"],[313,"90.0"],[318,"49.0"]],"m":[["dimensions",8],["application",1]],"d":[["2d",13],["3d",14]]},"481003":{"c":"150A04R-IS90LN12X-C","s":["Shoulder mill with double negative geometry which utilises 4 of LN.. 12.... double-sided inserts, cutting diameter 1.500 inch with 90° approach angle and 0.500 inch connection bore according to DIN 8030-A, 1.575 inch functional and, through coolant and differential pitch for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394 inch","Fraise à surfacer-dresser avec géométrie double-négative qui utilise 4 des LN.. 12.... négative réversible plaquettes, diamètre de coupe 1.500 inch avec 90° d'angle d'attaque et 0.500 inch alésage de connexion selon DIN 8030-A, 1.575 inch fonctionnel et, arrosage interne et un pas différentiel pour fraisage de surfaces planes, fraisage d'épaulements peu profonds, fraisage d'épaulements profonds, fraisage en tréflage et fraisage de rainures peu profondes avec une profondeur de coupe maximum de 0.394 inch","Eckfräser mit doppelt negativer Geometrie welche 4 aus LN.. 12.... doppelseitige Wendeschneidplatte, Schneiddurchmesser 1.500 inch mit 90° Anfahrwinkel und 0,500 inch Bohrung gemäß DIN 8030-A, 1,575 inch funktional und, durchgehende Kühlung und ungleicher Teilung zum Planfräsen, flachen Schulterfräsen, tiefen Schulterfräsen, Tauchfräsen und flachen Nutfräsen mit einer maximalen Schnitttiefe von 0.394 inch"],"o":"CZ","a":[["P","primary"],["K","primary"],["H","possible"]],"f":[[0,"8185959"],[7,"1"],[14,"ISLN12X"],[16,"150A04R-IS90LN12X-C"],[17,"Inch"],[20,"3603603958173"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"200.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"4.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SLN12X"],[98,"-5.0"],[138,"12.3"],[160,"11.0"],[164,"36.8"],[176,"Yes","Ja",null,null],[211,"38.6"],[233,"4.0"],[240,"4.0"],[241,"6.4"],[262,"4.0"],[276,"-22.5"],[279,"13700.0"],[313,"90.0"]],"m":[["dimensions",15],["application",1]],"d":[["2d",16],["3d",17]]},"481004":{"c":"200A05R-IS90LN12X-C","s":["Shoulder mill with double negative geometry which utilises 5 of LN.. 12.... double-sided inserts, cutting diameter 2.000 inch with 90° approach angle and 0.750 inch connection bore according to DIN 8030-A, 1.575 inch functional and, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394 inch","Fraise à surfacer-dresser avec géométrie double-négative qui utilise 5 des LN.. 12.... négative réversible plaquettes, diamètre de coupe 2.000 inch avec 90° d'angle d'attaque et 0.750 inch alésage de connexion selon DIN 8030-A, 1.575 inch fonctionnel et, arrosage interne pour fraisage de surfaces planes, fraisage d'épaulements peu profonds, fraisage d'épaulements profonds, fraisage en tréflage et fraisage de rainures peu profondes avec une profondeur de coupe maximum de 0.394 inch","Eckfräser mit doppelt negativer Geometrie welche 5 aus LN.. 12.... doppelseitige Wendeschneidplatte, Schneiddurchmesser 2.000 inch mit 90° Anfahrwinkel und 0,750 inch Bohrung gemäß DIN 8030-A, 1,575 inch funktional und, durchgehende Kühlung zum Planfräsen, flachen Schulterfräsen, tiefen Schulterfräsen, Tauchfräsen und flachen Nutfräsen mit einer maximalen Schnitttiefe von 0.394 inch"],"o":"CZ","a":[["P","primary"],["K","primary"],["H","possible"]],"f":[[0,"8185980"],[7,"1"],[14,"ISLN12X"],[16,"200A05R-IS90LN12X-C"],[17,"Inch"],[20,"3603603958180"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"370.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"5.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SLN12X"],[98,"-5.0"],[138,"18.4"],[160,"16.0"],[164,"49.0"],[211,"38.6"],[233,"5.0"],[240,"4.7"],[241,"7.9"],[262,"5.0"],[276,"-19.5"],[279,"12300.0"],[313,"90.0"]],"m":[["dimensions",15],["application",1]],"d":[["2d",18],["3d",19]]},"481005":{"c":"200A06R-IS90LN12X-C","s":["Shoulder mill with double negative geometry which utilises 6 of LN.. 12.... double-sided inserts, cutting diameter 2.000 inch with 90° approach angle and 0.750 inch connection bore according to DIN 8030-A, 1.575 inch functional and, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394 inch","Fraise à surfacer-dresser avec géométrie double-négative qui utilise 6 des LN.. 12.... négative réversible plaquettes, diamètre de coupe 2.000 inch avec 90° d'angle d'attaque et 0.750 inch alésage de connexion selon DIN 8030-A, 1.575 inch fonctionnel et, arrosage interne pour fraisage de surfaces planes, fraisage d'épaulements peu profonds, fraisage d'épaulements profonds, fraisage en tréflage et fraisage de rainures peu profondes avec une profondeur de coupe maximum de 0.394 inch","Eckfräser mit doppelt negativer Geometrie welche 6 aus LN.. 12.... doppelseitige Wendeschneidplatte, Schneiddurchmesser 2.000 inch mit 90° Anfahrwinkel und 0,750 inch Bohrung gemäß DIN 8030-A, 1,575 inch funktional und, durchgehende Kühlung zum Planfräsen, flachen Schulterfräsen, tiefen Schulterfräsen, Tauchfräsen und flachen Nutfräsen mit einer maximalen Schnitttiefe von 0.394 inch"],"o":"CZ","a":[["P","primary"],["K","primary"],["H","possible"]],"f":[[0,"8185981"],[7,"1"],[14,"ISLN12X"],[16,"200A06R-IS90LN12X-C"],[17,"Inch"],[20,"3603603958197"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"370.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"6.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SLN12X"],[98,"-5.0"],[138,"18.4"],[160,"16.0"],[164,"49.0"],[211,"38.6"],[233,"6.0"],[240,"4.7"],[241,"7.9"],[262,"6.0"],[276,"-19.5"],[279,"12300.0"],[313,"90.0"]],"m":[["dimensions",15],["application",1]],"d":[["2d",20],["3d",21]]},"481006":{"c":"250A06R-IS90LN12X-C","s":["Shoulder mill with double negative geometry which utilises 6 of LN.. 12.... double-sided inserts, cutting diameter 2.500 inch with 90° approach angle and 0.750 inch connection bore according to DIN 8030-A, 1.575 inch functional and, through coolant and differential pitch for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394 inch","Fraise à surfacer-dresser avec géométrie double-négative qui utilise 6 des LN.. 12.... négative réversible plaquettes, diamètre de coupe 2.500 inch avec 90° d'angle d'attaque et 0.750 inch alésage de connexion selon DIN 8030-A, 1.575 inch fonctionnel et, arrosage interne et un pas différentiel pour fraisage de surfaces planes, fraisage d'épaulements peu profonds, fraisage d'épaulements profonds, fraisage en tréflage et fraisage de rainures peu profondes avec une profondeur de coupe maximum de 0.394 inch","Eckfräser mit doppelt negativer Geometrie welche 6 aus LN.. 12.... doppelseitige Wendeschneidplatte, Schneiddurchmesser 2.500 inch mit 90° Anfahrwinkel und 0,750 inch Bohrung gemäß DIN 8030-A, 1,575 inch funktional und, durchgehende Kühlung und ungleicher Teilung zum Planfräsen, flachen Schulterfräsen, tiefen Schulterfräsen, Tauchfräsen und flachen Nutfräsen mit einer maximalen Schnitttiefe von 0.394 inch"],"o":"CZ","a":[["P","primary"],["K","primary"],["H","possible"]],"f":[[0,"8185982"],[7,"1"],[14,"ISLN12X"],[16,"250A06R-IS90LN12X-C"],[17,"Inch"],[20,"3603603958203"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"540.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"6.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SLN12X"],[98,"-5.0"],[138,"18.4"],[160,"16.0"],[164,"61.3"],[176,"Yes","Ja",null,null],[211,"38.6"],[233,"6.0"],[240,"4.7"],[241,"7.9"],[262,"6.0"],[276,"-19.5"],[279,"10900.0"],[313,"90.0"]],"m":[["dimensions",15],["application",1]],"d":[["2d",22],["3d",23]]},"481007":{"c":"250A08R-IS90LN12X-C","s":["Shoulder mill with double negative geometry which utilises 8 of LN.. 12.... double-sided inserts, cutting diameter 2.500 inch with 90° approach angle and 0.750 inch connection bore according to DIN 8030-A, 1.575 inch functional and, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394 inch","Fraise à surfacer-dresser avec géométrie double-négative qui utilise 8 des LN.. 12.... négative réversible plaquettes, diamètre de coupe 2.500 inch avec 90° d'angle d'attaque et 0.750 inch alésage de connexion selon DIN 8030-A, 1.575 inch fonctionnel et, arrosage interne pour fraisage de surfaces planes, fraisage d'épaulements peu profonds, fraisage d'épaulements profonds, fraisage en tréflage et fraisage de rainures peu profondes avec une profondeur de coupe maximum de 0.394 inch","Eckfräser mit doppelt negativer Geometrie welche 8 aus LN.. 12.... doppelseitige Wendeschneidplatte, Schneiddurchmesser 2.500 inch mit 90° Anfahrwinkel und 0,750 inch Bohrung gemäß DIN 8030-A, 1,575 inch funktional und, durchgehende Kühlung zum Planfräsen, flachen Schulterfräsen, tiefen Schulterfräsen, Tauchfräsen und flachen Nutfräsen mit einer maximalen Schnitttiefe von 0.394 inch"],"o":"CZ","a":[["P","primary"],["K","primary"],["H","possible"]],"f":[[0,"8185983"],[7,"1"],[14,"ISLN12X"],[16,"250A08R-IS90LN12X-C"],[17,"Inch"],[20,"3603603958210"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"520.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"8.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SLN12X"],[98,"-5.0"],[138,"18.4"],[160,"16.0"],[164,"61.3"],[211,"38.6"],[233,"8.0"],[240,"4.7"],[241,"7.9"],[262,"8.0"],[276,"-19.5"],[279,"10900.0"],[313,"90.0"]],"m":[["dimensions",15],["application",1]],"d":[["2d",24],["3d",25]]},"481008":{"c":"300A07R-IS90LN12X-C","s":["Shoulder mill with double negative geometry which utilises 7 of LN.. 12.... double-sided inserts, cutting diameter 3.000 inch with 90° approach angle and 1.000 inch connection bore according to DIN 8030-A, 1.969 inch functional and, through coolant and differential pitch for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394 inch","Fraise à surfacer-dresser avec géométrie double-négative qui utilise 7 des LN.. 12.... négative réversible plaquettes, diamètre de coupe 3.000 inch avec 90° d'angle d'attaque et 1.000 inch alésage de connexion selon DIN 8030-A, 1.969 inch fonctionnel et, arrosage interne et un pas différentiel pour fraisage de surfaces planes, fraisage d'épaulements peu profonds, fraisage d'épaulements profonds, fraisage en tréflage et fraisage de rainures peu profondes avec une profondeur de coupe maximum de 0.394 inch","Eckfräser mit doppelt negativer Geometrie welche 7 aus LN.. 12.... doppelseitige Wendeschneidplatte, Schneiddurchmesser 3.000 inch mit 90° Anfahrwinkel und 1.000 inch Bohrung gemäß DIN 8030-A, 1,969 inch funktional und, durchgehende Kühlung und ungleicher Teilung zum Planfräsen, flachen Schulterfräsen, tiefen Schulterfräsen, Tauchfräsen und flachen Nutfräsen mit einer maximalen Schnitttiefe von 0.394 inch"],"o":"CZ","a":[["P","primary"],["K","primary"],["H","possible"]],"f":[[0,"8185984"],[7,"1"],[14,"ISLN12X"],[16,"300A07R-IS90LN12X-C"],[17,"Inch"],[20,"3603603958227"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"1070.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"7.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SLN12X"],[98,"-5.0"],[138,"24.5"],[160,"21.0"],[164,"73.5"],[176,"Yes","Ja",null,null],[211,"48.2"],[233,"7.0"],[240,"5.5"],[241,"9.4"],[262,"7.0"],[276,"-19.5"],[279,"9700.0"],[313,"90.0"]],"m":[["dimensions",15],["application",1]],"d":[["2d",26],["3d",27]]},"481009":{"c":"300A10R-IS90LN12X-C","s":["Shoulder mill with double negative geometry which utilises 10 of LN.. 12.... double-sided inserts, cutting diameter 3.000 inch with 90° approach angle and 1.000 inch connection bore according to DIN 8030-A, 1.969 inch functional and, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394 inch","Fraise à surfacer-dresser avec géométrie double-négative qui utilise 10 des LN.. 12.... négative réversible plaquettes, diamètre de coupe 3.000 inch avec 90° d'angle d'attaque et 1.000 inch alésage de connexion selon DIN 8030-A, 1.969 inch fonctionnel et, arrosage interne pour fraisage de surfaces planes, fraisage d'épaulements peu profonds, fraisage d'épaulements profonds, fraisage en tréflage et fraisage de rainures peu profondes avec une profondeur de coupe maximum de 0.394 inch","Eckfräser mit doppelt negativer Geometrie welche 10 aus LN.. 12.... doppelseitige Wendeschneidplatte, Schneiddurchmesser 3.000 inch mit 90° Anfahrwinkel und 1.000 inch Bohrung gemäß DIN 8030-A, 1,969 inch funktional und, durchgehende Kühlung zum Planfräsen, flachen Schulterfräsen, tiefen Schulterfräsen, Tauchfräsen und flachen Nutfräsen mit einer maximalen Schnitttiefe von 0.394 inch"],"o":"CZ","a":[["P","primary"],["K","primary"],["H","possible"]],"f":[[0,"8185985"],[7,"1"],[14,"ISLN12X"],[16,"300A10R-IS90LN12X-C"],[17,"Inch"],[20,"3603603958234"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"1060.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"10.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SLN12X"],[98,"-5.0"],[138,"24.5"],[160,"21.0"],[164,"73.5"],[211,"48.2"],[233,"10.0"],[240,"5.5"],[241,"9.4"],[262,"10.0"],[276,"-19.5"],[279,"9700.0"],[313,"90.0"]],"m":[["dimensions",15],["application",1]],"d":[["2d",28],["3d",29]]},"481010":{"c":"400A08R-IS90LN12X-C","s":["Shoulder mill with double negative geometry which utilises 8 of LN.. 12.... double-sided inserts, cutting diameter 4.000 inch with 90° approach angle and 1.500 inch connection bore according to DIN 8030-A, 1.969 inch functional and, through coolant and differential pitch for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394 inch","Fraise à surfacer-dresser avec géométrie double-négative qui utilise 8 des LN.. 12.... négative réversible plaquettes, diamètre de coupe 4.000 inch avec 90° d'angle d'attaque et 1.500 inch alésage de connexion selon DIN 8030-A, 1.969 inch fonctionnel et, arrosage interne et un pas différentiel pour fraisage de surfaces planes, fraisage d'épaulements peu profonds, fraisage d'épaulements profonds, fraisage en tréflage et fraisage de rainures peu profondes avec une profondeur de coupe maximum de 0.394 inch","Eckfräser mit doppelt negativer Geometrie welche 8 aus LN.. 12.... doppelseitige Wendeschneidplatte, Schneiddurchmesser 4.000 inch mit 90° Anfahrwinkel und 1,500 inch Bohrung gemäß DIN 8030-A, 1,969 inch funktional und, durchgehende Kühlung und ungleicher Teilung zum Planfräsen, flachen Schulterfräsen, tiefen Schulterfräsen, Tauchfräsen und flachen Nutfräsen mit einer maximalen Schnitttiefe von 0.394 inch"],"o":"CZ","a":[["P","primary"],["K","primary"],["H","possible"]],"f":[[0,"8185986"],[7,"1"],[14,"ISLN12X"],[16,"400A08R-IS90LN12X-C"],[17,"Inch"],[20,"3603603958241"],[21,"220.0"],[22,"222.0"],[23,"85.0"],[24,"2030.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"8.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SLN12X"],[98,"-5.0"],[138,"36.8"],[160,"36.0"],[164,"98.0"],[176,"Yes","Ja",null,null],[211,"48.2"],[233,"8.0"],[240,"9.4"],[241,"15.5"],[262,"8.0"],[276,"-17.5"],[279,"8700.0"],[313,"90.0"]],"m":[["dimensions",15],["application",1]],"d":[["2d",30],["3d",31]]},"481011":{"c":"500A12R-IS90LN12X-C","s":["Shoulder mill with double negative geometry which utilises 12 of LN.. 12.... double-sided inserts, cutting diameter 5.000 inch with 90° approach angle and 1.500 inch connection bore according to DIN 8030-A, 2.480 inch functional and, through coolant and differential pitch for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394 inch","Fraise à surfacer-dresser avec géométrie double-négative qui utilise 12 des LN.. 12.... négative réversible plaquettes, diamètre de coupe 5.000 inch avec 90° d'angle d'attaque et 1.500 inch alésage de connexion selon DIN 8030-A, 2.480 inch fonctionnel et, arrosage interne et un pas différentiel pour fraisage de surfaces planes, fraisage d'épaulements peu profonds, fraisage d'épaulements profonds, fraisage en tréflage et fraisage de rainures peu profondes avec une profondeur de coupe maximum de 0.394 inch","Eckfräser mit doppelt negativer Geometrie welche 12 aus LN.. 12.... doppelseitige Wendeschneidplatte, Schneiddurchmesser 5.000 inch mit 90° Anfahrwinkel und 1,500 inch Bohrung gemäß DIN 8030-A, 2,480 inch funktional und, durchgehende Kühlung und ungleicher Teilung zum Planfräsen, flachen Schulterfräsen, tiefen Schulterfräsen, Tauchfräsen und flachen Nutfräsen mit einer maximalen Schnitttiefe von 0.394 inch"],"o":"CZ","a":[["P","primary"],["K","primary"],["H","possible"]],"f":[[0,"8185987"],[7,"1"],[14,"ISLN12X"],[16,"500A12R-IS90LN12X-C"],[17,"Inch"],[20,"3603603958258"],[21,"220.0"],[22,"222.0"],[23,"85.0"],[24,"3.64"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"12.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SLN12X"],[98,"-5.0"],[138,"36.8"],[160,"36.0"],[164,"122.5"],[176,"Yes","Ja",null,null],[211,"60.8"],[233,"12.0"],[240,"9.4"],[241,"15.5"],[262,"12.0"],[276,"-17.5"],[279,"7800.0"],[313,"90.0"]],"m":[["dimensions",15],["application",1]],"d":[["2d",32],["3d",33]]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Bestelcode (DP)	100A2R165W100-ISLN12X-C, 125A3R165W125-ISLN12X-C, 150A4R200W125-ISLN12X-C, 100A2R315C100-ISLN12X-C, 125A3R355C125-ISLN12X-C, 150A4R200C125-ISLN12X-C, 150A04R-IS90LN12X-C, 200A05R-IS90LN12X-C, 200A06R-IS90LN12X-C, 250A06R-IS90LN12X-C, 250A08R-IS90LN12X-C, 300A07R-IS90LN12X-C, 300A10R-IS90LN12X-C, 400A08R-IS90LN12X-C, 500A12R-IS90LN12X-C
Schacht (DP)	Cylindrical shank DIN 1835A, Shell mill DIN 8030 A, Weldon shank DIN 1835B
