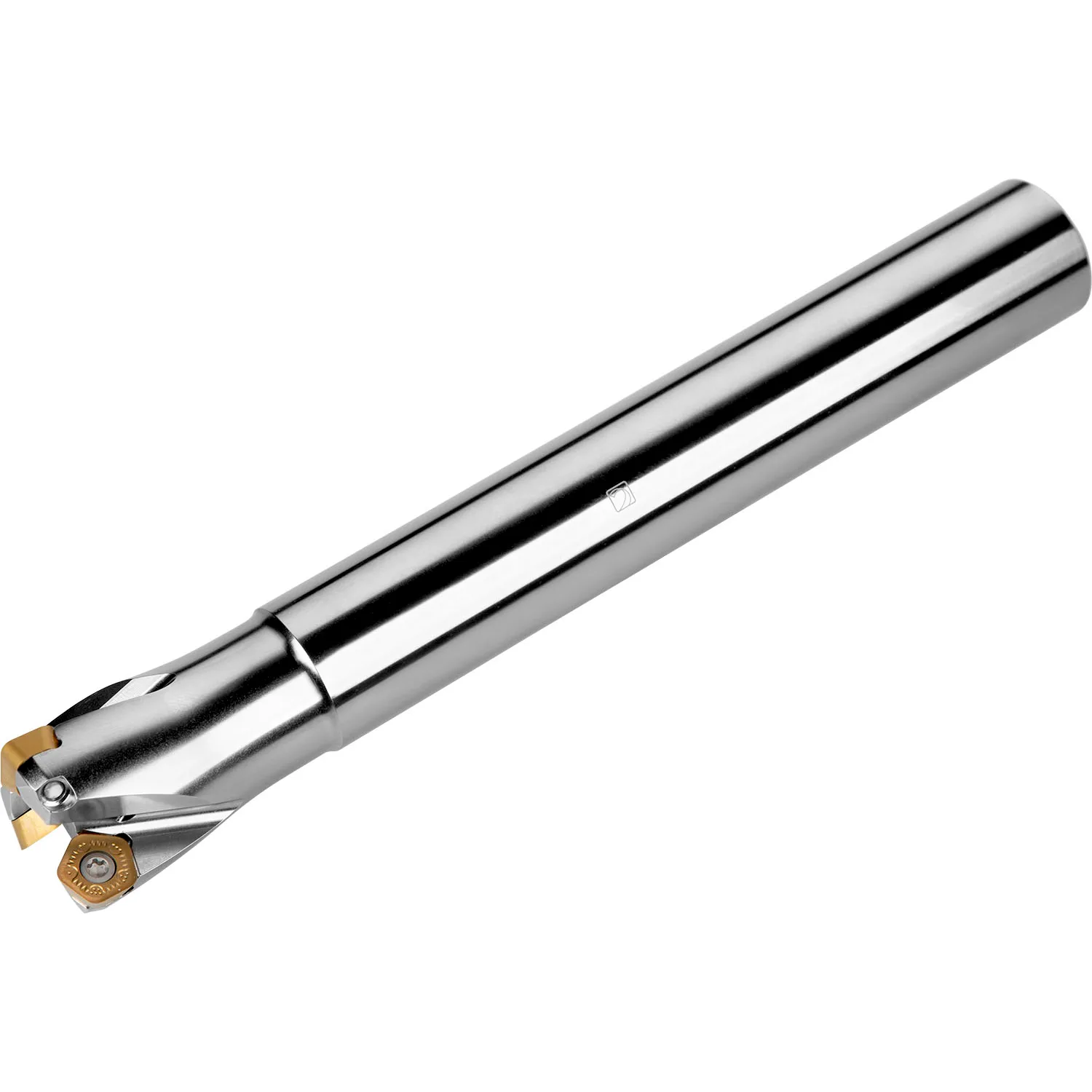

ISPD09 Opsteekfrees - hoge voedingssnelheden

Name: ISPD09 Opsteekfrees - hoge voedingssnelheden
SKU: 125E2R236C125-ISPD09-C
Price: 322.67 EUR
Availability: InStock

PRAMET Tsjechië

322,67 €

excl. BTW

Productinformatie

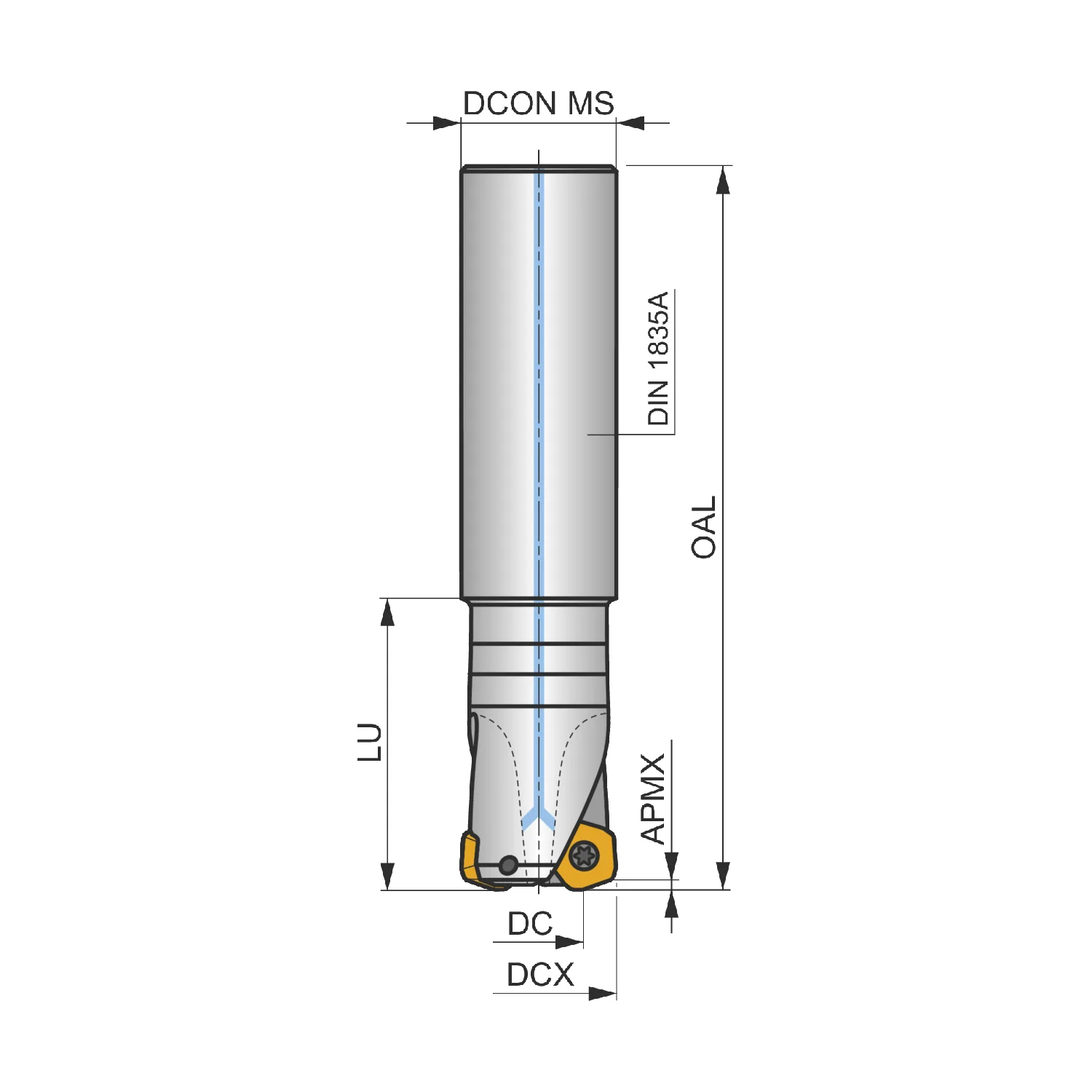

Hogevoedingsfrees met positief/negatieve geometrie die gebruikmaakt van 2 PD.X 0905ZE.., PD.. 09.... of PD.. 09.... enkelzijdige wisselplaten, snijdiameter 1.250 inch met een aanloophoek van 19° en een parallelle schacht van 1.250 inch volgens DIN 1835A, functionele lengte 2.362 inch en totale lengte 9.843 inch, met inwendige koeling voor vlakfrezen met een maximale snedediepte van .079 inch

Bestelcode (DP)
Schacht (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/ISPD09_A_CSP_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/SPD09_OP.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/125E2R236C125-ISPD09-C_6792981_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/125E2R236C125-ISPD09-C_6792981_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/150E3R236C125-ISPD09-C_6792949_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/150E3R236C125-ISPD09-C_6792949_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/ISPD09_SA_CSP_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/200A04R-IS19PD09-C_6792982_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/200A04R-IS19PD09-C_6792982_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/250A05R-IS19PD09-C_6792980_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/250A05R-IS19PD09-C_6792980_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/300A05R-IS19PD09-C_6792983_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/300A05R-IS19PD09-C_6792983_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/400A06R-IS19PD09-C_6792984_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/400A06R-IS19PD09-C_6792984_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/400A08R-IS19PD09-C_6792985_3D.STP"],"p":{"481053":{"c":"125E2R236C125-ISPD09-C","s":["High feed cutter with positve/negative geometry which utilises 2 of PD.X 0905ZE.., PD.. 09.... or PD.. 09.... single-sided inserts, cutting diameter 1.250 inch with 19° approach angle and 1.250 inch parallel shank according to DIN 1835A, 2.362 inch functional and 9.843 inch overall length, through coolant for face milling with a maximum depth of cut of .079 inch","Fraise grande avance (HF) avec géométrie positive/négative qui utilise 2 des PD.X 0905ZE.., PD.. 09.... ou PD.. 09.... positive plaquettes, diamètre de coupe 1.250 inch avec 19° d'angle d'attaque et 1.250 inch queue cylindrique selon DIN 1835A, 2.362 inch fonctionnel et 9.843 inch longueur totale, arrosage interne pour fraisage de surfaces planes avec une profondeur de coupe maximum de .079 inch","Hochvorschubfräser mit positiver/negativer Geometrie zum spannen von 2 Stück PD.X 0905ZE.., PD.. 09.... oder PD.. 09.... einseitigen Wendeschneidplatten, Schnittdurchmesser 1.250'' mit 19° Anstellwinkel und 1.250'' Zylinderschaft gemäß DIN 1835A, 2.362'' Funktionslänge 9.843'' Gesamtlänge, Kühlkanalbohrung zum Planfräsen mit einer maximalen Schnitttiefe von .079''"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["S","primary"],["H","primary"]],"f":[[0,"6792981"],[7,"1"],[14,"ISPD09"],[16,"125E2R236C125-ISPD09-C"],[17,"Inch"],[20,"3603602988096"],[21,"55.0"],[22,"320.0"],[23,"55.0"],[24,"1419.0"],[34,"Cylindrical shank DIN 1835A",null,"Queue cylindrique DIN 1835 A","DIN 1835A – Zylindrischer Schaft"],[37,"2.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SPD09"],[98,"10.0"],[138,"31.8"],[164,"18.4"],[166,"31.8"],[233,"2.0"],[260,"250.0"],[262,"2.0"],[276,"-24.0"],[279,"13100.0"],[313,"19.0"],[318,"59.99"]],"m":[["dimensions",0],["application",1]],"d":[["2d",2],["3d",3]]},"481054":{"c":"150E3R236C125-ISPD09-C","s":["High feed cutter with positve/negative geometry which utilises 3 of PD.X 0905ZE.., PD.. 09.... or PD.. 09.... single-sided inserts, cutting diameter 1.500 inch with 19° approach angle and 1.250 inch parallel shank according to DIN 1835A, 2.362 inch functional and 9.843 inch overall length, through coolant for face milling with a maximum depth of cut of .079 inch","Fraise grande avance (HF) avec géométrie positive/négative qui utilise 3 des PD.X 0905ZE.., PD.. 09.... ou PD.. 09.... positive plaquettes, diamètre de coupe 1.500 inch avec 19° d'angle d'attaque et 1.250 inch queue cylindrique selon DIN 1835A, 2.362 inch fonctionnel et 9.843 inch longueur totale, arrosage interne pour fraisage de surfaces planes avec une profondeur de coupe maximum de .079 inch","Hochvorschubfräser mit positiver/negativer Geometrie zum spannen von 3 Stück PD.X 0905ZE.., PD.. 09.... oder PD.. 09.... einseitigen Wendeschneidplatten, Schnittdurchmesser 1.500'' mit 19° Anstellwinkel und 1.250'' Zylinderschaft gemäß DIN 1835A, 2.362'' Funktionslänge 9.843'' Gesamtlänge, Kühlkanalbohrung zum Planfräsen mit einer maximalen Schnitttiefe von .079''"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["S","primary"],["H","primary"]],"f":[[0,"6792949"],[7,"1"],[14,"ISPD09"],[16,"150E3R236C125-ISPD09-C"],[17,"Inch"],[20,"3603602988072"],[21,"55.0"],[22,"320.0"],[23,"55.0"],[24,"1501.0"],[34,"Cylindrical shank DIN 1835A",null,"Queue cylindrique DIN 1835 A","DIN 1835A – Zylindrischer Schaft"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SPD09"],[98,"10.0"],[138,"31.8"],[164,"25.5"],[166,"38.1"],[233,"3.0"],[260,"250.0"],[262,"3.0"],[276,"-11.0"],[279,"11700.0"],[313,"19.0"],[318,"59.99"]],"m":[["dimensions",0],["application",1]],"d":[["2d",4],["3d",5]]},"481055":{"c":"200A04R-IS19PD09-C","s":["High feed cutter with positve/negative geometry which utilises 4 of PD.X 09, PD.. 09.. or PD.. 09.. single-sided inserts, cutting diameter 2.000 inch with 19° approach angle and .750 inch connection bore according to DIN 8030-A, 1.575 inch protrusion length, through coolant for face milling with a maximum depth of cut of .079 inch","Fraise grande avance (HF) avec géométrie positive/négative qui utilise 4 des PD.X 09, PD.. 09.. ou PD.. 09.. positive plaquettes, diamètre de coupe 2.000 inch avec 19° d'angle d'attaque et .750 inch alésage de connexion selon DIN 8030-A, 1.575 inch longueur utile, arrosage interne pour fraisage de surfaces planes avec une profondeur de coupe maximum de .079 inch","Hochvorschubfräser mit positiver/negativer Geometrie zum spannen von 4 Stück PD.X 09, PD.. 09.. oder PD.. 09.. einseitigen Wendeschneidplatten, Schnittdurchmesser 2.000'' mit 19° Anstellwinkel und .750'' Verbindungsbohrung gemäß DIN 8030-A, 1.575'' Überstandslänge, Kühlkanalbohrung zum Planfräsen mit einer maximalen Schnitttiefe von .079''"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["S","primary"],["H","primary"]],"f":[[0,"6792982"],[7,"1"],[14,"ISPD09"],[16,"200A04R-IS19PD09-C"],[17,"Inch"],[20,"3603602988102"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"227.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"4.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SPD09"],[98,"10.0"],[138,"19.1"],[160,"16.0"],[164,"36.4"],[166,"50.8"],[211,"40.01"],[233,"4.0"],[262,"4.0"],[276,"-3.0"],[279,"10500.0"],[313,"19.0"]],"m":[["dimensions",6],["application",1]],"d":[["2d",7],["3d",8]]},"481056":{"c":"250A05R-IS19PD09-C","s":["High feed cutter with positve/negative geometry which utilises 5 of PD.X 09, PD.. 09.. or PD.. 09.. single-sided inserts, cutting diameter 2.500 inch with 19° approach angle and .750 inch connection bore according to DIN 8030-A, 1.575 inch protrusion length, through coolant for face milling with a maximum depth of cut of .079 inch","Fraise grande avance (HF) avec géométrie positive/négative qui utilise 5 des PD.X 09, PD.. 09.. ou PD.. 09.. positive plaquettes, diamètre de coupe 2.500 inch avec 19° d'angle d'attaque et .750 inch alésage de connexion selon DIN 8030-A, 1.575 inch longueur utile, arrosage interne pour fraisage de surfaces planes avec une profondeur de coupe maximum de .079 inch","Hochvorschubfräser mit positiver/negativer Geometrie zum spannen von 5 Stück PD.X 09, PD.. 09.. oder PD.. 09.. einseitigen Wendeschneidplatten, Schnittdurchmesser 2.500'' mit 19° Anstellwinkel und .750'' Verbindungsbohrung gemäß DIN 8030-A, 1.575'' Überstandslänge, Kühlkanalbohrung zum Planfräsen mit einer maximalen Schnitttiefe von .079''"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["S","primary"],["H","primary"]],"f":[[0,"6792980"],[7,"1"],[14,"ISPD09"],[16,"250A05R-IS19PD09-C"],[17,"Inch"],[20,"3603602988089"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"308.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"5.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SPD09"],[98,"10.0"],[138,"19.1"],[160,"16.0"],[164,"49.0"],[166,"63.5"],[211,"40.01"],[233,"5.0"],[262,"5.0"],[276,"-1.0"],[279,"9400.0"],[313,"19.0"]],"m":[["dimensions",6],["application",1]],"d":[["2d",9],["3d",10]]},"481057":{"c":"300A05R-IS19PD09-C","s":["High feed cutter with positve/negative geometry which utilises 5 of PD.X 09, PD.. 09.. or PD.. 09.. single-sided inserts, cutting diameter 3.000 inch with 19° approach angle and 1.000 inch connection bore according to DIN 8030-A, 1.969 inch protrusion length, through coolant for face milling with a maximum depth of cut of .079 inch","Fraise grande avance (HF) avec géométrie positive/négative qui utilise 5 des PD.X 09, PD.. 09.. ou PD.. 09.. positive plaquettes, diamètre de coupe 3.000 inch avec 19° d'angle d'attaque et 1.000 inch alésage de connexion selon DIN 8030-A, 1.969 inch longueur utile, arrosage interne pour fraisage de surfaces planes avec une profondeur de coupe maximum de .079 inch","Hochvorschubfräser mit positiver/negativer Geometrie zum spannen von 5 Stück PD.X 09, PD.. 09.. oder PD.. 09.. einseitigen Wendeschneidplatten, Schnittdurchmesser 3.000'' mit 19° Anstellwinkel und 1.000'' Verbindungsbohrung gemäß DIN 8030-A, 1.969'' Überstandslänge, Kühlkanalbohrung zum Planfräsen mit einer maximalen Schnitttiefe von .079''"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["S","primary"],["H","primary"]],"f":[[0,"6792983"],[7,"1"],[14,"ISPD09"],[16,"300A05R-IS19PD09-C"],[17,"Inch"],[20,"3603602988119"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"830.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"5.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SPD09"],[98,"10.0"],[138,"25.4"],[160,"21.0"],[164,"61.8"],[166,"76.2"],[211,"50.01"],[233,"5.0"],[262,"5.0"],[276,"-1.0"],[279,"8300.0"],[313,"19.0"]],"m":[["dimensions",6],["application",1]],"d":[["2d",11],["3d",12]]},"481058":{"c":"400A06R-IS19PD09-C","s":["High feed cutter with positve/negative geometry which utilises 6 of PD.X 09, PD.. 09.. or PD.. 09.. single-sided inserts, cutting diameter 4.000 inch with 19° approach angle and 1.500 inch connection bore according to DIN 8030-A, 1.969 inch protrusion length, through coolant for face milling with a maximum depth of cut of .079 inch","Fraise grande avance (HF) avec géométrie positive/négative qui utilise 6 des PD.X 09, PD.. 09.. ou PD.. 09.. positive plaquettes, diamètre de coupe 4.000 inch avec 19° d'angle d'attaque et 1.500 inch alésage de connexion selon DIN 8030-A, 1.969 inch longueur utile, arrosage interne pour fraisage de surfaces planes avec une profondeur de coupe maximum de .079 inch","Hochvorschubfräser mit positiver/negativer Geometrie zum spannen von 6 Stück PD.X 09, PD.. 09.. oder PD.. 09.. einseitigen Wendeschneidplatten, Schnittdurchmesser 4.000'' mit 19° Anstellwinkel und 1.500'' Verbindungsbohrung gemäß DIN 8030-A, 1.969'' Überstandslänge, Kühlkanalbohrung zum Planfräsen mit einer maximalen Schnitttiefe von .079''"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["S","primary"],["H","primary"]],"f":[[0,"6792984"],[7,"1"],[14,"ISPD09"],[16,"400A06R-IS19PD09-C"],[17,"Inch"],[20,"3603602988126"],[21,"220.0"],[22,"222.0"],[23,"85.0"],[24,"1401.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"6.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SPD09"],[98,"10.0"],[138,"38.1"],[160,"36.0"],[164,"87.1"],[166,"101.6"],[211,"50.01"],[233,"6.0"],[262,"6.0"],[276,"-1.0"],[279,"7400.0"],[313,"19.0"]],"m":[["dimensions",6],["application",1]],"d":[["2d",13],["3d",14]]},"481059":{"c":"400A08R-IS19PD09-C","s":["High feed cutter with positve/negative geometry which utilises 8 of PD.X 09, PD.. 09.. or PD.. 09.. single-sided inserts, cutting diameter 4.000 inch with 19° approach angle and 1.500 inch connection bore according to DIN 8030-A, 1.969 inch protrusion length, through coolant for face milling with a maximum depth of cut of .079 inch","Fraise grande avance (HF) avec géométrie positive/négative qui utilise 8 des PD.X 09, PD.. 09.. ou PD.. 09.. positive plaquettes, diamètre de coupe 4.000 inch avec 19° d'angle d'attaque et 1.500 inch alésage de connexion selon DIN 8030-A, 1.969 inch longueur utile, arrosage interne pour fraisage de surfaces planes avec une profondeur de coupe maximum de .079 inch","Hochvorschubfräser mit positiver/negativer Geometrie zum spannen von 8 Stück PD.X 09, PD.. 09.. oder PD.. 09.. einseitigen Wendeschneidplatten, Schnittdurchmesser 4.000'' mit 19° Anstellwinkel und 1.500'' Verbindungsbohrung gemäß DIN 8030-A, 1.969'' Überstandslänge, Kühlkanalbohrung zum Planfräsen mit einer maximalen Schnitttiefe von .079''"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["S","primary"],["H","primary"]],"f":[[0,"6792985"],[7,"1"],[14,"ISPD09"],[16,"400A08R-IS19PD09-C"],[17,"Inch"],[20,"3603602988133"],[21,"220.0"],[22,"222.0"],[23,"85.0"],[24,"1379.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"8.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SPD09"],[98,"10.0"],[138,"38.1"],[160,"36.0"],[164,"87.1"],[166,"101.6"],[211,"50.01"],[233,"8.0"],[262,"8.0"],[276,"-1.0"],[279,"7400.0"],[313,"19.0"]],"m":[["dimensions",6],["application",1]],"d":[["3d",15]]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Bestelcode (DP)	125E2R236C125-ISPD09-C, 150E3R236C125-ISPD09-C, 200A04R-IS19PD09-C, 250A05R-IS19PD09-C, 300A05R-IS19PD09-C, 400A06R-IS19PD09-C, 400A08R-IS19PD09-C
Schacht (DP)	Cylindrical shank DIN 1835A, Shell mill DIN 8030 A
