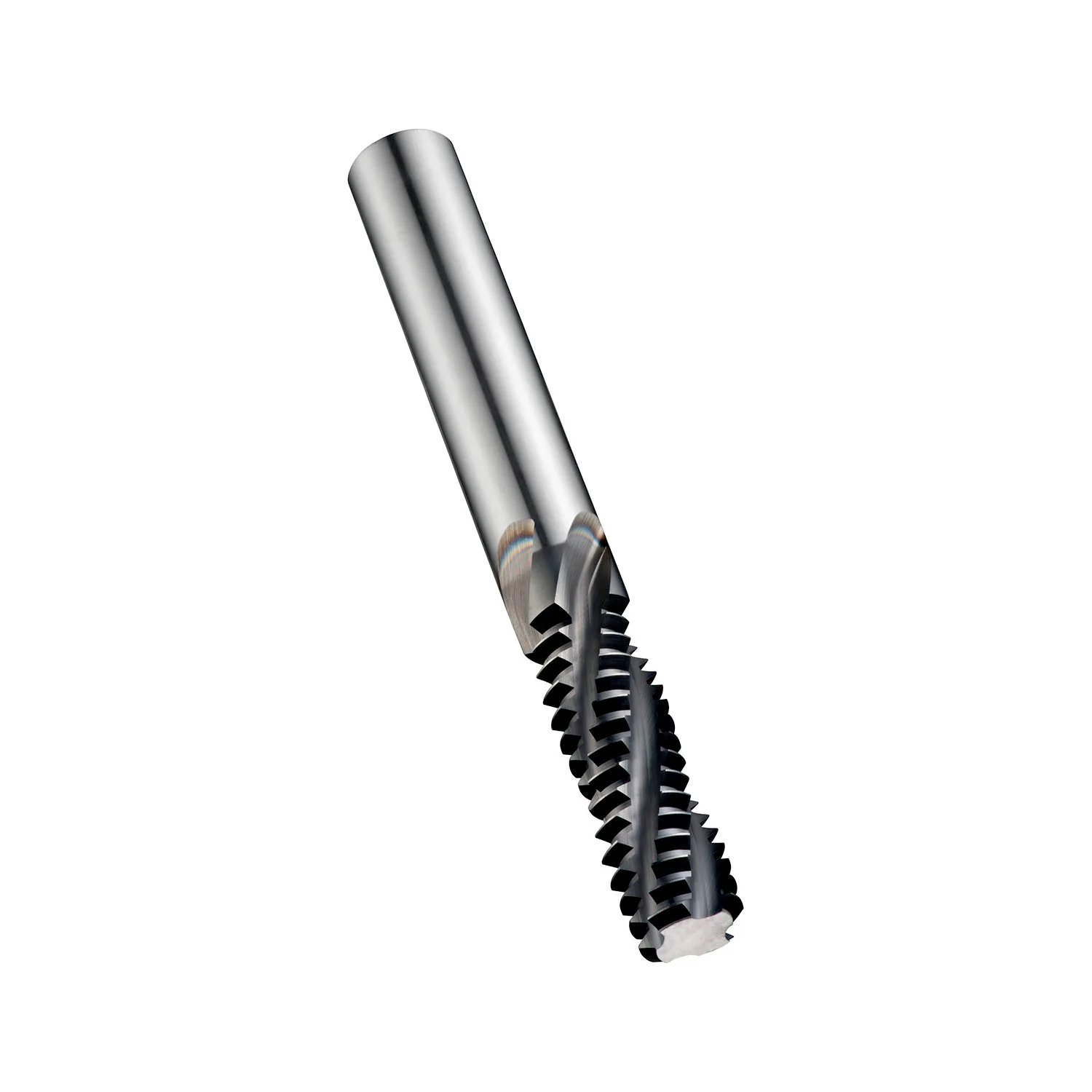

J210 VHM M Draadfrees met 27° spiraalhoek

Name: J210 VHM M Draadfrees met 27° spiraalhoek (4,5 mm)
SKU: J2104.5X1.0
Price: 115.5 EUR
Availability: InStock

DORMER Duitsland

115,50 €

excl. BTW

Productinformatie

Universeel hoogperformant gereedschap voor het bewerken van dezelfde of grotere diameters dan de TDZ met dezelfde spoed. Links- of rechtshandig, voor doorlopende gaten of blinde gaten bijna tot op de bodem. Alcrona Pro gecoat voor het beste bewerkingsresultaat in een breed scala aan materialen en 27° helix voor een vloeiendere snijwerking.

Draadstandaard
Draadstandaard
Diameter (DC)
Coating (DP)
Schacht (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/J210_DIM.png"],"p":{"470261":{"c":"J2104.5X1.0","s":["Thread milling cutter, for ISO-Metric thread ≥ M6 with 1.00 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 4.5 mm cutting diameter and 6 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 13 mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric thread ≥ M6 with 1.00 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 4.5 mm cutting diameter and 6 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 13 mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Gewinde ≥ M6 mit 1.00 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 3 Schneiden, 4.5 mm Schneidendurchmesser und 6 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 27° Helixwinkel zum fräsen von maximal 13 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821302"],[7,"1"],[14,"J210"],[16,"J2104.5X1.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688809"],[21,"17.0"],[22,"90.0"],[23,"17.0"],[24,"17.8"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"2"],[37,"3.0"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"27"],[50,"Right","Rechts","A droite","Rechts"],[138,"6.0"],[164,"4.5"],[181,"13.0"],[260,"57.0"],[300,"M6"],[302,"1.0"]],"m":[["dimensions",0]],"d":[],"x":[971629]},"470262":{"c":"J2106.0X1.25","s":["Thread milling cutter, for ISO-Metric thread ≥ M8 with 1.25 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 6 mm cutting diameter and 6 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 17.5 mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric thread ≥ M8 with 1.25 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 6 mm cutting diameter and 6 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 17.5 mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Gewinde ≥ M8 mit 1.25 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 3 Schneiden, 6 mm Schneidendurchmesser und 6 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 27° Helixwinkel zum fräsen von maximal 17.5 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821303"],[7,"1"],[14,"J210"],[16,"J2106.0X1.25"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688816"],[21,"17.0"],[22,"85.0"],[23,"17.0"],[24,"27.5"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"2"],[37,"3.0"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"27"],[50,"Right","Rechts","A droite","Rechts"],[138,"6.0"],[164,"6.0"],[181,"17.5"],[260,"65.0"],[300,"M8"],[302,"1.25"]],"m":[["dimensions",0]],"d":[],"x":[971630]},"470263":{"c":"J2107.5X1.5","s":["Thread milling cutter, for ISO-Metric thread ≥ M10 with 1.50 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 7.5 mm cutting diameter and 8 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 21 mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric thread ≥ M10 with 1.50 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 7.5 mm cutting diameter and 8 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 21 mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Gewinde ≥ M10 mit 1.50 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 3 Schneiden, 7.5 mm Schneidendurchmesser und 8 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 27° Helixwinkel zum fräsen von maximal 21 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821304"],[7,"1"],[14,"J210"],[16,"J2107.5X1.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688823"],[21,"17.0"],[22,"90.0"],[23,"17.0"],[24,"48.0"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"2"],[37,"3.0"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"27"],[50,"Right","Rechts","A droite","Rechts"],[138,"8.0"],[164,"7.5"],[181,"21.0"],[260,"72.0"],[300,"M10"],[302,"1.5"]],"m":[["dimensions",0]],"d":[],"x":[971631]},"470264":{"c":"J2109.5X1.75","s":["Thread milling cutter, for ISO-Metric thread ≥ M12 with 1.75 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 9.5 mm cutting diameter and 10 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 26.25 mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric thread ≥ M12 with 1.75 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 9.5 mm cutting diameter and 10 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 26.25 mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Gewinde ≥ M12 mit 1.75 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 3 Schneiden, 9.5 mm Schneidendurchmesser und 10 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 27° Helixwinkel zum fräsen von maximal 26.25 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821305"],[7,"1"],[14,"J210"],[16,"J2109.5X1.75"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688830"],[21,"17.0"],[22,"90.0"],[23,"17.0"],[24,"77.0"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"2"],[37,"3.0"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"27"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[164,"9.5"],[181,"26.25"],[260,"80.0"],[300,"M12"],[302,"1.75"]],"m":[["dimensions",0]],"d":[],"x":[971632]},"470265":{"c":"J21010.0X2.0","s":["Thread milling cutter, for ISO-Metric thread ≥ M14 with 2.00 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 10 mm cutting diameter and 10 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 30 mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric thread ≥ M14 with 2.00 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 10 mm cutting diameter and 10 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 30 mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Gewinde ≥ M14 mit 2.00 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 4 Schneiden, 10 mm Schneidendurchmesser und 10 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 27° Helixwinkel zum fräsen von maximal 30 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821300"],[7,"1"],[14,"J210"],[16,"J21010.0X2.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688786"],[21,"17.0"],[22,"90.0"],[23,"17.0"],[24,"81.0"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"2"],[37,"4.0"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"27"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[164,"10.0"],[181,"30.0"],[260,"83.0"],[300,"M14"],[302,"2.0"]],"m":[["dimensions",0]],"d":[],"x":[971633]},"470266":{"c":"J21012.0X2.0","s":["Thread milling cutter, for ISO-Metric thread ≥ M16 with 2.00 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 12 mm cutting diameter and 12 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 34 mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Thread milling cutter, for ISO-Metric thread ≥ M16 with 2.00 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 12 mm cutting diameter and 12 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 34 mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron","Gewindefräser, ISO-Metrisches Gewinde ≥ M16 mit 2.00 mm Steigung, Abmessungen nach Dormer Pramet Standard mit 4 Schneiden, 12 mm Schneidendurchmesser und 12 mm Zylinderschaft gemäß DIN 6535 HA, VHM mit Alcrona Pro Beschichtung und 27° Helixwinkel zum fräsen von maximal 34 mm langer rechter Innengewinde oder linkes Außengewinde in Stahl und Stahlguss, Edelstahl, Gusseisen, Nichteisenmetalle, angelassener gehärteter Stahl"],"o":"DE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6821301"],[7,"1"],[14,"J210"],[16,"J21012.0X2.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760688793"],[21,"20.0"],[22,"98.0"],[23,"20.0"],[24,"130.0"],[31,"HM"],[32,"Work Norm"],[33,"Alcrona Pro",null,"Nitrure de chrome aluminium (processus spécial optimisé)","Aluminium-Chrom-Nitrid (spezieller optimierter Prozess)"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[36,"2"],[37,"4.0"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[43,"Spiral Flute Geometry",null,"Goujure hélicoïdale","Geometrie mit Spiralnuten"],[44,"27"],[50,"Right","Rechts","A droite","Rechts"],[138,"12.0"],[164,"12.0"],[181,"34.0"],[260,"92.0"],[300,"M16"],[302,"2.0"]],"m":[["dimensions",0]],"d":[],"x":[971634]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Diameter (DC)	4,5 mm, 6 mm, 7,5 mm, 9,5 mm, 10 mm, 12 mm
Draadstandaard	M - Metrisch grof, M - Metrisch grof
Coating (DP)	Alcrona Pro
Schacht (DP)	Cylindrical shank DIN 6535 HA
