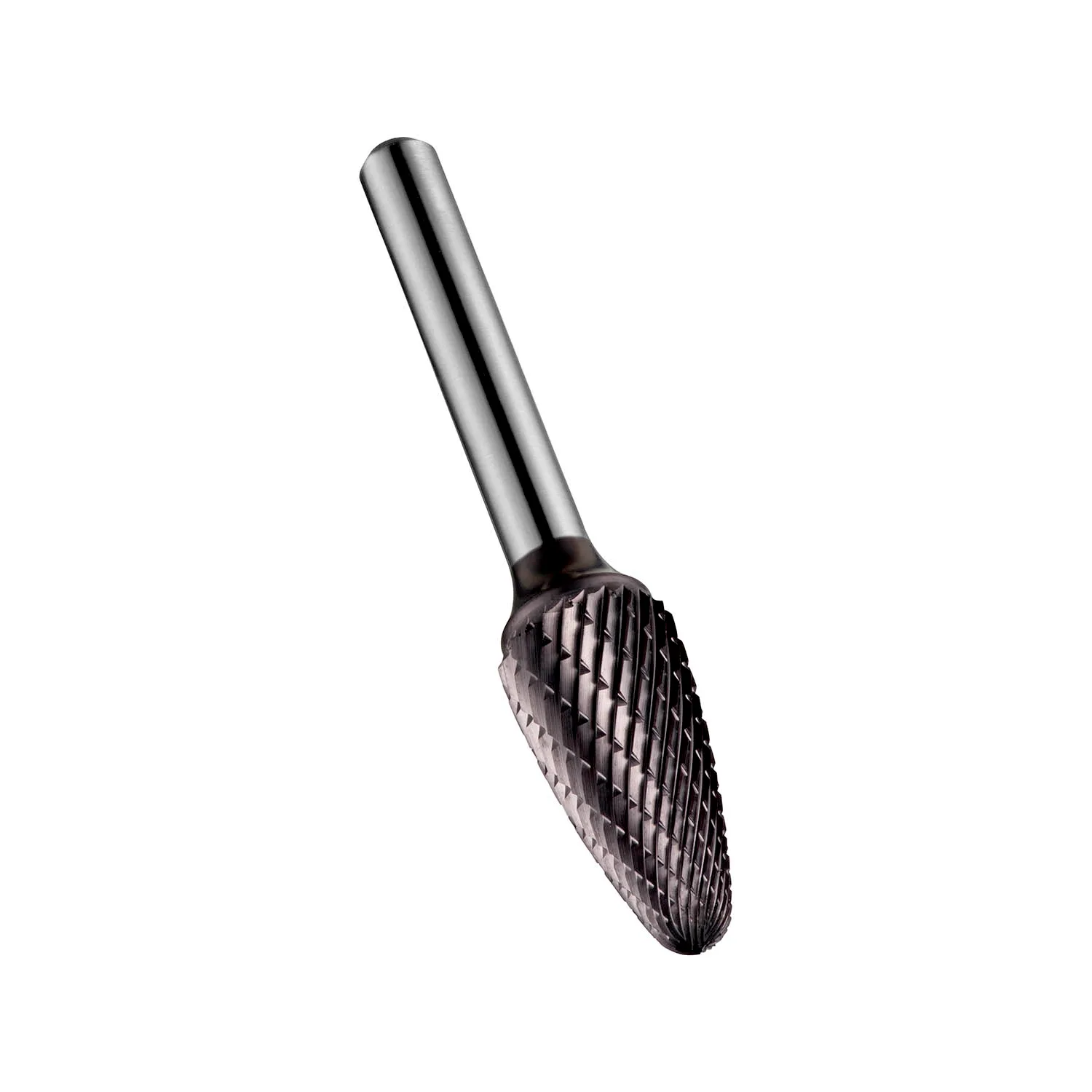

P811C HM Stiftfrees – Ronde boogvorm

Name: P811C HM Stiftfrees – Ronde boogvorm (3 mm)
SKU: P811C3.0X3.0
Price: 9.9 EUR
Availability: InStock

DORMER Ierland

9,90 €

excl. BTW

Productinformatie

DC dubbelsnijdende tandstijl met dicht bij elkaar geplaatste snijkanten voor het contouren onder meerdere hoeken, het afronden van randen en het verspanen op moeilijk bereikbare plaatsen. Uitvoering in volhardmetaal voor snijdiameters tot 6 mm; boven 6 mm hardmetalen kop met taaie, harde stalen schacht. TiALN-coating voor een langere standtijd, verminderde wrijving en verbeterde spaanafvoer.

Diameter (DC)
Coating (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/P811C_DIM.png"],"p":{"471087":{"c":"P811C3.0X3.0","s":["Rounded tree burr (F shape), diameter 3 mm with 14 mm length of cut, 38 mm overall length and 3 mm shank, solid carbide with TiAlN coating, DC double cut flute style with close spaced edges for multi-angle contouring, rounding of edges and cutting into hard to reach areas in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials","Rounded tree burr (F shape), diameter 3 mm with 14 mm length of cut, 38 mm overall length and 3 mm shank, solid carbide with TiAlN coating, DC double cut flute style with close spaced edges for multi-angle contouring, rounding of edges and cutting into hard to reach areas in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials","Abgerundeter Tannen-Frässtift (Form F), Durchmesser 3 mm mit 14 mm Schnittlänge, 38 mm Gesamtlänge und 3 mm Schaft, Vollhartmetall mit TiAlN Beschichtung, DC doppelseitigem Schnitt mit enger Zahnteilung zum bearbeiten von Konturen mit mehreren Winkeln, Abrunden von Kanten und Schneiden in schwer zugängliche Bereichen in Stahl und Stahlguss, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen, Hochwarmfeste Legierungen, gehärtete Materialien"],"o":"IE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6814149"],[7,"1"],[14,"P811C"],[16,"P811C3.0X3.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760687901"],[21,"12.0"],[22,"65.0"],[23,"10.0"],[24,"5.0"],[31,"HM"],[32,"Work Norm"],[33,"TiAlN",null,"Nitrure de titane aluminium","Titan-Aluminiumnitrid-Beschichtung"],[62,"F - Ball Nosed Tree Shape",null,"F - Ogive à bout rond","F - Rundbogen"],[63,"Double Cut Geometry",null,"Géométrie à denture croisée","Geometrie mit Kreuzverzahnung"],[138,"3.0"],[142,"h6"],[164,"3.0"],[260,"38.0"],[318,"14.0"]],"m":[["dimensions",0]],"d":[],"x":[972520]},"471088":{"c":"P811C6.0X6.0","s":["Rounded tree burr (F shape), diameter 6 mm with 18 mm length of cut, 50 mm overall length and 6 mm shank, solid carbide with TiAlN coating, DC double cut flute style with close spaced edges for multi-angle contouring, rounding of edges and cutting into hard to reach areas in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials","Rounded tree burr (F shape), diameter 6 mm with 18 mm length of cut, 50 mm overall length and 6 mm shank, solid carbide with TiAlN coating, DC double cut flute style with close spaced edges for multi-angle contouring, rounding of edges and cutting into hard to reach areas in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials","Abgerundeter Tannen-Frässtift (Form F), Durchmesser 6 mm mit 18 mm Schnittlänge, 50 mm Gesamtlänge und 6 mm Schaft, Vollhartmetall mit TiAlN Beschichtung, DC doppelseitigem Schnitt mit enger Zahnteilung zum bearbeiten von Konturen mit mehreren Winkeln, Abrunden von Kanten und Schneiden in schwer zugängliche Bereichen in Stahl und Stahlguss, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen, Hochwarmfeste Legierungen, gehärtete Materialien"],"o":"IE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6814150"],[7,"1"],[14,"P811C"],[16,"P811C6.0X6.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760687918"],[21,"15.0"],[22,"80.0"],[23,"14.0"],[24,"20.0"],[31,"HM"],[32,"Work Norm"],[33,"TiAlN",null,"Nitrure de titane aluminium","Titan-Aluminiumnitrid-Beschichtung"],[62,"F - Ball Nosed Tree Shape",null,"F - Ogive à bout rond","F - Rundbogen"],[63,"Double Cut Geometry",null,"Géométrie à denture croisée","Geometrie mit Kreuzverzahnung"],[138,"6.0"],[142,"h6"],[164,"6.0"],[260,"50.0"],[318,"18.0"]],"m":[["dimensions",0]],"d":[],"x":[972521]},"471089":{"c":"P811C9.6X6.0","s":["Rounded tree burr (F shape), diameter 9.6 mm with 19 mm length of cut, 64 mm overall length and 6 mm shank, carbide tipped with toughened and hardened steel shank and TiAlN coating, DC double cut flute style with close spaced edges for multi-angle contouring, rounding of edges and cutting into hard to reach areas in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials","Rounded tree burr (F shape), diameter 9.6 mm with 19 mm length of cut, 64 mm overall length and 6 mm shank, carbide tipped with toughened and hardened steel shank and TiAlN coating, DC double cut flute style with close spaced edges for multi-angle contouring, rounding of edges and cutting into hard to reach areas in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials","Abgerundeter Tannen-Frässtift (Form F), Durchmesser 9.6 mm mit 19 mm Schnittlänge, 64 mm Gesamtlänge und 6 mm Schaft, VHM mit gehärtetem Stahlschaft und TiAlN Beschichtung, DC doppelseitigem Schnitt mit enger Zahnteilung zum bearbeiten von Konturen mit mehreren Winkeln, Abrunden von Kanten und Schneiden in schwer zugängliche Bereichen in Stahl und Stahlguss, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen, Hochwarmfeste Legierungen, gehärtete Materialien"],"o":"IE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6814151"],[7,"1"],[14,"P811C"],[16,"P811C9.6X6.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760687925"],[21,"18.0"],[22,"103.0"],[23,"15.0"],[24,"25.9"],[31,"HM"],[32,"Work Norm"],[33,"TiAlN",null,"Nitrure de titane aluminium","Titan-Aluminiumnitrid-Beschichtung"],[62,"F - Ball Nosed Tree Shape",null,"F - Ogive à bout rond","F - Rundbogen"],[63,"Double Cut Geometry",null,"Géométrie à denture croisée","Geometrie mit Kreuzverzahnung"],[138,"6.0"],[142,"h7"],[164,"9.6"],[260,"64.0"],[318,"19.0"]],"m":[["dimensions",0]],"d":[],"x":[972522]},"471090":{"c":"P811C12.7X6.0","s":["Rounded tree burr (F shape), diameter 12.7 mm with 25 mm length of cut, 70 mm overall length and 6 mm shank, carbide tipped with toughened and hardened steel shank and TiAlN coating, DC double cut flute style with close spaced edges for multi-angle contouring, rounding of edges and cutting into hard to reach areas in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials","Rounded tree burr (F shape), diameter 12.7 mm with 25 mm length of cut, 70 mm overall length and 6 mm shank, carbide tipped with toughened and hardened steel shank and TiAlN coating, DC double cut flute style with close spaced edges for multi-angle contouring, rounding of edges and cutting into hard to reach areas in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials","Abgerundeter Tannen-Frässtift (Form F), Durchmesser 12.7 mm mit 25 mm Schnittlänge, 70 mm Gesamtlänge und 6 mm Schaft, VHM mit gehärtetem Stahlschaft und TiAlN Beschichtung, DC doppelseitigem Schnitt mit enger Zahnteilung zum bearbeiten von Konturen mit mehreren Winkeln, Abrunden von Kanten und Schneiden in schwer zugängliche Bereichen in Stahl und Stahlguss, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen, Hochwarmfeste Legierungen, gehärtete Materialien"],"o":"IE","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"],["H","primary"]],"f":[[0,"6814152"],[7,"1"],[14,"P811C"],[16,"P811C12.7X6.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760687932"],[21,"18.0"],[22,"103.0"],[23,"16.0"],[24,"46.7"],[31,"HM"],[32,"Work Norm"],[33,"TiAlN",null,"Nitrure de titane aluminium","Titan-Aluminiumnitrid-Beschichtung"],[62,"F - Ball Nosed Tree Shape",null,"F - Ogive à bout rond","F - Rundbogen"],[63,"Double Cut Geometry",null,"Géométrie à denture croisée","Geometrie mit Kreuzverzahnung"],[138,"6.0"],[142,"h7"],[164,"12.7"],[260,"70.0"],[318,"25.0"]],"m":[["dimensions",0]],"d":[],"x":[972523]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Diameter (DC)	3 mm, 6 mm, 9,6 mm, 12,7 mm
Coating (DP)	TiAlN
