S121 VHM Vingerfrees

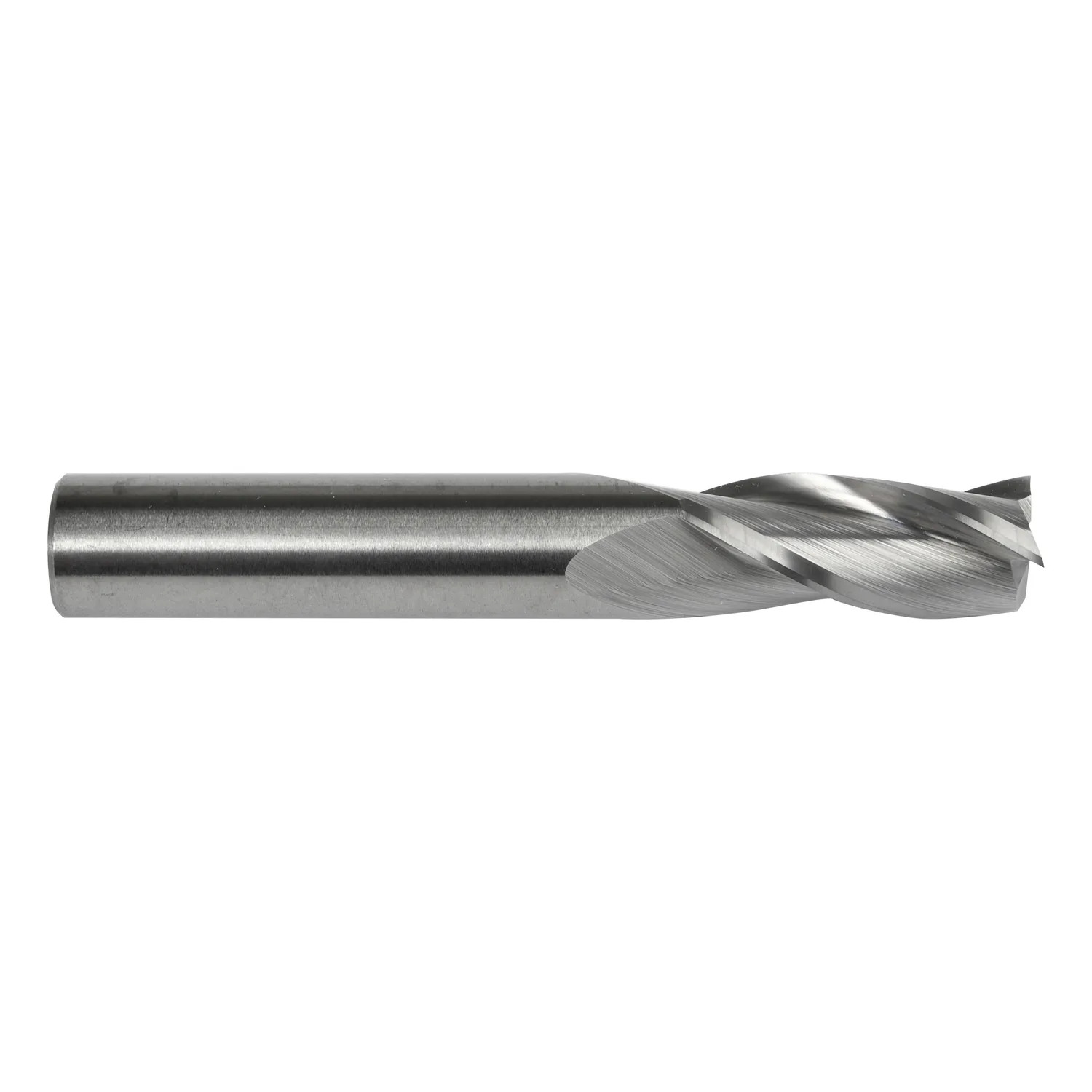

Name: S121 VHM Vingerfrees (1/16")
SKU: S1211/16
Price: 10.05 EUR
Availability: InStock

DORMER Verenigde Staten

10,05 €

excl. BTW

Productinformatie

Standaardlengte, 3-snijder uitvoering met 30° spiraalhoek biedt hoge stijfheid voor frezen. Blanke afwerking, verbetert de spaanafvoer in zachte en non-ferro materialen.

Diameter (DC)
Coating (DP)
Schacht (DP)

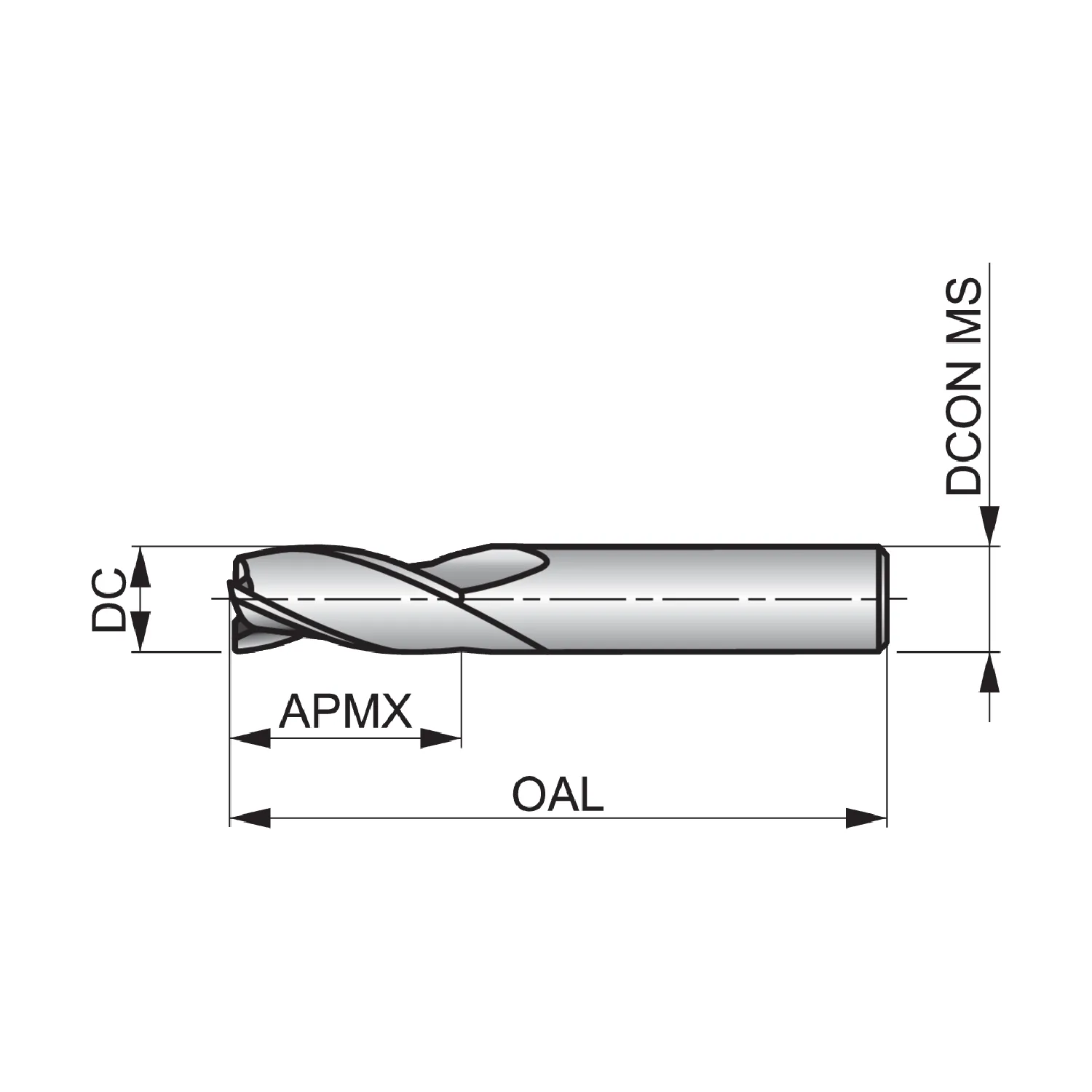

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/S121_DIM.png"],"p":{"474483":{"c":"S1211/16","s":["Regular length end mill with 3 flutes, diameter 1/16 inch with 1/4 inch length of cut and 1.1/2 inch overall length, according to Dormer Pramet standard with a 1/8 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 3 flutes, diameter 1/16 inch with 1/4 inch length of cut and 1.1/2 inch overall length, according to Dormer Pramet standard with a 1/8 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 3 Schneiden, Durchmesser 1/16 inch mit 1/4 inch Schnittlänge und 1.1/2 inch Gesamtlänge, gemäß Dormer Pramet Standard mit einem 1/8 inch Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Nutfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648657"],[7,"1"],[14,"S121"],[16,"S1211/16"],[17,"Inch"],[20,"7320760847046"],[21,"12.0"],[22,"55.0"],[23,"12.0"],[24,"6.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"3.0"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"3.18"],[139,"1/8"],[162,"1/16"],[164,"1.59"],[181,"6.35"],[182,"1/4"],[252,"1.59"],[254,"8.0"],[259,"1.1/2"],[260,"38.1"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976062]},"474484":{"c":"S1213/32","s":["Regular length end mill with 3 flutes, diameter 3/32 inch with 3/8 inch length of cut and 1.1/2 inch overall length, according to Dormer Pramet standard with a 1/8 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 3 flutes, diameter 3/32 inch with 3/8 inch length of cut and 1.1/2 inch overall length, according to Dormer Pramet standard with a 1/8 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 3 Schneiden, Durchmesser 3/32 inch mit 3/8 inch Schnittlänge und 1.1/2 inch Gesamtlänge, gemäß Dormer Pramet Standard mit einem 1/8 inch Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Nutfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648658"],[7,"1"],[14,"S121"],[16,"S1213/32"],[17,"Inch"],[20,"7320760847053"],[21,"12.0"],[22,"55.0"],[23,"12.0"],[24,"7.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"3.0"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"3.18"],[139,"1/8"],[162,"3/32"],[164,"2.38"],[181,"9.53"],[182,"3/8"],[252,"2.38"],[254,"11.18"],[259,"1.1/2"],[260,"38.1"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976063]},"474485":{"c":"S1211/8","s":["Regular length end mill with 3 flutes, diameter 1/8 inch with 1/2 inch length of cut and 1.1/2 inch overall length, according to Dormer Pramet standard with a 1/8 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 3 flutes, diameter 1/8 inch with 1/2 inch length of cut and 1.1/2 inch overall length, according to Dormer Pramet standard with a 1/8 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 3 Schneiden, Durchmesser 1/8 inch mit 1/2 inch Schnittlänge und 1.1/2 inch Gesamtlänge, gemäß Dormer Pramet Standard mit einem 1/8 inch Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Nutfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648659"],[7,"1"],[14,"S121"],[16,"S1211/8"],[17,"Inch"],[20,"7320760847060"],[21,"12.0"],[22,"50.0"],[23,"12.0"],[24,"5.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"3.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"3.18"],[139,"1/8"],[162,"1/8"],[164,"3.18"],[181,"12.7"],[182,"1/2"],[259,"1.1/2"],[260,"38.1"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976064]},"474486":{"c":"S1215/32","s":["Regular length end mill with 3 flutes, diameter 5/32 inch with 9/16 inch length of cut and 2 inch overall length, according to Dormer Pramet standard with a 3/16 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 3 flutes, diameter 5/32 inch with 9/16 inch length of cut and 2 inch overall length, according to Dormer Pramet standard with a 3/16 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 3 Schneiden, Durchmesser 5/32 inch mit 9/16 inch Schnittlänge und 2 inch Gesamtlänge, gemäß Dormer Pramet Standard mit einem 3/16 inch Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Nutfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648660"],[7,"1"],[14,"S121"],[16,"S1215/32"],[17,"Inch"],[20,"7320760847077"],[21,"12.0"],[22,"55.0"],[23,"12.0"],[24,"13.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"3.0"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"4.76"],[139,"3/16"],[162,"5/32"],[164,"3.97"],[181,"14.29"],[182,"9/16"],[252,"3.97"],[254,"15.56"],[259,"2\""],[260,"50.8"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976065]},"474487":{"c":"S1213/16","s":["Regular length end mill with 3 flutes, diameter 3/16 inch with 5/8 inch length of cut and 2 inch overall length, according to Dormer Pramet standard with a 3/16 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 3 flutes, diameter 3/16 inch with 5/8 inch length of cut and 2 inch overall length, according to Dormer Pramet standard with a 3/16 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 3 Schneiden, Durchmesser 3/16 inch mit 5/8 inch Schnittlänge und 2 inch Gesamtlänge, gemäß Dormer Pramet Standard mit einem 3/16 inch Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Nutfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648661"],[7,"1"],[14,"S121"],[16,"S1213/16"],[17,"Inch"],[20,"7320760847084"],[21,"12.0"],[22,"55.0"],[23,"12.0"],[24,"13.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"3.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"4.76"],[139,"3/16"],[162,"3/16"],[164,"4.76"],[181,"15.88"],[182,"5/8"],[259,"2\""],[260,"50.8"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976066]},"474488":{"c":"S1211/4","s":["Regular length end mill with 3 flutes, diameter 1/4 inch with 3/4 inch length of cut and 2.1/2 inch overall length, according to Dormer Pramet standard with a 1/4 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 3 flutes, diameter 1/4 inch with 3/4 inch length of cut and 2.1/2 inch overall length, according to Dormer Pramet standard with a 1/4 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 3 Schneiden, Durchmesser 1/4 inch mit 3/4 inch Schnittlänge und 2.1/2 inch Gesamtlänge, gemäß Dormer Pramet Standard mit einem 1/4 inch Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Nutfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648662"],[7,"1"],[14,"S121"],[16,"S1211/4"],[17,"Inch"],[20,"7320760847091"],[21,"12.0"],[22,"65.0"],[23,"12.0"],[24,"27.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"3.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.35"],[139,"1/4"],[162,"1/4"],[164,"6.35"],[181,"19.05"],[182,"3/4"],[259,"2.1/2"],[260,"63.5"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976067]},"474489":{"c":"S1215/16","s":["Regular length end mill with 3 flutes, diameter 5/16 inch with 7/8 inch length of cut and 2.1/2 inch overall length, according to Dormer Pramet standard with a 5/16 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 3 flutes, diameter 5/16 inch with 7/8 inch length of cut and 2.1/2 inch overall length, according to Dormer Pramet standard with a 5/16 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 3 Schneiden, Durchmesser 5/16 inch mit 7/8 inch Schnittlänge und 2.1/2 inch Gesamtlänge, gemäß Dormer Pramet Standard mit einem 5/16 inch Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Nutfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648663"],[7,"1"],[14,"S121"],[16,"S1215/16"],[17,"Inch"],[20,"7320760847107"],[21,"12.0"],[22,"65.0"],[23,"12.0"],[24,"40.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"3.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"7.94"],[139,"5/16"],[162,"5/16"],[164,"7.94"],[181,"22.23"],[182,"7/8"],[259,"2.1/2"],[260,"63.5"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976068]},"474490":{"c":"S1213/8","s":["Regular length end mill with 3 flutes, diameter 3/8 inch with 7/8 inch length of cut and 2.1/2 inch overall length, according to Dormer Pramet standard with a 3/8 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 3 flutes, diameter 3/8 inch with 7/8 inch length of cut and 2.1/2 inch overall length, according to Dormer Pramet standard with a 3/8 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 3 Schneiden, Durchmesser 3/8 inch mit 7/8 inch Schnittlänge und 2.1/2 inch Gesamtlänge, gemäß Dormer Pramet Standard mit einem 3/8 inch Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Nutfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648664"],[7,"1"],[14,"S121"],[16,"S1213/8"],[17,"Inch"],[20,"7320760847114"],[21,"12.0"],[22,"75.0"],[23,"12.0"],[24,"59.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"3.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"9.53"],[139,"3/8"],[162,"3/8"],[164,"9.53"],[181,"22.23"],[182,"7/8"],[259,"2.1/2"],[260,"63.5"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976069]},"474491":{"c":"S1211/2","s":["Regular length end mill with 3 flutes, diameter 1/2 inch with 1 inch length of cut and 3 inch overall length, according to Dormer Pramet standard with a 1/2 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 3 flutes, diameter 1/2 inch with 1 inch length of cut and 3 inch overall length, according to Dormer Pramet standard with a 1/2 inch plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 3 Schneiden, Durchmesser 1/2 inch mit 1 inch Schnittlänge und 3 inch Gesamtlänge, gemäß Dormer Pramet Standard mit einem 1/2 inch Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Nutfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648665"],[7,"1"],[14,"S121"],[16,"S1211/2"],[17,"Inch"],[20,"7320760847121"],[21,"15.0"],[22,"80.0"],[23,"15.0"],[24,"121.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"3.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"12.7"],[139,"1/2"],[162,"1/2"],[164,"12.7"],[181,"25.4"],[182,"1\""],[259,"3\""],[260,"76.2"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976070]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Diameter (DC)	1/16", 3/32", 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2"
Coating (DP)	Steam Tempered
Schacht (DP)	Cylindrical shank
