Name: S135 VHM Vingerfrees
SKU: S1352.0
Price: 10.56 EUR
Availability: InStock

DORMER Verenigde Staten

10,56 €

excl. BTW

Productinformatie

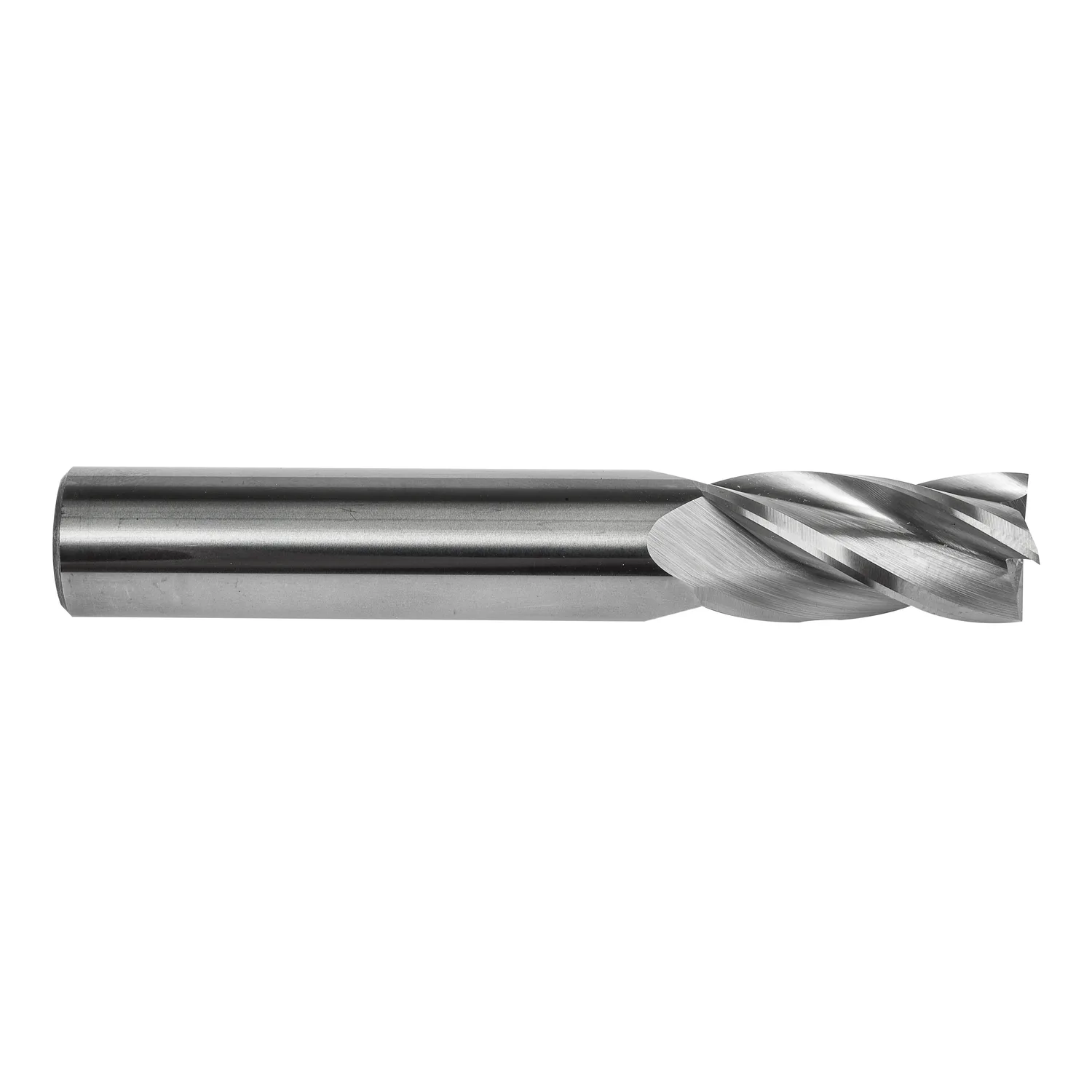

Standaardlengte, 4-snijder uitvoering met 30° spiraalhoek in metrische maten biedt hoge stijfheid voor frezen. Blanke afwerking, verbetert de spaanafvoer in zachte en non-ferro materialen.

Diameter (DC)
Coating (DP)
Schacht (DP)

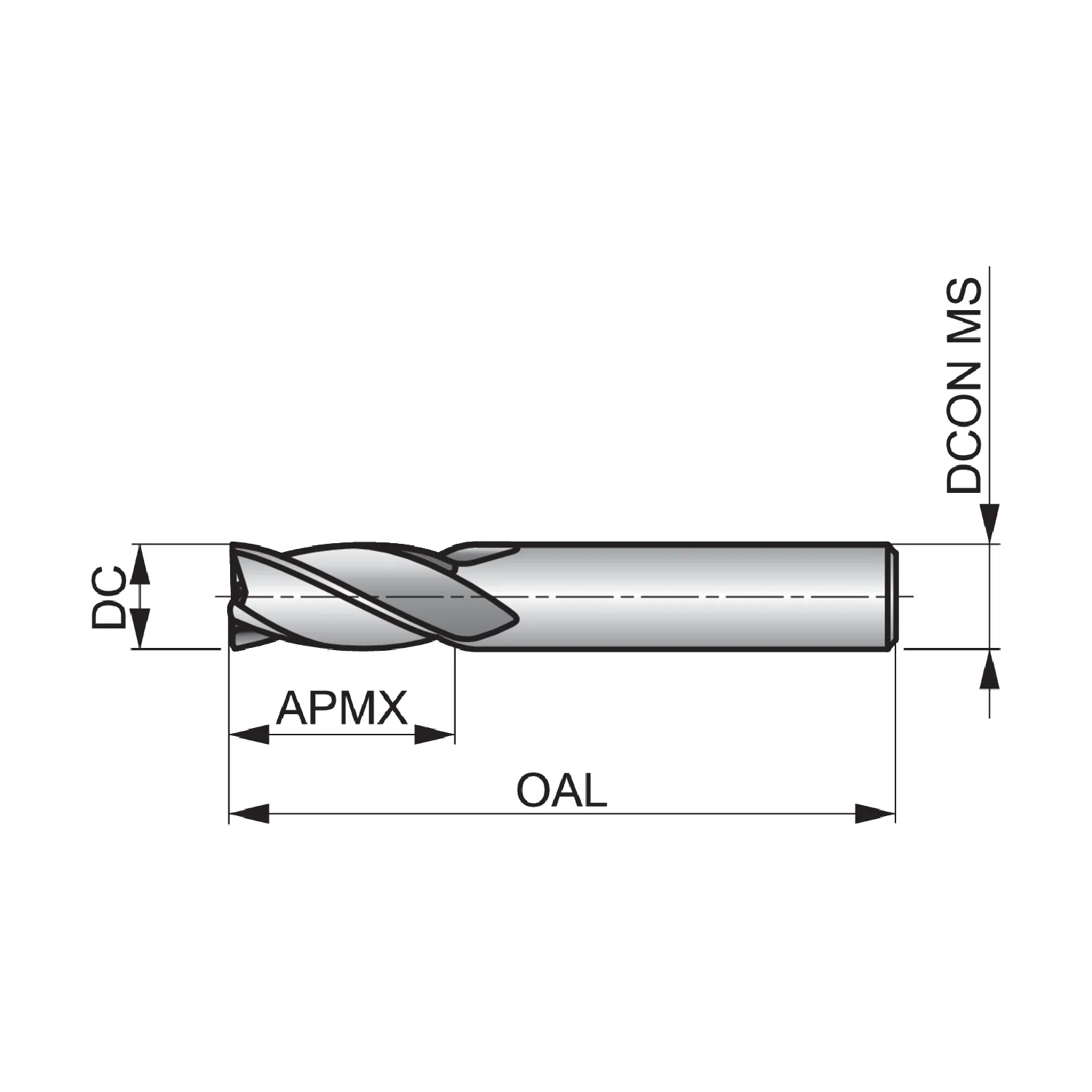

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/S135_DIM.png"],"p":{"474521":{"c":"S1352.0","s":["Regular length end mill with 4 flutes, diameter 2 mm with 6 mm length of cut and 38 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 2 mm with 6 mm length of cut and 38 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 2 mm mit 6 mm Schnittlänge und 38 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 3 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648770"],[7,"1"],[14,"S135"],[16,"S1352.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848173"],[21,"12.0"],[22,"55.0"],[23,"12.0"],[24,"5.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"3.0"],[164,"2.0"],[181,"6.0"],[252,"2.0"],[254,"7.65"],[260,"38.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976106]},"474522":{"c":"S1352.5","s":["Regular length end mill with 4 flutes, diameter 2.5 mm with 7 mm length of cut and 38 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 2.5 mm with 7 mm length of cut and 38 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 2.5 mm mit 7 mm Schnittlänge und 38 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 3 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648771"],[7,"1"],[14,"S135"],[16,"S1352.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848180"],[21,"12.0"],[22,"60.0"],[23,"12.0"],[24,"4.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"3.0"],[164,"2.5"],[181,"7.0"],[252,"2.5"],[254,"8.65"],[260,"38.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976107]},"474523":{"c":"S1353.0","s":["Regular length end mill with 4 flutes, diameter 3 mm with 12 mm length of cut and 38 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 3 mm with 12 mm length of cut and 38 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 3 mm mit 12 mm Schnittlänge und 38 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 3 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648772"],[7,"1"],[14,"S135"],[16,"S1353.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848197"],[21,"12.0"],[22,"55.0"],[23,"12.0"],[24,"4.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"3.0"],[164,"3.0"],[181,"12.0"],[260,"38.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976108]},"474524":{"c":"S1354.0","s":["Regular length end mill with 4 flutes, diameter 4 mm with 14 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 4 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 4 mm with 14 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 4 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 4 mm mit 14 mm Schnittlänge und 50 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 4 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648774"],[7,"1"],[14,"S135"],[16,"S1354.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848210"],[21,"12.0"],[22,"55.0"],[23,"12.0"],[24,"7.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"4.0"],[164,"4.0"],[181,"14.0"],[260,"50.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976109]},"474525":{"c":"S1354.5","s":["Regular length end mill with 4 flutes, diameter 4.5 mm with 14 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 5 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 4.5 mm with 14 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 5 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 4.5 mm mit 14 mm Schnittlänge und 50 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 5 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648775"],[7,"1"],[14,"S135"],[16,"S1354.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848227"],[21,"12.0"],[22,"55.0"],[23,"12.0"],[24,"10.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"5.0"],[164,"4.5"],[181,"14.0"],[252,"4.5"],[254,"15.27"],[260,"50.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976110]},"474526":{"c":"S1355.0","s":["Regular length end mill with 4 flutes, diameter 5 mm with 16 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 5 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 5 mm with 16 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 5 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 5 mm mit 16 mm Schnittlänge und 50 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 5 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648776"],[7,"1"],[14,"S135"],[16,"S1355.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848234"],[21,"12.0"],[22,"55.0"],[23,"12.0"],[24,"14.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"5.0"],[164,"5.0"],[181,"16.0"],[260,"50.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976111]},"474527":{"c":"S1356.0","s":["Regular length end mill with 4 flutes, diameter 6 mm with 19 mm length of cut and 63 mm overall length, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 6 mm with 19 mm length of cut and 63 mm overall length, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 6 mm mit 19 mm Schnittlänge und 63 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 6 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648777"],[7,"1"],[14,"S135"],[16,"S1356.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848241"],[21,"12.0"],[22,"65.0"],[23,"12.0"],[24,"18.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[164,"6.0"],[181,"19.0"],[260,"63.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976112]},"474528":{"c":"S1357.0","s":["Regular length end mill with 4 flutes, diameter 7 mm with 19 mm length of cut and 63 mm overall length, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 7 mm with 19 mm length of cut and 63 mm overall length, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 7 mm mit 19 mm Schnittlänge und 63 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 8 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648778"],[7,"1"],[14,"S135"],[16,"S1357.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848258"],[21,"12.0"],[22,"70.0"],[23,"12.0"],[24,"29.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"8.0"],[164,"7.0"],[181,"19.0"],[252,"7.0"],[254,"21.54"],[260,"63.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976113]},"474529":{"c":"S1358.0","s":["Regular length end mill with 4 flutes, diameter 8 mm with 19 mm length of cut and 63 mm overall length, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 8 mm with 19 mm length of cut and 63 mm overall length, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 8 mm mit 19 mm Schnittlänge und 63 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 8 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648779"],[7,"1"],[14,"S135"],[16,"S1358.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848265"],[21,"12.0"],[22,"65.0"],[23,"12.0"],[24,"30.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"8.0"],[164,"8.0"],[181,"19.0"],[260,"63.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976114]},"474530":{"c":"S1359.0","s":["Regular length end mill with 4 flutes, diameter 9 mm with 22 mm length of cut and 70 mm overall length, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 9 mm with 22 mm length of cut and 70 mm overall length, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 9 mm mit 22 mm Schnittlänge und 70 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 10 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648780"],[7,"1"],[14,"S135"],[16,"S1359.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848272"],[21,"15.0"],[22,"75.0"],[23,"15.0"],[24,"49.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[164,"9.0"],[181,"22.0"],[252,"9.0"],[254,"24.54"],[260,"70.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976115]},"474531":{"c":"S13510.0","s":["Regular length end mill with 4 flutes, diameter 10 mm with 22 mm length of cut and 70 mm overall length, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 10 mm with 22 mm length of cut and 70 mm overall length, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 10 mm mit 22 mm Schnittlänge und 70 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 10 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648781"],[7,"1"],[14,"S135"],[16,"S13510.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848289"],[21,"17.0"],[22,"75.0"],[23,"17.0"],[24,"51.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[164,"10.0"],[181,"22.0"],[260,"70.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976116]},"474532":{"c":"S13511.0","s":["Regular length end mill with 4 flutes, diameter 11 mm with 25 mm length of cut and 70 mm overall length, according to Dormer Pramet standard with a 11 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 11 mm with 25 mm length of cut and 70 mm overall length, according to Dormer Pramet standard with a 11 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 11 mm mit 25 mm Schnittlänge und 70 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 11 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648782"],[7,"1"],[14,"S135"],[16,"S13511.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848296"],[21,"15.0"],[22,"75.0"],[23,"15.0"],[24,"88.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"11.0"],[164,"11.0"],[181,"25.0"],[260,"70.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976117]},"474533":{"c":"S13512.0","s":["Regular length end mill with 4 flutes, diameter 12 mm with 25 mm length of cut and 75 mm overall length, according to Dormer Pramet standard with a 12 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 12 mm with 25 mm length of cut and 75 mm overall length, according to Dormer Pramet standard with a 12 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 12 mm mit 25 mm Schnittlänge und 75 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 12 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648783"],[7,"1"],[14,"S135"],[16,"S13512.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848302"],[21,"15.0"],[22,"80.0"],[23,"15.0"],[24,"77.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"12.0"],[164,"12.0"],[181,"25.0"],[260,"75.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976118]},"474534":{"c":"S13514.0","s":["Regular length end mill with 4 flutes, diameter 14 mm with 30 mm length of cut and 88 mm overall length, according to Dormer Pramet standard with a 14 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 14 mm with 30 mm length of cut and 88 mm overall length, according to Dormer Pramet standard with a 14 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 14 mm mit 30 mm Schnittlänge und 88 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 14 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648784"],[7,"1"],[14,"S135"],[16,"S13514.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848319"],[21,"17.0"],[22,"95.0"],[23,"17.0"],[24,"127.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"14.0"],[164,"14.0"],[181,"30.0"],[260,"88.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976119]},"474535":{"c":"S13516.0","s":["Regular length end mill with 4 flutes, diameter 16 mm with 32 mm length of cut and 88 mm overall length, according to Dormer Pramet standard with a 16 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 16 mm with 32 mm length of cut and 88 mm overall length, according to Dormer Pramet standard with a 16 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 16 mm mit 32 mm Schnittlänge und 88 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 16 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648785"],[7,"1"],[14,"S135"],[16,"S13516.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848326"],[21,"20.0"],[22,"105.0"],[23,"20.0"],[24,"231.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"16.0"],[164,"16.0"],[181,"32.0"],[260,"88.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976120]},"474536":{"c":"S13518.0","s":["Regular length end mill with 4 flutes, diameter 18 mm with 36 mm length of cut and 100 mm overall length, according to Dormer Pramet standard with a 18 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 18 mm with 36 mm length of cut and 100 mm overall length, according to Dormer Pramet standard with a 18 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 18 mm mit 36 mm Schnittlänge und 100 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 18 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648786"],[7,"1"],[14,"S135"],[16,"S13518.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848333"],[21,"27.0"],[22,"125.0"],[23,"27.0"],[24,"217.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"18.0"],[164,"18.0"],[181,"36.0"],[260,"100.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976121]},"474537":{"c":"S13520.0","s":["Regular length end mill with 4 flutes, diameter 20 mm with 38 mm length of cut and 100 mm overall length, according to Dormer Pramet standard with a 20 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 20 mm with 38 mm length of cut and 100 mm overall length, according to Dormer Pramet standard with a 20 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 20 mm mit 38 mm Schnittlänge und 100 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 20 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648787"],[7,"1"],[14,"S135"],[16,"S13520.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848340"],[21,"27.0"],[22,"125.0"],[23,"27.0"],[24,"406.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"20.0"],[164,"20.0"],[181,"38.0"],[260,"100.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976122]},"474538":{"c":"S13525.0","s":["Regular length end mill with 4 flutes, diameter 25 mm with 38 mm length of cut and 100 mm overall length, according to Dormer Pramet standard with a 25 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length end mill with 4 flutes, diameter 25 mm with 38 mm length of cut and 100 mm overall length, according to Dormer Pramet standard with a 25 mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys","Regular length schaftfräser mit 4 Schneiden, Durchmesser 25 mm mit 38 mm Schnittlänge und 100 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 25 mm Zylinderschaft, VHM mit unbeschichtet, 30° Helix zum Schulterfräsen und Tauchfräsen in Stahl und Stahlguss, Edelstahl, Temperguss, duktiles und verdichteter Graphitguss 0 und Kupfer oder Kupferlegierungen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"]],"f":[[0,"7648788"],[7,"1"],[14,"S135"],[16,"S13525.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760848357"],[21,"30.0"],[22,"125.0"],[23,"30.0"],[24,"626.0"],[31,"HM"],[32,"Work Norm"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"25.0"],[164,"25.0"],[181,"38.0"],[260,"100.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976123]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Diameter (DC)	2 mm, 2,5 mm, 3 mm, 4 mm, 4,5 mm, 5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm, 25 mm
Coating (DP)	Steam Tempered
Schacht (DP)	Cylindrical shank
