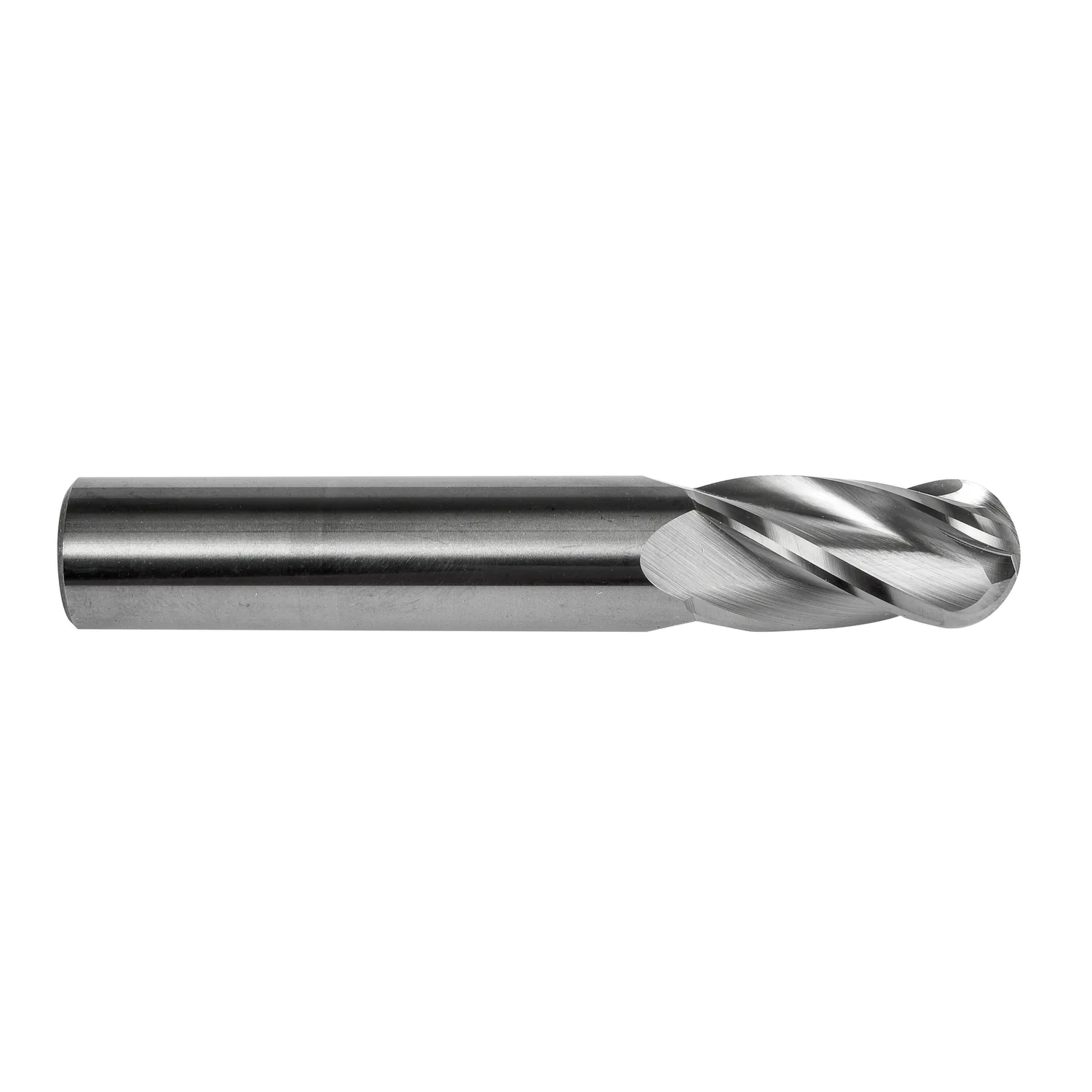

S246 VHM Radiusfrees

Name: S246 VHM Radiusfrees
SKU: S2461/4
Price: 32.48 EUR
Availability: InStock

DORMER Verenigde Staten

32,48 €

excl. BTW

Productinformatie

Extra lange uitvoering, 4-snijder ontwerp met 30° spiraalhoek, kogelneusgeometrie ontworpen voor uiterst efficiënt contouren van complexe oppervlakken. ALTiN coating verhoogt de oppervlaktehardheid, verbetert de spaanafvoer en standtijd, waardoor hogere verspaningssnelheden mogelijk zijn.

Diameter (DC)
Coating (DP)
Schacht (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/S246_DIM.png"],"p":{"474857":{"c":"S2461/4","s":["Long series ball-nose end mill with 4 flutes, diameter 1/4 inch with 1.1/8 inch length of cut, 3 inch overall length and 1/8 inch full profile radius, according to Dormer Pramet standard with a 1/4 inch plain shank, solid carbide with TiAlN coating, 30° helix for copy milling in steel and cast steel, stainless steel and cast-iron","Long series ball-nose end mill with 4 flutes, diameter 1/4 inch with 1.1/8 inch length of cut, 3 inch overall length and 1/8 inch full profile radius, according to Dormer Pramet standard with a 1/4 inch plain shank, solid carbide with TiAlN coating, 30° helix for copy milling in steel and cast steel, stainless steel and cast-iron","Langer kugelfräser mit 4 Schneiden, Durchmesser 1/4 inch mit 1.1/8 inch Schnittlänge, 3 inch Gesamtlänge und 1/8 inch Vollprofilradius, gemäß Dormer Pramet Standard mit einem 1/4 inch Zylinderschaft, VHM mit TiAlN Beschichtung, 30° Helix zum Kopierfräsen in Stahl und Stahlguss, Edelstahl und Gusseisen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["S","possible"]],"f":[[0,"7648890"],[7,"1"],[14,"S246"],[16,"S2461/4"],[17,"Inch"],[20,"7320760849378"],[21,"12.0"],[22,"75.0"],[23,"12.0"],[24,"32.0"],[31,"HM"],[32,"Work Norm"],[33,"TiAlN",null,"Nitrure de titane aluminium","Titan-Aluminiumnitrid-Beschichtung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.35"],[139,"1/4"],[158,"3.18"],[159,"1/8"],[162,"1/4"],[164,"6.35"],[181,"28.58"],[182,"1.1/8"],[259,"3\""],[260,"76.2"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976510]},"474858":{"c":"S2463/8","s":["Long series ball-nose end mill with 4 flutes, diameter 3/8 inch with 1.1/8 inch length of cut, 3 inch overall length and 3/16 inch full profile radius, according to Dormer Pramet standard with a 3/8 inch plain shank, solid carbide with TiAlN coating, 30° helix for copy milling in steel and cast steel, stainless steel and cast-iron","Long series ball-nose end mill with 4 flutes, diameter 3/8 inch with 1.1/8 inch length of cut, 3 inch overall length and 3/16 inch full profile radius, according to Dormer Pramet standard with a 3/8 inch plain shank, solid carbide with TiAlN coating, 30° helix for copy milling in steel and cast steel, stainless steel and cast-iron","Langer kugelfräser mit 4 Schneiden, Durchmesser 3/8 inch mit 1.1/8 inch Schnittlänge, 3 inch Gesamtlänge und 3/16 inch Vollprofilradius, gemäß Dormer Pramet Standard mit einem 3/8 inch Zylinderschaft, VHM mit TiAlN Beschichtung, 30° Helix zum Kopierfräsen in Stahl und Stahlguss, Edelstahl und Gusseisen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["S","possible"]],"f":[[0,"7648891"],[7,"1"],[14,"S246"],[16,"S2463/8"],[17,"Inch"],[20,"7320760849385"],[21,"12.0"],[22,"80.0"],[23,"12.0"],[24,"68.0"],[31,"HM"],[32,"Work Norm"],[33,"TiAlN",null,"Nitrure de titane aluminium","Titan-Aluminiumnitrid-Beschichtung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"9.53"],[139,"3/8"],[158,"4.78"],[159,"3/16"],[162,"3/8"],[164,"9.53"],[181,"28.58"],[182,"1.1/8"],[259,"3\""],[260,"76.2"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976511]},"474859":{"c":"S2461/2","s":["Long series ball-nose end mill with 4 flutes, diameter 1/2 inch with 2 inch length of cut, 4 inch overall length and 1/4 inch full profile radius, according to Dormer Pramet standard with a 1/2 inch plain shank, solid carbide with TiAlN coating, 30° helix for copy milling in steel and cast steel, stainless steel and cast-iron","Long series ball-nose end mill with 4 flutes, diameter 1/2 inch with 2 inch length of cut, 4 inch overall length and 1/4 inch full profile radius, according to Dormer Pramet standard with a 1/2 inch plain shank, solid carbide with TiAlN coating, 30° helix for copy milling in steel and cast steel, stainless steel and cast-iron","Langer kugelfräser mit 4 Schneiden, Durchmesser 1/2 inch mit 2 inch Schnittlänge, 4 inch Gesamtlänge und 1/4 inch Vollprofilradius, gemäß Dormer Pramet Standard mit einem 1/2 inch Zylinderschaft, VHM mit TiAlN Beschichtung, 30° Helix zum Kopierfräsen in Stahl und Stahlguss, Edelstahl und Gusseisen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["S","possible"]],"f":[[0,"7648892"],[7,"1"],[14,"S246"],[16,"S2461/2"],[17,"Inch"],[20,"7320760849392"],[21,"17.0"],[22,"105.0"],[23,"17.0"],[24,"155.0"],[31,"HM"],[32,"Work Norm"],[33,"TiAlN",null,"Nitrure de titane aluminium","Titan-Aluminiumnitrid-Beschichtung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"12.7"],[139,"1/2"],[158,"6.35"],[159,"1/4"],[162,"1/2"],[164,"12.7"],[181,"50.8"],[182,"2\""],[259,"4\""],[260,"101.6"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976512]},"474860":{"c":"S2465/8","s":["Long series ball-nose end mill with 4 flutes, diameter 5/8 inch with 2.1/4 inch length of cut, 5 inch overall length and 5/16 inch full profile radius, according to Dormer Pramet standard with a 5/8 inch plain shank, solid carbide with TiAlN coating, 30° helix for copy milling in steel and cast steel, stainless steel and cast-iron","Long series ball-nose end mill with 4 flutes, diameter 5/8 inch with 2.1/4 inch length of cut, 5 inch overall length and 5/16 inch full profile radius, according to Dormer Pramet standard with a 5/8 inch plain shank, solid carbide with TiAlN coating, 30° helix for copy milling in steel and cast steel, stainless steel and cast-iron","Langer kugelfräser mit 4 Schneiden, Durchmesser 5/8 inch mit 2.1/4 inch Schnittlänge, 5 inch Gesamtlänge und 5/16 inch Vollprofilradius, gemäß Dormer Pramet Standard mit einem 5/8 inch Zylinderschaft, VHM mit TiAlN Beschichtung, 30° Helix zum Kopierfräsen in Stahl und Stahlguss, Edelstahl und Gusseisen"],"o":"US","a":[["P","primary"],["M","primary"],["K","primary"],["S","possible"]],"f":[[0,"7648893"],[7,"1"],[14,"S246"],[16,"S2465/8"],[17,"Inch"],[20,"7320760849408"],[21,"20.0"],[22,"130.0"],[23,"20.0"],[24,"0.1"],[31,"HM"],[32,"Work Norm"],[33,"TiAlN",null,"Nitrure de titane aluminium","Titan-Aluminiumnitrid-Beschichtung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[37,"4.0"],[52,"30"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"15.88"],[139,"5/8"],[158,"7.95"],[159,"5/16"],[162,"5/8"],[164,"15.88"],[181,"57.15"],[182,"2.1/4"],[259,"5\""],[260,"127.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976513]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Diameter (DC)	1/4", 3/8", 1/2", 5/8"
Coating (DP)	TiAlN
Schacht (DP)	Cylindrical shank
