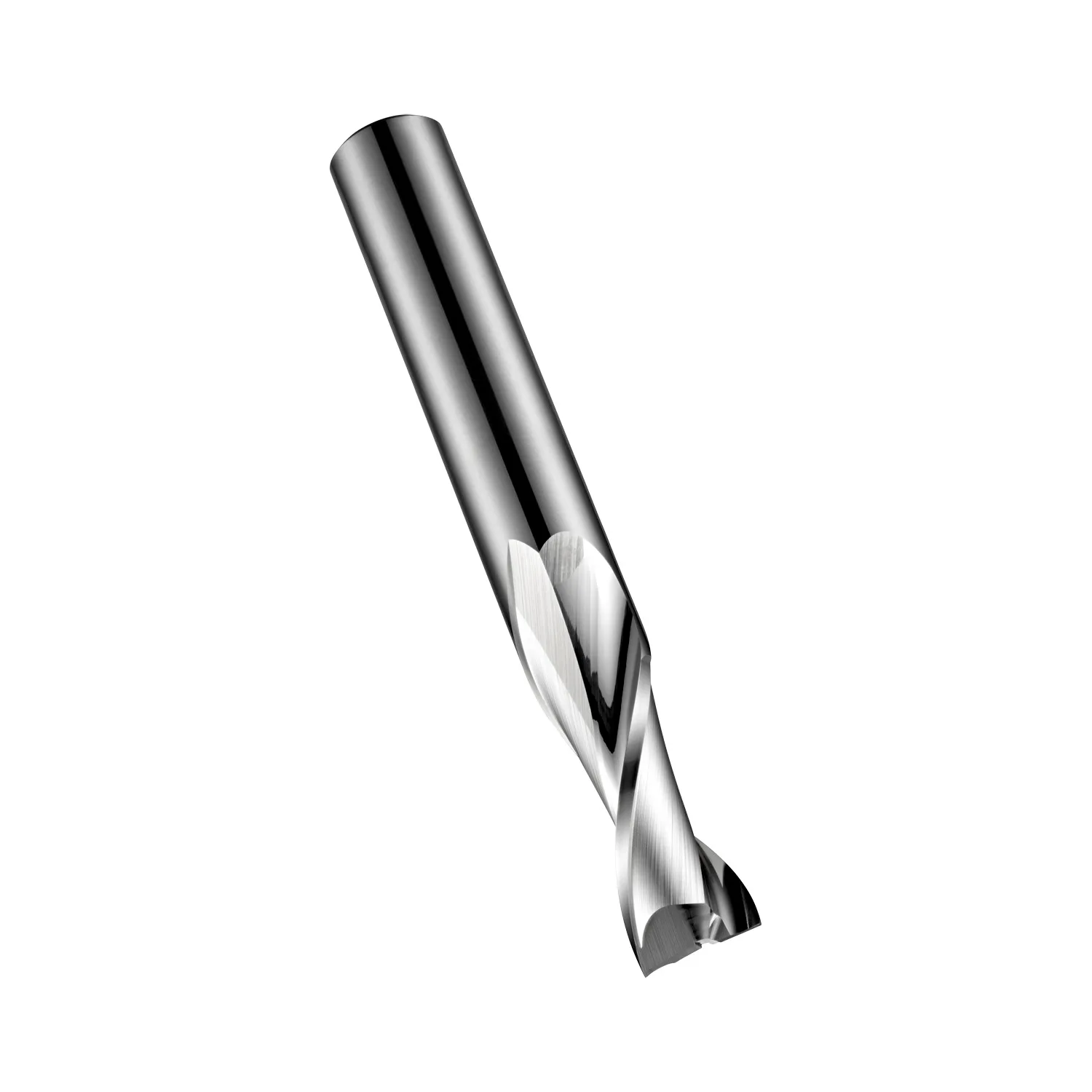

S610 VHM Vingerfrees

Name: S610 VHM Vingerfrees (2.0)
SKU: S6102.0
Price: 24.5 EUR
Availability: InStock

DORMER Maleisië

24,50 €

excl. BTW

Productinformatie

Korte snijlengte, 2-spaangroef ontwerp biedt hoge stijfheid voor het frezen van standaard sleuven en profileren. De S610, met hoge haakgeometrie, is ontworpen voor hoogrenderende verspaning in non-ferromaterialen. Gepolijst oppervlak voorkomt dat werkstukmateriaal aan de snijkant blijft kleven.

Coating (DP)
Schacht (DP)
Tolerantie (DP)
Uitvoering (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/S610_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/S6102_0_8030270_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/S6102_0_8030270_3D.STP"],"p":{"475154":{"c":"S6102.0","s":["Short series End mill with 2 flutes, diameter 2 mm with 6.5 mm length of cut, 40 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 4 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Short series End mill with 2 flutes, diameter 2 mm with 6.5 mm length of cut, 40 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 4 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Kurzer Schaftfräser mit 2 Schneiden, Durchmesser 2 mm mit 6.5 mm Schneidlänge, 40 mm Gesamtlänge und 0.1 mm Eckenradius, gemaß Dormer Pramet Standard mit 4 mm Zylinderschaft, VHM mit poliert, 30° Helix und 20° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"8030270"],[7,"1"],[14,"S610"],[16,"S6102.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760949924"],[21,"15.0"],[22,"115.0"],[23,"14.0"],[24,"13.1"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"30"],[53,"Yes","Ja",null,null],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"4.0"],[158,"0.1"],[164,"2.0"],[181,"6.5"],[252,"2.0"],[254,"8.5"],[260,"40.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[["2d",1],["3d",2]],"x":[976866]},"475163":{"c":"S6103.0XD3","s":["Short series end mill with 2 flutes, diameter 3 mm with 9 mm length of cut, 40 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Short series end mill with 2 flutes, diameter 3 mm with 9 mm length of cut, 40 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Kurzer schaftfräser mit 2 Schneiden, Durchmesser 3 mm mit 9 mm Schnittlänge, 40 mm Gesamtlänge und 0.1 mm Eckenradius, gemäß Dormer Pramet Standard mit einem 3 mm Zylinderschaft, VHM mit polierte Oberfläche, 30° Helix und 20° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706592"],[7,"1"],[14,"S610"],[16,"S6103.0XD3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681411"],[21,"10.0"],[22,"92.0"],[23,"9.0"],[24,"5.0"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"30"],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"3.0"],[142,"h6"],[158,"0.1"],[164,"3.0"],[181,"9.0"],[260,"40.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976875]},"475164":{"c":"S6103.0XD6","s":["Short series end mill with 2 flutes, diameter 3 mm with 9 mm length of cut, 50 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Short series end mill with 2 flutes, diameter 3 mm with 9 mm length of cut, 50 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Kurzer schaftfräser mit 2 Schneiden, Durchmesser 3 mm mit 9 mm Schnittlänge, 50 mm Gesamtlänge und 0.1 mm Eckenradius, gemäß Dormer Pramet Standard mit einem 6 mm Zylinderschaft, VHM mit polierte Oberfläche, 30° Helix und 20° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706593"],[7,"1"],[14,"S610"],[16,"S6103.0XD6"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681428"],[21,"16.0"],[22,"115.0"],[23,"14.0"],[24,"16.2"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"30"],[53,"Yes","Ja",null,null],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"6.0"],[142,"h6"],[158,"0.1"],[164,"3.0"],[181,"9.0"],[252,"3.0"],[254,"11.0"],[260,"50.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976876]},"475165":{"c":"S6104.0XD4","s":["Short series end mill with 2 flutes, diameter 4 mm with 12 mm length of cut, 50 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 4 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Short series end mill with 2 flutes, diameter 4 mm with 12 mm length of cut, 50 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 4 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Kurzer schaftfräser mit 2 Schneiden, Durchmesser 4 mm mit 12 mm Schnittlänge, 50 mm Gesamtlänge und 0.1 mm Eckenradius, gemäß Dormer Pramet Standard mit einem 4 mm Zylinderschaft, VHM mit polierte Oberfläche, 30° Helix und 20° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706594"],[7,"1"],[14,"S610"],[16,"S6104.0XD4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681435"],[21,"10.0"],[22,"92.0"],[23,"9.0"],[24,"10.0"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"30"],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"4.0"],[142,"h6"],[158,"0.1"],[164,"4.0"],[181,"12.0"],[260,"50.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976877]},"475166":{"c":"S6104.0XD6","s":["Short series end mill with 2 flutes, diameter 4 mm with 12 mm length of cut, 50 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Short series end mill with 2 flutes, diameter 4 mm with 12 mm length of cut, 50 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Kurzer schaftfräser mit 2 Schneiden, Durchmesser 4 mm mit 12 mm Schnittlänge, 50 mm Gesamtlänge und 0.1 mm Eckenradius, gemäß Dormer Pramet Standard mit einem 6 mm Zylinderschaft, VHM mit polierte Oberfläche, 30° Helix und 20° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706595"],[7,"1"],[14,"S610"],[16,"S6104.0XD6"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681442"],[21,"15.0"],[22,"115.0"],[23,"14.0"],[24,"22.0"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"30"],[53,"Yes","Ja",null,null],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"6.0"],[142,"h6"],[158,"0.1"],[164,"4.0"],[181,"12.0"],[252,"4.0"],[254,"14.0"],[260,"50.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976878]},"475155":{"c":"S6105.0","s":["Short series end mill with 2 flutes, diameter 5 mm with 15 mm length of cut, 50 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Short series end mill with 2 flutes, diameter 5 mm with 15 mm length of cut, 50 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Kurzer schaftfräser mit 2 Schneiden, Durchmesser 5 mm mit 15 mm Schnittlänge, 50 mm Gesamtlänge und 0.1 mm Eckenradius, gemäß Dormer Pramet Standard mit einem 6 mm Zylinderschaft, VHM mit polierte Oberfläche, 30° Helix und 20° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706596"],[7,"1"],[14,"S610"],[16,"S6105.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681459"],[21,"15.0"],[22,"115.0"],[23,"14.0"],[24,"22.2"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"30"],[53,"Yes","Ja",null,null],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"6.0"],[142,"h6"],[158,"0.1"],[164,"5.0"],[181,"15.0"],[252,"5.0"],[254,"17.0"],[260,"50.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976867]},"475156":{"c":"S6106.0","s":["Short series end mill with 2 flutes, diameter 6 mm with 20 mm length of cut, 50 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Short series end mill with 2 flutes, diameter 6 mm with 20 mm length of cut, 50 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Kurzer schaftfräser mit 2 Schneiden, Durchmesser 6 mm mit 20 mm Schnittlänge, 50 mm Gesamtlänge und 0.1 mm Eckenradius, gemäß Dormer Pramet Standard mit einem 6 mm Zylinderschaft, VHM mit polierte Oberfläche, 30° Helix und 20° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706597"],[7,"1"],[14,"S610"],[16,"S6106.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681466"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"22.3"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"30"],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"6.0"],[142,"h6"],[158,"0.1"],[164,"6.0"],[181,"20.0"],[260,"50.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976868]},"475157":{"c":"S6108.0","s":["Short series end mill with 2 flutes, diameter 8 mm with 20 mm length of cut, 64 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Short series end mill with 2 flutes, diameter 8 mm with 20 mm length of cut, 64 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Kurzer schaftfräser mit 2 Schneiden, Durchmesser 8 mm mit 20 mm Schnittlänge, 64 mm Gesamtlänge und 0.1 mm Eckenradius, gemäß Dormer Pramet Standard mit einem 8 mm Zylinderschaft, VHM mit polierte Oberfläche, 30° Helix und 20° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706598"],[7,"1"],[14,"S610"],[16,"S6108.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681473"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"37.1"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"30"],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"8.0"],[142,"h6"],[158,"0.1"],[164,"8.0"],[181,"20.0"],[260,"64.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976869]},"475158":{"c":"S61010.0","s":["Short series end mill with 2 flutes, diameter 10 mm with 22 mm length of cut, 75 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Short series end mill with 2 flutes, diameter 10 mm with 22 mm length of cut, 75 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Kurzer schaftfräser mit 2 Schneiden, Durchmesser 10 mm mit 22 mm Schnittlänge, 75 mm Gesamtlänge und 0.1 mm Eckenradius, gemäß Dormer Pramet Standard mit einem 10 mm Zylinderschaft, VHM mit polierte Oberfläche, 30° Helix und 20° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706599"],[7,"1"],[14,"S610"],[16,"S61010.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681480"],[21,"17.0"],[22,"85.0"],[23,"17.0"],[24,"67.7"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"30"],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"10.0"],[142,"h6"],[158,"0.1"],[164,"10.0"],[181,"22.0"],[260,"75.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976870]},"475159":{"c":"S61012.0","s":["Short series end mill with 2 flutes, diameter 12 mm with 25 mm length of cut, 75 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 12 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Short series end mill with 2 flutes, diameter 12 mm with 25 mm length of cut, 75 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 12 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Kurzer schaftfräser mit 2 Schneiden, Durchmesser 12 mm mit 25 mm Schnittlänge, 75 mm Gesamtlänge und 0.1 mm Eckenradius, gemäß Dormer Pramet Standard mit einem 12 mm Zylinderschaft, VHM mit polierte Oberfläche, 30° Helix und 20° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706600"],[7,"1"],[14,"S610"],[16,"S61012.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681497"],[21,"17.0"],[22,"85.0"],[23,"17.0"],[24,"96.0"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"30"],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"12.0"],[142,"h6"],[158,"0.1"],[164,"12.0"],[181,"25.0"],[260,"75.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976871]},"475160":{"c":"S61014.0","s":["Short series end mill with 2 flutes, diameter 14 mm with 32 mm length of cut, 90 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 14 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Short series end mill with 2 flutes, diameter 14 mm with 32 mm length of cut, 90 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 14 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Kurzer schaftfräser mit 2 Schneiden, Durchmesser 14 mm mit 32 mm Schnittlänge, 90 mm Gesamtlänge und 0.1 mm Eckenradius, gemäß Dormer Pramet Standard mit einem 14 mm Zylinderschaft, VHM mit polierte Oberfläche, 30° Helix und 20° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706601"],[7,"1"],[14,"S610"],[16,"S61014.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681503"],[21,"20.0"],[22,"98.0"],[23,"20.0"],[24,"151.0"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"30"],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"14.0"],[142,"h6"],[158,"0.1"],[164,"14.0"],[181,"32.0"],[260,"90.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976872]},"475161":{"c":"S61016.0","s":["Short series end mill with 2 flutes, diameter 16 mm with 32 mm length of cut, 90 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 16 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Short series end mill with 2 flutes, diameter 16 mm with 32 mm length of cut, 90 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 16 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Kurzer schaftfräser mit 2 Schneiden, Durchmesser 16 mm mit 32 mm Schnittlänge, 90 mm Gesamtlänge und 0.1 mm Eckenradius, gemäß Dormer Pramet Standard mit einem 16 mm Zylinderschaft, VHM mit polierte Oberfläche, 30° Helix und 20° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706602"],[7,"1"],[14,"S610"],[16,"S61016.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681510"],[21,"20.0"],[22,"95.0"],[23,"20.0"],[24,"189.0"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"30"],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"16.0"],[142,"h6"],[158,"0.1"],[164,"16.0"],[181,"32.0"],[260,"90.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976873]},"475162":{"c":"S61020.0","s":["Short series end mill with 2 flutes, diameter 20 mm with 38 mm length of cut, 100 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 20 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Short series end mill with 2 flutes, diameter 20 mm with 38 mm length of cut, 100 mm overall length and 0.1 mm corner radii, according to Dormer Pramet standard with a 20 mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals","Kurzer schaftfräser mit 2 Schneiden, Durchmesser 20 mm mit 38 mm Schnittlänge, 100 mm Gesamtlänge und 0.1 mm Eckenradius, gemäß Dormer Pramet Standard mit einem 20 mm Zylinderschaft, VHM mit polierte Oberfläche, 30° Helix und 20° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706604"],[7,"1"],[14,"S610"],[16,"S61020.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681534"],[21,"29.0"],[22,"108.0"],[23,"29.0"],[24,"323.0"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"2.0"],[47,"h9"],[52,"30"],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"20.0"],[142,"h6"],[158,"0.1"],[164,"20.0"],[181,"38.0"],[260,"100.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976874]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Uitvoering (DP)	2.0, 5.0, 6.0, 8.0, 10.0, 12.0, 14.0, 16.0, 20.0, 3.0XD3, 3.0XD6, 4.0XD4, 4.0XD6
Coating (DP)	Polished
Schacht (DP)	Cylindrical shank DIN 6535 HA
Tolerantie (DP)	h9
