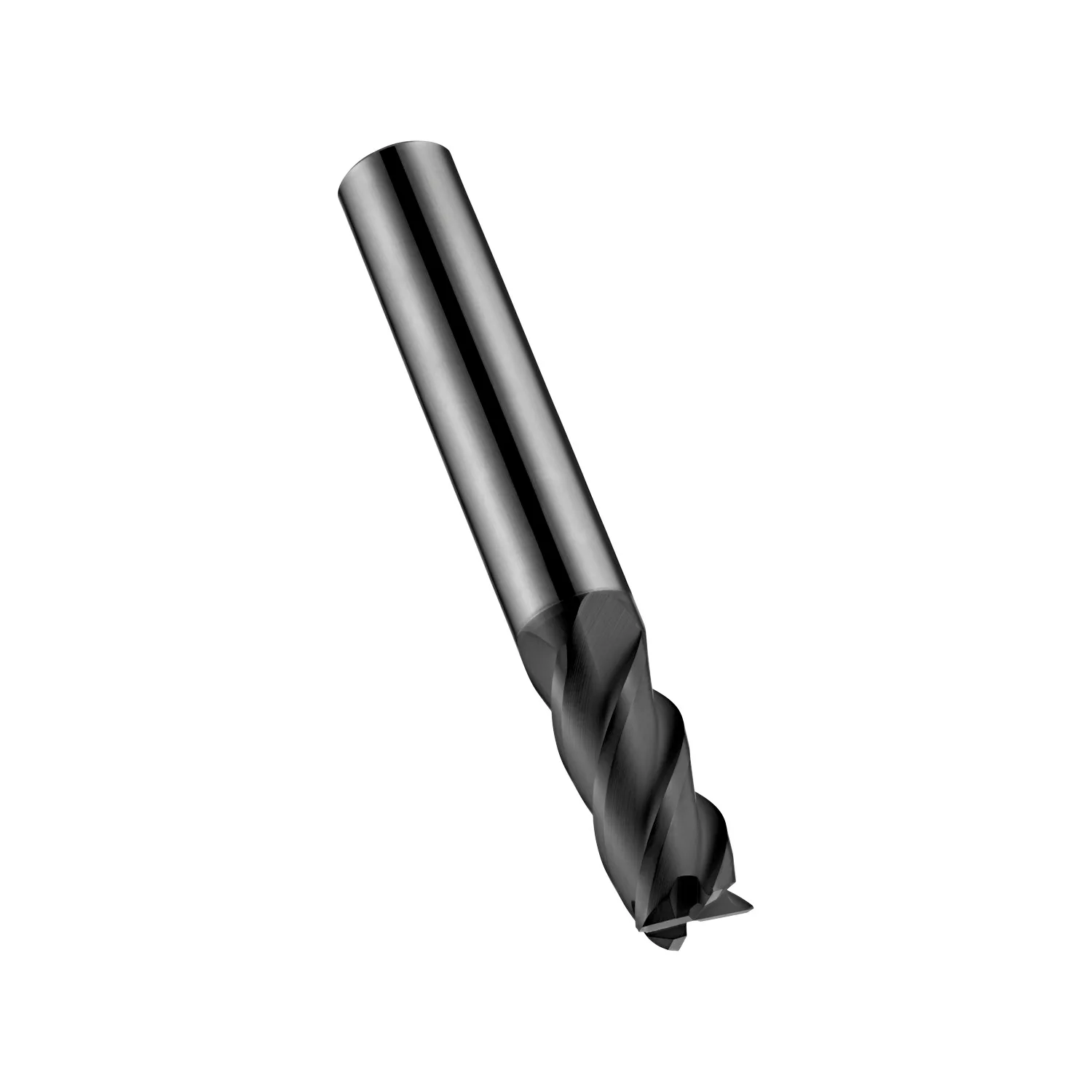

S612 VHM Vingerfrees

Name: S612 VHM Vingerfrees (1 mm)
SKU: S6121.0
Price: 51.58 EUR
Availability: InStock

DORMER Maleisië

51,58 €

excl. BTW

Productinformatie

Korte snijlengte, 4-snijder uitvoering biedt hoge stijfheid voor standaard profielfrezen. Diamantachtige coating verhoogt de levensduur en verbetert de prestaties. Voor het frezen van abrasieve materialen.

Diameter (DC)
Coating (DP)
Schacht (DP)
Tolerantie (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/S612_DIM.png"],"p":{"475179":{"c":"S6121.0","s":["Short series end mill with 4 flutes, diameter 1 mm with 3 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Short series end mill with 4 flutes, diameter 1 mm with 3 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Kurzer schaftfräser mit 4 Schneiden, Durchmesser 1 mm mit 3 mm Schnittlänge und 50 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 3 mm Zylinderschaft, VHM mit Diamant Beschichtung, 40° Helix und 10° Spanwinkel zum Schulterfräsen und Tauchfräsen in Graphit"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706605"],[7,"1"],[14,"S612"],[16,"S6121.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681541"],[21,"10.0"],[22,"92.0"],[23,"9.0"],[24,"5.0"],[31,"HM"],[32,"Work Norm"],[33,"Diamond",null,"Revêtement type diamant","Diamantähnliche Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"4.0"],[47,"h9"],[52,"40"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"3.0"],[142,"h6"],[164,"1.0"],[181,"3.0"],[252,"1.0"],[254,"4.0"],[260,"50.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976897]},"475180":{"c":"S6121.5","s":["Short series end mill with 4 flutes, diameter 1.5 mm with 4.5 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Short series end mill with 4 flutes, diameter 1.5 mm with 4.5 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Kurzer schaftfräser mit 4 Schneiden, Durchmesser 1.5 mm mit 4.5 mm Schnittlänge und 50 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 3 mm Zylinderschaft, VHM mit Diamant Beschichtung, 40° Helix und 10° Spanwinkel zum Schulterfräsen und Tauchfräsen in Graphit"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706606"],[7,"1"],[14,"S612"],[16,"S6121.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681558"],[21,"10.0"],[22,"92.0"],[23,"9.0"],[24,"5.0"],[31,"HM"],[32,"Work Norm"],[33,"Diamond",null,"Revêtement type diamant","Diamantähnliche Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"4.0"],[47,"h9"],[52,"40"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"3.0"],[142,"h6"],[164,"1.5"],[181,"4.5"],[252,"1.5"],[254,"6.5"],[260,"50.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976898]},"475181":{"c":"S6122.0","s":["Short series end mill with 4 flutes, diameter 2 mm with 6.5 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Short series end mill with 4 flutes, diameter 2 mm with 6.5 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Kurzer schaftfräser mit 4 Schneiden, Durchmesser 2 mm mit 6.5 mm Schnittlänge und 50 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 3 mm Zylinderschaft, VHM mit Diamant Beschichtung, 40° Helix und 10° Spanwinkel zum Schulterfräsen und Tauchfräsen in Graphit"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706607"],[7,"1"],[14,"S612"],[16,"S6122.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681565"],[21,"10.0"],[22,"92.0"],[23,"9.0"],[24,"5.0"],[31,"HM"],[32,"Work Norm"],[33,"Diamond",null,"Revêtement type diamant","Diamantähnliche Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"4.0"],[47,"h9"],[52,"40"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"3.0"],[142,"h6"],[164,"2.0"],[181,"6.5"],[252,"2.0"],[254,"8.5"],[260,"50.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976899]},"475182":{"c":"S6122.5","s":["Short series end mill with 4 flutes, diameter 2.5 mm with 6.5 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Short series end mill with 4 flutes, diameter 2.5 mm with 6.5 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Kurzer schaftfräser mit 4 Schneiden, Durchmesser 2.5 mm mit 6.5 mm Schnittlänge und 50 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 3 mm Zylinderschaft, VHM mit Diamant Beschichtung, 40° Helix und 10° Spanwinkel zum Schulterfräsen und Tauchfräsen in Graphit"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706608"],[7,"1"],[14,"S612"],[16,"S6122.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681572"],[21,"11.0"],[22,"93.0"],[23,"9.0"],[24,"7.0"],[31,"HM"],[32,"Work Norm"],[33,"Diamond",null,"Revêtement type diamant","Diamantähnliche Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"4.0"],[47,"h9"],[52,"40"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"3.0"],[142,"h6"],[164,"2.5"],[181,"6.5"],[252,"2.5"],[254,"8.5"],[260,"50.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976900]},"475183":{"c":"S6123.0","s":["Short series end mill with 4 flutes, diameter 3 mm with 9 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Short series end mill with 4 flutes, diameter 3 mm with 9 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Kurzer schaftfräser mit 4 Schneiden, Durchmesser 3 mm mit 9 mm Schnittlänge und 50 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 3 mm Zylinderschaft, VHM mit Diamant Beschichtung, 40° Helix und 10° Spanwinkel zum Schulterfräsen und Tauchfräsen in Graphit"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706609"],[7,"1"],[14,"S612"],[16,"S6123.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681589"],[21,"11.0"],[22,"94.0"],[23,"9.0"],[24,"7.0"],[31,"HM"],[32,"Work Norm"],[33,"Diamond",null,"Revêtement type diamant","Diamantähnliche Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"4.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"3.0"],[142,"h6"],[164,"3.0"],[181,"9.0"],[260,"50.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976901]},"475184":{"c":"S6124.0","s":["Short series end mill with 4 flutes, diameter 4 mm with 12 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 4 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Short series end mill with 4 flutes, diameter 4 mm with 12 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 4 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Kurzer schaftfräser mit 4 Schneiden, Durchmesser 4 mm mit 12 mm Schnittlänge und 50 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 4 mm Zylinderschaft, VHM mit Diamant Beschichtung, 40° Helix und 10° Spanwinkel zum Schulterfräsen und Tauchfräsen in Graphit"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706610"],[7,"1"],[14,"S612"],[16,"S6124.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681596"],[21,"10.0"],[22,"92.0"],[23,"9.0"],[24,"10.0"],[31,"HM"],[32,"Work Norm"],[33,"Diamond",null,"Revêtement type diamant","Diamantähnliche Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"4.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"4.0"],[142,"h6"],[164,"4.0"],[181,"12.0"],[260,"50.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976902]},"475185":{"c":"S6125.0","s":["Short series end mill with 4 flutes, diameter 5 mm with 15 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 5 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Short series end mill with 4 flutes, diameter 5 mm with 15 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 5 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Kurzer schaftfräser mit 4 Schneiden, Durchmesser 5 mm mit 15 mm Schnittlänge und 50 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 5 mm Zylinderschaft, VHM mit Diamant Beschichtung, 40° Helix und 10° Spanwinkel zum Schulterfräsen und Tauchfräsen in Graphit"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706611"],[7,"1"],[14,"S612"],[16,"S6125.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681602"],[21,"15.0"],[22,"115.0"],[23,"14.0"],[24,"19.5"],[31,"HM"],[32,"Work Norm"],[33,"Diamond",null,"Revêtement type diamant","Diamantähnliche Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"4.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"5.0"],[142,"h6"],[164,"5.0"],[181,"15.0"],[260,"50.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976903]},"475186":{"c":"S6126.0","s":["Short series end mill with 4 flutes, diameter 6 mm with 20 mm length of cut and 60 mm overall length, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Short series end mill with 4 flutes, diameter 6 mm with 20 mm length of cut and 60 mm overall length, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Kurzer schaftfräser mit 4 Schneiden, Durchmesser 6 mm mit 20 mm Schnittlänge und 60 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 6 mm Zylinderschaft, VHM mit Diamant Beschichtung, 40° Helix und 10° Spanwinkel zum Schulterfräsen und Tauchfräsen in Graphit"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706612"],[7,"1"],[14,"S612"],[16,"S6126.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681619"],[21,"15.0"],[22,"115.0"],[23,"14.0"],[24,"28.7"],[31,"HM"],[32,"Work Norm"],[33,"Diamond",null,"Revêtement type diamant","Diamantähnliche Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"4.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[142,"h6"],[164,"6.0"],[181,"20.0"],[260,"60.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976904]},"475187":{"c":"S6128.0","s":["Short series end mill with 4 flutes, diameter 8 mm with 20 mm length of cut and 64 mm overall length, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Short series end mill with 4 flutes, diameter 8 mm with 20 mm length of cut and 64 mm overall length, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Kurzer schaftfräser mit 4 Schneiden, Durchmesser 8 mm mit 20 mm Schnittlänge und 64 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 8 mm Zylinderschaft, VHM mit Diamant Beschichtung, 40° Helix und 10° Spanwinkel zum Schulterfräsen und Tauchfräsen in Graphit"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706613"],[7,"1"],[14,"S612"],[16,"S6128.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681626"],[21,"15.0"],[22,"115.0"],[23,"14.0"],[24,"48.9"],[31,"HM"],[32,"Work Norm"],[33,"Diamond",null,"Revêtement type diamant","Diamantähnliche Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"4.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"8.0"],[142,"h6"],[164,"8.0"],[181,"20.0"],[260,"64.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976905]},"475188":{"c":"S61210.0","s":["Short series end mill with 4 flutes, diameter 10 mm with 22 mm length of cut and 70 mm overall length, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Short series end mill with 4 flutes, diameter 10 mm with 22 mm length of cut and 70 mm overall length, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Kurzer schaftfräser mit 4 Schneiden, Durchmesser 10 mm mit 22 mm Schnittlänge und 70 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 10 mm Zylinderschaft, VHM mit Diamant Beschichtung, 40° Helix und 10° Spanwinkel zum Schulterfräsen und Tauchfräsen in Graphit"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706614"],[7,"1"],[14,"S612"],[16,"S61210.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681633"],[21,"18.0"],[22,"85.0"],[23,"18.0"],[24,"77.4"],[31,"HM"],[32,"Work Norm"],[33,"Diamond",null,"Revêtement type diamant","Diamantähnliche Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"4.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[164,"10.0"],[181,"22.0"],[260,"70.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976906]},"475189":{"c":"S61212.0","s":["Short series end mill with 4 flutes, diameter 12 mm with 25 mm length of cut and 75 mm overall length, according to Dormer Pramet standard with a 12 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Short series end mill with 4 flutes, diameter 12 mm with 25 mm length of cut and 75 mm overall length, according to Dormer Pramet standard with a 12 mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite","Kurzer schaftfräser mit 4 Schneiden, Durchmesser 12 mm mit 25 mm Schnittlänge und 75 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 12 mm Zylinderschaft, VHM mit Diamant Beschichtung, 40° Helix und 10° Spanwinkel zum Schulterfräsen und Tauchfräsen in Graphit"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706615"],[7,"1"],[14,"S612"],[16,"S61212.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760681640"],[21,"18.0"],[22,"85.0"],[23,"18.0"],[24,"115.0"],[31,"HM"],[32,"Work Norm"],[33,"Diamond",null,"Revêtement type diamant","Diamantähnliche Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"4.0"],[47,"h9"],[52,"40"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"12.0"],[142,"h6"],[164,"12.0"],[181,"25.0"],[260,"75.0"],[276,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[976907]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Diameter (DC)	1 mm, 1,5 mm, 2 mm, 2,5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm
Coating (DP)	Diamond
Schacht (DP)	Cylindrical shank DIN 6535 HA
Tolerantie (DP)	h9
