S637 VHM Vingerfrees

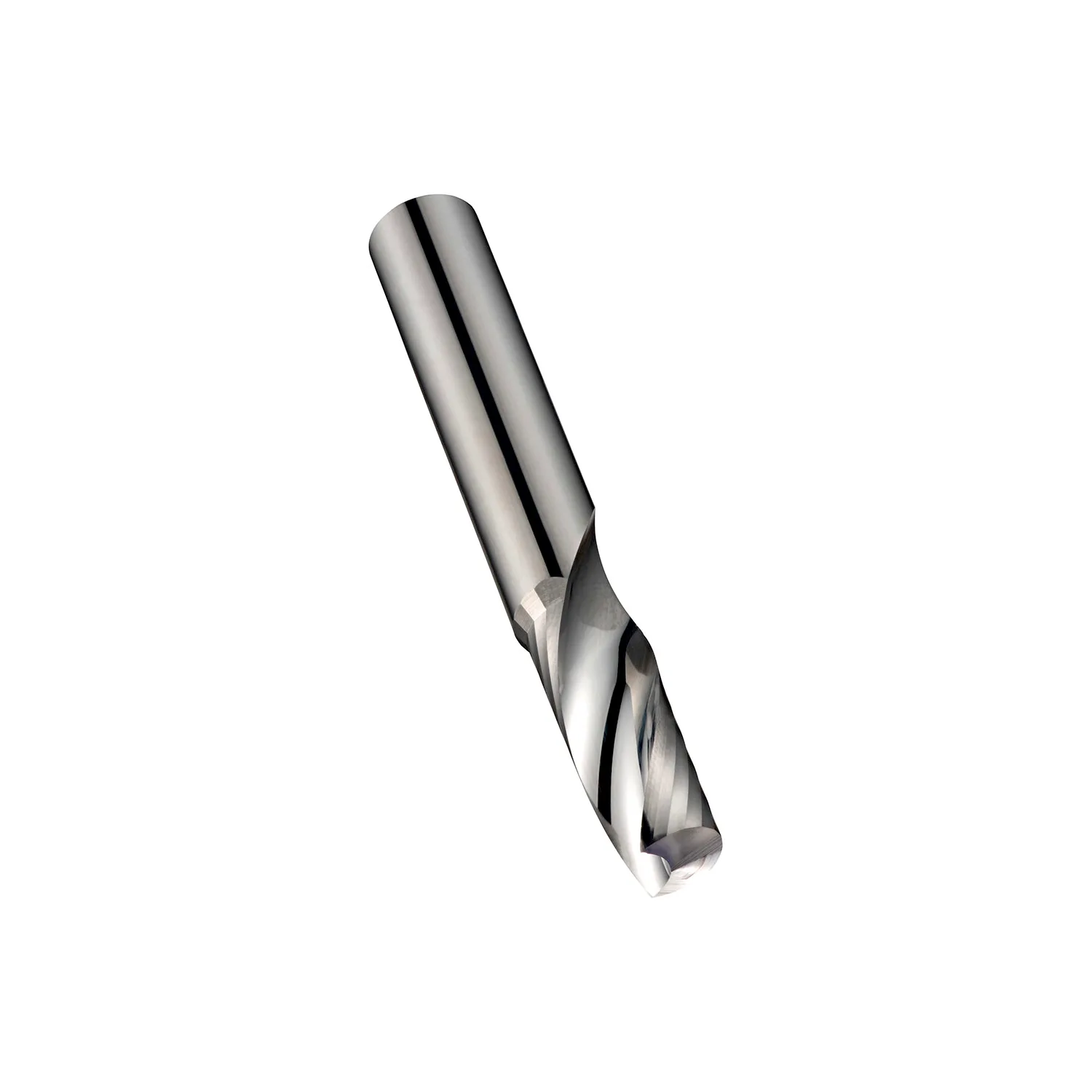

Name: S637 VHM Vingerfrees (2 mm)
SKU: S6372.0
Price: 23.83 EUR
Availability: InStock

DORMER Maleisië

23,83 €

excl. BTW

Productinformatie

Korte snijlengte, 1-spaangroef ontwerp levert hoge prestaties bij gleuffrezen en profielfrezen. De S637, met hoge haakgeometrie, is ontworpen voor hoge snelheid frezen in dunwandige non-ferromaterialen. Gepolijst oppervlak voorkomt dat werkstukmateriaal aan de snijkant blijft kleven.

Diameter (DC)
Coating (DP)
Schacht (DP)
Tolerantie (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/S637_DIM.png"],"p":{"475213":{"c":"S6372.0","s":["Short series end mill with 1 flute, diameter 2 mm with 10 mm length of cut and 40 mm overall length, according to Dormer Pramet standard with a 2 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Short series end mill with 1 flute, diameter 2 mm with 10 mm length of cut and 40 mm overall length, according to Dormer Pramet standard with a 2 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Kurzer schaftfräser mit 1 Schneide, Durchmesser 2 mm mit 10 mm Schnittlänge und 40 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 2 mm Zylinderschaft, VHM mit polierte Oberfläche, 25° Helix und 20° Spanwinkel zum Nutfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706872"],[7,"1"],[14,"S637"],[16,"S6372.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684214"],[21,"11.0"],[22,"93.0"],[23,"9.0"],[24,"4.4"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"1.0"],[47,"h9"],[52,"25"],[53,"Yes","Ja",null,null],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"2.0"],[142,"h6"],[164,"2.0"],[181,"10.0"],[252,"0.0"],[254,"10.0"],[260,"40.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976940]},"475214":{"c":"S6373.0","s":["Short series end mill with 1 flute, diameter 3 mm with 12 mm length of cut and 40 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Short series end mill with 1 flute, diameter 3 mm with 12 mm length of cut and 40 mm overall length, according to Dormer Pramet standard with a 3 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Kurzer schaftfräser mit 1 Schneide, Durchmesser 3 mm mit 12 mm Schnittlänge und 40 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 3 mm Zylinderschaft, VHM mit polierte Oberfläche, 25° Helix und 20° Spanwinkel zum Nutfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706873"],[7,"1"],[14,"S637"],[16,"S6373.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684221"],[21,"11.0"],[22,"94.0"],[23,"9.0"],[24,"6.5"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"1.0"],[47,"h9"],[52,"25"],[53,"Yes","Ja",null,null],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"3.0"],[142,"h6"],[164,"3.0"],[181,"12.0"],[252,"0.0"],[254,"12.0"],[260,"40.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976941]},"475215":{"c":"S6374.0","s":["Short series end mill with 1 flute, diameter 4 mm with 15 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 4 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Short series end mill with 1 flute, diameter 4 mm with 15 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 4 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Kurzer schaftfräser mit 1 Schneide, Durchmesser 4 mm mit 15 mm Schnittlänge und 50 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 4 mm Zylinderschaft, VHM mit polierte Oberfläche, 25° Helix und 20° Spanwinkel zum Nutfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706874"],[7,"1"],[14,"S637"],[16,"S6374.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684238"],[21,"11.0"],[22,"94.0"],[23,"9.0"],[24,"10.8"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"1.0"],[47,"h9"],[52,"25"],[53,"Yes","Ja",null,null],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"4.0"],[142,"h6"],[164,"4.0"],[181,"15.0"],[252,"0.0"],[254,"15.0"],[260,"50.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976942]},"475216":{"c":"S6375.0","s":["Short series end mill with 1 flute, diameter 5 mm with 16 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 5 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Short series end mill with 1 flute, diameter 5 mm with 16 mm length of cut and 50 mm overall length, according to Dormer Pramet standard with a 5 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Kurzer schaftfräser mit 1 Schneide, Durchmesser 5 mm mit 16 mm Schnittlänge und 50 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 5 mm Zylinderschaft, VHM mit polierte Oberfläche, 25° Helix und 20° Spanwinkel zum Nutfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706875"],[7,"1"],[14,"S637"],[16,"S6375.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684245"],[21,"16.0"],[22,"115.0"],[23,"14.0"],[24,"18.0"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"1.0"],[47,"h9"],[52,"25"],[53,"Yes","Ja",null,null],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"5.0"],[142,"h6"],[164,"5.0"],[181,"16.0"],[252,"0.0"],[254,"16.0"],[260,"50.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976943]},"475217":{"c":"S6376.0","s":["Short series end mill with 1 flute, diameter 6 mm with 20 mm length of cut and 60 mm overall length, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Short series end mill with 1 flute, diameter 6 mm with 20 mm length of cut and 60 mm overall length, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Kurzer schaftfräser mit 1 Schneide, Durchmesser 6 mm mit 20 mm Schnittlänge und 60 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 6 mm Zylinderschaft, VHM mit polierte Oberfläche, 25° Helix und 20° Spanwinkel zum Nutfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706876"],[7,"1"],[14,"S637"],[16,"S6376.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684252"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"26.7"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"1.0"],[47,"h9"],[52,"25"],[53,"Yes","Ja",null,null],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"6.0"],[142,"h6"],[164,"6.0"],[181,"20.0"],[252,"0.0"],[254,"20.0"],[260,"60.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976944]},"475218":{"c":"S6378.0","s":["Short series end mill with 1 flute, diameter 8 mm with 22 mm length of cut and 63 mm overall length, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Short series end mill with 1 flute, diameter 8 mm with 22 mm length of cut and 63 mm overall length, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Kurzer schaftfräser mit 1 Schneide, Durchmesser 8 mm mit 22 mm Schnittlänge und 63 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 8 mm Zylinderschaft, VHM mit polierte Oberfläche, 25° Helix und 20° Spanwinkel zum Nutfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706877"],[7,"1"],[14,"S637"],[16,"S6378.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684269"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"42.6"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"1.0"],[47,"h9"],[52,"25"],[53,"Yes","Ja",null,null],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"8.0"],[142,"h6"],[164,"8.0"],[181,"22.0"],[252,"0.0"],[254,"22.0"],[260,"63.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976945]},"475219":{"c":"S63710.0","s":["Short series end mill with 1 flute, diameter 10 mm with 25 mm length of cut and 72 mm overall length, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Short series end mill with 1 flute, diameter 10 mm with 25 mm length of cut and 72 mm overall length, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Kurzer schaftfräser mit 1 Schneide, Durchmesser 10 mm mit 25 mm Schnittlänge und 72 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 10 mm Zylinderschaft, VHM mit polierte Oberfläche, 25° Helix und 20° Spanwinkel zum Nutfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706878"],[7,"1"],[14,"S637"],[16,"S63710.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684276"],[21,"17.0"],[22,"85.0"],[23,"17.0"],[24,"71.0"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"1.0"],[47,"h9"],[52,"25"],[53,"Yes","Ja",null,null],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"10.0"],[142,"h6"],[164,"10.0"],[181,"25.0"],[252,"0.0"],[254,"25.0"],[260,"72.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976946]},"475220":{"c":"S63712.0","s":["Short series end mill with 1 flute, diameter 12 mm with 30 mm length of cut and 83 mm overall length, according to Dormer Pramet standard with a 12 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Short series end mill with 1 flute, diameter 12 mm with 30 mm length of cut and 83 mm overall length, according to Dormer Pramet standard with a 12 mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals","Kurzer schaftfräser mit 1 Schneide, Durchmesser 12 mm mit 30 mm Schnittlänge und 83 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 12 mm Zylinderschaft, VHM mit polierte Oberfläche, 25° Helix und 20° Spanwinkel zum Nutfräsen in Nichteisenmetalle"],"o":"MY","a":[["N","primary"]],"f":[[0,"6706879"],[7,"1"],[14,"S637"],[16,"S63712.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760684283"],[21,"17.0"],[22,"88.0"],[23,"17.0"],[24,"112.0"],[31,"HM"],[32,"Work Norm"],[33,"Polished",null,"Finition de surface brillante polie","Hochglanzpolierte Oberfläche"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"1.0"],[47,"h9"],[52,"25"],[53,"Yes","Ja",null,null],[55,"W - Non-ferrous Cutter Type for Soft Malleable Materials",null,"W - Profil adapté aux non-ferreux et aux matériaux malléables tendres","W - NE-Metalle, Fräser für weiche formbare Werkstoffe"],[138,"12.0"],[142,"h6"],[164,"12.0"],[181,"30.0"],[252,"0.0"],[254,"30.0"],[260,"83.0"],[276,"20.0"]],"m":[["dimensions",0]],"d":[],"x":[976947]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Diameter (DC)	2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm
Coating (DP)	Polished
Schacht (DP)	Cylindrical shank DIN 6535 HA
Tolerantie (DP)	h9

S637 VHM Vingerfrees

Productinformatie

Diameter (DC)

Coating (DP)

Schacht (DP)

Tolerantie (DP)

Specificaties
