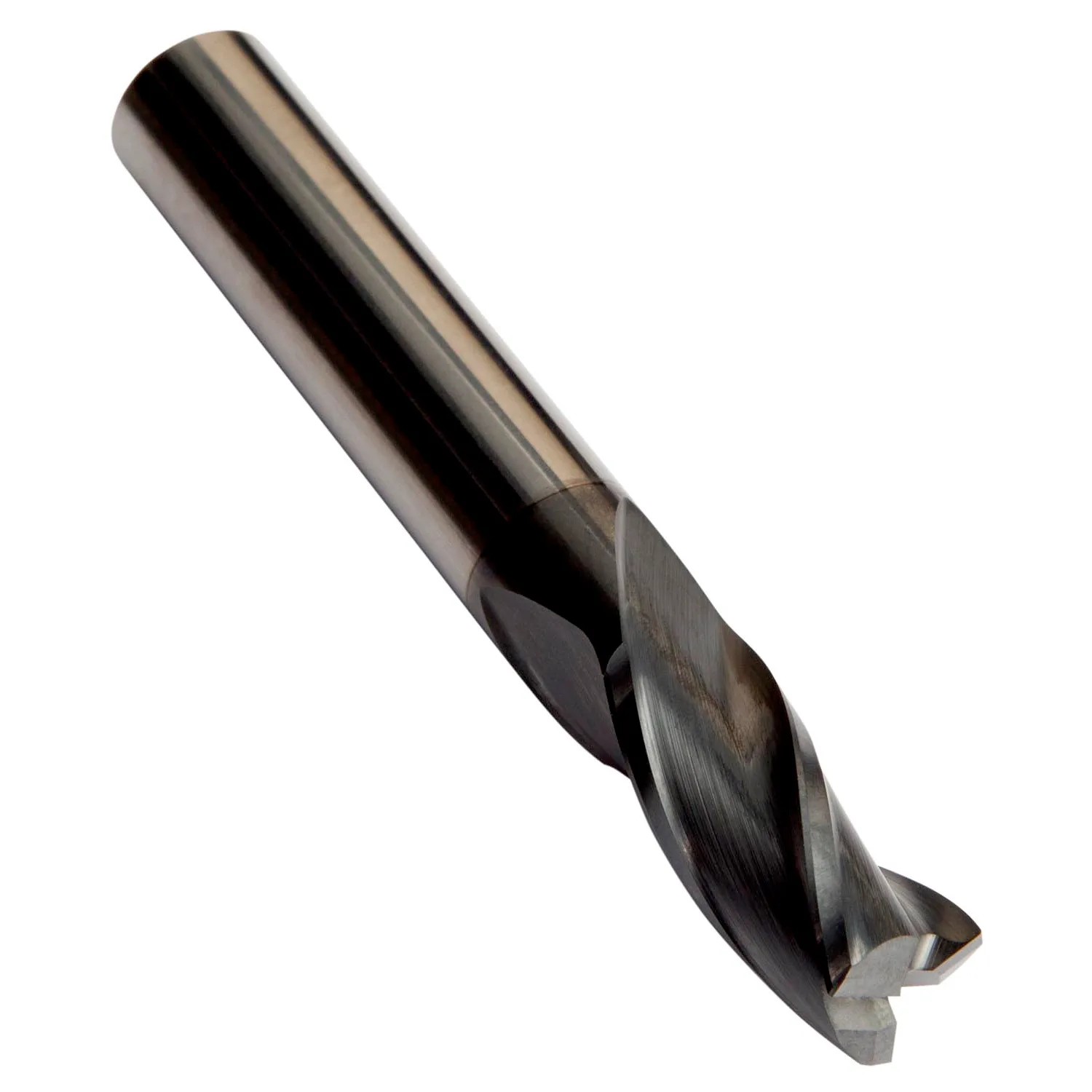

S823 VHM Spiebaanfrees

Name: S823 VHM Spiebaanfrees
SKU: S8232.0
Price: 23.83 EUR
Availability: InStock

DORMER Italië

23,83 €

excl. BTW

Productinformatie

Gemiddelde snijlengte, 3-snijderontwerp biedt hoge stijfheid voor het frezen van standaardsleuven met P9-tolerantie en voor ramping. AlCrN-coating verbetert de prestaties en verlengt de standtijd.

Diameter (DC)
Coating (DP)
Schacht (DP)

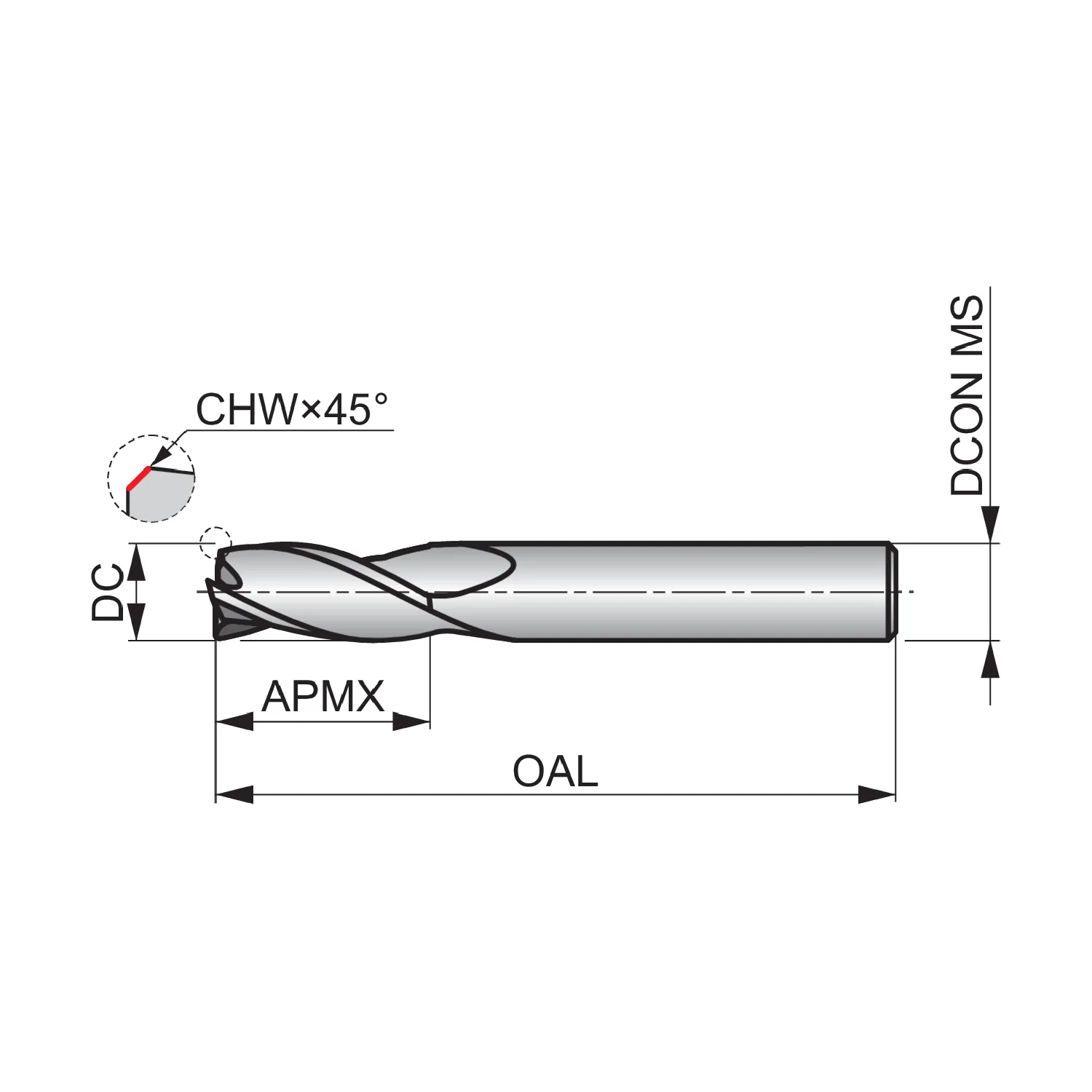

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/S823_DIM.png"],"p":{"475704":{"c":"S8232.0","s":["Regular length slot drill with 3 flutes, diameter 2 mm with 8 mm length of cut and 57 mm overall length, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length slot drill with 3 flutes, diameter 2 mm with 8 mm length of cut and 57 mm overall length, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length nutfräser mit 3 Schneiden, Durchmesser 2 mm mit 8 mm Schnittlänge und 57 mm Gesamtlänge, gemäß Dormer Pramet Standard mit einem 6 mm Zylinderschaft, VHM mit AlCrN Beschichtung, 28° Helix und 9° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer und Martensitischer Edelstahl, Gusseisen und Aluminiumguss 0 und Kupfer oder Kupferlegierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","possible"]],"f":[[0,"7106969"],[7,"1"],[14,"S823"],[16,"S8232.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760698587"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"25.0"],[31,"HM"],[32,"Work Norm"],[33,"AlCrN",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"3.0"],[52,"28"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[142,"h6"],[164,"2.0"],[181,"8.0"],[252,"2.0"],[254,"14.3"],[260,"57.0"],[276,"9.0"]],"m":[["dimensions",0]],"d":[],"x":[977541]},"475705":{"c":"S8232.5","s":["Regular length slot drill with 3 flutes, diameter 2.5 mm with 12 mm length of cut, 57 mm overall length and 0.08 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length slot drill with 3 flutes, diameter 2.5 mm with 12 mm length of cut, 57 mm overall length and 0.08 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length nutfräser mit 3 Schneiden, Durchmesser 2.5 mm mit 12 mm Schnittlänge, 57 mm Gesamtlänge und 0.08 mm 45° Schneidkante, gemäß Dormer Pramet Standard mit einem 6 mm Zylinderschaft, VHM mit AlCrN Beschichtung, 28° Helix und 9° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer und Martensitischer Edelstahl, Gusseisen und Aluminiumguss 0 und Kupfer oder Kupferlegierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","possible"]],"f":[[0,"7106970"],[7,"1"],[14,"S823"],[16,"S8232.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760698594"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"18.1"],[31,"HM"],[32,"Work Norm"],[33,"AlCrN",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"3.0"],[52,"28"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[142,"h6"],[157,"0.08"],[164,"2.5"],[181,"12.0"],[252,"2.5"],[254,"17.3"],[260,"57.0"],[276,"9.0"]],"m":[["dimensions",0]],"d":[],"x":[977542]},"475706":{"c":"S8233.0","s":["Regular length slot drill with 3 flutes, diameter 3 mm with 12 mm length of cut, 57 mm overall length and 0.08 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length slot drill with 3 flutes, diameter 3 mm with 12 mm length of cut, 57 mm overall length and 0.08 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length nutfräser mit 3 Schneiden, Durchmesser 3 mm mit 12 mm Schnittlänge, 57 mm Gesamtlänge und 0.08 mm 45° Schneidkante, gemäß Dormer Pramet Standard mit einem 6 mm Zylinderschaft, VHM mit AlCrN Beschichtung, 28° Helix und 9° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer und Martensitischer Edelstahl, Gusseisen und Aluminiumguss 0 und Kupfer oder Kupferlegierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","possible"]],"f":[[0,"7106971"],[7,"1"],[14,"S823"],[16,"S8233.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760698600"],[21,"11.0"],[22,"93.0"],[23,"9.0"],[24,"21.0"],[31,"HM"],[32,"Work Norm"],[33,"AlCrN",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"3.0"],[52,"28"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[142,"h6"],[157,"0.08"],[164,"3.0"],[181,"12.0"],[252,"3.0"],[254,"17.3"],[260,"57.0"],[276,"9.0"]],"m":[["dimensions",0]],"d":[],"x":[977543]},"475707":{"c":"S8234.0","s":["Regular length slot drill with 3 flutes, diameter 4 mm with 14 mm length of cut, 57 mm overall length and 0.13 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length slot drill with 3 flutes, diameter 4 mm with 14 mm length of cut, 57 mm overall length and 0.13 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length nutfräser mit 3 Schneiden, Durchmesser 4 mm mit 14 mm Schnittlänge, 57 mm Gesamtlänge und 0.13 mm 45° Schneidkante, gemäß Dormer Pramet Standard mit einem 6 mm Zylinderschaft, VHM mit AlCrN Beschichtung, 28° Helix und 9° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer und Martensitischer Edelstahl, Gusseisen und Aluminiumguss 0 und Kupfer oder Kupferlegierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","possible"]],"f":[[0,"7106972"],[7,"1"],[14,"S823"],[16,"S8234.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760698617"],[21,"11.0"],[22,"94.0"],[23,"9.0"],[24,"20.0"],[31,"HM"],[32,"Work Norm"],[33,"AlCrN",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"3.0"],[52,"28"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[142,"h6"],[157,"0.13"],[164,"4.0"],[181,"14.0"],[252,"4.0"],[254,"20.3"],[260,"57.0"],[276,"9.0"]],"m":[["dimensions",0]],"d":[],"x":[977544]},"475708":{"c":"S8235.0","s":["Regular length slot drill with 3 flutes, diameter 5 mm with 16 mm length of cut, 57 mm overall length and 0.13 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length slot drill with 3 flutes, diameter 5 mm with 16 mm length of cut, 57 mm overall length and 0.13 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length nutfräser mit 3 Schneiden, Durchmesser 5 mm mit 16 mm Schnittlänge, 57 mm Gesamtlänge und 0.13 mm 45° Schneidkante, gemäß Dormer Pramet Standard mit einem 6 mm Zylinderschaft, VHM mit AlCrN Beschichtung, 28° Helix und 9° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer und Martensitischer Edelstahl, Gusseisen und Aluminiumguss 0 und Kupfer oder Kupferlegierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","possible"]],"f":[[0,"7106973"],[7,"1"],[14,"S823"],[16,"S8235.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760698624"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"25.0"],[31,"HM"],[32,"Work Norm"],[33,"AlCrN",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"3.0"],[52,"28"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[142,"h6"],[157,"0.13"],[164,"5.0"],[181,"16.0"],[252,"5.0"],[254,"20.3"],[260,"57.0"],[276,"9.0"]],"m":[["dimensions",0]],"d":[],"x":[977545]},"475709":{"c":"S8236.0","s":["Regular length slot drill with 3 flutes, diameter 6 mm with 19 mm length of cut, 57 mm overall length and 0.13 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length slot drill with 3 flutes, diameter 6 mm with 19 mm length of cut, 57 mm overall length and 0.13 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 6 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length nutfräser mit 3 Schneiden, Durchmesser 6 mm mit 19 mm Schnittlänge, 57 mm Gesamtlänge und 0.13 mm 45° Schneidkante, gemäß Dormer Pramet Standard mit einem 6 mm Zylinderschaft, VHM mit AlCrN Beschichtung, 28° Helix und 9° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer und Martensitischer Edelstahl, Gusseisen und Aluminiumguss 0 und Kupfer oder Kupferlegierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","possible"]],"f":[[0,"7106974"],[7,"1"],[14,"S823"],[16,"S8236.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760698631"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"26.4"],[31,"HM"],[32,"Work Norm"],[33,"AlCrN",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"3.0"],[52,"28"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"6.0"],[142,"h6"],[157,"0.13"],[164,"6.0"],[181,"19.0"],[260,"57.0"],[276,"9.0"]],"m":[["dimensions",0]],"d":[],"x":[977546]},"475710":{"c":"S8237.0","s":["Regular length slot drill with 3 flutes, diameter 7 mm with 19 mm length of cut, 63 mm overall length and 0.13 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length slot drill with 3 flutes, diameter 7 mm with 19 mm length of cut, 63 mm overall length and 0.13 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length nutfräser mit 3 Schneiden, Durchmesser 7 mm mit 19 mm Schnittlänge, 63 mm Gesamtlänge und 0.13 mm 45° Schneidkante, gemäß Dormer Pramet Standard mit einem 8 mm Zylinderschaft, VHM mit AlCrN Beschichtung, 28° Helix und 9° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer und Martensitischer Edelstahl, Gusseisen und Aluminiumguss 0 und Kupfer oder Kupferlegierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","possible"]],"f":[[0,"7106975"],[7,"1"],[14,"S823"],[16,"S8237.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760698648"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"42.0"],[31,"HM"],[32,"Work Norm"],[33,"AlCrN",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"3.0"],[52,"28"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"8.0"],[142,"h6"],[157,"0.13"],[164,"7.0"],[181,"19.0"],[252,"7.0"],[254,"26.3"],[260,"63.0"],[276,"9.0"]],"m":[["dimensions",0]],"d":[],"x":[977547]},"475711":{"c":"S8238.0","s":["Regular length slot drill with 3 flutes, diameter 8 mm with 19 mm length of cut, 63 mm overall length and 0.2 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length slot drill with 3 flutes, diameter 8 mm with 19 mm length of cut, 63 mm overall length and 0.2 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length nutfräser mit 3 Schneiden, Durchmesser 8 mm mit 19 mm Schnittlänge, 63 mm Gesamtlänge und 0.2 mm 45° Schneidkante, gemäß Dormer Pramet Standard mit einem 8 mm Zylinderschaft, VHM mit AlCrN Beschichtung, 28° Helix und 9° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer und Martensitischer Edelstahl, Gusseisen und Aluminiumguss 0 und Kupfer oder Kupferlegierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","possible"]],"f":[[0,"7106976"],[7,"1"],[14,"S823"],[16,"S8238.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760698655"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"45.0"],[31,"HM"],[32,"Work Norm"],[33,"AlCrN",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"3.0"],[52,"28"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"8.0"],[142,"h6"],[157,"0.2"],[164,"8.0"],[181,"19.0"],[260,"63.0"],[276,"9.0"]],"m":[["dimensions",0]],"d":[],"x":[977548]},"475712":{"c":"S8239.0","s":["Regular length slot drill with 3 flutes, diameter 9 mm with 21 mm length of cut, 72 mm overall length and 0.2 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length slot drill with 3 flutes, diameter 9 mm with 21 mm length of cut, 72 mm overall length and 0.2 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length nutfräser mit 3 Schneiden, Durchmesser 9 mm mit 21 mm Schnittlänge, 72 mm Gesamtlänge und 0.2 mm 45° Schneidkante, gemäß Dormer Pramet Standard mit einem 10 mm Zylinderschaft, VHM mit AlCrN Beschichtung, 28° Helix und 9° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer und Martensitischer Edelstahl, Gusseisen und Aluminiumguss 0 und Kupfer oder Kupferlegierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","possible"]],"f":[[0,"7106977"],[7,"1"],[14,"S823"],[16,"S8239.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760698662"],[21,"17.0"],[22,"85.0"],[23,"17.0"],[24,"71.0"],[31,"HM"],[32,"Work Norm"],[33,"AlCrN",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"3.0"],[52,"28"],[53,"Yes","Ja",null,null],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[157,"0.2"],[164,"9.0"],[181,"21.0"],[252,"9.0"],[254,"31.3"],[260,"72.0"],[276,"9.0"]],"m":[["dimensions",0]],"d":[],"x":[977549]},"475713":{"c":"S82310.0","s":["Regular length slot drill with 3 flutes, diameter 10 mm with 22 mm length of cut, 72 mm overall length and 0.2 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length slot drill with 3 flutes, diameter 10 mm with 22 mm length of cut, 72 mm overall length and 0.2 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length nutfräser mit 3 Schneiden, Durchmesser 10 mm mit 22 mm Schnittlänge, 72 mm Gesamtlänge und 0.2 mm 45° Schneidkante, gemäß Dormer Pramet Standard mit einem 10 mm Zylinderschaft, VHM mit AlCrN Beschichtung, 28° Helix und 9° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer und Martensitischer Edelstahl, Gusseisen und Aluminiumguss 0 und Kupfer oder Kupferlegierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","possible"]],"f":[[0,"7106978"],[7,"1"],[14,"S823"],[16,"S82310.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760698679"],[21,"17.0"],[22,"85.0"],[23,"17.0"],[24,"74.0"],[31,"HM"],[32,"Work Norm"],[33,"AlCrN",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"3.0"],[52,"28"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"10.0"],[142,"h6"],[157,"0.2"],[164,"10.0"],[181,"22.0"],[260,"72.0"],[276,"9.0"]],"m":[["dimensions",0]],"d":[],"x":[977550]},"475714":{"c":"S82312.0","s":["Regular length slot drill with 3 flutes, diameter 12 mm with 25 mm length of cut, 83 mm overall length and 0.2 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 12 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length slot drill with 3 flutes, diameter 12 mm with 25 mm length of cut, 83 mm overall length and 0.2 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 12 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length nutfräser mit 3 Schneiden, Durchmesser 12 mm mit 25 mm Schnittlänge, 83 mm Gesamtlänge und 0.2 mm 45° Schneidkante, gemäß Dormer Pramet Standard mit einem 12 mm Zylinderschaft, VHM mit AlCrN Beschichtung, 28° Helix und 9° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer und Martensitischer Edelstahl, Gusseisen und Aluminiumguss 0 und Kupfer oder Kupferlegierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","possible"]],"f":[[0,"7106979"],[7,"1"],[14,"S823"],[16,"S82312.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760698686"],[21,"21.0"],[22,"90.0"],[23,"21.0"],[24,"124.0"],[31,"HM"],[32,"Work Norm"],[33,"AlCrN",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"3.0"],[52,"28"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"12.0"],[142,"h6"],[157,"0.2"],[164,"12.0"],[181,"25.0"],[260,"83.0"],[276,"9.0"]],"m":[["dimensions",0]],"d":[],"x":[977551]},"475715":{"c":"S82314.0","s":["Regular length slot drill with 3 flutes, diameter 14 mm with 30 mm length of cut, 83 mm overall length and 0.2 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 14 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length slot drill with 3 flutes, diameter 14 mm with 30 mm length of cut, 83 mm overall length and 0.2 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 14 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length nutfräser mit 3 Schneiden, Durchmesser 14 mm mit 30 mm Schnittlänge, 83 mm Gesamtlänge und 0.2 mm 45° Schneidkante, gemäß Dormer Pramet Standard mit einem 14 mm Zylinderschaft, VHM mit AlCrN Beschichtung, 28° Helix und 9° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer und Martensitischer Edelstahl, Gusseisen und Aluminiumguss 0 und Kupfer oder Kupferlegierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","possible"]],"f":[[0,"7106980"],[7,"1"],[14,"S823"],[16,"S82314.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760698693"],[21,"21.0"],[22,"90.0"],[23,"21.0"],[24,"157.0"],[31,"HM"],[32,"Work Norm"],[33,"AlCrN",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"3.0"],[52,"28"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"14.0"],[142,"h6"],[157,"0.2"],[164,"14.0"],[181,"30.0"],[260,"83.0"],[276,"9.0"]],"m":[["dimensions",0]],"d":[],"x":[977552]},"475716":{"c":"S82316.0","s":["Regular length slot drill with 3 flutes, diameter 16 mm with 32 mm length of cut, 92 mm overall length and 0.2 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 16 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length slot drill with 3 flutes, diameter 16 mm with 32 mm length of cut, 92 mm overall length and 0.2 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 16 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length nutfräser mit 3 Schneiden, Durchmesser 16 mm mit 32 mm Schnittlänge, 92 mm Gesamtlänge und 0.2 mm 45° Schneidkante, gemäß Dormer Pramet Standard mit einem 16 mm Zylinderschaft, VHM mit AlCrN Beschichtung, 28° Helix und 9° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer und Martensitischer Edelstahl, Gusseisen und Aluminiumguss 0 und Kupfer oder Kupferlegierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","possible"]],"f":[[0,"7106981"],[7,"1"],[14,"S823"],[16,"S82316.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760698709"],[21,"25.0"],[22,"100.0"],[23,"25.0"],[24,"222.0"],[31,"HM"],[32,"Work Norm"],[33,"AlCrN",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"3.0"],[52,"28"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"16.0"],[142,"h6"],[157,"0.2"],[164,"16.0"],[181,"32.0"],[260,"92.0"],[276,"9.0"]],"m":[["dimensions",0]],"d":[],"x":[977553]},"475717":{"c":"S82318.0","s":["Regular length slot drill with 3 flutes, diameter 18 mm with 32 mm length of cut, 92 mm overall length and 0.2 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 18 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length slot drill with 3 flutes, diameter 18 mm with 32 mm length of cut, 92 mm overall length and 0.2 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 18 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length nutfräser mit 3 Schneiden, Durchmesser 18 mm mit 32 mm Schnittlänge, 92 mm Gesamtlänge und 0.2 mm 45° Schneidkante, gemäß Dormer Pramet Standard mit einem 18 mm Zylinderschaft, VHM mit AlCrN Beschichtung, 28° Helix und 9° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer und Martensitischer Edelstahl, Gusseisen und Aluminiumguss 0 und Kupfer oder Kupferlegierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","possible"]],"f":[[0,"7106982"],[7,"1"],[14,"S823"],[16,"S82318.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760698716"],[21,"25.0"],[22,"98.0"],[23,"25.0"],[24,"290.4"],[31,"HM"],[32,"Work Norm"],[33,"AlCrN",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"3.0"],[52,"28"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"18.0"],[142,"h6"],[157,"0.2"],[164,"18.0"],[181,"32.0"],[260,"92.0"],[276,"9.0"]],"m":[["dimensions",0]],"d":[],"x":[977554]},"475718":{"c":"S82320.0","s":["Regular length slot drill with 3 flutes, diameter 20 mm with 38 mm length of cut, 104 mm overall length and 0.3 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 20 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length slot drill with 3 flutes, diameter 20 mm with 38 mm length of cut, 104 mm overall length and 0.3 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 20 mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys","Regular length nutfräser mit 3 Schneiden, Durchmesser 20 mm mit 38 mm Schnittlänge, 104 mm Gesamtlänge und 0.3 mm 45° Schneidkante, gemäß Dormer Pramet Standard mit einem 20 mm Zylinderschaft, VHM mit AlCrN Beschichtung, 28° Helix und 9° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Stahl und Stahlguss, Ferritischer und Martensitischer Edelstahl, Gusseisen und Aluminiumguss 0 und Kupfer oder Kupferlegierungen"],"o":"IT","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","possible"]],"f":[[0,"7106983"],[7,"1"],[14,"S823"],[16,"S82320.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760698723"],[21,"30.0"],[22,"110.0"],[23,"30.0"],[24,"396.0"],[31,"HM"],[32,"Work Norm"],[33,"AlCrN",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Cylindrical shank DIN 6535 HA",null,"Queue cylindrique DIN 6535 HA","DIN 6535 HA Zylindrischer Schaft"],[37,"3.0"],[52,"28"],[55,"N - General Purpose Cutter Type for Low to High Resistance Materials",null,"N - Profil pour usage général dans les matériaux de faible à haute résistance","N - Universalfräser für gering – bis hochwiderstandsfähige Werkstoffe"],[138,"20.0"],[142,"h6"],[157,"0.3"],[164,"20.0"],[181,"38.0"],[260,"104.0"],[276,"9.0"]],"m":[["dimensions",0]],"d":[],"x":[977555]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Diameter (DC)	2 mm, 2,5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm
Coating (DP)	AlCrN
Schacht (DP)	Cylindrical shank DIN 6535 HA
