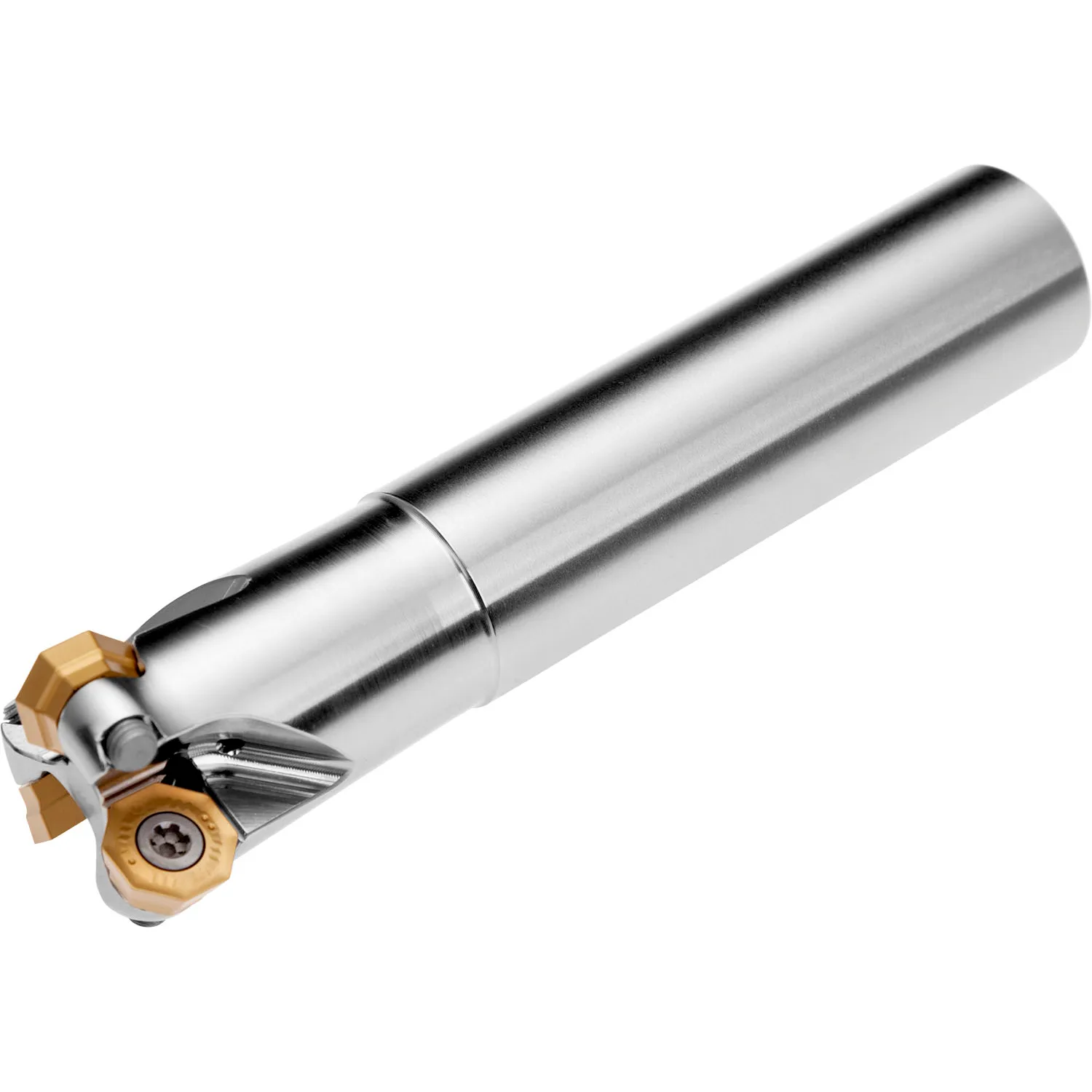

SOD05 Opsteekfrees - vlakfrezen

Name: SOD05 Opsteekfrees - vlakfrezen (32N3R045A25-SOD05-C)
SKU: 32N3R045A25-SOD05-C
Price: 347.28 EUR
Availability: InStock

PRAMET Tsjechië

347,28 €

excl. BTW

Productinformatie

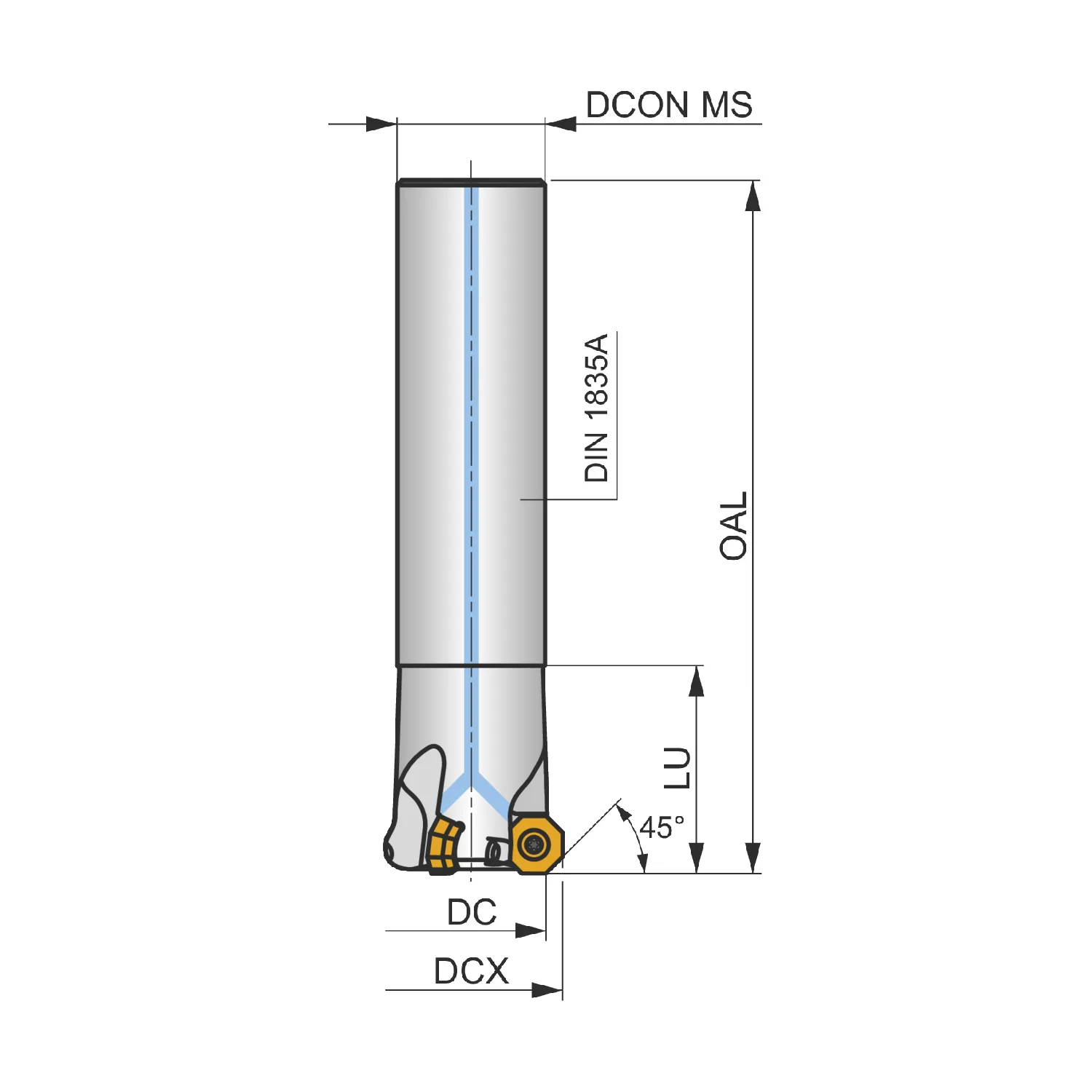

Kopieerfrees met positief/negatieve geometrie die gebruikmaakt van 3 enkelzijdige wisselplaten OD.T 05IM, RD.T 12IM of SD.T 12IM, snijdiameter 24,7 tot maximaal mm met 45 / 90° instelhoek en 25 mm cilindrische schacht volgens DIN 1835A, 45 mm functionele en 130 mm totale lengte, inwendige koeling voor vlakfrezen, kopieerfrezen, ondiep schouderfrezen, ondiep sleuffrezen, hellend frezen, spiraalfrezen, insteekfrezen, progressief insteekfrezen en afschuinen met een maximale snedediepte van 3,0 (6,0/10,0) mm

Bestelcode (DP)
Schacht (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/SOD05_A_CSP_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/SOD05_OP.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/32N3R045A25-SOD05-C_7342889_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/32N3R045A25-SOD05-C_7342889_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/40N3R045A32-SOD05-C_7342890_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/40N3R045A32-SOD05-C_7342890_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/SOD05_SA_CSP_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/40A03R-S45OD05-C_7342880_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/40A03R-S45OD05-C_7342880_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/50A04R-S45OD05-C_7342881_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/50A04R-S45OD05-C_7342881_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/50A05R-S45OD05-C_7342882_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/50A05R-S45OD05-C_7342882_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/63A05R-S45OD05-C_7342883_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/63A05R-S45OD05-C_7342883_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/63A06R-S45OD05-C_7342884_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/63A06R-S45OD05-C_7342884_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/80A06R-S45OD05-C_7342885_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/80A06R-S45OD05-C_7342885_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/80A08R-S45OD05-C_7342886_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/80A08R-S45OD05-C_7342886_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/100A07R-S45OD05-C_7342887_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/100A07R-S45OD05-C_7342887_3D.STP"],"p":{"483096":{"c":"32N3R045A25-SOD05-C","s":["Copy face mill with positve/negative geometry which utilises 3 of OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 24.7 to maximummm with 45 / 90° approach angle and 25 mm parallel shank according to DIN 1835A, 45 mm functional and 130 mm overall length, through coolant for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0)mm","Fraise à copier et à surfacer avec géométrie positive/négative qui utilise 3 des OD.T 05IM, RD.T 12IM ou SD.T 12IM positive plaquettes, diamètre de coupe 24.7 à un maximum de 32 mm avec 45 / 90° d'angle d'attaque et 25 mm queue cylindrique selon DIN 1835A, 45 mm fonctionnel et 130 mm longueur totale, arrosage interne pour fraisage de surfaces planes, fraisage en copiant, fraisage d'épaulements peu profonds, fraisage de rainures peu profondes, fraisage en plongée oblique (ramping), fraisage hélicoïdal, fraisage en tréflage, fraisage en tréflage progressif et fraisage de chanfreins avec une profondeur de coupe maximum de 3.0 (6.0/10.0)mm","Kopier-Planfräser mit positiver/negativer Geometrie zum spannen von 3 Stück OD.T 05IM, RD.T 12IM oder SD.T 12IM einseitigen Wendeschneidplatten, Schnittdurchmesser 24.7 mm mit 45 / 90° Anstellwinkel und 25 mm Zylinderschaft gemäß DIN 1835A, 45 mm Funktionslänge 130 mm Gesamtlänge, Kühlkanalbohrung zum Planfräsen, Kopierfräsen, flachen Schulterfräsen, flachen Nutfräsen, Rampen, Helikalen Fräsen, Tauchfräsen, progressiven Eintauchen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.0 (6.0/10.0)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["N","possible"]],"f":[[0,"7342889"],[7,"1"],[14,"SOD05"],[16,"32N3R045A25-SOD05-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603288102"],[21,"50.0"],[22,"172.0"],[23,"50.0"],[24,"410.0"],[34,"Cylindrical shank DIN 1835A",null,"Queue cylindrique DIN 1835 A","DIN 1835A – Zylindrischer Schaft"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOD05"],[98,"8.0"],[138,"25.0"],[164,"24.7"],[166,"32.0"],[181,"2.7"],[233,"3.0"],[260,"130.0"],[262,"3.0"],[276,"-10.0"],[279,"17700.0"],[313,"45.0"],[318,"45.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",2],["3d",3]]},"483097":{"c":"40N3R045A32-SOD05-C","s":["Copy face mill with positve/negative geometry which utilises 3 of OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 32.6 mm with 45 / 90° approach angle and 32 mm parallel shank according to DIN 1835A, 45 mm functional and 150 mm overall length, through coolant for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0)mm","Fraise à copier et à surfacer avec géométrie positive/négative qui utilise 3 des OD.T 05IM, RD.T 12IM ou SD.T 12IM positive plaquettes, diamètre de coupe 32.6 à un maximum de 40 mm avec 45 / 90° d'angle d'attaque et 32 mm queue cylindrique selon DIN 1835A, 45 mm fonctionnel et 150 mm longueur totale, arrosage interne pour fraisage de surfaces planes, fraisage en copiant, fraisage d'épaulements peu profonds, fraisage de rainures peu profondes, fraisage en plongée oblique (ramping), fraisage hélicoïdal, fraisage en tréflage, fraisage en tréflage progressif et fraisage de chanfreins avec une profondeur de coupe maximum de 3.0 (6.0/10.0)mm","Kopier-Planfräser mit positiver/negativer Geometrie zum spannen von 3 Stück OD.T 05IM, RD.T 12IM oder SD.T 12IM einseitigen Wendeschneidplatten, Schnittdurchmesser 32.6 mm mit 45 / 90° Anstellwinkel und 32 mm Zylinderschaft gemäß DIN 1835A, 45 mm Funktionslänge 150 mm Gesamtlänge, Kühlkanalbohrung zum Planfräsen, Kopierfräsen, flachen Schulterfräsen, flachen Nutfräsen, Rampen, Helikalen Fräsen, Tauchfräsen, progressiven Eintauchen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.0 (6.0/10.0)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["N","possible"]],"f":[[0,"7342890"],[7,"1"],[14,"SOD05"],[16,"40N3R045A32-SOD05-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603288119"],[21,"50.0"],[22,"172.0"],[23,"50.0"],[24,"864.5"],[34,"Cylindrical shank DIN 1835A",null,"Queue cylindrique DIN 1835 A","DIN 1835A – Zylindrischer Schaft"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOD05"],[98,"8.0"],[138,"32.0"],[164,"32.6"],[166,"40.0"],[181,"2.7"],[233,"3.0"],[260,"150.0"],[262,"3.0"],[276,"-7.0"],[279,"15800.0"],[313,"45.0"],[318,"45.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",4],["3d",5]]},"483098":{"c":"40A03R-S45OD05-C","s":["Copy face mill with positve/negative geometry which utilises 3 of OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 32.7 mm with 45 / 90° approach angle and 16 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0)mm","Fraise à copier et à surfacer avec géométrie positive/négative qui utilise 3 des OD.T 05IM, RD.T 12IM ou SD.T 12IM positive plaquettes, diamètre de coupe 32.7 à un maximum de 40 mm avec 45 / 90° d'angle d'attaque et 16 mm alésage de connexion selon DIN 8030-A, 40 mm longueur utile, arrosage interne pour fraisage de surfaces planes, fraisage en copiant, fraisage d'épaulements peu profonds, fraisage de rainures peu profondes, fraisage en plongée oblique (ramping), fraisage hélicoïdal, fraisage en tréflage, fraisage en tréflage progressif et fraisage de chanfreins avec une profondeur de coupe maximum de 3.0 (6.0/10.0)mm","Kopier-Planfräser mit positiver/negativer Geometrie zum spannen von 3 Stück OD.T 05IM, RD.T 12IM oder SD.T 12IM einseitigen Wendeschneidplatten, Schnittdurchmesser 32.7 mm mit 45 / 90° Anstellwinkel und 16 mm Verbindungsbohrung gemäß DIN 8030-A, 40 mm Überstandslänge, Kühlkanalbohrung zum Planfräsen, Kopierfräsen, flachen Schulterfräsen, flachen Nutfräsen, Rampen, Helikalen Fräsen, Tauchfräsen, progressiven Eintauchen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.0 (6.0/10.0)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["N","possible"]],"f":[[0,"7342880"],[7,"1"],[14,"SOD05"],[16,"40A03R-S45OD05-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603288010"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"185.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOD05"],[98,"8.0"],[138,"16.0"],[160,"14.0"],[164,"32.7"],[166,"40.0"],[181,"2.7"],[211,"40.0"],[233,"3.0"],[240,"5.6"],[241,"8.4"],[262,"3.0"],[276,"-10.0"],[279,"15800.0"],[313,"45.0"]],"m":[["dimensions",6],["application",1]],"d":[["2d",7],["3d",8]]},"483099":{"c":"50A04R-S45OD05-C","s":["Copy face mill with positve/negative geometry which utilises 4 of OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 42.6 mm with 45 / 90° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0)mm","Fraise à copier et à surfacer avec géométrie positive/négative qui utilise 4 des OD.T 05IM, RD.T 12IM ou SD.T 12IM positive plaquettes, diamètre de coupe 42.6 à un maximum de 50 mm avec 45 / 90° d'angle d'attaque et 22 mm alésage de connexion selon DIN 8030-A, 40 mm longueur utile, arrosage interne pour fraisage de surfaces planes, fraisage en copiant, fraisage d'épaulements peu profonds, fraisage de rainures peu profondes, fraisage en plongée oblique (ramping), fraisage hélicoïdal, fraisage en tréflage, fraisage en tréflage progressif et fraisage de chanfreins avec une profondeur de coupe maximum de 3.0 (6.0/10.0)mm","Kopier-Planfräser mit positiver/negativer Geometrie zum spannen von 4 Stück OD.T 05IM, RD.T 12IM oder SD.T 12IM einseitigen Wendeschneidplatten, Schnittdurchmesser 42.6 mm mit 45 / 90° Anstellwinkel und 22 mm Verbindungsbohrung gemäß DIN 8030-A, 40 mm Überstandslänge, Kühlkanalbohrung zum Planfräsen, Kopierfräsen, flachen Schulterfräsen, flachen Nutfräsen, Rampen, Helikalen Fräsen, Tauchfräsen, progressiven Eintauchen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.0 (6.0/10.0)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["N","possible"]],"f":[[0,"7342881"],[7,"1"],[14,"SOD05"],[16,"50A04R-S45OD05-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603288027"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"276.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"4.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOD05"],[98,"8.0"],[138,"22.0"],[160,"18.0"],[164,"42.6"],[166,"50.0"],[181,"2.7"],[211,"40.0"],[233,"4.0"],[240,"6.3"],[241,"10.4"],[262,"4.0"],[276,"-7.0"],[279,"14100.0"],[313,"45.0"]],"m":[["dimensions",6],["application",1]],"d":[["2d",9],["3d",10]]},"483100":{"c":"50A05R-S45OD05-C","s":["Copy face mill with positve/negative geometry which utilises 5 of OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 42.6 mm with 45 / 90° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0)mm","Fraise à copier et à surfacer avec géométrie positive/négative qui utilise 5 des OD.T 05IM, RD.T 12IM ou SD.T 12IM positive plaquettes, diamètre de coupe 42.6 à un maximum de 50 mm avec 45 / 90° d'angle d'attaque et 22 mm alésage de connexion selon DIN 8030-A, 40 mm longueur utile, arrosage interne pour fraisage de surfaces planes, fraisage en copiant, fraisage d'épaulements peu profonds, fraisage de rainures peu profondes, fraisage en plongée oblique (ramping), fraisage hélicoïdal, fraisage en tréflage, fraisage en tréflage progressif et fraisage de chanfreins avec une profondeur de coupe maximum de 3.0 (6.0/10.0)mm","Kopier-Planfräser mit positiver/negativer Geometrie zum spannen von 5 Stück OD.T 05IM, RD.T 12IM oder SD.T 12IM einseitigen Wendeschneidplatten, Schnittdurchmesser 42.6 mm mit 45 / 90° Anstellwinkel und 22 mm Verbindungsbohrung gemäß DIN 8030-A, 40 mm Überstandslänge, Kühlkanalbohrung zum Planfräsen, Kopierfräsen, flachen Schulterfräsen, flachen Nutfräsen, Rampen, Helikalen Fräsen, Tauchfräsen, progressiven Eintauchen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.0 (6.0/10.0)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["N","possible"]],"f":[[0,"7342882"],[7,"1"],[14,"SOD05"],[16,"50A05R-S45OD05-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603288034"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"280.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"5.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOD05"],[98,"8.0"],[138,"22.0"],[160,"18.0"],[164,"42.6"],[166,"50.0"],[181,"2.7"],[211,"40.0"],[233,"5.0"],[240,"6.3"],[241,"10.4"],[262,"5.0"],[276,"-7.0"],[279,"14100.0"],[313,"45.0"]],"m":[["dimensions",6],["application",1]],"d":[["2d",11],["3d",12]]},"483101":{"c":"63A05R-S45OD05-C","s":["Copy face mill with positve/negative geometry which utilises 5 of OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 55.6 mm with 45 / 90° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0)mm","Fraise à copier et à surfacer avec géométrie positive/négative qui utilise 5 des OD.T 05IM, RD.T 12IM ou SD.T 12IM positive plaquettes, diamètre de coupe 55.6 à un maximum de 63 mm avec 45 / 90° d'angle d'attaque et 22 mm alésage de connexion selon DIN 8030-A, 40 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes, fraisage en copiant, fraisage d'épaulements peu profonds, fraisage de rainures peu profondes, fraisage en plongée oblique (ramping), fraisage hélicoïdal, fraisage en tréflage, fraisage en tréflage progressif et fraisage de chanfreins avec une profondeur de coupe maximum de 3.0 (6.0/10.0)mm","Kopier-Planfräser mit positiver/negativer Geometrie zum spannen von 5 Stück OD.T 05IM, RD.T 12IM oder SD.T 12IM einseitigen Wendeschneidplatten, Schnittdurchmesser 55.6 mm mit 45 / 90° Anstellwinkel und 22 mm Verbindungsbohrung gemäß DIN 8030-A, 40 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen, Kopierfräsen, flachen Schulterfräsen, flachen Nutfräsen, Rampen, Helikalen Fräsen, Tauchfräsen, progressiven Eintauchen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.0 (6.0/10.0)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["N","possible"]],"f":[[0,"7342883"],[7,"1"],[14,"SOD05"],[16,"63A05R-S45OD05-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603288041"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"394.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"5.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOD05"],[98,"8.0"],[138,"22.0"],[160,"18.0"],[164,"55.6"],[166,"63.0"],[176,"Yes","Ja",null,null],[181,"2.7"],[211,"40.0"],[233,"5.0"],[240,"6.3"],[241,"10.4"],[262,"5.0"],[276,"-7.0"],[279,"12600.0"],[313,"45.0"]],"m":[["dimensions",6],["application",1]],"d":[["2d",13],["3d",14]]},"483102":{"c":"63A06R-S45OD05-C","s":["Copy face mill with positve/negative geometry which utilises 6 of OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 55.6 mm with 45 / 90° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0)mm","Fraise à copier et à surfacer avec géométrie positive/négative qui utilise 6 des OD.T 05IM, RD.T 12IM ou SD.T 12IM positive plaquettes, diamètre de coupe 55.6 à un maximum de 63 mm avec 45 / 90° d'angle d'attaque et 22 mm alésage de connexion selon DIN 8030-A, 40 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes, fraisage en copiant, fraisage d'épaulements peu profonds, fraisage de rainures peu profondes, fraisage en plongée oblique (ramping), fraisage hélicoïdal, fraisage en tréflage, fraisage en tréflage progressif et fraisage de chanfreins avec une profondeur de coupe maximum de 3.0 (6.0/10.0)mm","Kopier-Planfräser mit positiver/negativer Geometrie zum spannen von 6 Stück OD.T 05IM, RD.T 12IM oder SD.T 12IM einseitigen Wendeschneidplatten, Schnittdurchmesser 55.6 mm mit 45 / 90° Anstellwinkel und 22 mm Verbindungsbohrung gemäß DIN 8030-A, 40 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen, Kopierfräsen, flachen Schulterfräsen, flachen Nutfräsen, Rampen, Helikalen Fräsen, Tauchfräsen, progressiven Eintauchen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.0 (6.0/10.0)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["N","possible"]],"f":[[0,"7342884"],[7,"1"],[14,"SOD05"],[16,"63A06R-S45OD05-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603288058"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"496.5"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"6.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOD05"],[98,"8.0"],[138,"22.0"],[160,"18.0"],[164,"55.6"],[166,"63.0"],[176,"Yes","Ja",null,null],[181,"2.7"],[211,"40.0"],[233,"6.0"],[240,"6.3"],[241,"10.4"],[262,"6.0"],[276,"-7.0"],[279,"12600.0"],[313,"45.0"]],"m":[["dimensions",6],["application",1]],"d":[["2d",15],["3d",16]]},"483103":{"c":"80A06R-S45OD05-C","s":["Copy face mill with positve/negative geometry which utilises 6 of OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 72.6 mm with 45 / 90° approach angle and 27 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0)mm","Fraise à copier et à surfacer avec géométrie positive/négative qui utilise 6 des OD.T 05IM, RD.T 12IM ou SD.T 12IM positive plaquettes, diamètre de coupe 72.6 à un maximum de 80 mm avec 45 / 90° d'angle d'attaque et 27 mm alésage de connexion selon DIN 8030-A, 50 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes, fraisage en copiant, fraisage d'épaulements peu profonds, fraisage de rainures peu profondes, fraisage en plongée oblique (ramping), fraisage hélicoïdal, fraisage en tréflage, fraisage en tréflage progressif et fraisage de chanfreins avec une profondeur de coupe maximum de 3.0 (6.0/10.0)mm","Kopier-Planfräser mit positiver/negativer Geometrie zum spannen von 6 Stück OD.T 05IM, RD.T 12IM oder SD.T 12IM einseitigen Wendeschneidplatten, Schnittdurchmesser 72.6 mm mit 45 / 90° Anstellwinkel und 27 mm Verbindungsbohrung gemäß DIN 8030-A, 50 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen, Kopierfräsen, flachen Schulterfräsen, flachen Nutfräsen, Rampen, Helikalen Fräsen, Tauchfräsen, progressiven Eintauchen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.0 (6.0/10.0)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["N","possible"]],"f":[[0,"7342885"],[7,"1"],[14,"SOD05"],[16,"80A06R-S45OD05-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603288065"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"715.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"6.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOD05"],[98,"8.0"],[138,"27.0"],[160,"38.0"],[164,"72.6"],[166,"80.0"],[176,"Yes","Ja",null,null],[181,"2.7"],[211,"50.0"],[233,"6.0"],[240,"7.0"],[241,"12.4"],[262,"6.0"],[276,"-7.0"],[279,"11100.0"],[313,"45.0"]],"m":[["dimensions",6],["application",1]],"d":[["2d",17],["3d",18]]},"483104":{"c":"80A08R-S45OD05-C","s":["Copy face mill with positve/negative geometry which utilises 8 of OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 72.6 mm with 45 / 90° approach angle and 27 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0)mm","Fraise à copier et à surfacer avec géométrie positive/négative qui utilise 8 des OD.T 05IM, RD.T 12IM ou SD.T 12IM positive plaquettes, diamètre de coupe 72.6 à un maximum de 80 mm avec 45 / 90° d'angle d'attaque et 27 mm alésage de connexion selon DIN 8030-A, 50 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes, fraisage en copiant, fraisage d'épaulements peu profonds, fraisage de rainures peu profondes, fraisage en plongée oblique (ramping), fraisage hélicoïdal, fraisage en tréflage, fraisage en tréflage progressif et fraisage de chanfreins avec une profondeur de coupe maximum de 3.0 (6.0/10.0)mm","Kopier-Planfräser mit positiver/negativer Geometrie zum spannen von 8 Stück OD.T 05IM, RD.T 12IM oder SD.T 12IM einseitigen Wendeschneidplatten, Schnittdurchmesser 72.6 mm mit 45 / 90° Anstellwinkel und 27 mm Verbindungsbohrung gemäß DIN 8030-A, 50 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen, Kopierfräsen, flachen Schulterfräsen, flachen Nutfräsen, Rampen, Helikalen Fräsen, Tauchfräsen, progressiven Eintauchen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.0 (6.0/10.0)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["N","possible"]],"f":[[0,"7342886"],[7,"1"],[14,"SOD05"],[16,"80A08R-S45OD05-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603288072"],[21,"115.0"],[22,"150.0"],[23,"62.0"],[24,"660.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"8.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOD05"],[98,"8.0"],[138,"27.0"],[160,"38.0"],[164,"72.6"],[166,"80.0"],[176,"Yes","Ja",null,null],[181,"2.7"],[211,"50.0"],[233,"8.0"],[240,"7.0"],[241,"12.4"],[262,"8.0"],[276,"-7.0"],[279,"11100.0"],[313,"45.0"]],"m":[["dimensions",6],["application",1]],"d":[["2d",19],["3d",20]]},"483105":{"c":"100A07R-S45OD05-C","s":["Copy face mill with positve/negative geometry which utilises 7 of OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 92.6 mm with 45 / 90° approach angle and 32 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0)mm","Fraise à copier et à surfacer avec géométrie positive/négative qui utilise 7 des OD.T 05IM, RD.T 12IM ou SD.T 12IM positive plaquettes, diamètre de coupe 92.6 à un maximum de 100 mm avec 45 / 90° d'angle d'attaque et 32 mm alésage de connexion selon DIN 8030-A, 50 mm longueur utile, arrosage interne et un pas différentiel pour fraisage de surfaces planes, fraisage en copiant, fraisage d'épaulements peu profonds, fraisage de rainures peu profondes, fraisage en plongée oblique (ramping), fraisage hélicoïdal, fraisage en tréflage, fraisage en tréflage progressif et fraisage de chanfreins avec une profondeur de coupe maximum de 3.0 (6.0/10.0)mm","Kopier-Planfräser mit positiver/negativer Geometrie zum spannen von 7 Stück OD.T 05IM, RD.T 12IM oder SD.T 12IM einseitigen Wendeschneidplatten, Schnittdurchmesser 92.6 mm mit 45 / 90° Anstellwinkel und 32 mm Verbindungsbohrung gemäß DIN 8030-A, 50 mm Überstandslänge, Kühlkanalbohrung und ungleiche Teilung zum Planfräsen, Kopierfräsen, flachen Schulterfräsen, flachen Nutfräsen, Rampen, Helikalen Fräsen, Tauchfräsen, progressiven Eintauchen und Entgratfräsen mit einer maximalen Schnitttiefe von 3.0 (6.0/10.0)mm"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","primary"],["N","possible"]],"f":[[0,"7342887"],[7,"1"],[14,"SOD05"],[16,"100A07R-S45OD05-C"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603288089"],[21,"220.0"],[22,"222.0"],[23,"85.0"],[24,"1088.0"],[34,"Shell mill DIN 8030 A",null,"Alésage pour montage court DIN 8030 A","Aufsteckfräser DIN 8030 A"],[37,"7.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SOD05"],[98,"8.0"],[138,"32.0"],[160,"45.0"],[164,"92.6"],[166,"100.0"],[176,"Yes","Ja",null,null],[181,"2.7"],[211,"50.0"],[233,"7.0"],[240,"8.0"],[241,"14.4"],[262,"7.0"],[276,"-7.0"],[279,"10000.0"],[313,"45.0"]],"m":[["dimensions",6],["application",1]],"d":[["2d",21],["3d",22]]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Bestelcode (DP)	32N3R045A25-SOD05-C, 40N3R045A32-SOD05-C, 40A03R-S45OD05-C, 50A04R-S45OD05-C, 50A05R-S45OD05-C, 63A05R-S45OD05-C, 63A06R-S45OD05-C, 80A06R-S45OD05-C, 80A08R-S45OD05-C, 100A07R-S45OD05-C
Schacht (DP)	Cylindrical shank DIN 1835A, Shell mill DIN 8030 A
