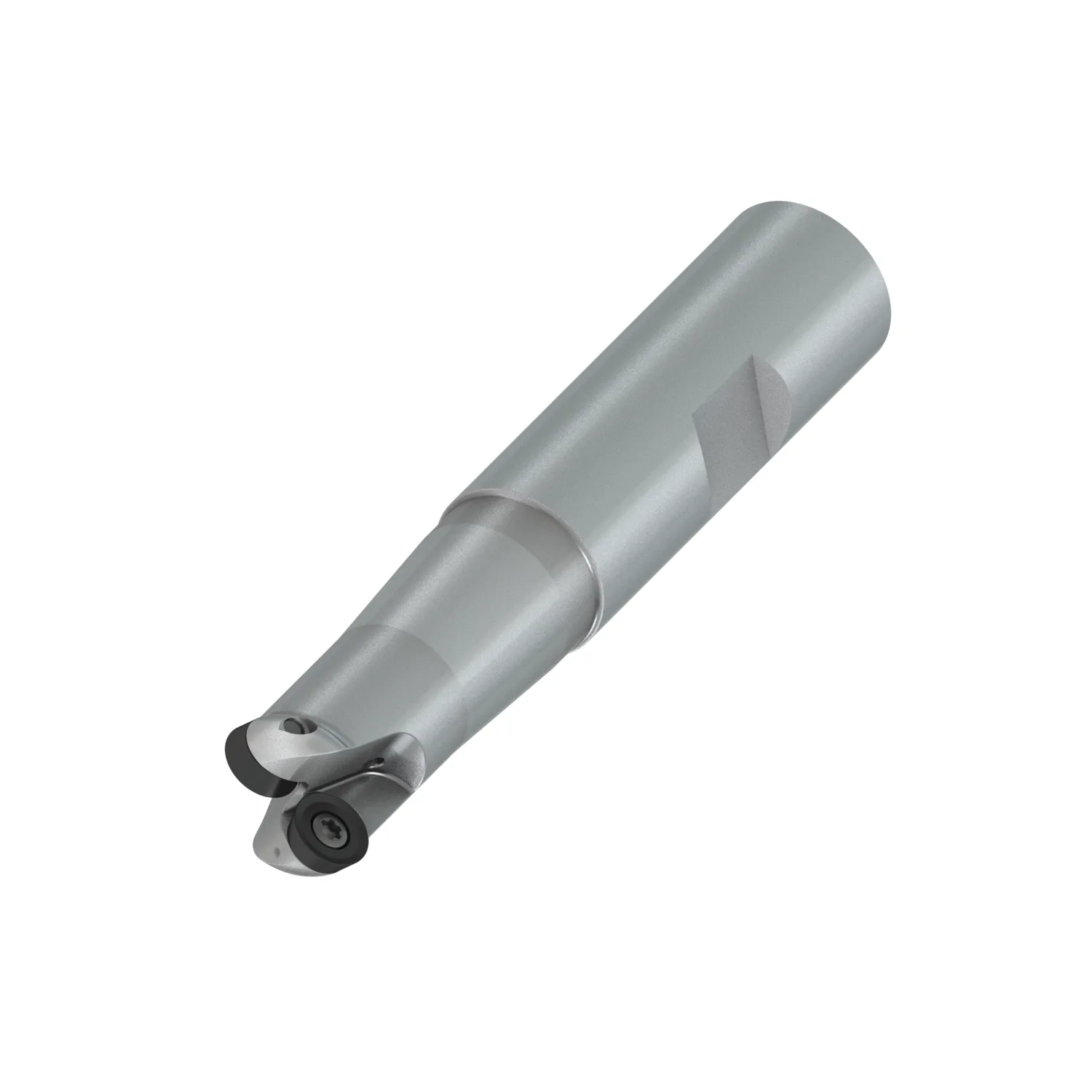

SRD07 Vingerfrees - kopieer- en profielfrezen

Name: SRD07 Vingerfrees - kopieer- en profielfrezen
SKU: 15E2R040B16-SRD07-CF
Price: 194.60 EUR
Availability: InStock

PRAMET Tsjechië

194,60 €

excl. BTW

Productinformatie

Kopieerfrees met positief/negatieve geometrie die gebruikmaakt van 2 enkelzijdige wisselplaten RD.. 0702MO.. of RD.. 07T1MO.., snijdiameter tot maximaal 15 mm met 16 mm Weldon-schacht volgens DIN 1835B, 40 mm bruikbare en 88 mm totale lengte, inwendige koeling voor vlakfrezen, kopieerfrezen, hellend frezen, progressief insteekfrezen en spiraalfrezen met een maximale snedediepte van 2 mm

Bestelcode (DP)
Schacht (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/SRD07_B_CSP_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/SRD07_OP.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/15E2R040B16-SRD07-CF_7999258_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/15E2R040B16-SRD07-CF_7999258_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/15E2R060B16-SRD07-CF_7999259_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/15E2R060B16-SRD07-CF_7999259_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/15E2R080B20-SRD07-CF_7999270_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/15E2R080B20-SRD07-CF_7999270_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/15E2R100B20-SRD07-CF_7999271_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/15E2R100B20-SRD07-CF_7999271_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/15E2R120B25-SRD07-CF_7999272_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/15E2R120B25-SRD07-CF_7999272_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/SRD07_M_CSP_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/15E2R028M08-SRD07-CF_7999273_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/15E2R028M08-SRD07-CF_7999273_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/15E3R028M08-SRD07-CF_7999274_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/15E3R028M08-SRD07-CF_7999274_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/20E4R028M10-SRD07-CF_7999275_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/20E4R028M10-SRD07-CF_7999275_3D.STP","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/25E5R028M12-SRD07-CF_7999276_2D.DXF","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/25E5R028M12-SRD07-CF_7999276_3D.STP"],"p":{"483180":{"c":"15E2R040B16-SRD07-CF","s":["Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with 16 mm Weldon shank according to DIN 1835B, 40 mm usable and 88 mm overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with 16 mm Weldon shank according to DIN 1835B, 40 mm usable and 88 mm overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Plan-Kopierfräser mit positv/negativer Geometrie welche 2 aus RD.. 0702MO.. oder RD.. 07T1MO.. einseitige Wendeschneidplatte, Schneiddurchmesser bis maximal 15 mm mit 16 mm Weldonschaft gemäß DIN 1835B, 40 mm anwendbar und 88 mm Gesamtlänge, durchgehende Kühlung zum Planfräsen, Kopierfräsen, Rampen, progressiven Tauchfräsen und helikalen Fräsen mit einer maximalen Schnitttiefe von 2 mm"],"o":"CZ","a":[],"f":[[0,"7999258"],[7,"1"],[14,"SRD07"],[16,"15E2R040B16-SRD07-CF"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603827844"],[21,"50.0"],[22,"172.0"],[23,"50.0"],[24,"124.0"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"2.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SRD07"],[98,"0.0"],[138,"16.0"],[164,"8.0"],[166,"15.0"],[181,"2.0"],[233,"2.0"],[260,"88.0"],[262,"2.0"],[276,"1.0"],[279,"44200.0"],[318,"40.0"],[319,"20.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",2],["3d",3]]},"483181":{"c":"15E2R060B16-SRD07-CF","s":["Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with 16 mm Weldon shank according to DIN 1835B, 60 mm usable and 108 mm overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with 16 mm Weldon shank according to DIN 1835B, 60 mm usable and 108 mm overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Plan-Kopierfräser mit positv/negativer Geometrie welche 2 aus RD.. 0702MO.. oder RD.. 07T1MO.. einseitige Wendeschneidplatte, Schneiddurchmesser bis maximal 15 mm mit 16 mm Weldonschaft gemäß DIN 1835B, 60 mm anwendbar und 108 mm Gesamtlänge, durchgehende Kühlung zum Planfräsen, Kopierfräsen, Rampen, progressiven Tauchfräsen und helikalen Fräsen mit einer maximalen Schnitttiefe von 2 mm"],"o":"CZ","a":[],"f":[[0,"7999259"],[7,"1"],[14,"SRD07"],[16,"15E2R060B16-SRD07-CF"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603827851"],[21,"50.0"],[22,"172.0"],[23,"50.0"],[24,"148.7"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"2.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SRD07"],[98,"0.0"],[138,"16.0"],[164,"8.0"],[166,"15.0"],[181,"2.0"],[233,"2.0"],[260,"108.0"],[262,"2.0"],[276,"1.0"],[279,"44200.0"],[318,"60.0"],[319,"20.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",4],["3d",5]]},"483182":{"c":"15E2R080B20-SRD07-CF","s":["Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with 20 mm Weldon shank according to DIN 1835B, 80 mm usable and 130 mm overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with 20 mm Weldon shank according to DIN 1835B, 80 mm usable and 130 mm overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Plan-Kopierfräser mit positv/negativer Geometrie welche 2 aus RD.. 0702MO.. oder RD.. 07T1MO.. einseitige Wendeschneidplatte, Schneiddurchmesser bis maximal 15 mm mit 20 mm Weldonschaft gemäß DIN 1835B, 80 mm anwendbar und 130 mm Gesamtlänge, durchgehende Kühlung zum Planfräsen, Kopierfräsen, Rampen, progressiven Tauchfräsen und helikalen Fräsen mit einer maximalen Schnitttiefe von 2 mm"],"o":"CZ","a":[],"f":[[0,"7999270"],[7,"1"],[14,"SRD07"],[16,"15E2R080B20-SRD07-CF"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603827868"],[21,"50.0"],[22,"172.0"],[23,"50.0"],[24,"220.0"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"2.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SRD07"],[98,"0.0"],[138,"20.0"],[164,"8.0"],[166,"15.0"],[181,"2.0"],[233,"2.0"],[260,"130.0"],[262,"2.0"],[276,"1.0"],[279,"44200.0"],[318,"80.0"],[319,"22.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",6],["3d",7]]},"483183":{"c":"15E2R100B20-SRD07-CF","s":["Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with 20 mm Weldon shank according to DIN 1835B, 100 mm usable and 150 mm overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with 20 mm Weldon shank according to DIN 1835B, 100 mm usable and 150 mm overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Plan-Kopierfräser mit positv/negativer Geometrie welche 2 aus RD.. 0702MO.. oder RD.. 07T1MO.. einseitige Wendeschneidplatte, Schneiddurchmesser bis maximal 15 mm mit 20 mm Weldonschaft gemäß DIN 1835B, 100 mm anwendbar und 150 mm Gesamtlänge, durchgehende Kühlung zum Planfräsen, Kopierfräsen, Rampen, progressiven Tauchfräsen und helikalen Fräsen mit einer maximalen Schnitttiefe von 2 mm"],"o":"CZ","a":[],"f":[[0,"7999271"],[7,"1"],[14,"SRD07"],[16,"15E2R100B20-SRD07-CF"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603827875"],[21,"50.0"],[22,"172.0"],[23,"50.0"],[24,"250.0"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"2.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SRD07"],[98,"0.0"],[138,"20.0"],[164,"8.0"],[166,"15.0"],[181,"2.0"],[233,"2.0"],[260,"150.0"],[262,"2.0"],[276,"1.0"],[279,"44200.0"],[318,"100.0"],[319,"22.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",8],["3d",9]]},"483184":{"c":"15E2R120B25-SRD07-CF","s":["Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with 25 mm Weldon shank according to DIN 1835B, 120 mm usable and 176 mm overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with 25 mm Weldon shank according to DIN 1835B, 120 mm usable and 176 mm overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Plan-Kopierfräser mit positv/negativer Geometrie welche 2 aus RD.. 0702MO.. oder RD.. 07T1MO.. einseitige Wendeschneidplatte, Schneiddurchmesser bis maximal 15 mm mit 25 mm Weldonschaft gemäß DIN 1835B, 120 mm anwendbar und 176 mm Gesamtlänge, durchgehende Kühlung zum Planfräsen, Kopierfräsen, Rampen, progressiven Tauchfräsen und helikalen Fräsen mit einer maximalen Schnitttiefe von 2 mm"],"o":"CZ","a":[],"f":[[0,"7999272"],[7,"1"],[14,"SRD07"],[16,"15E2R120B25-SRD07-CF"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603827882"],[21,"50.0"],[22,"210.0"],[23,"50.0"],[24,"449.4"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"2.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SRD07"],[98,"0.0"],[138,"25.0"],[164,"8.0"],[166,"15.0"],[181,"2.0"],[233,"2.0"],[260,"176.0"],[262,"2.0"],[276,"1.0"],[279,"44200.0"],[318,"120.0"],[319,"22.0"]],"m":[["dimensions",0],["application",1]],"d":[["2d",10],["3d",11]]},"483185":{"c":"15E2R028M08-SRD07-CF","s":["Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with M8 threaded shank for standard modular tool-holders, 28 mm functional and 46 mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with M8 threaded shank for standard modular tool-holders, 28 mm functional and 46 mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm",null],"o":"CZ","a":[],"f":[[0,"7999273"],[7,"1"],[14,"SRD07"],[16,"15E2R028M08-SRD07-CF"],[17,"Metric","Metrisch","Métrique",null],[20,"3603603827899"],[21,"47.0"],[22,"100.0"],[23,"45.0"],[24,"30.0"],[34,"Threaded coupling",null,"Queue filetee",null],[37,"2.0"],[50,"Right","Rechts","A droite",null],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou",null],[59,"Yes","Ja","Oui",null],[75,"SRD07"],[98,"0.0"],[138,"8.5"],[164,"8.0"],[166,"15.0"],[181,"2.0"],[211,"28.0"],[226,"13.5"],[233,"2.0"],[260,"46.0"],[262,"2.0"],[276,"1.0"],[279,"44200.0"],[300,"M8"]],"m":[["dimensions",12],["application",1]],"d":[["2d",13],["3d",14]]},"483186":{"c":"15E3R028M08-SRD07-CF","s":["Copy face mill with positve/negative geometry which utilises 3 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with M8 threaded shank for standard modular tool-holders, 28 mm functional and 46 mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Copy face mill with positve/negative geometry which utilises 3 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with M8 threaded shank for standard modular tool-holders, 28 mm functional and 46 mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Plan-Kopierfräser mit positv/negativer Geometrie welche 3 aus RD.. 0702MO.. oder RD.. 07T1MO.. einseitige Wendeschneidplatte, Schneiddurchmesser bis maximal 15 mm mit M8 Gewindeschaft für standardisierte modulare Trägerwerkzeuge, 28 mm funktional und 46 mm Einsatzlänge, durchgehende Kühlung zum Planfräsen, Kopierfräsen, Rampen, progressiven Tauchfräsen und helikalen Fräsen mit einer maximalen Schnitttiefe von 2 mm"],"o":"CZ","a":[],"f":[[0,"7999274"],[7,"1"],[14,"SRD07"],[16,"15E3R028M08-SRD07-CF"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603827905"],[21,"47.0"],[22,"100.0"],[23,"45.0"],[24,"49.0"],[34,"Threaded coupling",null,"Queue filetee","Schraubkupplung"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SRD07"],[98,"0.0"],[138,"10.5"],[164,"8.0"],[166,"15.0"],[181,"2.0"],[211,"28.0"],[226,"13.5"],[233,"3.0"],[260,"46.0"],[262,"3.0"],[276,"2.0"],[279,"44200.0"],[300,"M8"]],"m":[["dimensions",12],["application",1]],"d":[["2d",15],["3d",16]]},"483187":{"c":"20E4R028M10-SRD07-CF","s":["Copy face mill with double negative geometry which utilises 4 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 20 mm with M10 threaded shank for standard modular tool-holders, 28 mm functional and 47 mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Copy face mill with double negative geometry which utilises 4 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 20 mm with M10 threaded shank for standard modular tool-holders, 28 mm functional and 47 mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Plan-Kopierfräser mit doppelt negativer Geometrie welche 4 aus RD.. 0702MO.. oder RD.. 07T1MO.. einseitige Wendeschneidplatte, Schneiddurchmesser bis maximal 20 mm mit M10 Gewindeschaft für standardisierte modulare Trägerwerkzeuge, 28 mm funktional und 47 mm Einsatzlänge, durchgehende Kühlung zum Planfräsen, Kopierfräsen, Rampen, progressiven Tauchfräsen und helikalen Fräsen mit einer maximalen Schnitttiefe von 2 mm"],"o":"CZ","a":[],"f":[[0,"7999275"],[7,"1"],[14,"SRD07"],[16,"20E4R028M10-SRD07-CF"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603827912"],[21,"47.0"],[22,"100.0"],[23,"45.0"],[24,"73.2"],[34,"Threaded coupling",null,"Queue filetee","Schraubkupplung"],[37,"4.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SRD07"],[98,"0.0"],[138,"12.5"],[164,"13.0"],[166,"20.0"],[181,"2.0"],[211,"28.0"],[226,"18.0"],[233,"4.0"],[260,"47.0"],[262,"4.0"],[276,"-8.0"],[279,"38200.0"],[300,"M10"]],"m":[["dimensions",12],["application",1]],"d":[["2d",17],["3d",18]]},"483188":{"c":"25E5R028M12-SRD07-CF","s":["Copy face mill with double negative geometry which utilises 5 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 25 mm with M12 threaded shank for standard modular tool-holders, 28 mm functional and 50 mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Copy face mill with double negative geometry which utilises 5 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 25 mm with M12 threaded shank for standard modular tool-holders, 28 mm functional and 50 mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm","Plan-Kopierfräser mit doppelt negativer Geometrie welche 5 aus RD.. 0702MO.. oder RD.. 07T1MO.. einseitige Wendeschneidplatte, Schneiddurchmesser bis maximal 25 mm mit M12 Gewindeschaft für standardisierte modulare Trägerwerkzeuge, 28 mm funktional und 50 mm Einsatzlänge, durchgehende Kühlung zum Planfräsen, Kopierfräsen, Rampen, progressiven Tauchfräsen und helikalen Fräsen mit einer maximalen Schnitttiefe von 2 mm"],"o":"CZ","a":[],"f":[[0,"7999276"],[7,"1"],[14,"SRD07"],[16,"25E5R028M12-SRD07-CF"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603827929"],[21,"47.0"],[22,"100.0"],[23,"45.0"],[24,"94.4"],[34,"Threaded coupling",null,"Queue filetee","Schraubkupplung"],[37,"5.0"],[50,"Right","Rechts","A droite","Rechts"],[57,"Screw clamping through hole",null,"S - Serrage par vis à travers le trou","S - Schraubklemmung durch Bohrung"],[59,"Yes","Ja","Oui","Ja"],[75,"SRD07"],[98,"0.0"],[138,"12.5"],[164,"18.0"],[166,"25.0"],[181,"2.0"],[211,"28.0"],[226,"21.0"],[233,"5.0"],[260,"50.0"],[262,"5.0"],[276,"-2.0"],[279,"34200.0"],[300,"M12"]],"m":[["dimensions",12],["application",1]],"d":[["2d",19],["3d",20]]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Bestelcode (DP)	15E2R040B16-SRD07-CF, 15E2R060B16-SRD07-CF, 15E2R080B20-SRD07-CF, 15E2R100B20-SRD07-CF, 15E2R120B25-SRD07-CF, 15E2R028M08-SRD07-CF, 15E3R028M08-SRD07-CF, 20E4R028M10-SRD07-CF, 25E5R028M12-SRD07-CF
Schacht (DP)	Threaded coupling, Weldon shank DIN 1835B
