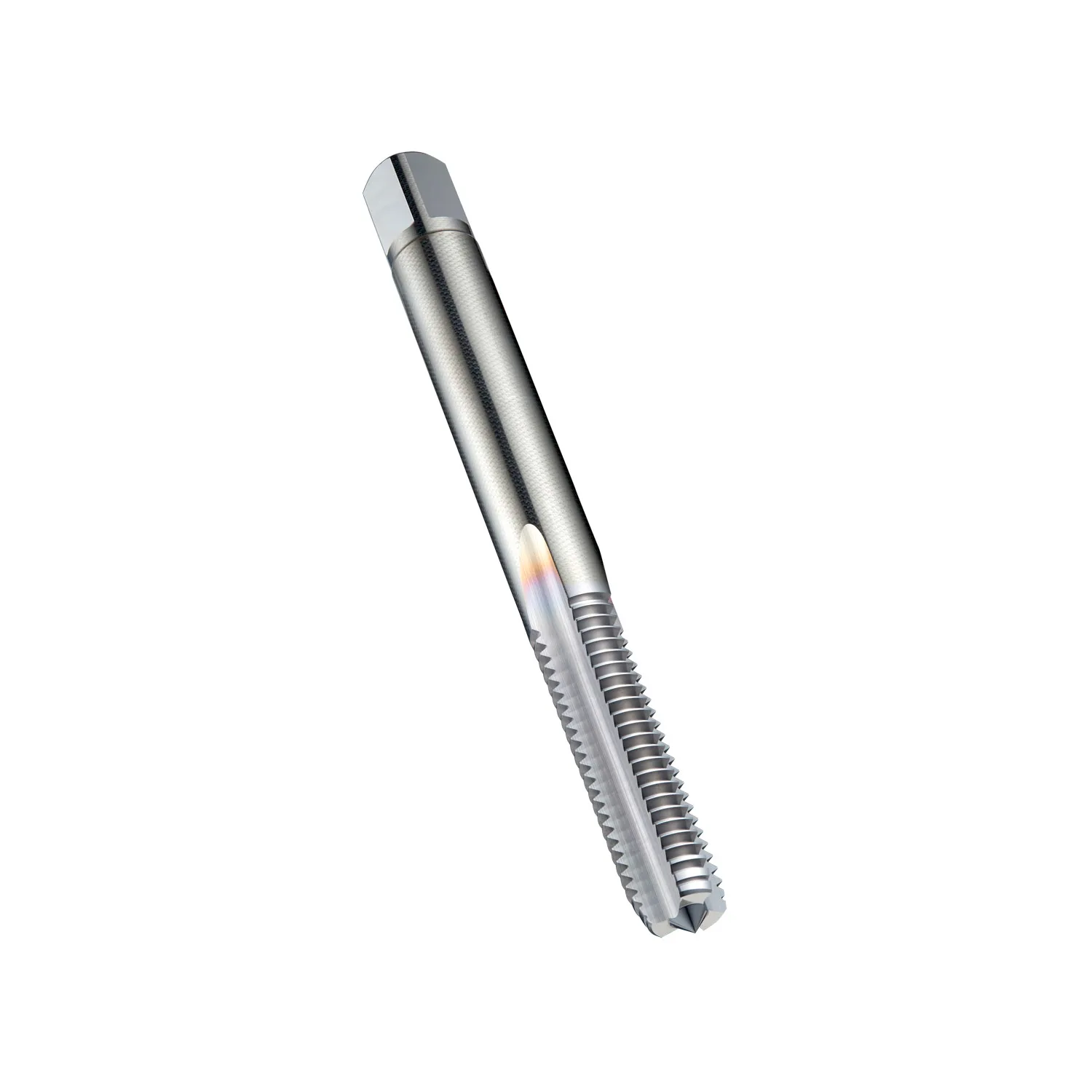

T200 VHM M Machinetap met rechte spaangroeven

Name: T200 VHM M Machinetap met rechte spaangroeven
SKU: T200M3
Price: 144.90 EUR
Availability: InStock

DORMER Duitsland

144,90 €

excl. BTW

Productinformatie

Superieure prestaties en lange standtijd bij hoge snelheden. Geschikt voor machinaal tappen in gereedschapsstaal, hoog siliciumhoudend aluminium en andere geharde en abrasieve materialen. De rechte spaangroef maakt de tappen ideaal voor het draadsnijden in zowel doorlopende als blinde gaten. TiCN-gecoat voor betere prestaties en langere standtijd.

Draadstandaard
Draadstandaard
Coating (DP)
Draadmaat (DP)

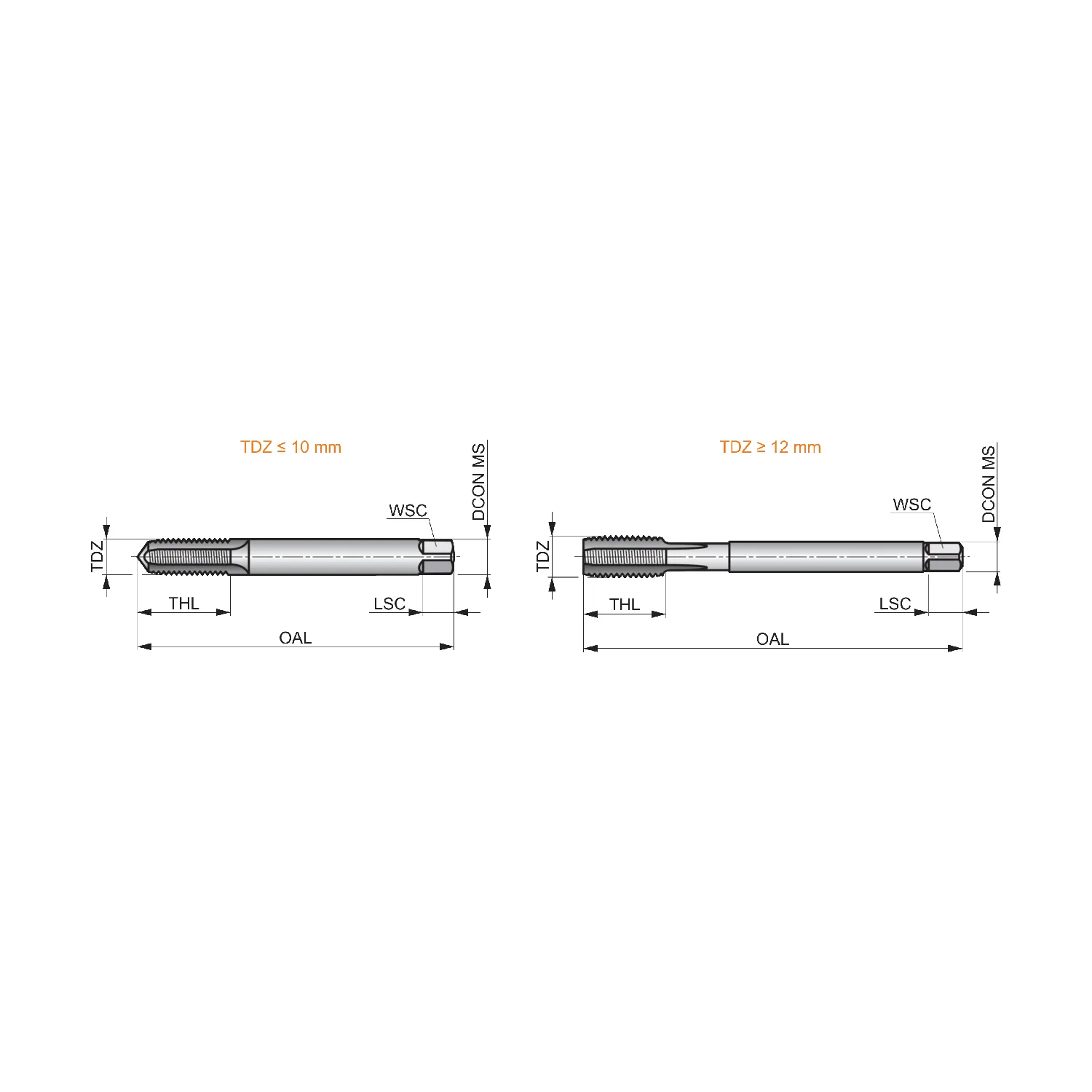

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/T200_DIM.png"],"p":{"477365":{"c":"T200M3","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC","Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M3 mit 0.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 3.5 mm Schaft und 2.7 mm Vierkantantrieb, VHM mit TiCN Beschichtung 2xD Durchgangs- und Sacklochgewinde in angelassener gehärteter Stahl oder gehärteter Stahl <55HRC"],"o":"DE","a":[["K","possible"],["N","possible"],["H","primary"]],"f":[[0,"7182352"],[7,"1"],[14,"T200"],[16,"T200M3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760706251"],[21,"11.0"],[22,"84.0"],[23,"9.0"],[24,"9.2"],[31,"HM"],[32,"DIN 371 LE 10, DIN 376 GE 12"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[36,"2"],[37,"3.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"2.7"],[138,"3.5"],[260,"56.0"],[266,"2.6"],[300,"3"],[302,"0.5"],[307,"10.0"]],"m":[["dimensions",0]],"d":[],"x":[979275]},"477366":{"c":"T200M4","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC","Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M4 mit 0.70 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 4.5 mm Schaft und 3.4 mm Vierkantantrieb, VHM mit TiCN Beschichtung 2xD Durchgangs- und Sacklochgewinde in angelassener gehärteter Stahl oder gehärteter Stahl <55HRC"],"o":"DE","a":[["K","possible"],["N","possible"],["H","primary"]],"f":[[0,"7182353"],[7,"1"],[14,"T200"],[16,"T200M4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760706268"],[21,"11.0"],[22,"84.0"],[23,"9.0"],[24,"15.2"],[31,"HM"],[32,"DIN 371 LE 10, DIN 376 GE 12"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[36,"2"],[37,"3.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"3.4"],[138,"4.5"],[260,"63.0"],[266,"3.4"],[300,"4"],[302,"0.7"],[307,"13.0"]],"m":[["dimensions",0]],"d":[],"x":[979276]},"477367":{"c":"T200M5","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC","Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M5 mit 0.80 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, VHM mit TiCN Beschichtung 2xD Durchgangs- und Sacklochgewinde in angelassener gehärteter Stahl oder gehärteter Stahl <55HRC"],"o":"DE","a":[["K","possible"],["N","possible"],["H","primary"]],"f":[[0,"7182354"],[7,"1"],[14,"T200"],[16,"T200M5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760706275"],[21,"14.0"],[22,"93.0"],[23,"13.0"],[24,"28.6"],[31,"HM"],[32,"DIN 371 LE 10, DIN 376 GE 12"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[36,"2"],[37,"3.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"70.0"],[266,"4.3"],[300,"5"],[302,"0.8"],[307,"16.0"]],"m":[["dimensions",0]],"d":[],"x":[979277]},"477368":{"c":"T200M6","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC","Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M6 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, VHM mit TiCN Beschichtung 2xD Durchgangs- und Sacklochgewinde in angelassener gehärteter Stahl oder gehärteter Stahl <55HRC"],"o":"DE","a":[["K","possible"],["N","possible"],["H","primary"]],"f":[[0,"7182355"],[7,"1"],[14,"T200"],[16,"T200M6"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760706282"],[21,"14.0"],[22,"93.0"],[23,"13.0"],[24,"32.9"],[31,"HM"],[32,"DIN 371 LE 10, DIN 376 GE 12"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[36,"2"],[37,"3.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"80.0"],[266,"5.1"],[300,"6"],[302,"1.0"],[307,"19.0"],[318,"30.0"]],"m":[["dimensions",0]],"d":[],"x":[979278]},"477369":{"c":"T200M8","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC","Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M8 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 8.0 mm Schaft und 6.2 mm Vierkantantrieb, VHM mit TiCN Beschichtung 2xD Durchgangs- und Sacklochgewinde in angelassener gehärteter Stahl oder gehärteter Stahl <55HRC"],"o":"DE","a":[["K","possible"],["N","possible"],["H","primary"]],"f":[[0,"7182356"],[7,"1"],[14,"T200"],[16,"T200M8"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760706299"],[21,"17.0"],[22,"124.0"],[23,"15.0"],[24,"60.0"],[31,"HM"],[32,"DIN 371 LE 10, DIN 376 GE 12"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[36,"2"],[37,"3.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.0"],[128,"6.2"],[138,"8.0"],[260,"90.0"],[266,"6.9"],[300,"8"],[302,"1.25"],[307,"22.0"],[318,"35.0"]],"m":[["dimensions",0]],"d":[],"x":[979279]},"477370":{"c":"T200M10","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC","Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M10 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 10.0 mm Schaft und 8.0 mm Vierkantantrieb, VHM mit TiCN Beschichtung 2xD Durchgangs- und Sacklochgewinde in angelassener gehärteter Stahl oder gehärteter Stahl <55HRC"],"o":"DE","a":[["K","possible"],["N","possible"],["H","primary"]],"f":[[0,"7182357"],[7,"1"],[14,"T200"],[16,"T200M10"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760706305"],[21,"17.0"],[22,"124.0"],[23,"15.0"],[24,"100.0"],[31,"HM"],[32,"DIN 371 LE 10, DIN 376 GE 12"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[36,"2"],[37,"3.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.0"],[128,"8.0"],[138,"10.0"],[260,"100.0"],[266,"8.7"],[300,"10"],[302,"1.5"],[307,"24.0"],[318,"39.0"]],"m":[["dimensions",0]],"d":[],"x":[979280]},"477371":{"c":"T200M12","s":["Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 9.0 mm shank and 7.0 mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC","Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 9.0 mm shank and 7.0 mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC","Gerade genuteter Gewindebohrer, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M12 mit 1.75 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 9.0 mm Schaft und 7.0 mm Vierkantantrieb, VHM mit TiCN Beschichtung 2xD Durchgangs- und Sacklochgewinde in angelassener gehärteter Stahl oder gehärteter Stahl <55HRC"],"o":"DE","a":[["K","possible"],["N","possible"],["H","primary"]],"f":[[0,"7182358"],[7,"1"],[14,"T200"],[16,"T200M12"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760706312"],[21,"21.0"],[22,"117.0"],[23,"21.0"],[24,"147.0"],[31,"HM"],[32,"DIN 371 LE 10, DIN 376 GE 12"],[33,"TiCN",null,"Revêtement carbonitrure de titane","Titan-Carbonnitrid-Beschichtung"],[36,"2"],[37,"3.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"110.0"],[266,"10.4"],[300,"12"],[302,"1.75"],[307,"23.0"]],"m":[["dimensions",0]],"d":[],"x":[979281]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Draadmaat (DP)	3, 4, 5, 6, 8, 10, 12
Draadstandaard	M - Metrisch grof, M - Metrisch grof
Coating (DP)	TiCN
