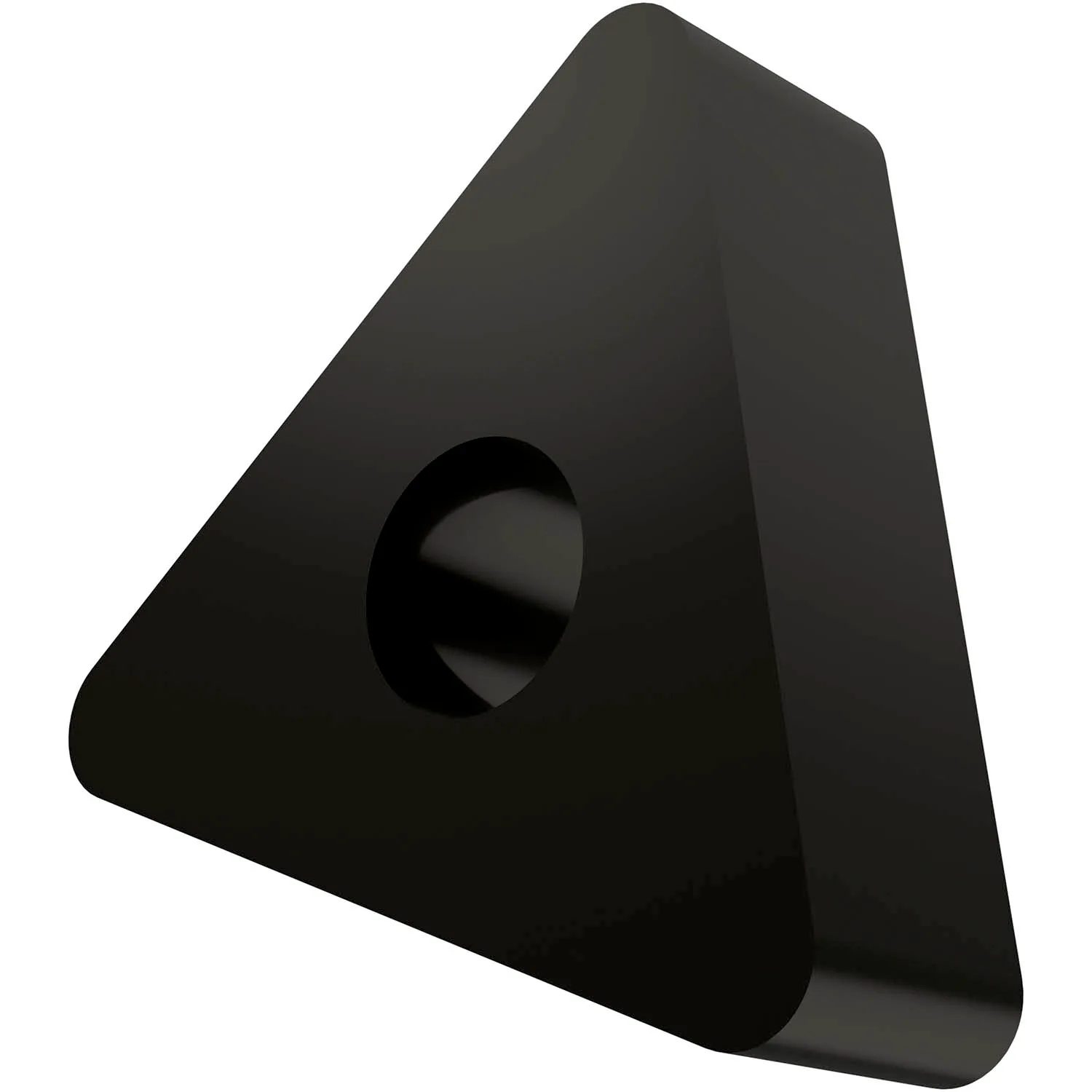

TNMA Draaiwisselplaat - negatief

Name: TNMA Draaiwisselplaat - negatief
SKU: TNMA 160404:T5305
Price: 7.84 EUR
Availability: InStock

PRAMET Tsjechië

7,84 €

excl. BTW

Productinformatie

Draaiwisselplaat - Negatief

Uitvoering (DP)

Verpakking
- ST
- 10 Units

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/TNMA_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/___A_NEG_PROF.png"],"p":{"477687":{"c":"TNMA 160404:T5305","s":["Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525 mm, 4.76 mm thick, 0.4 mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T5305, a MT-CVD coated WC-Co carbide within ISO range K01 -K15, for fine to medium machining of cast-irons","Plaquette de tournage négative réversible, forme triangulaire avec un diamètre de cercle inscrit de 9.525 mm, 4.76 mm d'épaisseur, rayon de pointe et 0.4 mm, précision d'indexage selon la classe de tolérance ISO M, en nuance carbure WC-Co T5305, revêtu MT-CVD dans la plage ISO K01 -K15, pour usinage fin à moyen des fontes","Doppelseitige negative Drehwendeschneidplatte, Triangular mit Innenkreisdurchmesser von 9.525 mm, 4.76 mm Dick, 0.4 mm Radius und Indexgenauigkeit nach ISO-Toleranzklasse-M, im Substrat T5305, MT-CVD beschichtet WC-Co Substrat im ISO-Bereich K01 -K15, zum schlichten bis medium bearbeiten von Gusseisen"],"o":"CZ","a":[["K","primary"],["H","possible"]],"f":[[0,"6755885"],[7,"10"],[14,"TNMA"],[16,"TNMA 331:T5305"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602912510"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"7.9"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5305"],[73,"16"],[74,"04"],[84,"TN"],[158,"0.4"],[174,"16.5"],[181,"4.8"],[183,"0.4"],[207,"3.81"],[228,"9.525"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979601]},"477688":{"c":"TNMA 160404:T5315","s":["Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525 mm, 4.76 mm thick, 0.4 mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10 -K25, for fine to medium machining of cast-irons","Plaquette de tournage négative réversible, forme triangulaire avec un diamètre de cercle inscrit de 9.525 mm, 4.76 mm d'épaisseur, rayon de pointe et 0.4 mm, précision d'indexage selon la classe de tolérance ISO M, en nuance carbure WC-Co T5315, revêtu MT-CVD dans la plage ISO K10 -K25, pour usinage fin à moyen des fontes","Doppelseitige negative Drehwendeschneidplatte, Triangular mit Innenkreisdurchmesser von 9.525 mm, 4.76 mm Dick, 0.4 mm Radius und Indexgenauigkeit nach ISO-Toleranzklasse-M, im Substrat T5315, MT-CVD beschichtet WC-Co Substrat im ISO-Bereich K10 -K25, zum schlichten bis medium bearbeiten von Gusseisen"],"o":"CZ","a":[["K","primary"],["H","possible"]],"f":[[0,"6922800"],[7,"10"],[14,"TNMA"],[16,"TNMA 331:T5315"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603076266"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"7.5"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5315"],[73,"16"],[74,"04"],[84,"TN"],[158,"0.4"],[174,"16.5"],[181,"4.8"],[183,"0.4"],[207,"3.81"],[228,"9.525"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979602]},"477689":{"c":"TNMA 160404:T5405","s":["Double-sided Negative turning insert, T - triangular 60° included angle, size 16 with corner radius 0.4 mm. Combination of chipbreaker .NMA flat insert is designed for medium machining of Cast irons. It features neutral rake angle without T-land. It's also conditionally suitable for Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.","Plaquette de tournage double face Plaquettes négatives, T - triangulaire 60° angle inclus, taille 16 avec rayon d'angle 0.4 mm. La combinaison du brise-copeaux .NMA plaquette plate conçue pour l'usinage semi-ébauche des fontes. Se caractérise par un angle de coupe neutre sans listel. Convient également, sous certaines conditions, aux matériaux durs. et Substrat à base de WC-Co revêtu par MT-CVD T5405. convient aux matériaux suivants : K - Fonte (fontes moulées et alliages au carbone avec une teneur en carbone > 2 %) et Coupe continue.","Doppelseitige Negativ Drehplatte, T - dreieckiger 60° eingeschlossener Winkel, Größe 16 mit Eckenradius 0.4 mm. Die Kombination aus Spanbrecher .NMA ist eine flache Wendeschneidplatte für die mittlere Bearbeitung von Gusseisen konzipiert. Sie hat keinen Spanbrecher. Sie ist auch bedingt für harte Materialien geeignet. und MT-CVD-beschichtetes, auf WC-Co basierendes Substrat T5405. eignet sich für Werkstoffe: K - Gusseisen (Gussstücke aus Eisen und Kohlenstofflegierungen mit > 2% Kohlenstoffgehalt) und Kontinuierlicher Schnitt."],"o":"CZ","a":[["K","primary"]],"f":[[0,"8984995"],[7,"10"],[14,"TNMA"],[16,"TNMA 331:T5405"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604774024"],[21,"40.0"],[22,"98.0"],[23,"14.5"],[24,"7.9"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5405"],[73,"16"],[74,"04"],[84,"TN"],[158,"0.4"],[174,"16.5"],[181,"4.8"],[183,"0.4"],[207,"3.81"],[228,"9.525"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979603]},"477690":{"c":"TNMA 160408:T5305","s":["Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525 mm, 4.76 mm thick, 0.8 mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T5305, a MT-CVD coated WC-Co carbide within ISO range K01 -K15, for fine to medium machining of cast-irons","Plaquette de tournage négative réversible, forme triangulaire avec un diamètre de cercle inscrit de 9.525 mm, 4.76 mm d'épaisseur, rayon de pointe et 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, en nuance carbure WC-Co T5305, revêtu MT-CVD dans la plage ISO K01 -K15, pour usinage fin à moyen des fontes","Doppelseitige negative Drehwendeschneidplatte, Triangular mit Innenkreisdurchmesser von 9.525 mm, 4.76 mm Dick, 0.8 mm Radius und Indexgenauigkeit nach ISO-Toleranzklasse-M, im Substrat T5305, MT-CVD beschichtet WC-Co Substrat im ISO-Bereich K01 -K15, zum schlichten bis medium bearbeiten von Gusseisen"],"o":"CZ","a":[["K","primary"],["H","possible"]],"f":[[0,"6755886"],[7,"10"],[14,"TNMA"],[16,"TNMA 332:T5305"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602912527"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"7.6"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5305"],[73,"16"],[74,"04"],[84,"TN"],[158,"0.8"],[174,"16.5"],[181,"4.8"],[183,"0.8"],[207,"3.81"],[228,"9.525"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979604]},"477691":{"c":"TNMA 160408:T5315","s":["Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525 mm, 4.76 mm thick, 0.8 mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10 -K25, for fine to medium machining of cast-irons","Plaquette de tournage négative réversible, forme triangulaire avec un diamètre de cercle inscrit de 9.525 mm, 4.76 mm d'épaisseur, rayon de pointe et 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, en nuance carbure WC-Co T5315, revêtu MT-CVD dans la plage ISO K10 -K25, pour usinage fin à moyen des fontes","Doppelseitige negative Drehwendeschneidplatte, Triangular mit Innenkreisdurchmesser von 9.525 mm, 4.76 mm Dick, 0.8 mm Radius und Indexgenauigkeit nach ISO-Toleranzklasse-M, im Substrat T5315, MT-CVD beschichtet WC-Co Substrat im ISO-Bereich K10 -K25, zum schlichten bis medium bearbeiten von Gusseisen"],"o":"CZ","a":[["K","primary"],["H","possible"]],"f":[[0,"6755784"],[7,"10"],[14,"TNMA"],[16,"TNMA 332:T5315"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602911506"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"7.8"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5315"],[73,"16"],[74,"04"],[84,"TN"],[158,"0.8"],[174,"16.5"],[181,"4.8"],[183,"0.8"],[207,"3.81"],[228,"9.525"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979605]},"477692":{"c":"TNMA 160408:T5405","s":["Double-sided Negative turning insert, T - triangular 60° included angle, size 16 with corner radius 0.8 mm. Combination of chipbreaker .NMA flat insert is designed for medium machining of Cast irons. It features neutral rake angle without T-land. It's also conditionally suitable for Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.","Plaquette de tournage double face Plaquettes négatives, T - triangulaire 60° angle inclus, taille 16 avec rayon d'angle 0.8 mm. La combinaison du brise-copeaux .NMA plaquette plate conçue pour l'usinage semi-ébauche des fontes. Se caractérise par un angle de coupe neutre sans listel. Convient également, sous certaines conditions, aux matériaux durs. et Substrat à base de WC-Co revêtu par MT-CVD T5405. convient aux matériaux suivants : K - Fonte (fontes moulées et alliages au carbone avec une teneur en carbone > 2 %) et Coupe continue.","Doppelseitige Negativ Drehplatte, T - dreieckiger 60° eingeschlossener Winkel, Größe 16 mit Eckenradius 0.8 mm. Die Kombination aus Spanbrecher .NMA ist eine flache Wendeschneidplatte für die mittlere Bearbeitung von Gusseisen konzipiert. Sie hat keinen Spanbrecher. Sie ist auch bedingt für harte Materialien geeignet. und MT-CVD-beschichtetes, auf WC-Co basierendes Substrat T5405. eignet sich für Werkstoffe: K - Gusseisen (Gussstücke aus Eisen und Kohlenstofflegierungen mit > 2% Kohlenstoffgehalt) und Kontinuierlicher Schnitt."],"o":"CZ","a":[["K","primary"]],"f":[[0,"8984996"],[7,"10"],[14,"TNMA"],[16,"TNMA 332:T5405"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604774031"],[21,"40.0"],[22,"98.0"],[23,"14.5"],[24,"7.6"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5405"],[73,"16"],[74,"04"],[84,"TN"],[158,"0.8"],[174,"16.5"],[181,"4.8"],[183,"0.8"],[207,"3.81"],[228,"9.525"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979606]},"477693":{"c":"TNMA 160408:T6310","s":["Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525 mm, 4.76 mm thick, 0.8 mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO range K05 -K20, for fine to medium machining of cast-irons","Plaquette de tournage négative réversible, forme triangulaire avec un diamètre de cercle inscrit de 9.525 mm, 4.76 mm d'épaisseur, rayon de pointe et 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, en nuance carbure WC-Co à grains extra-fins T6310, revêtu PVD dans la plage ISO K05 -K20, pour usinage fin à moyen des fontes","Doppelseitige negative Drehwendeschneidplatte, Triangular mit Innenkreisdurchmesser von 9.525 mm, 4.76 mm Dick, 0.8 mm Radius und Indexgenauigkeit nach ISO-Toleranzklasse-M, im Substrat T6310, PVD beschichtet WC-Co Feinstkornsubstrat im ISO-Bereich K05 -K20, zum schlichten bis medium bearbeiten von Gusseisen"],"o":"CZ","a":[["K","primary"],["H","possible"]],"f":[[0,"6922859"],[7,"10"],[14,"TNMA"],[16,"TNMA 332:T6310"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603076853"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"7.2"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T6310"],[73,"16"],[74,"04"],[84,"TN"],[158,"0.8"],[174,"16.5"],[181,"4.8"],[183,"0.8"],[207,"3.81"],[228,"9.525"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979607]},"477694":{"c":"TNMA 160408:T8415","s":["Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525 mm, 4.76 mm thick, 0.8 mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T8415.","Plaquette de tournage négative réversible, forme triangulaire avec un diamètre de cercle inscrit de 9.525 mm, 4.76 mm d'épaisseur, rayon de pointe et 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, en nuance carbure WC-Co T8415.","Doppelseitige negative Drehwendeschneidplatte, Triangular mit Innenkreisdurchmesser von 9.525 mm, 4.76 mm Dick, 0.8 mm Radius und Indexgenauigkeit nach ISO-Toleranzklasse-M, im Substrat T8415."],"o":"CZ","a":[["K","primary"],["H","possible"]],"f":[[0,"8553117"],[7,"10"],[14,"TNMA"],[16,"TNMA 332:T8415"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604268639"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"7.374"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T8415"],[73,"16"],[74,"04"],[84,"TN"],[158,"0.8"],[174,"16.5"],[181,"4.8"],[183,"0.8"],[207,"3.81"],[228,"9.525"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979608]},"477695":{"c":"TNMA 160408S:T5305","s":["Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525 mm, 4.76 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M with rounded cutting edges with facet, in grade T5305, a MT-CVD coated WC-Co carbide within ISO range K01 -K15, for fine to medium machining of cast-irons","Plaquette de tournage négative réversible, forme triangulaire avec un diamètre de cercle inscrit de 9.525 mm, 4.76 mm d'épaisseur, rayon de pointe 0.8 mm, précision d'indexage selon la classe de tolérance ISO M avec arêtes de coupe arrondies avec listel, en nuance carbure WC-Co T5305, revêtu MT-CVD dans la plage ISO K01 -K15, pour usinage fin à moyen des fontes","Doppelseitige negative Drehwendeschneidplatte, Triangular mit Innenkreisdurchmesser von 9.525 mm, 4.76 mm Dick, 0.8 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M mit verrundeter und facettierter Schneidkante, im Substrat T5305, MT-CVD beschichtet WC-Co Substrat im ISO-Bereich K01 -K15, zum schlichten bis medium bearbeiten von Gusseisen"],"o":"CZ","a":[["K","primary"],["H","possible"]],"f":[[0,"6755887"],[7,"10"],[14,"TNMA"],[16,"TNMA 332S:T5305"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602912534"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"7.474"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5305"],[73,"16"],[74,"04"],[84,"TN"],[158,"0.8"],[174,"16.5"],[181,"4.8"],[183,"0.8"],[207,"3.81"],[228,"9.525"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979609]},"477696":{"c":"TNMA 160408S:T5405","s":["Double-sided Negative turning insert, T - triangular 60° included angle, size 16 with corner radius 0.8 mm. Combination of chipbreaker .NMA..S flat insert is designed for medium machining of Cast irons. It features neutral rake angle and negative, moderate T-land. It's also conditionally suitable for Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.","Plaquette de tournage double face Plaquettes négatives, T - triangulaire 60° angle inclus, taille 16 avec rayon d'angle 0.8 mm. La combinaison du brise-copeaux .NMA - Plaquette plate conçue pour l'usinage semi-ébauche des fontes. Elle se caractérise par un angle de coupe neutre et un listel modéré. Convient également, sous certaines conditions, aux matériaux durs. et Substrat à base de WC-Co revêtu par MT-CVD T5405. convient aux matériaux suivants : K - Fonte (fontes moulées et alliages au carbone avec une teneur en carbone > 2 %) et Coupe légèrement interrompue.","Doppelseitige Negativ Drehplatte, T - dreieckiger 60° eingeschlossener Winkel, Größe 16 mit Eckenradius 0.8 mm. Die Kombination aus Spanbrecher .NMA..S ist flache Wendeschneidplatte für die mittlere Bearbeitung von Gusseisen konzipiert. Sie hat einen neutralen Spanwinkel und eine negative, moderate Fase. Sie ist auch bedingt für harte Werkstoffe geeignet. und MT-CVD-beschichtetes, auf WC-Co basierendes Substrat T5405. eignet sich für Werkstoffe: K - Gusseisen (Gussstücke aus Eisen und Kohlenstofflegierungen mit > 2% Kohlenstoffgehalt) und Geringfügig unterbrochener Schnitt."],"o":"CZ","a":[["K","primary"]],"f":[[0,"8984997"],[7,"10"],[14,"TNMA"],[16,"TNMA 332S:T5405"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604774048"],[21,"40.0"],[22,"98.0"],[23,"14.5"],[24,"7.474"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5405"],[73,"16"],[74,"04"],[84,"TN"],[158,"0.8"],[174,"16.5"],[181,"4.8"],[183,"0.8"],[207,"3.81"],[228,"9.525"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979610]},"477697":{"c":"TNMA 160412:T5305","s":["Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525 mm, 4.76 mm thick, 1.2 mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T5305, a MT-CVD coated WC-Co carbide within ISO range K01 -K15, for fine to medium machining of cast-irons","Plaquette de tournage négative réversible, forme triangulaire avec un diamètre de cercle inscrit de 9.525 mm, 4.76 mm d'épaisseur, rayon de pointe et 1.2 mm, précision d'indexage selon la classe de tolérance ISO M, en nuance carbure WC-Co T5305, revêtu MT-CVD dans la plage ISO K01 -K15, pour usinage fin à moyen des fontes","Doppelseitige negative Drehwendeschneidplatte, Triangular mit Innenkreisdurchmesser von 9.525 mm, 4.76 mm Dick, 1.2 mm Radius und Indexgenauigkeit nach ISO-Toleranzklasse-M, im Substrat T5305, MT-CVD beschichtet WC-Co Substrat im ISO-Bereich K01 -K15, zum schlichten bis medium bearbeiten von Gusseisen"],"o":"CZ","a":[["K","primary"],["H","possible"]],"f":[[0,"6755888"],[7,"10"],[14,"TNMA"],[16,"TNMA 333:T5305"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602912541"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"7.7"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5305"],[73,"16"],[74,"04"],[84,"TN"],[158,"1.2"],[174,"16.5"],[181,"4.8"],[183,"1.2"],[207,"3.81"],[228,"9.525"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979611]},"477698":{"c":"TNMA 160412:T5315","s":["Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525 mm, 4.76 mm thick, 1.2 mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10 -K25, for fine to medium machining of cast-irons","Plaquette de tournage négative réversible, forme triangulaire avec un diamètre de cercle inscrit de 9.525 mm, 4.76 mm d'épaisseur, rayon de pointe et 1.2 mm, précision d'indexage selon la classe de tolérance ISO M, en nuance carbure WC-Co T5315, revêtu MT-CVD dans la plage ISO K10 -K25, pour usinage fin à moyen des fontes","Doppelseitige negative Drehwendeschneidplatte, Triangular mit Innenkreisdurchmesser von 9.525 mm, 4.76 mm Dick, 1.2 mm Radius und Indexgenauigkeit nach ISO-Toleranzklasse-M, im Substrat T5315, MT-CVD beschichtet WC-Co Substrat im ISO-Bereich K10 -K25, zum schlichten bis medium bearbeiten von Gusseisen"],"o":"CZ","a":[["K","primary"],["H","possible"]],"f":[[0,"6922801"],[7,"10"],[14,"TNMA"],[16,"TNMA 333:T5315"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603076273"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"7.3"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5315"],[73,"16"],[74,"04"],[84,"TN"],[158,"1.2"],[174,"16.5"],[181,"4.8"],[183,"1.2"],[207,"3.81"],[228,"9.525"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979612]},"477699":{"c":"TNMA 160412:T5405","s":["Double-sided Negative turning insert, T - triangular 60° included angle, size 16 with corner radius 1.2 mm. Combination of chipbreaker .NMA flat insert is designed for medium machining of Cast irons. It features neutral rake angle without T-land. It's also conditionally suitable for Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.","Plaquette de tournage double face Plaquettes négatives, T - triangulaire 60° angle inclus, taille 16 avec rayon d'angle 1.2 mm. La combinaison du brise-copeaux .NMA plaquette plate conçue pour l'usinage semi-ébauche des fontes. Se caractérise par un angle de coupe neutre sans listel. Convient également, sous certaines conditions, aux matériaux durs. et Substrat à base de WC-Co revêtu par MT-CVD T5405. convient aux matériaux suivants : K - Fonte (fontes moulées et alliages au carbone avec une teneur en carbone > 2 %) et Coupe légèrement interrompue.","Doppelseitige Negativ Drehplatte, T - dreieckiger 60° eingeschlossener Winkel, Größe 16 mit Eckenradius 1.2 mm. Die Kombination aus Spanbrecher .NMA ist eine flache Wendeschneidplatte für die mittlere Bearbeitung von Gusseisen konzipiert. Sie hat keinen Spanbrecher. Sie ist auch bedingt für harte Materialien geeignet. und MT-CVD-beschichtetes, auf WC-Co basierendes Substrat T5405. eignet sich für Werkstoffe: K - Gusseisen (Gussstücke aus Eisen und Kohlenstofflegierungen mit > 2% Kohlenstoffgehalt) und Geringfügig unterbrochener Schnitt."],"o":"CZ","a":[["K","primary"]],"f":[[0,"8984998"],[7,"10"],[14,"TNMA"],[16,"TNMA 333:T5405"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604774055"],[21,"40.0"],[22,"98.0"],[23,"14.5"],[24,"7.7"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5405"],[73,"16"],[74,"04"],[84,"TN"],[158,"1.2"],[174,"16.5"],[181,"4.8"],[183,"1.2"],[207,"3.81"],[228,"9.525"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979613]},"477700":{"c":"TNMA 160412:T5415","s":["Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525 mm, 4.76 mm thick, 1.2 mm nose radius, indexing accuracy according to ISO-tolerance class-M, in grade T5415, a MT-CVD coated WC-Co carbide within ISO range K10 - K25, for medium to heavy machining of cast-irons","Plaquette de tournage négative réversible, forme triangulaire avec un diamètre de cercle inscrit de 9, 525 mm, épaisseur 4, 76 mm, rayon de pointe 1, 2 mm, précision d'indexation selon la classe de tolérance ISO-M, dans la nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage semi-finition jusqu'à l'ébauche des fontes.","Beidseitig negative Wendeschneidplatte zum Drehen, dreieckig mit einem Inkreisdurchmesser von 9, 525 mm, 4, 76 mm dick, 1, 2 mm Eckenradius, Genauigkeit nach ISO-Toleranzklasse-M, in der Sorte T5415, einem MT-CVD beschichteten WC-Co-Hartmetall im ISO-Bereich K10 - K25, für die mittlere bis Schruppbearbeitung von Guss-Eisen"],"o":"CZ","a":[["K","primary"],["H","possible"]],"f":[[0,"8716817"],[7,"10"],[14,"TNMA"],[16,"TNMA 333:T5415"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604495455"],[21,"40.0"],[22,"98.0"],[23,"14.5"],[24,"7.323"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5415"],[73,"16"],[74,"04"],[84,"TN"],[158,"1.2"],[174,"16.5"],[207,"3.81"],[228,"9.525"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979614]},"477701":{"c":"TNMA 220408:T5305","s":["Double-sided negative turning insert, triangular with inscribed circle diameter of 12.7 mm, 4.76 mm thick, 0.8 mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T5305, a MT-CVD coated WC-Co carbide within ISO range K01 -K15, for fine to medium machining of cast-irons","Plaquette de tournage négative réversible, forme triangulaire avec un diamètre de cercle inscrit de 12.7 mm, 4.76 mm d'épaisseur, rayon de pointe et 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, en nuance carbure WC-Co T5305, revêtu MT-CVD dans la plage ISO K01 -K15, pour usinage fin à moyen des fontes","Doppelseitige negative Drehwendeschneidplatte, Triangular mit Innenkreisdurchmesser von 12.7 mm, 4.76 mm Dick, 0.8 mm Radius und Indexgenauigkeit nach ISO-Toleranzklasse-M, im Substrat T5305, MT-CVD beschichtet WC-Co Substrat im ISO-Bereich K01 -K15, zum schlichten bis medium bearbeiten von Gusseisen"],"o":"CZ","a":[["K","primary"],["H","possible"]],"f":[[0,"6755889"],[7,"10"],[14,"TNMA"],[16,"TNMA 432:T5305"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602912558"],[21,"56.0"],[22,"139.0"],[23,"14.5"],[24,"13.391"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5305"],[73,"22"],[74,"04"],[84,"TN"],[158,"0.8"],[174,"22.0"],[181,"6.4"],[183,"0.8"],[207,"5.16"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979615]},"477702":{"c":"TNMA 220408:T5315","s":["Double-sided negative turning insert, triangular with inscribed circle diameter of 12.7 mm, 4.76 mm thick, 0.8 mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10 -K25, for fine to medium machining of cast-irons","Plaquette de tournage négative réversible, forme triangulaire avec un diamètre de cercle inscrit de 12.7 mm, 4.76 mm d'épaisseur, rayon de pointe et 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, en nuance carbure WC-Co T5315, revêtu MT-CVD dans la plage ISO K10 -K25, pour usinage fin à moyen des fontes","Doppelseitige negative Drehwendeschneidplatte, Triangular mit Innenkreisdurchmesser von 12.7 mm, 4.76 mm Dick, 0.8 mm Radius und Indexgenauigkeit nach ISO-Toleranzklasse-M, im Substrat T5315, MT-CVD beschichtet WC-Co Substrat im ISO-Bereich K10 -K25, zum schlichten bis medium bearbeiten von Gusseisen"],"o":"CZ","a":[["K","primary"],["H","possible"]],"f":[[0,"6922802"],[7,"10"],[14,"TNMA"],[16,"TNMA 432:T5315"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603076280"],[21,"56.0"],[22,"139.0"],[23,"14.5"],[24,"13.245"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5315"],[73,"22"],[74,"04"],[84,"TN"],[158,"0.8"],[174,"22.0"],[181,"6.4"],[183,"0.8"],[207,"5.16"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979616]},"477703":{"c":"TNMA 220408:T5405","s":["Double-sided Negative turning insert, T - triangular 60° included angle, size 22 with corner radius 0.8 mm. Combination of chipbreaker .NMA flat insert is designed for medium machining of Cast irons. It features neutral rake angle without T-land. It's also conditionally suitable for Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.","Plaquette de tournage double face Plaquettes négatives, T - triangulaire 60° angle inclus, taille 22 avec rayon d'angle 0.8 mm. La combinaison du brise-copeaux .NMA plaquette plate conçue pour l'usinage semi-ébauche des fontes. Se caractérise par un angle de coupe neutre sans listel. Convient également, sous certaines conditions, aux matériaux durs. et Substrat à base de WC-Co revêtu par MT-CVD T5405. convient aux matériaux suivants : K - Fonte (fontes moulées et alliages au carbone avec une teneur en carbone > 2 %) et Coupe continue.","Doppelseitige Negativ Drehplatte, T - dreieckiger 60° eingeschlossener Winkel, Größe 22 mit Eckenradius 0.8 mm. Die Kombination aus Spanbrecher .NMA ist eine flache Wendeschneidplatte für die mittlere Bearbeitung von Gusseisen konzipiert. Sie hat keinen Spanbrecher. Sie ist auch bedingt für harte Materialien geeignet. und MT-CVD-beschichtetes, auf WC-Co basierendes Substrat T5405. eignet sich für Werkstoffe: K - Gusseisen (Gussstücke aus Eisen und Kohlenstofflegierungen mit > 2% Kohlenstoffgehalt) und Kontinuierlicher Schnitt."],"o":"CZ","a":[["K","primary"]],"f":[[0,"8984999"],[7,"10"],[14,"TNMA"],[16,"TNMA 432:T5405"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604774062"],[21,"40.0"],[22,"98.0"],[23,"14.5"],[24,"13.391"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5405"],[73,"22"],[74,"04"],[84,"TN"],[158,"0.8"],[174,"22.0"],[181,"6.4"],[183,"0.8"],[207,"5.16"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979617]},"477704":{"c":"TNMA 220408:T8415","s":["Double-sided negative turning insert, triangular with inscribed circle diameter of 12.7 mm, 4.76 mm thick, 0.8 mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T8415.","Plaquette de tournage négative réversible, forme triangulaire avec un diamètre de cercle inscrit de 12.7 mm, 4.76 mm d'épaisseur, rayon de pointe et 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, en nuance carbure WC-Co T8415.","Doppelseitige negative Drehwendeschneidplatte, Triangular mit Innenkreisdurchmesser von 12.7 mm, 4.76 mm Dick, 0.8 mm Radius und Indexgenauigkeit nach ISO-Toleranzklasse-M, im Substrat T8415."],"o":"CZ","a":[["K","primary"],["H","possible"]],"f":[[0,"8553118"],[7,"10"],[14,"TNMA"],[16,"TNMA 432:T8415"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604268646"],[21,"56.0"],[22,"139.0"],[23,"14.5"],[24,"13.156"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T8415"],[73,"22"],[74,"04"],[84,"TN"],[158,"0.8"],[174,"22.0"],[181,"6.4"],[183,"0.8"],[207,"5.16"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979618]},"477705":{"c":"TNMA 220412:T5305","s":["Double-sided negative turning insert, triangular with inscribed circle diameter of 12.7 mm, 4.76 mm thick, 1.2 mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T5305, a MT-CVD coated WC-Co carbide within ISO range K01 -K15, for fine to medium machining of cast-irons","Plaquette de tournage négative réversible, forme triangulaire avec un diamètre de cercle inscrit de 12.7 mm, 4.76 mm d'épaisseur, rayon de pointe et 1.2 mm, précision d'indexage selon la classe de tolérance ISO M, en nuance carbure WC-Co T5305, revêtu MT-CVD dans la plage ISO K01 -K15, pour usinage fin à moyen des fontes","Doppelseitige negative Drehwendeschneidplatte, Triangular mit Innenkreisdurchmesser von 12.7 mm, 4.76 mm Dick, 1.2 mm Radius und Indexgenauigkeit nach ISO-Toleranzklasse-M, im Substrat T5305, MT-CVD beschichtet WC-Co Substrat im ISO-Bereich K01 -K15, zum schlichten bis medium bearbeiten von Gusseisen"],"o":"CZ","a":[["K","primary"],["H","possible"]],"f":[[0,"6755890"],[7,"10"],[14,"TNMA"],[16,"TNMA 433:T5305"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602912565"],[21,"56.0"],[22,"139.0"],[23,"14.5"],[24,"13.274"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5305"],[73,"22"],[74,"04"],[84,"TN"],[158,"1.2"],[174,"22.0"],[181,"6.4"],[183,"1.2"],[207,"5.16"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979619]},"477706":{"c":"TNMA 220412:T5315","s":["Double-sided negative turning insert, triangular with inscribed circle diameter of 12.7 mm, 4.76 mm thick, 1.2 mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10 -K25, for fine to medium machining of cast-irons","Plaquette de tournage négative réversible, forme triangulaire avec un diamètre de cercle inscrit de 12.7 mm, 4.76 mm d'épaisseur, rayon de pointe et 1.2 mm, précision d'indexage selon la classe de tolérance ISO M, en nuance carbure WC-Co T5315, revêtu MT-CVD dans la plage ISO K10 -K25, pour usinage fin à moyen des fontes","Doppelseitige negative Drehwendeschneidplatte, Triangular mit Innenkreisdurchmesser von 12.7 mm, 4.76 mm Dick, 1.2 mm Radius und Indexgenauigkeit nach ISO-Toleranzklasse-M, im Substrat T5315, MT-CVD beschichtet WC-Co Substrat im ISO-Bereich K10 -K25, zum schlichten bis medium bearbeiten von Gusseisen"],"o":"CZ","a":[["K","primary"],["H","possible"]],"f":[[0,"6922803"],[7,"10"],[14,"TNMA"],[16,"TNMA 433:T5315"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603076297"],[21,"56.0"],[22,"139.0"],[23,"14.5"],[24,"13.1"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5315"],[73,"22"],[74,"04"],[84,"TN"],[158,"1.2"],[174,"22.0"],[181,"6.4"],[183,"1.2"],[207,"5.16"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979620]},"477707":{"c":"TNMA 220412:T5405","s":["Double-sided Negative turning insert, T - triangular 60° included angle, size 22 with corner radius 1.2 mm. Combination of chipbreaker .NMA flat insert is designed for medium machining of Cast irons. It features neutral rake angle without T-land. It's also conditionally suitable for Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.","Plaquette de tournage double face Plaquettes négatives, T - triangulaire 60° angle inclus, taille 22 avec rayon d'angle 1.2 mm. La combinaison du brise-copeaux .NMA plaquette plate conçue pour l'usinage semi-ébauche des fontes. Se caractérise par un angle de coupe neutre sans listel. Convient également, sous certaines conditions, aux matériaux durs. et Substrat à base de WC-Co revêtu par MT-CVD T5405. convient aux matériaux suivants : K - Fonte (fontes moulées et alliages au carbone avec une teneur en carbone > 2 %) et Coupe légèrement interrompue.","Doppelseitige Negativ Drehplatte, T - dreieckiger 60° eingeschlossener Winkel, Größe 22 mit Eckenradius 1.2 mm. Die Kombination aus Spanbrecher .NMA ist eine flache Wendeschneidplatte für die mittlere Bearbeitung von Gusseisen konzipiert. Sie hat keinen Spanbrecher. Sie ist auch bedingt für harte Materialien geeignet. und MT-CVD-beschichtetes, auf WC-Co basierendes Substrat T5405. eignet sich für Werkstoffe: K - Gusseisen (Gussstücke aus Eisen und Kohlenstofflegierungen mit > 2% Kohlenstoffgehalt) und Geringfügig unterbrochener Schnitt."],"o":"CZ","a":[["K","primary"]],"f":[[0,"8985000"],[7,"10"],[14,"TNMA"],[16,"TNMA 433:T5405"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604774079"],[21,"56.0"],[22,"139.0"],[23,"14.5"],[24,"13.274"],[64,"Negative",null,"Plaquettes négatives","Negativ"],[65,"T - triangular 60° included angle",null,"T - triangulaire 60° angle inclus","T - dreieckiger 60° eingeschlossener Winkel"],[66,"TNMA"],[68,"A"],[69,"N 0°"],[70,"No chipbreaker"],[71,"T5405"],[73,"22"],[74,"04"],[84,"TN"],[158,"1.2"],[174,"22.0"],[181,"6.4"],[183,"1.2"],[207,"5.16"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[979621]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Uitvoering (DP)

160404:T5305, 160404:T5315, 160404:T5405, 160408:T5305, 160408:T5315, 160408:T5405, 160408:T6310, 160408:T8415, 160408S:T5305, 160408S:T5405, 160412:T5305, 160412:T5315, 160412:T5405, 160412:T5415, 220408:T5305, 220408:T5315, 220408:T5405, 220408:T8415, 220412:T5305, 220412:T5315, 220412:T5405
