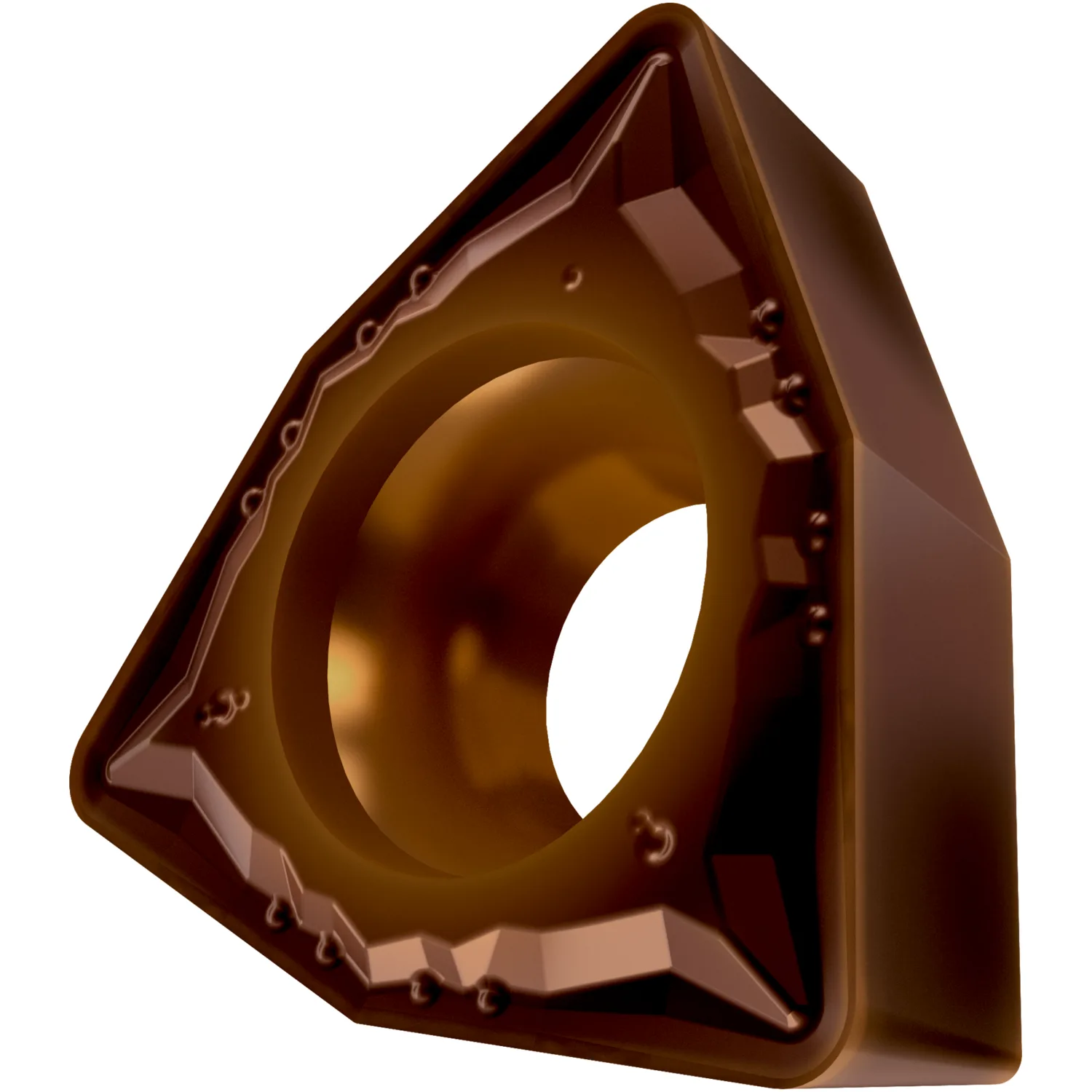

WCMT Draaiwisselplaat - positief

Name: WCMT Draaiwisselplaat - positief (06T304E-FM:T8415) — 10 stuks
SKU: WCMT 06T304E-FM:T8415
Price: 108.5 EUR
Availability: InStock

PRAMET Tsjechië

10,85 €

excl. BTW

Productinformatie

Draaiwisselplaat - Positief

Uitvoering (DP)

Verpakking
- ST
- 10 Units

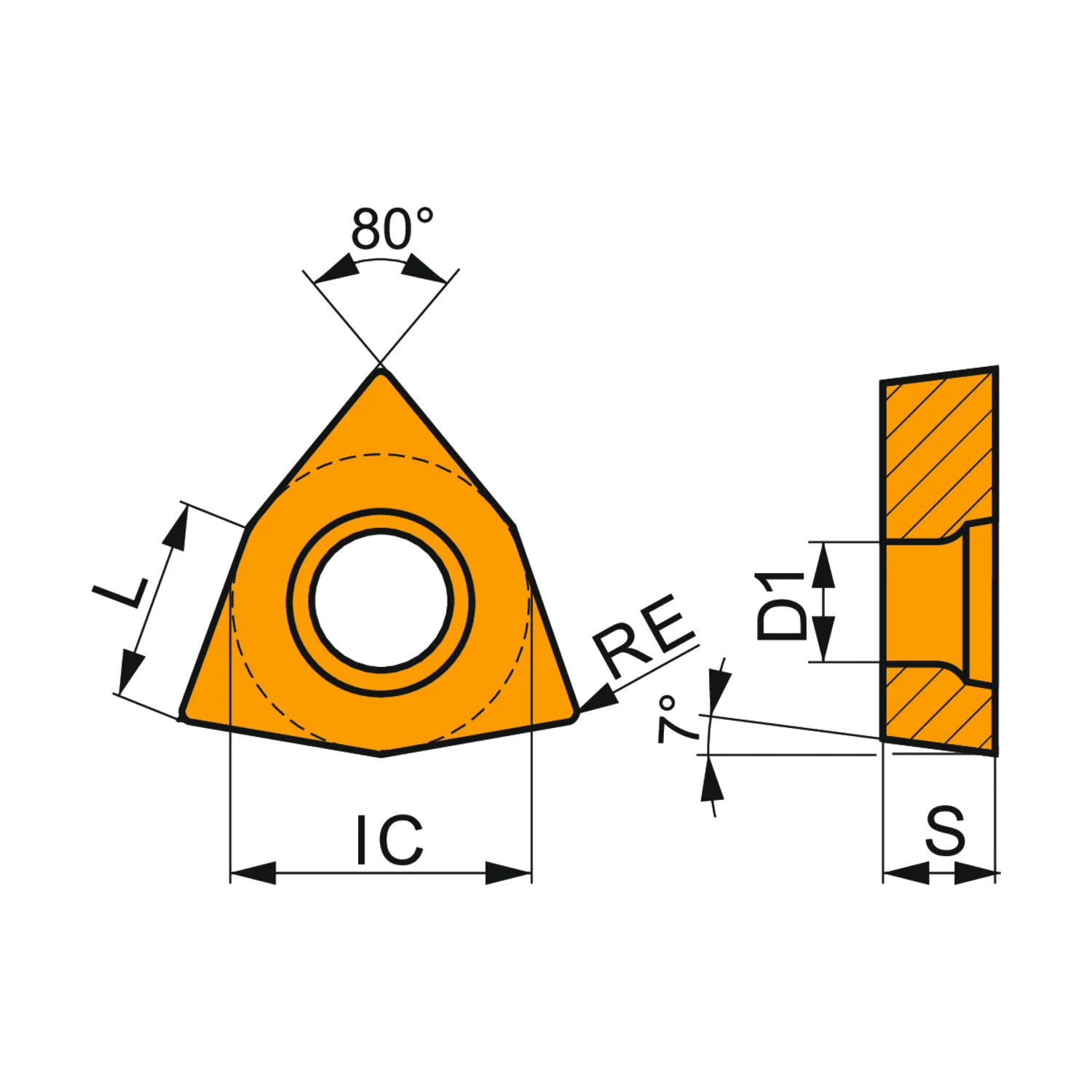

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/WCMT_DIM.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/FM_POS_PROF.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/WCMT-RF_PROF.png","https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/UR_POS_PROF.png"],"p":{"478638":{"c":"WCMT 06T304E-FM:T8415","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8415.","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 9.525 mm, 3.97 mm d'épaisseur, rayon de pointe 0.4 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co à grains fins T8415.","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 9.525 mm, 3.97 mm Dick, 0.4 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T8415."],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"],["N","possible"]],"f":[[0,"8553291"],[7,"10"],[14,"WCMT"],[16,"WCMT 32.51-FM:T8415"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604270168"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"3.792"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T8415"],[72,"Finishing"],[73,"06"],[74,"T3"],[84,"WC"],[158,"0.4"],[174,"6.5"],[207,"4.4"],[228,"9.525"],[235,"3.97"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980552]},"478639":{"c":"WCMT 06T304E-FM:T8430","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for fine to medium machining of steels and stainless-steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 9.525 mm, 3.97 mm d'épaisseur, rayon de pointe 0.4 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co à grains fins T8430, revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour usinage fin à moyen des aciers et aciers inoxydables","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 9.525 mm, 3.97 mm Dick, 0.4 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T8430, PVD beschichtet WC-Co Feinkornsubstrat in den ISO-Bereichen P20 -P40 und M20 -M35, zum schlichten bis medium bearbeiten von Stählen und nichtrostenden Stählen"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"],["N","possible"]],"f":[[0,"7977279"],[7,"10"],[14,"WCMT"],[16,"WCMT 32.51-FM:T8430"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603818903"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"3.705"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T8430"],[72,"Finishing"],[73,"06"],[74,"T3"],[84,"WC"],[158,"0.4"],[174,"6.5"],[207,"4.4"],[228,"9.525"],[235,"3.97"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980553]},"478640":{"c":"WCMT 06T304E-FM:T9325","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 -P35 and M10 -M30, for fine to medium machining of steels and stainless-steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 9.525 mm, 3.97 mm d'épaisseur, rayon de pointe 0.4 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co gradient fonctionnel T9325, revêtu MT-CVD dans les plages ISO P15 -P35 et M10 -M30, pour usinage fin à moyen des aciers et aciers inoxydables","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 9.525 mm, 3.97 mm Dick, 0.4 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T9325, MT-CVD beschichtet functionally graded WC-Co carbide in den ISO-Bereichen P15 -P35 und M10 -M30, zum schlichten bis medium bearbeiten von Stählen und nichtrostenden Stählen"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"]],"f":[[0,"6754442"],[7,"10"],[14,"WCMT"],[16,"WCMT 32.51-FM:T9325"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602898081"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"3.557"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T9325"],[72,"Finishing"],[73,"06"],[74,"T3"],[84,"WC"],[158,"0.4"],[174,"6.5"],[181,"3.0"],[183,"0.3"],[207,"4.4"],[228,"9.525"],[235,"3.97"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980554]},"478641":{"c":"WCMT 06T304E-FM:T9415","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for fine to medium machining of steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 9.525 mm, 3.97 mm d'épaisseur, rayon de pointe 0.4 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co gradient fonctionnel T9415, revêtu MT-CVD dans la plage ISO P05 -P30, pour usinage fin à moyen des aciers","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 9.525 mm, 3.97 mm Dick, 0.4 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T9415, MT-CVD beschichtet WC-Co Substrat im ISO-Bereich P05 -P30, zum schlichten bis medium bearbeiten von Stählen"],"o":"CZ","a":[["P","primary"],["K","possible"]],"f":[[0,"8345992"],[7,"10"],[14,"WCMT"],[16,"WCMT 32.51-FM:T9415"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604110242"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"3.575"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T9415"],[72,"Finishing"],[73,"06"],[74,"T3"],[84,"WC"],[158,"0.4"],[174,"6.5"],[207,"4.4"],[228,"9.525"],[235,"3.97"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980555]},"478642":{"c":"WCMT 06T304E-FM:T9425","s":["Single-sided Positive turning insert, W - trigon, size 6 with corner radius 0.4 mm. Combination of chipbreaker FM chip breaker is versatile and the first choice for finishing of Steels. It features positive rake angle and positive, narrow T-land. It's also suitable for Stainless steels, and conditionally for Cast irons and Non-ferrous alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Continuous cut.","Plaquette de tournage unilatérale Plaquettes positives, W - trigone, taille 6 avec rayon d'angle 0.4 mm. La combinaison du brise-copeaux FM géométrie polyvalente, premier choix pour la finition des aciers. Se caractérise par un angle de coupe positif et un étroit listel positif. Convient également aux aciers inoxydables et, sous certaines conditions, aux fontes et aux alliages non ferreux. et Substrat T9425 revêtu par MT-CVD, à nuance fonctionnelle, conçu principalement pour les matériaux du groupe P. convient aux matériaux : M - Acier inoxydable (aciers résistants à la corrosion avec une teneur en chrome ≥ 11 %), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et d'une dureté < 45 HRC) et Coupe continue.","Einseitige Positiv-Drehplatte, W - trigon, Größe 6 mit Eckenradius 0.4 mm. Die Kombination aus Spanbrecher FM spanbrecher ist vielseitig und die erste Wahl für die Fertigbearbeitung von Stahl. Er zeichnet sich durch einen positiven Spanwinkel und eine positive, schmale Fase aus. Er ist auch für rostfreie Stähle und bedingt für Gusseisen und Nichteisenlegierungen geeignet. und MT-CVD-beschichtetes, funktional abgestuftes Substrat T9425, das hauptsächlich für Materialien der P-Gruppe entwickelt wurde. eignet sich für Werkstoffe: M - Edelstahl (korrosionsbeständige Stähle mit ≥ 11 % Chromgehalt), P - Stahl und Stahlguss und Kontinuierlicher Schnitt."],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"]],"f":[[0,"8986102"],[7,"10"],[14,"WCMT"],[16,"WCMT 32.51-FM:T9425"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604779074"],[21,"40.0"],[22,"98.0"],[23,"14.5"],[24,"3.557"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T9425"],[73,"06"],[74,"0"],[84,"WC"],[158,"0.4"],[174,"6.5"],[181,"3.0"],[183,"0.3"],[207,"4.4"],[228,"9.525"],[235,"3.97"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980556]},"478643":{"c":"WCMT 06T308E-FM:T7325","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10 -M25, for fine to medium machining of stainless-steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 9.525 mm, 3.97 mm d'épaisseur, rayon de pointe 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co gradient fonctionnel T7325, revêtu MT-CVD dans la plage ISO M10 -M25, pour usinage fin à moyen des aciers inoxydables","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 9.525 mm, 3.97 mm Dick, 0.8 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T7325, MT-CVD beschichtet functionally graded WC-Co carbide im ISO-Bereich M10 -M25, zum schlichten bis medium bearbeiten von nichtrostenden Stählen"],"o":"CZ","a":[["P","possible"],["M","primary"]],"f":[[0,"7156447"],[7,"10"],[14,"WCMT"],[16,"WCMT 32.52-FM:T7325"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603165687"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"3.538"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T7325"],[72,"Finishing"],[73,"06"],[74,"T3"],[84,"WC"],[158,"0.8"],[174,"6.5"],[181,"3.0"],[183,"0.5"],[207,"4.4"],[228,"9.525"],[235,"3.97"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980557]},"478644":{"c":"WCMT 06T308E-FM:T7335","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO range M20 -M40, for fine to medium machining of stainless-steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 9.525 mm, 3.97 mm d'épaisseur, rayon de pointe 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co gradient fonctionnel T7335, revêtu MT-CVD dans la plage ISO M20 -M40, pour usinage fin à moyen des aciers inoxydables","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 9.525 mm, 3.97 mm Dick, 0.8 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T7335, MT-CVD beschichtet functionally graded WC-Co carbide im ISO-Bereich M20 -M40, zum schlichten bis medium bearbeiten von nichtrostenden Stählen"],"o":"CZ","a":[["P","possible"],["M","primary"]],"f":[[0,"6754839"],[7,"10"],[14,"WCMT"],[16,"WCMT 32.52-FM:T7335"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602902054"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"3.44"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T7335"],[72,"Finishing"],[73,"06"],[74,"T3"],[84,"WC"],[158,"0.8"],[174,"6.5"],[181,"3.0"],[183,"0.5"],[207,"4.4"],[228,"9.525"],[235,"3.97"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980558]},"478645":{"c":"WCMT 06T308E-FM:T8415","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8415.","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 9.525 mm, 3.97 mm d'épaisseur, rayon de pointe 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co à grains fins T8415.","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 9.525 mm, 3.97 mm Dick, 0.8 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T8415."],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"],["N","possible"]],"f":[[0,"8553292"],[7,"10"],[14,"WCMT"],[16,"WCMT 32.52-FM:T8415"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604270175"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"3.726"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T8415"],[72,"Finishing"],[73,"06"],[74,"T3"],[84,"WC"],[158,"0.8"],[174,"6.5"],[207,"4.4"],[228,"9.525"],[235,"3.97"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980559]},"478646":{"c":"WCMT 06T308E-FM:T8430","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for fine to medium machining of steels and stainless-steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 9.525 mm, 3.97 mm d'épaisseur, rayon de pointe 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co à grains fins T8430, revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour usinage fin à moyen des aciers et aciers inoxydables","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 9.525 mm, 3.97 mm Dick, 0.8 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T8430, PVD beschichtet WC-Co Feinkornsubstrat in den ISO-Bereichen P20 -P40 und M20 -M35, zum schlichten bis medium bearbeiten von Stählen und nichtrostenden Stählen"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"],["N","possible"]],"f":[[0,"7977280"],[7,"10"],[14,"WCMT"],[16,"WCMT 32.52-FM:T8430"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603818910"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"3.641"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T8430"],[72,"Finishing"],[73,"06"],[74,"T3"],[84,"WC"],[158,"0.8"],[174,"6.5"],[207,"4.4"],[228,"9.525"],[235,"3.97"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980560]},"478647":{"c":"WCMT 06T308E-FM:T9325","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 -P35 and M10 -M30, for fine to medium machining of steels and stainless-steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 9.525 mm, 3.97 mm d'épaisseur, rayon de pointe 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co gradient fonctionnel T9325, revêtu MT-CVD dans les plages ISO P15 -P35 et M10 -M30, pour usinage fin à moyen des aciers et aciers inoxydables","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 9.525 mm, 3.97 mm Dick, 0.8 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T9325, MT-CVD beschichtet functionally graded WC-Co carbide in den ISO-Bereichen P15 -P35 und M10 -M30, zum schlichten bis medium bearbeiten von Stählen und nichtrostenden Stählen"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"]],"f":[[0,"6754443"],[7,"10"],[14,"WCMT"],[16,"WCMT 32.52-FM:T9325"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602898098"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"3.495"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T9325"],[72,"Finishing"],[73,"06"],[74,"T3"],[84,"WC"],[158,"0.8"],[174,"6.5"],[181,"3.0"],[183,"0.5"],[207,"4.4"],[228,"9.525"],[235,"3.97"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980561]},"478648":{"c":"WCMT 06T308E-FM:T9415","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for fine to medium machining of steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 9.525 mm, 3.97 mm d'épaisseur, rayon de pointe 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co gradient fonctionnel T9415, revêtu MT-CVD dans la plage ISO P05 -P30, pour usinage fin à moyen des aciers","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 9.525 mm, 3.97 mm Dick, 0.8 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T9415, MT-CVD beschichtet WC-Co Substrat im ISO-Bereich P05 -P30, zum schlichten bis medium bearbeiten von Stählen"],"o":"CZ","a":[["P","primary"],["K","possible"]],"f":[[0,"8345993"],[7,"10"],[14,"WCMT"],[16,"WCMT 32.52-FM:T9415"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604110259"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"3.513"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T9415"],[72,"Finishing"],[73,"06"],[74,"T3"],[84,"WC"],[158,"0.8"],[174,"6.5"],[207,"4.4"],[228,"9.525"],[235,"3.97"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980562]},"478649":{"c":"WCMT 06T308E-FM:T9425","s":["Single-sided Positive turning insert, W - trigon, size 6 with corner radius 0.8 mm. Combination of chipbreaker FM chip breaker is versatile and the first choice for finishing of Steels. It features positive rake angle and positive, narrow T-land. It's also suitable for Stainless steels, and conditionally for Cast irons and Non-ferrous alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Continuous cut.","Plaquette de tournage unilatérale Plaquettes positives, W - trigone, taille 6 avec rayon d'angle 0.8 mm. La combinaison du brise-copeaux FM géométrie polyvalente, premier choix pour la finition des aciers. Se caractérise par un angle de coupe positif et un étroit listel positif. Convient également aux aciers inoxydables et, sous certaines conditions, aux fontes et aux alliages non ferreux. et Substrat T9425 revêtu par MT-CVD, à nuance fonctionnelle, conçu principalement pour les matériaux du groupe P. convient aux matériaux : M - Acier inoxydable (aciers résistants à la corrosion avec une teneur en chrome ≥ 11 %), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et d'une dureté < 45 HRC) et Coupe continue.","Einseitige Positiv-Drehplatte, W - trigon, Größe 6 mit Eckenradius 0.8 mm. Die Kombination aus Spanbrecher FM spanbrecher ist vielseitig und die erste Wahl für die Fertigbearbeitung von Stahl. Er zeichnet sich durch einen positiven Spanwinkel und eine positive, schmale Fase aus. Er ist auch für rostfreie Stähle und bedingt für Gusseisen und Nichteisenlegierungen geeignet. und MT-CVD-beschichtetes, funktional abgestuftes Substrat T9425, das hauptsächlich für Materialien der P-Gruppe entwickelt wurde. eignet sich für Werkstoffe: M - Edelstahl (korrosionsbeständige Stähle mit ≥ 11 % Chromgehalt), P - Stahl und Stahlguss und Kontinuierlicher Schnitt."],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"]],"f":[[0,"8986103"],[7,"10"],[14,"WCMT"],[16,"WCMT 32.52-FM:T9425"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604779081"],[21,"40.0"],[22,"98.0"],[23,"14.5"],[24,"3.495"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T9425"],[73,"06"],[74,"0"],[84,"WC"],[158,"0.8"],[174,"6.5"],[181,"3.0"],[183,"0.5"],[207,"4.4"],[228,"9.525"],[235,"3.97"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980563]},"478653":{"c":"WCMT 080404E-FM:T8430","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 12.7 mm, 4.76 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for fine to medium machining of steels and stainless-steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 12.7 mm, 4.76 mm d'épaisseur, rayon de pointe 0.4 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co à grains fins T8430, revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour usinage fin à moyen des aciers et aciers inoxydables","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 12.7 mm, 4.76 mm Dick, 0.4 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T8430, PVD beschichtet WC-Co Feinkornsubstrat in den ISO-Bereichen P20 -P40 und M20 -M35, zum schlichten bis medium bearbeiten von Stählen und nichtrostenden Stählen"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"],["N","possible"]],"f":[[0,"7977281"],[7,"10"],[14,"WCMT"],[16,"WCMT 431-FM:T8430"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603818927"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"7.775"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T8430"],[72,"Finishing"],[73,"08"],[74,"04"],[84,"WC"],[158,"0.4"],[174,"8.7"],[207,"5.5"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980567]},"478654":{"c":"WCMT 080404E-FM:T9325","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 12.7 mm, 4.76 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 -P35 and M10 -M30, for fine to medium machining of steels and stainless-steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 12.7 mm, 4.76 mm d'épaisseur, rayon de pointe 0.4 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co gradient fonctionnel T9325, revêtu MT-CVD dans les plages ISO P15 -P35 et M10 -M30, pour usinage fin à moyen des aciers et aciers inoxydables","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 12.7 mm, 4.76 mm Dick, 0.4 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T9325, MT-CVD beschichtet functionally graded WC-Co carbide in den ISO-Bereichen P15 -P35 und M10 -M30, zum schlichten bis medium bearbeiten von Stählen und nichtrostenden Stählen"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"]],"f":[[0,"6754444"],[7,"10"],[14,"WCMT"],[16,"WCMT 431-FM:T9325"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602898104"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"7.463"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T9325"],[72,"Finishing"],[73,"08"],[74,"04"],[84,"WC"],[158,"0.4"],[174,"8.7"],[181,"4.0"],[183,"0.4"],[207,"5.5"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980568]},"478655":{"c":"WCMT 080404E-FM:T9425","s":["Single-sided Positive turning insert, W - trigon, size 8 with corner radius 0.4 mm. Combination of chipbreaker FM chip breaker is versatile and the first choice for finishing of Steels. It features positive rake angle and positive, narrow T-land. It's also suitable for Stainless steels, and conditionally for Cast irons and Non-ferrous alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Continuous cut.","Plaquette de tournage unilatérale Plaquettes positives, W - trigone, taille 8 avec rayon d'angle 0.4 mm. La combinaison du brise-copeaux FM géométrie polyvalente, premier choix pour la finition des aciers. Se caractérise par un angle de coupe positif et un étroit listel positif. Convient également aux aciers inoxydables et, sous certaines conditions, aux fontes et aux alliages non ferreux. et Substrat T9425 revêtu par MT-CVD, à nuance fonctionnelle, conçu principalement pour les matériaux du groupe P. convient aux matériaux : M - Acier inoxydable (aciers résistants à la corrosion avec une teneur en chrome ≥ 11 %), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et d'une dureté < 45 HRC) et Coupe continue.","Einseitige Positiv-Drehplatte, W - trigon, Größe 8 mit Eckenradius 0.4 mm. Die Kombination aus Spanbrecher FM spanbrecher ist vielseitig und die erste Wahl für die Fertigbearbeitung von Stahl. Er zeichnet sich durch einen positiven Spanwinkel und eine positive, schmale Fase aus. Er ist auch für rostfreie Stähle und bedingt für Gusseisen und Nichteisenlegierungen geeignet. und MT-CVD-beschichtetes, funktional abgestuftes Substrat T9425, das hauptsächlich für Materialien der P-Gruppe entwickelt wurde. eignet sich für Werkstoffe: M - Edelstahl (korrosionsbeständige Stähle mit ≥ 11 % Chromgehalt), P - Stahl und Stahlguss und Kontinuierlicher Schnitt."],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"]],"f":[[0,"8986105"],[7,"10"],[14,"WCMT"],[16,"WCMT 431-FM:T9425"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604779104"],[21,"40.0"],[22,"98.0"],[23,"14.5"],[24,"7.463"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T9425"],[73,"08"],[74,"04"],[84,"WC"],[158,"0.4"],[174,"8.7"],[181,"4.0"],[183,"0.4"],[207,"5.5"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980569]},"478656":{"c":"WCMT 080408E-FM:T8430","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 12.7 mm, 4.76 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for fine to medium machining of steels and stainless-steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 12.7 mm, 4.76 mm d'épaisseur, rayon de pointe 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co à grains fins T8430, revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour usinage fin à moyen des aciers et aciers inoxydables","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 12.7 mm, 4.76 mm Dick, 0.8 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T8430, PVD beschichtet WC-Co Feinkornsubstrat in den ISO-Bereichen P20 -P40 und M20 -M35, zum schlichten bis medium bearbeiten von Stählen und nichtrostenden Stählen"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"],["N","possible"]],"f":[[0,"7977282"],[7,"10"],[14,"WCMT"],[16,"WCMT 432-FM:T8430"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603818934"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"8.061"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T8430"],[72,"Finishing"],[73,"08"],[74,"04"],[84,"WC"],[158,"0.8"],[174,"8.7"],[207,"5.5"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980570]},"478657":{"c":"WCMT 080408E-FM:T9325","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 12.7 mm, 4.76 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 -P35 and M10 -M30, for fine to medium machining of steels and stainless-steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 12.7 mm, 4.76 mm d'épaisseur, rayon de pointe 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co gradient fonctionnel T9325, revêtu MT-CVD dans les plages ISO P15 -P35 et M10 -M30, pour usinage fin à moyen des aciers et aciers inoxydables","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 12.7 mm, 4.76 mm Dick, 0.8 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T9325, MT-CVD beschichtet functionally graded WC-Co carbide in den ISO-Bereichen P15 -P35 und M10 -M30, zum schlichten bis medium bearbeiten von Stählen und nichtrostenden Stählen"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"]],"f":[[0,"6754445"],[7,"10"],[14,"WCMT"],[16,"WCMT 432-FM:T9325"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602898111"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"7.738"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T9325"],[72,"Finishing"],[73,"08"],[74,"04"],[84,"WC"],[158,"0.8"],[174,"8.7"],[181,"4.0"],[183,"0.5"],[207,"5.5"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980571]},"478658":{"c":"WCMT 080408E-FM:T9415","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 12.7 mm, 4.76 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for fine to medium machining of steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 12.7 mm, 4.76 mm d'épaisseur, rayon de pointe 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co gradient fonctionnel T9415, revêtu MT-CVD dans la plage ISO P05 -P30, pour usinage fin à moyen des aciers","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 12.7 mm, 4.76 mm Dick, 0.8 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T9415, MT-CVD beschichtet WC-Co Substrat im ISO-Bereich P05 -P30, zum schlichten bis medium bearbeiten von Stählen"],"o":"CZ","a":[["P","primary"],["K","possible"]],"f":[[0,"8345994"],[7,"10"],[14,"WCMT"],[16,"WCMT 432-FM:T9415"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604110266"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"7.777"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T9415"],[72,"Finishing"],[73,"08"],[74,"04"],[84,"WC"],[158,"0.8"],[174,"8.7"],[207,"5.5"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980572]},"478659":{"c":"WCMT 080408E-FM:T9425","s":["Single-sided Positive turning insert, W - trigon, size 8 with corner radius 0.8 mm. Combination of chipbreaker FM chip breaker is versatile and the first choice for finishing of Steels. It features positive rake angle and positive, narrow T-land. It's also suitable for Stainless steels, and conditionally for Cast irons and Non-ferrous alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Continuous cut.","Plaquette de tournage unilatérale Plaquettes positives, W - trigone, taille 8 avec rayon d'angle 0.8 mm. La combinaison du brise-copeaux FM géométrie polyvalente, premier choix pour la finition des aciers. Se caractérise par un angle de coupe positif et un étroit listel positif. Convient également aux aciers inoxydables et, sous certaines conditions, aux fontes et aux alliages non ferreux. et Substrat T9425 revêtu par MT-CVD, à nuance fonctionnelle, conçu principalement pour les matériaux du groupe P. convient aux matériaux : M - Acier inoxydable (aciers résistants à la corrosion avec une teneur en chrome ≥ 11 %), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et d'une dureté < 45 HRC) et Coupe continue.","Einseitige Positiv-Drehplatte, W - trigon, Größe 8 mit Eckenradius 0.8 mm. Die Kombination aus Spanbrecher FM spanbrecher ist vielseitig und die erste Wahl für die Fertigbearbeitung von Stahl. Er zeichnet sich durch einen positiven Spanwinkel und eine positive, schmale Fase aus. Er ist auch für rostfreie Stähle und bedingt für Gusseisen und Nichteisenlegierungen geeignet. und MT-CVD-beschichtetes, funktional abgestuftes Substrat T9425, das hauptsächlich für Materialien der P-Gruppe entwickelt wurde. eignet sich für Werkstoffe: M - Edelstahl (korrosionsbeständige Stähle mit ≥ 11 % Chromgehalt), P - Stahl und Stahlguss und Kontinuierlicher Schnitt."],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"]],"f":[[0,"8986106"],[7,"10"],[14,"WCMT"],[16,"WCMT 432-FM:T9425"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604779111"],[21,"40.0"],[22,"98.0"],[23,"14.5"],[24,"7.738"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T9425"],[73,"08"],[74,"04"],[84,"WC"],[158,"0.8"],[174,"8.7"],[181,"4.0"],[183,"0.5"],[207,"5.5"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980573]},"478660":{"c":"WCMT 080412E-FM:T8430","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 12.7 mm, 4.76 mm thick, 1.2 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for fine to medium machining of steels and stainless-steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 12.7 mm, 4.76 mm d'épaisseur, rayon de pointe 1.2 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co à grains fins T8430, revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour usinage fin à moyen des aciers et aciers inoxydables","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 12.7 mm, 4.76 mm Dick, 1.2 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T8430, PVD beschichtet WC-Co Feinkornsubstrat in den ISO-Bereichen P20 -P40 und M20 -M35, zum schlichten bis medium bearbeiten von Stählen und nichtrostenden Stählen"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"],["N","possible"]],"f":[[0,"7977283"],[7,"10"],[14,"WCMT"],[16,"WCMT 433-FM:T8430"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603603818941"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"8.029"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM-P"],[71,"T8430"],[72,"Finishing"],[73,"08"],[74,"04"],[84,"WC"],[158,"1.2"],[174,"8.7"],[207,"5.5"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980574]},"478661":{"c":"WCMT 080412E-FM:T9325","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 12.7 mm, 4.76 mm thick, 1.2 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 -P35 and M10 -M30, for fine to medium machining of steels and stainless-steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 12.7 mm, 4.76 mm d'épaisseur, rayon de pointe 1.2 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance carbure WC-Co gradient fonctionnel T9325, revêtu MT-CVD dans les plages ISO P15 -P35 et M10 -M30, pour usinage fin à moyen des aciers et aciers inoxydables","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 12.7 mm, 4.76 mm Dick, 1.2 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher FM mit verrundeter Schneidkante, im Substrat T9325, MT-CVD beschichtet functionally graded WC-Co carbide in den ISO-Bereichen P15 -P35 und M10 -M30, zum schlichten bis medium bearbeiten von Stählen und nichtrostenden Stählen"],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"]],"f":[[0,"6754446"],[7,"10"],[14,"WCMT"],[16,"WCMT 433-FM:T9325"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602898128"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"7.707"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T9325"],[72,"Finishing"],[73,"08"],[74,"04"],[84,"WC"],[158,"1.2"],[174,"8.7"],[181,"4.0"],[183,"0.8"],[207,"5.5"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980575]},"478662":{"c":"WCMT 080412E-FM:T9425","s":["Single-sided Positive turning insert, W - trigon, size 8 with corner radius 1.2 mm. Combination of chipbreaker FM chip breaker is versatile and the first choice for finishing of Steels. It features positive rake angle and positive, narrow T-land. It's also suitable for Stainless steels, and conditionally for Cast irons and Non-ferrous alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Slightly interrupted cut.","Plaquette de tournage unilatérale Plaquettes positives, W - trigone, taille 8 avec rayon d'angle 1.2 mm. La combinaison du brise-copeaux FM géométrie polyvalente, premier choix pour la finition des aciers. Se caractérise par un angle de coupe positif et un étroit listel positif. Convient également aux aciers inoxydables et, sous certaines conditions, aux fontes et aux alliages non ferreux. et Substrat T9425 revêtu par MT-CVD, à nuance fonctionnelle, conçu principalement pour les matériaux du groupe P. convient aux matériaux : M - Acier inoxydable (aciers résistants à la corrosion avec une teneur en chrome ≥ 11 %), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et d'une dureté < 45 HRC) et Coupe légèrement interrompue.","Einseitige Positiv-Drehplatte, W - trigon, Größe 8 mit Eckenradius 1.2 mm. Die Kombination aus Spanbrecher FM spanbrecher ist vielseitig und die erste Wahl für die Fertigbearbeitung von Stahl. Er zeichnet sich durch einen positiven Spanwinkel und eine positive, schmale Fase aus. Er ist auch für rostfreie Stähle und bedingt für Gusseisen und Nichteisenlegierungen geeignet. und MT-CVD-beschichtetes, funktional abgestuftes Substrat T9425, das hauptsächlich für Materialien der P-Gruppe entwickelt wurde. eignet sich für Werkstoffe: M - Edelstahl (korrosionsbeständige Stähle mit ≥ 11 % Chromgehalt), P - Stahl und Stahlguss und Geringfügig unterbrochener Schnitt."],"o":"CZ","a":[["P","primary"],["M","primary"],["K","possible"]],"f":[[0,"8986107"],[7,"10"],[14,"WCMT"],[16,"WCMT 433-FM:T9425"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604779128"],[21,"40.0"],[22,"98.0"],[23,"14.5"],[24,"7.707"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"FM"],[71,"T9425"],[73,"08"],[74,"04"],[84,"WC"],[158,"1.2"],[174,"8.7"],[181,"4.0"],[183,"0.8"],[207,"5.5"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",1]],"d":[],"x":[980576]},"478650":{"c":"WCMT 06T308E-RF:T7335","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RF with rounded cutting edges, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide, for fine to heavy machining","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 9.525 mm, 3.97 mm d'épaisseur, rayon de pointe 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux RF avec arêtes de coupe arrondies, en nuance carbure WC-Co gradient fonctionnel T7335, revêtu MT-CVD, pour usinage fin à lourd","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 9.525 mm, 3.97 mm Dick, 0.8 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher RF mit verrundeter Schneidkante, im Substrat T7335, MT-CVD beschichtet functionally graded WC-Co carbide, zum schlichten bis schruppen bearbeiten"],"o":"CZ","a":[["P","possible"],["M","possible"]],"f":[[0,"6756046"],[7,"10"],[14,"WCMT"],[16,"WCMT 32.52-RF:T7335"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602914125"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"3.6"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"RF"],[71,"T7335"],[72,"Medium"],[73,"06"],[74,"T3"],[84,"WC"],[158,"0.8"],[174,"6.5"],[181,"4.0"],[183,"0.8"],[207,"4.4"],[228,"9.525"],[235,"3.97"]],"m":[["dimensions",0],["geometry",2]],"d":[],"x":[980564]},"478663":{"c":"WCMT 080412E-RF:T7335","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 12.7 mm, 4.76 mm thick, 1.2 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RF with rounded cutting edges, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide, for fine to heavy machining","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 12.7 mm, 4.76 mm d'épaisseur, rayon de pointe 1.2 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux RF avec arêtes de coupe arrondies, en nuance carbure WC-Co gradient fonctionnel T7335, revêtu MT-CVD, pour usinage fin à lourd","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 12.7 mm, 4.76 mm Dick, 1.2 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher RF mit verrundeter Schneidkante, im Substrat T7335, MT-CVD beschichtet functionally graded WC-Co carbide, zum schlichten bis schruppen bearbeiten"],"o":"CZ","a":[["P","possible"],["M","possible"]],"f":[[0,"6756047"],[7,"10"],[14,"WCMT"],[16,"WCMT 433-RF:T7335"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602914132"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"8.0"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"RF"],[71,"T7335"],[72,"Medium"],[73,"08"],[74,"04"],[84,"WC"],[158,"1.2"],[174,"8.7"],[181,"5.6"],[183,"1.2"],[207,"5.5"],[228,"12.7"],[235,"4.76"]],"m":[["dimensions",0],["geometry",2]],"d":[],"x":[980577]},"478651":{"c":"WCMT 06T308E-UR:T9325","s":["Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15 -P35, for fine to heavy machining of steels","Plaquette de tournage positive non réversible, forme trigone à 80° avec 7° de dépouille, un diamètre de cercle inscrit de 9.525 mm, 3.97 mm d'épaisseur, rayon de pointe 0.8 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux UR avec arêtes de coupe arrondies, en nuance carbure WC-Co gradient fonctionnel T9325, revêtu MT-CVD dans la plage ISO P15 -P35, pour usinage fin à lourd des aciers","Einseitige positive Drehwendeschneidplatte, 80° Trigon mit 7° Freiwinkel, Innenkreisdurchmesser von 9.525 mm, 3.97 mm Dick, 0.8 mm Radius, Indexgenauigkeit nach ISO-Toleranzklasse-M, Spanbrecher UR mit verrundeter Schneidkante, im Substrat T9325, MT-CVD beschichtet functionally graded WC-Co carbide im ISO-Bereich P15 -P35, zum schlichten bis schruppen bearbeiten von Stählen"],"o":"CZ","a":[["P","primary"],["M","possible"],["K","possible"]],"f":[[0,"6754661"],[7,"10"],[14,"WCMT"],[16,"WCMT 32.52-UR:T9325"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603602900272"],[21,"40.0"],[22,"98.0"],[23,"11.0"],[24,"3.419"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"UR"],[71,"T9325"],[72,"Finishing"],[73,"06"],[74,"T3"],[84,"WC"],[158,"0.8"],[174,"6.5"],[181,"3.0"],[183,"0.8"],[207,"4.4"],[228,"9.525"],[235,"3.97"]],"m":[["dimensions",0],["geometry",3]],"d":[],"x":[980565]},"478652":{"c":"WCMT 06T308E-UR:T9425","s":["Single-sided Positive turning insert, W - trigon, size 6 with corner radius 0.8 mm. Combination of chipbreaker UR chip breaker is versatile and the first choice for finishing of Cast irons. It features positive rake angle without T-land. It's also suitable for Steels, and conditionally for Stainless steels. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.","Plaquette de tournage unilatérale Plaquettes positives, W - trigone, taille 6 avec rayon d'angle 0.8 mm. La combinaison du brise-copeaux UR géométrie polyvalente, premier choix pour la finition des fontes. Elle est dotée d'un angle de coupe positif, sans listel. Convient également aux aciers et, sous réserve, aux aciers inoxydables. et Substrat T9425 revêtu par MT-CVD, à nuance fonctionnelle, conçu principalement pour les matériaux du groupe P. convient aux matériaux : P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et d'une dureté < 45 HRC), K - Fonte (fontes moulées et alliages au carbone avec une teneur en carbone > 2 %) et Coupe continue.","Einseitige Positiv-Drehplatte, W - trigon, Größe 6 mit Eckenradius 0.8 mm. Die Kombination aus Spanbrecher UR spanbrecher ist vielseitig und die erste Wahl für die Fertigbearbeitung von Gusseisen. Er verfügt über einen positiven Spanwinkel ohne Fase. Er ist auch für Stähle und bedingt für rostfreie Stähle geeignet. und MT-CVD-beschichtetes, funktional abgestuftes Substrat T9425, das hauptsächlich für Materialien der P-Gruppe entwickelt wurde. eignet sich für Werkstoffe: P - Stahl und Stahlguss, K - Gusseisen (Gussstücke aus Eisen und Kohlenstofflegierungen mit > 2% Kohlenstoffgehalt) und Kontinuierlicher Schnitt."],"o":"CZ","a":[["P","primary"],["M","possible"],["K","primary"]],"f":[[0,"8986104"],[7,"10"],[14,"WCMT"],[16,"WCMT 32.52-UR:T9425"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"3603604779098"],[21,"40.0"],[22,"98.0"],[23,"14.5"],[24,"3.419"],[64,"Positive",null,"Plaquettes positives","Positiv"],[65,"W - trigon",null,"W - trigone",null],[66,"WCMT"],[68,"T"],[69,"C 7°"],[70,"UR"],[71,"T9425"],[73,"06"],[74,"0"],[84,"WC"],[158,"0.8"],[174,"6.5"],[181,"3.0"],[183,"0.8"],[207,"4.4"],[228,"9.525"],[235,"3.97"]],"m":[["dimensions",0],["geometry",3]],"d":[],"x":[980566]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene B2B-verkoopvoorwaarden
B2B-retourbeleid

Specificaties

Uitvoering (DP)

06T304E-FM:T8415, 06T304E-FM:T8430, 06T304E-FM:T9325, 06T304E-FM:T9415, 06T304E-FM:T9425, 06T308E-FM:T7325, 06T308E-FM:T7335, 06T308E-FM:T8415, 06T308E-FM:T8430, 06T308E-FM:T9325, 06T308E-FM:T9415, 06T308E-FM:T9425, 06T308E-RF:T7335, 06T308E-UR:T9325, 06T308E-UR:T9425, 080404E-FM:T8430, 080404E-FM:T9325, 080404E-FM:T9425, 080408E-FM:T8430, 080408E-FM:T9325, 080408E-FM:T9415, 080408E-FM:T9425, 080412E-FM:T8430, 080412E-FM:T9325, 080412E-FM:T9425, 080412E-RF:T7335
