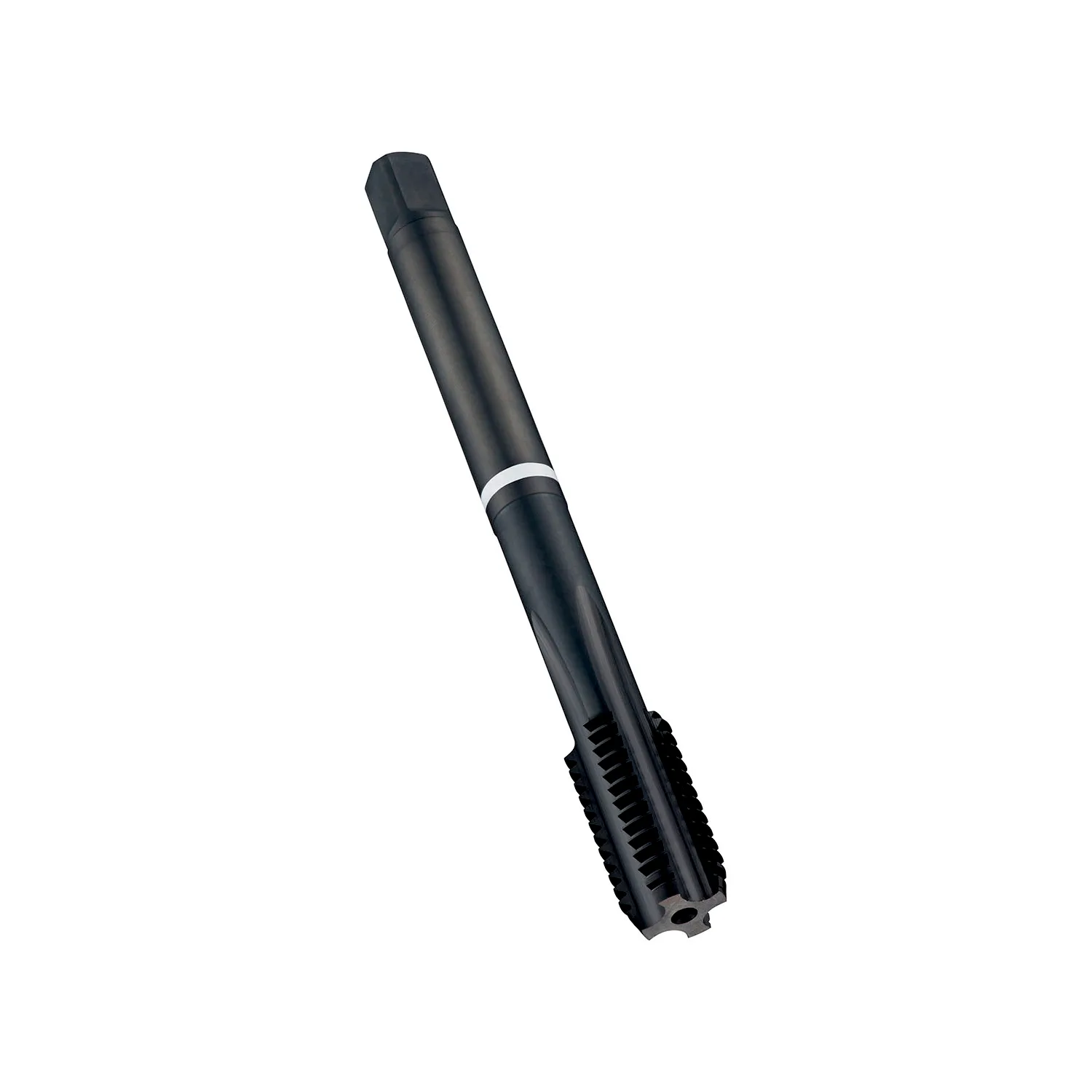

E252 White SHARK Straight Flute Metric Machine Tap, DIN Standard

Name: E252 White SHARK Straight Flute Metric Machine Tap, DIN Standard
SKU: E252M8
Price: 24.08 EUR
Availability: InStock

DORMER India

24.08 €

excl. VAT

Product information

Straight flute tap with reinforced shank for blind and through holes in short chipping cast iron and high strength non-ferrous materials. HSS-E-PM substrate provides superior performance, consistency and extended tool life. Steam tempered surface acts to retain cutting fluid and prevent chip to tool welding.

Thread standard
Thread standard
Coating (DP)
Draadmaat (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E252_DIM.png"],"p":{"466468":{"c":"E252M8","s":["Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Gerade genuteter Gewindebohrer White Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M8 mit 1.25 mm Steigung und 6HX Toleranzklasse, Abmessungen nach DIN 376 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2xD Durchgangs- und Sacklochgewinde in Grauguss, Temperguss, duktiles und verdichteter Graphitguss und Polymere"],"o":"IN","a":[["K","primary"],["N","primary"]],"f":[[0,"5975463"],[7,"1"],[14,"E252"],[16,"E252M8"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760087343"],[21,"16.37"],[22,"103.42"],[23,"13.68"],[24,"25.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6HX"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"90.0"],[266,"6.8"],[300,"8"],[302,"1.25"],[307,"18.0"],[312,"D5"]],"m":[["dimensions",0]],"d":[],"x":[967579]},"466469":{"c":"E252M10","s":["Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Gerade genuteter Gewindebohrer White Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M10 mit 1.50 mm Steigung und 6HX Toleranzklasse, Abmessungen nach DIN 376 Standard mit 7.0 mm Schaft und 5.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2xD Durchgangs- und Sacklochgewinde in Grauguss, Temperguss, duktiles und verdichteter Graphitguss und Polymere"],"o":"IN","a":[["K","primary"],["N","primary"]],"f":[[0,"5975917"],[7,"1"],[14,"E252"],[16,"E252M10"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760087268"],[21,"16.29"],[22,"111.49"],[23,"12.93"],[24,"35.1"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6HX"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"5.5"],[138,"7.0"],[260,"100.0"],[266,"8.5"],[300,"10"],[302,"1.5"],[307,"20.0"],[312,"D6"]],"m":[["dimensions",0]],"d":[],"x":[967580]},"466470":{"c":"E252M12","s":["Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Gerade genuteter Gewindebohrer White Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M12 mit 1.75 mm Steigung und 6HX Toleranzklasse, Abmessungen nach DIN 376 Standard mit 9.0 mm Schaft und 7.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2xD Durchgangs- und Sacklochgewinde in Grauguss, Temperguss, duktiles und verdichteter Graphitguss und Polymere"],"o":"IN","a":[["K","primary"],["N","primary"]],"f":[[0,"5975921"],[7,"1"],[14,"E252"],[16,"E252M12"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760087275"],[21,"19.97"],[22,"118.74"],[23,"17.5"],[24,"58.9"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6HX"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"110.0"],[266,"10.3"],[300,"12"],[302,"1.75"],[307,"23.0"],[312,"D6"]],"m":[["dimensions",0]],"d":[],"x":[967581]},"466471":{"c":"E252M14","s":["Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Gerade genuteter Gewindebohrer White Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M14 mit 2.00 mm Steigung und 6HX Toleranzklasse, Abmessungen nach DIN 376 Standard mit 11.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2xD Durchgangs- und Sacklochgewinde in Grauguss, Temperguss, duktiles und verdichteter Graphitguss und Polymere"],"o":"IN","a":[["K","primary"],["N","primary"]],"f":[[0,"5975929"],[7,"1"],[14,"E252"],[16,"E252M14"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760087282"],[21,"17.0"],[22,"110.0"],[23,"17.0"],[24,"70.5"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6HX"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"11.0"],[260,"110.0"],[266,"12.0"],[300,"14"],[302,"2.0"],[307,"25.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[967582]},"466472":{"c":"E252M16","s":["Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Gerade genuteter Gewindebohrer White Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M16 mit 2.00 mm Steigung und 6HX Toleranzklasse, Abmessungen nach DIN 376 Standard mit 12.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2xD Durchgangs- und Sacklochgewinde in Grauguss, Temperguss, duktiles und verdichteter Graphitguss und Polymere"],"o":"IN","a":[["K","primary"],["N","primary"]],"f":[[0,"5975258"],[7,"1"],[14,"E252"],[16,"E252M16"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760087299"],[21,"21.0"],[22,"113.0"],[23,"21.0"],[24,"93.5"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6HX"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"12.0"],[260,"110.0"],[266,"14.0"],[300,"16"],[302,"2.0"],[307,"25.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[967583]},"466473":{"c":"E252M20","s":["Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Gerade genuteter Gewindebohrer White Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M20 mit 2.50 mm Steigung und 6HX Toleranzklasse, Abmessungen nach DIN 376 Standard mit 16.0 mm Schaft und 12.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2xD Durchgangs- und Sacklochgewinde in Grauguss, Temperguss, duktiles und verdichteter Graphitguss und Polymere"],"o":"IN","a":[["K","primary"],["N","primary"]],"f":[[0,"5975347"],[7,"1"],[14,"E252"],[16,"E252M20"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760087312"],[21,"22.0"],[22,"142.5"],[23,"22.0"],[24,"204.9"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6HX"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"15.0"],[128,"12.0"],[138,"16.0"],[260,"140.0"],[266,"17.5"],[300,"20"],[302,"2.5"],[307,"30.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[967584]},"466474":{"c":"E252M24","s":["Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Gerade genuteter Gewindebohrer White Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M24 mit 3.00 mm Steigung und 6HX Toleranzklasse, Abmessungen nach DIN 376 Standard mit 18.0 mm Schaft und 14.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2xD Durchgangs- und Sacklochgewinde in Grauguss, Temperguss, duktiles und verdichteter Graphitguss und Polymere"],"o":"IN","a":[["K","primary"],["N","primary"]],"f":[[0,"5975449"],[7,"1"],[14,"E252"],[16,"E252M24"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760087336"],[21,"29.0"],[22,"160.0"],[23,"29.0"],[24,"260.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6HX"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"14.5"],[138,"18.0"],[260,"160.0"],[266,"21.0"],[300,"24"],[302,"3.0"],[307,"38.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[],"x":[967585]}}}

Add to cart

Add to wishlist

Terms and conditions
Business returns only with prior approval
Delivery: 3-4 business days. Belgium and Luxembourg: 1 business day. Contact us for delivery times and availability.

Specifications

Draadmaat (DP)	8, 10, 12, 14, 16, 20, 24
Thread standard	M - Metric coarse, M - Metric coarse
Coating (DP)	Steam Tempered
